ComAp Komeo User manual

Q412005001 –03/16 –Ind B
P/N: Q412005001
Pour sortir l’appareil du carton, veuillez lire attentivement les consignes de la
notice.
Nous vous remercions d’avoir choisi un produit COMAP.
Pour bénéficier du service clientèle et technique, veuillez enregistrer votre produit en renvoyant le
coupon de la carte de garantie ou en vous enregistrant sur [e-mail]
Q412005001 –03/16 –Ind B
P/N: Q412005001
Pour sortir l’appareil du carton, veuillez lire attentivement les consignes de la
notice.
Nous vous remercions d’avoir choisi un produit COMAP.
Pour bénéficier du service clientèle et technique, veuillez enregistrer votre produit en renvoyant le
coupon de la carte de garantie ou en vous enregistrant sur [e-mail]
CLEAN
TECHNOLOGY
Please read the instructions in the manual carefully before removing the device from
the box. Thank you for choosing a COMAP product.
To take advantage of technical and customer service, please register your product by returning the reply
coupon from the warranty card, or register via sav[email protected]
Komeo water treatment unit
WATER TREATMENT UNIT

Contents
I - Important recommendations Page 4
a) Important safety instructions and symbols
b) Device-related safety instructions
c) Guarantee (booklet provided in Appendix)
II - Description of Komeo Page 9
III - Before installation Page 10
IV - Installing Komeo Page 14
V - Starting the machine Page 17
VI - Description of the touch screen Page 18
a) Description of indicator lights
b) Description of menus
c) Downloading the remote control application
d) Pairing the unit with the application
VII - Maintenance / Troubleshooting Page 21
a) Replacing the filters cartridge
b) Replacing the UVc lamp
c) Automatic prefilter cleaning
d) Manual prefilter cleaning
e) Replacing the fuse
VIII - Troubleshooting guide Page 24
a) Guide to errors
b) What to do in case of a power cut
c) Other maintenance operations
d) What to do in case of a long absence

4
I - Important recommendations
a) Important safety instructions and symbols
Before using this device, please read this guide
carefully and keep it for future reference. Only
use this device for its intended purpose and in
accordance with the instructions given in the guide.
This device must not be used by children under the
age of 8 years or by persons of diminished physical,
sensory or mental capacity or persons without any
experience or knowledge unless they are properly
supervised or if they have been given instructions
concerning the safe use of the device and have
understood the risks involved. Children must not
play with the device. The cleaning and maintenance
to be performed by the user must not be carried
out by unsupervised children. The warnings and
important safety instructions in this guide do not
purport to cover every situation that is likely to
occur. It is your responsibility to apply common
sense and caution during installation, maintenance,
and operation of the device.
b) Device-related safety instructions
The purpose of these warning symbols is to help
users avoid any risk of injury. They must be obeyed
under all circumstances.
Read the "Safety instructions" section of this guide
carefully, and keep the guide in a safe place so that
you can refer to it in the future. A guarantee leaflet
is also supplied with this guide. It gives details of
the terms of the guarantee and the general safety
instructions that apply to all of our products.
Ensure that the product is earthed and
connected to a socket protected by a 30 mA
residual current circuit breaker. Seek
assistance from a professional if necessary.
Contact the technical support department for
help (0033 (0)4-75-85-28-11)
Notes
CE Noce
This product is compliant with the directives
concerning Low Voltage (2006/95/EC, Electromagnetic
Compatibility (2004/108/EC), limiting the use of
certain dangerous substances in electrical and
electronic equipment (RoHS), and Radio (1999/5/EC).
The warnings and important safety instructions in
this guide do not purport to cover every situation
that is likely to occur. It is your responsibility to apply
common sense and caution during installation,
maintenance, and operation of the device.
Keep this user guide
Dangerous leakage of UV-C radiaon can
occur if the device is used in a manner not
intended or if its casing is damaged. Even
at small doses, UV-C radiaon can be
hazardous to eyes and skin. Machines that
are obviously damaged should not be put
into operaon. The device must be
disconnected from the power supply
before you replace the UV-C emier.
WARNING
CAUTION
Risks or hazardous actions likely to lead to
serious, or even fatal, injury.
Inappropriate or hazardous use likely to
cause slight injury or equipment damage.
DO NOT attempt
DO NOT disassemble
DO NOT touch
Apply the instructions to the letter.
Disconnect the plug from the socket.
WARNING

54
I - Important recommendations
 If the power supply cable is damaged,
it must be replaced by the
manufacturer, its aer-sales service
department, or similarly qualied
persons in order to prevent
any danger.
 Disconnect the mains power supply
cable from the device before
removing the cover and before
carrying out any maintenance.
 Do not modify the device.
 Keep the box for use as a mounng
template for the device.
 Install the device on a cold water
system (temperature between 5°C
and 30°C).
 If the pressure in the cold water
system exceeds 3 bar, a pressure
reducing valve must be installed.
 Opmum operaon of the device
is achieved at ow rates below
2 m³/ hour.
 Ensure that your device is located in
a temperate locaon (temperature
between 5°C and 35°C).
 The device needs to be connected to
the electrical network. Make sure it is
installed near an electrical socket. If
not, have a socket installed.
 It is recommended that the device
be placed within 2 metres of a waste
water drain (optional).
 Connect the Komeo hydraulically
according to DTU 60.1, 60.11.
 Never connect the power cable to
a socket that has not been properly
earthed, and ensure that it complies
with local and national regulations.
 Never start up a device that shows any
signs of damage. In case of doubt, call
the aer-sales service department.
 Do not install the device in a locaon
where it is exposed to direct sunlight
or near a cooker, heater, or other
devices.
 Any damage to the insulation of the
electrical components is likely to
cause electrocution or fire.
 Do not connect several devices to the
same multi-socket.
 Do not connect the power supply plug
to a badly installed wall socket.
 Do not use a cable whose sheath
cracked or damaged at any point or at
one of its ends.
 Do not pull the power cable or bend it
too tightly, and do not place heavy
objects on it. Do not tie it in a knot.
 Do not use aerosols near the device.
 Do not install this device in a location
where gas leaks are likely to occur.
 In case of a leak in the device,
disconnect Komeo from the electrical
network.
 This device must be earthed. To
earth the device, do not connect it
to a gas pipe, a plastic water pipe, or
a telephone line. To do so could cause
a risk of electric shock, electrocution,
or fire.
 A shut-off valve and a standardised
non-return valve must be installed
upstream and downstream from the
device. For proper WiFi operation, it is
preferable to place Komeo in an area
covered by your wireless router.
If not, add a WiFi relay.
WARNING
WARNING
WARNING
WARNING
CAUTION
Read the "Safety instructions" section of this guide
carefully, and keep the guide in a safe place so that
you can refer to it in the future. A guarantee leaflet
is also supplied with this guide. It gives details of
the terms of the guarantee and the general safety
instructions that apply to all of our products.
Ensure that the product is earthed and
connected to a socket protected by a 30 mA
residual current circuit breaker. Seek
assistance from a professional if necessary.
Contact the technical support department for
help (0033 (0)4-75-85-28-11)
Notes
CE Noce
This product is compliant with the directives
concerning Low Voltage (2006/95/EC, Electromagnetic
Compatibility (2004/108/EC), limiting the use of
certain dangerous substances in electrical and
electronic equipment (RoHS), and Radio (1999/5/EC).
The warnings and important safety instructions in
this guide do not purport to cover every situation
that is likely to occur. It is your responsibility to apply
common sense and caution during installation,
maintenance, and operation of the device.
Keep this user guide
Dangerous leakage of UV-C radiaon can
occur if the device is used in a manner not
intended or if its casing is damaged. Even
at small doses, UV-C radiaon can be
hazardous to eyes and skin. Machines that
are obviously damaged should not be put
into operaon. The device must be
disconnected from the power supply
before you replace the UV-C emier.

6
 Secure the device to the wall on a solid
surface able to support 25 kg on four
mounting points. The wall plugs
provided are intended for use in
materials such as concrete. For other
types of material, use appropriate
mounting hardware.
 Do not install this device near a heat
source or any flammable material.
 Do not install this device in a damp,
oily, or dusty environment, or
in a location where it is directly
exposed to sunlight or water. Failure
to apply this recommendation could
cause electrocution or fire.
 It is recommended that you call on
a qualified technician or a repair
company to install or repair the device
or to update the software via the USB
key. Failure to apply this
recommendation could cause a risk of
electric shock, fire, injury, or
malfunction of the device.
 Do not touch the device's power plug
if your hands are wet.
 The device must be earthed and
connected via a standardised
230-Vac/16-A Phase/Neutral + Earth
connector and protected by a 30-mA
circuit breaker. Failure to apply this
recommendation would lead to a risk
of electrocution or injury.
 The fuse must be replaced by
a qualified technician or repair
company.
 If the power cable is damaged,
immediately ask the manufacturer or
certified repair technician to
replace it.
 Insert the power supply plug to that the
cable hangs down.
 If the power cable is plugged in
upside down, the cable could break,
causing a fire or electrocution.
 Do not climb onto the machine. Do
not place any object (such as laundry,
lighted candles, lighted cigarettes,
metallic objects, etc.) on the machine.
 Do not place any container of water or
filter bowl on the machine.
 Do not attempt to look at the UVc
lamp when it is switched on. This
could cause irreversible damage to
the retina and skin.
 Do not touch the UVc lamp with
bare hands.
 In case of traces of dust or water
leakage in the device, disconnect
it and contact COMAP after-sales
service. Shut off the water supply
and switch the device to Bypass
Mode (shunting the water circuit).
 When commissioning the device, start
by supplying it with water and check
that there is no leakage in the device
or the installation before connecting
it to the electricity supply.
 In the event of an extended absence
of power supply, whether deliberate
or not, disconnect the power cable,
remove the protective cover, and set
the battery unit switch to OFF. Apply
these steps in reverse when normal
power is restored.
 If the machine is releasing a chemical
odour or smoke, disconnect it
immediately and contact COMAP
after-sales service.
 Modifications can lead to injury and/
or property damage. Modifications
applied to this device by a third
party are not covered by the COMAP
service guarantee. COMAP accepts no
liability in the event of safety issues or
damage resulting from modifications
made by a third party.
 Do not apply violent shocks or
excessive force to the device or in
CAUTION
CAUTION
WARNING
WARNING
CAUTION
CAUTION
CAUTION

76
the quartz enclosure (glass tube)
housing the UVc lamp. This could lead
to cracking or breakage of the glass
tube, bringing the lamp into contact
with water from the circuit. This could
lead to injury or electrocution.
 Be aware of the working life of
consumables and replace them in
strict accordance with the instruction
manual. Never perform maintenance
on the device with the power cable
plugged in. The battery unit takes
over to display the maintenance
procedures on the touch screen.
Never plug the power cable into the
socket until the cover is closed.
 Donotattempttorepair,disassemble,
or modify the device yourself.
 This instruction manual is a guide to
installing the Komeo water treatment
unit. The illustrations it contains are
not contractual.
CAUTION

8
Technical characteristics:
Electrical functions:
 Anti-scaling by electrical field, with two treatment ratings. Rimeau technology
Atex CSTBat N° 575 – 05/1995.
 Stainless UVc treatment chamber. 25-watt UVc lamp.
 Drinking water standard: Not less than 25 mj/cm², in accordance with French Health
directive in the circular of 19/01/1987 (achieved with a max. instantaneous flow in
the water system of 1.5 m³/h).
 Electricity consumption slaved to water utilisation by an integral flow sensor
(automatic standby function).
 3.5" touch screen. Resolution 320 x 240 pixels
 2.4-GHz single-band WiFi card. IEEE 802.11b/g/n.
 Motorised valve for prefilter inlet and outlet.
 Pressure sensors and flow meter.
 Electrical power supply: 230 V AC 50-60 Hz with earth.
 Rating: 30 W
 Pollution degree: 1.
 Overvoltage category: 2.
 Hygrometric and altitude operating conditions: RH: 90% / 2000 m.
 Waterproofing standard: IP 21.
 Electrical standard: CE compliant
 Fuse: F 500 mA AH (5 x 20 mm).
Hydraulic functions:
 Stream self-cleaning prefilter with 2 filter ratings: 90 µm and 40 µm on stainless mesh.
 10 µm BIRM cartridge filter® combined with extruded active carbon: treats chlorine, iron
and manganese, and reduces nitrate content.
 10 µm KDF® cartridge filter combined with extruded active carbon: treats heavy metals
and micro-pollutants.
 Max. system pressure: 4 bars / 400 KPa.
 Water temperature: 5 to 30 °C.
 Filtered water delivery rate: max. 2 m³/h
 Max. hardness: up to 45 °f or 25 °dH.
 ¾’’ male inlet/outlet (or female using angle unions supplied).
 Integral air purge in head.
 Water purge for decompression.
 Dimensions cm (H x L x D): 59 x 59 x 17.
 Weight: 20 kg.
Accessories and consumables:
 10 μ 15" BIRM® cartridge filter with extruded active carbon (Cat. No.: Q511016001).
 10 μ 15" KDF® cartridge filter with extruded active carbon (Cat. No.: Q511015001).
 25 W UVc lamp (Cat. No.: Q512013001).
 Four LR6 1.5-V batteries.
 Quartz tube O-ring (Cat. No.: Q513010001).
 Self-cleaning filter mesh + prefilter bowl seal (Cat. No.: Q511017001).
 O-ring for filter bowl (Cat. No.: 527199).
BIRM® is a registered trademark of the Clack Corporation. KDF® is a registered trademark
of KDF Fluid Treatment.
II - Descripon of Komeo

98
1. Inlet and outlet
2. Flow meter chamber - Anti-scaling -
Power operated inlet valve.
3. Prefilter
4. Power operated valve
5. 15" filter bowls
6. Filter nut
7. UVc lamp connector
8. Anti-bacteria UVc chamber
9. Power cable
10. Pack of 4 batteries
11. Water purge
12. Touch control interface
II - Descripon of Komeo
(7)
(8)
(12) (11)
(9)
(1)
(10)
(4)
(2)
(3) (6)
(5)
(1)

10

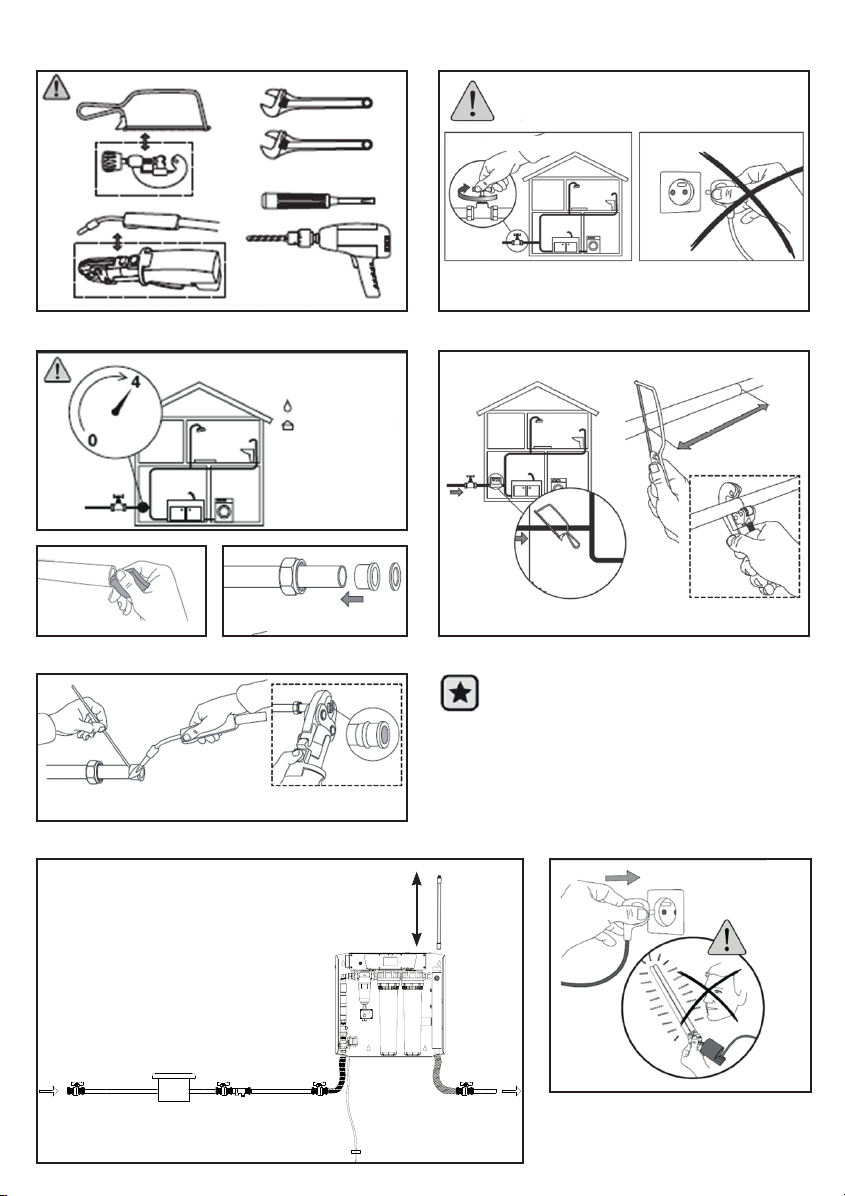

COMAP WT strongly recommends calling on a professional to install Komeo. Connection
suggestions are offered, and the installation must be carried out according to good
professional practice.

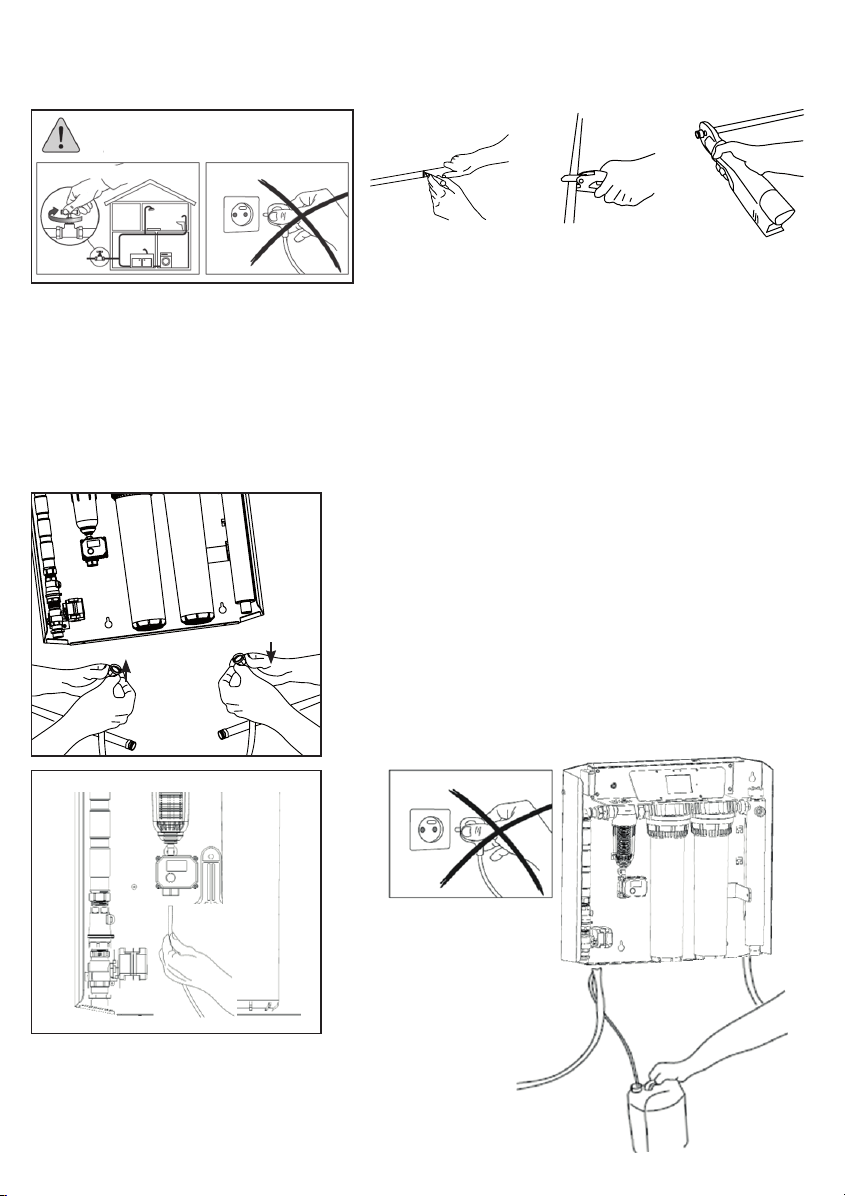

Remove the cover to unclip the washers that secure the device to the bottom of the box.
Check for presence of the accessory pouch
containing:
The instruction manual and guarantee
leaflet, four seals, four wall plugs, four LR6
1.5-V batteries, four screws and two TH
hardness test strips, Ø8 pipe, one filter key
and one prefilter key, a UVc lamp packaged
in a protective tube (to be mounted and
connected at the time of installation).
Remove the four fasteners ❷securing the
Komeo base to the box, and withdraw Komeo.
III - Before installaon
Take the spacers from the bottom of the
box to mount the device on the wall.
❷
❷
❷
❷
1110
III -Avant l’installation
COMAP WT vous recommande vivement de faire appel à un professionnel pour
installer Komeo. Des suggestions de raccordements sont proposées, l’installation
doit se faire dans les règles de l’art.
Vérifier la présence du sachet accessoire
comprenant :
La notice et le livret de garantie, 4 joints,
4 chevilles, 4 piles LR6 1,5V, 4 vis et 2 bandelettes
test TH dureté, du tuyau Ø8, 1 clé de filtre et une
clé de pré-filtre, une lampe Uvc emballée dans
un tube de protection (à monter et connecter
lors de l’installation).
Démonter les 4 éléments de fixation du
socle de Komeo sur le carton et sortir
Komeo.
Récupérer les entretoises
dans le fond du carton pour le
montage sur le mur.
Retirer le capot afin de déclipser les rondelles
de fixation de l’appareil au cartons inférieur
11
11
3
3
3
3
3

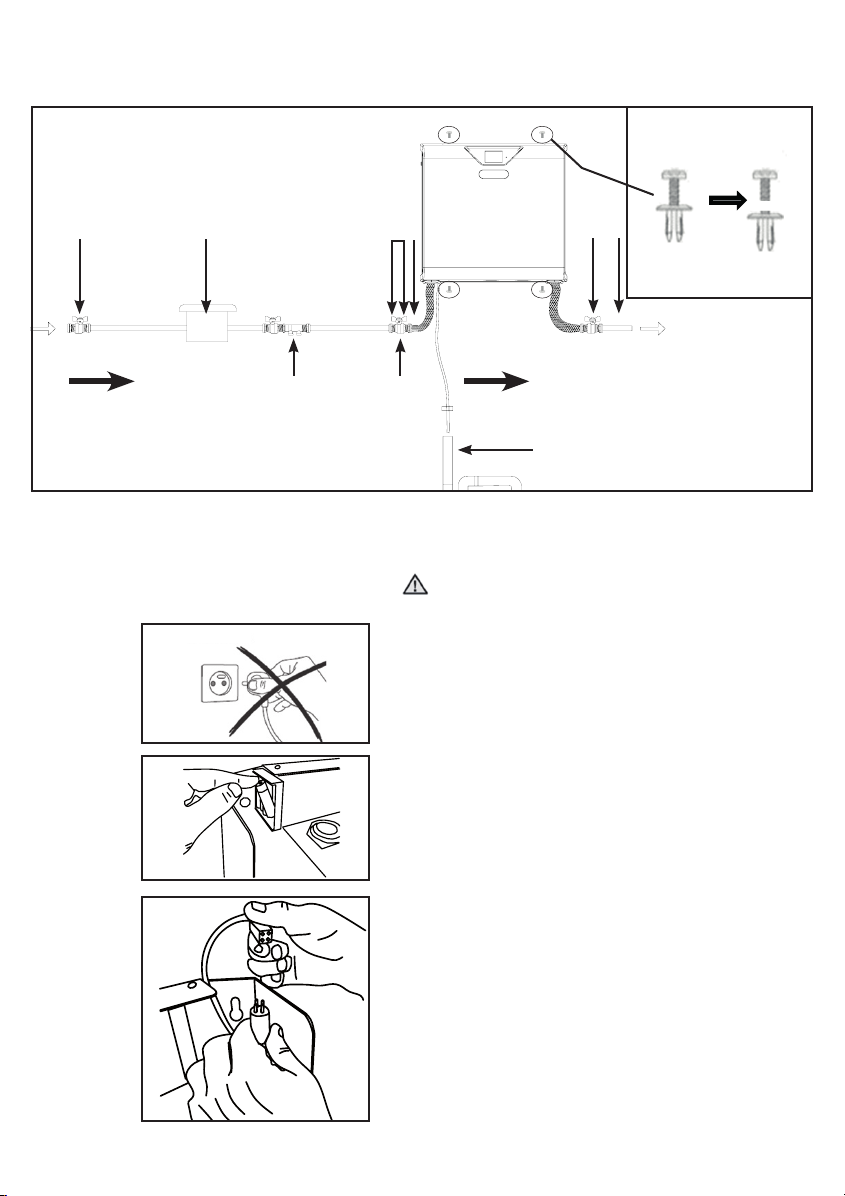

Vérifier la présence
obligatoire en amont
de l’appareil:
D’un réducteur de
pression, d’un clapet anti-
retour
normalisé,
de vanne
d’arrêt (amont et aval),
ainsi que le nécessaire pour
installer un bypass sur
l’appareil (fortement
recommandé).
1
2
1110
III -Avant l’installation
COMAP WT vous recommande vivement de faire appel à un professionnel pour
installer Komeo. Des suggestions de raccordements sont proposées, l’installation
doit se faire dans les règles de l’art.
Vérifier la présence du sachet accessoire
comprenant :
La notice et le livret de garantie, 4 joints,
4 chevilles, 4 piles LR6 1,5V, 4 vis et 2 bandelettes
test TH dureté, du tuyau Ø8, 1 clé de filtre et une
clé de pré-filtre, une lampe Uvc emballée dans
un tube de protection (à monter et connecter
lors de l’installation).
Démonter les 4 éléments de fixation du
socle de Komeo sur le carton et sortir
Komeo.
Récupérer les entretoises
dans le fond du carton pour le
montage sur le mur.
Retirer le capot afin de déclipser les rondelles
de fixation de l’appareil au cartons inférieur
11
11
3
3
3
3
3
Vérifier la présence
obligatoire en amont
de l’appareil:
D’un réducteur de
pression, d’un clapet anti-
retour
normalisé,
de vanne
d’arrêt (amont et aval),
ainsi que le nécessaire pour
installer un bypass sur
l’appareil (fortement
recommandé).
1
2
❶
❶ ❶
❶
