Preface
Comat BoxX, Hardware User’s Manual / 11.2004 E
2
Preface
Thank you for purchasing the Comat BoxX series intelligent controller from our company.
Whilst you may have a good knowledge and understanding of these products you are re-quested to
take some time to read this manual before operation. This will allow you to utilise the more
advantageous benefits of the product.
The Comat BoxX series intelligent controller uses function blocks for programming and a liquid
crystal display is provided for manual programming.
In the past the control function of a PLC required large sections of program and instruction sets
whereas the Comat BoxX series uses function blocks. When several function blocks are linked
together in a specific way then relatively complicated control functions can be implemented so that the
programming can be simplified.
The Comat BoxX series intelligent controller can be used very extensively for automation of
mechanical equipment, flow control, building management systems and many other fields.
This manual will describe in detail the functional characteristics and operating method of the Comat
BoxX series controller.
Note:
(1) Copyright of this manual and patent of the device are the property of Comat AG.
No reproduction or duplication of all or part of the contents of this manual is permitted
without prior consent.
(2) Our company reserves the right to make changes in design for improvement without
notification.
(3) In the event that something is missing or there are discrepancies in this manual then please
contact us and we will endeavour to incorporate your comments in the next revision.
This issue replaces all previous issues.
Availability, errors and specifications subject to change without notice.

Safety guide
Comat BoxX, Hardware User’s Manual / 11.2004 E 3
Safety guide
This manual contains the precautions necessary to ensure your personal safety ands for the protection
of the product and the connected equipment. These precautions are highlighted with a triangle
“WARNING” symbol in this manual and are marked according to the danger levels as follows:
Danger:
This indicates that if appropriate precautions are not taken, serious incidents of personal
injuries or death or loss/damage to property may occur.
Caution:
This indicates that if appropriate precaution are not taken then injuries or losses of
properties will take place
Warning:
Only qualified personnel are allowed to debug and operate this equipment. The qualified
personnel are those who carry out commissioning, grounding according to the current
safety practices and standards.
Note:
Reminds you to pay particular attentions to the important information related to the products,
disposal of products or the specific part of documents.
Only when this product is transported, stored , and installed in a proper way and operated
and maintained according to the recommendations, can it implement the functions and
properly reliably.
Note:
1. It is prohibited to plug in or pull out the AF-C232 and LCD board when Comat BoxX machine is
powered.
2. The default of Comat BoxX password is 0001.
3. The default of Comat BoxX address is 000.
4. The outputs of the function blocks can not be connected together.

Table of contents
Comat BoxX, Hardware User’s Manual / 11.2004 E
4
Table of contents
CHAPTER I ................................................................................................................ 5
Brief introduction to Comat BoxX....................................................................................................... 5
1.1 Structure of Comat BoxX............................................................................................................. 5
1.2 Specifications and models ............................................................................................................ 7
1.3 Features of Comat BoxX.............................................................................................................. 8
CHAPTER II ..............................................................................................................10
Installation and wiring of Comat BoxX ............................................................................................ 10
2.1 Installation.................................................................................................................................. 10
2.1.1 Installation method .............................................................................................................. 10
2.1.2 Dimensions.......................................................................................................................... 11
2.2 Wiring of Comat BoxX .............................................................................................................. 12
2.2.1 Connection of power supply................................................................................................ 12
2.2.2 Connecting Comat BoxX input ........................................................................................... 13
2.2.3 Connecting of Comat BoxX output..................................................................................... 15
CHAPTER III .............................................................................................................16
Technical data...................................................................................................................................... 16
3.1 General data................................................................................................................................ 16
3.1.1 Ambient conditions ............................................................................................................. 16
3.1.2 Mechanical data................................................................................................................... 17
3.2 Electrical data ............................................................................................................................. 18
3.2.1 Electromagnetic compatibility ............................................................................................18
3.2.2 Power supply ....................................................................................................................... 18
3.3 Inputs.......................................................................................................................................... 19
3.3.1 Digital inputs ....................................................................................................................... 19
3.3.2 Analog inputs ...................................................................................................................... 19
3.4 Outputs ....................................................................................................................................... 20
3.4.1 Relay outputs....................................................................................................................... 20
3.4.2 Transistor outputs ................................................................................................................ 20
3.5 Voice unit AF-MUL................................................................................................................... 21
CHAPTER IV.............................................................................................................22
Operations of the keys on the LCD display.......................................................................................22
4.1 Display of Comat BoxX status................................................................................................... 23
4.2 Confirm password ...................................................................................................................... 23
4.3 Function...................................................................................................................................... 24
4.4 Set password, date and time ....................................................................................................... 25

Chapter 1
Brief introduction to Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 5
Chapter I
Brief introduction to Comat BoxX
1.1 Structure of Comat BoxX
The Comat BoxX intelligent controller is a new type of programmable controller. As it is programmed
by means of function blocks. It is simpler and easier to learn the programming of Comat BoxX than
conventional PLC programming (ladder diagram and instruction).
In the design concept of the products of the Comat BoxX series, the PLC is combined with a writer
where the program can be written directly with the functions keys on the LCD front panel. The
product is very compact and lightweight despite the many functions including local and remote
communication networking and monitoring.
Also there are telephone control, voice prompting and automatic dial functions by adding the
AF-MUL voice block.
At present the Comat BoxX is widely used in various industries in the agricultural and the home
automation market and can be used almost anywhere.

Chapter 1
Brief introduction to Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E
6

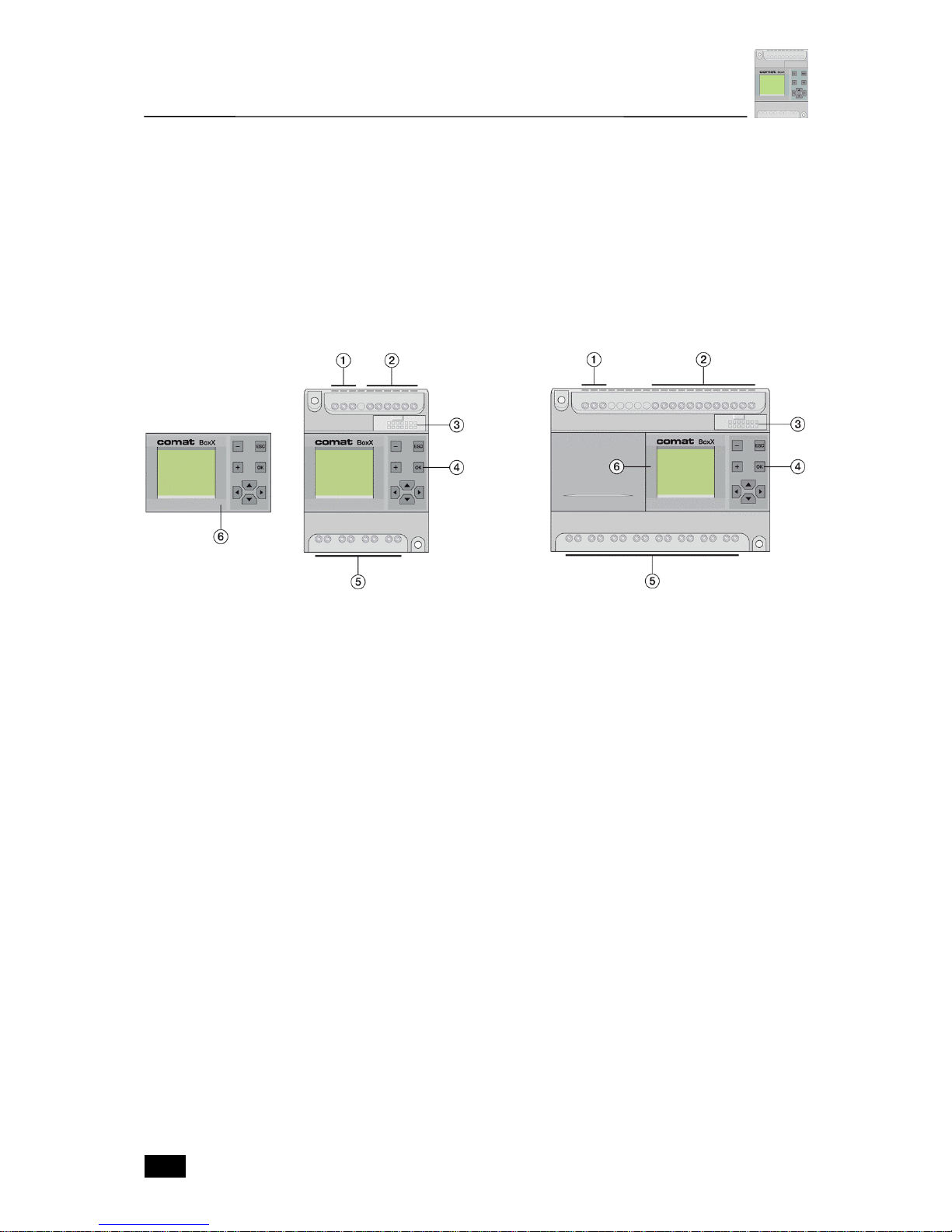

1. Input of AC power
2. Input terminal
3. Communication interface
4. Operating keys
5. Output terminal (Output of relays or electronic transistor)
6. LCD display panel
Fig. 1.1 Fig. 1.2

Chapter 1
Brief introduction to Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 7
1.2 Specifications and models
Type Power Input Output
AF-10MR-A 110-230VAC 6AC 4 relay
AF-10MR-D 24VDC 6DC or analog inputs 4 relay
AF-10MT-GD 24VDC 6DC or analog inputs 4 transistor- PNP
AF-20MR-A 110-230VAC 12AC 8 relay
AF-20MR-D 24VDC 12DC or analog inputs 8 relay
AF-20MT-GD 24VDC 12DC or analog inputs 8 transistor-PNP
AF-MUL 110-230VAC Voice and Remote Unit
AF-MUL 12-24VDC Voice and Remote Unit
AF-LCD Removable panel for programming with LCD display
AF-CAP Comat BoxX cover
AF-M232 Interface between Comat BoxX and Modem
AF-C232 Interface between Comat BoxX and PC modem
AF-BC Bridge connector between Comat BoxX and AF-MUL
Quick II Comat BoxX programming software
AF-Copy Copy module
AF-USB Interface cable
AF-AUD Audio cable for AF-MUL
AF-ATL WAV cable for AF-MUL

Chapter 1
Brief introduction to Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E
8
1.3 Features of Comat BoxX
1. Removable programming panel with Liquid Crystal Display
There is an operating panel with LCD display on the front of the Comat BoxX (see note below).
The program can be edited with the operating keys on the LCD panel.
This panel can be removed for security purposes and be replaced with a cover (CAP).
Note:
The LCD panel can be plugged in or removed only after the power has been turned off.
2. Exquisite and compact design
Comat BoxX is an excellent choice to control your systems. Its performance and compact design,
offers you great opportunities of economical control solutions.
Type AF-10….: 90 x 71 x 58mm
Type AF-20….: 90 x 126 x 58mm
3. Large storage capacity
Control functions of Comat BoxX can be implemented with simple function blocks available in a
library.
The 20 pre-defined functions make programming easy and fast. The linking of function blocks
allows relatively complex control programs. A Comat BoxX has up to 127 function blocks for
program storage. A downloaded program into the EPROM can not be lost and does not require
battery backup.
4. Quick II programming software
QUICK II is a free-of-charge programming software
By using QUICK II, the program can be edited directly on the LCD panel or on a PC. The
program is loaded and written into the memory of Comat BoxX. QUICK II is a very friendly man-
machine programming interface. It cannot only edit the function diagrams, but it also can run and
analyse the written program. It provides an off-line testing function to the user to avoid
inconveniences for on-line testing. QUICK II will not only guide you to implement or edit the
control programs, but also performs real-time monitoring for field environment and operation
conditions of Comat BoxX.
5. Real-time clock function
Comat BoxX intelligent controllers have an instant real-time clock function, and can execute
timed operations according to various schedules. You can set as many as up to 127 different time
intervals which makes the Comat BoxX most suitable for systems which require time control.
6. Digital and Analogue inputs
In addition to receiving switching inputs (Digital), Comat BoxX can also process analogue inputs.
This allows to monitor and control temperature, humidity, pressure, flow, level, etc., The values
can be transmitted to a remote to PC for data supervision.
7. Remote programming, supervision and control of data through a MODEM.
To implement programming, write and modify programs from a distant location, it is only
necessary to connect Comat BoxX over a MODEM with a telephone line. It is also possible to
perform data acquisition and real-time supervision and control over the MODEM.

Chapter 1
Brief introduction to Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 9
8. Security cipher code function
Comat BoxX is provided with a safety access code for the programs written by you. You can set
your own cipher code before you write programs. The programs can be modified only after the
correct access code is entered.
9. Telephone function
Comat BoxX is equipped with telephone and voice function blocks. It is possible to access Comat
BoxX directly through the normal telephone line.
Comat BoxX can dial out automatically, so as to implement notice or alarm functions. Moreover,
Comat BoxX can also receive the signals transmitted from a remote location through the telephone
line (or a cell phone) in order to control connected devices or machines.
Note:
It is necessary to configure AF-MUL multi-functional voice block for the
implementation of telephone and voice function.
10. Voice function
If connected to the AF-MUL Voice unit, Comat BoxX is able to broadcast alarms or messages
either over auxiliary speakers or a telephone line. This unique feature offers many additional
possibilities for the automation and control industry.

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E
10
Chapter II
Installation and wiring of Comat BoxX
2.1 Installation
2.1.1 Installation method
Due to the compact size the device it is suitable for fitting inside machines and installation is quite
simple:

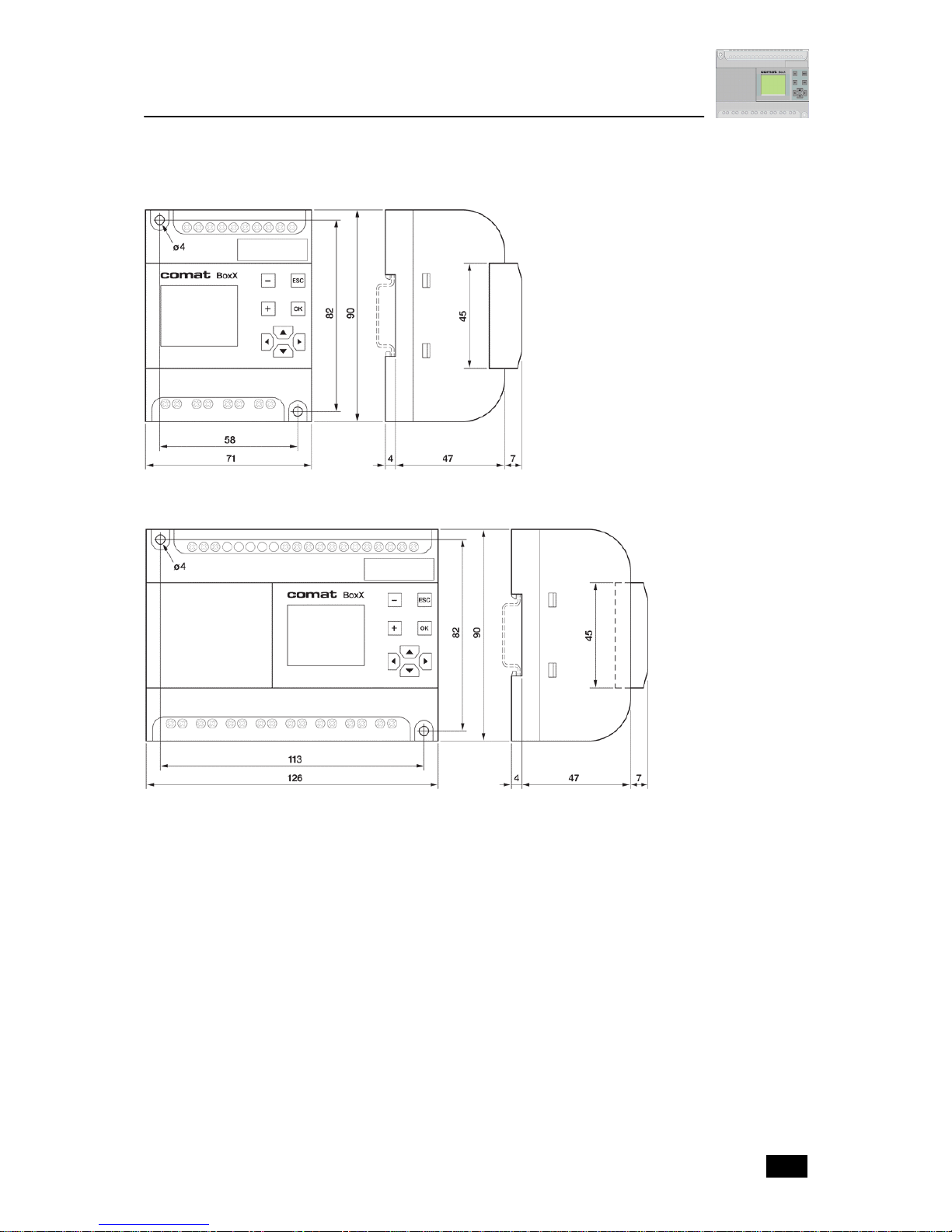

1. Use a standard DIN rail for installation of Comat BoxX as shown in Fig. 2.1.
2. Use the screw holes on Comat BoxX for installation onto a flat surface.
Fig. 2.1
Use standard DIN rail for installation
The LCD board of Comat BoxX is removable. Gently lever open with a screwdriver and the LCD can
easily be unplugged.
Fig. 2.2
Remove LCD board correctly
Caution:
Do not remove the LCD board with power on, otherwise the device will be damaged or endanger
personal safety.

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 11
2.1.2 Dimensions
Fig. 2.3 AF-10 Series installation dimensions (Unit: mm)
Fig. 2.4 AF-20 Series installation dimensions (Unit: mm)

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E
12
2.2 Wiring of Comat BoxX
Use a screwdriver with a tip width of 3mm for wiring of Comat BoxX. The cross section of the wires
are determined according to the following ratings:
1 x 2.5 mm2or 2 x 1.5 mm2.
2.2.1 Connection of power supply
1. AC Types: Current consumption:
AF-10MR-A: 110 – 230VAC; 50/60Hz; 26mA at 230VAC
AF-20MR-A: 110 – 230VAC; 50/60Hz 50mA at 230VAC
2. DC Types:
AF-10MR-D: 12 - 24VDC
AF-10MT-GD: 12 - 24VDC
AF-20MR-D: 12 - 24VDC
AF-20MT-GD: 12 - 24VDC
Note:
Min. tension for AF-10 = 10.0V
Min. tension for AF-20 = 10.5V
3. Connection of power supply according for AC types Fig. 2.5 and DC types Fig. 2.6

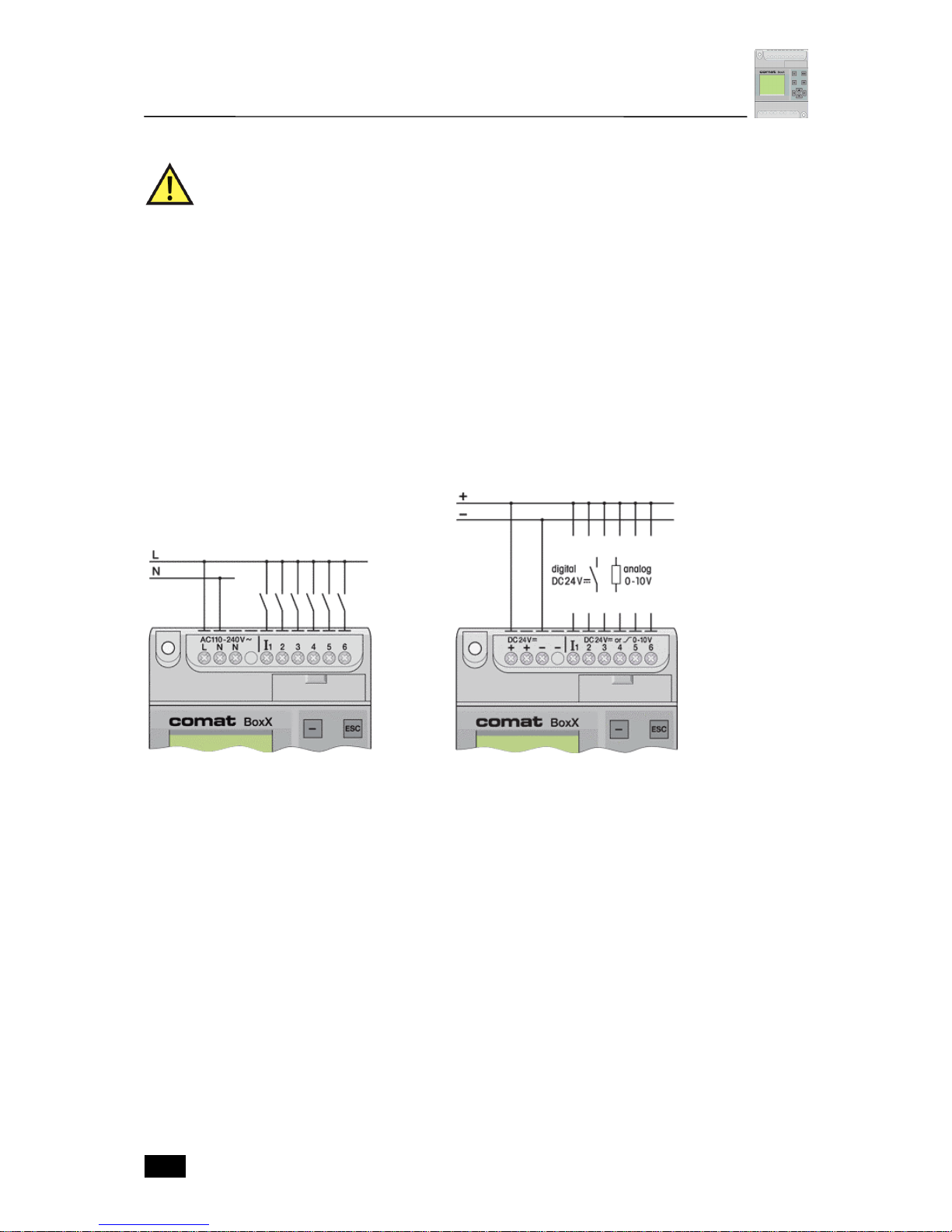

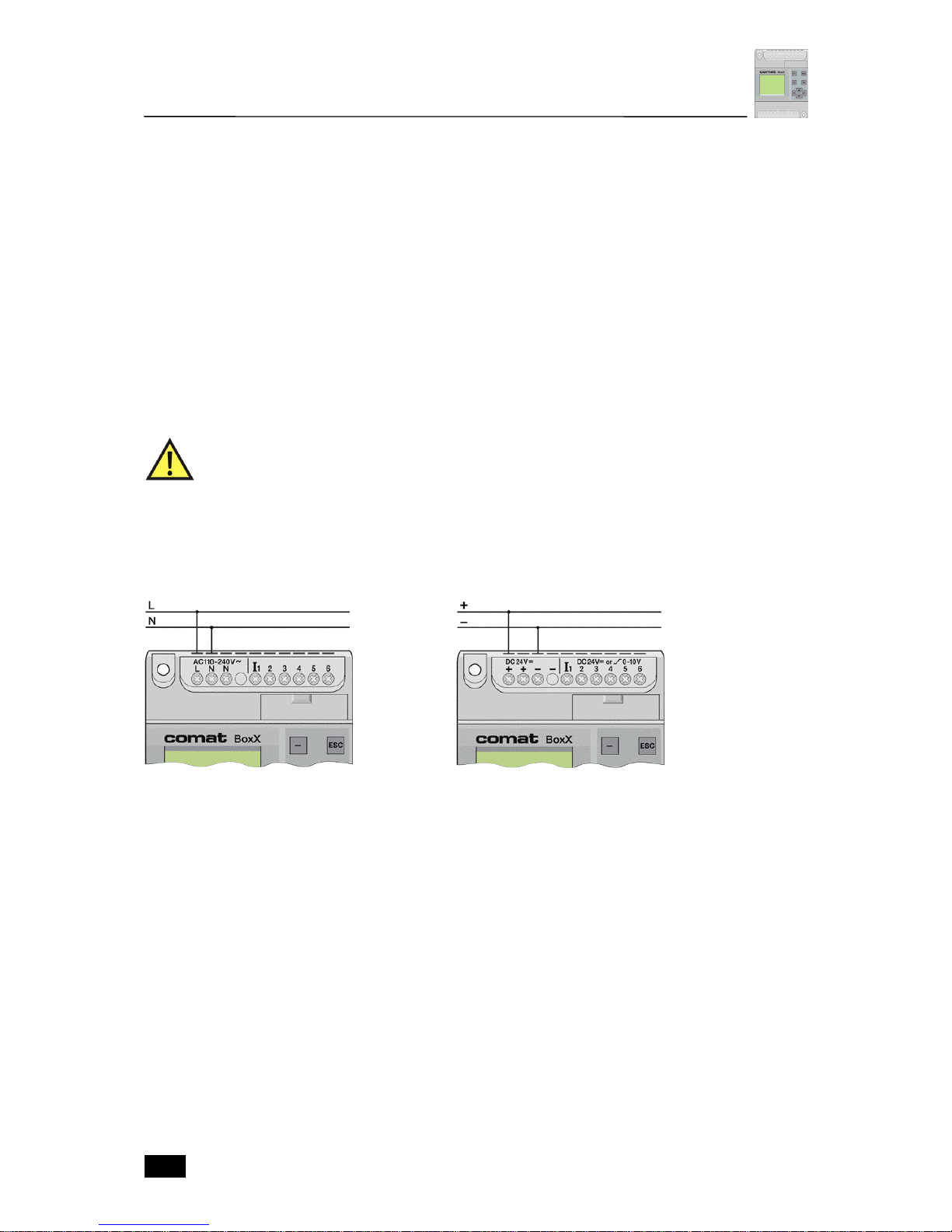

Fig. 2.5 AC power supply Fig. 2.6 DC power supply

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 13
2.2.2 Connecting Comat BoxX input
The inputs to Comat BoxX can be either digital such as on/off switches, photoelectric damper,
sunshine switch, etc., or analogue inputs such as pressure, level element, temperature, humidity,
flow, etc.
The specific requirements are as follows:
Type
Demand
AF-10MR-A
AF- 20MR-A
AF-10MR-D
AF-10MT-GD
AF-20MR-D
AF-20MT-GD
Switch status 0 < 40VAC < 5VDC
Input current > 0.24mA > 1.5mA
Switch status 1 ≥80VAC ≥15VDC
Input current Typical 0.24mA Typical 3mA
Proximity switch type with
direct input
2 lines
3 lines
4 lines
2 lines
3 lines
4 lines
Switching of incandescent lamps Lamps with a power
consumption of max. 1000W
may be connected directly to the
output terminals of the Comat
BoxX.
Lamps with higher power
consumption have to be
switched over an additional
relay.
Analog inputs I1 - I6 / I1 – I12

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E
14
Note:
1. AF-10MR-D, AF-10MT-GD, AF-20MR-D and AF-20MT-GD can all receive analogue inputs
through all input interfaces (I1-I6 or I1-I12). They are automatically set to analogue or digital
input. An analogue signal is recognised when the input terminal is connected to the AN function
block. It is important to set analogue inputs first when using SCADA software.
2. The analogue input requires 0V ~ +10V voltage signals and is divided equally in 0.1V increment
steps. When programming, all the block parameters related to analogue are based on the minimum
precision of class 1.
3. All inputs over 10.0V are recognised as digital inputs.
4. Digital inputs: Change of status from „0“ to „1“ : Triggering time min. 50ms
Change of status from „1“ to „0“ : Triggering time min. 50ms
Connection of the units
Fig. 2.7 Fig. 2.8
AC types DC types with analog inputs

Chapter 2
Installation and wiring of Comat BoxX
Comat BoxX, Hardware User’s Manual / 11.2004 E 15
2.2.3 Connecting of Comat BoxX output
The AF-10MR-A, AF-10MR-D, AF-20MR-A, AF-20MR-D, all have relay outputs.
The AF-10-MT-GD (PNP), AF-20-MT-GD (PNP) are transistor output types. It is necessary to have a
separate power supply for the load. The power supplies must have the same potential.
1. Requirement for the relay output
Various loads such as lamps, fluorescent tubes, motors, contactors, etc., can be connected to the
outputs of Comat BoxX. The max. ON output current that can be supplied by the Comat BoxX
controller is 8A for resistive load.
Compare datasheet in Chapter III.
The connection is shown as follows:

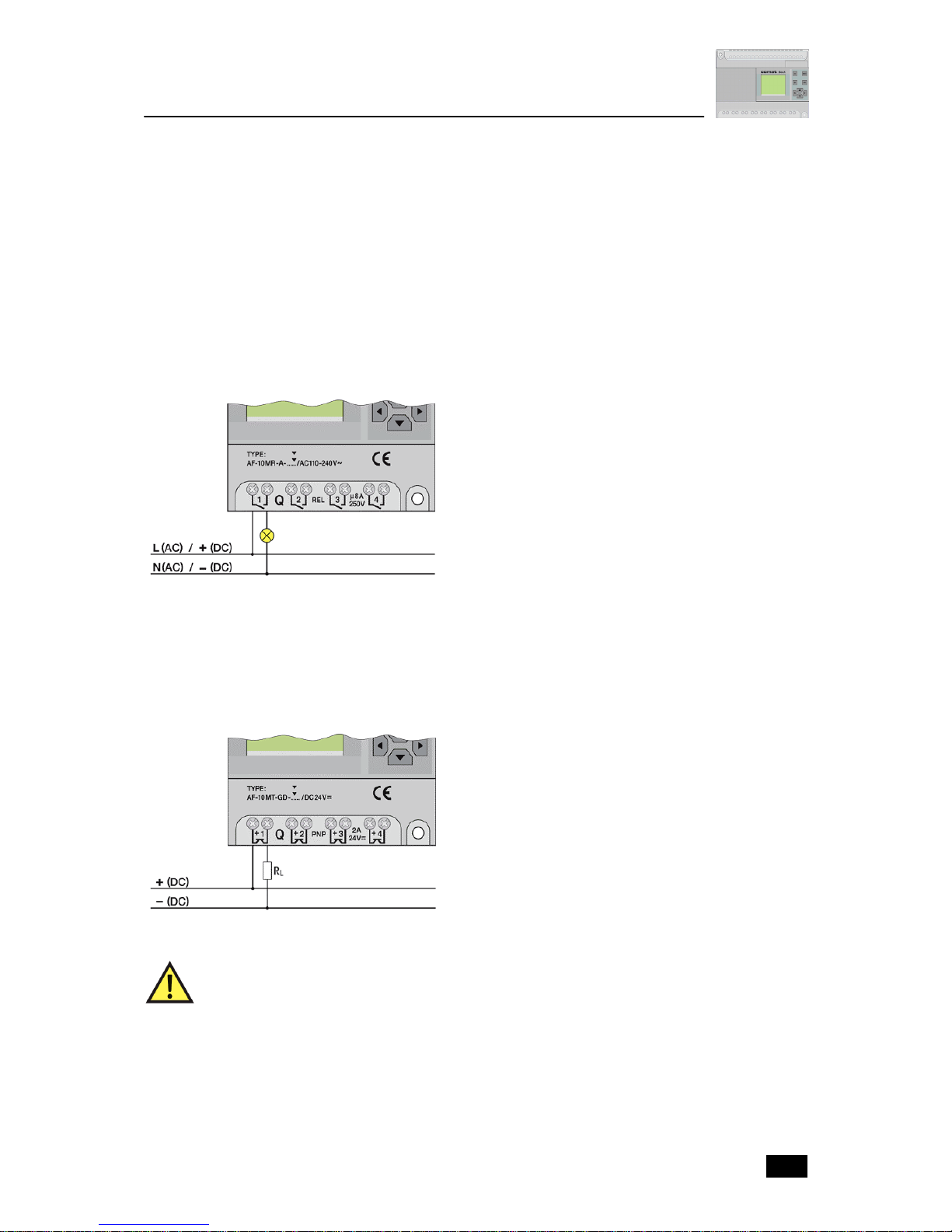

Fig. 2.9 Relay output
2. Requirements for the electronic transistor output
The maximum switch current should not exceed 2A; when the switch is ON (Q=1).
Compare datasheet in Chapter III.
The connection is as the shown below:
Fig. 2.10 Transistor output
Note:
Output Q must be on the same potential as input I.

Chapter 3
Technical data
Comat BoxX, Hardware User’s Manual / 11.2004 E
16
Chapter III
Technical data
3.1 General data
3.1.1 Ambient conditions
Description Standard Specification
Ambient temperature working With display: -25-55°C
Without display: 0-55°C
Ambient temperature transport /
storage
-40-70° C
Relative humidity IEC 68-2-30 5-95 %
No condensation
Atmospheric pressure 795-1080hPa

Chapter 3
Technical data
Comat BoxX, Hardware User’s Manual / 11.2004 E 17
3.1.2 Mechanical data
Description Standard Specification
Protection IEC 529 IP 20 (terminals) / IP 30 (electronics)
Vibration IEC 68-2 10-57Hz, constant amplitude 0.15mm
57-150Hz, constant acceleration 2g
Shock IEC 68-2-27 18 shocks, half-waves 15g / 22ms
Height of fall IEC 68-2-31
IEC 68-2-32
Device: Height of fall 50mm
Device packed into box: 1m
Dimensions Dimensions over all
Type: AF-10; AF-MUL:
B 71mm, T 58mm, H 90mm
Typ: AF-20: B 126mm, T 58mm, H 90mm
See dimension drawing
Case material ABS (Acrylnitril Butadien Styren)
Terminals VDE0609 Power supply, inputs, outputs:
Screw terminals with wire protection
2,8mm x 4.4mm for max. 1 x 4mm2 flex
With end spice M3, slotted head screw,
Screwdriver No. 1; 0.5Nm
Special terminals AF-MUL miniature D-Sub 9 pi for RS 232
RJ 12 for telephone line
Fixation DIN 50022 Top hat rail DIN TS 35 or screw fixing
2 x M3 (diameter of pitch circle 4,0mm)
Weight AF-MUL: 210g; AF-10MR: 245g;
AF-10MT: 210g; AF-20MR: 380g
AF-20MT: 320g
Total weight complete version with LCD

Chapter 3
Technical data
Comat BoxX, Hardware User’s Manual / 11.2004 E
18
3.2 Electrical data
3.2.1 Electromagnetic compatibility
Description Standard Specification
Static discharge (ESD) EN 61000-4-2 8kV air
6kV contact
Electromagnetic Field Emission EN 55022 / 99 ok
Electromagnetic Field
Immission
EN 61000-4-8
EN 61000-4-3
Inductive field strength 3A/m ok
Emission on wiring EN 55011 ok
Surge EN 61000-4-5 AC 110-240V: Level 3 2kV
DC 24V: Level 1 500
Burst EN 61000-4-4 AC 110-240V: Level 3 2kV
DC 24V: Level 1 500V
3.2.2 Power supply
Description Specification / Type: AF-10MT- GD
AF-10MR-A AF-20MT-GD
AF-20MR-A AF-10MR-D
AF-MUL AF-20MR-D
Main voltage nominal AC 110-240V DC 24V
Main voltage working range AC 85V-250V AF-10: DC 10.0V-30V
AF-20: DC 10.5V-30V
AF-MUL: DC 18V-30V
Frequency range 50/60Hz 47-63Hz
Function reserve time (clock) 100hrs 100hrs
Power consumption
(with operating panel)
AF-10: 5VA/3W // 20-45mA 3W // 100-166mA
AF-20: 8VA/5W // 33-72mA 5W // 166-277mA
AF-MUL: 4VA/1,5W // 16-36mA

Chapter 3
Technical data
Comat BoxX, Hardware User’s Manual / 11.2004 E 19
3.3 Inputs
3.3.1 Digital inputs
Description Specification / Type:
.../AC110-240V .../ DC24V
Input voltage 0 signal (inactive)
1 signal (active)
0-40V AC < 5V DC
80-250V AC >15V DC
Input current active 0.25mA/230V AC 3mA/24V DC
Delay time change from 1 to 0
change from 0 to 1
50ms, typical
50ms, typical
3.3.2 Analog inputs
Description Specification
Input resistance 50.2kΩ
Analog range 0-10V
Accuracy 1%
Resolution Equivalent to software 0.1V steps
Analog input used as digital input
Input voltage 0 signal (inactive)
1 signal (active)
0-8V DC
12-60V DC

Chapter 3
Technical data
Comat BoxX, Hardware User’s Manual / 11.2004 E
20
3.4 Outputs
3.4.1 Relay outputs
Description Specification
Output type Relay µ; 4 x a / 8 x a
Contact material AgSnO
Switching current 100mA-8A AC1; 8A, 30V DC1
Switching voltage 6V-250V
Switching power 2000VA; ...250W
Total current / device 24A
Contact resistance 100mΩ/ 1A, 6V DC
Inrush current 30A / 10ms
Isolation contact / device 4kVrms, 1min
Isolation contact / contact 3kVrms, 1min
Isolation open contact 1kVrms, 1min
Switching frequency 2Hz
Life mechanical cycles
electrical
10 x 106
2 x 105/ 8A, 250V AC1
3.4.2 Transistor outputs
Description Specification
Output type PNP (+ potent. switch), FET semiconductor
Switching current 2A DC1 / υu≤40° C
Inrush current 10A / 10ms
Total current / device AF-10: 4A; AF-20: 8A
Switching voltage 5 ÷60V DC
Forward resistance / voltage drop 0,3Ω/ U = I [A] x 0.3Ω=
Leakage current < 100µA
Switching frequency 10Hz / DC1 load
Insulation Not galvanically separated
Surge voltage limitation Integrated / -Upeak < 80V
Inductive load 0.5Hz
