Comba Telecom RA-5200 User manual

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 1
ENU Status : 1-0-0
INSTALLATION GUIDE
The information contained herein is the
responsibility of and is approved by the
following, to whom all enquiries should
be directed in the first instance:
Techinical Writing
Comba Telecom Ltd.
This is an unpublished work the copyright in which vests in Comba International ("Comba"). All rights reserved.
The information contained herein is confidential and the property of Comba and is supplied without liability for errors or
omissions. No part may be reproduced, disclosed or used except as authorised by contract or other written permission. The
copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
RA-5200
TRI-BAND REMOTE RADIO SYSTEM

Comba Telecom Ltda
R Gomes de Carvalho 1655 cj 101/102 Tel&Fax: [phone]
04547-006 Vila Olímpia E-mail: [email protected]
São Paulo, Brazil
The product that will be
commercialized in Brazil will not
support UMTS 2.1GHz

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 2
ENU Status : 1-0-0
0.2 CONTENTS
Section Page
0.2 CONTENTS...........................................................................................................................2
0.3 INDEX TO FIGURES AND TABLES .....................................................................................4
0.4 HISTORY...............................................................................................................................6
0.5 ISSUE CONTROL .................................................................................................................7
0.6 REFERENCES ......................................................................................................................8
0.7 GLOSSARY OF TERMS .......................................................................................................9
0.8 SAFETY NOTICES AND ADMONISHMENTS....................................................................10
0.9 SERVICING POLICY AND RETURN OF EQUIPMENT......................................................11
0.10 READERS COMMENTS .....................................................................................................12
1 GENERAL INFORMATION .................................................................................................13
1.1 RA-5200 SALEABLE ENTITY .............................................................................................16
2 EQUIPMENT DESCRIPTION..............................................................................................17
2.1 SYSTEM DIAGRAM ............................................................................................................17
2.2 TYPICAL APPLICATION.....................................................................................................19
2.2.1 DUAL FIBER CONFIGURATION ........................................................................................19
2.2.2 SINGLE FIBER CONFIGURATION.....................................................................................21
2.3 EQUIPMENT LAYOUT........................................................................................................23
2.4 EQUIPMENT CONSTITUTION ...........................................................................................27
2.5 KIT OF PARTS ....................................................................................................................29
3 INSTALLATION ...................................................................................................................30
3.1 WARNINGS AND ALERTS .................................................................................................30
3.2 SITE PLANNING CONSIDERATIONS................................................................................31
3.2.1 REPEATER INSTALLATION CHECKLIST .........................................................................33
3.3 INSTALLATION PROCEDURES.........................................................................................34
3.3.1 GOODS INWARDS INSPECTION ......................................................................................34
3.3.2 TOOLS.................................................................................................................................34
3.3.3 PREPARATION...................................................................................................................34
8.1.1 RACK MOUNTING OF MOU...............................................................................................35
8.1.2 MOUNTING ARRANGEMENT ............................................................................................ 36
8.1.3 RRU LIFTING LUG..............................................................................................................37
8.1.4 ROU WALL MOUNTING ..................................................................................................... 37
8.1.5 WALL MOUNTING OF RRU MOUNTING RACK................................................................38
8.1.6 POLE MOUNTING OF RRU MOUNTING RACK................................................................38
8.1.7 ATTACHING RRU ONTO MOUNTING RACK....................................................................39
8.1.8 DRIP-LOOP.........................................................................................................................39
8.2 EQUIPMENT CONNECTORS.............................................................................................40
3.4.1 MOU CONNECTORS..........................................................................................................40
3.4.2 ROU CONNECTORS ..........................................................................................................48
3.4.3 RRU CONNECTORS ..........................................................................................................49
8.3 EQUIPMENT CONNECTION ..............................................................................................50
3.5.1 GROUNDING CONNECTION.............................................................................................50
3.5.2 SERVICE VOLTAGE CONNECTION..................................................................................50
3.5.3 LI-ION BATTERY CONNECTION .......................................................................................51
3.5.4 RF CONNECTION...............................................................................................................51
3.5.5 OPTICAL CONNECTION....................................................................................................51
3.5.6 CONNECTION BETWEEN ROU AND RRU .......................................................................52
3.5.7 BTS ALARM CONNECTION ............................................................................................... 53
3.5.8 EXTERNAL ALARM CONNECTION...................................................................................53
3.5.9 MOU SHELF INTERNAL CONNECTION............................................................................54
3.5.10 INTEGRATED MODEM CONNECTON ..............................................................................55

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 3
ENU Status : 1-0-0
3.5.11
CONNECT TO PC...............................................................................................................57
4 COMMISSIONING...............................................................................................................58
4.1 PRE-COMMISSIONING TASKS .........................................................................................58
4.2 LED INDICATORS...............................................................................................................59
4.2.1 MOU LED INDICATORS .....................................................................................................59
4.2.2 ROU/RRU LED INDICATORS.............................................................................................59
4.3 OMT.....................................................................................................................................60
4.3.1 OMT SOFTWARE INSTALLATION ....................................................................................60
4.3.2 OMT SOFTWARE VERSION..............................................................................................60
4.3.3 CONNECTION TO OMT .....................................................................................................60
4.3.4 DESCRIPTIONS OF PARAMETERS..................................................................................61
4.3.5 FAULT MANAGEMENT.......................................................................................................65
4.3.6 DATA MAINTENANCE........................................................................................................65
4.4 NON-VOLATILE MEMORY .................................................................................................66
4.5 COMMISSIONING PROCEDURES ....................................................................................67
5 OPERATION........................................................................................................................68
6 MAINTENANCE...................................................................................................................69
6.1 O-RING FITTING DETAILS.................................................................................................69
7 APPENDICES......................................................................................................................70
7.1 APPENDIX A: TOOLS FOR INSTALLATION AND MAINTENANCE..................................70
7.2 APPENDIX B: RMA (RETURN MATERIAL AUTHORIZATION) FORM .............................71

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 4
ENU Status : 1-0-0
0.3 INDEX TO FIGURES AND TABLES
Fig 1: View of MOU fully equipped shelf ...............................................................................................14
Fig 2: Front, side and bottom views of ROU enclosure.........................................................................14

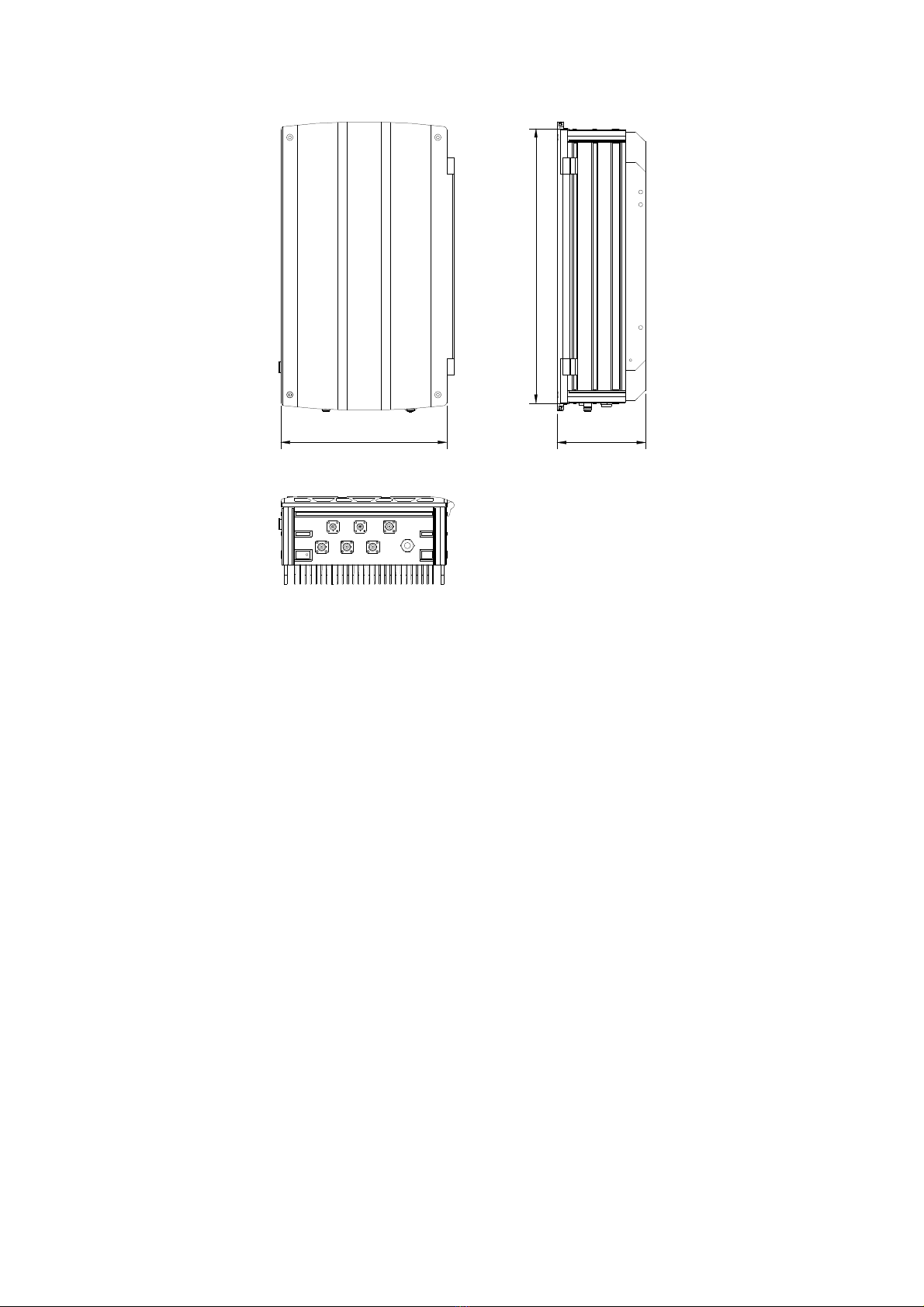

Fig 3: Front, side and bottom views of RRU enclosure.........................................................................15
Fig 4: MOU system diagram .................................................................................................................17
Fig 5: ROU+RRU system diagram........................................................................................................18
Fig 6: Application of one MOU with one RRU through Single Channel FOU........................................19
Fig 7: Application of one MOU with two RRUs through Double Channel FOU .....................................19
Fig 8: Application of one MOU with four RRUs through two Double Channel FOUs ............................20
Fig 9: Application of one MOU with one RRU through Single Channel FOU with WDM ......................21
Fig 10: Application of one MOU with two RRUs through Double Channel FOU with WDM..................21
Fig 11: Application of one MOU with four RRUs through two Double Channel FOUs with WDM.........22
Fig 12: Front view of MOU ....................................................................................................................23
Fig 13: Four variants of FOU.................................................................................................................23
Fig 14: ROU equipment layout ..............................................................................................................25
Fig 15: RRU equipment layout ..............................................................................................................26
Fig 16: Rack mounting of 19” shelf .......................................................................................................35
Fig 17: ROU mounting bracket dimension ............................................................................................36
Fig 18: RRU mounting rack dimension .................................................................................................36
Fig 19: RRU enclosure lifting lug attachment details ............................................................................37
Fig 20: ROU wall mounting step............................................................................................................37
Fig 21: RRU mounting rack wall mounting............................................................................................38
Fig 22: Pole mounting of RRU mounting rack.......................................................................................38
Fig 23: Attaching the RRU onto the mounting rack...............................................................................39
Fig 24: RRU connectors........................................................................................................................48
Fig 25: RRU connectors........................................................................................................................49
Fig 26: Pin allocation for “RS-485” port.................................................................................................52
Fig 27: Pin allocation for “BTS_ALM” port.............................................................................................53
Fig 28: Pins allocation for “EXT_ALM” ..................................................................................................53
Fig 29: RF connection of fully equipped MOU of two Double Channel FOUs.......................................54
Fig 30: Wireless modem .......................................................................................................................55
Fig 31: Diagram of wireline modem ......................................................................................................56
Fig 32: RF Info. --- Pre-ATT ..................................................................................................................61
Fig 33: “O” ring fitting details .................................................................................................................69
Table 1: MOU shelf equipping rule........................................................................................................24
Table 2: RA-5200 Regular KOP............................................................................................................29
Table 3: MOU KOP ...............................................................................................................................29
Table 4: ROU KOP................................................................................................................................29
Table 5: RRU KOP................................................................................................................................29
Table 6: Installation checklist ................................................................................................................33
Table 7: PSU SIU description................................................................................................................40
Table 8: MCU SIU description...............................................................................................................41
Table 9: CBU SIU description ...............................................................................................................42
Table 10: RFU-DL1 SIU description......................................................................................................42
Table 11: RFU-UL SIU description........................................................................................................43
Table 12: Single Channel FOU SIU description....................................................................................44
Table 13: Single Channel FOU with WDM SIU description ..................................................................44
Table 14: Dual Channel FOU SIU description.......................................................................................45
Table 15: Dual Channel FOU with WDM SIU description.....................................................................45
Table 16: RFU-DL rear panel connectors .............................................................................................46
Table 17: RFU-UL rear panel connectors .............................................................................................46
Table 18: FOU rear panel connectors...................................................................................................47
Table 19: RRU connections ..................................................................................................................48
Table 20: RRU connections ..................................................................................................................49
Table 21: Pin definition of the BTS_ALM port .......................................................................................53
Table 22: External alarm signal definition .............................................................................................53
Table 23: MOU LED Indicators .............................................................................................................59

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 5
ENU Status : 1-0-0
Table 24: ROU/RRU LED Indicators.....................................................................................................59
Table 25: Management - RF parameters..............................................................................................63
Table 26: Alarm List for RA-5200..........................................................................................................64
Table 27: Comparison between UL Gain and UL Output Noise Level..................................................67
Table 28: Alarms diagnosis...................................................................................................................68

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 6
ENU Status : 1-0-0
0.4 HISTORY
Change No. ENU Details Of Change
1 1-0-0 Document Initially developed in Dec, 2006

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 7
ENU Status : 1-0-0
0.5 ISSUE CONTROL
Issue
Control
Date
30
Jan
07
Section
All all

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 8
ENU Status : 1-0-0
0.6 REFERENCES
0.6.1 RA-5200 DS, ENU 1-2-4
Released on 05-Jan-2007 RA-5200 Tri-Band Remote Radio System Datasheet
0.6.2
RA-31GD00-1001YH
Dated Dec., 2006 RA-5200 Tri-Band Remote Radio System Original manual
0.6.3 OMT v3.20 QE 1-1-0
Released in Nov., 2006 OMT v3.20 Software Product Manual

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 9
ENU Status : 1-0-0
0.7 GLOSSARY OF TERMS
ALC Automatic Level Control
ATT Attenuation
BS Base Station
BTS Base Transceiver Station
dB Decibel
dBm Decibels relative to 1 milliwatt
DL Downlink
DPX Duplexer
DT Donor Terminal
EEPROM Electrically Erasable Programmable Read Only Memory
E/O,O/E Electrical/Optical, Optical/Electrical
Hz Hertz
ID Identification
LNA Low Noise Amplifier
MCU Main Control Unit
MHz Megahertz
MT Mobile Terminal
MTBF Mean Time Between Failures
NC Normally Closed
NF Noise Figure
NO Normally Open
OMC Operation & Maintenance Center
OMT Operation & Maintenance Terminal
OP Optical Fiber
PA Power Amplifier
PLL Phase Locked Loop
POI Point of Interconnects
PSU Power Supply Unit
RF Radio Frequency
RX Receive
SMA Sub-Miniature “A” Connector
TX/RX Transmit/Receive
UL Uplink
VAC Volts Alternating Current
VSWR Voltage Standing Wave Ratio
WCDMA Wideband Code Division Multiple Access
WDM Wavelength Division Multiplexer

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 10
ENU Status : 1-0-0
0.8 SAFETY NOTICES AND ADMONISHMENTS
This document contains safety notices in accordance with appropriate standards. In the interests of
conformity with the territory standards for the country concerned, the equivalent territorial
admonishments are also shown.
Any installation, adjustment, maintenance and repair of the equipment must only be carried out by
trained, authorized personnel. At all times, personnel must comply with any safety notices and
instructions.
Specific hazards are indicated by symbol labels on or near the affected parts of the equipment. The
labels conform to international standards, are triangular in shape, and are colored black on a yellow
background. An informative text label may accompany the symbol label.
Hazard labeling is supplemented by safety notices in the appropriate equipment manual. These
notices contain additional information on the nature of the hazard and may also specify precautions.
Warning:
These draw the attention of personnel to hazards which may cause death or injury to the operator or
others. Examples of use are cases of high voltage, laser emission, toxic substances, point of high
temperature, etc.
Alert:
These draw the attention of personnel to hazards which may cause damage to the equipment. An
example of use is the case of static electricity hazard.
Caution notices may also be used in the handbook to draw attention to matters that do not constitute a
risk of causing damage to the equipment but where there is a possibility of seriously impairing its
performance, e.g. by mishandling or gross maladjustment. Warnings and Cautions within the main text
do not incorporate labels and may be in shortened form.

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 11
ENU Status : 1-0-0
0.9 SERVICING POLICY AND RETURN OF EQUIPMENT
The repair of individual units and modules of this equipment is not considered practicable without
factory facilities. It is, therefore, the policy of Comba whereby faulty units or modules are returned to
the local agent for repair.
To enable an efficient, prompt after sales service to be provided for the diagnosis, repair and return of
any faulty equipment, please comply with the following requirements.
Items to be sent for repair should be packaged so as to provide both electrostatic and physical
protection and a Repair Material Authorization (a sample of this is in the appendix) completed giving
the required information
This request must be included with the item for repair, items for repair should be sent to the nearest
Comba office:
COMBA TELECOM LTD.
Hong Kong Office
Address: Room 1503-10 Delta House, 3 On Yiu Street, Shatin, Hong Kong.
Tel: + 852 2636 6861
Fax: + 852 2637 0966
Email: [e-mail]
Singapore Office
Address: 865 Mountbatten Road, Katong SC #05-43, Singapore 437844
Tel: + 65 6345 4908
Fax: + 65 6345 1186
Email: [e-mail]
Thailand Office
Address: 3
rd
Floor, T. Shinawatra Building, 94 Sukhumvit Soi 23, Sukhumvit Road, Klongtoeynua,
Wattana, Bangkok 10110
Tel: [phone]
Fax: [phone]
Email: [e-mail]
India Office
Address: Suit No. 202, Chintels Business Centre, A-11 Kailash Colony, New Delhi 110048, India
Tel: + 91 11 5173 9997 / 8
Fax: + 91 11 5173 9996
Email: [e-mail]
Sweden Office
Address: Gustavslundsvagen 147, S- 167 51 Bromma, Stockholm, Sweden
Tel: [phone]
Fax: [phone]
Email: [e-mail]
Brazil Sales Office
Address: Rua Gomes de Carvalho 1655 cj 101 / 102, 04547-006 Vila Olímpia, São Paulo, Brazil
Tel: [phone]
Fax: [phone]
Email: [e-mail]
China Office
Address: No.10, Shenzhou Road, Guangzhou Science City, Guangzhou, China
Tel: + 86 20 2839 0000
Fax: + 86 20 2839 0136
Email: [e-mail]

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 12
ENU Status : 1-0-0
0.10 READERS COMMENTS
Whilst every endeavour is made to ensure the accuracy of this and all Comba documents, there is
always the possibility that an inaccuracy or omission could occur.
In order that any amendment/remedial action can be carried out promptly, we would appreciate your
co–operation in filling out and returning a photocopy of this customer reply sheet as soon as possible.
Customer Information:
Name
Title
Company
Date
Address
Telephone Number
Customer Comments:
Equipment title
ENU 1-0-0
Page number
Paragraph number
Line number
Figure number
Details of inaccuracies
Other comments
Contact points:
Technical Writing
E-mail: [e-mail]
FAX: [phone]
End of Section

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 13
ENU Status : 1-0-0
1 GENERAL INFORMATION
The RA-5200 Tri-Band Remote Radio System (hereinafter called “optical repeater” or “system”)
provides flexible and scalable solution of multi-band, multi-operator coverage extension applications,
such as citywide enhancement, highway, canyons, campus, underground tunnels, airports, convention
centres, etc.
This system consists of Master Optical Unit (MOU) RA-5200-D, Remote Optical Unit (ROU) RA-5200-
O and Remote Radio Unit (RRU) RA-5200-R.
The MOU accommodates slide-in modules that can support up to four RRUs through Fiber Optical
Unit (FOU). The wideband optical link of MOU and ROU can support multiple systems over optical
fiber as well as the O&M communications between ROU and RRU.
The low signal transmission loss of optical fiber is applicable for long distance transmission. This
system can support the optical transmission of up to 15dB signal transmission loss. There is no
isolation problem between TX and RX antennas, which means customer can select the antenna
flexibly according to the real situation, such as directional or omni-directional antenna.
Remote configuration and surveillance is possible through Comba’s OMC remote control and
monitoring system.
Characteristics of RA-5200 are as follows:
•Broadband optical system: 35MHz for GSM900 band, 75MHz for DCS band, 60MHz for
WCDMA2100 band.
•High output power with high linearity, which supports multiple carrier operation and ensures the
signal source is of good quality.
•RF transmission over Fiber Distributed Antenna System – suitable for large scale indoor & outdoor
coverage enhancement.
•Local Operation and Maintenance Terminal (OMT): operating status and parameters can be set or
monitored by OMT PC locally. And the point-to-point setting and inquiry between MOU and RRU is
realizable through the integrated wireline/wireless modem, which makes it convenient for on-site
configuration.
•Operation Maintenance Center (OMC): system working parameters and communication
configuration can be set or inquired remotely through the integrated wireline modem. If alarm is
generated, the equipment will dial up to OMC automatically in the mode of SMS or datalink.
•MOU accommodates slide-in modules that allows flexible and scalable system configuration
•The ROU and RRU is designed for all-weather outdoor installation - waterproof, damp-proof and
omni-sealed (IP55).

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 14
ENU Status : 1-0-0
The figures below show the equipment enclosure layout of RA-5200 MOU, ROU and RRU:
177
482
359
Fig 1: View of MOU fully equipped shelf
DT
GSM1800
DT
GSM900
OP/UP OP/DOWN200-240V ~ 50Hz/60Hz
DT
WCDMA
RS-485
300
430
152
Fig 2: Front, side and bottom views of ROU enclosure

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 15
ENU Status : 1-0-0
DT
WCDMA
DT
GSM900
 
670
215370
DT
GSM1800
RS-485 MT
200-240V 50Hz/60Hz
Fig 3: Front, side and bottom views of RRU enclosure

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 16
ENU Status : 1-0-0
1.1 RA-5200 SALEABLE ENTITY
All products are described by a ‘Part Number’ that describes the Saleable Entities.
Part Number can be recognized as an alphanumeric code seen on the equipment label, depending on
the product variant, part number can be derived by constructing it from a group of Saleable Entitles:
Part Number Examples for this product are:
RA5200-D 31F35F75F60P00G35S75W60AXXM01OP3
RA5200-O 31F35F75F60G35S75W60AXXOP3
RA5200-R 31F35F75F60P27P30P36G35S75W60AXX
For further information to each RA-5200 Saleable Entity, please contact Comba.
End of Section

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 17
ENU Status : 1-0-0
2 EQUIPMENT DESCRIPTION
2.1 SYSTEM DIAGRAM




 





 





 



!""

!"
"
!""
!"
O/E
E/O
Fig 4: MOU system diagram

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 18
ENU Status : 1-0-0

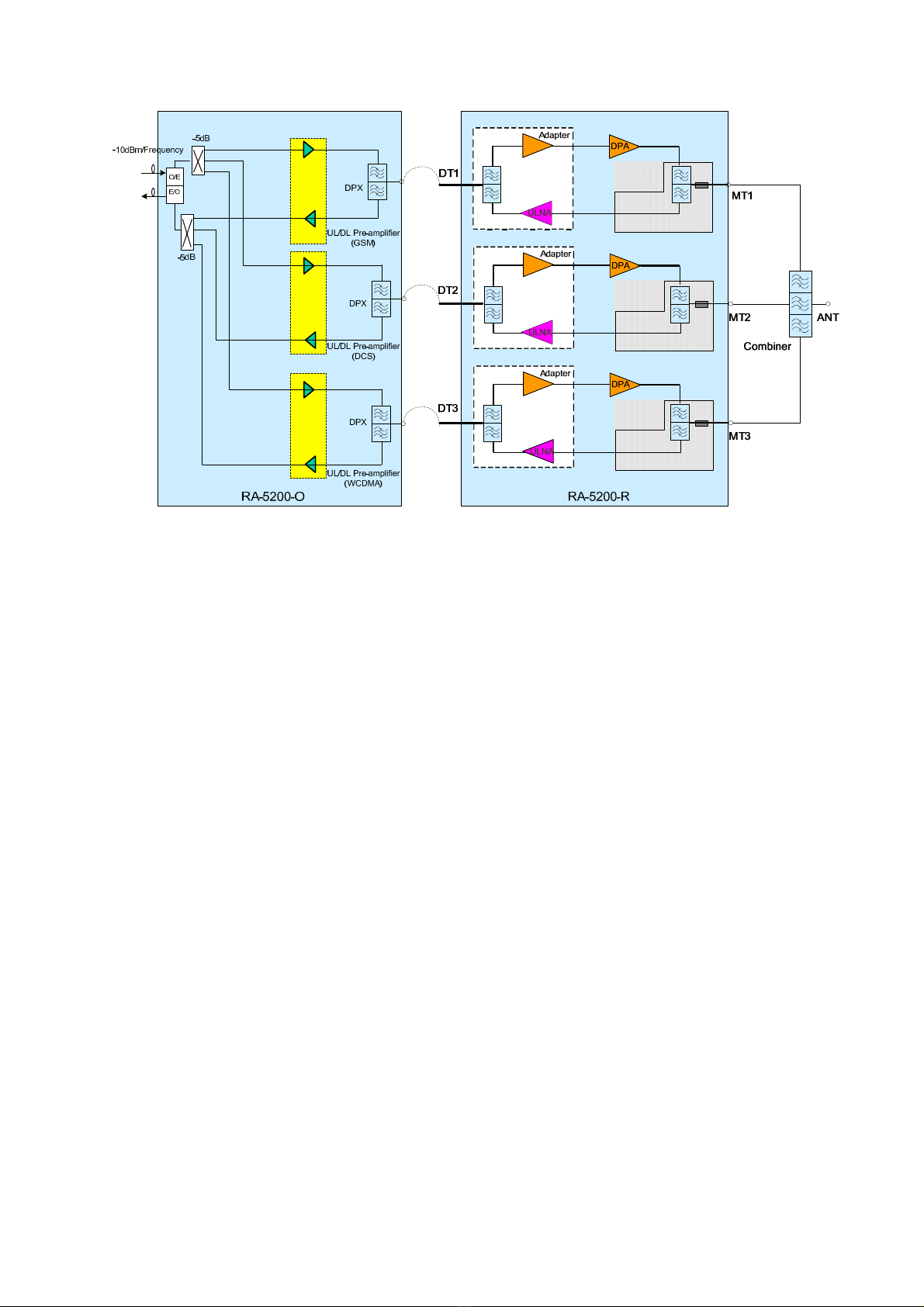

Fig 5: ROU+RRU system diagram
As shown in the above figures, the separate or combined signals as GSM900, DCS1800 and WCDMA
from the BTSs are received and converted into optical signals after amplification in the MOU, and then
the optical signals are transmitted to the ROU via optical fiber. At ROU, the optical signals are
converted into RF signals for transmission to the RRU. After being amplified, the signals are
transmitted to the customer’s mobile phone via service antenna.
The signals received by the customer’s mobile phone are received by the RRU and transmitted to the
ROU. At ROU, the RF signals are converted into optical signals, and then via UL optical fiber, the
signals are transmitted to the MOU, which then converts the optical signals into RF signals. After
amplification, the signals are transmitted back to the BTS.
In-band communication over optical fiber allows the ROU and RRU to be managed with a single
connection onto the MOU; this is achieved by using the (Frequency Shift Keying) FSK modem.

INSTALLATION GUIDE FOR RA-5200
RA-5200 QI Copyright - refer to title page Page 19
ENU Status : 1-0-0
2.2 TYPICAL APPLICATION
2.2.1 DUAL FIBER CONFIGURATION
For equipments without configuring WDM Unit, the dual fiber configuration is applicable. Refer to the
following two applications:
2.2.1.1 Typical Application of Dual Fiber Configuration
Typically one MOU can be connected with one or two RRU (s) through using the Single Channel FOU
or Double Channel FOU. Refer to the two figures below:
Tx/Rx
Tx/Rx OP DOWNLINK
OP UPLINK
Coupler
BTS MT
OP DOWN
ANT
FOU
MOU
OP UP
1310nm
1550nm
1310nm
1550nm
WCDMA
DCS
GSM
ROU RRU
Fig 6: Application of one MOU with one RRU through Single Channel FOU
Tx/Rx
Tx/Rx
OP Downlink2
OP Uplink2
Coupler
BTS MT
OP Downlink
ANT
MOU
OP Uplink
FOU
OP Downlink1
OP Uplink1
MT
OP Downlink
ANT
OP Uplink
1310nm
1550nm
1310nm
1550nm
1310nm
1550nm
1310nm
1550nm
ROU
ROU
RRU
RRU
WCDMA
DCS
GSM
WCDMA
DCS
GSM
Fig 7: Application of one MOU with two RRUs through Double Channel FOU
