COMBA CRITICALPOINT CP-AMS User manual

CRITICALPOINT
ANTENNA
MONITORING SYSTEM
USER MANUAL
QE: 1-0-1

Comba Telecom Ltd.
The information contained herein is the responsibility of and is approved by the
following, to whom all enquiries should be directed:
This is an unpublished work the copyright in which vests in Comba International
("Comba"). All rights reserved.
The information contained herein is confidential and the property of Comba and is
supplied without liability for errors or omissions. No part may be reproduced,
disclosed or used except as authorized by contract or other written permission. The
copyright and the foregoing restriction on reproduction and use extend to all media
in which the information may be embodied.

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 3
0.1 CONTENTS
Section
Page
2
0.1 CONTENTS....................................................................................................................................... 3
0.2 INDEX TO FIGURES AND TABLES............................................................................................. 4
0.3 HISTORY........................................................................................................................................... 5
0.4 GLOSSARY OF TERMS................................................................................................................. 6
0.5 SAFETY NOTICES AND ADMONISHMENTS ............................................................................ 7
1GENERAL INFORMATION............................................................................................................. 8
2EQUIPMENT DESCRIPTION......................................................................................................... 9
2.1 MCU (MAIN CONTROL UNIT) BLOCK DIAGRAM..................................................................... 9
3INSTALLATION.............................................................................................................................. 10
3.1 WARNINGS AND ALERTS........................................................................................................... 10
3.2 EQUIPMENT CONNECTION....................................................................................................... 11
3.2.1 EQUIPMENT CONNECTORS...................................................................................................... 11
3.2.2 RF CABLE CONNECTION ........................................................................................................... 12
3.2.3 POWER CONNECTION................................................................................................................ 12
3.2.4 ETHERNET CONNECTION ......................................................................................................... 12
3.2.5 DRY CONTACT CABLE CONNECTION.................................................................................... 12
4TAG INSTALLATION..................................................................................................................... 13
5WEB GUI......................................................................................................................................... 14
5.1 WEB GUI CONNECTION ............................................................................................................. 14
5.2 WEB GUI INTRODUCTION.......................................................................................................... 14
5.2.1 [TAG MANAGEMENT]................................................................................................................... 14
5.2.2 [TAG STATUS]............................................................................................................................... 15
5.2.3 [ALARM LOG]................................................................................................................................. 16
5.2.4 [CURRENT ALARM]...................................................................................................................... 17
5.2.5 [DEVICE INFO]............................................................................................................................... 18
5.2.6 [DEVICE PARAMETERS]............................................................................................................. 19
6APPENDICES................................................................................................................................. 20
6.1 APPENDIX A: RMA (RETURN MATERIAL AUTHORIZATION)............................................. 20

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 4
0.2 INDEX TO FIGURES AND TABLES
Figure 1: CriticalPoint Antenna Monitoring Solution System Block Diagram......................................................8
Figure 2: MCU (Main Control Unit) Block Diagram.............................................................................................9
Figure 3: Equipment Connectors ..................................................................................................................... 11

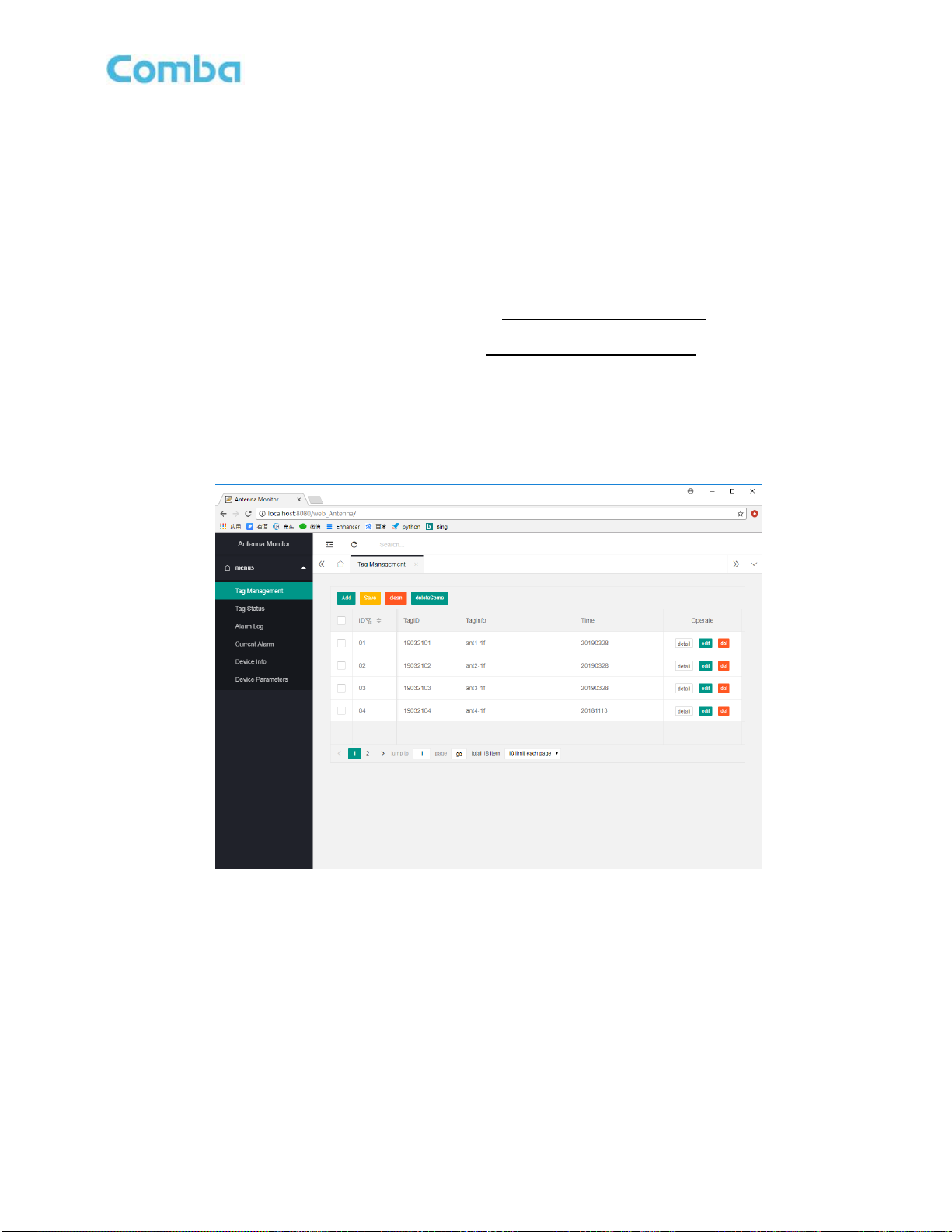

Figure 4: Tag Management.............................................................................................................................. 14
Figure 5: Tag Status......................................................................................................................................... 15
Figure 6: Current Alarm.................................................................................................................................... 16
Figure 7: Current Alarm.................................................................................................................................... 17
Figure 8: Device Info........................................................................................................................................ 18
Figure 9: Device Info........................................................................................................................................ 19
Table 1: Equipment Connectors ...................................................................................................................... 11
Table 2: Pin Definition of Dry Contact Cables.................................................................................................. 12

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 5
0.3 HISTORY
Change No.
ENU
Details Of Change
1
1-0-0
This manual first created and issued in APR 2019
2
1-0-1
Change the Warning section
3
1-0-2
Change some descriptions

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 6
0.4 GLOSSARY OF TERMS
Abbreviation
Definition
ALC
Automatic Level Control
ATT
Attenuator
BTS
Base Transceiver Station
CH
Channel
CSA
Cross Sectional Area
dB
Decibel
dBm
Decibels relative to 1 milliwatt
DL
Downlink
DT
Donor Terminal
DPX
Duplexer
FS
Frequency Selection
Hz
Hertz
ID
Identification
IF
Intermediate Frequency
LNA
Low Noise Amplifier
LOS
Line-of-Sight
MCU
Main Control Unit
MHz
Megahertz
MT
Mobile Terminal
MTBF
Mean Time Between Failures
NF
Noise Figure
OMC
Operation & Maintenance Center
OMT
Operation & Maintenance Terminal
PA
Power Amplifier
PLL
Phase Locked Loop
PSU
Power Supply Unit
RF
Radio Frequency
SMA
Sub-Miniature A Connector
UL
Uplink
VAC
Volts Alternating Current
VDC
Volts Direct Current
VSWR
Voltage Standing Wave Ratio

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 7
0.5 SAFETY NOTICES AND ADMONISHMENTS
This document contains safety notices in accordance with appropriate standards. In the interests of conformity
with the territory standards for the country concerned, the equivalent territorial admonishments are also shown.
Any installation, adjustment, maintenance and repair of the equipment must only be carried out by trained,
authorized personnel. At all times, personnel must comply with any safety notices and instructions.
Specific hazards are indicated by symbol labels on or near the affected parts of the equipment. The labels
conform to international standards, are triangular in shape, and are colored black on a yellow background. An
informative text label may accompany the symbol label.
Hazard labeling is supplemented by safety notices in the appropriate equipment manual. These notices contain
additional information on the nature of the hazard and may also specify precautions.
Note: The grantee is not responsible for any changes or modifications not expressly approved by the party
responsible for compliance. Such modifications could void the user’s authority to operate the equipment.
For compliance with the general population RF exposure limits, each individual antenna used for this
transmitter must be installed to provide a separation distance greater than 67.2cm or more from all persons
during normal operation and must not be co-located with any other antenna for meeting RF exposure
requirements.
Warning Notices:
Caution: The user is cautioned that changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of 20cm between the radiator and your
body.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
End of Section

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 8
1 GENERAL INFORMATION
The CriticalPoint Antenna Monitoring System consists of the Main Control Unit (MCU) and monitoring tags
which are easily installed on the service antennas. The system utilizes RFID (Radio Frequency Identification)
technology, that is incorporated into the DAS (Distributed Antenna System), to monitor the link status of the
entire passive network. It can report the status of any individual antenna link in real time via an easy to use GUI
and transmit the overall alarm information through Form C dry contacts. This system will satisfy AHJ
requirements for monitoring service antennas as part of the overall System Component Failure alarming
requirements. The system can also enormously increase the efficiency and accuracy of monitoring a passive
antenna system, as well as troubleshooting of the passive network.
Main Features
•Monitor In-building status in real time for all passive components, antenna coax, and service antennas
•Report overall status through dry contact alarming, login to identify alarms from individual antenna paths
•Supports up to 20dB cable loss from Main Control Unit (MCU) to Antenna
•Supports up to 50 antennas
•Supports Monitoring UHF/T band, 700/800MHz systems
•Monitor VHF system via external combining
•Supports Form C dry contact alarms
•MCU is housed in a NEMA 4 enclosure
•Low Power Consumption
System Block Diagram
Figure 1: CriticalPoint Antenna Monitoring Solution System Block Diagram

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 9
2 EQUIPMENT DESCRIPTION
2.1 MCU (MAIN CONTROL UNIT) BLOCK DIAGRAM
Figure 2: MCU (Main Control Unit) Block Diagram
MCU generates a pilot signal at 910MHz or 915MHz, combines the RF signal from BDA/Signal Booster through
the combiner and transmit the combined signal to each of the antenna, the RFID tags in the antenna will be
energized by the pilot signal and send a response back to the MCU.

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 10
3 INSTALLATION
3.1 WARNINGS AND ALERTS
Radio Frequency Energies
There may be situations, particularly for workplace environments near high-powered RF sources, where
recommended limits for safe exposure of human beings to RF energy could be exceeded. In such cases,
restrictive measures or actions may be necessary to ensure the safe use of RF energy.
High Voltage
The equipment has been designed and constructed to prevent, as far as reasonably practicable danger. Any
work activity on or near equipment involving installation, operation or maintenance must be, as far as
reasonable, free from danger.
Where there is a risk of damage to electrical systems involving adverse weather, extreme temperatures, wet,
corrosive or dirty conditions, flammable or explosive atmospheres, the system must be suitably installed to
prevent danger.
Protective Earthing
Equipment provided for the purpose of protecting individuals from electrical risk must be suitable for the
purpose and properly maintained and used.
Handling Precautions
This covers a range of activities including lifting, lowering, pushing, pulling, carrying, moving, holding or
restraining an object, animal or person from the equipment. It also covers activities that require the use of force
or effort, such as pulling a lever, or operating power tools.
Where some of the abovementioned activities are required, the equipment must be handled with care to avoid
being damaged.
Electrostatic Discharge (ESD)
Observe standard precautions for handling ESD-sensitive devices. Assume that all solid-state electronic
devices are ESD-sensitive. Ensure the use of a grounded wrist strap or equivalent while working with
ESD-sensitive devices. Transport, store, and handle ESD-sensitive devices in static-safe environments.

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 11
3.2 EQUIPMENT CONNECTION
3.2.1 EQUIPMENT CONNECTORS
Figure 3: Equipment Connectors
Table 1: Equipment Connectors
Identifier
Descriptions
DC48V
Power cable connector for a pre-installed power cord for connection to DC (48V)
RF IN
N Female, connect to BDA or Signal Booster MT or Service port
RF OUT
N Female, connect to the passive system to the antennas
ETH
RJ45 Connector for local WEB GUI connection.
ALM1
Connector for dry contact alarm 1
ALM2
Connector for dry contact alarm 2

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 12
3.2.2 RF CABLE CONNECTION
AMS RF cables connection is as follows:
⚫RF IN port →connect to BDA or Signal Booster’MT or Service port
⚫PF OUT port →connect to the passive system to the antennas
3.2.3 POWER CONNECTION
Connect the power cord to the DC48V power source
⚫RED →connect to Positive
⚫BLUE →connect to Negative
3.2.4 ETHERNET CONNECTION
Establish an Ethernet connection using the ‘ETH’port located on the panel.
3.2.5 DRY CONTACT CABLE CONNECTION
Below please find the pin definitions of the dry contact cables. (same for both ALM1 and ALM2 ports)
Table 2: Pin Definition of Dry Contact Cables
Pin NO.
Pin
Description
Color Code
ALM
1
CLOSE
Dry Contact Alarm
RED
2
COM
Dry Contact Alarm
BLUE
3
OPEN
Dry Contact Alarm
YELLOW

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 13
4 TAG INSTALLATION
Use addressable antenna:
⚫IXD-360H04YJN-ADR: Low profile, Ceiling Mount, 380-2700MHz, H Pol, 360°, 2.0/2.2/4.5dBi
⚫IXD-360H04MJN-ADR: Low profile, Ceiling Mount, 698-2700MHz, H Pol, 360°, 2.2/3.5/4.5dBi
Or put the RFID tags on the antenna emission surface:
⚫These tags should be installed on in-building services antennas and the gain for these antennas shall not
be exceeding 12.5dBi gain.
⚫The tags cannot be used for outdoor environment
Important
Record the RFID 1) serial number 2) Location for each antenna with RFID tag. This information needs to be
recorded in the AMS when setting up a new system

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 14
5 WEB GUI
The AMS can be monitored and controlled via the WEB GUI; use the following guide to finish system parameter
setting and commissioning.
5.1 WEB GUI CONNECTION
Step 1: Connect the ETH port to the PC RJ45 port to set up a physical connection.
Step 2: Manually change the IP address of the PC to be 192.168.1.100/255.255.255.0
Step 3: Open a browser (Chrome or Firefox), connect 127.0.0.1:8080/web_Antenna for login
5.2 WEB GUI INTRODUCTION
5.2.1 [TAG MANAGEMENT]
Figure 4: Tag Management
For all the new systems, need to add tags into the controller
•ID –The Serial Number for the RFID tag
•Taginfo –The other information for the RFID/Antenna, such as the location information

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 15
5.2.2 [TAG STATUS]
Figure 5: Tag Status
•Display tag status
the refresh ratio is based on the setting in “Query Cycle” in the “Device Parameter” page
•readData will manually trigger a scan all the tags, can be used during set up

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 16
5.2.3 [ALARM LOG]
Figure 6: Current Alarm
Check the alarm log

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 17
5.2.4 [CURRENT ALARM]
Figure 7: Current Alarm
Current Alarm displays current Dry Contact Alarm 1 and Alarm 2 status

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 18
5.2.5 [DEVICE INFO]
Figure 8: Device Info
•DeviceNum: User can define the device information here such as a remark for the device
•Serial Number: the serial number of the device
•Date/Time: User can set the date and time

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 19
5.2.6 [DEVICE PARAMETERS]
Figure 9: Device Info
•Frequency: set the pilot signal frequency from 902-928MHz, default is 910MHz, user can change the
frequency if there is interferences from 900MHz
•OutputPower: Set the output power in dBm for the pilot signal, default is 30 (dBm)
•PowerAmplifier: Manually turn on or off the power amplifier
•Query Cycle: Set the pulse rate for the pilot signal, minimum pulse rate is 3 minutes
•Auto Query: Turn on or off the auto Query
End of Section

INSTALLATION GUIDE FOR RX-7W22
ENU STATUS : 1-0-2
Copyright - refer to title page
Page 20
6 APPENDICES
6.1 APPENDIX A: RMA (RETURN MATERIAL AUTHORIZATION)
End of Section
End of Document
