COMBITHERM ELECTRIC C4eT 6.10 ES Marine Operating manual

TECHNICAL SERVICE MANUAL
6•10ES MARINE
C O M B I T H E R M®
E L E C T R I C
6.10ESM TECH • 02/08
W164 N9221 Water Street • P.O. Box 450 • Menomonee Fall , Wi con in 53052-0450 USA
PHONE: [phone] • 800.558.8744 USA/CANADA FAX: [phone]
.ALTO-SHAAM.COM
PRINTED IN U.S.A.

How to Use this Tech ical Service Ma ual
This manual has been compiled as a complete resource for a technician working on Combitherm Electric models. It includes
necessary product information and drawings, along with helpful troubleshooting procedures.
I troductio gives a quick overview of the Combitherm Electric line.
Sectio s 1 through 5:
–CONTROL PANEL IDENTIFICATION includes information on using the controllers and operating instructions. It is
the same material supplied to the customer.
–PREVENTIVE MAINTENANCE includes procedures for cleaning, performing a generator flush and decalcifying. This
information is also supplied to the customer.
–SERVICE MODE AND ERROR CODES explains the special programming available to you as a technician to view
status, make adjustments and test functions. Information is also included on the use of displayed error codes to resolve
problems and on the functions that can be operated under fault conditions.
–TROUBLESHOOTING TREES are provided for the most common conditions you will be required to address.
–COMBITHERM PARTS has drawings and lists of available parts.
Sectio 6 contains information that is specific to that model:
– The model’s Technical Data Sheet
– Parts Information that is unique to the model, including its door, condensation tank, directional panel and steam
generator or pressure box
– iring Diagrams
– Ladder Diagrams
7.14ES MARINE C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MA N U A L

T A B L E O F C O N T E N T S
How to Use this Technical Service Manual...................................... 2
Introduction .................................................................................. 4
1—Control Panel Identification.................................................. 5
2—Preventive Maintenance....................................................... 42
3 — Service Mode and Error Codes............................................. 53
4—Troubleshooting Trees ......................................................... 61
5—Combitherm Parts............................................................... 71
6—6.10 ES ............................................................................. 77
7.14ES MARINE COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MA N U A L • 3

MODEL NUMBERS
This manual covers the following model:
CONTROLLER
• Deluxe is a touch key controller with programmable Rapid-Touch™ keys.
FEATURES AND OPTIONS
• Recessed Door is available on all models.
• Core Temp Probe (single point) is standard on deluxe controllers.
MODES
The Combitherm combination oven/steamer is a multipurpose oven used for:
7.14ES MARINE C O M B I T H E R M E L E C T R I C T ECHNICAL SE R V I C E MANUAL • 4
INTRODUCTION
STEAM MODE
COMBINATION MODE
CONVECTION MODE
RETHERM MODE
CORE TEMPERATURE MODE
Steam Generator Models
6.10ES MARINE

Deluxe Control ............................................................................. 6
Return to Main Table of Contents .................................................. 3
SE C T I O N 1–CO N T R O L PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 5
1
CONTROL PANEL IDENTIFICATION

SE C T I O N 1–CO N T R O L PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T ECHNICAL SE R V I C E MANUAL • 6
POWER ON/OFF KEY
STEA ODE KEY
PROGRA ED ENU KEY
COOKING TE PERATURE KEY
DOWN ARROW KEY
OISTURE VENT KEY
START / STOP KEY
CHEF FUNCTION KEY
TI E KEY
CO BINATION ODE KEY
RETHER ODE KEY 
CONVECTION ODE KEY 
PROGRA INSTALL/EDIT KEY 
FUNCTION & OPERATING 
CONTROL PANEL DISPLAY 
CORE TE PERATURE KEY 
UP ARROW KEY 
RAPID-TOUCH KEYS 
INDICATORS
DELUXE ODELS ONLY
DELUXE ODELS ONLY DELUXE ODELS ONLY
ELECTRIC ODELS ONLY
CONTROL PANEL IDENTIFICATION
PROGRA ABLE DELUXE ODELS
ADJUST ENT KNOB

SE C T I O N 1–CO N T R O L PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 7
DELUXE CONTROL PANEL BASIC FUNCTION

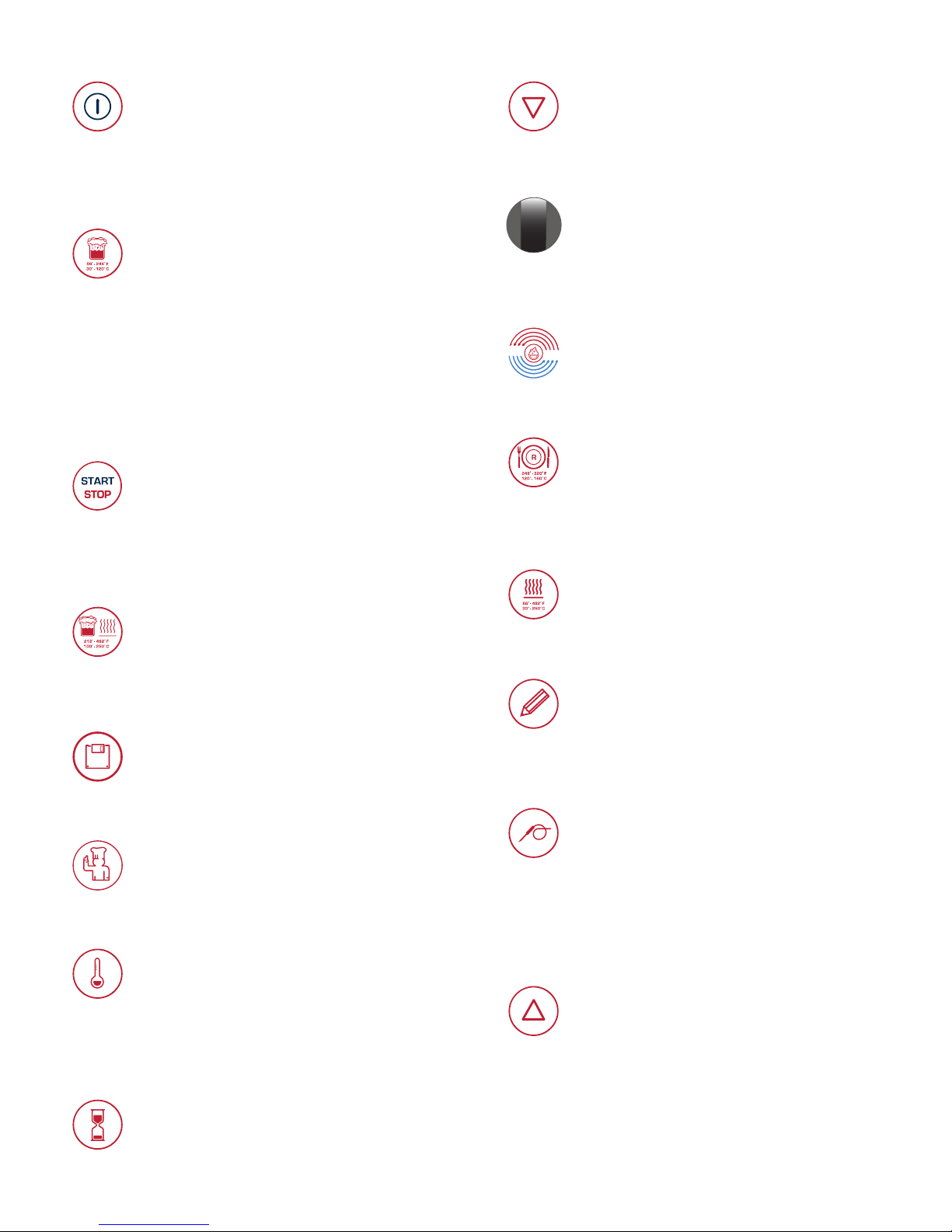

POWER ON/OFF KEY
Activates power to the oven and automatically fills
the steam generator equipped models with water
that will heat to a stand-by mode temperature of
150°F (65°C). The steam generator flush is also
activated by pressing this key.
STEA ODE KEY
The oven will operate in the steam mode at a
temperature range of 86°F to 248°F
(30°C to 120°C).
• Automatic steaming at 212°F (100°C)
FA CTORY-SE T DEFAULT.
• Quick steaming between 213°F and 248°F
(101°C and 120°C).
• Low Temperature Steaming between
86°F and 211°F (30°C and 99°C).
START/STOP KEY
Initiates all cooking mode functions and
programmed procedures stored in memory.
Stops an activated cooking mode or
programmed procedure currently in progress,
and exits the Chef function key .
CO BINATION ODE KEY
Selection key for cooking with a combination
of steam and convection heat that can be set
within a temperature range of 212°F to 482°F
(100°C and 250°C).
PROGRA ED ENU KEY
Used to access and exit a menu list of all
stored cooking programs that can be reviewed
in display .DELUX E OD ELS ONLY
CHEF FUNCTION KEY
Used to select programmed menu functions,
various auxiliary functions, and several chef
help instructions.
COOKING TE PERATURE KEY
Used to set the required cooking temperature,
to recall the set cooking temperature, or to
check the actual oven temperature in
conjunction with the down arrow key , the
up arrow key or the adjustment knob .
TI E KEY
Used to set the required cooking time or recall
the set cooking time in conjunction with the
down arrow key , the up arrow key , or
the adjustment knob .
DOWN ARROW KEY
Used to decrease displayed cook temperature
, time , or core temperature and as a
scrolling key for programming functions.
ADJUST ENT KNOB
Displays oven functions. Serves the same
function as the up and down arrow keys to
increase or decrease the displayed cook
temperature , time , or core temperature .
OISTURE VENT KEY EL E CTR IC O DEL S ONLY
Immediately vents steam and condensate from the
oven compartment while cooking in the Convection
mode or in the Combination mode .
RETHER ODE KEY
Food rethermalization or reheating mode will
operate with automatic steam injection at a
temperature range of 248°F and 320°F
(120°C and 160°C).
CONVECTION ODE KEY
Selection key for convection cooking without
steam at a temperature range of 86°F to 482°F
(30°C and 250°C).
PROGRA INSTALL AND EDIT KEY
Used to create, change, duplicate, and delete
programmed menus. DELU XE ODELS O N LY.
•••••••CONTROL PANEL DISPLAY
CORE TE PERATURE KEY
Used to set the required internal product
temperature, to recall the internal product
temperature set by the operator, or to display
the current internal temperature of the product
in conjunction with the down arrow key , the
up arrow key , or the adjustment knob .
UP ARROW KEY
Used to increase displayed cook temperature
, time , or core temperature and as a
scrolling key for programming functions.
•••••••RAPID-TOUCH KEYS DELUXE ODELS ONLY.
One-touch cooking for immediate access to
frequently used operator set programs including
cooking modes, cleaning, and other oven functions.
CONTINUED

SE C T I O N 1–CO N T R O L PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T ECHNICAL SE R V I C E MANUAL • 8
FUNCTION & OPERATING INDICATORS
A. Gold-n-Brown™ FEATURE
This indicator will illuminate when the browning function is set by the operator in a
timed or programmed cooking cycle in either convection mode or combination mode.
B. CO BI S OKER (ON EQUIPPED ODELS)
This indicator will illuminate when the smoking function is set by the operator in a
timer, probe or programmed cooking cycle in either convection mode or combination
mode.
C. REDUCED FAN SPEED
This indicator will illuminate whenever the operator sets a reduced fan speed to
protect products affected by high-velocity air movement.
D. CONFIR ATION OF OVEN OPERATION
This indicator illuminates whenever the oven is operating in any mode.
E. KEY LOCK
This indicator will illuminate when operator has locked any mode key or function to
prevent unauthorized or accidental changes.
F. OISTURE VENT
This indicator will illuminate whenever the Moisture Vent ey 
is pressed by the operator to eliminate excessive moisture.
DELUXE CONTROL PANEL BASIC FUNCTIONS

SE C T I O N 1–CO N T R O L PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 9
SET UP ENU
Following installation, the control should be set with the date and time. In addition to the date and time,
the set-up function provides the operator with the ability to adjust a number of other Combitherm
operating conditions to conform with the needs of the individual installation.
S E T - U P P R O C E D U R E S

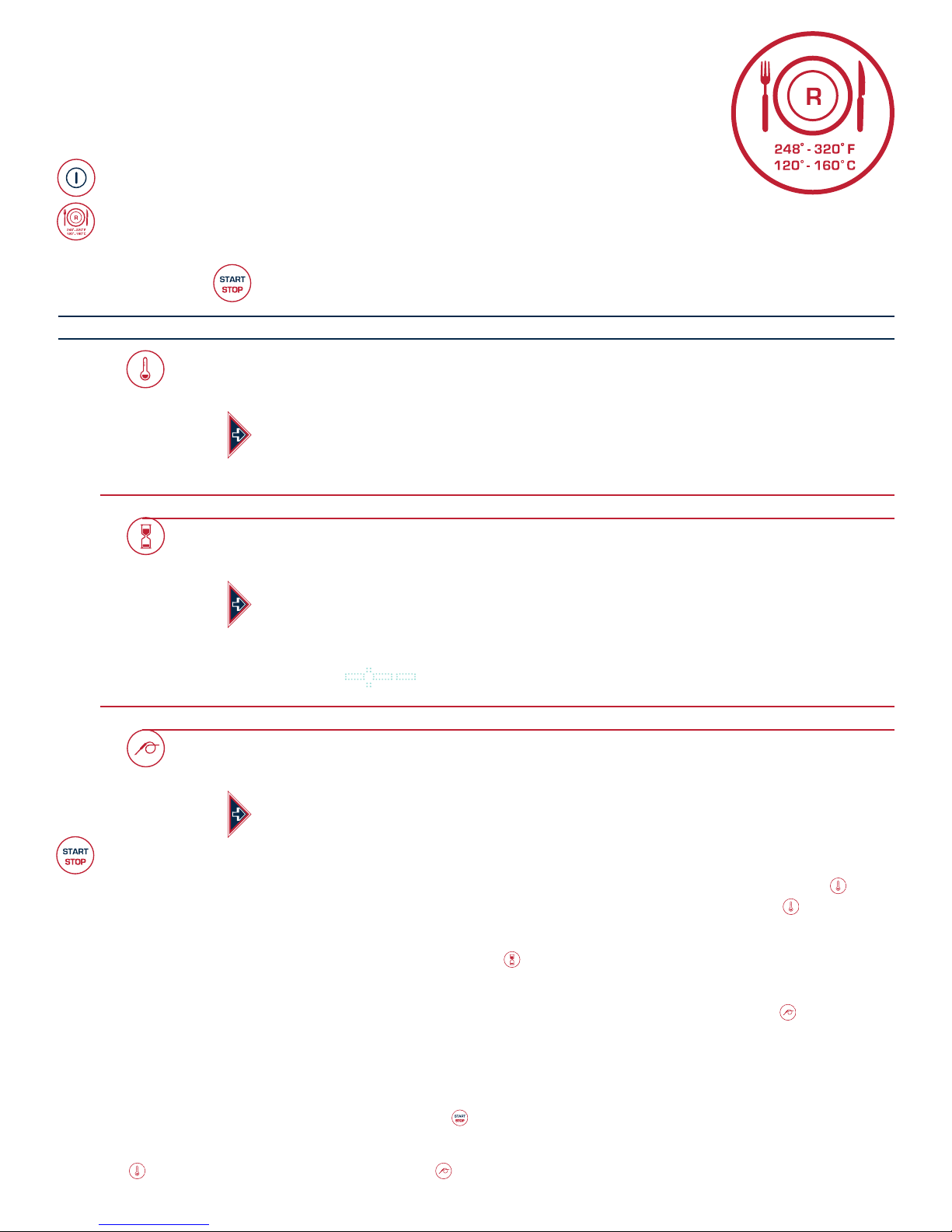

PRESS THE ON/OFF POWER EY
TO THE ON POSITION.
PRESS THE CHEF FUNCTION EY.
Rotate the adjustment knob
until the set up symbol is
highlighted within the display.
PRESS THE CHEF FUNCTION EY.
Press the up and down arrow keys
or rotate the adjustment knob to select
“YES” for the set up function.
PRESS THE CHEF FUNCTION EY TO
CONFIRM THE SET UP FUNCTION.
Press the up and down arrow keys
or rotate the adjustment knob to
highlight one of the following
adjustment functions:
SET UP ADJUST ENT CHOICES
SIGNAL TONE
VOLU E
TI E
DATE
PROGRA INDEX
DEFAULT/ E O SETTINGS

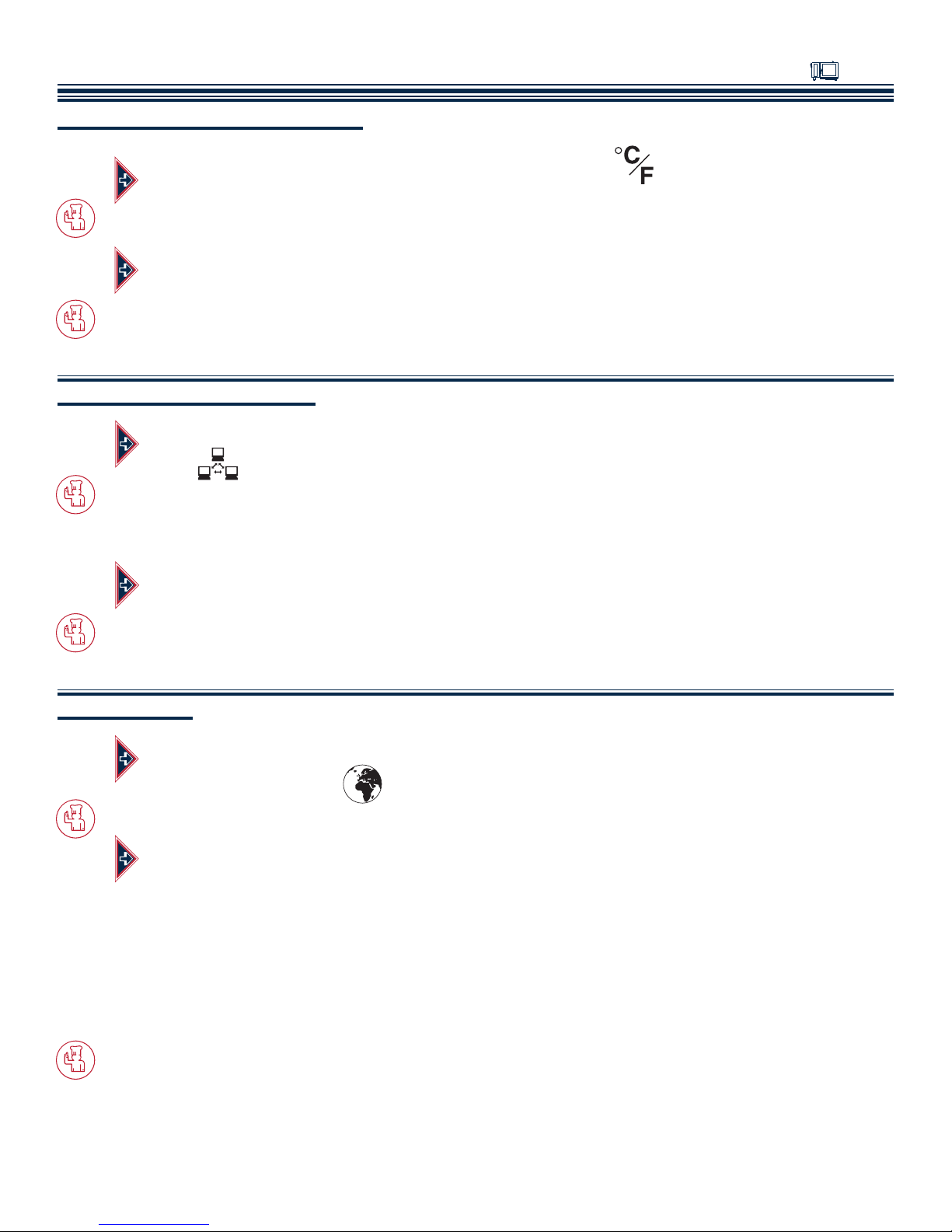

TE PERATURE DISPLAY
NETWORK ADDRESS
LANGUAGE
SIGNAL TONE
Rotate the adjustment knob until the signal tone symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE SIGNAL TONE SELECTION.
Press the up and down arrow keys or rotate the adjustment knob to select each tone offered.
Stop rotation at each individual setting to hear an audio playback. Select the tone desired.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE SELECTED SIGNAL TONE SETTING.
Set up

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 1 0
A L W AY S B E G I N S E T U P A D J U S T E N T S F R O T H E S E T U P E N U .
V O L U E
Rotate the adjustment knob until the volume symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE VOLUME SELECTION.
Press the up and down arrow keys or rotate the adjustment knob to select each volume level
offered. Stop rotation at each individual setting to hear an audio playback. Select the volume
desired with consideration of the noise level within the kitchen during peak production periods.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE VOLUME SETTING.
T I E
Rotate the adjustment knob until the time symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE TIME SELECTION.
Press the up and down arrow keys to alternate between hours and minutes and rotate the
adjustment knob in each to adjust the numbers to the correct time.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE SET TIME.
D A T E
Rotate the adjustment knob until the date symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE DATE SELECTION.
Rotate the adjustment knob to select the preferred date format.
Press the up and down arrow keys to alternate between day, month and year, and rotate the
adjustment knob in each to adjust the numbers to the correct settings.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE SET DATE.
PROGRA INDEX
Rotate the adjustment knob until the program index symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE PROGRAM INDEX SELECTION.
Press the up and down arrow keys or rotate the adjustment knob to select the preferred index format:
“YES” for a listing of programs entered alphabetically with the program install/edit key.
“NO” for a listing of programs entered numerically with the program install/edit key.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE PROGRAM INDEX SETTING.
S E T - U P P R O C E D U R E S

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 1 1
S E T - U P P R O C E D U R E S
A L W AY S B E G I N S E T U P A D J U S T E N T S F R O T H E S E T U P E N U .
D E F A U L T / E O S E T T I N G
Rotate the adjustment knob until the default/memo symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE DEFAULT/MEMO SELECTION.
Rotate the adjustment knob to “NO” for memo. This setting will display the last operator set values for
time and temperature in each cooking mode.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE MEMO SETTING.
TO CHANGE THE DEFAULT SETTINGS
Rotate the adjustment knob to select “YES”.
A numbered list of default descriptions will appear in the display. Rotate the adjustment knob
until the setting to be changed is highlighted. Press the up arrow key to highlight the time or
temperature to be changed. Rotate the adjustment knob to change the default to the setting
desired. Press the down  arrow key to save the new default setting.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE NEW DEFAULT SETTINGS.
COOKING
ODE
OVEN
TE PERATURE
CORE
TE PERATURE
COOKING
TI E

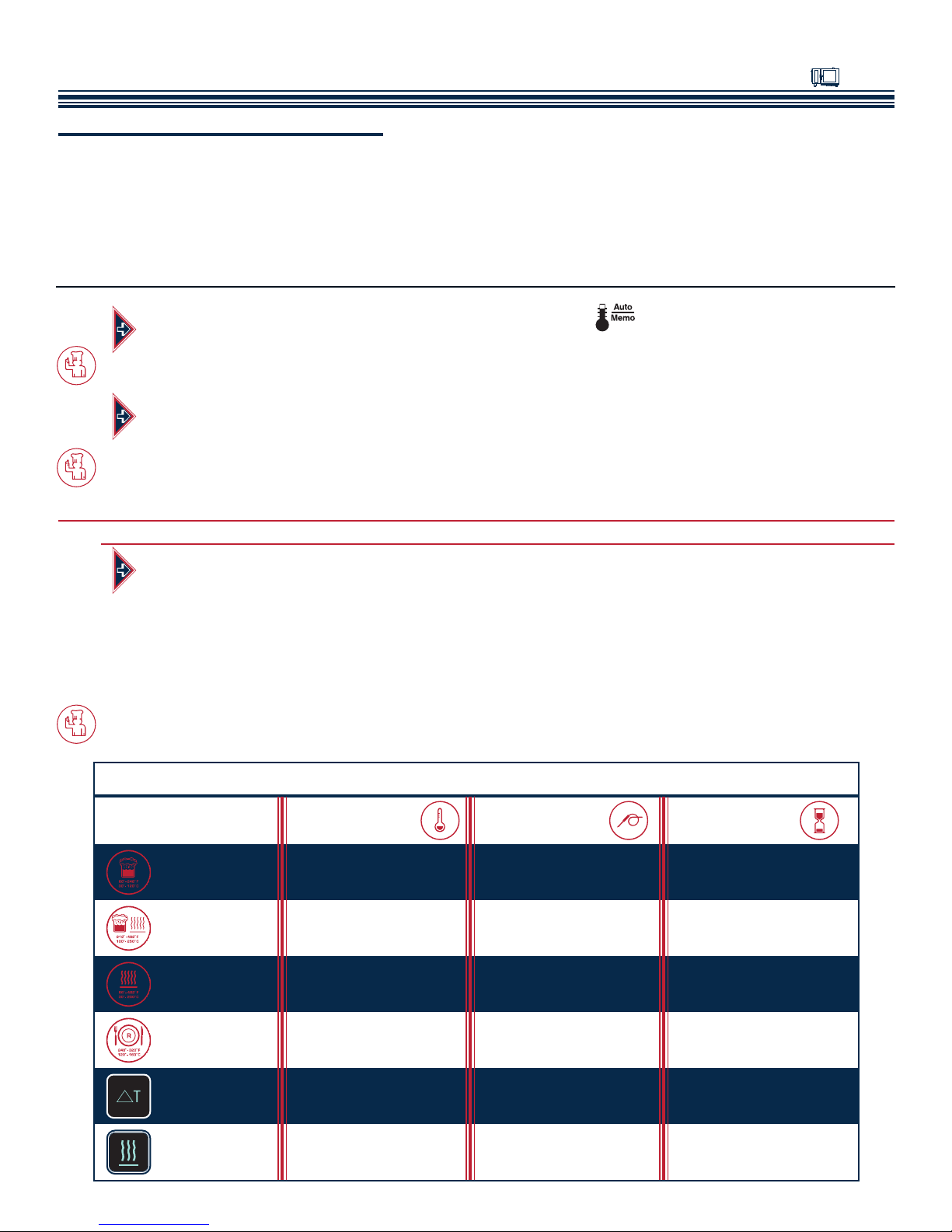

CO BITHER FACTORY SET DEFAULT SETTINGS
DELTA-T 122°F 172°F FREE
ODE (50°C) (77°C)
RETHER 275°F 158°F 5 INUTES
ODE (135°C) (70°C)
PREHEAT 374°F FREE —
ODE (140°C)
CONVECTION 338°F 158°F 30 INUTES
ODE (170°C) (70°C)
CO BINATION 302°F 158°F 70 INUTES
STEA ODE (150°C) (70°C)
STEA 212°F 158°F 25 INUTES
ODE (100°C) (70°C)
The default/memo setting allows the operator to choose
between a display showing the factory set defaults for
time and temperature or the last operator set values for
time and temperature in each cooking mode. This
adjustment function also allows the operator to change
the defaults from those set at the factory to settings that
better meet the needs of the individual operation.
Cooking product with operator set defaults for time and
temperature can help reduce operator error. Cooking
with the oven in the memo setting is particularly useful
when several batches are cooked in succession. The
memo setting eliminates the necessity to set time and
temperature for each batch.

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 1 2
A L W AY S B E G I N S E T U P A D J U S T E N T S F R O T H E S E T U P E N U .
TE PERATURE DISPLAY
Rotate the adjustment knob until the temperature display symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE TEMPERATURE DISPLAY SELECTION.
Press the up and down arrow keys or rotate the
adjustment knob to select either Fahrenheit or Celsius.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE TEMPERATURE DISPLAY SETTING.
NETWORK ADDRESS
Press the up and down arrow keys or rotate the adjustment knob until the network address
symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE NETWOR ADDRESS SELECTION.
The current network address will appear in the display.
Rotate the adjustment knob to select 1 through 99 and assign
a different network number for each PC to be connected.
PRESS THE CHEF FUNCTION EY TO CONFIRM EACH NETWOR ADDRESS.
LANGUAGE
Press the up and down arrow keys or rotate the adjustment knob
until the language symbol is highlighted within the display.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE LANGUAGE PROGRAM SELECTION.
Rotate the adjustment knob to select the required language.
PRESS THE CHEF FUNCTION EY TO CONFIRM THE LANGUAGE SETTING.
CHINESE
DUTCH
ENGLISH*
FRENCH
GER AN
ITALIAN
JAPANESE
KOREAN
POLISH
PORTUGUESE
RUSSIAN
SPANISH
SWEDISH
*U.S. FACTORY SETTING
NOT E :SOME OF THE LANGUAGE SELECTIONS SHOWN ABOVE MAY NOT BE AVAILABLE ON ALL MODELS.
S E T - U P P R O C E D U R E S

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 1 3
D O N O T USE THE ATTACHED HAND-
HELD H SE T SPRAY ANYTHING THER
THAN THE INTERI R F THE C MBITHERM
VEN C MPARTMENT.
D O N O T USE THE SPRAY H SE
N THE SURFACE F A H T C KING
C MPARTMENT. ALL W THE VEN T
C L T A MINIMUM F 150°F (66°C).
NNOOTTEE: UUSSEE AAUUTTHHOORRIIZZEEDD CCOOMMBBIITTHHEERRMM OOVVEENN CCLLEEAANNEERR OONNLLYY..
UUNNAAUUTTHHOORRIIZZEEDD CCLLEEAANNIINNGG AAGGEENNTTSS MMAAYY DDIISSCCOOLLOORR OORR HHAARRMM IINNTTEERRIIOORR SSUURRFFAACCEESS OOFF
TTHHEE OOVVEENN.. RREEAADD AANNDD UUNNDDEERRSSTTAANNDD LLAABBEELL AANNDD MMAATTEERRIIAALL SSAAFFEETTYY DDAATTAA SSHHEEEETT
BBEEFFOORREE UUSSIINNGG TTHHEE OOVVEENN CCLLEEAANNEERR..
FOR OPERATOR SAFETY
NOTE AND OBSERVE ALL SAFETY PRECAUTIONS LOCATED THROUGHOUT THIS GUIDE.
I PORTANT SAFETY PRECAUTIONS
NOTE:Automatic steam venting is a standard
safety feature built into all Combitherm
oven models. This feature vents all
steam from the oven compartment
IEDIATELY BEFORE COOKING
TI E EXPIRES.
This function is provided in all
programmed and timed production
when operating in any Steam,
Combination, Convection, and Retherm
cooking mode. Automatic steam
venting does not function if the oven
door is opened before time expires or
when the oven has been set to
continuous operation.
HOT STEAM CAUSES BURNS
ROTATE THE DOOR HANDLE TO THE
FIRST OPEN ROTATION POSITION ONLY..
WWAAIITT UUNNTTIILL TTHHEE SSTTEEAAMM IISS VVEENNTTEEDD
BBEEFFOORREE FFUULLLLYY OOPPEENNIINNGG TTHHEE DDOOOORR..
DO NOT HANDLE PANS C NTAINING LIQUID
R SEMILIQUID PR DUCTS P SITI NED
AB VE THE EYE LEVEL F THE PERAT R.
SUCH PR DUCTS CAN SCALD AND CAUSE
SERI US INJURY.

METAL PARTS OF THIS EQUIPMENT
BECOME EXTREMELY HOT WHEN IN
OPERATION. TO AVOID BURNS,
ALWAYS USE HAND PROTECTION
WHEN OPERATING THIS APPLIANCE.
AT NO TIME SHOULD THE INTERIOR OR
EXTERIOR BE STEAM CLEANED, HOSED
DOWN, OR FLOODED WITH WATER OR
LIQUID SOLUTION OF ANY KIND. DO NOT
USE WATER JET TO CLEAN.
SEVERE DAMAGE OR
ELECTRICAL HAZARD COULD RESULT. 
WARRANTY BECOMES VOID IF APPLIANCE IS FLOODED.

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 1 4
The Steam mode provides the operator with the ability to steam, poach, or blanch.
This mode will automatically steam at the boiling point of water; quick-steam above the
boiling point for faster cooking results; or low temperature steam, below the boiling point,
for more delicate products such as pâté, mousse, seafood, or custard.
PRESS THE ON/OFF POWER EY TO THE ON POSITION.
PRESS THE STEAM MODE EY.
Automatic Steam temperature of 212°F (100°C) will appear in the display.
The last set time or oven control default setting for time will appear in the display.
PRESS THE START KEY TO STEA AT THE SETTINGS SHOWN.
TO CHANGE THE SETTINGS SHOWN:
PRESS THE TEMPERATURE EY.
The cooking temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to select
the desired cooking temperature.
• Automatic Steaming 212°F (100°C)
• Quick-steaming 213°F to 248°F (101°C to 120°C)
• Low Temperature Steaming 86°F to 211°F (30°C to 99°C)
TO COOK BY TI E:
PRESS THE TIME EY.
The cooking time will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the time desired…
o r
Set control for continuous operation by rotating the adjustment knob to the right until
appears in t h e display.
TO COOK BY INTERNAL PRODUCT TE PERATURE:
PRESS THE CORE TEMP EY.
The previously set core temperature or oven control default setting will appear
highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the internal temperature desired and insert the product probe.
PRESS THE START KEY TO BEGIN COOKING IN THE STEA ODE.
• The set cooking temperature will appear in the display. To adjust the set temperature, press the key
once and make corrections as required. To display the actual oven temperature, press the key twice.
• The remaining cooking time will appear in the display. To display the set time or to change the set
values for time during operation, press the time key once and make corrections as required.
• The actual internal product temperature will appear in the display. To display the set internal product
temperature or to change the set values for core temperature during operation, press the key once
and make corrections as required.
When the cooking time has expired or the operator set internal temperature has been reached, a buzzer
will sound indicating the end of the operating mode.
• To stop the buzzer, press the start/stop key or open the oven door.
S T E A O D E
STEA ●LOW TE PERATURE STEA ●QUICK STEA

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 1 5
This mode will steam a full or partial load of a single product, or multiple products
without transfer of flavors. When steaming multiple products, however, individual
product cooking times must be taken into consideration. The non-pressurized
atmosphere of the Combitherm also provides the ability to open the door during the
steam mode in order to monitor products more closely throughout the steaming process.
STEA
Perforated, 2-1/2" deep pans
(65mm) are particularly suitable
for use in this program mode.
These pans will provide a shorter
cooking time and will prevent
product over-cooking at the
bottom of the pan.
Separate ice-encased vegetables
before steaming to assure more
even cooking.
A variety of products can be
steamed at the same time but
attention must be paid to the
different cooking times required
for each food product.
Butter and season vegetables
after steaming.
Steam long-grain rice using
approximately 1-part rice to
approximately 1-1/2-parts water
or seasoned liquid.
Steam durum wheat noodles in
unperforated pans using 1-part
noodles to 5-parts cold water.
QUICK STEA ING
Quick steaming is suitable
for hearty, root-type vegetables
such as potatoes, legumes,
and cabbage.
Quick steaming provides a
cooking time which is
approximately 10-percent shorter
than the regular steam mode
temperature of 212°F (100°C).
Set the steam cooking
temperature between 221°F
(105°C) and 230°F (110°C) for
small loads and between 230°F
(110°C) and 248°F (120°C) for
full loads.
LOW TE P STEA
The low temperature steam mode
will function whenever the oven
compartment temperature is
below 212°F (100°C).
Proof yeast dough at a
temperature setting of 90°F to
110°F (32°C to 43°C).
It will take longer to steam
products using the low
temperature steam mode.
Steaming sausages in low
temperature steam prevents
cracked or peeling skins.
Use low temperature steam for
delicate foods such as shrimp,
fish, seafood, and crème caramel.
For best results, low temperature
steam all delicate food items at a
temperature of 210°F (99°C)
or below.
S T E A O D E
CHEF OPERATING TIPS

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 1 6
The Combination mode will prove to be the most versatile and widely used mode
the Combitherm oven has to offer. It will produce the best possible results on the
widest variety of products — all within the shortest period of time. The unique control
function of this mode enables the operator to roast or bake with a combination of
steam and convection heat. In addition to shorter cooking times, this combination of
steam and heat offers less product shrinkage and more moisture retention than obtained
in a standard convection oven.
PRESS THE ON/OFF POWER EY TO THE ON POSITION.
PRESS THE COMBINATION MODE EY.
The last set values or oven control default setting for temperature will appear in the display.
The last set time or oven control default setting for time will appear in the display.
PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN.
TO CHANGE THE SETTINGS SHOWN:
PRESS THE TEMPERATURE EY.
The cooking temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the desired cooking temperature.
• 212°F to 482°F (100°C to 250°C)
TO COOK BY TI E:
PRESS THE TIME EY.
The cooking time will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to select
the time desired…
o r
Set control for continuous operation by rotating the adjustment knob to the right until
appears in the display.
TO COOK BY INTERNAL PRODUCT TE PERATURE:
PRESS THE CORE TEMP EY.
The core temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the internal temperature desired and insert the product probe.
PRESS THE START KEY TO BEGIN COOKING IN THE CO BINATION ODE.
• The set cooking temperature will appear in the display. To adjust the set temperature, press the key
once and make corrections as required. To display the actual oven temperature, press the key twice.
• The remaining cooking time will appear in the display. To display the set time or to change the set
values for time during operation, press the time key once and make corrections as required.
• The actual internal product temperature will appear in the display. To display the set internal
product temperature or to change the set values for core temperature during operation, press the
key once and make corrections as required.
When the cooking time has expired or the operator set internal temperature has been reached, a
buzzer will sound indicating the end of the operating mode.
• To stop the buzzer, press the start/stop key or open the oven door.
CO BINATION ODE

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 1 7
Due to the automatic steam adjustment, the
door can be opened at any time during a
cooking operation. Be certain to observe the
safety warning when opening the oven door.
The Combination mode is particularly efficient
when used for baking, broiling, grilling, stewing,
braising, and roasting.
When using the Combination mode, cooking
temperatures can be reduced 10- to 20-percent
below the temperatures used for conventional
cooking methods.
Cooking time will be reduced approximately
40-percent when cooking at the same temperature
used for convection oven cooking and up to 50- to
60-percent less time when cooking at the same
temperature used for a conventional oven.
Food browning in the Combitherm begins
at a cooking temperature of approximately
248°F (120°C).
A higher cooking temperature results in heavier
browning but also results in greater product
weight loss. To achieve additional browning use
the Moisture Vent ey or set Gold-n-Brown into
the product procedure. Gold-n-Brown is
particularly useful for adding color to high moisture
products such as chicken and other poultry items
or for additional browning of full loads and other
moist products.
The Combination mode provides even browning
without the necessity to turn the pans.
For more even cooking, do not cook in pans
deeper than 4-inches (100mm).
The Combination mode injects the optimum amount of steam
automatically. There is no need to select moisture levels. Foods do not
dry out. Flavors are retained with no transfer of flavors when mixing
product loads.
CO BINATION ODE
CHEF OPERATING TIPS

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 1 8
The Convection mode operates with hot circulated air within a temperature range
of 86° to 482°F (30° to 250°C). For many applications, better results may be
achieved with the Combination mode; therefore, the operator may want to consider
using the Convection mode on a more limited basis.
PRESS THE ON/OFF POWER EY TO THE ON POSITION.
PRESS THE CONVECTION MODE EY.
The last set values or oven control default setting for temperature will appear in the display.
The last set time or oven control default setting for time will appear in the display.
PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN.
TO CHANGE THE SETTINGS SHOWN:
PRESS THE TEMPERATURE EY.
The cooking temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob
to select the desired cooking temperature.
• 86° to 482°F (30° to 250°C)
TO COOK BY TI E:
PRESS THE TIME EY.
The cooking time will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to select the
time desired…
o r
Set control for continuous operation by rotating the adjustment knob to the right until
appears in the display.
TO COOK BY INTERNAL PRODUCT TE PERATURE:
PRESS THE CORE TEMP EY.
The core temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the internal temperature desired and insert the product probe.
PRESS THE START KEY TO BEGIN THE COOKING ODE.
• The set cooking temperature will appear in the display. To adjust the set temperature, press the key
once and make corrections as required. To display the actual oven temperature, press the key twice.
• The remaining cooking time will appear in the display. To display the set time or to change the set
values for time during operation, press the time key once and make corrections as required.
• The actual internal product temperature will appear in the display. To display the set internal product
temperature or to change the set values for core temperature during operation, press the key once
and make corrections as required.
When the cooking time has expired or the operator set internal temperature has been reached, a buzzer
will sound indicating the end of the operating mode.
• To stop the buzzer, press the start/stop key or open the oven door.
To check the length of time the product has been operating in the core temperature mode, press and hold the
time key along with the core temperature key . The time period will appear at the top of the display.
CONVECTION ODE

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • C O M B I T H E R M E L E C T R I C T E C H N I C A L SE R V I C E MANUAL • 1 9
The Convection mode works best with foods
containing little moisture or for very moist food
which require a dryer finished product.
For baking, preheat the Combitherm at a
temperature of 36°F to 54°F (20°C to 30°C) above
the baking temperature required. Once preheated,
reset the temperature as required.
A higher cooking temperature results in heavier
browning but also results in greater product weight
loss. To achieve additional browning use the
Moisture Vent ey or set the Browning Feature
into the product procedure.
To prevent the surface of food from excessive
drying, the fan will not engage if the internal
oven temperature is above 212°F (100°C)
and the set oven temperature is below
212°F (100°C).
The Convection Mode can be used to roast or bake products needing very
short cooking times or for high moisture products such as muffins, cakes,
and cookies, or for browning the surface of the product.
CONVECTION ODE
CHEF OPERATING TIPS

SE C T I O N 1 –CONTROL PA N E L ID E N T I F I C A T I O N • COMBITHERM ELECTRIC TE C H N I C A L SE R V I C E MANUAL • 2 0
The Retherm mode can be used to rethermalize (regenerate) portioned food on
plates, trays, or platters within a short period of time. Steam is automatically injected
into the oven compartment as required. Items are brought up to proper serving
temperatures without dry edges or condensate forming on the plates.
PRESS THE ON/OFF POWER EY TO THE ON POSITION.
PRESS THE RETHERM MODE EY.
The last set values or the default settings will appear in the display.
PRESS THE START KEY TO COOK AT THE SETTINGS SHOWN.
TO CHANGE THE SETTINGS SHOWN:
PRESS THE TEMPERATURE EY.
The cooking temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob
to select the desired cooking temperature.
• 248° to 320°F (120° to 180°C)
TO COOK BY TI E:
PRESS THE TIME EY.
The cooking time will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to select the
time desired…
o r
Set control for continuous operation by rotating the adjustment knob to the
right until appears in t h e display.
TO COOK BY INTERNAL PRODUCT TE PERATURE:
PRESS THE CORE TEMP EY.
The core temperature will appear highlighted within the oven display.
Press the up and down arrow keys or rotate the adjustment knob to
select the internal temperature desired and insert the product probe.
PRESS THE START KEY TO BEGIN THE RETHER ODE.
• The set cooking temperature will appear in the display. To adjust the set temperature, press the key
once and make corrections as required. To display the actual oven temperature, press the key twice.
• The remaining cooking time will appear in the display. To display the set time or to change the set
values for time during operation, press the time key once and make corrections as required.
• The actual internal product temperature will appear in the display. To display the set internal product
temperature or to change the set values for core temperature during operation, press the key once
and make corrections as required.
When the cooking time has expired or the operator set internal temperature has been reached, a buzzer
will sound indicating the end of the operating mode.
• To stop the buzzer, press the start/stop key or open the oven door.
To check the length of time the product has been operating in the core temperature mode, press and hold the
time key along with the core temperature key . The time period will appear at the top of the display.
R E T H E R O D E
