INSTRUCTION MANUAL
MICROWAVE OVEN
AM720C2RA-R / AM720C2RA-A / AM720C2RA-G
HORNO MICROONDAS
manual de instrucciones

Directory
3
4
6
8
11
15
22
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
IMPORTANT SAFETY INSTRUCTIONS WARNIG
GROUNDING INSTRUCTIONS
UTENSILS
SETTING UP YOUR OVEN
OPERATION INSTRUCTION
MAINTENANCE
IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND
KEEP FOR FUTURE REFERENCE.
If you follow the instructions, your oven will provide you with many
years of good service.
SAVE THESE INSTRUCTIONS CAREFULLY.

Do not attempt to operate this oven with the door open since this can result in
harmful exposure to microwave energy. It is important not to defeat or tamper
with the safety interlocks.
Do not place any object between the oven front face and the door or allow
soil or cleaner residue to accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is particularly important that the
oven door closes properly and that there is no damage to the:
a. DOOR (bent)
b. HINGES AND LATCHES (broken or loosened)
c. DOOR SEALS AND SEALING SURFACE
The oven should not be adjusted or reparied by anyone except properly
qualified service personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
1
2
3
4
SPECIFICATIONS
AM720C2RA-R/AM720C2RA-A/AM720C2RA-G
120V~ 60Hz
1050W
700W
0.7 cu.ft.
10.04inch
17.3*14.1*10.2 inch
Approx. 21.38 lbs
Parameter
Model
Rated Voltage
Rated Input Power(Microwave)
Rated Output Power(Microwave)
Oven Capacity
Turntable Diameter
External Dimensions
Net Weight
Content
EN-3

IMPORTANT SAFETY INSTRUCTIONS WARNING
Read all instructions before using the appliance.
Read and follow the specific: " PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY" found on page 2.
As with most cooking appliances, close supervision is necessary to reduce the
risk of a fire in the oven cavity.
To reduce the risk of fire in the oven cavity:
a.
b.
c.
d.
This oven must be grounded. Connect only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
Install or locate this oven only in accordance with the installation instructions
provided.
Some products such as whole eggs and sealed containers-for example, closed
glass jars-are able to explode and should not be heated in the oven.
Use this appliance only for its intended uses as described in this manual. Do
not use corrosive chemicals or vapors in this appliance. This oven is specifical-
To reduce the risk of burns, electric shock, fire, injury to persons or
exposure to excessive microwave oven energy when using your appliance,
follow basic safety precautions, including the following:
1
2
3
4
5
6
7
8
Do not overcook food. Carefully attend the appliance when paper, plastic, or
other combustible materials are placed inside the oven to facilitate cooking.
Remove wire twist-ties and metal handles from paper or plastic containers/
bags before placing them in the oven.
If materials inside the oven ignite, keep the oven door closed. Turn the oven
off, and unplug the appliance. Disconnect the power cord, shut off power at
the fuse or circuit breaker panel.
Do not use the cavity for storage purposes.Do not leave paper products,
cooking utensils, or food in the cavity when not in use.
EN-4

ly designed to heat or cook or dry food. It is not designed for industrial or
laboratory use.
As with any appliance, close supervision is necessary when used by children.
Do not operate this oven if it has a damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
This microwave should be serviced only by qualified service personnel. Contact
nearest authorized service facility for examination, repair or adjustment.
Do not cover or block any openings on the oven.
Do not store or use this appliance outdoors.
Do not use this oven near water, for example, near a kitchen sink, in a wetbase-
ment, near a swimming pool, or similar locations.
Do not immerse cord or plug in water.
Keep cord away from heated surfaces.
Do not let cord hang over edge of table or counter.
When cleaning surfaces of door and oven that comes together on closing the
door, use only mild, nonabrasive soaps or detergents applied with a sponge of
soft cloth.
This appliance is for private household use only.
Liquids, such as water, coffee, or tea are able to be overheated beyond the
boiling point without appearing to be boiling. Visible bubbling or boiling when
the container is removed from the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID.
a.
b.
c.
d.
e.
9
10
11
12
13
14
15
16
17
18
19
Do not overheat the liquid.
Stir the liquid both before and halfway through heating it.
Do not use straight-sided containers with narrow necks.
After heating, allow the container to stand in the microwave oven for a short
time before removing the container.
Use extreme care when inserting a spoon or other utensil into the container.
EN-5

WARNING
GROUNDING INSTRUCTIONS
DANGER
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or
death. Do not disassemble this appliance.
This appliance must be grounded. In the event of an electrical short circuit,
grounding reduces the risk of electric shock by providing an escape wire for the
electric current. To protect against electrical shock, this appliance is equipped
with a cord having a 3 prong grounding-type plug for insertion into a proper
grounding-type receptacle. DO NOT alter the plug for use in a 2-prong receptacle.
If the plug will not fit into a receptacle, have the proper receptacle installed by a
qualified electrician.
Improper use of the grounding can result in a risk of electric shock
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension
cord that has a 3-pronged grounding plug , and a 3-slot receptacle that will
accept the plug on the appliance.The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the appliance.
CAUTION:
Do not insert your fingers into any gaps or holes; it may cause injuries.
EN-6

RADIO INTERFERENCE
Operation of the microwave oven may cause interference to your radio, TV or
similar equipment.
When there is interference, it may be reduced or eliminated by taking the
following measures:
a.
b.
c.
d.
e.
A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
If a long cord sets or extension cord is used:
a.
b.
c.
1
2
3
The marked electrical rating of the cord set or extension marked electrial
rating of the cord set or extension cord should be at least as great as the
electrical rating of the appliance.
The extension cord must be a grounding -type 3-wire cord.
The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or tripped over
unintentionally
Clean door and sealing surface of the oven.
Reorient the receiving antenna of radio or television.
Relocate the microwave oven with respect to the receiver.
Move the microwave oven away from the receiver.
Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
EN-7

SAVE THESE INSTRUCTIONS HOUSEHOLD INDOOR USE ONLY
Electric Shock Hazard
Tightly-closed utensils could explode. Closed containers should be opened and
plastic pouches should be pierced before cooking.
See the instructions on "Materials you can use in microwave oven or to be
avoided in microwave oven." There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you can test the utensil in question
following the procedure below.
Fill a microwave-safe container with 1 cup of cold water (250ml) along with the
utensil in question.
Cook on maximum power for 1 minute.
Carefully feel the utensil. If the empty utensil is warm, do not use it for micro-
wave cooking.
Do not exceed 1 minute cooking time.
1
2
3
4
UTENSILS
UTENSIL TEST
CAUTION
EN-8

Utensils Remarks
MATERIALS YOU CAN USE IN MICROWAVE OVEN
Browning dish
Dinnerware
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment paper
Plastic
Plastic wrap
Thermometers
Wax paper
Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do
not use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm.
Most glass jars are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no
metallic trim.Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal
tie. Make slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave
oven unattended while cooking.
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instruc-
tions. Should be labeled "Microwave Safe". Some plastic
containers soften, as the food inside gets hot. "Boiling bags"
and tightly closed plastic bags should be slit, pierced or
vented as directed by package.
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Microwave-safe only (meat and candy thermometers).
Use as a cover to prevent splattering and retain moisture.
EN-9

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
Metal shields the food from microwave energy. Metal trim
may cause arcing.
May cause arcing and could cause a fire in the oven.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside
when exposed to high temperature.
Wood will dry out when used in the microwave oven and
may split or crack.
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Utensils Remarks
EN-10

Remove the oven and all materials from the carton and oven cavity. Your oven comes
with the following accessories:
Glass tray x1 Turntable ring assembly x1 Instruction Manual x1
Never place the glass tray upside down. The glass tray should never be restricted.
Both glass tray and turntable ring assembly must always be used during cooking.
All food and containers of food are always placed on the glass tray for cooking.
If glass tray or turntable ring assembly cracks or breaks, contact your nearest
authorized service center.
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Turntable installation

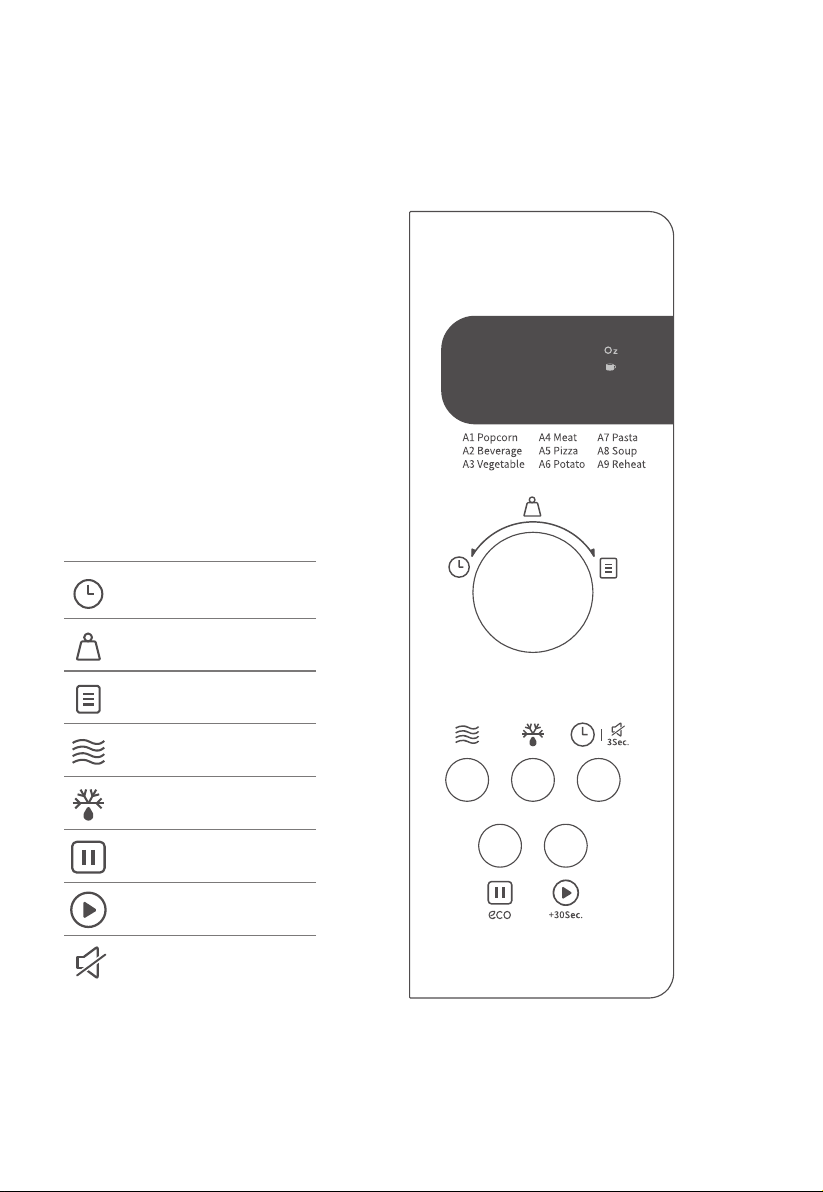

Control panel
Turntable shaft
Turntable ring assembly
Glass tray
Observation window
Door assembly
Safety interlock system
Hub (underside)
Glass tray
Turntable ring assembly
Turntable shaft
1
2
3
4
EN-11

Leave a minimum clearance of 12 inches (30cm) above the oven.
Do not remove the legs from the bottom of the oven.
Blocking the intake and/or outlet openings can damage the oven.
Place the oven as far away from radios and TV a s possible. Operation of micro-
wave oven may cause interference to your radio or TV reception.
1
Remove all packing material and accessories. Examine the oven for any damage such
as dents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the microwave oven cabinet surface.
Do not remove the light brown Mica cover that is attached to the oven cavity to
protect the magnetron.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any
adjacent walls. One side must be open.
a.
b.
c.
d.
A minimum clearance of 3.0 inches (7.5cm) is required between the oven and any
adjacent walls. One side must be open.
COUNTERTOP INSTALLATION
INSTALLATION
12 inches(30cm)
3.0 inches(7.5cm)
3.0 inches(7.5cm)
OPEN
EN-12

Do not install oven over a range cooktop or other heat-producing appliance.
If installed near or over a heat source, the oven could be damaged
and the warranty would be avoid.
The accessible surface may
be hot during operation
2Plug your oven into a standard household outlet. Be sure the voltage and
the frequency is the same as the voltage.
WARNING
EN-13

Control Panel
Kitchen Timer / Clock
Weight
Auto Menu
Microwave
Defrost
Stop/Clear
Start/+30Sec.
Sound On/Off
Meaning
EN-14

This microwave oven uses modern electronic control to adjust cooking
parameters to meet your needs better for cooking.
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.
OPERATION INSTRUCTION
Clock Setting
Kitchen Timer
1
2
3
4
5
1
2
Press " " once,the screen will display "00:00".
Turn " " to enter the correct timer.(The maximum cooking time is 95
minutes,)
Press " " twice ,the hour figures will flash.
Turn " " to adjust the hour figures, the input time should be with in 1-12.
Press " " , the minute figures will flash.
Turn " " to adjust the minute figures, the input time should be with in 0--59.
Press " " to finish clock setting. ":" will flash.
NOTE
NOTE
· If the clock is not set, it would not function when powered.
· During the process of clock setting, if you press " "
or no operation in one minute, the oven will exit the setting.
The kitchen Time is different from 12-hour system. Kitchen Timer is a timer.
EN-15

NOTE
Microwave Cooking
1
2
3
4
5
Press the " " key once, and "P100" display.
Press " " repeatedly or turn " " to select the microwave power "PL10",
"PL9", "PL8", "PL7", "PL6" , "PL5", "PL4", "PL3", "PL2", "PL1", will display in order.
Press " " to confirm.
Turn " " to adjust the cooking time. (The time setting should be 0:05- 95:00.)
Press " " to start cooking.
Microwave Power Chart
Press
Microwave Power
Display
Once
100%
PL10
Twice
90%
PL9
Thrice
80%
PL8
4 times
70%
PL7
5 times
60%
PL6
Press " " , to confirm setting.
When the kitchen time is reached, clock indicator will go out. The buzzer will
ring 5 times. If the clock has been set (12-hour system), screen will display the
current time.
3
4
The step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
Press
Microwave Power
Display
9 times
20%
PL2
10 times
10%
PL1
6 times
50%
PL5
7 times
40%
PL4
8 times
30%
PL3
EN-16

1
2
3
Speedy Cooking
Press " " once, the screen will display "dEF1".
Turn " " to select the food weight. The range of weight is 4-54Oz.
Press " " key to start defrosting.
In waiting state, press " " key to cook with 100% power level for 30 seconds.
Each press on the same key can increase 30 seconds. The maximum cooking time
is 95 minutes.
During the microwave cooking and time defrost process, press " " to increase
the cooking time.
In waiting state, turn " " left to choose the cooking time directly. After
choosing the time, press " " to start cooking. The microwave power is 100%.
1
2
3
DEFROST BY WEIGHT
The defrost power is PL 3. And it cannot be changed.
Defrost By Time
NOTE
NOTE
Under the state of auto menu or weight defrost, cooking time cannot be
increased by pressing" " .
1
2
3
Press " " twice, the screen will display "dEF2".
Turn " " to select the cooking time.
Press " " key to start defrosting.
EN-17

1
2
3
4
5
6
7
1
2
3
4
5
Press " " twice, the screen will display "dEF2".
Turn " " to adjust the defrost time of 5 minutes;
Press " " once; the screen display "PL 10".
Turn " " to choose 80% microwave power till "PL 8" display;
Press " " to confirm;
Turn " " to adjust the cooking time of 7 minutes;
Press " " to start cooking.
Two stages can be maximumly set. If one stages is defrosting, it should be put in the
first stage. The buzzer will ring once after each stage and the next stage will begin.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
Multi-Stage Cooking
Auto Menu
In waiting states, turn " " right to choose the menu from "A-1" to "A-9" or
turn left to choose the menu from "A-9" to "A-1"
Press " " to confirm the menu you choose;
Turn " " to choose the food weight;
Press " " to start cooking;
After cooking finish, the buzzer sounds five times.
NOTE
Auto menu cannot be set as one of the multi-stage.
EN-18

1
2
3
4
5
Specification
Lock-out Function for Children
1
2
1
2
Inquiring Function
In cooking state of microwave, press " " , the current power will be displayed
for 3 seconds.
During cooking state, press " " to check the current time. It will be
displayed for 3 seconds.
Lock: In waiting state, press " " for 3 seconds, there will be a long "beep"
denoting entering the children-lock state.
Lock quitting: In locked state, press " " for 3 seconds, there will be a long
"beep" denoting that the lock is released.
The buzzer will sound once when turning the knob at the beginning;
" " must be pressed to continue cooking if the door is
opened during cooking;
Once the cooking programme has been set, " " is not
pressed in 1 minute. The current time will be displayed. The setting will be cancelled.
The buzzer sounds once by efficient press, inefficient press will be no responce.
The buzzer will sound five times to remind you when cooking is finished.
EN-19

ECO function
1
2
3
In waiting state, press the “ ” button to release (less than 3 seconds) and the
display will turn off.
After the display is closed, press any button, switch door or knob to wake up the
display and beep once.
The ECO function cannot be entered when the door is opened or the Look-out
Mute function
1
2
In waiting state, press “ ” for 3 seconds to release，switch the sound
status, On → Off or Off → On
All buttons and cooking beep are turned off in silent mode.
Function is locked.
EN-20
Turntable reset function
When cooking finished,if the turntable is not at the initial position,it will enter
the turntable reset function.At this time,the lamp,fan and turntable are
working, will dynamic display.After the turntable has reset,the oven
stops cooking and reminds cooking finished.
NOTE
This function only works for one completed cooking.If pause or opne the door
during cooking,the current cooking cannot enter the turntable reset function.
