PROGRAMMABLE THERMOSTAT
Owners Manual
Model : CP1919
We are pleased you have selected one of our broad line of wall thermostat. Our products
are manufactured to high quality standards and are design for years of service.
Read This Before Installing Thermostat
IMPORTANT
1 Read the entire installation of this Owner’s Manual thorough before your Thermostat.
Remove the mylar label from the display window.
INSTALLATION
2All installation is normally performed at your thermostat.
PROGRAMMING
3 You can practice programming before installing your thermostat by inserting and
connecting the batteries. This can be done while you relax in your favorite chair and is a
very good way to familiarize yourself with all the functions of your Thermostat.
OPERATION
4 Your Thermostat is designed to operate with most gas , oil, electric or 2-wire hot water
heating, and air conditioning systems that have 24-volt or millivolt control.
This Thermostat will not control multistage heating or cooling systems, 110 / 220V
systems, or 3 wire zone systems.
COMPRESSOR PROTECTION
5 The thermostat provides a 4-minute delay after shutting off the compressor before it
can be restarted. This feature will prevent damage from your air conditioner compressor
caused by rapid cycling. It does not provide a delay when there are power outages.
Temperature Range
6This thermostat can be programmed between 45˚F and 95˚F (7˚C and 35˚C). However,
it will display room temperatures from 30˚F to 99˚F (0˚C and 37˚C). “HI” will be displayed
if the temperature is higher than 99˚F (37˚C), and “LO” will be displayed if the
temperature is lower than 30˚F (0˚C).
This thermostat will automatically cutoff in Heat mode if the temperature rises above
95˚F (35˚C), and automatically cutoff in Cool mode if the temperature drops below 45˚F
(7˚C).
POWER FAILURE
7Whenever the main power is interrupted or fails, the battery power retains the
programs and current time.
Battery Warning
8 Two fresh AA alkaline batteries should provide well over one year of service. However,
when the batteries become drained, the Low Battery Indicator will flash on the display.
When this message occurs, install new alkaline batteries. You have approximately 1
minute to change the batteries and keep the thermostat’s clock and program settings.
Once the batteries have become too low to ensure proper operation, your system will be
turned off, and the display will be cleared except for flashing Low Battery Indicator on the
LCDdisplay.
CAUTION: When only the Low Battery icon flashes on the display, the
thermostat is shut down, and your system will no longer operate. In this
condition, there is no temperature control of your dwelling.
NOTE: The backlight will not function when the thermostat is in low
battery condition.
NOTE: If you plan to be away from the premises over 30 days, we recommend that you replace
the old batteries with new alkaline batteries prior to leaving.
How This Thermostat Works …And Saves Your Money
This thermostat is designed to optimize the use of your heating and cooling equipment. It
does this by matching your comfort (the temperatures in your home) to your schedule.
An example:
6am – You wake up. Program 1 has the heat set to 70°(21℃).
7:30am – You leave for work. The second program turns the heat back to
62℃(17℃) while you are away.
5:00pm – You come home. The third program has already warmed your house
back to 70°(21℃) .
10:00pm – You go to bed. A half hour later, program 4 turns the heat back to
64°(18℃) to save energy while you are under the blankets.
FEATURES
Installation
What You Need
This thermostat comes with two #8 slotted screws and two wall anchors for mounting. To
install your unit, you should have the following tools and materials.
■Slotted screwdriver ■Electric drill and 3/16” bit
■Hammer ■Two 1.5V(AA) Size Alkaline batteries are include.
Remove Old Thermostat
CAUTION: Do not remove any wiring from existing thermostat before reading the
instructions carefully. Wires must be labeled prior to removal.
■IMPORTANT! Turn off the power to the furnace at the main power panel or at the
furnace.
■Remove existing thermostat cover and thermostat .See figure 1.Some thermostat
will have screw or other locking devices that must first be removed. Once wall
mounting plate is exposed, look for wires.
If wires are not visible, they may be connected to the back of the wallplate. Again,
look for screws, tabs, etc. Some models have doors that open to expose wires and
mounting screws. (See Figure 1).
TYPICALHOMETHERMOSTAT
FIGURE1
Wall Mounting Plate Thermostat Cover
Wall Mounting Plate Thermostat Cover
Label Wires
■Each wire coming from the wall to the existing thermostat is connected to a
terminal point on the thermostat. Each of these terminal points is usually marked
with a code letter as shown in Table A.
The number of wires in your system can be as few as two (for heat only systems),
as many as eight, or any number in between. If you follow the labeling procedures
correctly, you do not have to concerned about how many wires there are.
There is often no terminal marking on the existing thermostat of two wire, heat
only systems. Don not worry, just connect either of the wires to the RH terminal,
then connect the other wire to the W terminal to complete the circuit.
■IMPORTANT! BEFORE DISCONNECTING ANY WIRES, APPLY THE
SELF-ADHESIVE LABELS PROVIDED TO THE WIRE AS SHOWN IN TABLE A.
(For example, attach the label marked W to the wire which goes to the W or H
terminal on your existing thermostat.) IGNORE THE COLOR OF THE WIRES
since these do not always comply with the standard.
■After labeling wires, disconnect them from the existing thermostat terminals.
■Remove existing wallplate. To make sure wires do not fall back
into wall opening, you may want to tape them to the wall.
■If hole in wall is larger than necessary for wires, seal this hole
so that no hot or cold air can enter the back of the thermostat
form the wall. This air could cause a false thermostat reading.
Wire Labeling
This table will help
you match the labels
to the wires so you
can attach them to
your thermostat.
NOTE: Follow the
labels when
connecting wires
since many
installations do not
follow color
coding of wires.
Wire Labeling
NOTE: If your thermostat has one wire marked R or RH (4-wire system), then
leave the jumper wire between the RH and RC terminals. Otherwise, if you
have separate RH and RC wires (5-wire system), then remove the jumper
wire between the RH and RC terminals.
NOTE: Do not connect a “common” wire (sometimes labeled “C”) to any
terminal on this thermostat. Tape up the wire and do not use. This wire
provides electricity to non-battery powered thermostats.
Mount Wallplate and Thermostat
Snap open the wallplate your thermostat by pressing the release tab on the bottom of the
thermostat.
Position wallplate on wall and pull existing wires through large opening. Then
level for appearance. Mark holes for plastic anchors provided if existing holes do
not line up with Hunter Thermostat holes.
Drill holes with 3/16” bit and gently tap anchors into the holes until flush with wall.
Reposition wallplate to wall, pulling wires through large opening. Insert mounting
s crews provided into wall anchor and tighten. (See Figure 2.)
Figure 2
Selector witches
The heating system selector and the ℉/℃selector switches are located on the
Printed Circuit Board.
■Heating system selector
The heating system selector is a switch on the Printed Circuit Board on the inside
of the thermostat. The switch is at “HG” position. Leave it in this position if you
have a gas furnace or an oil burner.
If you have an electric furnace, test to see whether the heat and fan come on as
expected. Leave the switch in the “HG” position. If the fan does not come on when
the thermostat calls for heat, change the switch position to “HE”.
The system selector has no effect in the cooling mode.
NOTE: “HG” position is for gas and most other systems. “HE” position is for
certain electric systems having a fan relay.
■℉/℃selector (Fahrenheit/Centigrade)
Your thermostat is set for ℉mode from the factory. In order to
change to ℃ mode, slide the switch to ℃ and move the battery out hold any key
then place the battery again.
NOTE: Unless Move the battery out hold any key then place the battery again.,
the thermostat will not change the mode.
Auto Recovery select
Your thermostat is set from the factory
with the Auto Recovery Feature
enabled , which complies with the EPA
ENERGY STAR Program. If you prefer
to use normal recovery, slide the switch
to the ALT position.
Connect Wires and Mount Thermostat Cover to Wall Plate
■Match and connect the labeled wires to the appropriate coded terminal screws on
the mounting plate.(See Figure 3, 4.) Ignore any wires which may be present, but
which were not connected to the old thermostat.
■Be sure to tighten the terminal screws securely, otherwise a loose wire could
cause operational problems with your system or thermostat.
■Push excess wire back into hole to prevent interference with mounting of the thermostat cover.
■Make sure the Function Switch is set at OFF, and the FAN-AUTO Switch is in AUTO.
■Insert the bottom tab on the thermostat body into the slot at the bottom of the
wallplate. Press top of the thermostat body to snap it into the wallplate. (NOTE:
Do not force the thermostat onto the wallplate, as the terminal pins may be
damaged. If it does not snap properly, the thermostat may not work.)
■Insert the two AA size batteries, observing the
polarity marked on the unit.
■The installation is now complete. Continue reading
Owner’s Manual for complete operating instructions.
Figure 3
Figure 4,
Programming
1 Remove mylar label covering display window.
2 When the heating or cooling system is actually operating, ”HEAT” or “COOL” will appear on this display.
3 If power is interrupted the batteries will keep all programs.
4 If “BATT” indicator appears on the display replace the batteries.
Setting the Time and Day of Week
When you first install the two AA batteries, the thermostat automatically sets the day and
time to Monday, 12:00 a.m.,
The first data you should enter is the current time and day of work. As the keys are
pressed, the display will show the data being entered.
EXAMPLE: If the unit is being Installed at 9:15 p.m. Saturday, to set the thermostat, you
would press the keys in the shown sequence.
■initial read-out
.
■Current room temperature is 72°.
■Press once. Temperature digits
disappear, show time set mode.
■Press and hold until current hour
appears on display.
■Note the AM/PM indicator.
■Press and hold until current hour
appears on display.
■Press until current day appears on display.
■Returns to normal time and
temperature.
■ If run Key is not pressed it will return
automatically in 10 seconds. Figure 4,
Typical Suggested Summer
and Winter Programs for Maximum Savings
Studies conducted by the Department of Energy estimate that setting your thermostat back 10℉
for two 8-hour periods during winter can reduce your fuel bill by as much as 33%. By setting your
thermostat up 5°for two 8-hour periods during summer you can reduce your fuel bill up to 25%.
Your thermostat is capable of holding up to 4 separate programs for each day of the week. You
can program all weekdays, Monday to Friday, to the same 4 programs as shown in the table, or
each weekday can have a different set of 4 programs. Similarly weekend programs, Saturday and
Sunday, can be the same 4 programs or each weekend day can have a different set of 4
programs.
A typical set of programs is shown in Table 3.
The following time and temperature settings are pre-programmed into the thermostat:
MO TO FR Temperature in F˚(C˚)
Program
Number
Time Heat Cool
1 6:00 am 68˚F(20˚C) 78˚F(26˚C)
2 8:00 am 60˚F(15˚C) 85˚F(29˚C)
3 4:00 pm 68˚F(20˚C) 78˚F(25˚C)
4 10:00 pm 62˚F(16˚C) 82˚F(27˚C)
SA AND
SUN
Temperature in F˚(C˚)
Program
Number
Time Heat Cool
1 6:00 am 68˚F(20˚C) 78˚F(25˚C)
2 8:00 am 62˚F(16˚C) 82˚F(27˚C)
3 4:00 pm 68˚F(20˚C) 78˚F(25˚C)
4 10:00 pm 62˚F(16˚C) 82˚F(27˚C)
When your program becomes effective at the next time/temperature setting, the
appropriate corresponding program number will appear on the display.
Personal Program Schedule
Before programming or changing the Use a pencil so you can revise your
records program, use this Personal Program
Schedule each time you change your temperature
to determine which times and temperature settings.
settings will best satisfy both your comfort
and energy saving requirements.
heatoff
cool on auto
system fan
LCD Display:Shows
Time,Day,Temperature,
Program Number,and
other feature information
as required.
L
Backlight button for
Battery Compartment:
Front access allows
easy insertion of two
AA 1.5V batteries.
Up and Down Key:Key for
changing the Temperature
setting. Also used for increasing
and decreasing selections in the
Time,Program,and Span
functions.
Fan Switch: Fan
switch for Automatic
or Continuous fan
operation.
System Switch:
Selector switch for
Heat,Cool,and Off.
Front Door:Covers keys Open with one finger from left or right.Soft touch programming
buttons (see below)
viewing in the dark.
Front Door:
Battery cover
Open with one
finger from top.
FILTER
HOUR MIN DAY
PROG
AUTO
DAY
HOLD RUN
CLEAR
PROG
PROG
12/24
HOURS
For entering
hour of day.
For entering
minute of day.
For entering
day of week.
Automatically programs
thermostat for weekday
and weekend program
settings.
For reviewing
and changing
weekday or
weekend
programs
Picks the day/days
for programs
Provides permanent temperature
setting by overriding stored
programs.Also,clears manual override
and returns to current program.
Reviews filter usage in hours and minutes.
Also reset filter counter to zero.
Returns display tocurrent
time and temperature.
12 hours/24 hours change.
RH
RC
G
Y
W
RH,R,
VR or 4
24 Volt
RC,VC,
24 Volt Cool
G or F
Fan
Y,C or M
(See Note)
Air Conditioning
W or H
Heating
W
Y
Rh
Rc
G
RH
HOUR
HOUR
MIN
DAY
L
RUN

HOLD
CLEAR
HOLD
CLEAR
HOLD
CLEAR
HOUR
DAY
FORWINTER
NUMBER PROGRAM
1
PROGRAM
2
PROGRAM
3
PROGRAM
4
MONDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
TUESDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
WEDNESD
AY
TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
THURSDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
FRIDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
SATURDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
SUNDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
FOR SUMMER
NUMBER PROGRAM
1
PROGRAM
2
PROGRAM
3
PROGRAM
4
MONDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
TUESDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
WEDNESD
AY
TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
THURSDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
FRIDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
SATURDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP
SUNDAY TIME
TEMP
TIME
TEMP
TIME
TEMP
TIME
TEMP

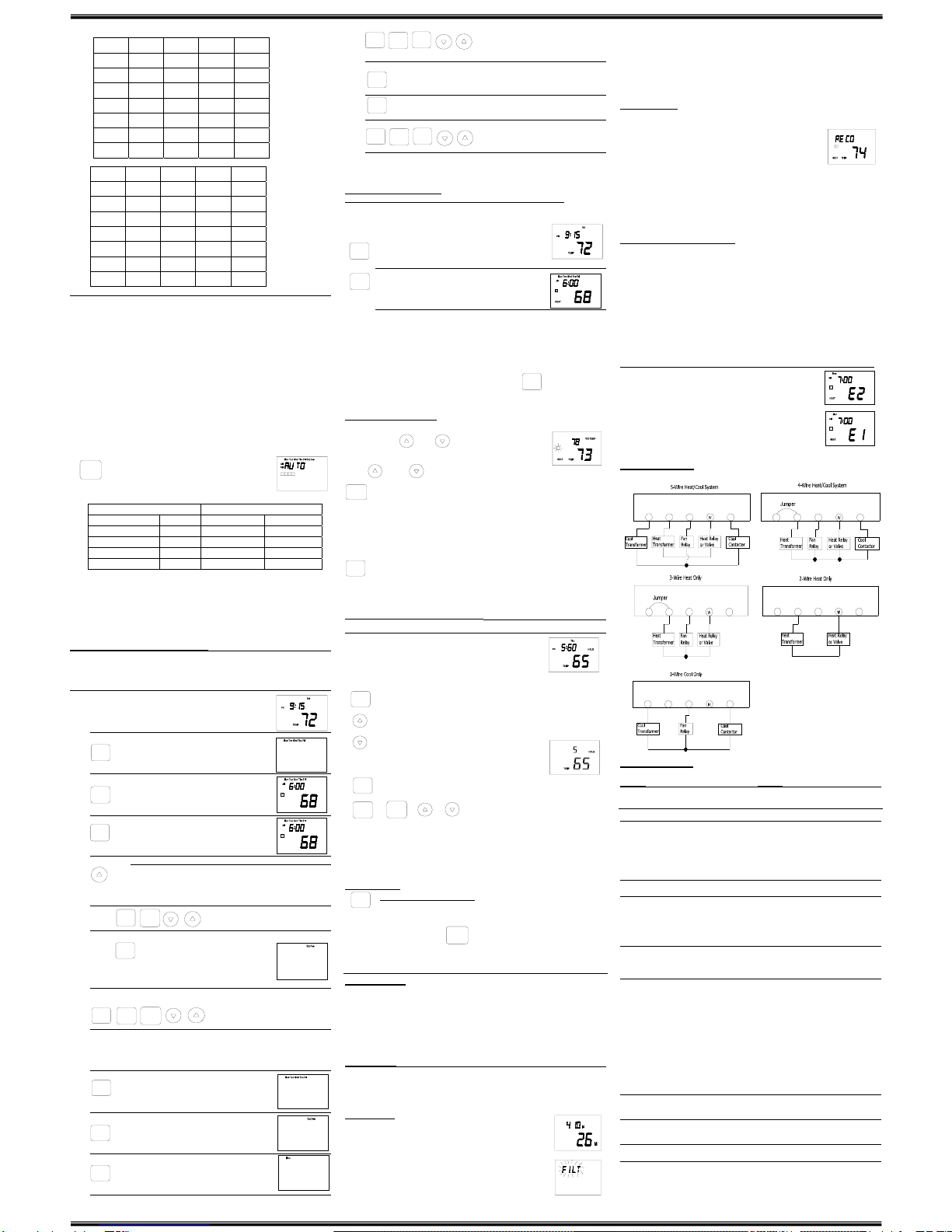

Programming Your Thermostat
Your thermostat can be programmed in two different ways.
1. Auto-program method 2. Manual method
Before programming, position the HEAT/OFF/COOL selector to be programmed.
Auto Programming
Studies conducted by the Department of Energy estimate that setting your
thermostat back 10˚F (6℃) for two 8-hour periods during winter can reduce your
fuel bill by as much as much as 33%. By setting your thermostat up 5˚F 3℃) for tow 8
hour periods during summer you can reduce your fuel bill up to 25%.
Your thermostat is capable of holding up to 4 separate programs for each day of the
week. You can program all weekdays, Monday to Friday, to the same 4 programs as
show in the table, or each weekday can have a different set of 4 programs. Similarly
weekend programs, Saturday and Sunday, can be the same 4 programs or each
weekend day can have a different set of 4 programs.
our thermostat is pre-programmed guidelines for energy efficiency. Note that it is easier
to modify these programs than to programs than to program the thermostat manually.
■Press once. During Auto Programming, the
display will change as shown.
■The thermostat will be programmed for all 7 days
of the week as shown .below.
Temperature in ˚F/℃
Program Number Time Heat Standard
1 6:00am 68 ˚F (20℃)78 ˚F (26℃)
2 8:00am 60 ˚F (16℃)85 ˚F (29℃)
3 4:00am 68 ˚F (20℃)78 ˚F (26℃)
4 10:00am 60 ˚F (16℃)85 ˚F (29℃)
■Refer to Manual Programming entering or changing the programs.
Manual method
In this method, each program is inserted according to your personal programming
schedule.
Familiarize yourself with manual programming. The following example demonstrates the
manual programming method. You can program or change the program of weekdays,
weekends, or individual days.
Programming Your Thermostat (Continued)
NOTE:1) The program time is set in increments of 15 minutes.
2) The program temperature is set in increments of 1℉.
3) When setting PM time, make sure the “PM” indicator appears on thedisplay.
Press Display Reads
Weekday ■ Normal display of time, temperature,
Programs and day of the week.
Step1 ■ Selects days M to F for same set of 4 programs
eachday.
Step2 ■Program indicator(1) is displayed.
■68℉is displayed.
■M to F is displayed.
Step3 ■Press and hold until 6:00 is displayed.
■Note AM/PM
Press Display Reads
Step4 ■Press once to change temperature to 69℉
■ Weekday program 1 is complete.
■Press PROG to move to program 2,3, and 4
and follow the same steps.
Use to insert or change time and temperature
ofotherprograms.
Continue ■ Selects weekend days SA, SU for same
for set of 2 programs each weekend
day.
Weekend ■Follow steps 2-4 to enter programs.
Programs
Similar to weekday programming.
to insert weekend programs.
Individual Day Programming
To program for each individual day separately by a different set of programs, first select
day by displaying the day of program, then insert the desired times and temperatures.
Press Display Reads
■M to F are selected. M to F will have
Someprograms.
■SA to SU will have
Some programs.
■M is selected, program for M only.
Use toenterprogramsforMonday.
Similarly ■T is selected.
■W is selected.
Display the day to be programmed and use to the programs.
NOTE: Another approach to programming is to first program all weekdays M
through F and SA and SU as same programs. Then, display and change the
programs of only those days which will have different programs.
Reviewing Programs
You may want to review the programs to see that the settings are compatible with your
lifestyle.
Weekday
Program ■Normal display of current time, day of week
temperature, and
.
■1st weekday program is displayed.
■Program indicator(1) appears.
■M to F indication appears.
Continue pressing to review programs.
NOTE: The temperatures you have entered will NOT take effect immediately, but at the next
program time change. The Thermostat is pre-set to 68℉in heat mode and 78℉ in cool mode.
If you want a temperature other than 68℉ or 78℉ right away, you must use the
manual override feature described below to enter the temperature you want.
When you entered program becomes effective, the corresponding program
number will appear on the display.
After programming, confirm the new programs by pressing
If you are armchair programming the thermostat, before you mount the face of the
thermostat, turn the system selector to the OFF position.
Temporary Manual Override
To temporarily change the current set temperature without affecting your program:
Press and hold or for less than 1 second to
enter Manual Override mode..
Press and to change to your desired new temperature.
■Press to RUN to normal mode, or wait 15 seconds for it to return
automatically.
■The current program number will flash to signify the Temporary Override. At
the next program change, the Temporary Override, and the next program
temperature becomes the set point temperature. To end the Temporary
Manual Override:
■Press and wait for HOLD to display on the LCD.
■Press hold key. This will return the set temperature to the current program set
temperature.
NOTE: The Auto Season Changeover feature will not operate while the thermostats is
in Temporary Manual Override .Refer to the Auto Season Changeover feature .
NOTE; If the thermostat has not been programmed, then a Temporary Override
becomes a Permanent Override. See the next section for more information.
Programming Your Thermostat (Continued)
PermanentOverrideoraDesignatedDayOverride
To hold your Manual Override for vacation or Until a Designated
Day
yPress to make the current program temperature the HOLD
temperature. HOLD will be displayed on the LCD, and the Program number will
disappear.
yFollow the Temporary Manual Override instructions above to change the
Permanent Manual Override temperature.
yYou can confirm the held set temperature by pressing for less than 1
second.
yPress again. Hold day will be displayed on the lcd
and the clock will disappear
yPress Day key to add override days. Press Program key to
reduce override days
yFollow the Temporary a Designated Day Override instructions above to
change the Permanent Manual Override temperature.
To end Override:
yUnder Permanent Override Press hold/return key twice. Under a Designated Day
Override press the hold once. The thermostat will return to the current program, and the
HOLD display will be canceled.
NOTE: You can also return to the current program by pressing “HOLD CLEAR” once
in permanent override mode.
Other Features
12Hr. / 24 Hr. Time Format
Your thermostat is set from the factory in normal 12 (AM/PM) time format. To
change to
24 hour (military) time, press during time and day setting mode to toggle
between the 12 hour and 24 hour formats. The AM / PM indicator will not be displayed
in 24 hour mode. Both the current time and all programs will automatically change to
the selected format.
Backlighting
Your thermostat has an electroluminescent lamp that backlights the display for easy
viewing in the dark.
When any key is pressed the display is illuminated.
The display will remain illuminated for 8 seconds after the last key is pressed. This
allows the light to stay on if you need to operate several keys.
Note: If the thermostat is in Low Battery warning condition, the backlight will not operate.
Replace with 2 new AA alkaline batteries to restore the Backlight function.
12/24 Hour Clock
The 12/24 hour switch is located on the printed circuit board inside the thermostat. Pressing
the 12/24 button alternates the clock between 12 or 24 hour (military) mode.
NOTE: Move system selector slide switch to “OFF” before removing thermostat from
wall and changing 12/24 hour clock mode.
Filter Monitor
Your thermostat also keeps a record of the number of hours your
filter has been in use. To maximize your system’s performance and
energy efficiency, change or clear your filter regularly.
When the total system run time for heat and cool reaches 400
hours, you to clean or change your system’s filter, “FILT” will
continue to flash until the counter is set back to zero.
■Press to review total filter usage. The display will blink “FILT”
Then show the filter Monitor counter. After 15 seconds, the display will return to normal
mode, or you can hit RUN to exit immediately.
The Filter Monitor will display up to 999 hours and 59 minutes of usage. In this example,
the counter is at 410 Hours, 26 minutes.
■To reset the Filter Monitor counter, depress FILTER for 3 seconds. The display will
blink, and The counter will be reset to zero.
Auto Recovery
Auto Recovery calculates how early to turn you system back on, so that the room
temperature is already comfortable by the start of the comfort
temperature program period. Auto Recovery work’s in both Heat
and Cool modes.
yWhen the thermostat is in Auto Recovery mode, the display will
alternate “RECO” with time, and the program indicator will flash.
yAuto Recovery can be disabled by sliding the Recovery switch on the circuit board to
disable.
yAuto Recovery will not operate if Permanent hold or Temporary hold is in operation.
yAuto Recovery can be canceled manually if Hold/RETURN is pressed during the
recovery process.
yAuto Recovery will be canceled and change to next period.
Details of Auto Recovery Operation:
■Auto Recovery can be disabled by sliding the Recovery switch on the circuit board to
the ALT position.
■Auto Recovery will not operate if Permanent hold, Temporary hold or Home Today is
in operation.
■Auto Recovery can be canceled manually if HOLE/CLEAR is pressed during the
recovery process. If a recovery process is canceled manually then the recovery process
will not start again until the next program period starts (an exception is that if time or
program is changed then the thermostat will check Auto Recovery conditions
immediately).
■Auto Recovery will be canceled and change to Home Today mode if HOME TODAY
is pressed during the recovery process.
ErrorMode
If the thermostat is unable to control your system due to an
unexpected battery problem, the thermostat will enter Error Mode.
In this condition, the thermostat flashes “E1”or “E2”on the LCD
display, and shuts off your system. To correct this problem,
replace the batteries with 2 new AA alkaline batteries, even if you
have recently replaced them. Move the battery out hold any key
then place the battery again. You will need to reprogram your
thermostat and confirm normal operation.
Wiring Diagrams
Troubleshooting
Problem Solution
SCRAMBLED OR DOUBLE DISPLAY 1. Remove clear mylar sticker.
(numbers over numbers)
NODISPLAY 1. Check battery connections and
batteries.
2. Move the battery out hold any key
then place the battery again.
ENTIRE DISPLAY DIMS 1.Replacebatteries.
PROGRAM DOES NOT CHANGE AT YOUR 1. Check that time is set properly to “AM” or
“PM”
DESIRED SETTING 2. Check that thermostat is not in “HOLD”
mode.
3. Check for correct day setting.
AUTO/FAN DOES NOT COME ON
1. Move HG/HE system selector to
opposite Position.
HEATING OR COOLING DOES NOT GO
1. Check that function switch is in correct
ONOROFF position (“HEAT” or “COOL”).
2. There may be as much as 20 seconds delay
before the system turns on – wait and check .
3. Check your circuit breaks and switches to ensure
there is power to the system.
4. Replace batteries.
5. Make sure your furnace blower door is closed
properly.
6. If your system only uses 4-wires, be sure the
jumper wire is installed between the RC and RH
terminals.
ERRATICDISPLAY 1. Move the battery out hold any key then place the
battery again.
IF UNIT CONTINUES TO OPERATE 1. Replace unit.
IN OFF POSITION
THERMOSTAT READS , HI, LO 1. Replace unit.
PERMANENTLY
If you experience any other problems, call us for technical assistance.
The service number is 1-866-591-9898
HOUR
DAY
PROG
PROG
DAY
PROG
HOUR MIN
HOUR MIN
DAY
PROG
DAY
PROG
DAY
PROG
DAY
PROG
PROG
PROG
PROG
RC RH GY
THERMOSTAT
RC RH GY
THERMOSTAT
RC RH GY
THERMOSTAT
RC RH GY
THERMOSTAT
RC RH GY
THERMOSTAT
AUTO
PROG
DAY
PROG
HOUR MIN
DAY
PROG
DAY
PROG
HOUR MIN
DAY
PROG
HOLD
CLEAR
RUN
12/24
HOURS
