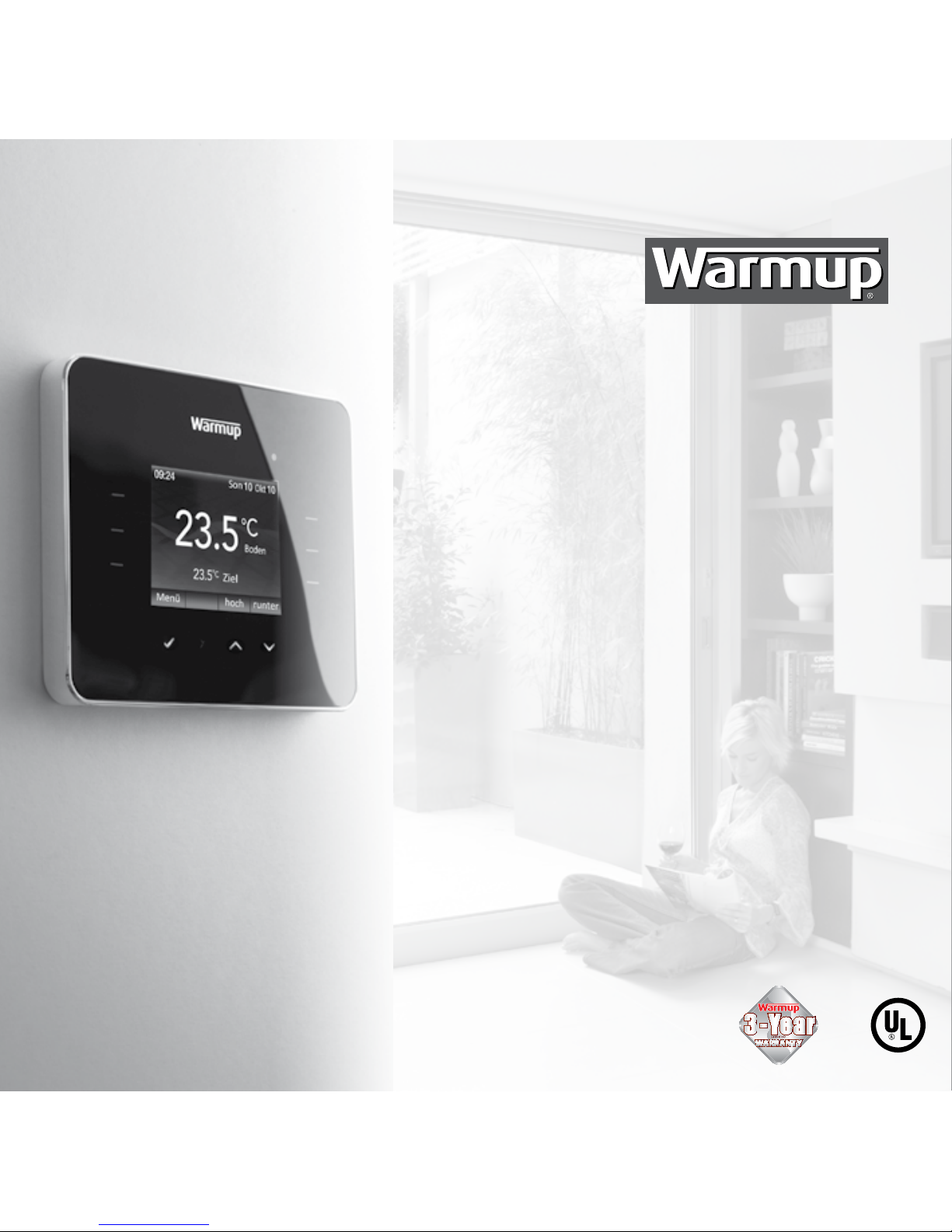

Warmup®3iE™
Energy-Monitoring
Thermostat
Thermostat
Ecoénergétique
24/7 Technical Hotline
(888) 592 - 7687

2
24/7 Technical hotline - Ligne d’assistance technique - Línea de asistencia técnica
US 1.888.927.6333 / CA 1.888.592.7687
CONTENTS
Introduction Page 3
Getting started Page 4
Setting your programs Page 5
View and edit a schedule Page 8
Holiday mode Page 9
Energy monitor Page 10
Settings Page 12
Setting heating target Page 14
Advanced settings Page 15
Setting your heating system Page 16
Probes Page 17
Warranty Page 18

24/7 Technical hotline - Ligne d’assistance technique - Línea de asistencia técnica
US 1.888.927.6333 / CA 1.888.592.7687
3
Your thermostat’s default screen is the Home Screen. This screen
displays important information such as the time, current floor and
air temperature as well as the target set temperature. From this page
you can either access the “MENU” page (press “menu”) or override
the current program (press “ ” or “ ”).

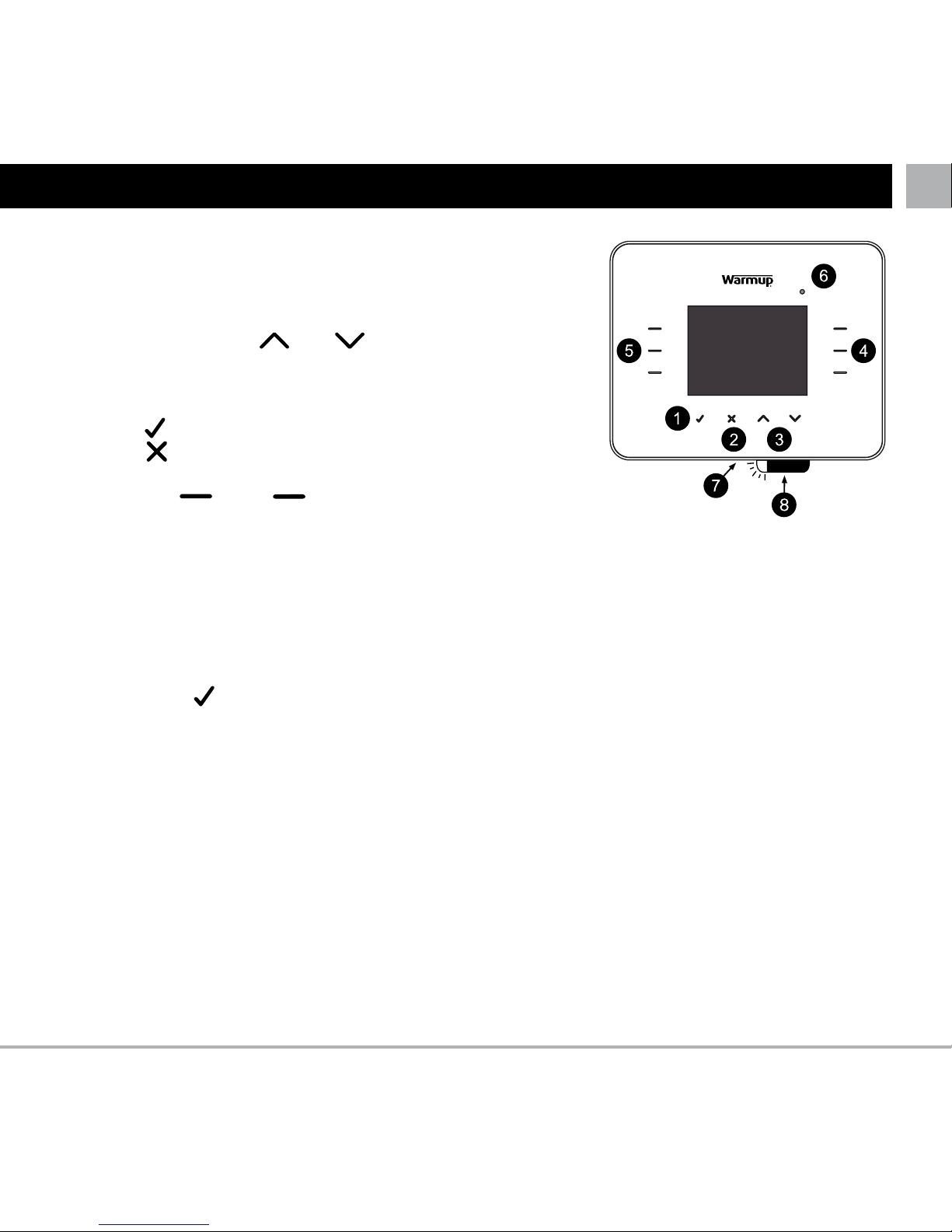

When using the 3IE thermostat there are some simple rules to keep
in mind:
1. Pressing “ ” allows you to confirm your selection
2. Pressing “ ” takes you back to a previous page in the menu
sequence
3. Pressing the “ ” and “ ” buttons allow you to change the
setting which is highlighted
4. Pressing an illuminated button in this group will allow you to highlight another setting to edit
5. Pressing an illuminated button in this group will allow you to select another option in the menu
6. When this light is illuminated it indicates that power is being directed to the heating systems (can be
turned off).
If you do not press any button on the thermostat for 1 minute, then it will go to standby mode. In standby
mode the screen will be dimmed but the thermostat will continue to function as normal. To exit standby
mode press “wake” ( ).
The button on bottom of the 3IE (button 7) is the power button. You can turn off your thermostat and
your Warmup floor heating system by holding down this button for 3 seconds. You can turn it on again by
holding it down for another 3 seconds.
INTRODUCTION
GROUND FAULT CIRCUIT INTERRUPTER
The GFCI feature is used to detect any leakage of current from your heating system. During a ground fault
the two lines of the load will be cut off. Once your thermostat is installed and connected to a power supply
you can test the GFCI function by increasing the set temperature until heating is on - the red light in the
top corner must be illuminated - and pressing the “TEST” button (see 8).
If your test is successful you will see the GROUND FAULT screen and you will need to hold “cancel” for 3
seconds in order to restore heating operation.
TE
ST

4
24/7 Technical hotline - Ligne d’assistance technique - Línea de asistencia técnica
US 1.888.927.6333 / CA 1.888.592.7687
GETTING STARTED
1. Language
2. Time perefrences and settings
3. Date preference and settings
4. Daylight savings
5. Temperature preferences
6. Theme
7. Brightness
8. Standby Brightness
9. Heating LED
10. Audio Feedback
11. Floor type
12. Set heating target
13. Program schedule
14. Set energy monitor
15. (You may skip this section and
complete at a later date )
16. Energy settings
On initial power up the thermostat will guide you through set up procedure.
By accessing the main menu you can program your thermostat or make any changes to the thermostat
settings. To access the menu press “menu” on the main screen.
If the thermostat is in sleep mode press ”wake”.
LThe energy monitoring menu will be skipped automatically if a pre set program is selected on initial
setup.
GROUND FAULT CIRCUIT INTERRUPTER (cont’d)
However if the thermostat detects that one of the relays has FAILED to open correctly you will see the
Control Fault screen and the TEST LED will illuminate.
In the following circumstances you should immediately isolate the power supply to the thermostat and
contact Warmup customer service:
1. Press the TEST button when heating is on (the red light in the top corner is on) and the screen does
not display GROUND FAULT or cut power to the load.
2. The thermostat shows the GROUND FAULT screen during normal operation.
3. The thermostat shows the CONTROL FAULT screen.
Note: The GFCI test should be carried out monthly.

24/7 Technical hotline - Ligne d’assistance technique - Línea de asistencia técnica
US 1.888.927.6333 / CA 1.888.592.7687
5
Press “ ” and “ ” to set the start time for the first of the
day.
If you want to change the target floor temperature press
“floor temp”, you can now press “up” and “down” to change
the target floor temperature.
If you want the target temperature to change later on in the
day then press “add another period”. You can add up to 10
periods in each day.
SETTING YOUR PROGRAM
Press “menu”, then Press “set program”.
You may have to press “wake” first, if the stat is in standby
mode.

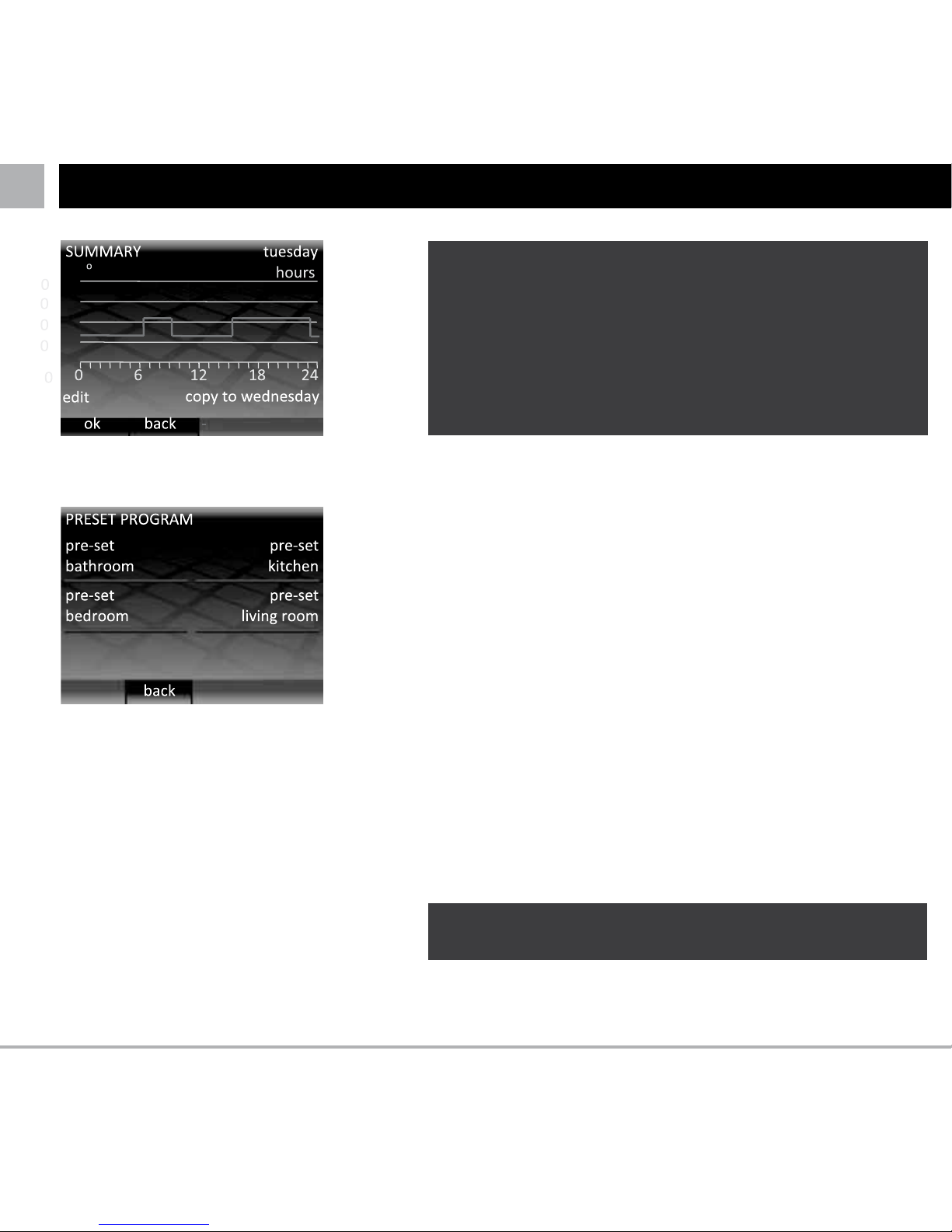

Press the programming option that suits your needs.
• Set each day separately: set each day of the week with
a different program
• Set weekday and weekend: set a program for Monday –
Friday and a different program for Saturday and Sunday
• Set all days the same: one program is set for all the days
of the week
• Set fixed temperature: set a single temperature to be
held constantly
• Select a pre-set: see explanation in table
LIf you hold a button for several seconds it will scroll
continuously until you release your finger
72°F
next period
LIf you would rather use your thermostat to target
an air temperature then see page 12.
