AINA PTT Voice
Responder
Device and Mount Installation
Guide
03/22/19

AINA PTT Voice Responder Installation Guide
2
AINA PTT Voice Responder Installation
Guide
The AINA PTT Voice Responder is the Bluetooth radio distributed to Command Alkon
Incorporatedcustomers to pair with the Samsung Galaxy Tab Active2. The mount for the radio is
compatible with the Gamber-Johnson dock supplied with the Samsung Galaxy Tab Active2. The
steps for attaching the radio and mount to the Gamber-Johnson dock are:
1. Check and gather the required components
2. Secure the radio bracket and radio to the tablet dock
3. Attach and pair the radio to the tablet
Checking & gathering the required components
Ensure the following components are included with the radio unit.
Component
Description
AINA PTT Voice Responder
Bluetooth speaker-microphone
Push-to-talk (PTT) controls
Connects to a tablet and PTT apps

AINA PTT Voice Responder Installation Guide
3
Component
Description
Docking station connector
Cradle and charger for the radio
Connects to a tablet via USB
Component
Description
Bracket
Joins the dock and radio

AINA PTT Voice Responder Installation Guide
4
Misc. components
Lanyard
Screws
Required tool
Phillips screwdriver or power screwdriver

AINA PTT Voice Responder Installation Guide
5
Securing the radio bracket and radio to the tablet
dock
If you have already installed the Samsung Galaxy Tab Active2 dock and mount in a vehicle, this step
will require you to detach the dock from the mount to install the bracket for the radio to the dock. If
you have not already attached the dock to the mount, please complete this installation before
completing the rest of the steps in the Samsung Galaxy Tab Active2 installation.
Step 1
Line up the bracket and dock
to allow the screw-in points to
be visible. The arm of the
bracket should reach over the
top of the tablet dock.
Step 2
Now that the bracket is lined up,
secure the mount to the dock with
the bracket in between. Ensure
the mount is attached diagonally.

AINA PTT Voice Responder Installation Guide
6
Step 3
Using the screws included
with the installation kit, fasten
the radio cradle to the top of
the bracket.
Step 4
Connect the cradle's USB cord to
the tablet dock's USB port
located on the right side.
Step 5
With the cradle installed, link
the key ring end of the lanyard
to the cradle.
Step 6
Complete the linking of the cradle
and radio by hooking the other
end of the lanyard to the top of
the radio.

AINA PTT Voice Responder Installation Guide
7

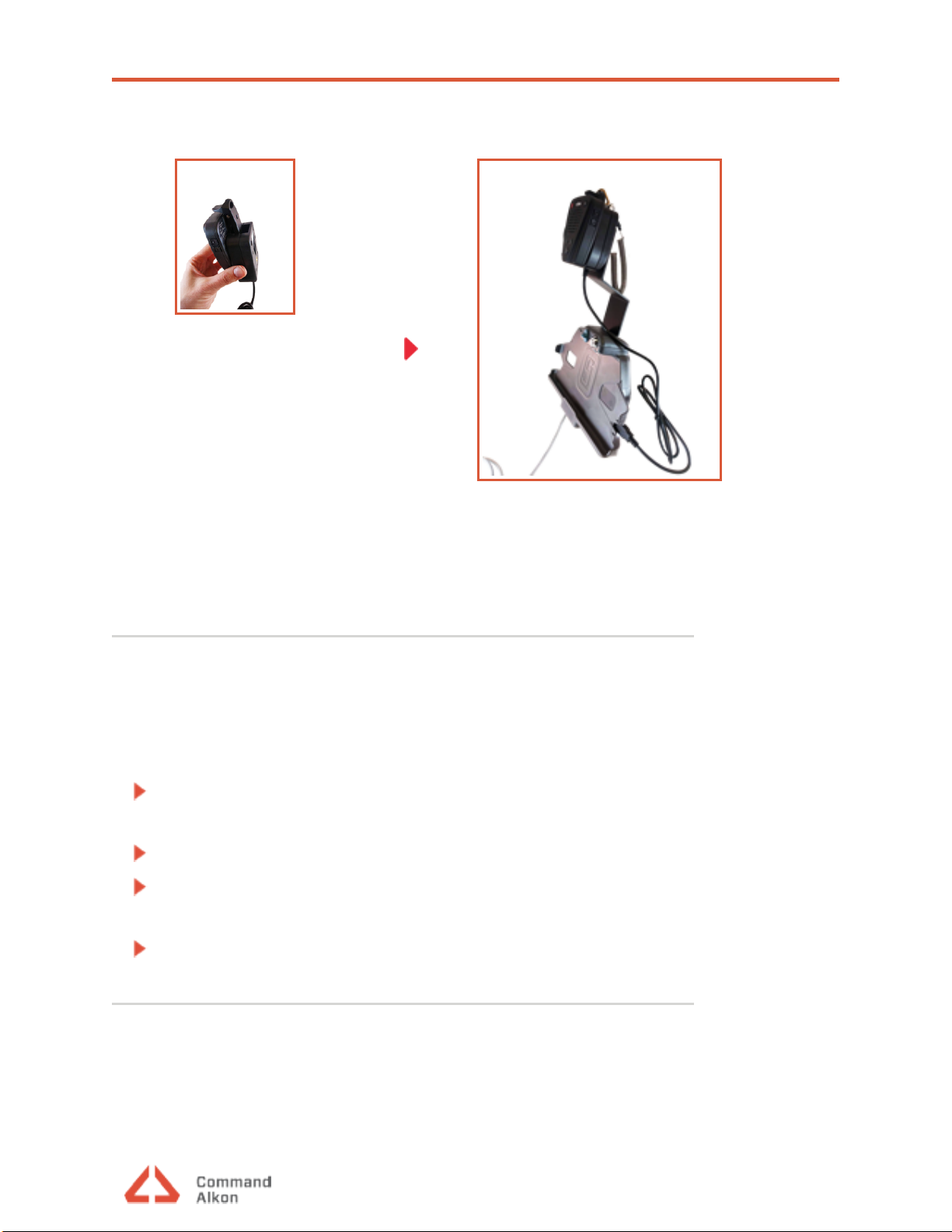

Step 7
Finally, insert the radio into the
cradle by sliding the back of
the radio down into the dock.
Step 8
With the radio installed, the tablet
dock will look like the picture
above.
To pair the radio with the tablet
The instructions for pairing the radio's Bluetooth are included with the radio's
instructions and on the back of the radio itself, but we have repeated the
instructions below.
Press the Power and Bluetooth button on the front of the radio for seven
seconds until the green LED light starts blinking.
In the tablet, turn on the Bluetooth.
Open the Bluetooth settings in the tablet and connect to the Bluetooth
device with the same ID written on the back of the radio.
The tablet and radio are paired when the LEDlight on the front of the
radio blinks blue.
