Commell LN-D70 User manual

LN-D70
Nano-ITX Motherboard
User’s Manual
Edition 1.14
2015/04/02

LN-D70 User’s Manual
-2-
Copyright
Copyright 2014, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners.
Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular
purpose.
The company has the right to revise the manual or include changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT
Packing List:
Please check the package content before you starting using the board.
Hardware:
LN-D70 Mini-ITX Motherborad x 1
Cable Kit:
SATA Cable x 2
OALSATA3-L / (1040529)
Dual COM PORT Cable x 1
OALES-BKU2NB / (1040090)
USB2.0 Cable x 1
OALUSBA-3/ (1040173) (Option) CRT cable without bracket x 1
(OALVGA-SNB-7)/ (1040557)

LN-D70 User’s Manual
-3-
Printed Matters:
Driver CD (Including User’s Manual) x 1

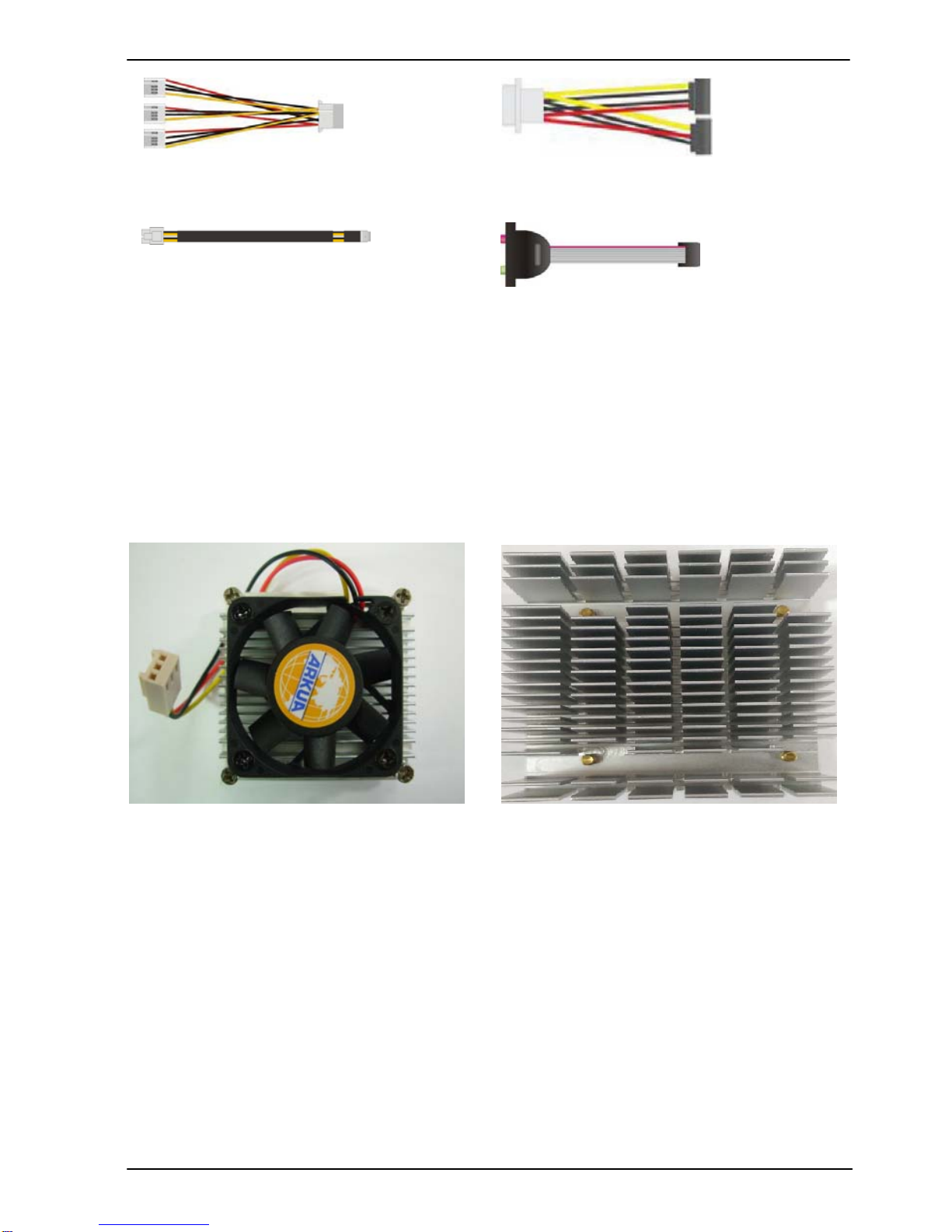

Cooler: HeatSink:
(OHSF-6) / (2181010018) (OHS-8) / (2181110010)
LN-D70JIP, LV-D70JX2
LN-D70EIP, LV-D70EX2
LN-D70NIP, LN-D70NX2
1 to 3 power output cable x 1
(OAL4P-2)/ (1040051) SATA Power Cable x 1
(OAL4P-S2)/ (1040054)
DC Power Cable x 1
(OALDC-A)/ (1040433) Audio Cable x 1
(OALPJ-HD-NB)/ (1040121)

LN-D70 User’s Manual
-4-
Index
Chapter 1 <Introduction> ..............................................................................5
1.1 <Product Overview>.....................................................................................5
1.2 <Product Specification>................................................................................6
1.3 <Mechanical Drawing>.................................................................................8
1.4 <Block Diagram>..........................................................................................9
Chapter 2 <Hardware Setup>........................................................................9
2.1 <Connector Location>..................................................................................9
2.2 <Jumper Location & Reference>................................................................10
2.3 <Connector Reference>............................................................................. 11
2.3.1 <Internal Connectors> ................................................................... 11
2.4 < Memory Setup >......................................................................................12
2.5 <CMOS & ATX Setup>...............................................................................13
2.6 <Ethernet Interface>...................................................................................14
2.7 <Onboard Display Interface> .....................................................................14
2.7.1 <Display>.......................................................................................14
2.7.2 <LVDS> .........................................................................................15
2.7.3 <VGA Interface>............................................................................18
2.8 <Integrated Audio Interface>......................................................................19
2.9 <USB Interface>.........................................................................................21
2.9.1 < USB 3.0 eXtensible Host Controller Driver install >....................21
2.10 <Serial Port> ............................................................................................25
2.11 <PCIE Mini Card and SIM Interface> .......................................................27
2.12 <GPIO and SMBUS Interface>.................................................................30
2.13 <Power Supply and Fan Interface >.........................................................31
2.13.1 <Power Input> .............................................................................31
2.13.2 < Power Output >.........................................................................32
2.13.3 <Fan connector>..........................................................................32
2.14 <Switch and Indicator>.............................................................................33
Chapter 3 <System Setup> .........................................................................35

LN-D70 User’s Manual
-5-
3.1 <Audio Configuration>................................................................................35
3.2 <Display Properties Setting>......................................................................35
3.3 <SATA configuration>.................................................................................37
Chapter 4 <BIOS Setup> .............................................................................38
Appendix A <I/O Port Pin Assignment>.....................................................39
A.1 <Serial ATA Port>.......................................................................................39
A.2 <LAN Port>................................................................................................39
A.3 <LPC Port>................................................................................................39
Appendix B <Flash BIOS> ..........................................................................40
B.1 <Flash Tool> ..............................................................................................40
B.2 <Flash BIOS Procedure>...........................................................................40
Appendix C <Programming GPIO’s> .........................................................41
Appendix D <Programming Watchdog Timer > ........................................42
Contact Information.....................................................................................43
Chapter 1 <Introduction>
1.1 <Product Overview>
LN-D70 is the system-on-chip (SoC) designed for intelligent systems, delivering
outstanding compute, graphical, and media performance while operating in an extended
range of thermal conditions. These SoCs are based on the Silvermont microarchitecture,
utilizing Intel’s industry-leading 22nm process technology with 3-D Tri-Gate transistors,
which deliver significant improvements in computational performance and energy
efficiency.
New features for Intel® Celeron® and Atom Processor
The Intel® Celeron® Processor J1900 / N2930 and Intel® Atom E3845 Processor
supports, graphics, media performance, flexibility and more enhanced security that is
suitable for a variety of intelligent systems the ideal choice.
Outstanding integration of I/O interfaces
Supports display interfaces with graphics processing, camera interfaces with image

LN-D70 User’s Manual
-6-
processing, audio with digital signal processing, multiple storage types, and legacy
embedded I/O. Provides interface expansion capabilities through industry-standard
high-bandwidth interfaces such as PCI Express* Gen 2.0, Hi-speed USB 2.0, and USB
3.0 connectivity.
All in One multimedia solution
Based on Intel® J1900 / N2920 / E3845 SoC, the board provides high performance
onboard graphics, CRT, 24-bit dual channel LVDS interface, Display Port, DVI and two
channels High Definition Audio, to meet the very requirement of the multimedia
application.
Flexible Extension Interface
The board provides one PCIe mini slot and one SIM slot.
1.2 <Product Specification>
General Specification
Form Factor Nano-ITX motherboard.
CPU Bay Trail Intel® Celeron™ J1900 /N2930 and Atom™ E3845 Mobile
Processor.
Package Type: FCBGA1170.
Memory 1 x DDR3L (support 1.35V) 1066/1333 SO-DIMM up to 8GB.
Real Time Clock Chipset integrated RTC with onboard lithium battery.
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s.
Power Management Supports ACPI 5.0 compliant.
Serial ATA Interface 2 x SATAII(3Gb/s), 2 x SATAIII(6Gb/s).
VGA Interface Intel® Clear Video integrated HD Graphics Technology.
DVI Interface Onboard DVI connector. (DVI and LVDS1 can’t be enabled simultaneously)
LVDS Interface 2 x Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply.
Display port Interface Onboard Display port connector.
(Display port and LVDS2 can’t be enabled simultaneously)
Audio Interface Realtek ALC262 High Definition Audio Codec.
LAN Interface 1 x Intel® I210 Gigabit LAN.
GPIO interface Onboard programmable 8-bit Digital I/O interface.
Extended Interface 1 x PCIE Mini card or mSATA, 1 x SIM socket.

LN-D70 User’s Manual
-7-
Internal I/O Port 4 x RS232, 1 x GPIO, 1 x Audio connector, 1 x SMBUS connector, 1 x CRT, 2
x LVDS, 1 x LPC, 2 x USB 2.0 and 2 x SATAII, 2 x SATAIII.
External I/O Port 1 x PS/2 Keyboard/Mouse Port, 1 x RS232, 1 x RS232/422/485, 1 x DVI port,
1 x Display port, 1 x RJ45 LAN ports, 1 x USB 3.0(XHCI) port, 1 x USB 2.0
port.
Power Requirement 6~27V full range DC Input.
Dimension 120mm x 120mm. (L x W)
Temperature Operating within 0~60 ℃.(for LN-D70J and LN-D70N serial)
Operating within -40~75 ℃.(for LN-D70E serial)
Ordering Code
LN-70DJIP Intel Celeron Processor J1900 (2M Cache, 2.42GHz), DVI, Display Port, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini
card, , SMBUS, GPIO, SIM, LPC, mSATA.
LN-70DEIP Intel Atom Processor E3845 (2M Cache, 1.91GHz), DVI, Display Port, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini
card, SMBUS, GPIO, SIM, LPC, mSATA.
LN-70DNIP Intel Celeron Processor N2930 (2M Cache, 2.16GHz), DVI, Display Port,
CRT, Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE
Mini card, SMBUS, GPIO, SIM, LPC, mSATA.
LN-70DJX2 Intel Celeron Processor J1900 (2M Cache, 2.42GHz), 2 x LVDS, CRT, Gigabit
LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card,
SMBUS, GPIO, SIM, LPC, mSATA.
LN-70DEX2 Intel Atom Processor E3845 (2M Cache, 1.91GHz), 2 x LVDS, CRT, Gigabit
LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini card,
SMBUS, GPIO, SIM, LPC, mSATA.
LN-70DNX2 Intel Celeron Processor N2930 (2M Cache, 2.16GHz), 2 x LVDS, CRT,
Gigabit LAN, USB3.0 & 2.0, Serial Port, SATAII, SATAIII, Audio, PCIE Mini
card, SMBUS, GPIO, SIM, LPC, mSATA.
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LN-D70 User’s Manual
-8-

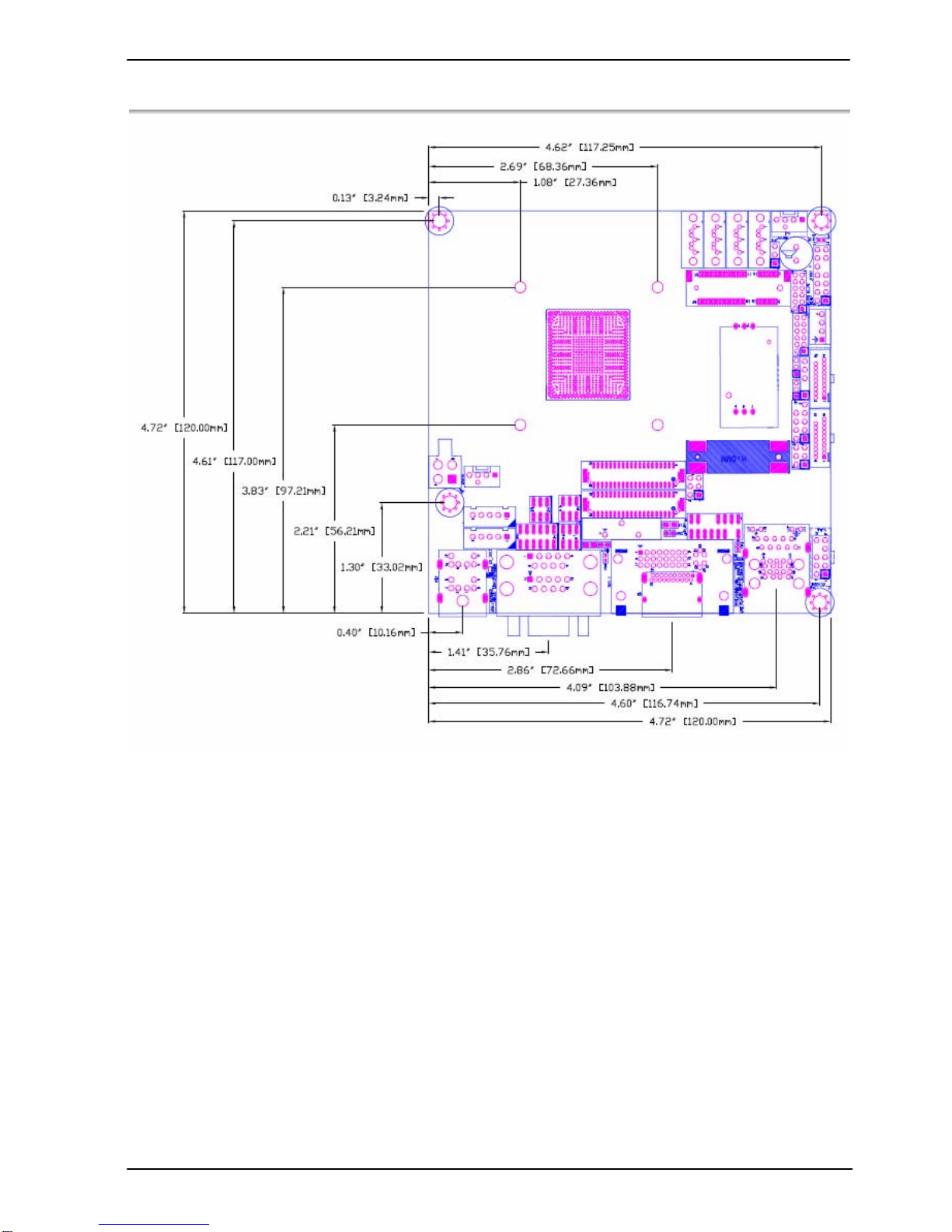

1.3 <Mechanical Drawing>

LN-D70 User’s Manual
-9-

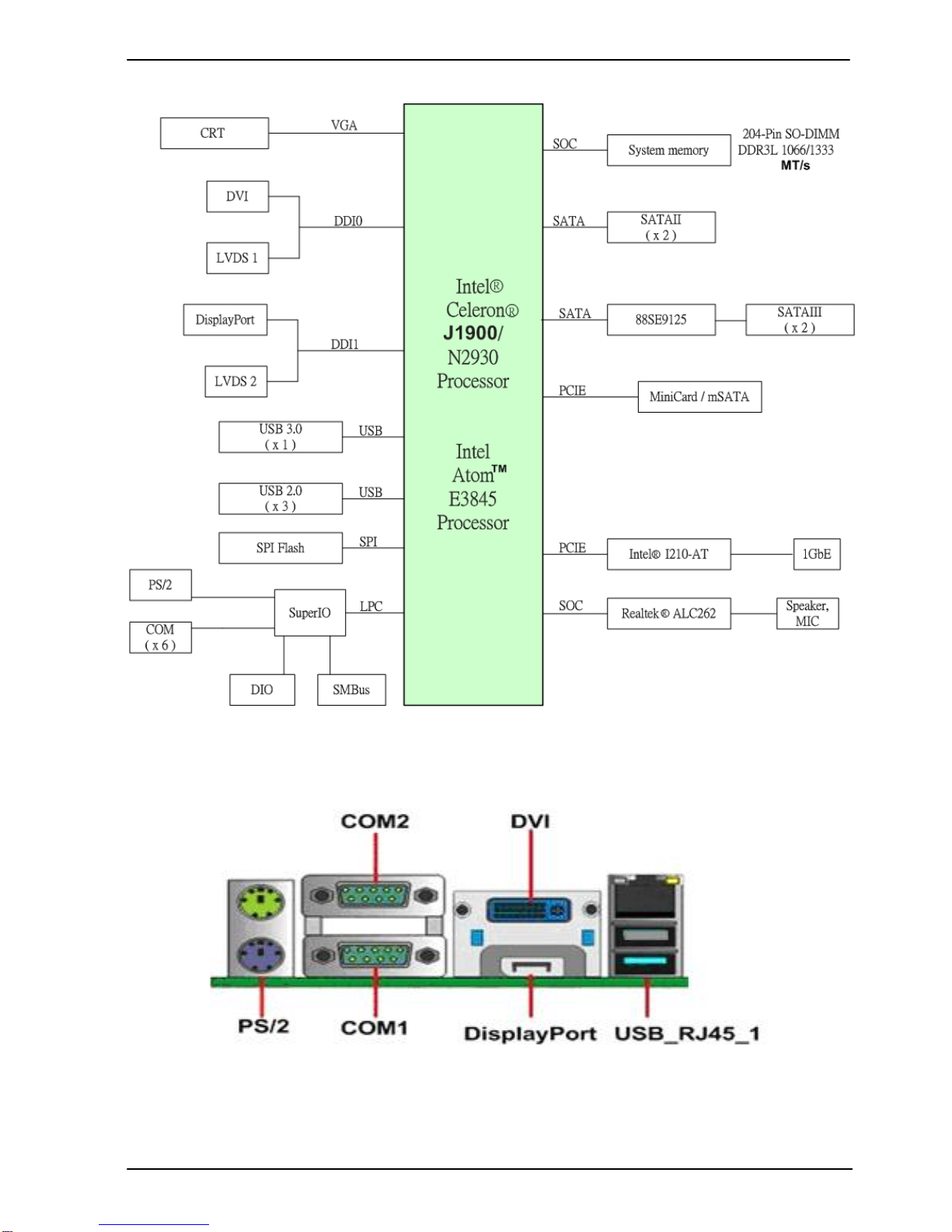

1.4 <Block Diagram>
Chapter 2 <Hardware Setup>
2.1 <Connector Location>

LN-D70 User’s Manual
-10-

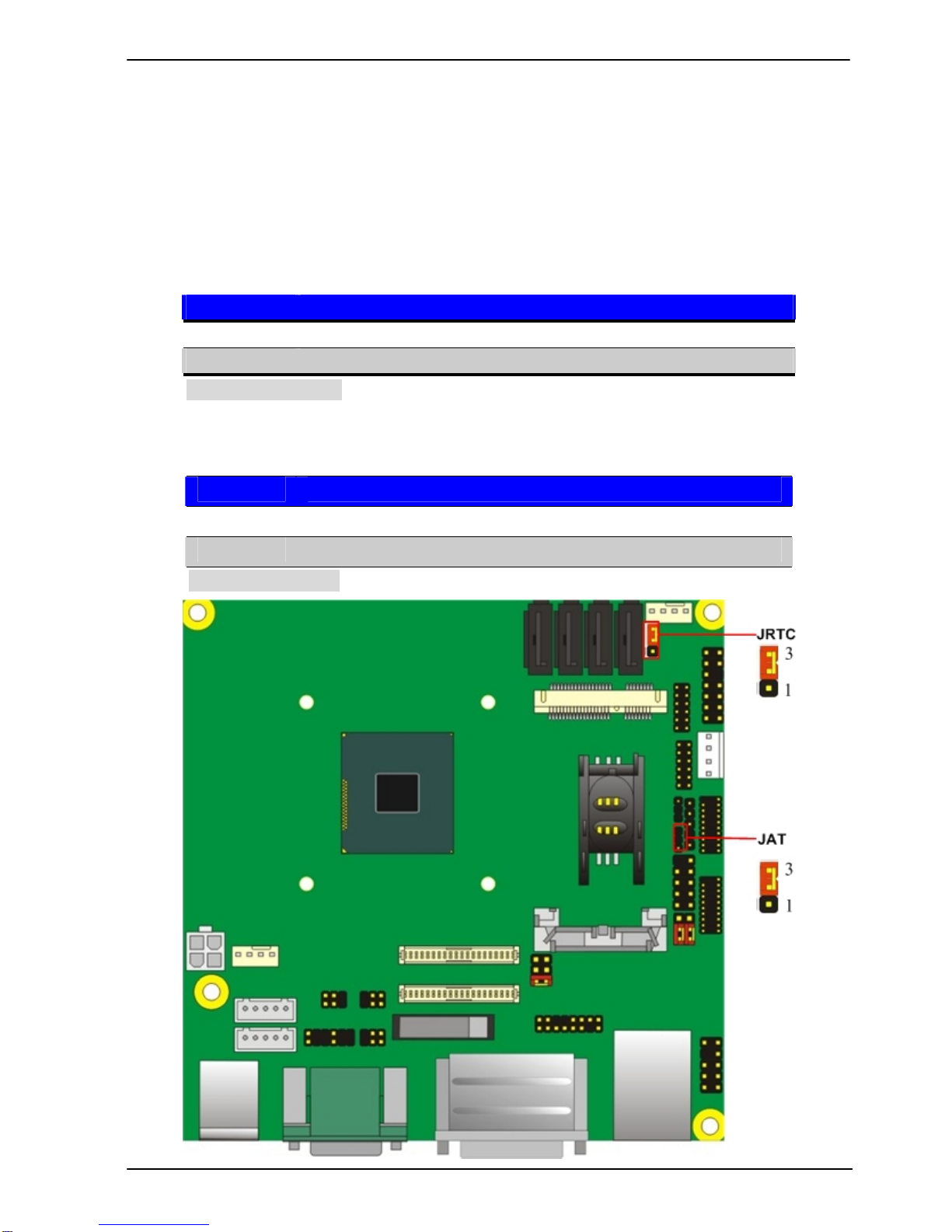

2.2 <Jumper Location & Reference>
Jumper Function
JRTC CMOS Operating/Clear Setting
JVLCD Panel1、2 Voltage Setting
JAT Power mode select
JP1 Com1 Voltage Setting (For Pin 9)
JP2 Com2 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2 COM2 RS-232 RS422 RS485 Setting
JMSATA Mini Card mSATA Setting
JVUSB USB Voltage Setting

LN-D70 User’s Manual
-11-
2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector Function Remark
CPU FCBGA1170 CPU
SO-DIMM 1/2 204 -pin DDR3L SO-DIMM socket
SATAII 1/2 7-pin Serial ATAII connector
SATAIII 1/2 7-pin Serial ATAIII connector
DC_IN DC 6~27V input connector
DC_OUT 4-pin DC output connector
CN_AUDIO 5 x 2-pin audio connector
CN_DIO 6 x 2-pin digital I/O connector
CPUFAN 4-pin CPU cooler fan connector
SYSFAN 4-pin system cooler fan connector
CN_CRT 16-pin VGA connector
CN_LVDS 1/2 20 x 2-pin LVDS connector
CN_INV 1/2 5-pin LCD inverter connector
CN_COM 3/4/5/6 9-pin RS232

LN-D70 User’s Manual
-12-
CN_LPC 5 x 2-pin LPC connector
JFRNT 14-pin front panel switch/indicator connector
Mini-PCIE 52-pin Mini-PCIE socket
JAT Power mode select
SIMM 6-pin socket
CN_SMBUS 5-pin SMBUS connector
CN_USB 5 x 2-pin USB2.0 connector
2.3.2 <External Connectors>
Connector Function Remark
USB_RJ45 1/2 1x USB3.0 / 2.0 , 1x USB2.0 ,
1x RJ45 LAN connector
DVI + Display port DVI connect and Display port connector
COM 1/2 Serial port connector
PS/2 PS/2 keyboard and mouse connector

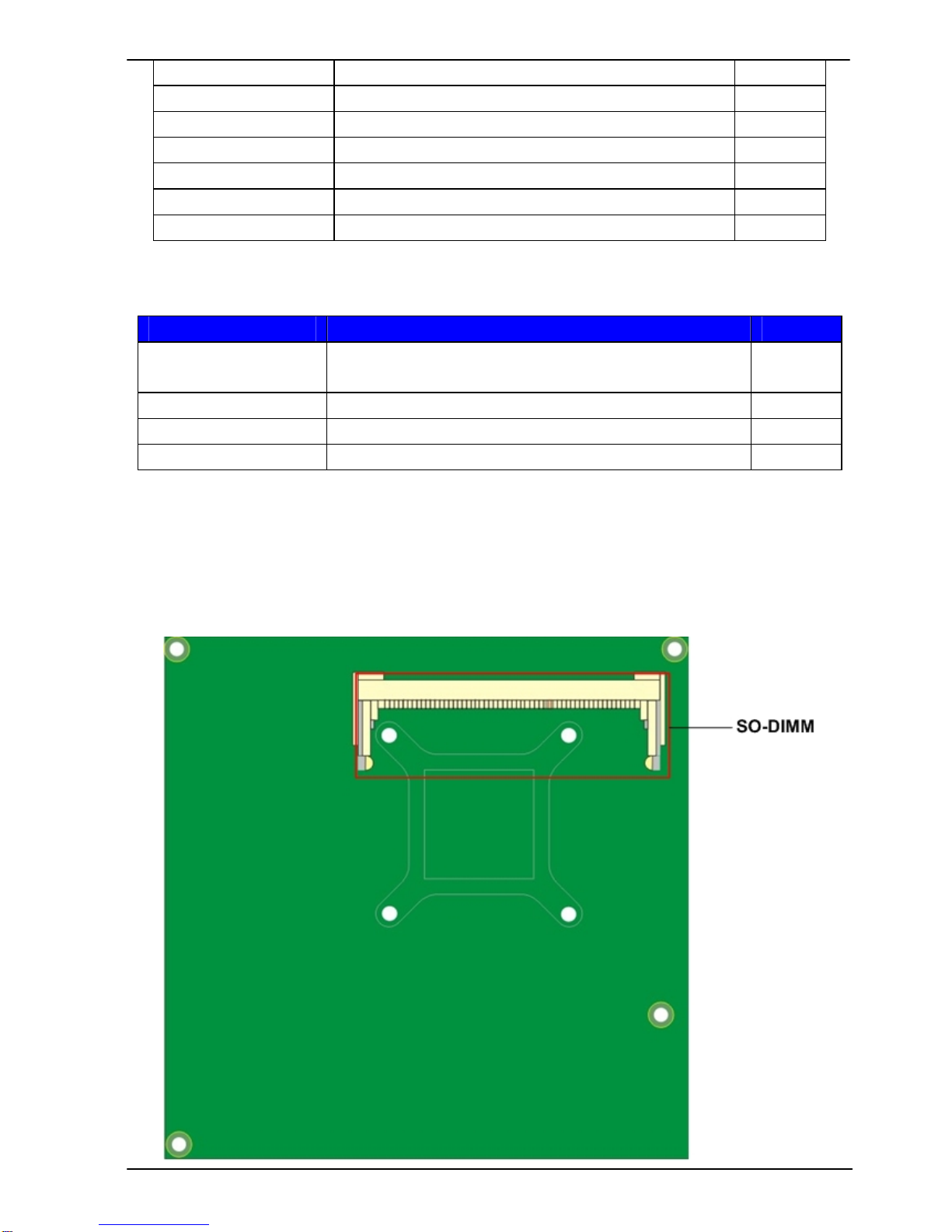

2.4 < Memory Setup >
LN-D70 has two 204-pin DDR3L DIMM support up to 8GB of memory capacity and 1.35
Voltage. The memory frequency supports 1066/1333 MHz. Only Non-ECC memory is
supported.

LN-D70 User’s Manual
-13-
2.5 <CMOS & ATX Setup>
The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to
inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its
default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC Mode
1-2 Clear CMOS
2-3 Normal Operation
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT Mode
1-2 AT Mode
2-3 ATX Mode
Default setting:2-3

LN-D70 User’s Manual
-14-
2.6 <Ethernet Interface>
The board integrates with Intel I210 Gigabit Ethernet, as the PCI Express bus. The Intel
I210 supports triple speed of 10/100/1000Base-T, with IEEE802.3 compliance and
Wake-On-LAN supported.
2.7 <Onboard Display Interface>

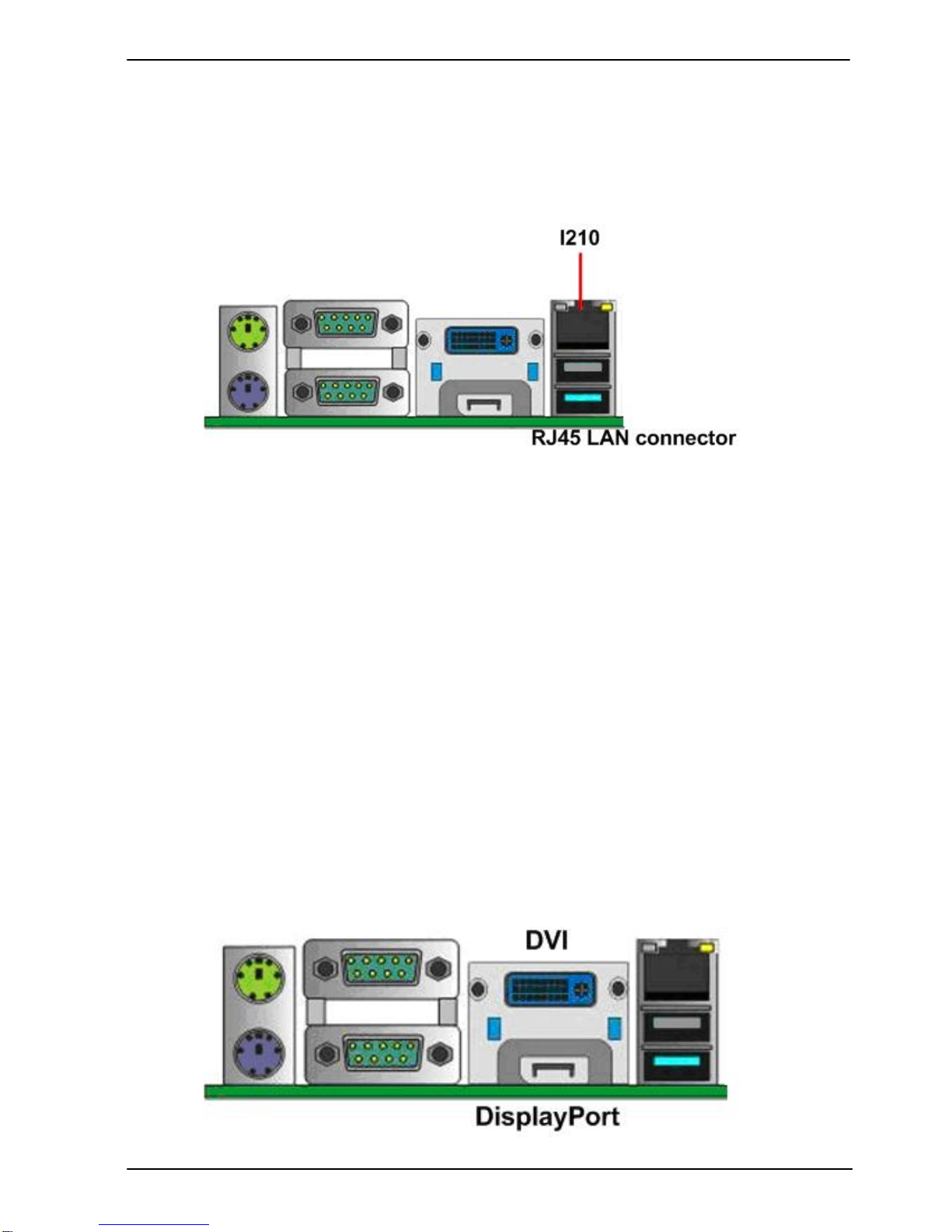

Based on Intel processor with built-in HD Graphic, the board provides one DVI
connector & one Display port on real external I/O port, two 40-pin LVDS interface with
5-pin LCD backlight inverter connector and provides 16-pin VGA interface.
The board provides dual display function with clone mode and extended desktop mode
for DVI, Display port, VGA and LVDS.
2.7.1 <Display>
Please connect your DVI & Display port or LCD monitor with male connector to the
onboard female connector on rear I/O port .

LN-D70 User’s Manual
-15-
2.7.2 <LVDS>
The board provides two 40-pin LVDS connector for 18/24-bit single/dual channel
panels, supports up to 1920 x 1080 resolution, with one LCD backlight inverter
connector and two jumper for panel voltage setting. Please install LVDS cable before
boot up.
Effective patterns of connection: 1-2 / 3-4 / 5-6
Warning: others cause damage

LN-D70 User’s Manual
-16-
Connector: CN_INV1 and CN_INV2
Type: 5-pin LVDS Power Header
Pin Description
1 +12V
2 Reserved (Note)
3 GND
4 GND
5 ENABKL
Note1
1. LVDS1 (CN_INV1) and LVDS2 (CN_INV2) can be connected and enabled
simultaneously but the PWM feature will not function if both LVDS1 and LVDS2 are
enabled at the same time.
2. If you need PWM feature, an OEM model needs to be requested. But please be noted
that PWM function does not support on both LVDS. Either LVDS1 or LVDS2 can have
PWM feature supported. Please contact our Tech Support for detail information.
Connector: JVLCD
Type: 6-pin Power select Header
Connector: CN_LVDS1 and CN_LVDS2
Type: onboard 40-pin connector for LVDS connector
Connector model: HIROSE DF13-40DP-1.25V or compatible
Pin Signal Pin Signal
2 LCDVCC 1 LCDVCC
4 LVDS Detect (Note) 3 GND
6 ATX0- 5 BTX0-
8 ATX0+ 7 BTX0+
10 GND 9 GND
12 ATX1- 11 BTX1-
14 ATX1+ 13 BTX1+
16 GND 15 GND
18 ATX2- 17 BTX2-
20 ATX2+ 19 BTX2+
22 GND 21 GND
24 ACLK- 23 BTX3-
26 ACLK+ 25 BTX3+
28 GND 27 GND
30 ATX3- 29 BCLK-
32 ATX3+ 31 BCLK+
Pin Description
1-2 LCDVCC (3.3V)
3-4 LCDVCC (5V)
5-6 LCDVCC (12V)
Default: 1-2

LN-D70 User’s Manual
-17-
34 GND 33 GND
36 DDCPCLK 35 SMBCKL
38 DDCPDATA 37 SMBDATA
40 N/C 39 SPDIFO
Note: The LVDS Detect Pin please contact to the Panel GND.
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable,
because every panel has its own pin assignment, so we do not provide a standard
cable; please find a local cable manufacture to make cables.
LCD Installation Guide:

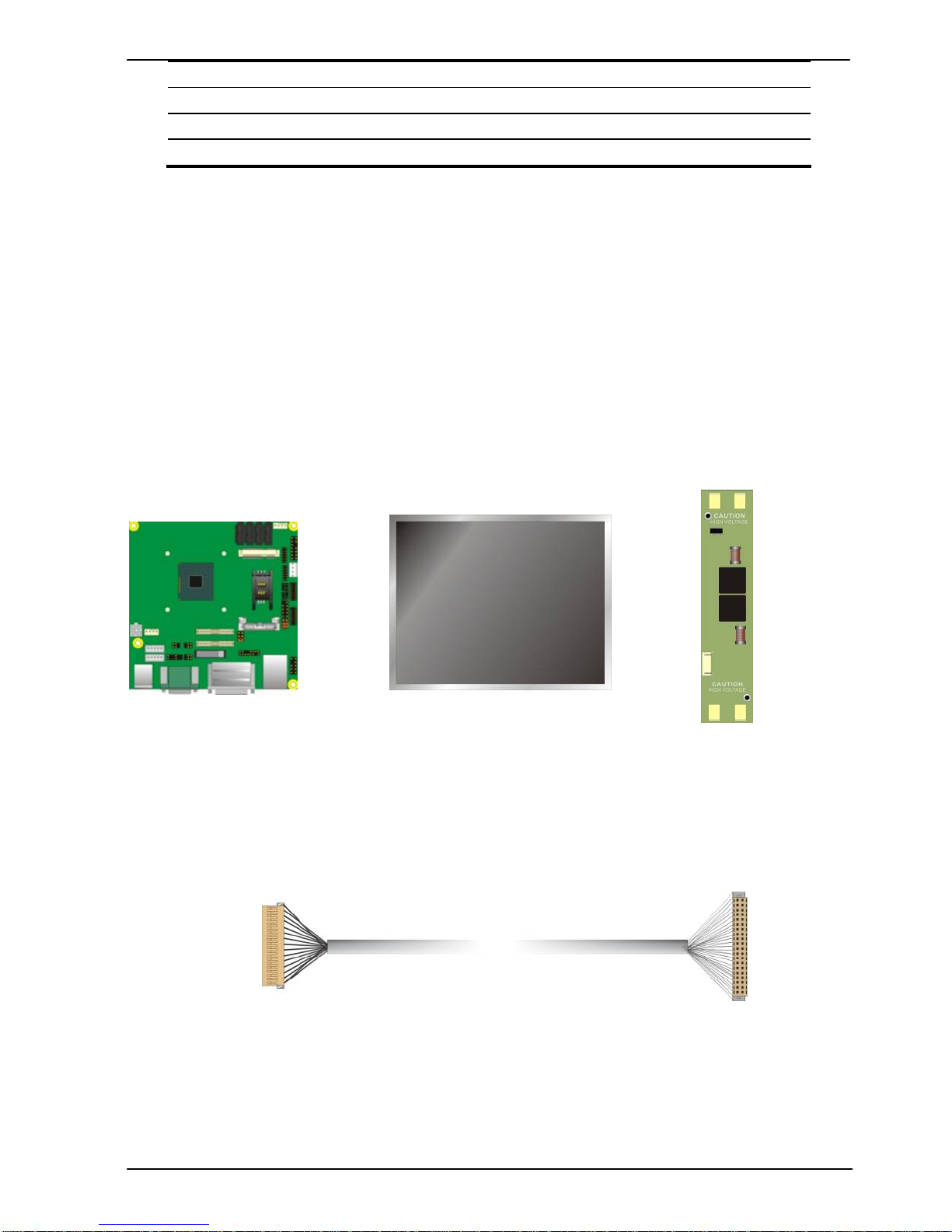

1. Preparing the LN-D70, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
For sample illustrator only
Panel side Board side

LN-D70 User’s Manual
-18-
4. To connect all of the devices well.
After setup the devices well, you need to select the LCD panel type in the BIOS.
The panel type mapping is list below:
2.7.3 <VGA Interface>
Connector: CN_CRT
Type: onboard 16-pin connector for CN_CRT connector pitch 2.00mm
BIOS panel type selection form (BIOS Version:1.0)
Single / Dual channel Single / Dual channel
NO. Output format NO. Output format
1 640 x 480 9 1680 x 1050
2 800 x 600 10 1920 x 1200
3 1024 x 768 11 1440 x 900
4 1280 x 1024 12 1600 x 900
5 1400 x 1050 13 1024 x 768
6 1400 x 1050 14 1280 x 800
7 1600 x 1200 15 1920 x 1080
8 1366 x 768

LN-D70 User’s Manual
-19-
Pin Signal Pin Signal
1 BR 2 BG
3 BB 4 NC
5 -CRTATCH 6 IOGND1
7 IOGND1 8 IOGND1
9 NC 10 -CRTATCH
11 NC 12 5VCDA
13 5HSYNC 14 5VSYNC
15 5VCLK 16 NC
2.8 <Integrated Audio Interface>
The board integrates onboard audio interface with REALTEK ALC262 code, with Intel
next generation of audio standard as High Definition Audio, it offers more vivid sound
and other advantages than former HD audio compliance.
The main specifications of ALC262 are:
zHigh-performance DACs with 100dB S/N ratio

LN-D70 User’s Manual
-20-
z2 DAC channels support 16/20/24-bit PCM format for 2 audio solution
zCompatible with HD
zMeets Microsoft WHQL/WLP 2.0 audio requirements
Connector: CN_AUDIO
Type: 10-pin (2 x 5) header (pitch = 2.54mm)
Pin Description Pin Description
1 MIC_L 2 Ground
3 MIC_R 4 N/C
5 Speaker_R 6 MIC Detect
7 SENSE 8 N/C
9 Speaker_L 10 Speaker Detect
