Commell LV-67H User manual

LV-67H
Mini-ITX Motherboard
User’s Manual
Edition 1.5
2013/03/01

LV-67H User’s Manual
-1-
Copyright
Copyright 2011, all rights reserved. This document is copyrighted and all rights are
reserved. The information in this document is subject to change without prior notice to
make improvements to the products.
This document contains proprietary information and protected by copyright. No part of
this document may be reproduced, copied, or translated in any form or any means
without prior written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of
their respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting
from the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including
without limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications
of the product described within it at any time without notice and without obligation to
notify any person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LV-67H User’s Manual
-2-

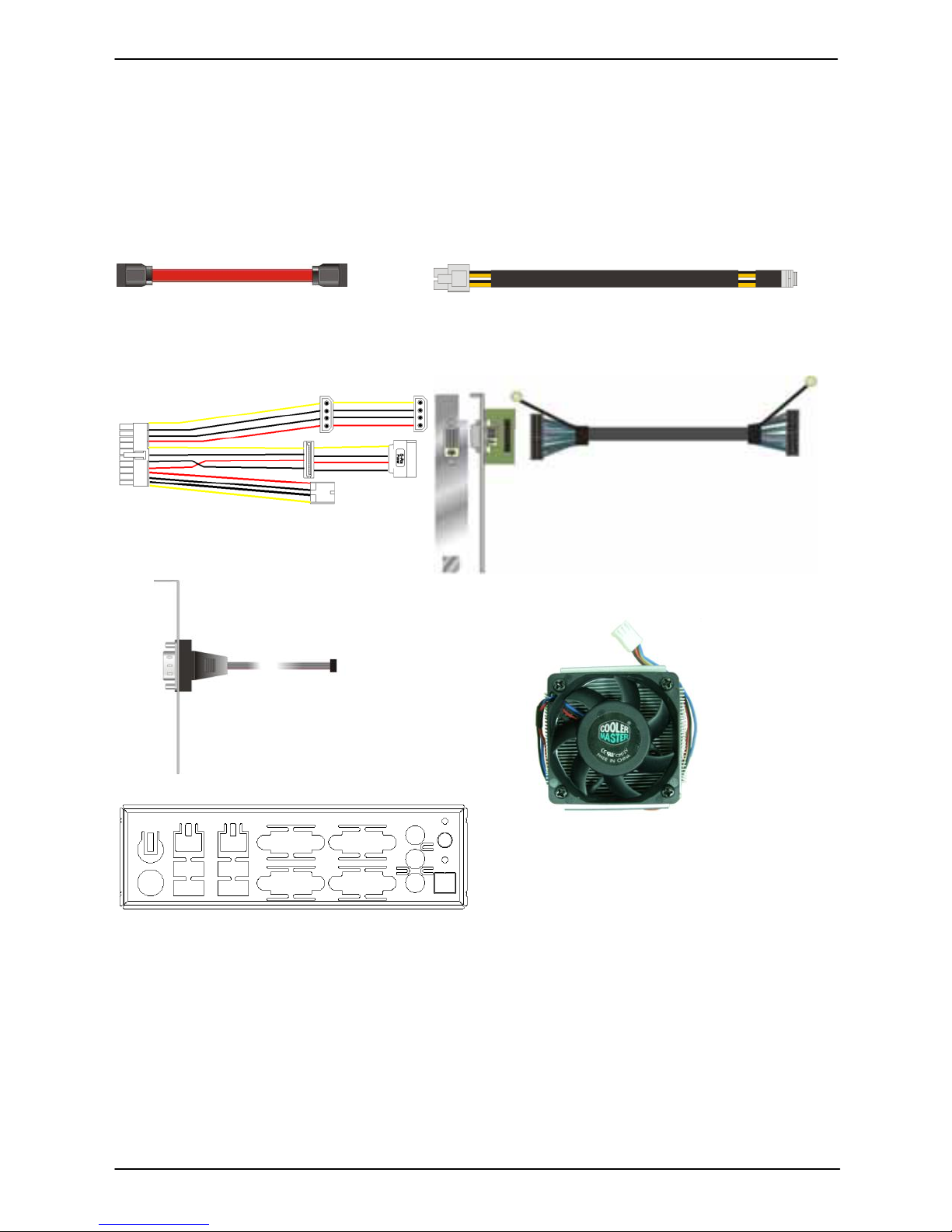

Packing List:
Please check the package content before you starting using the board.
Hardware:
LV-67H Mini-ITX Motherborad x 1
Cable Kit:
SATA Cable x 2
(OALSATA-L)
DC Power Cable x 1
(OALDC-A)
I/O Shield x 1
(OPLATE-LV67E)
Power Cable x 1
(OALATX-P3S2)
Printed Matters:
Driver CD (Including User’s Manual) x 1
CPU Cooler x 1
(OHS-P-M-G)
DVI module with bracket x 1
(ADPDVIP & OALDVI-P)
COM Port Cable x 1
(OALES-BKU1)

LV-67H User’s Manual
-3-
Dual COM PORT cable x 1
(OALES-BKU2)
Optional Cable:
USB Cable x 1
(OALUSBA-1)

LV-67H User’s Manual
-4-
Index
Chapter 1 <Introduction>.............................................................7
1.1 <Product Overview> .....................................................................................7
1.2 <Product Specification>................................................................................8
1.3 <Mechanical Drawing> .................................................................................9
1.4 <Block Diagram>........................................................................................10
Chapter 2 <Hardware Setup>..................................................11
2.1 <Connector Location> ................................................................................11
2.2 <Jumper Location & Reference>................................................................12
2.3 <Connector Reference> .............................................................................13
2.3.1 <Internal Connectors>...............................................................13
2.3.2 <External Connectors>..............................................................13
2.4 <CPU and Memory Setup>.........................................................................14
2.4.1 <CPU Setup>..............................................................................14
2.4.2 <Memory Setup>........................................................................15
2.5 <CMOS & ATX Setup>................................................................................16
2.6 <Serial ATA Interface> ................................................................................17
2.7 <Ethernet Interface>...................................................................................18
2.8 <Onboard Display Interface>......................................................................19
2.8.1 <Analog Display>.......................................................................19
2.8.2 <Digital Display> ........................................................................20
2.8.3 <DVI Interface> ..........................................................................25
2.9 <Integrated Audio Interface>.......................................................................26
2.10 <USB Interface>.......................................................................................28
2.11 <Serial Port>.............................................................................................30
2.12 <PCIE Mini Card and SIM Interface>........................................................33
2.12.1 <SIM Setup>......................................................................................35
2.13 <GPIO and SMBUS Interface>.................................................................37
2.14 <Power Supply and Fan Interface > .........................................................38
2.14.1 <Power Input>..........................................................................38
44-pin

LV-67H User’s Manual
-5-
2.14.2 <Power Output>.......................................................................39
2.14.3 <Fan connector> .....................................................................40
2.15 <Switch and Indicator>.............................................................................41
Chapter 3 <System Setup>.......................................................42
3.1 <Audio Configuration>................................................................................42
3.2 <Display Properties Setting>......................................................................43
3.3 <SATA configuration>.................................................................................45
3.4 <SATA RAID Configuration>.......................................................................46
Chapter 4 <BIOS Setup>............................................................48
Appendix A <I/O Port Pin Assignment>..........................50
A.1 <Serial ATA Port>.......................................................................................50
A.2 <IrDA Port>................................................................................................50
A.3 <VGA Port>................................................................................................50
A.4 <LAN Port>................................................................................................50
A.5 <LAN LED Port>........................................................................................51
Appendix B <Flash BIOS>.........................................................52
B.1 <Flash Tool> ..............................................................................................52
B.2 <Flash BIOS Procedure>...........................................................................52
Appendix C <System Resources>......................................53
C.1 <I/O Port Address Map> ............................................................................53
C.2 <Memory Address Map>............................................................................55
C.3 <System DMA & IRQ Resources>.............................................................56
Appendix D <Programming GPIO’s> ................................57
Appendix E <Programming Watchdog Timer >.........58
Contact Information.......................................................................59

LV-67H User’s Manual
-6-
(This page is left for blank)

LV-67H User’s Manual
-7-
Chapter 1 <Introduction>
1.1 <Product Overview>
LV-67Hthe 2nd Generation Intel of the Mini-ITX motherboard, supports 2nd Generation
Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron® Mobile Processor and features
Intel QM67 chipset, integrated HD Graphics, DDR3 memory, REALTEK High Definition
Audio, Serial ATA with RAID function for a system and Intel Gigabit LAN.
Intel Sandy Bridge Processor
The 2nd Generation Intel® Core™ processor family mobile is the next generation of
64-bit, multi-core mobile processor built on 32- nanometer process technology. Based
on a new micro-architecture.
New features for Intel QM67 chipset
The board integrates Intel QM67 chipset, supports integrated HD Graphics, built-in high
speed mass storage interface of Serial ATA interface with RAID function, High Definition
Audio with 2 channels surrounding sound.
All in One multimedia solution
Based on Intel QM67 chipset, the board provides high performance onboard graphics,
24-bit dual channel LVDS interface, DVI and 2 channels High Definition Audio, to meet
the very requirement of the multimedia application.
Flexible Extension Interface
The board provides, two mini-PCIE socket and one PCIE X16 slot.

LV-67H User’s Manual
-8-
1.2 <Product Specification>
General Specification
Form Factor
Mini-ITX motherboard
CPU
2nd Generation Intel® Core™ i7, Core™ i5, Core™ i3 and Celeron®
Mobile Processor
Package type: rPGA988B
Memory
2 x DDRIII SO-DIMM 1066/1333/1600 MHz up to 16GB
Support Non-ECC, unbuffered memory only
Chipset
Intel QM67 Express chipset
Real Time Clock
Chipset integrated RTC with onboard lithium battery
Watchdog Timer
Generates a system reset with internal timer for 1min/s ~255min/s
Power Management
Supports ACPI 3.0 compliant,
Serial ATA Interface
4 x serial ATAII interface with 300MB/s transfer rate
2 x serial ATAIII interface with 600MB/s transfer rate
Support RAID 0, 1, 5, 10 and Intel Rapid Storage Technology
VGA Interface
Onboard DSUB15 connector for VGA interface
LVDS Interface
Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V
supply
DVI Interface
Chrontel CH7318 Transmitter with 26-pin DVI connector
Audio Interface
Realtek ALC888 HD Audio
LAN Interface
2 x Intel 82574L Gigabit LAN
GPIO interface
Onboard programmable 8-bit Digital I/O interface
Extended Interface
1 x PCIE x16 slot, 2 x PCIE mini card socket,1 x SIM socket
Internal I/O Port
3 xRS232,1 xSMBUS, 1 xGPIO, 6 xUSB2.0 ports, 1 xIrDA, 1 xDVI ,
1 x LVDS, 4 x Serial ATAII,2 xSerial ATAIII, 1xFront panel Audio
and 1 xCDIN
External I/O Port
1 x PS/2, 2 x LAN ports, 1 x VGA port, 4 x USB2.0 ports,
1 x RS232/422/485, 2 x RS232, 1 x SPDIF and 1 x 2 Channel Audio
Power Requirement
Standard 20-Pin ATX power supply or 9~24V full range DC Input
Dimension
170mm x 170mm
Temperature
Operating within 0~60 centigrade
Storage within –20~85 centigrade
Ordering Code
LV-67HTXD
Intel PGA988B+ QM67 Onboard VGA, LVDS, DVI, LAN, USB2.0,
HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO, PCIE x16and,
PCI Express mini card.
The specifications may be different as the actual production.
For further product information please visit the website at TUhttp://www.commell.com.twUT

LV-67H User’s Manual
-9-

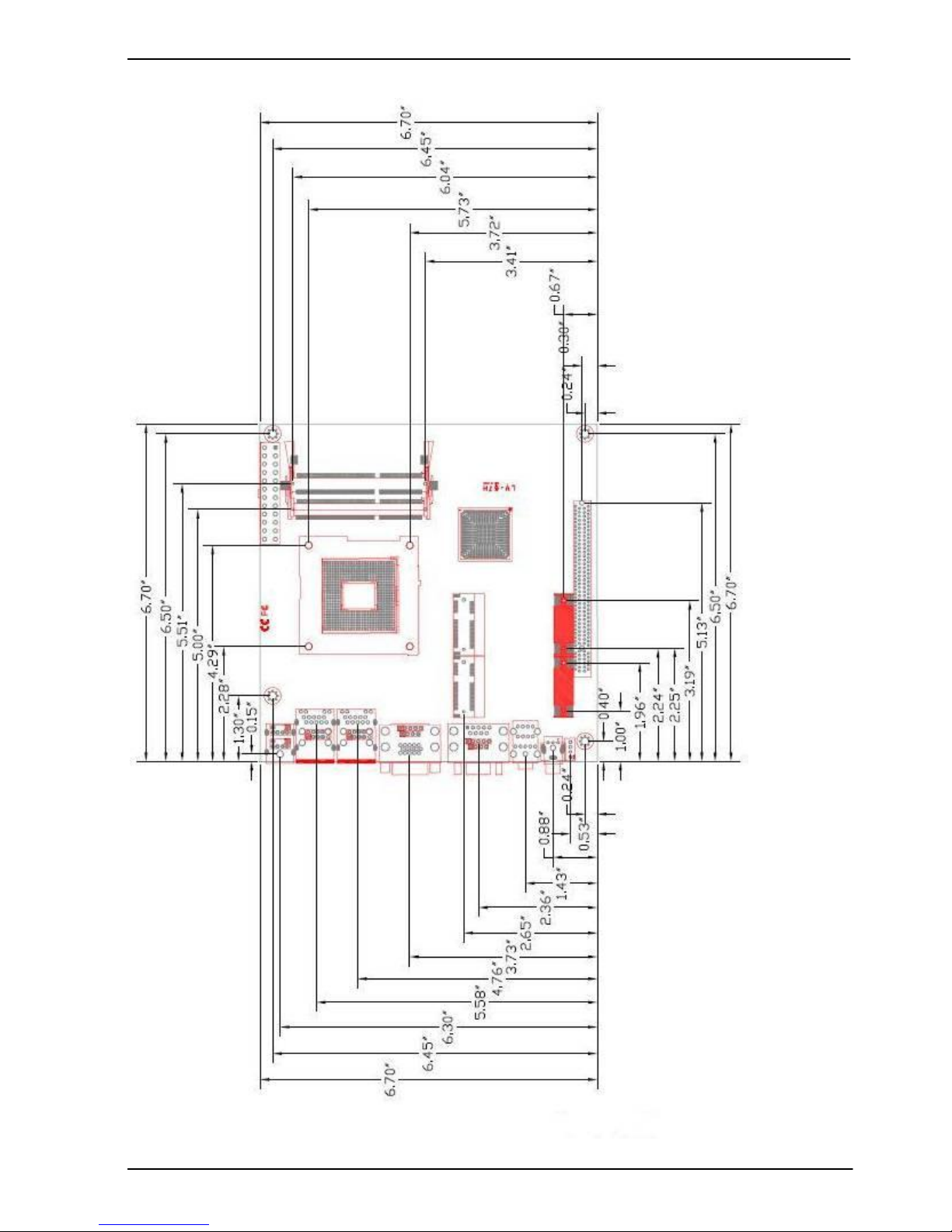

1.3 <Mechanical Drawing>
Unit: inch

LV-67H User’s Manual
-10-
1.4 <Block Diagram>
QM67
W25X64 SPI
2 x Intel 82574L
1 x RS232/422/485
1 x COM & GPIO & IrDA
2nd Generation Intel® Core™ i7,
Core™ i5, Core™ i3
and Celeron® Mobile Processor
1 x PCI Express x16
2 x 204-pin DDR3
SO-DIMM
1066/1333/1600 MHz
up to 16GB
IO W83627DHG-P
1 x LVDS
4 x Serial ATAII
10 x USB 2.0
2 x PCI Express mini card
1 x DVI
1 x CRT
2 x Serial ATAIII
4 x COM
ALC886 HDAudio
F81216
D

LV-67H User’s Manual
-11-

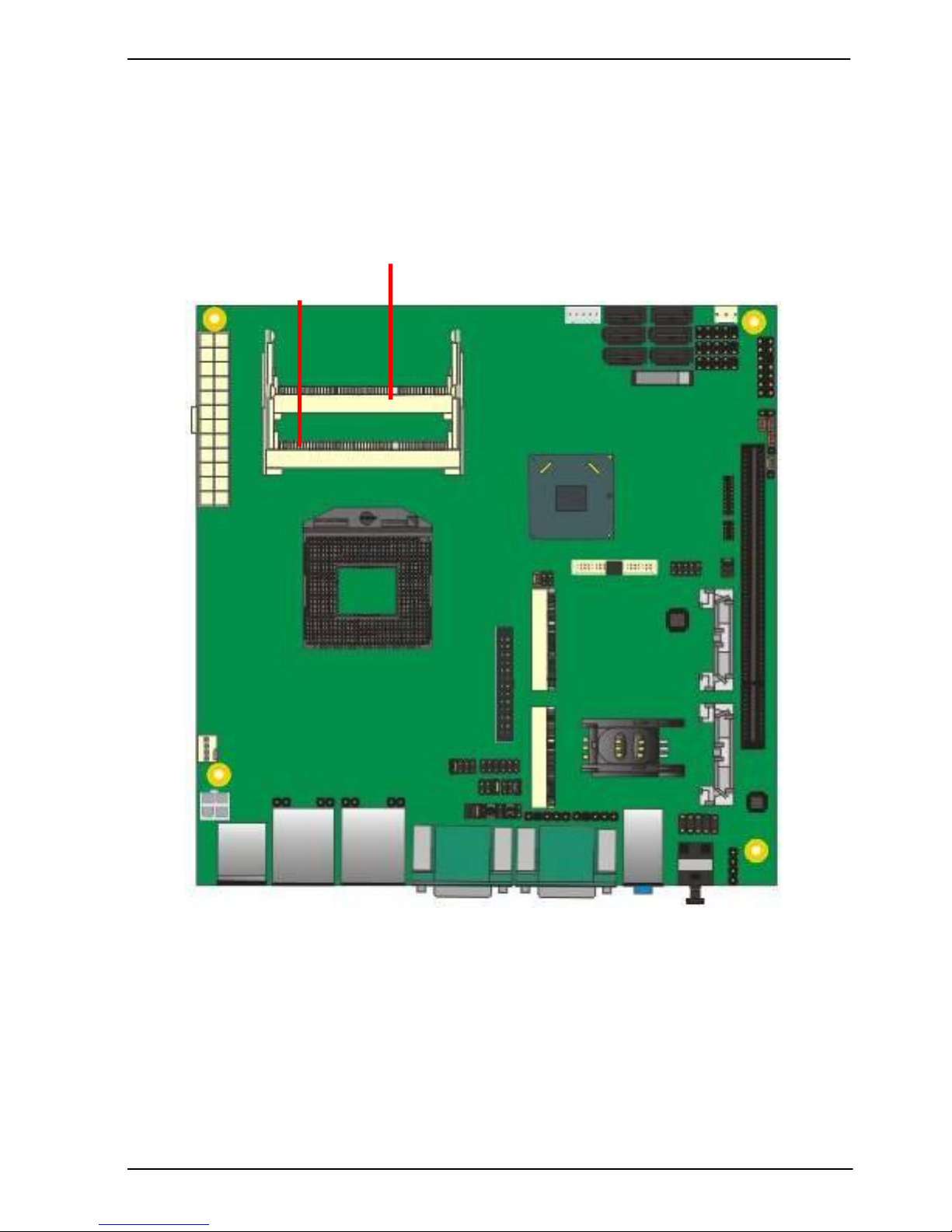

Chapter 2 <Hardware Setup>
2.1 <Connector Location>
PS2
COM3+COM2 Audio SPDIF
COM1 + CRT
USB_RJ45_1/2
JFRNT
ATX
PCIE x16
SYSFAN
CN_INV
SATA3 SATA6
SO-DIMM1
DC_IN
CN_IR
CD_IN
CN_LVDS
CPUFAN
CN_AUDIO
CN_SMBUS
MINI_CARD1
SO-DIMM2
CN_DVI
SATA2 SATA5
SATA1 SATA4
MINI_CARD2
SIMM
CN_USB3/4/5
CN_GPIO
COM4
COM5/6
CN_LPC
JSPD1
JSPD2
JACT1
JACT2
1
2

LV-67H User’s Manual
-12-

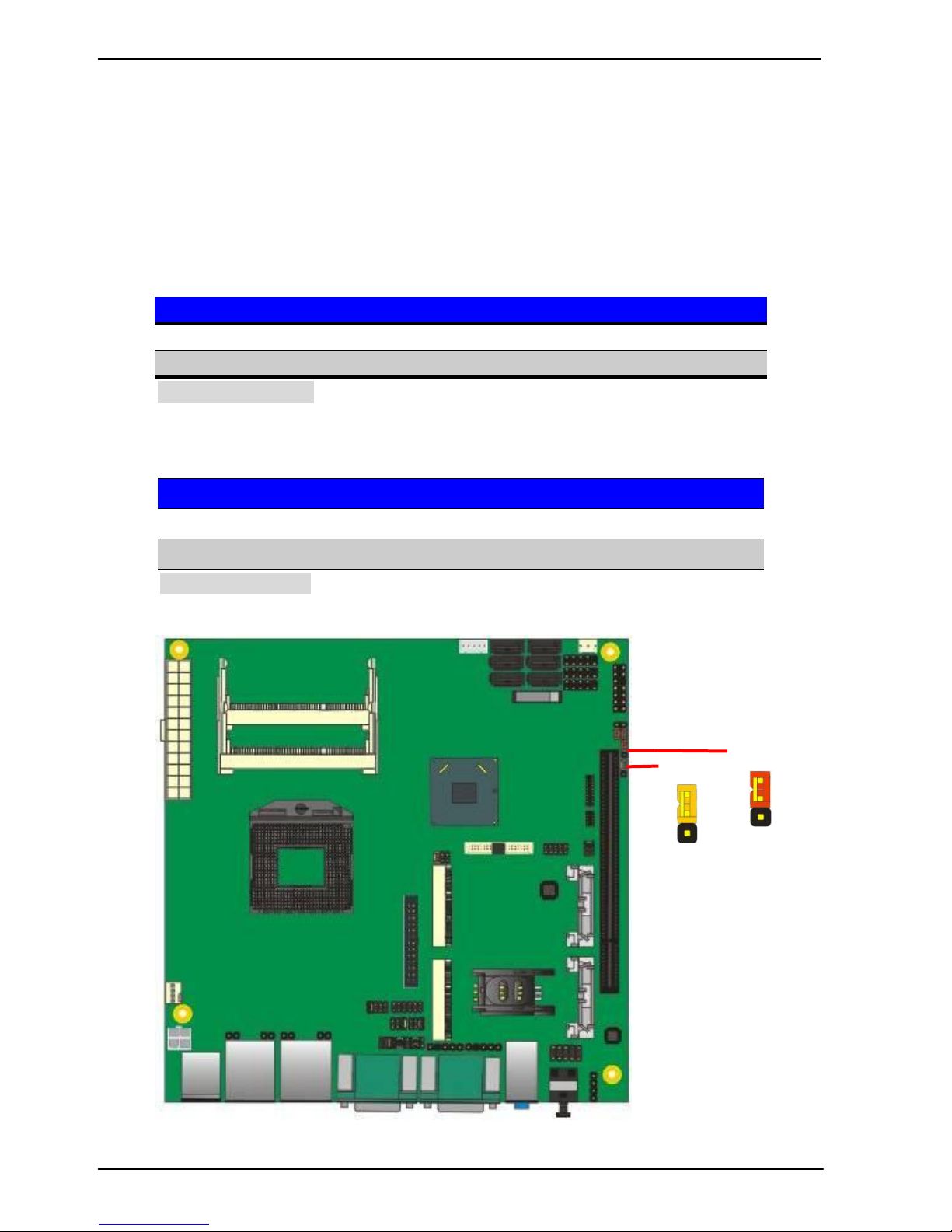

2.2 <Jumper Location & Reference>
Jumper
Function
JRTC
CMOS Operating/Clear Setting
JVLCD
Panel Voltage Setting
JAT
Power mode select
JP1
Com1 Voltage Setting (For Pin 9)
JP2
Com2 Voltage Setting (For Pin 9)
JP3
Com3 Voltage Setting (For Pin 9)
JP4
Com4 Voltage Setting (For Pin 9)
JCSEL1
JCSEL2
CN_COM2 RS-232 RS422 RS485 Setting
CN_IR IrDA Setting
JVUSB
USB Voltage Setting
JVLCD
JRTC
JAT
JP1
JP2
JVUSB
JP4
JP3
JCSEL1
JCSEL2

LV-67H User’s Manual
-13-

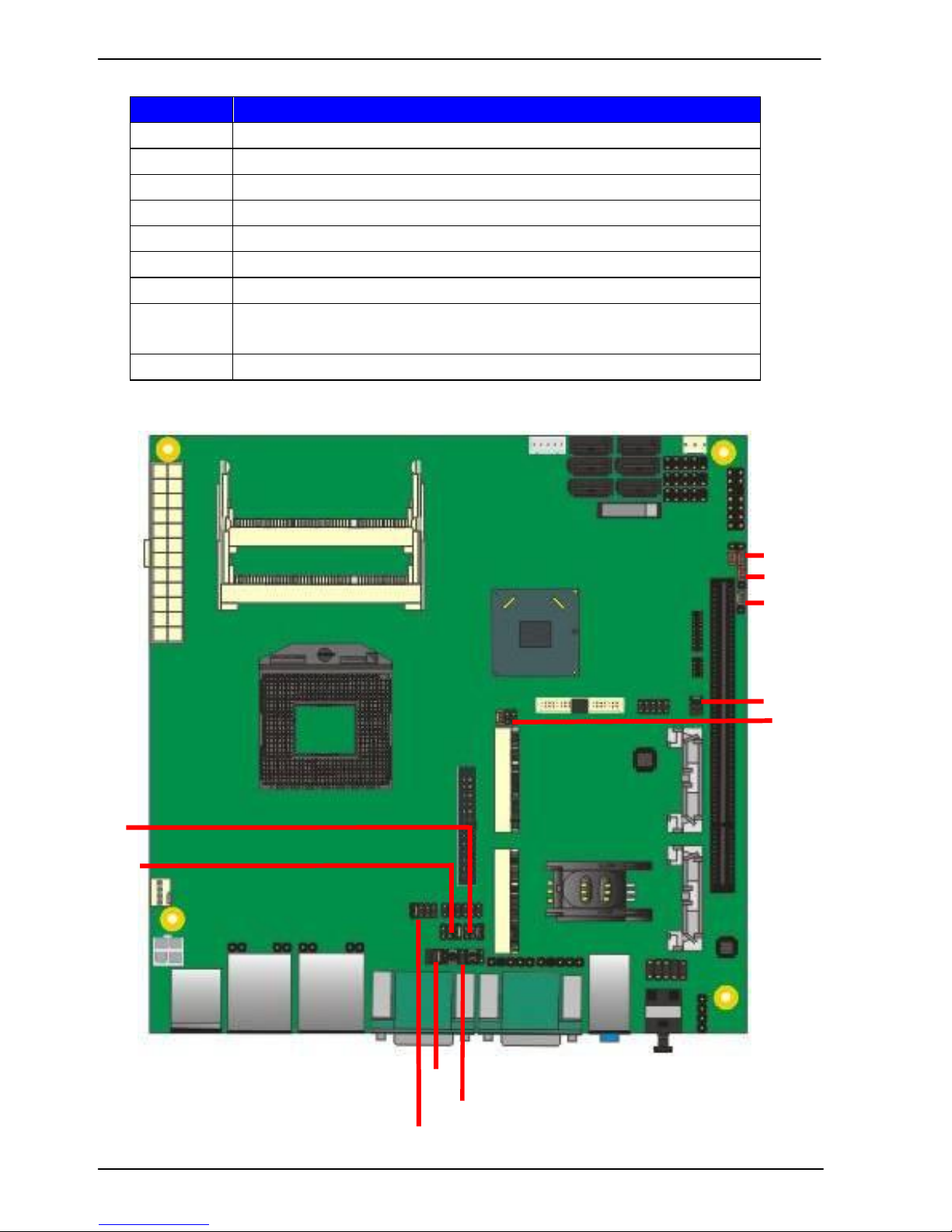

2.3 <Connector Reference>
2.3.1 <Internal Connectors>
Connector
Function
Remark
CPU
Socket rPGA988B for PGA988 CPU
SO-DIMM 1/2
204 -pin DDR3 SO-DIMM socket
SATA 1/2
7-pin Serial ATAIII connector
SATA 3/4/5/6
7-pin Serial ATAII connector
DC_IN
DC 9~24V input connector
ATX
20-pin power input connector
ATX P/S Mode
20-pin power output connector
DC_Input Mode
CN_AUDIO
5 x 2-pin audio connector
CD_IN
4-pin CD-ROM audio input connector
CN_DIO
6 x 2-pin digital I/O connector
CN_USB 3/4/5
5 x 2-pin USB connector
CPUFAN
4-pin CPU cooler fan connector
SYSFAN
3-pin system cooler fan connector
CN_LVDS
20 x 2-pin LVDS connector
CN_INV
5-pin LCD inverter connector
CN_IR
5-pin IrDA connector
CN_COM 4
9-pin RS232
CN_COM 5/6
19-pin 2 x RS232
CN_LPC
5 x 2-pin LPC connector
JFRNT
14-pin front panel switch/indicator
connector
PCIE
164-pin x16 PCIE slot
Mini-PCIE1/2
2 x 52-pin Mini-PCIE socket
JAT
Power mode select
JSPD 1/2
LAN Speed LED connector
JACT 1/2
LAN Activity LED connector
2.3.2 <External Connectors>
Connector
Function
Remark
USB_RJ45 1/2
2 x USB and 1 x RJ45 LAN connector
COM1 + CRT
COM1 Connect DB15 and analog VGA connector
COM 2/3
Serial port connector
PS/2
PS/2 keyboard and mouse connector
AUDIO
Audio connector
SPDIF
SPDIF digital audio output connector

LV-67H User’s Manual
-14-
2.4 <CPU and Memory Setup>
2.4.1 <CPU Setup>
The board comes with the socket rPGA988 for Intel SandyBridge Processor, Please
follow the instruction to install the CPU properly.
1. Use the flat-type screw drive
to unlock the CPU socket
Unlock way
Check point
2. Follow the pin direction to install
the processor on the socket
3. Lock the socket
Socket CPU
Check point

LV-67H User’s Manual
-15-
2.4.2 <Memory Setup>
The board provides 2 x 204-pin DDR3 SO-DIMM to support 1066/1333/1600MHz DDR3
memory module up to 16GB.
Support Non-ECC, unbuffered memory only.
SO-DIMM1
SO-DIMM2

LV-67H User’s Manual
-16-
2.5 <CMOS & ATX Setup>
The board‟s data of CMOS can be setting in BIOS. If the board refuses to boot due
to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS
to its default values.
Jumper: JRTC
Type: Onboard 3-pin jumper
JRTC
Mode
1-2
Clear CMOS
2-3
Normal Operation
Default setting: 2-3
Jumper: JAT
Type: onboard 3-pin jumper
JAT
Mode
1-2
AT Mode
2-3
ATX Mode
Default setting:2-3
JRTC
1
3
JAT
3
1
3
1

LV-67H User’s Manual
-17-
2.6 <Serial ATA Interface>
LV-67H has Four Serial ATA II (SATA Port3/4/5/6) & Twor Serial ATA III (SATA Port1/2)
interfaces with RAID function, the transfer rate of the Serial ATA II can be up to 300MB/s
& Serial ATA III can be up to 600MB/s. Please go to http://www.serialata.org/ for more
about Serial ATAtechnology information. Based on Intel® PCH, it supports Intel®Matrix
Storage Technology with combination of RAID 0,1,5 and 10. The main features of
RAID on Intel® QM67 PCH are listed below:
1. Supports for up to RAID volumes on a single, two-hard drive RAID array.
2. Supports for two, two-hard drive RAID arrays on any of six SerialATA ports.
3. Supports for Serial ATAATAPI devices.
4. Supports for RAID spares and automatic rebuild.
5. Supports on RAID arrays, including NCQ and native hot plug.
For more information please visit Intel’s official website.
For more about the system setup for Serial ATA, please check the chapter of SATA
configuration.
SATA3 SATA6
SATA1 SATA4
SATA2 SATA5

LV-67H User’s Manual
-18-
2.7 <Ethernet Interface>
The board integrates with one Intel PCI Express Gigabit Ethernet controllers, as the PCI
Express x1 can speed up to 250MB/s of transfer rate instead of late PCI bus with
133MB/s of transfer rate. The Intel Gigabit Ethernet supports triple speed of
10/100/1000Base-T, with IEEE802.3 compliance and Wake-On-LAN supported.
RJ45 LAN connector
LAN1
LAN2
