Commell LE-578 User manual

LE-578
5.25’’ Embedded Miniboard
User’s Manual
Edition 1.2
2017/11/28

LE-578 User’s Manual
-1-
Copyright
Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved.
The information in this document is subject to change without prior notice to make
improvements to the products.
This document contains proprietary information and protected by copyright. No part of this
document may be reproduced, copied, or translated in any form or any means without prior
written permission of the manufacturer.
All trademarks and/or registered trademarks contains in this document are property of their
respective owners. Disclaimer
The company shall not be liable for any incidental or consequential damages resulting from
the performance or use of this product.
The company does not issue a warranty of any kind, express or implied, including without
limitation implied warranties of merchantability or fitness for a particular purpose.
The company has the right to revise the manual or include changes in the specifications of
the product described within it at any time without notice and without obligation to notify any
person of such revision or changes.
Trademark
All trademarks are the property of their respective holders.
Any questions please visit our website at TUhttp://www.commell.com.twUT

LE-578 User’s Manual
-2-

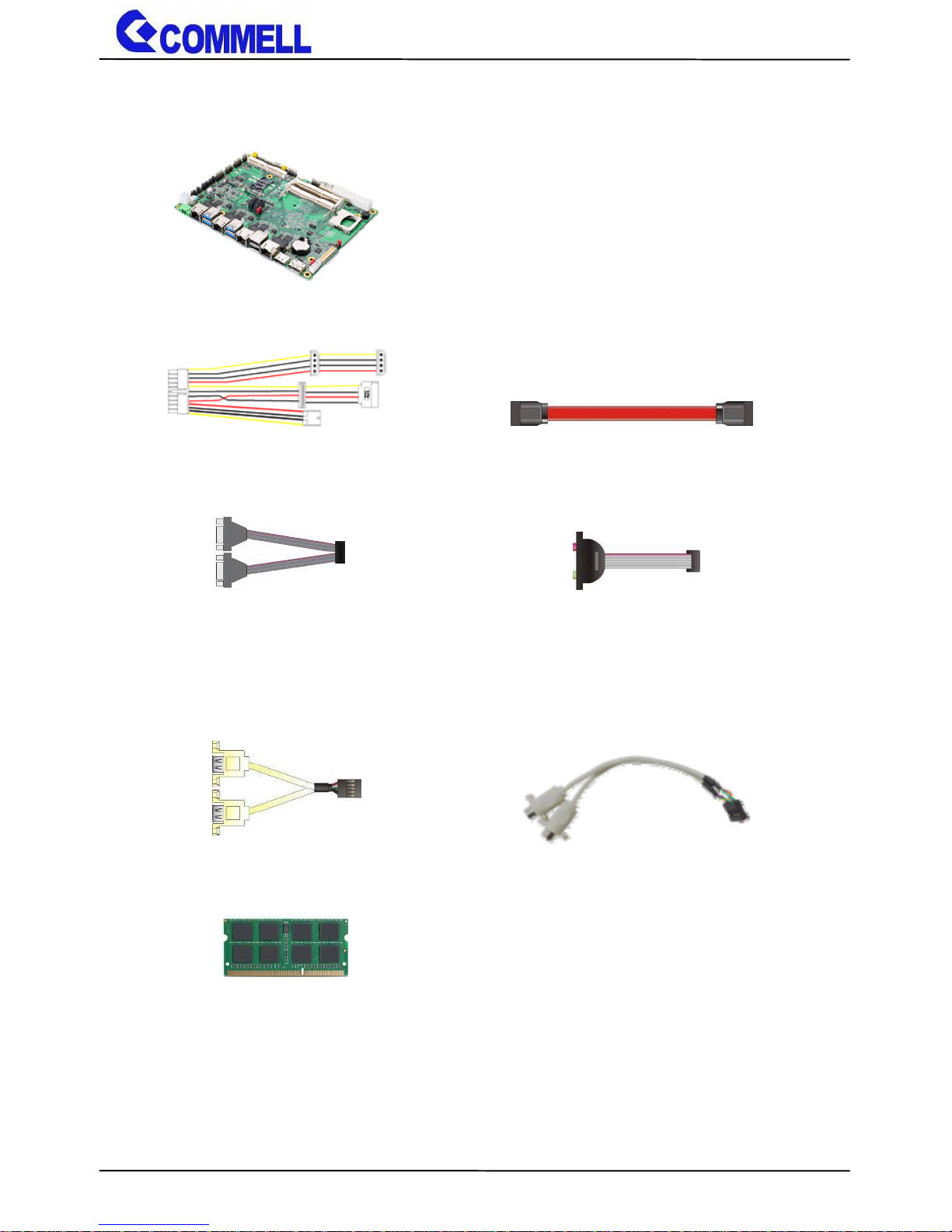

Packing List:
Please check the package content before you starting using the board.
Optional:
Printed Matters:
Driver CD (Including User’s Manual) x 1
2 x SATA Cable
(OALSATA3-L / 1040529)
1 x Power Cable
(OALATX-P3S2 / 1040058)
1 x USB2.0 cable
(OALUSBA-3) / (1040173)
1 x DDR3L SO-DIMM
(DSDM8GB-DDR3L-1600-SO-1.35V / 1140073)
1 x Dual COM cable
(OALES-BKU2NB / 1040090) 1 x Audio cable
(OALPJ-HDUNB / 1040123)
1 x PS/2 Keyboard & Mouse cable
(OALPS2/KM / 1040131)
1 x LE-578 Mini-ITX Motherboard
(include Heat sink)

LE-578 User’s Manual
-3-
Index
Chapter 1 <Introduction> .................................................................4
1.1 <Product Overview>............................................................4
1.2 <Product Specification> ......................................................5
1.3 <Block Diagram>.................................................................6
Chapter 2 <Hardware setup>...........................................................7
2.1 <Connector Location and Reference> ................................7
2.1.1 <Internal connectors list>..........................................8
2.1.2 <External connectors list>
2.2 <Jumper Location and Reference>.....................................9
2.2.1 <Jumper list> ............................................................9
2.2.2 <Clear CMOS and Power on type selection>..........10
2.3 <Installing the Memory>....................................................10
2.4 <I/O interface> ..................................................................11
2.4.1 <Serial ATA interface>.............................................11
2.4.2 <Ethernet interface> ...............................................12
2.4.3 < Power Sourcing Equipment > ..............................12
2.4.4 <Display interface> .................................................12
2.4.5 <Serial Port interface> ............................................14
2.4.6 <USB interface>......................................................17
2.4.7 <Audio interface>....................................................18
2.4.8 <Expansion slot> ....................................................19
2.4.8.1 < MINI_CARD Setting >.......................................20
2.4.8.2 < SIMM Setup>....................................................20
2.4.9 <Front panel switch and indicator> .........................21
2.4.10 <Other interface>..................................................21
2.5 <Power supply> ................................................................23
2.5.1 <Power input>.........................................................23
2.5.2 <Power output>.......................................................25
Appendix A <Flash BIOS>..............................................................26
Appendix B <LCD Panel Type select> ...........................................27
Appendix C <Programmable Watch Dog Timer> ...........................29
Appendix D <Programmable GPIO >.............................................30
Appendix E <SuperIO Setting>......................................................31
Appendix F <RS485 auto flow Setting> .........................................32
Contact information........................................................................33

LE-578 User’s Manual
-4-
Chapter 1 <Introduction>
1.1 <Product Overview>
LE-578 is Mini-ITX Motherboard which is design based on Intel® Celeron® Processor
N3350, and Intel® Pentium® Processor N4200 (Apollo Lake SoC), delivering outstanding
compute, graphical, and media performance while operating in an extended range of
thermal conditions. The SoC bases on the Silvermont microarchitecture, utilizing Intel’s
industry-leading 14nm process technology with 3-D Tri-Gate transistors, which deliver
significant improvements in computational performance and energy efficiency.
New features for Apollo Lake
The Intel® Celeron® Processor N3350, and Intel® Pentium® Processor N4200 have a
lower TDP 6W, it provides new HD Graphics to support triple display, 4K resolution,
maximum memory size is up to 8GB of DDR3L, and more enhanced security that is suitable
for a variety of intelligent systems the ideal choice.
All in One multimedia solution
The board provides high performance onboard graphics, 18/24-bit single/dual channel
LVDS interface, DisplayPort, HDMI, and High Definition Audio, to meet the very requirement
of the multimedia application.
Flexible Expansion Interface
The board provides one MiniPCIe and support mSATA.
Apollo Lake only support Windows10 64bit
So far Intel just support Windows 10 64bit. It may lose some drivers if you use other
Windows version.

LE-578 User’s Manual
-5-
1.2<ProductSpecification>
System
Processor Intel®Apollo Lake Series Processor N3350/ N4200/E3940,
FCBGA1296 package
Chipset Apollo Lake SoC
Memory 2 x DDR3LDIMM 1866 MHz up to 8GB, Support Non-ECC,
unbuffered memory only
Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s
Real Time Clock Chipset integrated RTC with onboard lithium battery
Expansion 2 x MiniPCIe (Card1 Support mSATA), 1 x SIM slot
1 x SD Card slot
Graphics
Processor Intel® HD Graphics
Display Interface 1 x LVDS, 1 x DisplayPort, 1 x HDMI
LAN
Chip 4 x Intel® I210-AT Gigabit LAN
PSE With ADP-PSE4 support four independent PSE function capable of
delivering up to 90W.
I/O
SerialATA 2 x SATA3 interface with 600MB/s transfer rate
(mSATAshared with SATA3-2)
Audio RealtekALC262 HDAudio
Internal I/O 2 x SATA3, 2 x RS232/422/485, 4 x RS232,
2 x USB2.0, 1 x LPC, 1 x GPIO ,1 x PS/2, 1 x SMBUS, 1 xAudio,
1 x LVDS , 1 x LCD inverter
Rear I/O 4 x USB3.0, 2 x USB2.0, 4 x LAN
1 x HDMI, 1 x Display Port
Mechanical & Environmental
Power Requirement ATX or DC input 6~35V
Size 203mm x 146mm (Lx W)
Temperature Operating within 0°C~60°C (32°F~140°F)
Storage within -20°C~80°C (-4°F~176°F)
Relative Humidity 10%~90%, non-condensing

LE-578 User’s Manual
-6-
1.3<BlockDiagram>
CPU
Apollo Lake
SoC
2 x DDR3L
SO-DIMM
1 x DisplayPort
PTN3460
1 x LVDS
SIO
NCT6106D
Channel A/B
eDP
1 x SATA3 SATA3
4 x USB3.0
4 x USB2.0
USB3.0
USB2.0
SPI Flash
SPI
SD Card
LPC
1 x LPC
HDA
HD Audio
ALC262
4x RS232
1 x SMBUS
SATA3
MiniPCIe/
mSATA
1 x PS/2
SMBus
PCIe x2 2 x I210-AT
2 x RS232/422/485
1 x SATA3
1 x GPIO
1 x HDMI DDIB
MiniPCIe
DDIC
MiniPCIe PCIe x 1
1 x I210-AT
PCIe x1
1 x I210-AT
PCIe x1

LE-578 User’s Manual
-7-
Chapter 2 <Hardware setup>

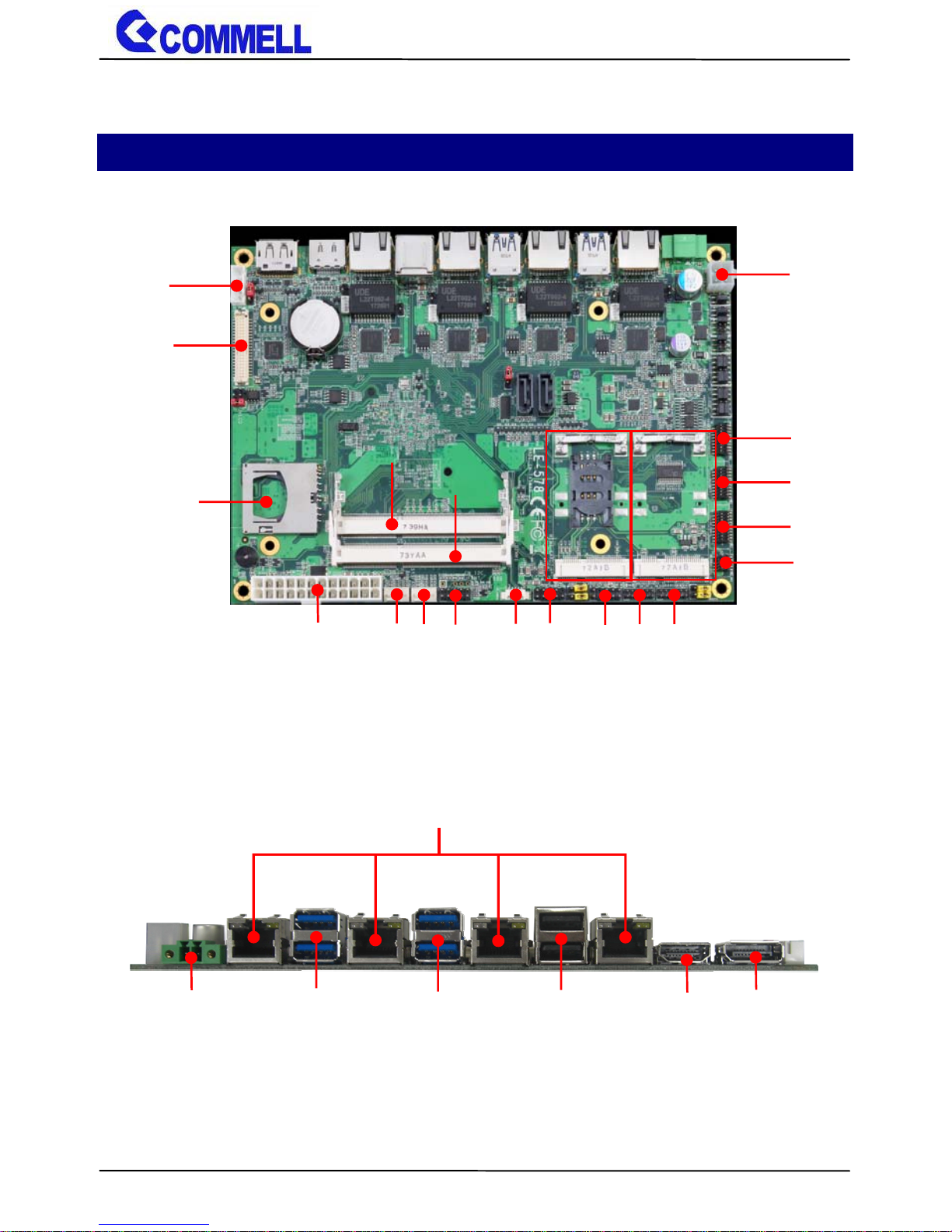

2.1 <Connector Location and Reference>
DC_2P USB3.0
USB3.0 HDMI
CN_LVDS
MINI_CARD2 CN_LPC
CN_AUDIO
CN_INV
JFRNT
DC_4P
CPUFAN
CN_SMBUS
CN_DIO
SYSFAN
SD Card
SATA3-1
SO-DIMM2
SO-DIMM1
CN_USB
CN_PS2
CN_COM1/2
CN_COM3/4
CN_COM5/6
SIMM
MINI_CARD1
ATX
SATA3-2
DisplayPortUSB2.0
LAN1 LAN2 LAN3 LAN4
I210-AT

LE-578 User’s Manual
-8-
2.1.1 <Internal connectors list>
Connector Function
SO-DIMM1/2 204-pin DDR3L SO-DIMM slot
SATA3-1/2 7-pin Serial ATA3 connector
CN_AUDIO 5 x 2-pin audio pin header
CN_LPC 6 x 2-pin LPC pin header
CN_DIO 6 x 2-pin General Purpose In/Out pin header
CN_PS2 5 x 2-pin PS/2 pin header
CN_LVDS 20 x 2-pin LVDS connector
CN_INV 5-pin LCD inverter connector
CN_COM1/2 20-pin RS232/RS485/RS422 pin header
CN_COM3/4 20-pin RS232 pin header
CN_COM5/6 20-pin RS232 pin header
CN_SMBUS 5-pin SMBus pin header
CN_USB 5 x 2-pin USB2.0 pin header
SIMM 6-pin SIM card slot
CPUFAN 4-pin CPU fan connector
SYSFAN 4-pin system fan connector
JFRNT 5 x 2-pin front panel switch/indicator pin header
SD card 9-pin SD card slot
MINI_CARD1/2 52-pin MiniPCIe card slot
DC_4P ATX12V connector support DC 9~24V input
ATX 20+4-pin main power connector
2.1.2 <External connectors list>
Connector Function
DC_2P 2-pin Terminal block support DC 9~24V input
LAN1/2/3/4 RJ45 connector
DisplayPort DisplayPort connector
HDMI HDMI connector
USB3.0 USB3.0 connector
USB2.0 USB2.0 connector

LE-578 User’s Manual
-9-
2.2 <Jumper Location and Reference>
2.2.1 <Jumper list>
Jumper Function
JAT Power mode select
JMSATA MiniCard mSATA Setting
JRTC CMOS Normal/Clear Setting
JUSBS MiniCard USB Setting
JVLCD Panel Voltage Setting
JCSEL12/22 COM1/2 RS232/422/485 select
JCSEL11/21 COM1/2 RS232/422/485 select
JP1/2 COM1 and COM2 Voltage Setting (For Pin 9)
JCSEL11
JCSEL21
JP1
JP2
JLVDS
JUSBS2
JUSBS1
JVSATA
JRTC
JAT
JMSATA
JCSEL12
JCSEL22

LE-578 User’s Manual
-10-

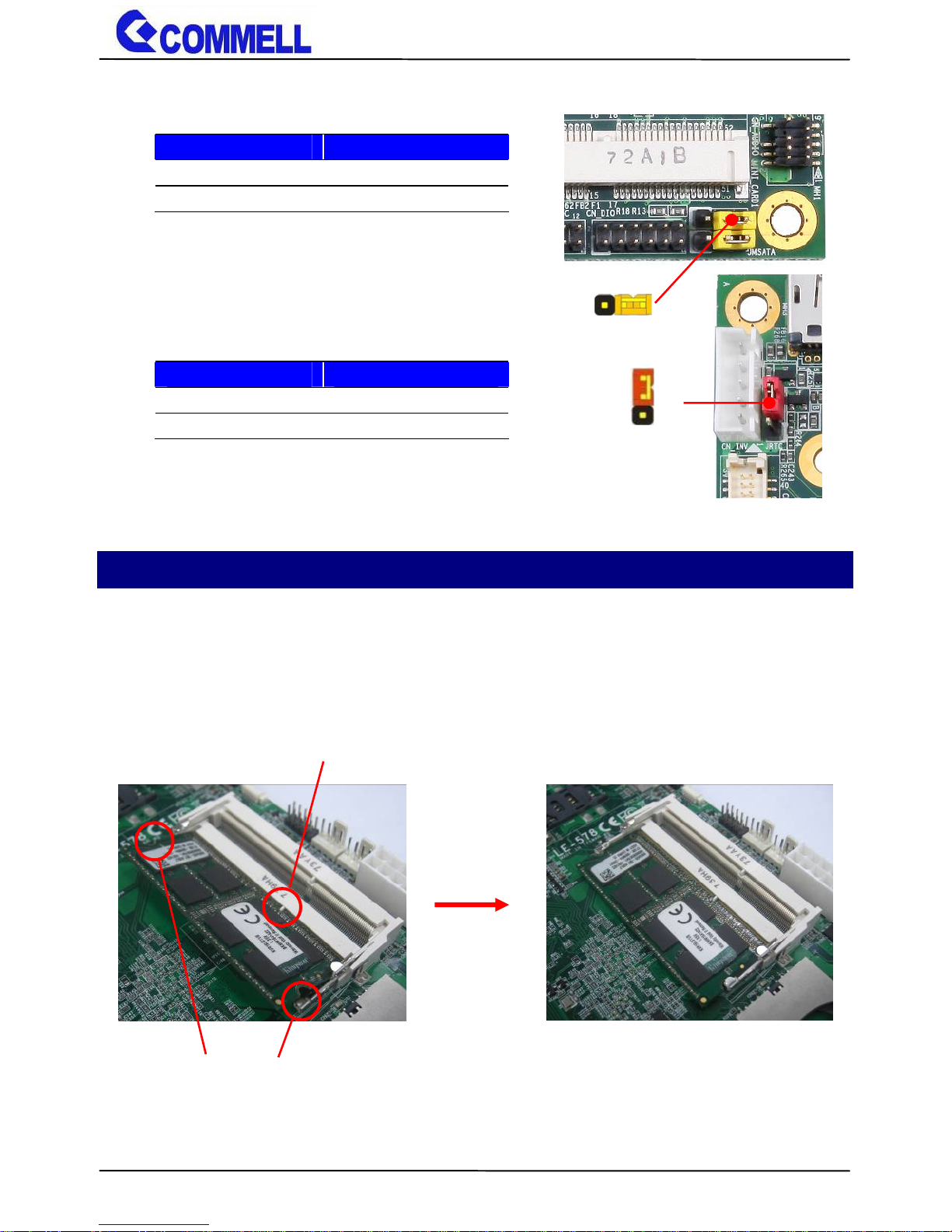

2.2.2 <Clear CMOS and Power on type selection>
JAT: AT/ATX mode select jumper
Jumper settings Function
1-2 AT mode
2-3 ATX mode (Default)
JRTC: Clear CMOS data jumper
Jumper settings Function
1-2 Clear CMOS
2-3 Normal (Default)
2.3<InstallingtheMemory>
In the process, the board must be powered off.
1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key.
2. Then press down till lock into the mounting notch.
3
1
JRTC
1 3
JAT
Key
Mounting notch
Press down

LE-578 User’s Manual
-11-

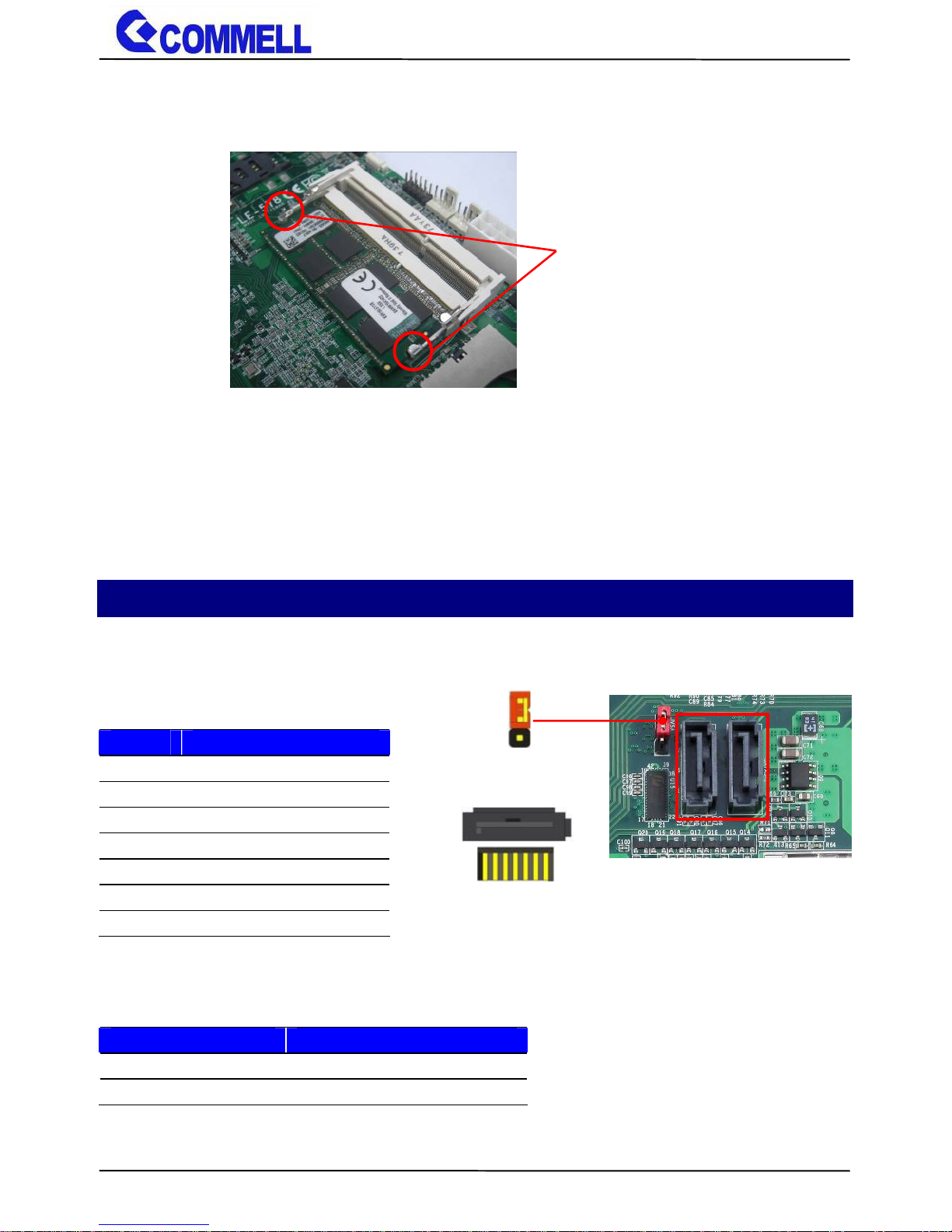

3. To remove the memory, push outward on both sides of the latch.
2.4 <I/O interface>
2.4.1 <Serial ATA interface>
SATA3-1/2: SATA3 7-pin connector
JVSATA: SATA3/SATADOM mode select jumper (change pin7 to 5V)
Jumper settings Function
1-2 SATA3-2 SATADOM
2-3 SATA3-2 SATA3 (Default)
Pin Signal
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA3-2 SATA3-1
71
JVSATA
3
1
Latch

LE-578 User’s Manual
-12-
2.4.2 <Ethernet interface>
The board provide I210-AT Gigabit Ethernet which supports WOL on rear I/O.
Find the setting from
Front PageÆSetup utilityÆ
AdvancedÆSouth Cluster ConfigurationÆMiscellaneous ConfigurationÆ
Wake on LAN [Disable] (default)
(You have to turn off fast startup in Windows10)

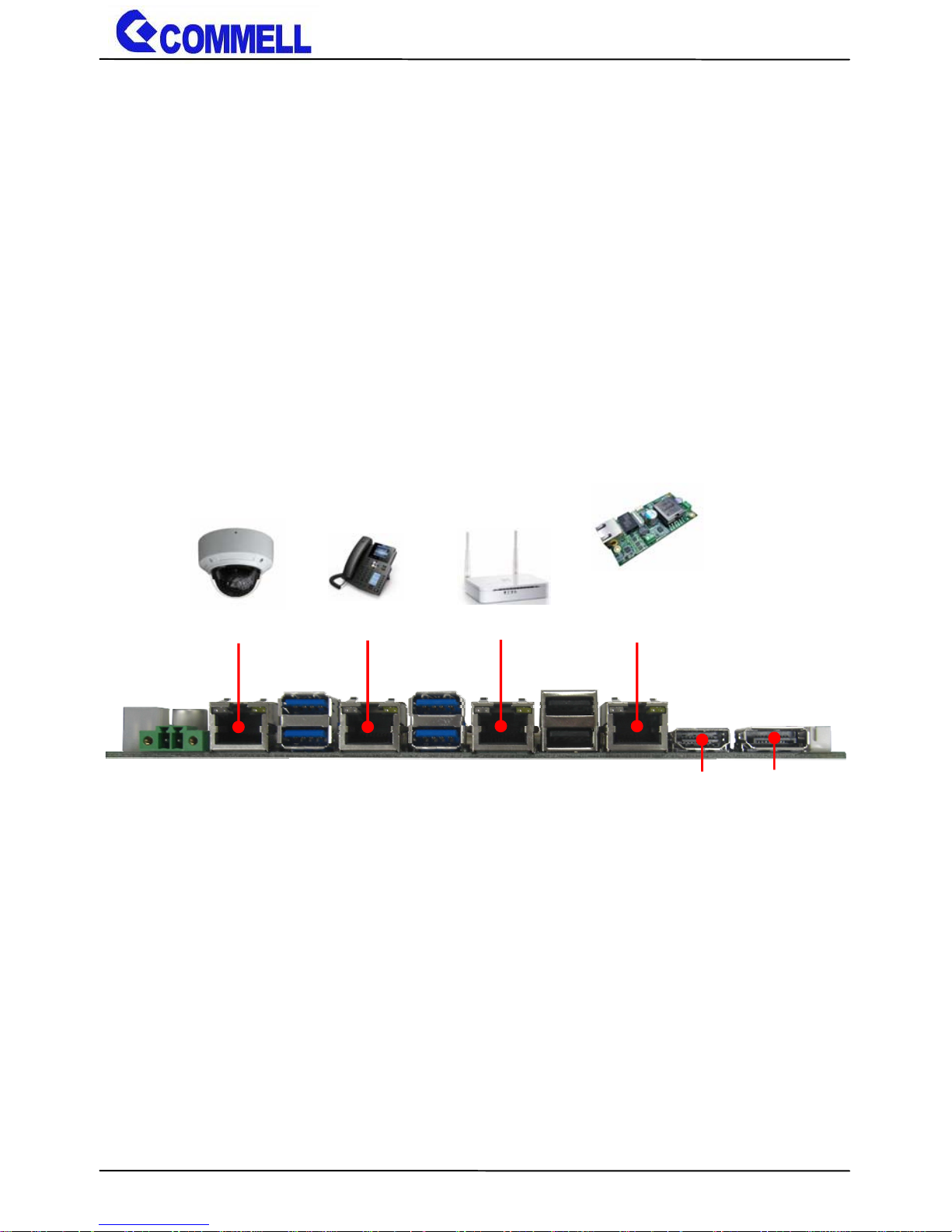

2.4.3 < Power Sourcing Equipment >
With ADP-PSE4 support four independent PSE function capable of delivering up to
90W.
2.4.4 <Display interface>
Based on the Apollo Lake SoC with built-in HD Graphics, the DisplayPort1.2 up to
4096x2160 @ 60Hz on rear I/O.About the internal Display, the HDMI1.4b
resolution up to 3840x2160 @ 30Hz and LVDS (PTN3460) up to 1920x1200 @
60Hz support 18/24-bit color depth and single/dual channel. About select LCD
Panel Type in BIOS, please refer Appendix B.The built-in HD Graphics support
triple display function with clone mode and extended mode.
DisplayPort
HDMI
IP Camera IP Phone PoE Access Point
DC-PD Module
(COMMELL)

LE-578 User’s Manual
-13-
CN_LVDS: LVDS 40-pin connector (Model: HIROSE DF13-40DP-1.25V compatible)
Pin Signal Pin Signal
2 Set by JVLCD 1 Set by JVLCD
4 Detect (Active low) 3 GND
6 A_LVDS_0- 5 B_LVDS_0-
8 A_LVDS_0+ 7 B_LVDS_0+
10 GND 9 GND
12 A_LVDS_1- 11 B_LVDS_1-
14 A_LVDS_1+ 13 B_LVDS_1+
16 GND 15 GND
18 A_LVDS_2- 17 B_LVDS_2-
20 A_LVDS_2+ 19 B_LVDS_2+
22 GND 21 GND
24 A_LVDS_CLK- 23 B_LVDS_3-
26 A_LVDS_CLK+ 25 B_LVDS_3+
28 GND 27 GND
30 A_LVDS_3- 29 B_LVDS_CLK-
32 A_LVDS_3+ 31 B_LVDS_CLK+
34 GND 33 GND
36 LVDS_DDCSCL 35 NC
38 LVDS_DDCSDA 37 NC
40 NC 39 NC
Note: Pin4 only need to be connected to GND
CN_LVDS
1 2
39 40
JVLCD
12
56
CN_INV
1
5

LE-578 User’s Manual
-14-
CN_INV: LVDS 5-pin Backlight power connector
Pin Signal
1 12V
2 Backlight Control
3 GND
4 GND
5 Enable Backlight
JVLCD: LVDS panel power select jumper
Jumper settings Function
1-2 3.3V (Default)
3-4 5V
5-6 12V
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage
2.4.5 <Serial Port interface>
JCSEL11
2 1
4 3
JCSEL21
2 1
4 3
2 1
JP2
6 5
2 1
JP1
6 5
JCSEL22
2 1
12 11
JCSEL12
2 1
12 11
CN_COM3/4
12
1920
CN_COM5/6
12
20 19
CN_COM1/2
12
1920

LE-578 User’s Manual
-15-
COM1/2: RS232/422/485 20-pin header (Pitch 1.27mm x 2.54mm)
Pin Signal Pin Signal
1 DCD/ 422TX-/ 485- 2 RXD/ 422TX+/ 485+
3 TXD/ 422RX+ 4 DTR/ 422RX-
5 GND 6 DSR
7 RTS 8 CTS
9 Set by JP2 10 N/C
11 DCD/ 422TX-/ 485- 12 RXD/ 422TX+/ 485+
13 TXD/ 422RX+ 14 DTR/ 422RX-
15 GND 16 DSR
17 RTS 18 CTS
19 Set by JP1 20 N/C
Note: COM1 Use JCSEL12 select communication mode.
COM2 Use JCSEL 22 select communication mode.
COM3/4 ,5/6: RS232 20-pin header (Pitch 1.27mm x 2.54mm)
Pin Signal Pin Signal
1 DCD1 2 RXD1
3 TXD1 4 DTR1
5 GND 6 DSR1
7 RTS1 8 CTS1
9 RI1 10 NC
11 DCD2 12 RXD2
13 TXD2 14 DTR2
15 GND 16 DSR2
17 RTS2 18 CTS2
19 RI2 20 Key
JP2, JP1: COM1, COM2 pin-9 setting
Jumper settings Function
1-2 5V
3-4 12V
5-6 RI (Default)
Effective patterns of connection: 1-2 / 3-4 / 5-6
Other may cause damage

LE-578 User’s Manual
-16-

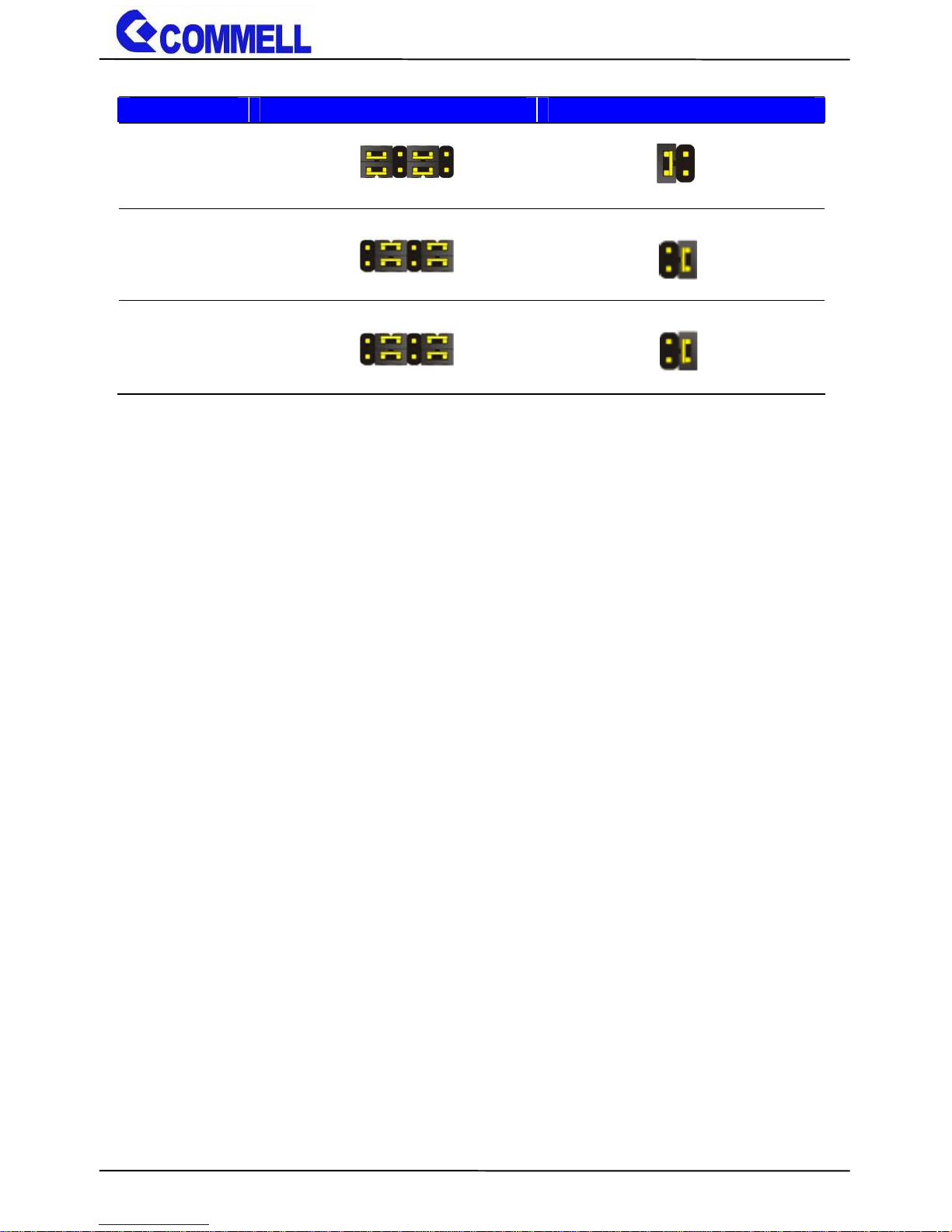

JCSEL12/22, JCSEL11/21: For configure COM1 &COM2 communication mode
Function JCSEL12/ JCSEL22 JCSEL11/ JCSEL21
RS232
(Default)
RS485
RS422
RS-485
Com1 RTX- Data- : short Pin1& Pin4
Com1 RTX+ Data+ : short Pin2& Pin3
Com2 RTX- Data- : short Pin1& Pin4
Com2 RTX+ Data+ : short Pin2& Pin3
Note1: Set up RS485 via bios to support auto flow, please refer Appendix F.
Note2:The RS-422/485 can optionally isolate transceiver, default wasn’t
supported isolate
.
1
12
1
12
1
12
2
11
2
11
2
11
23
14
23
14
23
14

LE-578 User’s Manual
-17-

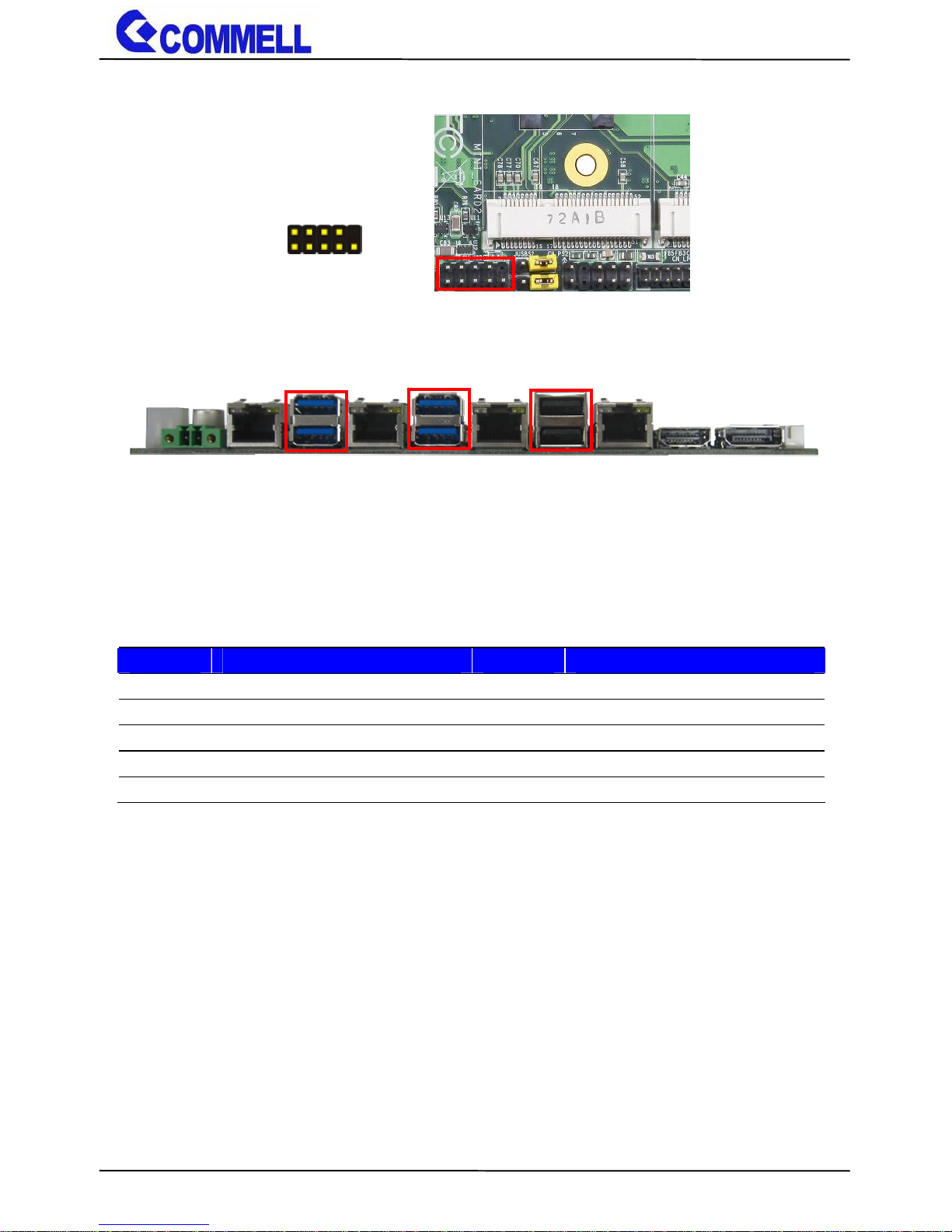

2.4.6 <USB interface>
CN_USB: Front panel USB2.0 10-pin header (Pitch 2.54mm)
Pin Signal Pin Signal
1 5VSB 2 5VSB
3 DATA0- 4 DATA1-
5 DATA0+ 6 DATA1+
7 GND 8 GND
9 GND 10 Key
USB3.0
CN_USB
1
2
9
10
(USB2.0)
USB3.0 USB2.0

LE-578 User’s Manual
-18-

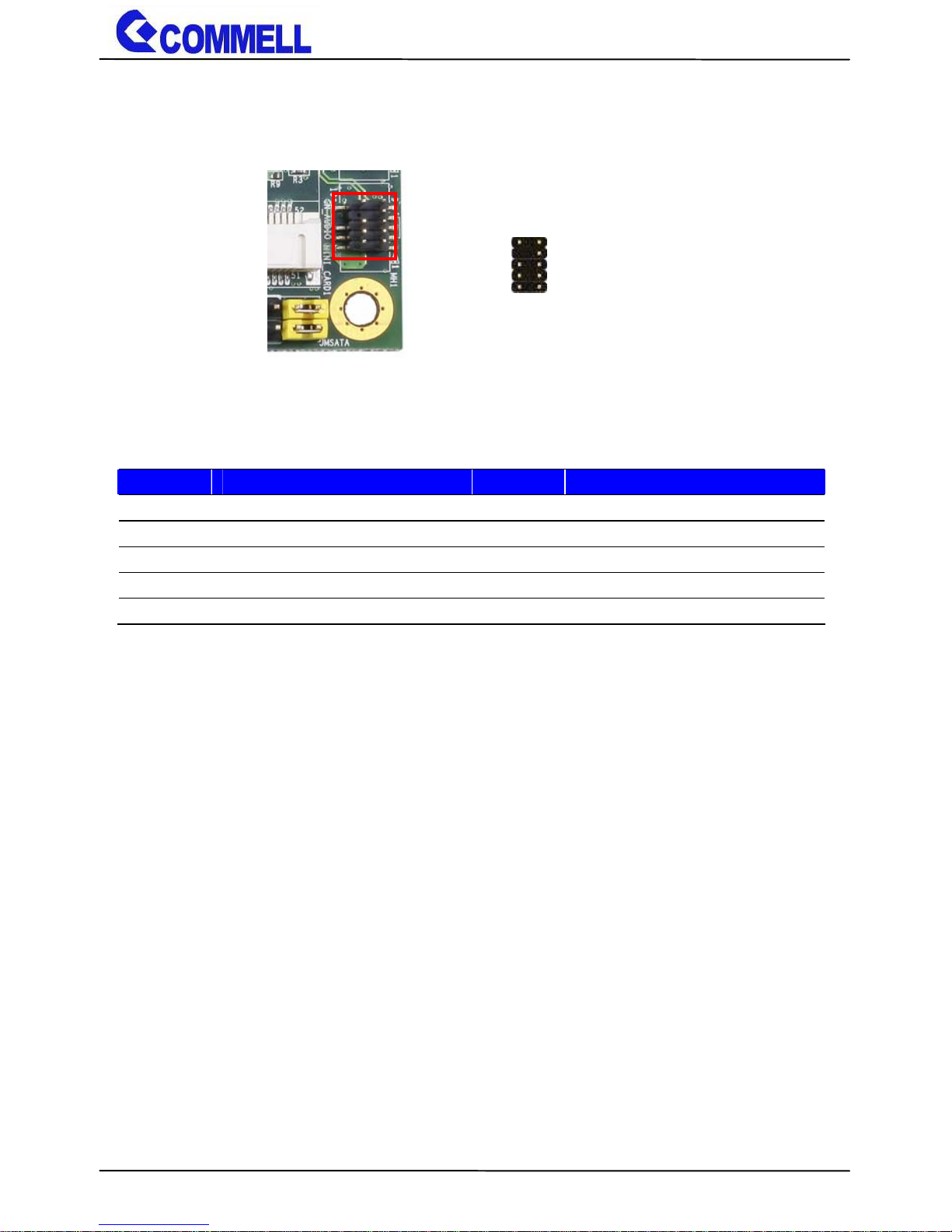

2.4.7 <Audio interface>
CN_AUDIO: Front panel audio 10-pin header (Pitch 2.54mm)
Pin Signal Pin Signal
1 MIC_L 2 GND
3 MIC_R 4 NC
5 FP_OUT_R 6 MIC_DETECT
7 SENSE 8 Key
9 FP_OUT_L 10 FP_OUT_DETECT
CN_AUDIO
2
910
1

LE-578 User’s Manual
-19-

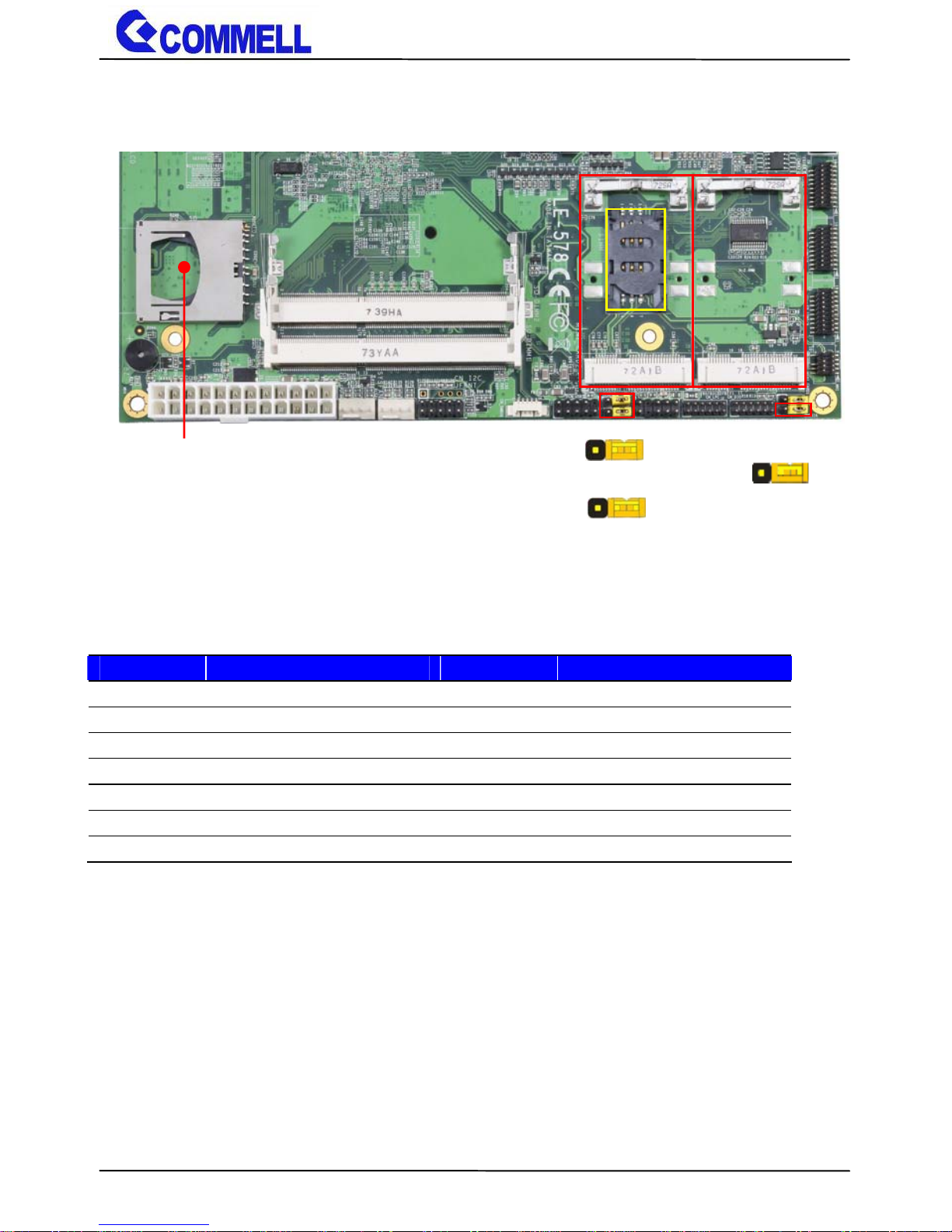

2.4.8 <Expansion slot>
SD Slot:
Pin Signal Pin Signal
1 SD_D3 2 SD_CMD
3 3.3V 4 NC
5 SD_CLK 6 GND
7 SD_D0 8 SD_D1
9 SD_D2 10 SD_CD
11 GND 12 GND
13 SD_WP
SD Slot
MINI_CARD2
JMSATA
31
SIMM
MINI_CARD1
JUSBS2 31
31
JUSBS1
