Commodore 1902A User manual

English
OperatinginstructionsPage1 - 7
Moded'emploiPage8 - 14
Français

English
INTRODUCINGYOURMONITOR
Pleaseread thisbriefguidecarefullybeforeyoutrytouseyourmonitor.This
manualshowsyouhowtoconnectthemonitoranduseitinvariousoperating
modes.Italsoexplainsthepicturecontrolsandgivesinstructionsforthein-
stallation,useandserviceofthe1902A.
TheCommodore1902Aisa full-colordualmonitor,meaningitcandisplay
computeroutputineither40-or80-columnscreenwidths.Somecomputers,like
theCommodore64,displayscreenoutputina 40-columnformat.Others,like
theCommodorePC,requirean80-columnscreen.TheCommodore128can
displayonbothscreenwidths.Youcanselecttheoperatingmodeyouwantwith
theflickofa switch.Theswitchsettingdependsonthecomputeryouhave
connectedtothe1902Amonitor.
The1902Acanbeusedinthreeoperatingmodes:two40-columnandone
80-column.Thetwo40-columnmodesareCompositeVideo(CVBS)andSeparated
(LCA)Video.Theone80-columnmodeisdigitalRGBI.Thefollowingchartshows
recommendedmonitoroperatingmodesbycomputer.Dependingonyourcom-
puter,you'llfindthatcertainoperatingmodesgivebetterdisplayswhileother
modesmaynotevenproducea picture.
MonitorOperatingModebyComputerModel
@= The40columncompositevideoandseparated(LCA)outputcapabilitiesde-
pendontheaudio/videoportfemalepinconnections.IftheA/Vporthaseight
femalepinconnections,usetheseparated(LCA)videooutputandcorrespon-
dingcablesuppliedwiththemonitor.Thiscablehasaneightpindinmalecon-
nectoronthecomputerconnectionendanda sixpindinmaleconnectoronthe
monitorconnectionend.
Ifthecomputer'saudio/videoporthasfivefemalepinconnections,usethe
compositevideooutputanda correspondingcablenotsuppliedwiththemonitor
Thiscablehasa fivepindinmaleconnectoronthecomputerconnectionend
andtwomalephoneplugconnectorsonthemonitorconnectionend.Seethe
pagethreefora connectingdiagram.
ImportantNoteforSeparated(LCA)VideoUsers:
ToenhancethePicturequalitytoitsfullestpotential,makesurethattheComb
FilterDefeatSwitchispressedINwhenutilizingthemonitorinseparated(LCA)
videooutput.Thisistheleftmostswitchonthebackofthemonitorasyoulook
atitfromtherearview.
1
40- Column 80- Column
CompositeVideo (CVBS)/Separted(LCA) DigitalRGBI
Commodore128
@Commodore64
@Plus/4
@Commodore16
CommodorePC

AdditionalNote:
TheCompositeVideo(CVBS)andSeparated(LCA)videosignalsCANNOTBE
USEDATTHESAMETIME.Themonitorisdesignedinsucha waythata video
cassetterecorder(VCR)orvideodiscplayercanbeconnectedtotheComposite
video(CVBS)monitorportwhilea computerisconnectedtotheSeparatedVideo
(LCA)monitorport.BothdevicesCANNOTbepoweredonatthesametime.If
youdo,youwillseeeithera scrambledpictureornopictureatall.Eitherthe
VCR(orvideodiscplayer)ORthecomputercanbeturnedonatanyonepar-
ticulartime,butnotboth.
The1902Amonitorfeaturesa 13"screen(measureddiagonally)andoperates
ontheNorthAmericanTelevisionStandard(NTSC).
Ifyouhaveproblemswithyoumonitorthatarenotcoveredinthismanual,see
yourCommodoredealerora qualifiedtechnician.
Thelightningflashwitharrowheadsymbol,withinan
equilateraltriangleisintendedtoalerttheuserof
thepresenceofuninsulated"dangerousvoltage"
withintheproduct'senclosure,thatmaybeofsuffi-
cientmagnitudetoconstitutea riskofelectricshock
topersons.
Theexclamationpointwithanequilateraltriangleis
intendedtoalerttheuserofthepresenceofimpor-
tantoperatingandmaintenance(servicing)instruc-
tionsintheliteratureaccompanyingtheappliance.
WARNING
TOPREVENTDAMAGEWHICHMAYRESULTIN
FIREORSHOCKHAZARD,DONOTEXPOSETHIS
APPLIANCETORAINOREXCESSIVEMOISTURE.
2

CONNECTIONTOTHECOMPUTER
Yourmonitorisequippedwithphonoconnectorsforinputof"composite"video
andaudiosignals,a sixpindinconnectorfor"separated"(LCA)videosignal
anda eightpindinconnectorfordigital(TTL)RGBI.

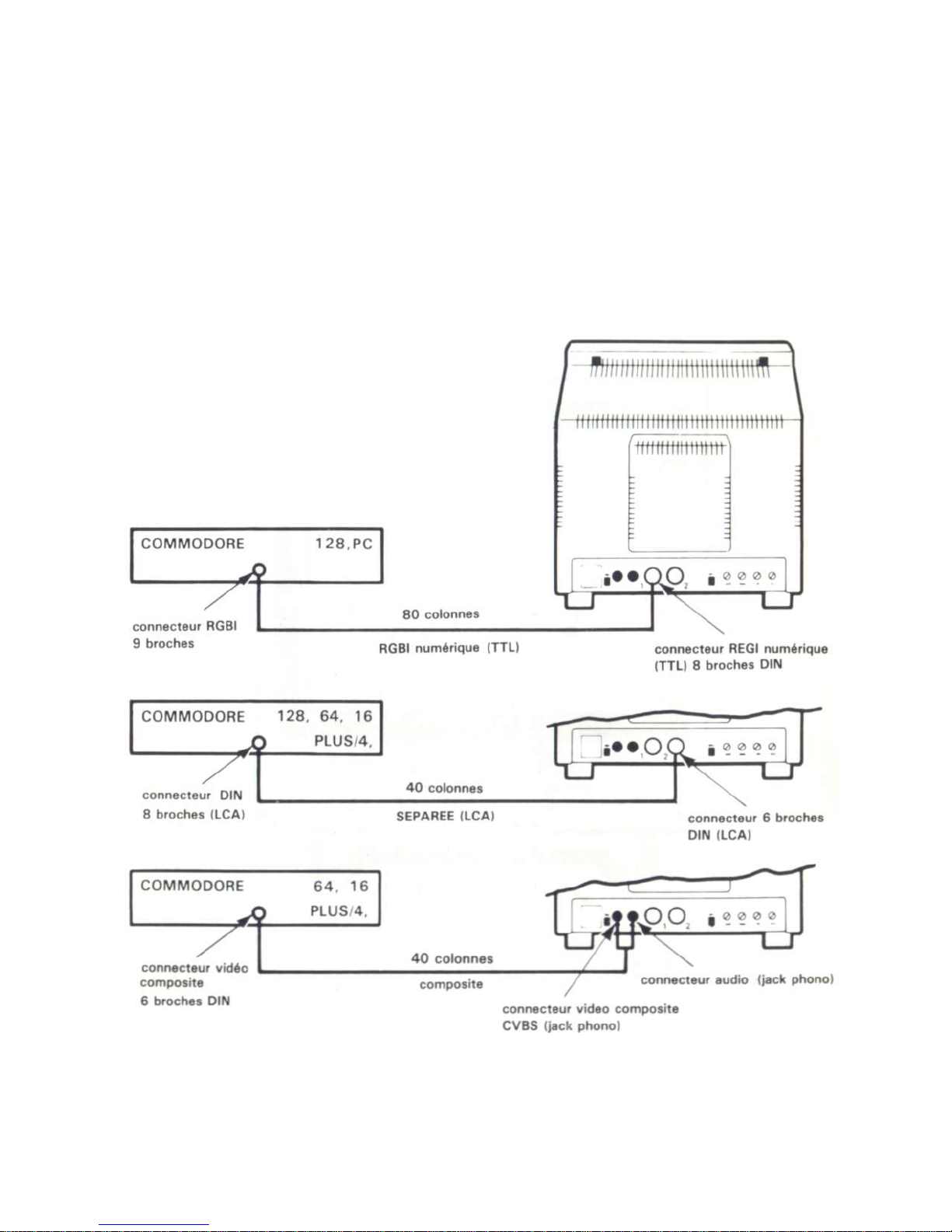

Theillustrationsbelowdemonstratethedifferenttypesofcomputerconnections
thatcanbemadetoyourmonitor.
1902ACOLORMONITOR
3

CONTROLLOCATIONSANDFUNCTIONS
FrontView
RGB/CompositeorSeparate(LCA)switch
toselectrheRGBIortheSeparate/
compositeinputs.
Adjustthe(1)Hue,(2)Brightness,
(3)contrastand(4)colorcontrols
tothedesiredcolorlevels
Press(9)PowerSwitch— turns
monitoron/off.Whenthe
powerisontheLEDwill
light.
The(5)Sharpnesscontrolisusedto
adjustpicturedetailtosuitindi-
vidualpreferences.
(6)Volumecontroladjusts
speakervolume.
Yourmonitorisequippedwitha
(8)GreenSwitchthatcanbeused
toproducea screenthatimitates
agreenmonochromemonitor.
Typicallyusedtoimprovethe
legibilityoftextinword
processingapplications.
Convenienttiltbasefoldsoutofthebottomallowing
youtoadjustthemonitor'sviewingangle.
4
COMPOSITE
RGB
BUTTON

RearView
(6)VCRButton— Ifyouuseyourmoni-
torasa displayforyourVCR,VLPor
VideoCamerapressthisbuttonto
adjustthemonitor'scircuitryto
thosedevices.
(3)AudioInput— Forconnecting
asourcewithanaudiosignal
output.
(10)H WidthControl— Usedto
adjusttheimagewidthonthe
screen.
(1)CombFilterDefeat
Switch— INfor
separate(LCA)OUTfor
compositevideo.
(2)CVBS(CompositevideoSignal)
Input— Forconnectinga computer
withcompositevideooutput.
havinga 5 pinDINaudio/video
port.thisinputcannotbe
usedsimultaneouslywithinput(5)
(4)8 PinDINSocket— DigitalRGBI
inputusedtoconnecta computer
requiringthistypeofinterface
terminalfordisplayof80-columns
(5)6 PinDINSocket-"Separate"
(LCA)inputusedtoconnectall
40columnCOMMODOREcomputers
havingan8 pinDINaudio/
videoportsuchastheC128.
Thisinputcannotbeused
simultaneouslywiththe
CVBSinput.
(8)CenteringVert.& (9)Horiz.
Controls-Dependingonthesituation
youcancentertheimagevertically
fromtoptobottomorhorizontally
fromlefttorightwiththese
controls.
(7)V-HeightControl— Usedtoadjust
theimageheightonthescreen
OptionalEquipment— A VCR,Video
DiscPlayer,VideoCamera,orcom-
ponentTVtunercanbeconnectedto
theCVBSInputandAudioInputsocket.
Thesedevicescannotbeoperatingand
turnedonwhileusinga computer
connectedtothe6 pinDINSocket(input).
5

8AND6 PinDINSockets
PINASSIGNMENTS
Whenusingthesesocketsbeforeconnectingtheequipment,placethe
RGB/Compositeswitchintherelevantposition.
CAUTION:
Thismonitorgeneratesandusesradiofrequencyenergyandifnotinstalledand
usedproperly,thatis,instrictaccordancewiththemanufacturer'sinstructions,
maycauseinterferencetoradioandtelevisionreception.Ithasbeentypetested
andfoundtocomplywiththelimitsfora ClassB computingdeviceinaccor-
dancewiththespecificationsinSubpartJ orpart15ofFCCRules,whichare
designedtoprovidereasonableprotectionagainstsuchinterferenceina residen-
tialinstallation.However,thereisnoguaranteethatinterferencewillnotoccur
ina particularinstallation.Ifitdoescauseinterferencetoradioortelevision
reception,whichcanbedeterminedbyturningtheequipmentoffandon,the
userisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollow-
ingmeasures:
...reorientthereceivingantenna
...relocatethecomputerwithrespecttothereceiver
...movethecomputerawayfromthereceiver
...plugthecomputerintoa differentoutletsothatthecomputerandreceiver
areondifferentcircuits
Ifnecessary,theusershouldconsultthedealeroranexperiencedradio/television
technicianforadditionalsuggestions.Theusermayfindthefollowingbooklet
preparedbytheFederalCommunicationsCommissionhelpful:"HowToident-
ifyandResolveRadio-TVInterferenceProblems".Thisbookletisavailablefrom
theUSGovernmentPrintingOffice,Washington,D.C.,20402,StockNo.
004-000-00345-4.
6
DIGITALRGBI
INPUT
SEPARATE(LCA)
INPUT
DIGITALRGBIINPUT
8PIN
SIGNAL
SEPARATE(LCA)
6PIN
SIGNAL
PINNO.
1 Notconnected Notused
2
3
4
5
6
7
8
Red
Green
Blue
Intensity
Ground
Horiz.Sync
Vert.Sync
Audio
Ground
Chroma
Notused
Luminance

TECHNICALSPECIFICATIONS
PictureTubeType 13"diagonallymeasured
DeflectionAngle 90°
VideoInputsignal CompositeVideo,1Vp-p,negativesync,phono
connectiontype.
TTLleveldigitalvideo,separatehorizontaland
verticalsyncs.
Separated(L.C.A.)Luminance/Chroma/Audio
HorizontalResolution 640dots(RGB)
CharacterField 25Linesof80characters(2000total)for80column
output.
25Linesof40characters(1000total)forcomposite
andseparatedoutput.
AudioInputLevel Upto150mV,phonoconnectortype.
AudioOutputLevel Upto1W@5%distortion.
PowerSupply 120Vac± 10%,50-60Hz
PowerConsumption 75WattsMaximum
Dimensions(Hx W x D) 320x 350x 387mm
Insupportofourpolicyofcontinuousproductimprovement,theabovespecifica-
tionsaresubjecttochangewithoutnotice.
SAFETYPRECAUTIONS
A.Donotplaceobjectsontopofthemonitorcabinetwhichcouldfallintovents
orwhichcouldcoverthemandpreventpropercoolingofthemonitor's
electronics.
B.Toreducetheriskoffireorshock,neverexposethemonitortorainorex-
cessivemoisture.
C.Donotplaceyourmonitorwheresunlightorbrightroomlightwillfalldirect-
lyonthescreen.
D.Whennecessarycleanthecabinetwitha dampcloth.useonlymild
detergents.Donotusealcoholorammoniabasedproducts.
E.UnplugtheACcordfromtheoutletifthemonitorisnottobeusedforan
extendedperiodoftime.
UserMaintenanceCaution
Therearenouserserviceablepartsinsidethemonitor'scabinet.Donotattempt
toremovethecabinetback,asyouwillbeexposedtoa shockhazard.
7
