Commodore 1960 User manual

Produced By:Commodore International Spare Parts GmbH
Braunschweig, West Germany
SERVICE MANUAL
960
SUPER VGA COLOR MONITOR
JANUARY, 992 PN-4004 9-0
INTERNATIONAL EDITION
SERVICE POLICY AND PART NUMBER INFORMATION MAY VARY ACCORDING TO
COUNTRY. SOME PARTS MAY NOT BE AVAILABLE IN ALL COUNTRIES.
Commodore Business Machines, Inc.
200 Wilson Drive, West Chester, Pennsylvania 9380 U.S.A.
Commodore makes no express or implied warranties with
regard to the information contained herein. The infor
mation is made available solely on an as is basis, and the
entire risk as to completeness, reliability, and accuracy
is with the user. Commodore shall not be liable for any
damages in connection with the use of the information
contained herein. The listing of any available replacement
part herein does not constitute in any case a recommenda
tion, warranty or guaranty as to quality or suitability of
such replacement part. Reproduction or use without ex
press permission, of editorial or pictorial content, in any
matter is prohibited.
This manual contains copyrighted and proprietary information. No part
of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photo
copying, recording or otherwise, without the prior written permission
of Commodore Electronics Limited.
Copyright © 992 by Commodore Electronics Limited.
All rights reserved. Printed in U.S.A.

1960 SERVICE MANUAL
TABLE OF CONTENTS
SPECIFICATIONS................................................................................................................ 1
SAFETY P ECAUTIONS AND NOTICES...........................................................................4
ALIGNMENT AND ADJUSTMENT
.................................................................................... 6

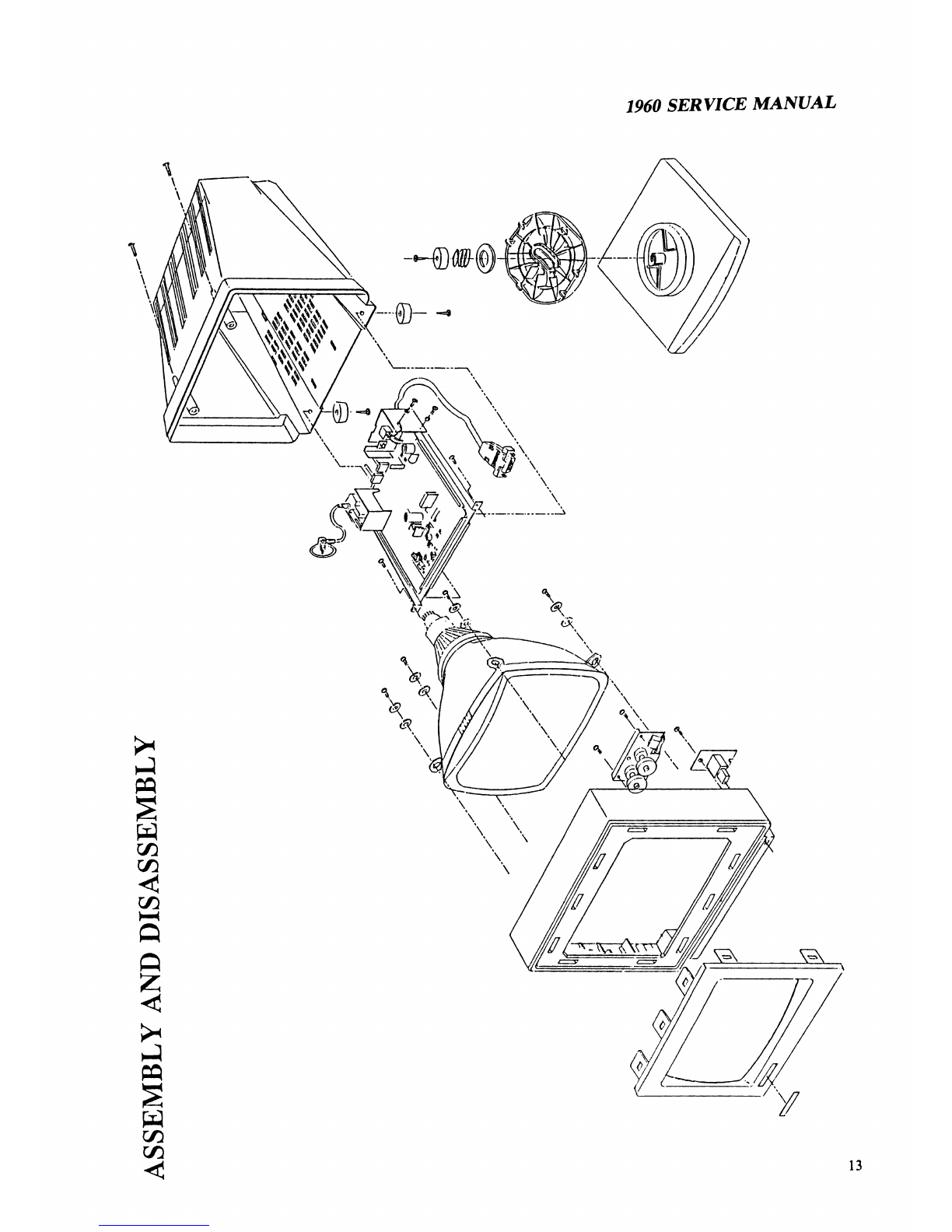

ASSEMBLY AND DISASSEMBLY
........................................................................................ 13

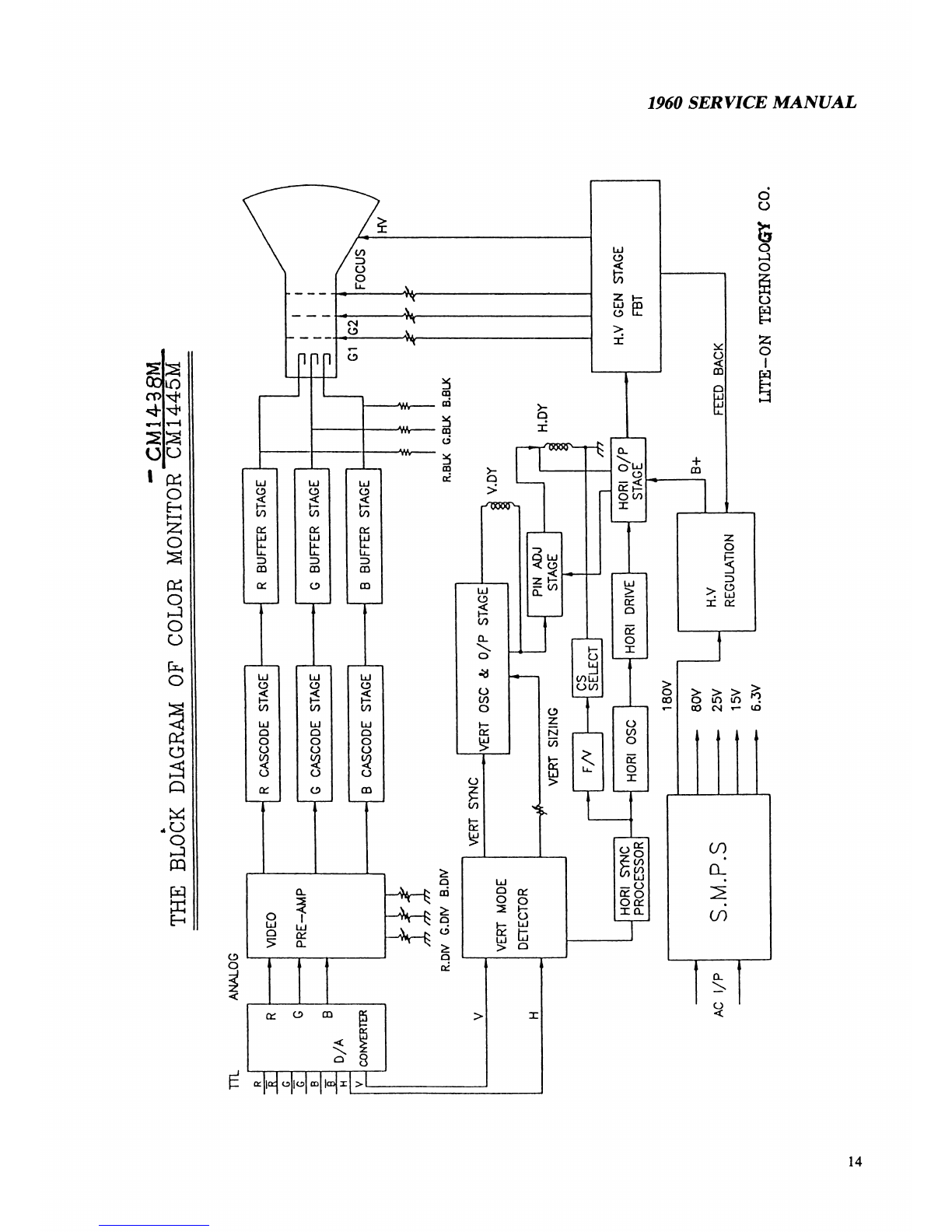

BLOCK DIAG AM................................................................................................................ 14
T OUBLESHOOTING CHA T............................................................................................15
PA TS LIST...........................................................................................................................18
SCHEMATICS..........................................................................................................................19

1960 SERVICE MANUAL
SPECIFICATIONS
Application: A typical data display device for graphics & text
PC applications.
Power Input: 80 watts (nominal) AC rated voltage.
efer to /C label.
Video Signals: Analog: 0.7 Vp-p, GB positive.
Sync. Signals: Separate Sync: Horiz./Vert., TTL, positive or
negative.
Sync. Frequencies: Horizontal: 15.75 to 38 KHz
Vertical: 50 - 87 Hz
Signal Connectors: 15-pin/ 9-pin (Analog) D-shell connectors.
Display Tube: 14" 90 degrees, 575 , 29.1o neck, 0.28/ 0.29mm dot
pitch, in-line gun, non-glare screen.
Type number: M34KBV80X11/ M34ECL12X36
Display Area: 240 x 180mm (H x V)
Display Colors: Infinite
Display Characters: 80 char, x 60 rows on a 10x10 matrix.
Maximum esolution: 1024*dots x 768 lines
Misconvergence: Center Area: <=0.3mm
Corner Area: <=0.4mm
User Controls: Power ON/OFF, Brightness, Contrast, Voltage
Selector, Horiz. Phase, Vert. Size, ADD Width,
Mono/ Color Select.
i

1960 SERVICE MANUAL
COMMODORE 1960 SUPER V A COLOR MONITOR

1960 SERVICE MANUAL

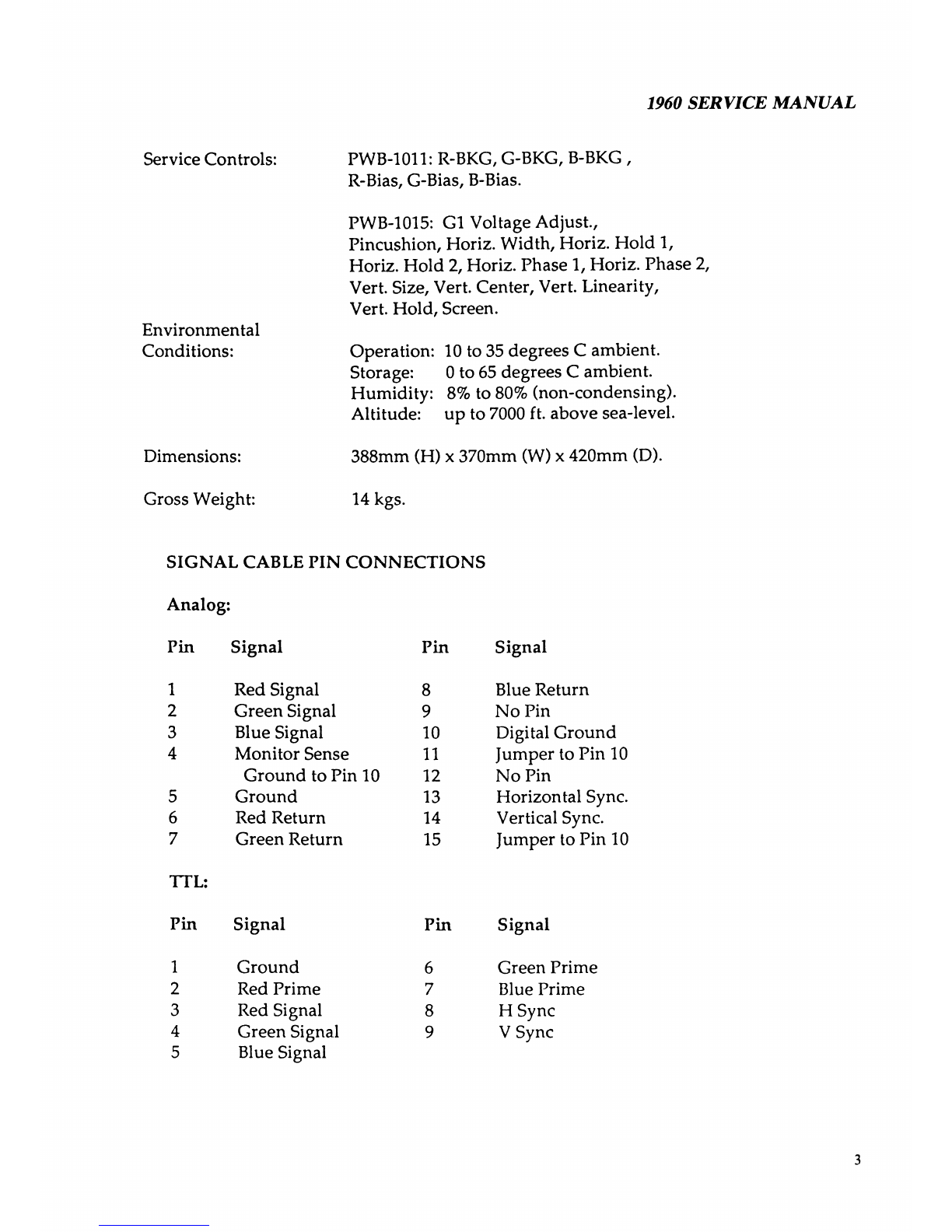

Service Controls:
Environmental
Conditions:
Dimensions:
PWB-1011: -BKG, G-BKG, B-BKG ,
-Bias, G-Bias, B-Bias.
PWB-1015: G1 Voltage Adjust.,
Pincushion, Horiz. Width, Horiz. Hold \,
Horiz. Hold 2, Horiz. Phase 1, Horiz. Phase 2,
Vert. Size, Vert. Center, Vert. Linearity,
Vert. Hold, Screen.
Operation: 10 to 35 degrees C ambient.
Storage: 0 to 65 degrees C ambient.
Humidity: 8% to 80% (non-condensing).
Altitude: up to 7000 ft. above sea-level.
388mm (H) x 370mm (W) x 420mm (D).
Gross Weight: 14 kgs.
SIGNAL CABLE PIN CONNECTIONS
Analog:
Pin Signal Pin Signal
1ed Signal 8 Blue eturn
2Green Signal 9 No Pin
3Blue Signal 10 Digital Ground
4Monitor Sense 11 Jumper to Pin 10
Ground to Pin 10 12 No Pin
5Ground 13 Horizontal Sync.
6ed eturn 14 Vertical Sync.
7Green eturn 15 Jumper to Pin 10
TTL:
Pin Signal Pin Signal
1Ground 6Green Prime
2ed Prime 7Blue Prime
3ed Signal 8H Sync
4
5Green Signal
Blue Signal 9V Sync
3

I960 SERVICE MANUAL
SAFETY PRECAUTIONS AND NOTICES
SAFETY P ECAUTIONS
1. Observe all cautions and safety related notes located inside the monitor cabinet
and on the monitor chassis.
2. Operation of the monitor outside its cabinet or with the cover removed involves
the risk of shock from the monitor power supply. epair work on the monitor
should not be attempted by anyone who is not thoroughly familiar with all
necessary safety precautions and procedures for working on high voltage
equipment.
3. Do not install, remove, or handle the picture tube in any manner unless shatter
proof goggles are worn. People not so equipped should be kept at a distance
during handling of the picture tube. Keep the picture tube away from the body
during handling.
4. The picture tube is constructed to limit X-radiation to 0.5m /H at 300 micro
amperes anode current. For continued protection, use the recommended
replacement tube only, and adjust the voltages so that the designated maximum
rating at the anode will not be exceeded.
P ODUCT SAFETY NOTICE
Many electrical and mechanical parts in this chassis have been specially inspected
for safety, and the protection afforded by them cannot necessarily be obtained by
using replacement components rated for higher voltage, wattage etc. Before
replacing any of these components, read the Spare Parts List at the end of this
manual carefully. The use of substitute replacement parts which do not have the
same safety characteristics as those specified in the Spare Parts List may result in
shock, fire, X-radiation or other hazards. »
4

1960 SERVICE MANUAL

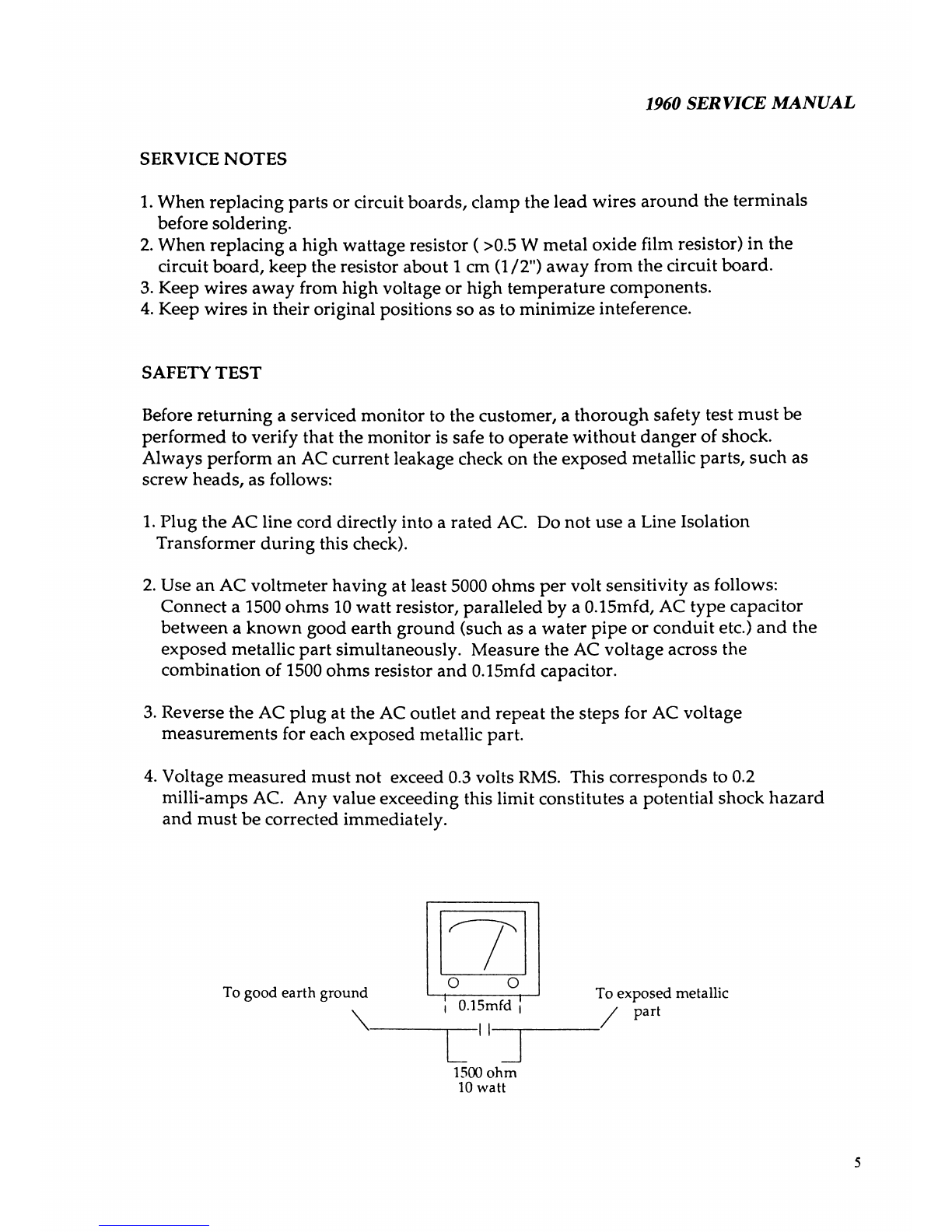

SE VICE NOTES
1. When replacing parts or circuit boards, clamp the lead wires around the terminals
before soldering.
2. When replacing a high wattage resistor ( >0.5 W metal oxide film resistor) in the
circuit board, keep the resistor about 1 cm (1/2") away from the circuit board.
3. Keep wires away from high voltage or high temperature components.
4. Keep wires in their original positions so as to minimize inteference.
SAFETY TEST
Before returning a serviced monitor to the customer, a thorough safety test must be
performed to verify that the monitor is safe to operate without danger of shock.
Always perform an AC current leakage check on the exposed metallic parts, such as
screw heads, as follows:
1. Plug the AC line cord directly into a rated AC. Do not use a Line Isolation
Transformer during this check).
2. Use an AC voltmeter having at least 5000 ohms per volt sensitivity as follows:
Connect a 1500 ohms 10 watt resistor, paralleled by a 0.15mfd, AC type capacitor
between a known good earth ground (such as a water pipe or conduit etc.) and the
exposed metallic part simultaneously. Measure the AC voltage across the
combination of 1500 ohms resistor and 0.15mfd capacitor.
3. everse the AC plug at the AC outlet and repeat the steps for AC voltage
measurements for each exposed metallic part.
4. Voltage measured must not exceed 0.3 volts MS. This corresponds to 0.2
milli-amps AC. Any value exceeding this limit constitutes a potential shock hazard
and must be corrected immediately.
To good earth ground To exposed metallic
/ Part
500 ohm
0 watt
5

ALIGNMENT AND ADJUSTMENT
1. ADJUSTMENT CONDITIONS
1960 SERVICE MANUAL
Power Supply: AC 220V, 60 Hz
Warm-up Time: The monitor should be powered on for at least 15 minutes
before any adjustments are made, except for convergence, when 30 minutes
are required.
Signal Input:
1. Video: GB Analog, 0.7 Vp-p, positive;
GB TTL positive.
2. Sync.: Horiz. and Vert, separated, positive or negative.
3. Scanning Frequencies: FH: 15.75 to 38 KHz/ 15.75 to 45 KHz
FV: 50 - 87 Hz
4. All adjustments should be made using a signal of FH=31.468 KHz,
unless otherwise defined.
2. Parameter list of signal timings generated:
1024x768 Interlaced Mode: (35.52 KHz)
Horiz. Sync. Polarity POS
Vert. Sync. Polarity POS
Total PELs per Line 1264
Active PELs per Line 1024
Line Blanking Time (PELs) 240
Line Sync. Pulse Width (PELs) 176
Line Front Porch Width (PELs) 8
Line Back Porch Width (PELs) 56
Total Lines per Frame 817
Active Lines per Frame 768
Fields per Frame 2
Field Blanking Time (E/O Lines) 25/24
Field Sync. Pulse Width (E/O Lines) 4
Field Front Porch Width (E/O Lines) 0.5/0.0
Field Back Porch Width (E/O Lines) 20.5/20
PEL Time (ns) 22.27
Total Line Time (us) 28.15
Total Frame Time (ms) 23.00
Frame ate (Hz) 43.48
6

1960 SERVICE MANUAL

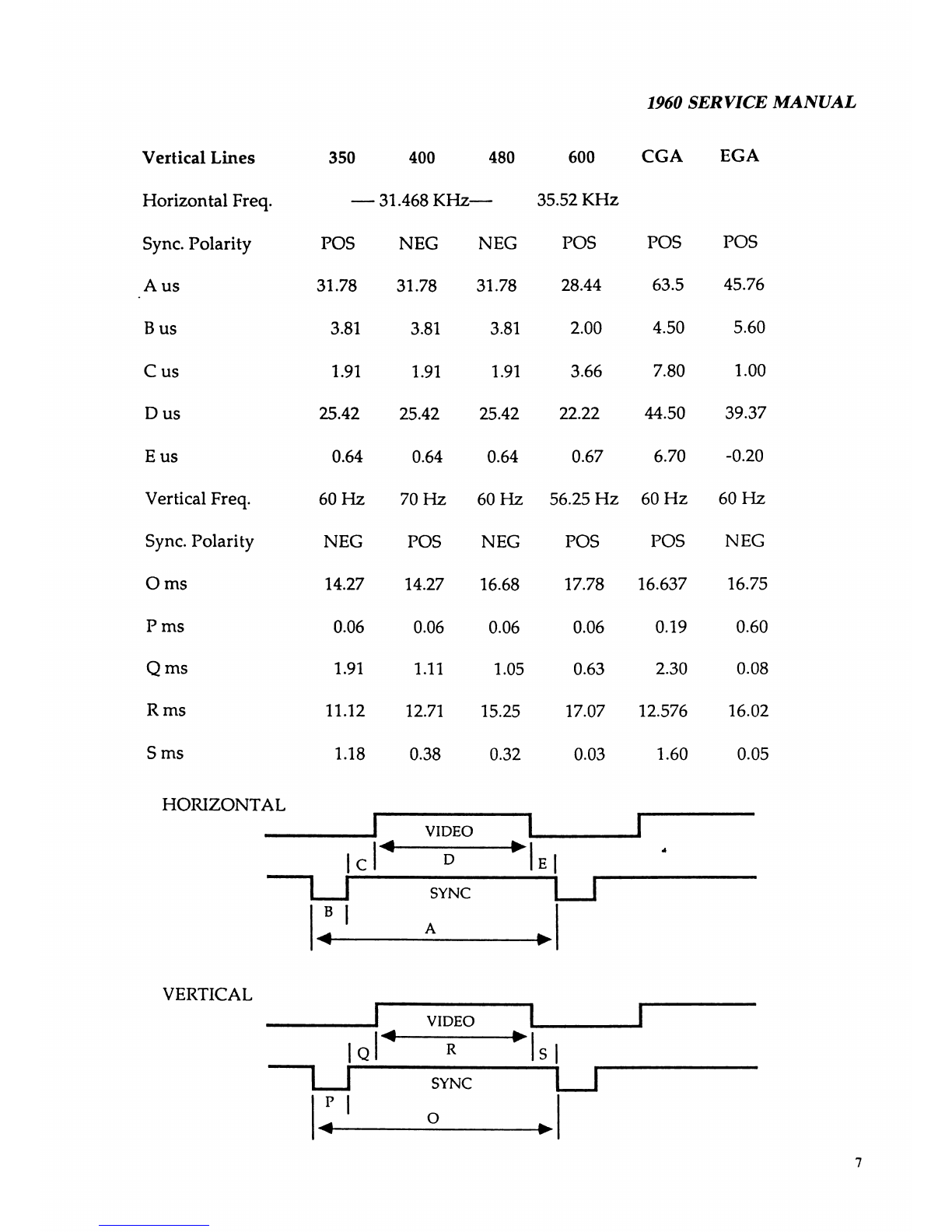

Vertical Lines 350 400 480 600 CGA EGA
Horizontal Freq. ■31.468 KHz- 35.52 KHz
Sync. Polarity POS NEG NEG POS POS POS
A us 31.78 31.78 31.78 28.44 63.5 45.76
B us 3.81 3.81 3.81 2.00 4.50 5.60
C us 1.91 1.91 1.91 3.66 7.80 1.00
D us 25.42 25.42 25.42 22.22 44.50 39.37
E us 0.64 0.64 0.64 0.67 6.70 -0.20
Vertical Freq. 60 Hz 70 Hz 60 Hz 56.25 Hz 60 Hz 60 Hz
Sync. Polarity NEG POS NEG POS POS NEG
O ms 14.27 14.27 16.68 17.78 16.637 16.75
P ms 0.06 0.06 0.06 0.06 0.19 0.60
Q ms 1.91 1.11 1.05 0.63 2.30 0.08
ms 11.12 12.71 15.25 17.07 12.576 16.02
S ms 1.18 0.38 0.32 0.03 1.60 0.05
HO IZONTAL
VIDEO
CDE
B
^
__
SYNC
A
^ w
VE TICAL
________ I VIDEO
◄------------------------►
QRS
SYNC
P
^
_
O
^
.... ^
J
7

1960 SERVICE MANUAL
3. ADJUSTMENT EQUIPMENT
a. Volt-ohm-A meter (Sanwa FD-750C or equivalent).
b. 30KV high voltage probe (HP34111 A).
c. Oscilloscope (TEK2235 or equivalent).
d. White balance adjuster (Minolta Color Analyzer II).
e. Signal generator (IBM PC with VGA card or equivalent).
f. Screwdriver.
4. SWITCHING POWE SUPPLY - egulator Adjustment
(PWB1001)
The regulated B+ control has been preset in the factory and needs no
adjustment. However, if any repairs are made on the equipment, the following
readjustment procedures are recommended.
a. Allow the monitor to warm-up for about 5 minutes.
b. Apply the VGA (31.468 KHz) signal to the monitor.
c. Connect a DC meter to TP1 (on the main PCB), and adjust V 831 for
86V DC.
d. If a fuse is broken during adjustment, remember to replace it with the exact
same type of fuse.
8

1960 SERVICE MANUAL
5. ALIGNMENT PROCEDURES
A) S YN C ON IZ ATI ON ADJUSTMENT
Input Signal: Cross Hatch Pattern
Connect the DC meter to TP2 and adjust V 128 to obtain the F/V output
for 5.7V.
Adjust H-Hold V 136 until the cross hatch pattern is stable.
B) PICTU E SIZE ADJUSTMENT
Input Signal: Cross Hatch Pattern
Horiz. Width:
480 mode: Adjust L402 so that the horiz. width of the picture
is 240mm +/- 3mm
Vert. Height:
350 mode: Adjust V 111 so that the vert, height of the picture
is 180mm +/- 3mm
400 mode: Adjust V 108 so that the vert, height of the picture
is 180mm +/- 3mm
480 mode: Adjust V 110 so that the vert, height of the picture
is 180mm +/- 3mm
768 mode: Adjust V 109 so that the vert, height of the picture
is 180mm +/- 3mm
CGA mode: Adjust V 113 so that the vert, height of the picture
is 180mm +/- 3mm
EGA mode: Adjust V 115 so that the vert, height of the picture
is 180mm +/- 3mm
4
9

1960 SERVICE MANUAL

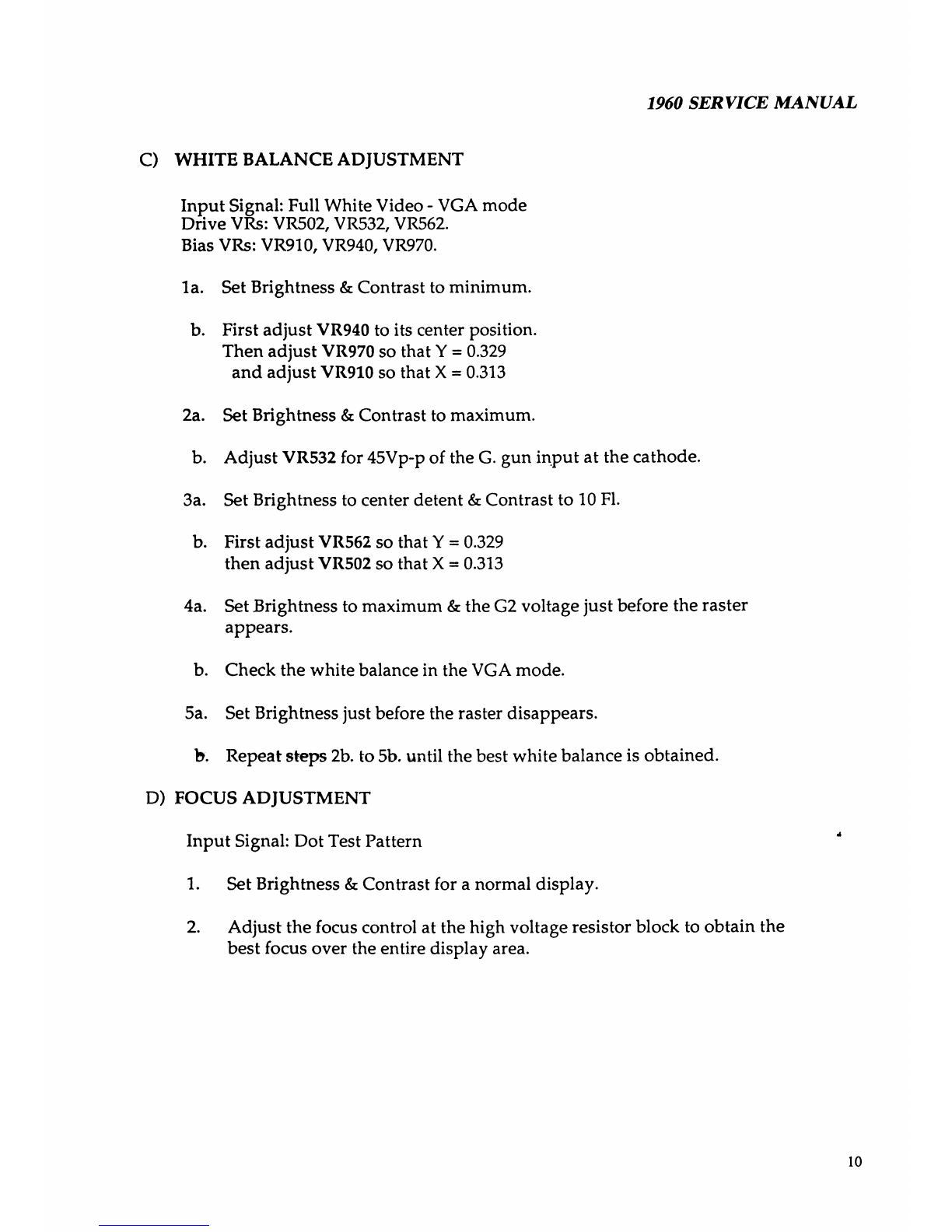

C) WHITE BALANCE ADJUSTMENT
Input Signal: Full White Video - VGA mode
Drive V s: V 502, V 532, V 562.
Bias V s: V 910, V 940, V 970.
la. Set Brightness & Contrast to minimum.
b. First adjust V 940 to its center position.
Then adjust V 970 so that Y = 0.329
and adjust V 910 so that X = 0.313
2a. Set Brightness & Contrast to maximum.
b. Adjust V 532 for 45Vp-p of the G. gun input at the cathode.
3a. Set Brightness to center detent & Contrast to 10 FI.
b. First adjust V 562 so that Y = 0.329
then adjust V 502 so that X = 0.313
4a. Set Brightness to maximum & the G2 voltage just before the raster
appears.
b. Check the white balance in the VGA mode.
5a. Set Brightness just before the raster disappears.
b. epeat steps 2b. to 5b. until the best white balance is obtained.
D) FOCUS ADJUSTMENT
Input Signal: Dot Test Pattern
1. Set Brightness & Contrast for a normal display.
2. Adjust the focus control at the high voltage resistor block to obtain the
best focus over the entire display area.
10

I960 SERVICE MANUAL
E) STATIC CONVE GENCE ADJUSTMENT
NB: The monitor should be operated for at least 30 mins, before any
convergence adjustments are made.
Input Signal: Cross Hatch Pattern
1. Set Brightness & Contrast so that a well-defined pattern is obtained.
2. Ensure that the convergence magnets on the C T are in the
correct position.
Magnet Ring Stopper
CRT Neck
Deflection Yoke 6-Pole Convergence Magnets
4-Pole Convergence Magnets
Purity Magnets
3. Turn the 2 tabs of the 4-pole magnets independently to adjust their angles.
Align the red & blue vert, lines at the center of the screen.
4. Turn the 2 tabs of the 4-pole magnets simultaneously to keep their angles
constant. Align the red & blue horiz. lines at the center of the screen.
5. Turn the 2 tabs of the 6-pole magnets independently to superimpose the
red/blue vert, line on the green one.
6. Turn the 2 tabs of the 6-pole magnets simultaneously to superimpose the
red/blue horiz. line on the green one.
7. epeat steps 3,4,5 & 6 until the best convergence is obtained.
NB: The 4-pole magnets & the 6-pole magnets interact, making dot
movements complex.
BLU RED
BLU
RED
-------------------------- .
_________________/
4-pole magnets movement
RED/BLU GRN
RED/ BLU
GRN
6-pole magnets movement
--------------------\
_____________ y
h

1960 SERVICE MANUAL

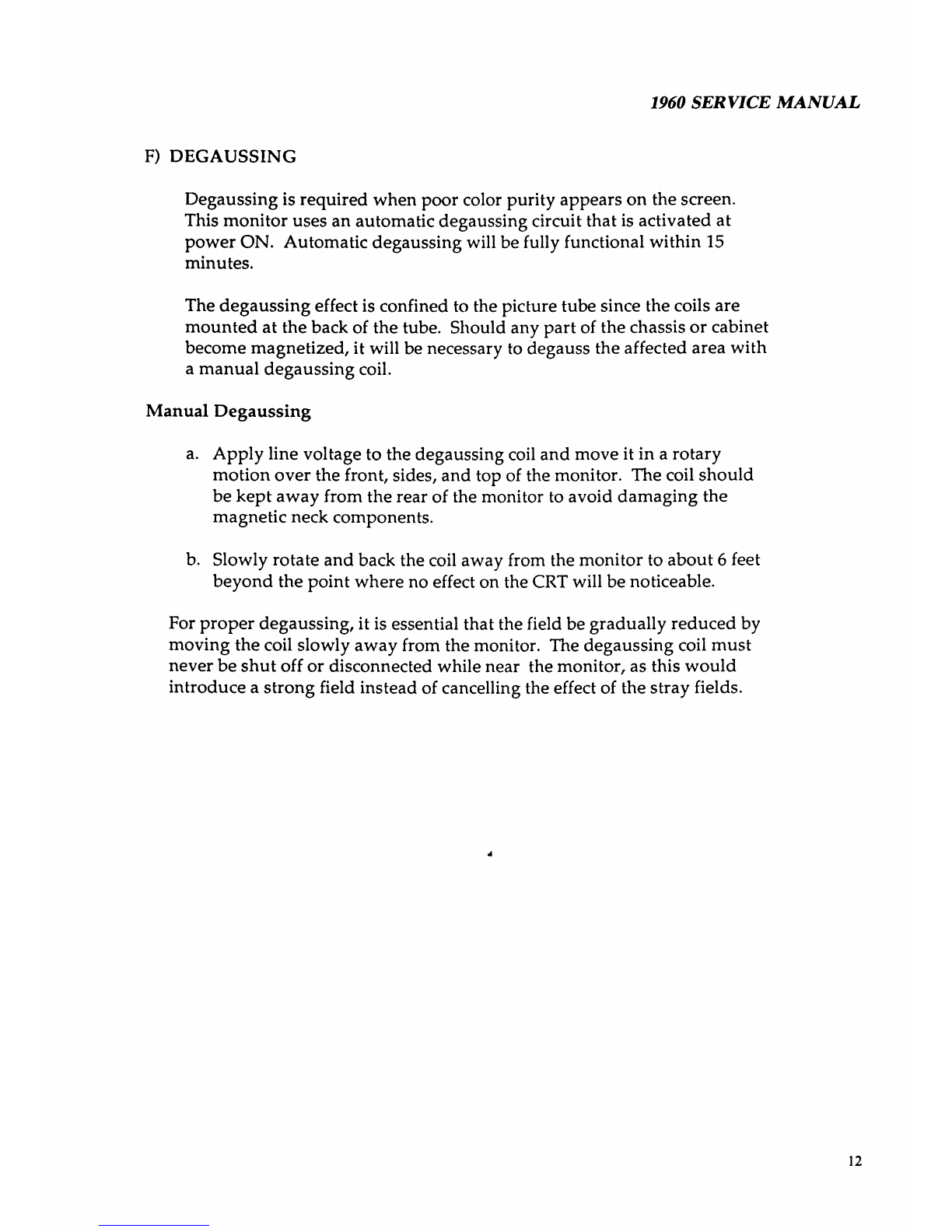

F) DEGAUSSING
Degaussing is required when poor color purity appears on the screen.
This monitor uses an automatic degaussing circuit that is activated at
power ON. Automatic degaussing will be fully functional within 15
minutes.
The degaussing effect is confined to the picture tube since the coils are
mounted at the back of the tube. Should any part of the chassis or cabinet
become magnetized, it will be necessary to degauss the affected area with
a manual degaussing coil.
Manual Degaussing
a. Apply line voltage to the degaussing coil and move it in a rotary
motion over the front, sides, and top of the monitor. The coil should
be kept away from the rear of the monitor to avoid damaging the
magnetic neck components.
b. Slowly rotate and back the coil away from the monitor to about 6 feet
beyond the point where no effect on the C T will be noticeable.
For proper degaussing, it is essential that the field be gradually reduced by
moving the coil slowly away from the monitor. The degaussing coil must
never be shut off or disconnected while near the monitor, as this would
introduce a strong field instead of cancelling the effect of the stray fields.
4
12

ASSEMBLY AND DISASSEMBLY
I960 SERVICE MANUAL

\\od o jo cd Ned
~ CM 14-3 M
THE BLOCK DIAG AM OF COLO MONITO CM1445M
TTL ANALOG
1960 SERVICE MANUAL

1960 SERVICE MANUAL
TROUBLE-SHOOTING CHART
1. NO ASTE
4
2. AUTOMATIC B IGHTNESS LIMITE NOT FUNCTIONING
15

1960 SERVICE MANUAL
3. NO VE TICAL SCAN ( ASTE IS ONE HO IZ. LINE)
4. OUT OF HO IZ. SYNC
16

1960 SERVICE MANUAL
5. OUT OF VE TICAL SYNC
6. VIDEO AMP ABNO MAL
17

1960 SERVICE MANUAL
Commodore International Spare Parts List
1960 PCB Assembly
Commodore part numbers are provided for reference only and do not indicate the availability of spare parts from Commodore. ndustry standard
parts (Resistors, Capacitors, Connectors) should be secured locally. Part number information may vary according to country, some parts may
not be available in all countries.
602319-001 CO L L 9 0 U 9 3 U 9 6 1 602319-021 FET Q801
602319-002 R ES CF R905 602319-022 FET 0808
602319-003 R ES MOF R642 602319-023 C 1105
602319-004 RE S MOF R813 602319-024 C 1501
602319-005 D ODE SW D814 602319-025 C 1104
602319-006 D ODE SW D801-D804 602319-026 C Q594
602319-007 D ODE SW D816 602319-027 C 804
602319-008 D ODE SW D806 602319-028 C 802
602319-009 D ODE SW D819 602319-029 C 803
602319-010 D ODE ZE NER D111 602319-030 C 1106
602319-011 D ODE ZEN ER D402 602319-031 C 1107,1805
602319-012 D ODE ZE NER D811 602319-032 C 1301
602319-013 D ODE ZEN ER D101 602319-033 C 1401
602319-014 TR NPN 0403 602319-034 C 1801
602319-015 T R NPN 0802,0806 602319-035 C 1101
602319-016 TR NPN 0106,0401,0593 602319-036 C 1103
602319-017 TR NPN Q904 602319-037 C 1102
602319-018 T R NPN Q302 602319-038 C 1601
602319-019 TR PNP 0903 602319-039 C 1602
602319-020 TR PNP Q807 602319-040 FUSE 4A/250V F801
Cabinet Parts
602319-041 FRONT B EZEL 602319-044 PED ESTAL
602319-042 BACK CO VER 602319-045 CRT
602319-043 NAMEPLATE 602319-046 FRONT DOOR PAN EL
*
18
