Comnet Netwave NWKSP1 User manual

INSTALLATION AND OPERATION MANUAL
NWKSP1
COMNET SOLAR POWERED SYSTEM
Thank you for purchasing NetWave® from ComNet. This manual will cover how to
install hardware on your enclosure, Configure batteries, cabling and mounting of the
enclosure.
The NetWave® NWKSP1 Solar off the grid power system is designed for applications
where a remote camera or wireless repeater is needed but power is not available
or the cost to run power is too expensive. NetWave Solar is a complete system for
providing remote power to edge communications equipment. The kit includes a
high quality photovoltaic solar panel, valve-regulated lead-acid battery, outdoor
enclosure, solar charge controller, PoE midspan injector and mounting hardware.
The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks
operated by a special key for high security. The enclosure and solar panel can be
mounted on a two to four inch pole or wall mounted with the included mounting
hardware. The included 30A solar charge controller supports an LCD screen for local
diagnostics and system health monitoring, Intelligent PWM charging mode and
battery protection from overcharge and over discharge while the battery provides
outstanding deep cycle and cold weather performance.

INS_NWKSP1_REV– 07/10/14 PAGE 2
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
About This Guide
This guide is intended for different users such as engineers, integrators, developers, and
technicians.
It assumes that users have knowledge of the following:
»Installation of electronic equipment
»Electrical regulations and guidelines
Related Documentation
The following documentation is also available:
»Solar Charge Controller User Manual
»Solar Panel mounting instructions (included with the mounting hardware)
Website
For information on ComNet’s entire product line, please visit the ComNet website at
http://www.comnet.net
Support
For any questions or technical assistance, please contact your sales person ([e-mail]) or
the customer service support center ([e-mail])
Safety
»Only ComNet service personnel can service the equipment. Please contact ComNet Technical
Support.
»The equipment should be installed in locations with controlled access, or other means of
security, and controlled by persons of authority.
»Do not install equipment on wet or windy days.
»Make sure you have assistance mounting the hardware.
»Complete as much of the setup as you can on the ground in a safe environment.

INS_NWKSP1_REV– 07/10/14 PAGE 3
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Contents
About This Guide 2
Related Documentation 2
Website 2
Support 2
Safety 2
Overview 4
Legal Information 4
Introduction 5
Pole Mounting Bracket Assembly 6
Preparing the Enclosure 8
Pole Mount 10
Solar Panel Electrical Wiring 11
Battery Installation 12
Agency Compliance 15
GPL (General Public License) Statement 17

INS_NWKSP1_REV– 07/10/14 PAGE 4
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Overview
Legal Information
No part of this document may be reproduced or transmitted in any form or by any means,
electronic and mechanical, for any purpose, without the express written permission of ComNet.
Copyright
Copyright © 2014 ComNet. All rights reserved.
Disclaimer
ComNet reserves the right to make changes in specifications at any time without notice. The
information furnished by ComNet in this material is believed to be accurate and reliable. However,
ComNet assumes no responsibility for its use.

INS_NWKSP1_REV– 07/10/14 PAGE 5
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Introduction
The NetWave® NWKSP1 Solar off the grid power system is designed for applications where
a remote camera or wireless repeater is needed but power is not available or the cost to run
power is too expensive. NetWave Solar is a complete system for providing remote power to
edge communications equipment. The kit includes a high quality photovoltaic solar panel, valve-
regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector and
mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper proof
locks operated by a special key for high security. The enclosure and solar panel can be mounted
on a two to four inch pole or wall mounted with the included mounting hardware. The included
30A solar charge controller supports an LCD screen for local diagnostics and system health
monitoring, Intelligent PWM charging mode and battery protection from overcharge and over
discharge while the battery provides outstanding deep cycle and cold weather performance.
This manual contains detailed operational and configuration information.

INS_NWKSP1_REV– 07/10/14 PAGE 6
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Pole Mounting Bracket Assembly
If mounting the enclosure to a wall, you can skip this step and mount the enclosure directly to a
wall using the 4 holes in the back of the enclosure.
Mounting Hardware

INS_NWKSP1_REV– 07/10/14 PAGE 7
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427

INS_NWKSP1_REV– 07/10/14 PAGE 8
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Preparing the Enclosure

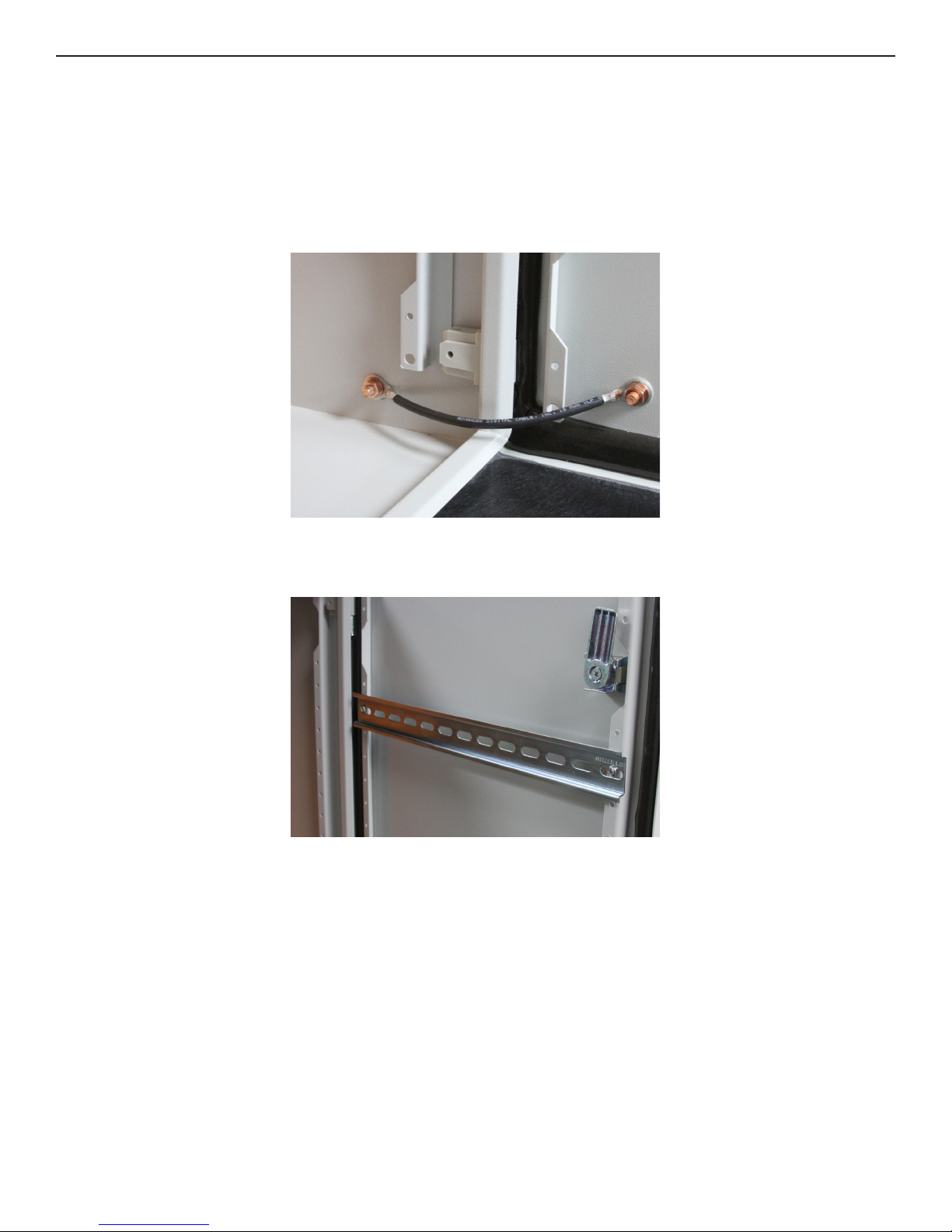

Attach grounding wire to the door and enclosure.
Remove plastic covers on copper studs. Add grounding cable to the two studs and use the
copper washers and nuts to secure.
Grounding Cable Installed
Mount the DIN Rail. The DIN Rail can be mounted to the door, backplate or sides of the enclosure.
DIN Rail installed on door

INS_NWKSP1_REV– 07/10/14 PAGE 9
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Attached the DIN Rail Adapters to the Controller and Power Injector then clip to the DIN Rail.
Controller and Power Injector Mounted on DIN Rail
Plug the external thermal sensor into the interface of the thermal-sensor on the left of the
controller.
Thermal Sensor Plugged into Controller
Insert battery platform in the enclosure. The cutouts in the platform are for routing cable under
the batteries.
Battery Platform on Floor of Enclosure

INS_NWKSP1_REV– 07/10/14 PAGE 10
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Pole Mount
If mounting to a pole, use the 6 included Stainless Hose clamps to secure the enclosure to a pole.
For your safety, we highly recommend mounting the enclosure before installing the batteries.
Enclosure Mounted to Pole with Clamps
Add the cable glands and drain plug to the bottom of the enclosure after mounting.
Battery Platform on Floor of Enclosure

INS_NWKSP1_REV– 07/10/14 PAGE 11
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Solar Panel Electrical Wiring
Assemble The Solar Panels and run cable thru the cable glands on the bottom of the enclosure.
Do not connect PV cables to the controller yet, it is recommended to connect the battery first.
Enclosure Mounted to Pole with Clamps
Connect the 15' PV cable with MC4 female connector to the positive male connector on the solar
panel and feed the open end of the cable thru the enclosure.
Connect the 15' PV cable with MC4 male connector to the negative female connector on the solar
panel and feed the open end of the cable thru the enclosure.
Note: The cables may ship as one 30' cable. If this is the case, you will need to cut the cable in
half creating two 15' cables.
Please reapply the Twist Nut to the open end of the cables to prevent a short.
15' MC4 Male and MC4 Female Cables

INS_NWKSP1_REV– 07/10/14 PAGE 12
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427
Battery Installation
Insert battery into the enclosure. The battery can be installed vertically or horizontally.
We recommend installing on its side for ease of access.
Enclosure Mounted to Pole with Clamps
Connect the 24" 10AWG cables to the positive and negative battery posts.
PV Cable Connecting Battery Terminals
NOTE: Please apply rubber insulator to the terminals to prevent contact with the door in case of
earthquake or vibration.
Rubber Insulator

INS_NWKSP1_REV– 07/10/14 PAGE 13
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427

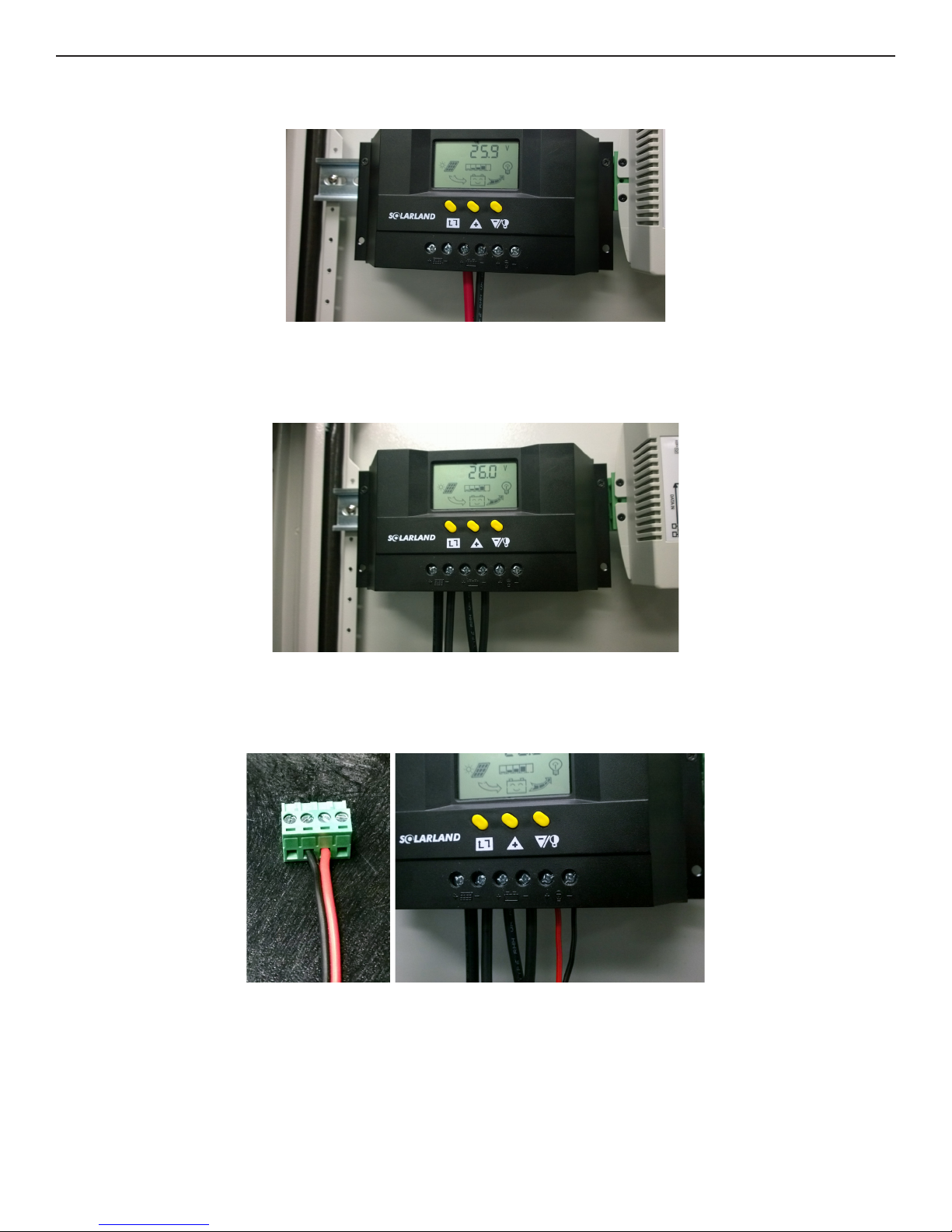

Connect the Positive and Negative cables from the battery to the Controller battery terminals.
Battery Cables Connected to Controller Battery Terminals
Once batteries are connected to the controller, connect the PV cables from the solar panels to the
Solar Load terminals on the controller.
Solar Panel Cables Connected to Solar Load Terminals on Controller
Connect the 12" Bonded Red and Black cable to the green terminal adaptor then connect the
other end of the cable to the load terminals on the controller.
Red and Black Cable Connected Green Terminal Connector, left, and to Load Terminals on Controller, right.

INS_NWKSP1_REV– 07/10/14 PAGE 14
INSTALLATION AND OPERATION MANUAL NWKSP1
TECH SUPPORT: 1.888.678.9427

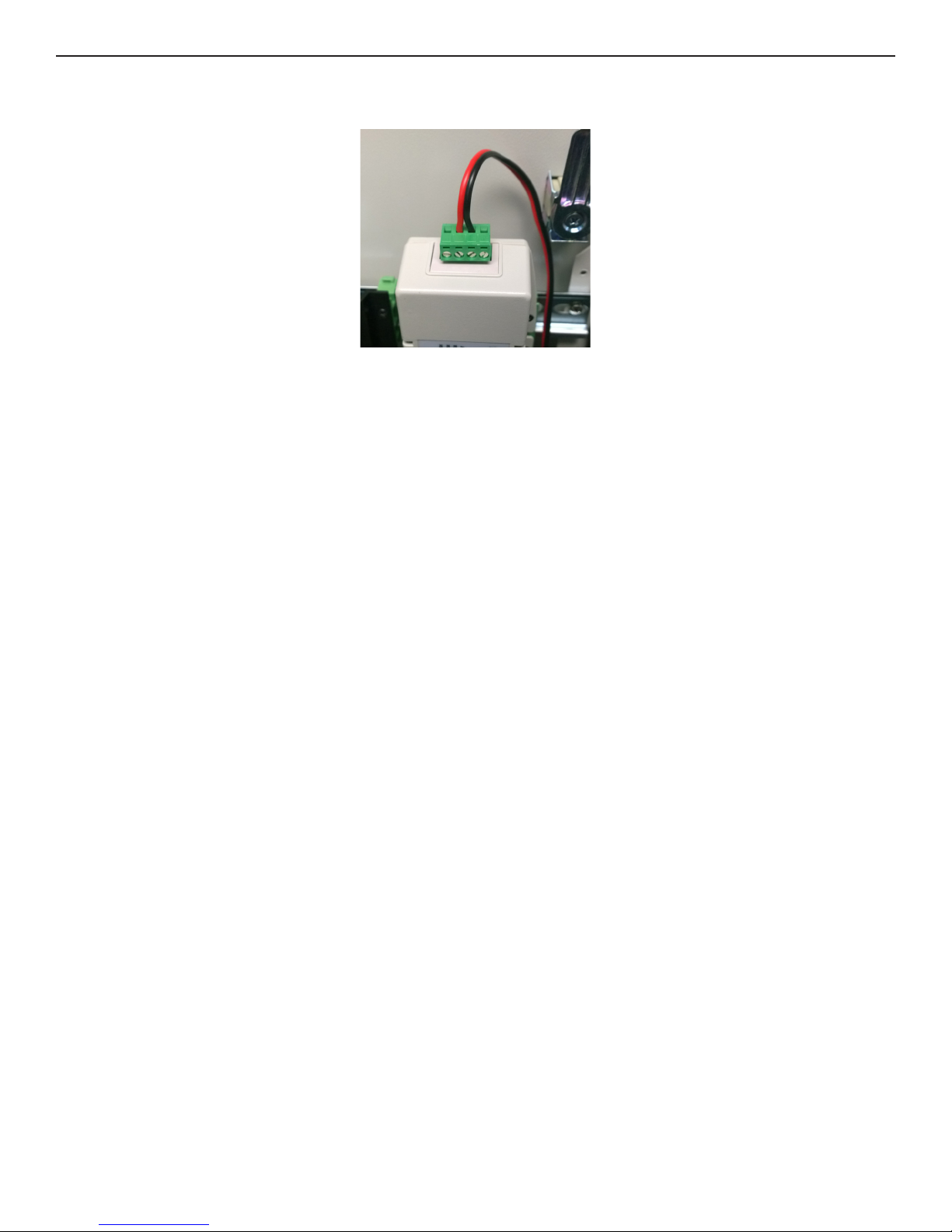

Insert green terminal into the Power Injector.
Green Terminal Connector attached to Power Injector
See Solar Charge Controller User Manual for instructions on how to use the controller.
Solar Panel mounting instructions will be included with the mounting hardware.
