Compac Furniture B51 User manual

Job No
NZ Made
1 Drawer Bedside
C o n g r a t u l a t I o n s on t h e p u r c h a s e o f y o u r …….
B51 Instruction Manual
Streamlined minimalist style

2
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
……your furniture is manufactured right here in New Zealand - by New Zealanders, for New Zealanders. Honest Kiwi Quality that
is backed by our signature 5 Year Guarantee*. If by any chance you have a problem during this period, OUR promise to YOU is
that we will repair or replace. Additionally, being based right in here New Zealand our experienced team’s expertise is near at
hand; if you have any problems at all during the assembly process, you can give us a call on our Freephone number (0800
100858) or email us at [e-mail] during normal working hours and we will be happy to step you through the
process.
Constructed from NZ made MDF, a renewable resource from sustainably managed pine forests. This means you can have
complete confidence that in your furniture, you are making an environmentally responsible choice.
If you have any questions please visit www.warehousefurniture.co.nz or call the manufacturers direct on 0800 100 858.
WHERE TO ASSEMBLE YOUR BEDSIDE
Assemble your Bedside on a clean and smooth surface, free of anything which may damage the finished surfaces. A clean,
carpeted floor is ideal. If assembling on a workbench or table we suggest you cover it with the carton the Bedside was packaged
in.
Warning! Never leave hardware parts where children can reach them. Small parts may be a choking hazard!
*5 YEAR GUARANTEE
Your furniture carries a 5 year guarantee against defective material or workmanship, excluding misuse and normal wear and
tear. Obviously, as this unit is customer-assembled we cannot guarantee cabinet failure or damage from incorrect assembly. All
claims need proof of purchase –to ensure this register your Bedside at www.compacfurniture.co.nz.
Follow the assembly instructions carefully and take note of the precautions below.
•Avoid direct sunlight wherever possible.
•Keep cabinet in a dry place.
•Wipe off spilt liquids immediately.
•Avoid placing hot items directly on the surface.
•Clean with a slightly damp cloth and buff dry with a soft dry cloth - microfibre is ideal.
•Do not allow nail polish, removers, deodorant or other damaging chemicals to come into contact with the
surface.
Did you know……

3
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
PARTS LIST
Please check you have all the necessary parts before beginning to assemble your Bedside. The measurements provided will help
you to identify each part. If any parts are missing or damaged please contact the manufacturers directly, either via our website
or our 0800 number. Do not call the store you bought the cabinet from as they will be unable to help you.
QTY
PART NAME
MEASUREMENTS
NOTES
MANUFACTURERS CODE
1
Top
480 x 396 x 15mm
Finished on one side. Blue mark
109482
1
Base
480 x 396 x 15mm
Finished on one side. Purple mark
109483
1
LH End
450 x 377 x 15mm
Finished on both sides. Green mark
109699
1
RH End
450 x 377 x 15mm
Finished on both sides. Red mark
109700
1
Small Drw Front
468 x 125 x 15mm
Finished on one side
109486
1
LH Drw Side – Sml
340 x 95 x 12mm
Finished on both sides.
106434
1
RH Drw Side – Sml
340 x 95 x 12mm
Finished on both sides.
106435
1
Drawer Back – Sml
392 x 90 x 12mm
Finished on one side.
109488
1
Drawer Bottom
402 x 339 x 4mm
Finished on one side.
109490
1
Back Panel
471 x 463 x 4mm
Finished on one side.
109701
COLOUR CODING
To help identify the parts, the main components are colour coded with a pen mark on the back edge of the panel. (The
unfinished edge.)
RED Right Hand Parts. (E.g. RH End, RH Division, RH Drawer Side.)
GREEN Left Hand Parts. (E.g. LH End, LH Division, LH Drawer Side.)
BLUE Tops
PURPLE Bases

4
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
HARDWARE LIST
CABINET HARDWARE
QTY
PART NAME
ASSEMBLY CODE
MANUFACTURERS CODE
4
Connecting Bolts
H1
102649
4
15mm Cams
H2
102511
4
Large Screws
H5
102648
4
Large Dowels
H15
102515
4
Gold Screws
H9
106118
4
Drawer Slide Screws
H4
102652
1
Metal Drawer Slide set
H21
102480
1
Bar Handles
H56
102472
4
Black Plastic Feet
H37
106003
DRAWER HARDWARE
2
Connecting Bolts
H1
102649
2
12mm Cams
H3
102510
4
Small Screws
H6
102642
4
Screws
H9
102645
2
Large Dowels
H15
102515

5
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
CAM INSTALLATION & OPERATION GUIDE
The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this system works.
To see a demonstration, click on the assembly assistance tab at www.compacfurniture.co.nz.
DRAWER SLIDES GUIDE
Your pack will contain 2 sets of Metal Drawer Slides. These are bundled together with adhesive tape. Each set comprises of 4
components. Undo the tape on one set at a time and separate the parts.
LEFT HAND PART (DL) RIGHT HAND PART (DR)
The Drawer Slide components shown above are attached to the drawer. They have the letters DL or DR stamped on them to
indicate left hand or right hand components. Put these parts aside for attaching to the drawer later on.
LEFT HAND PART (CL) RIGHT HAND PART (CR)
The Drawer Slide components shown above are to be attached to the cabinet. They have letters CL or CR stamped on them to
indicate left hand or right hand components. You will need these for steps 2and 3.
Use these holes

6
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
INSTALL THE HARDWARE
STEP 1 - TOP
•Lay the Top of the unit finished side down on a clean, clear surface.
•Screw four H1 Connecting Bolts into the holes as indicated in the drawing below
H1
STEP 2 –LH END
•Lay the LH End on a smooth clean surface with holes facing upwards.
•Attach two LH Drawer Slide (CL) to the LH End using the H4 Drawer Slide Screws. Use the holes as indicated in the
diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces towards the
finished edge of the End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge of
the End.
•Push two H15 Dowels into the top edge of the End.
H1 H2 H4 H15
Front Edge

7
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
STEP 3 –RH END
•Lay the RH End on a smooth clean surface with holes facing upwards.
•Attach two RH Drawer Slides (CR) to the RH End using the H4 Drawer Slide Screws. Use the holes as indicated in the
diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces towards the
finished edge of the End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge of
the End.
•Push two H15 Dowels into the top edge of the End.
H1 H2 H4 H15
ASSEMBLE THE UNIT
STEP 4 - ENDS TO TOP
•Stand the Top on its back edge.
•Fit the LH End and RH Ends to the underside of the Top. The Connecting Bolts in the Top will fit into the Metal Cams in
the Ends.
•Turn the Metal Cams in a clockwise direction to lock the Top to the Ends. Ensure they turn a least a ¼ to ½ a turn.
Front Edge

8
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858

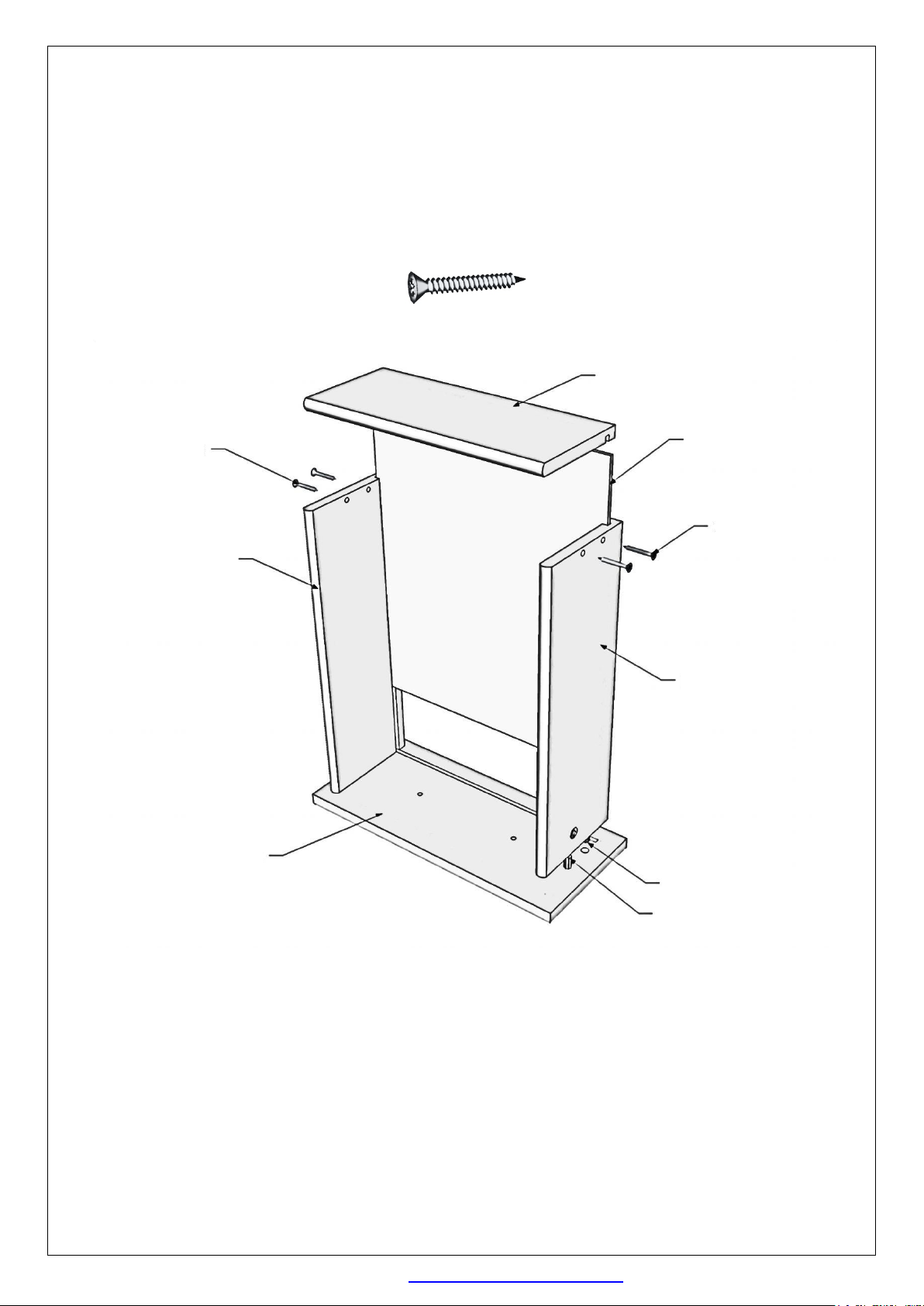

STEP 5 –Back Panel
•Carefully turn the bedside onto its Top.
•Take the Back Panel. Slide this into place between the grooves in the Ends.

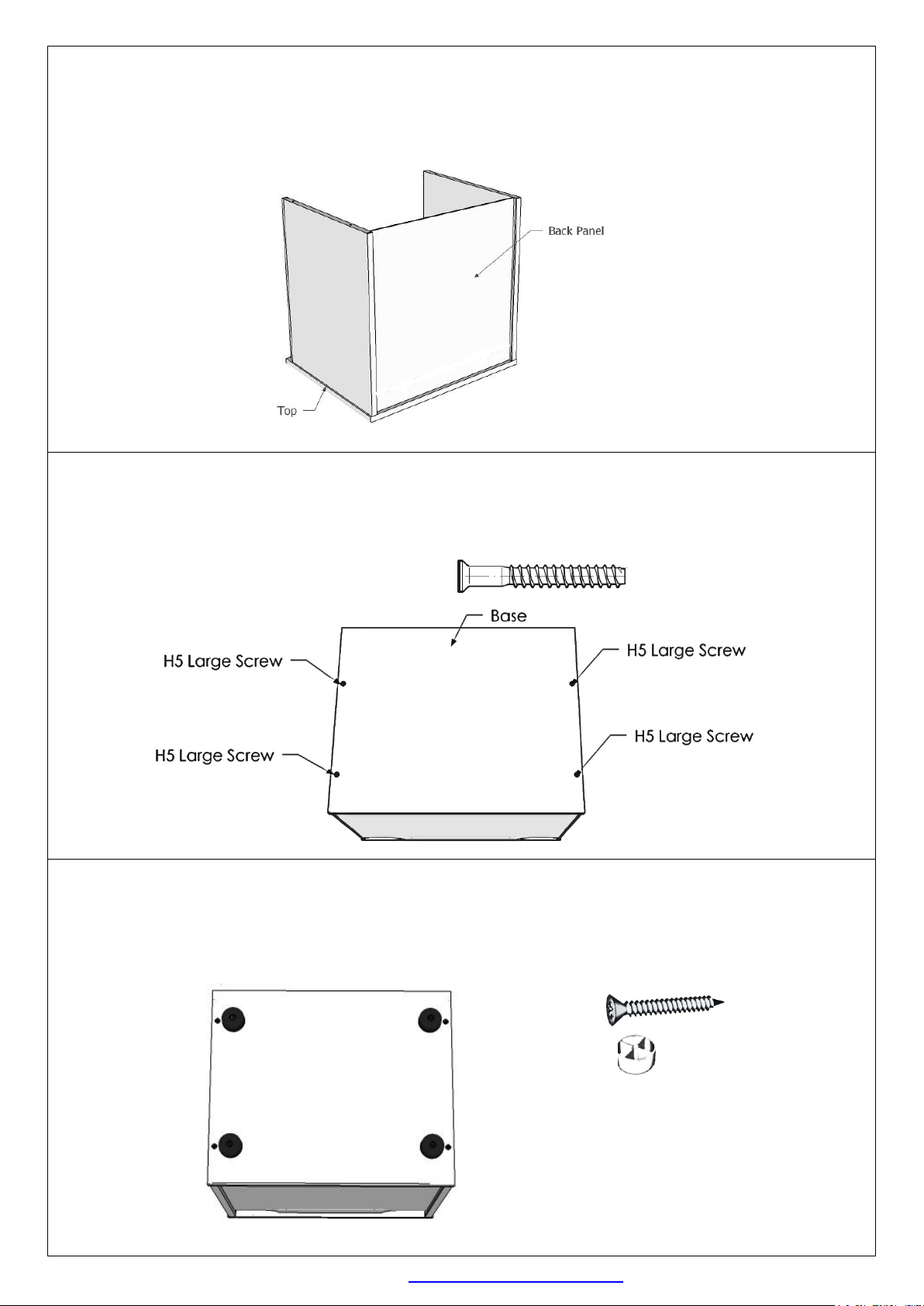

STEP 6 - BASE
•Attach the Base using the four H5 Large Screws. Ensure the finished side of the Base faces into the inside of the
Bedside
STEP 7 - BASE
•Next screw on the four H37 Black Plastic Feet using the H9 Gold Screws. Use the pre-drilled holes.
•Turn the unit upright. Be careful not to drag or scratch it.
H5
H9
H37

9
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858

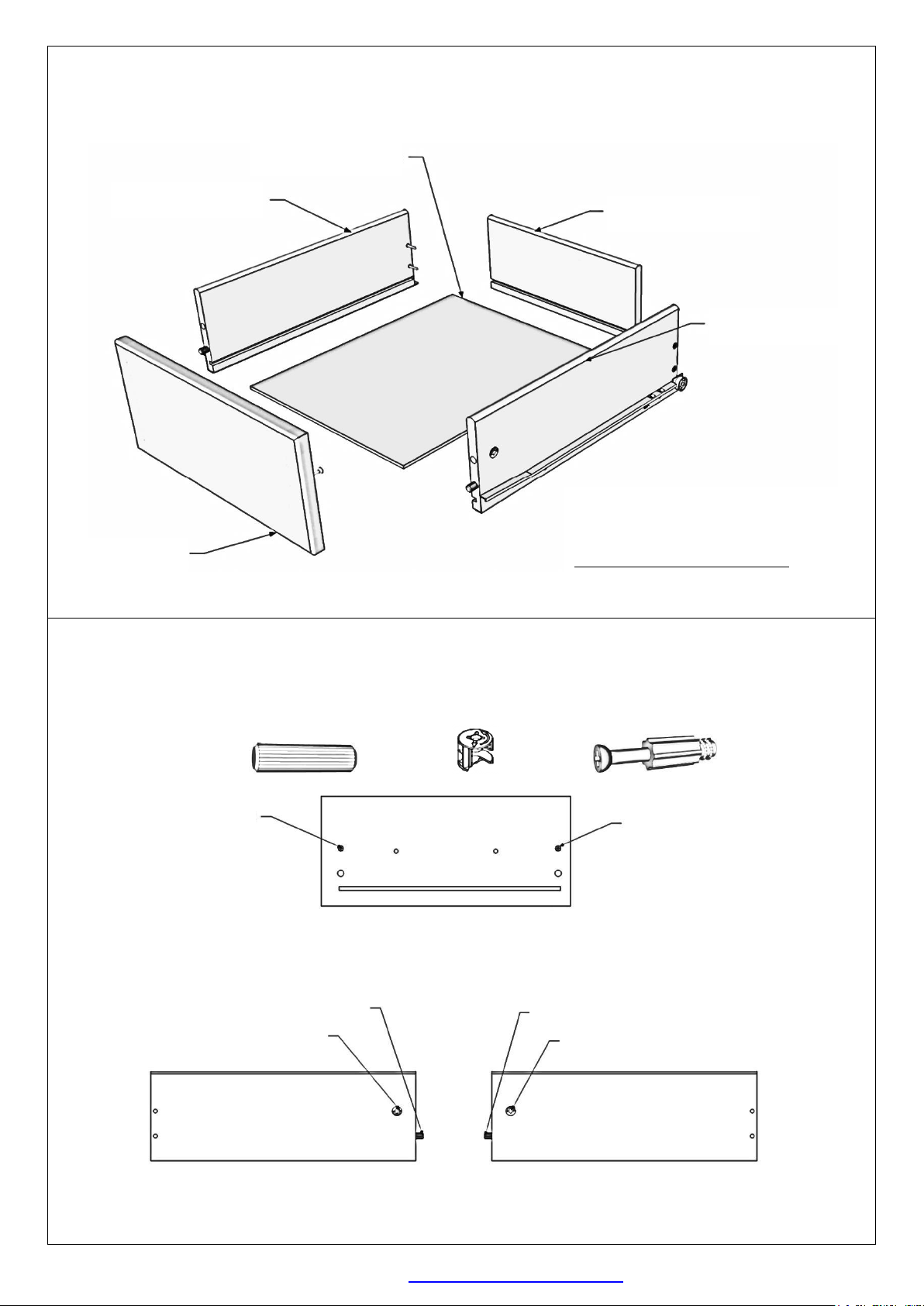

ASSEMBLE THE DRAWER
STEP 8 - INSTALL HARDWARE /DRAWERS
•Install the hardware in the drawer parts as shown below. NOTE: Be sure that the arrow on the Small Cam points to the
end of the drawer side nearest it.
H15H3 H1
LH Drawer Side
RH Drawer Side
Drawer Back
Drawer Bottom
Drawer Front
DRAWER FRONT
H1 Connecting Bolt
RH DRAWER SIDE
LH DRAWER SIDE
H1 Connecting Bolt
H3 Cam
H15 Dowel
H3 Cam
H15 Dowel
To see a demonstration of how to
put a drawer together, click on
the assembly assistance tab at
www.compacfurniture.co.nz
H15 Dowel

10
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
STEP 9 - ASSEMBLE THE SMALL DRAWER
•Lay the Drawer Front face down on a smooth, clean surface.
•Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in the Drawer Front.
•Turn the Small Cams clockwise to lock the Drawer Sides in place.
•Slide the Drawer Bottom into place in the grooves in the Drawer Sides and Drawer Front.
•Fit the Drawer Back into place between the Drawer Sides. The groove in the Drawer Back will fit over the end of the
Drawer Bottom.
•Secure the Drawer Sides to the Drawer Back with four H9 Screws as shown below.
H9
2 x H9 Screws
Drawer Back
Drawer Bottom
2 x H9 Screws
RH Drawer Side
LH Drawer Side
H15 Dowel
H1 Connecting Bolt
Drawer Front

11
For assembly advice or parts go to www.compacfurniture.co.nz or call 0800 100 858
STEP 10 - ATTACH THE DRAWER SLIDES
•Turn the drawer upside-down as shown and attach the Drawer Slides (DR and DL) with the four H6 Small Woodscrews
as shown below. Ensure that the ends of the slides without the wheels are hard up against the back of the drawer front
as shown. Each slide requires two screws.
H6
STEP 11 - ATTACH HANDLES AND FIT DRAWERS INTO CABINET
•Turn the drawer over and attach the handle using the screws provided.
•Fit the drawer into the cabinet.
CONGRATULATIONS, YOUR 1 Drawer Bedside IS NOW COMPLETE.
THANK-YOU FOR SUPPORTING NEW ZEALAND MADE FURNITURE
Angle the drawer slightly to ensure that
the wheel at the back of the drawer slide
goes behind the front wheel on the
cabinet slide. Then lift the drawer up and
slide it into the channel of the drawer slide.
LH Drawer Slide (DL)
H6 Small Woodscrew
H6 Small Woodscrew
RH Drawer Slide (DR)
