Instruction Manual
Streamlined minimalist style
Boston 5 Drw tallboy
C o n g r a t u l a t I o n s O N t h e p u r c h a s e
o f y o u r …….
W e l c o m e t o t h e b o s –tb105 …….

BOSTON –BOS-TB105 2
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
……the Boston Collection is manufactured right here in New Zealand - by New Zealanders, for New
Zealanders. Honest Kiwi Quality that is backed by our signature 5 Year Guarantee*. If by any chance you
have a problem during this period, OUR promise to YOU is that we will repair or replace. Additionally, being
based right in here New Zealand our experienced team’s expertise is near at hand; if you have any
problems at all during the assembly process, you can give us a call on our Freephone number (0800 100858)
or email us at [e-mail] during normal working hours and we will be happy to step you
through the process.
The Boston Collection is a modern and stylish collection, designed in response to latest interior trends, both
in New Zealand and overseas. Finished in a latest European trending Concise Walnut woodgrain, The Boston
Collection is right up with the minute. Paired with a minimalistic streamlined style and an emphasis on strong
horizontal lines, this collection is guaranteed to impress. Fully overlaid drawers give an illusion of length,
attributing to the slim line effect. Thin silver extruded handles enhance this effect, adding to the overall
horizontal theme without complicating surface areas. Tall slim chrome feet contribute the slim-line effect,
and create a feeling of space, by lifting the unit up off the ground.
The Boston Collection is constructed from NZ made MDF, a renewable resource from sustainably managed
pine forests. This means you can have complete confidence that with The Boston Collection, you are
making an environmentally responsible choice.
If you have any questions please visit www.warehousefurniture.co.nz or call the manufacturers direct on
0800 100 858.
WHERE TO ASSEMBLE YOUR Cabinet
Assemble your Tallboy on a clean and smooth surface, free of anything which may damage the finished
surfaces. A clean, carpeted floor is ideal. If assembling on a workbench or table we suggest you cover it
with the carton the Tallboy was packaged in.
Warning! Never leave hardware parts where children can reach them. Small parts may be a choking
hazard!
*5 YEAR GUARANTEE
The Boston Collection carries a 5 year guarantee against defective material or workmanship, excluding
misuse and normal wear and tear. Obviously, as this unit is customer-assembled we cannot guarantee
cabinet failure or damage from incorrect assembly. All claims need proof of purchase –to ensure this
register your cabinet at www.warehousefurniture.co.nz.
Follow the assembly instructions carefully and take note of the precautions below.
Avoid direct sunlight wherever possible.
Keep cabinet in a dry place.
Wipe off spilt liquids immediately.
Avoid placing hot items directly on the surface.
Clean with a slightly damp cloth and buff dry with a soft dry cloth - microfibre is ideal.
Do not allow nail polish, removers, deodorant or other damaging chemicals to come into
contact with the surface.
Did you know……

BOSTON –BOS-TB105 3
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
PARTS LIST
Please check you have all the necessary parts before beginning to assembling your cabinet. The
measurements provided will help you to identify each part. If any parts are missing or damaged please
contact the manufacturers directly, either via our website or our 0800 number. Do not call the store you
bought the cabinet from as they will be unable to help you.
QTY
PART NAME
MEASUREMENTS
NOTES
MANUFACTURERS CODE
1
Top
996 x 396 x 15mm
Finished on one side. Blue mark.
106130
1
Base
996 x 396 x 15mm
Finished on one side. Purple mark.
106131
1
LH End
1028 x 377 x 15mm
Finished on one side. Green mark.
106132
1
RH End
1028 x 377 x 15mm
Finished on one side. Red mark.
106133
2
Rails
958 x 80 x 15mm
Plain MDF
106134
1
Small Drw Front
984 x 125 x 15mm
Finished on one side
106135
4
Large Drw Fronts
984 x 221 x 15mm
Finished on one side
106136
1
LH Drw Side –Sml
340 x 95 x 12mm
Plain 12mm
106137
4
LH Drw Side - Lrg
340 x 160 x 12mm
Plain 12mm
102813
1
RH Drw Side –Sml
340 x 95 x 12mm
Plain 12mm
106138
4
RH Drw Side - Lrg
340 x 160 x 12mm
Plain 12mm
102818
1
Drawer Back –Sml
908 x 90 x 12mm
Plain 12mm
106139
4
Drawer Backs –Lrg
908 x 155 x 12mm
Plain 12mm
106140
5
Drawer Bottom
918 x 339 x 4mm
Plain 4mm
106141
5
Drawer Bottom Supports
328 x 50 x 12mm
Plain 12mm
106810
2
Top/Bottom Back Panel
353 x 978 x 4mm
Plain 4mm. Groove on one edge.
102142
1
Centre Back Panel
353 x 978 x 4mm
Plain 4mm. Tongue on two edges.
106144
COLOUR CODING
To help identify the parts, the main components are colour coded with a pen mark on the back edge of
the panel. (The unfinished edge.)
RED Right Hand Parts. (E.g. RH End, RH Division, RH Drawer Side.)
GREEN Left Hand Parts. (E.g. LH End, LH Division, LH Drawer Side.)
BLUE Tops
PURPLE Bases

BOSTON –BOS-TB105 4
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
HARDWARE LIST
QTY
PART NAME
ASSEMBLY CODE
MANUFACTURERS CODE
CABINET HARDWARE
8
Connecting Bolts
H1
102649
8
15mm Cams
H2
102511
8
Large Dowels
H15
102515
20
Drawer Slide Screws
H4
102652
4
Large Screws
H5
102648
5
Metal Drawer Slide sets
H21
102480
10
Bar Handles
H56
102472
16
Panhead Screws
H7
106118
4
Tall Feet
H55
106003
DRAWER HARDWARE
15
Connecting Bolts
H1
102649
15
12mm Cams
H3
102510
10
Large Dowels
H15
102515
20
Small Screws
H6
102642
25
Screws
H9
102645

BOSTON –BOS-TB105 5
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
CAM INSTALLATION & OPERATION GUIDE
The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this
system works.
To see a demonstration click on the assembly assistance tab at www.warehousefurniture .co.nz.
DRAWER SLIDES GUIDE
Your pack will contain 5 sets of Metal Drawer Slides. These are bundled together with adhesive tape. Each
set comprises of 4 components. Undo the tape on one set at a time and separate the parts.
LEFT HAND PART (DL) RIGHT HAND PART (DR)
The Drawer Slide components shown above are attached to the drawer. They have the letters DL or DR
stamped on them to indicate left hand or right hand components. Put these parts aside for attaching to the
drawer later on.
LEFT HAND PART (CL) RIGHT HAND PART (CR)
The Drawer Slide components shown above are to be attached to the cabinet. They have letters CL or CR
stamped on them to indicate left hand or right hand components. You will need these for steps 2and 3.
Use these holes

BOSTON –BOS-TB105 6
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
INSTALL THE HARDWARE

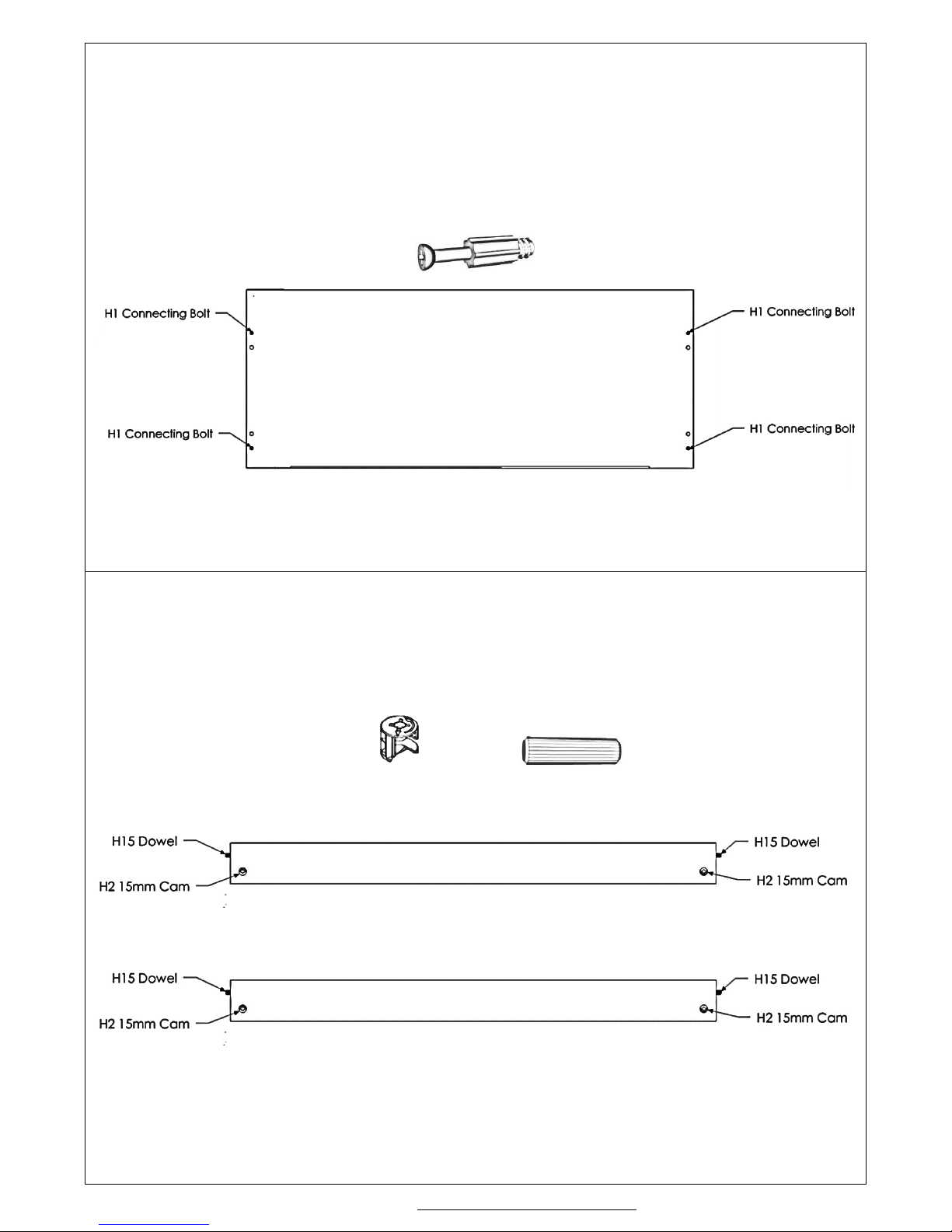

STEP 1 - TOP
Lay the Top of the unit finished side down on a clean, clear surface.
Screw four H1 Connecting Bolts into the holes as indicated in the drawing below
STEP 2 –Rails
Take the rails. Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the
Cam points towards the nearest short edge of the Rail.
Push one H15 Dowel into each end of each rail.
H2 H15

BOSTON –BOS-TB105 7
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
STEP 3 –lH END
Lay the LH End on a smooth clean surface with holes facing upwards.
Attach five LH Drawer Slides (CL) to the LH End using the H4 Drawer Slide Screws. Use the holes as
indicated in the diagram below - each slide requires two screws. Ensure that the end of the Slide
with the wheel faces towards the finished edge of the End.
Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points
towards the top edge of the End.
Push two H15 Dowels into the top edge of the End.
Screw in two H1 Connecting Bolts as shown below.
H1 H2 H4 H15

BOSTON –BOS-TB105 8
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858

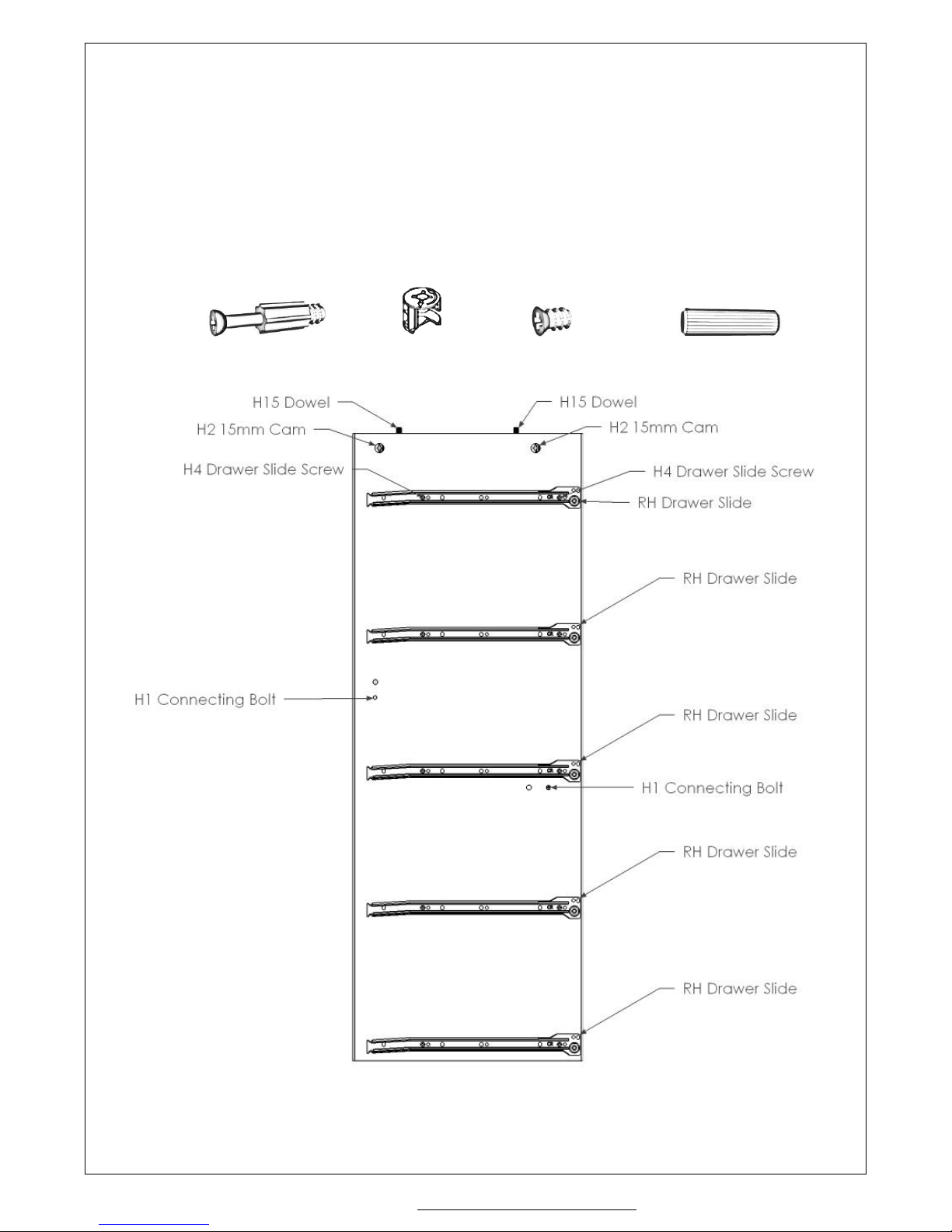

STEP 4 –RH END
Lay the RH End on a smooth clean surface with holes facing upwards.
Attach five RH Drawer Slides (CR) to the RH End using the H4 Drawer Slide Screws. Use the holes as
indicated in the diagram below - each slide requires two screws. Ensure that the end of the Slide
with the wheel faces towards the finished edge of the End.
Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points
towards the top edge of the End.
Push two H15 Dowels into the top edge of the End.
Screw in two H1 Connecting Bolts as shown below.
H1 H2 H4 H15

BOSTON –BOS-TB105 9
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
ASSEMBLE THE UNIT
STEP 5 –rails to LH end
Lay the LH End finished side down on a clean clear surface. Fit the two Rails as shown below. The H1
Connecting Bolts installed in the End will fit into the H2 Large cams installed in the Rails.
Turn the Metal Cams installed in the Rails in a clockwise direction to lock the Rails to the End. Ensure
they turn a least a ¼ to ½ a turn.
STEP 6 –RH END
Attach the RH End to the Rails by connecting the H1 Connecting Bolts installed in the RH End to the
H2 15mm Cams installed in the Rails as shown below.
Turn the Metal Cams installed in the Rails in a clockwise direction to lock the Rails to the End. Ensure
they turn a least a ¼ to ½ a turn.

BOSTON –BOS-TB105 10
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858

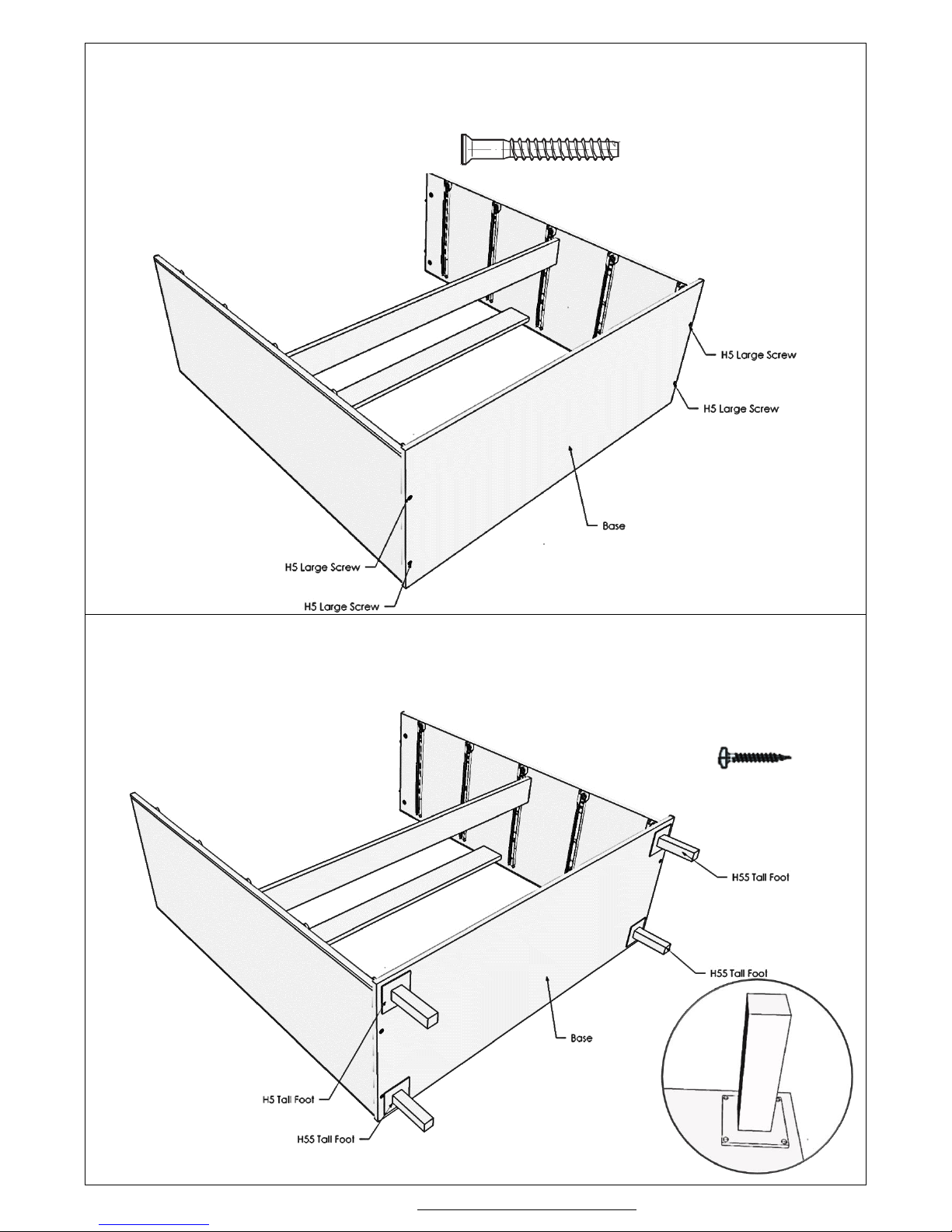

STEP 7 - BASE
Attach the Base to the Ends using the H5 Large Screws and the pre-drilled holes as shown below.
STEP 8 –Tall feet
Next screw on the four H55 Tall Feet using the H7 Panhead Screws. Use the pre-drilled holes.
H5
H7

BOSTON –BOS-TB105 11
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858

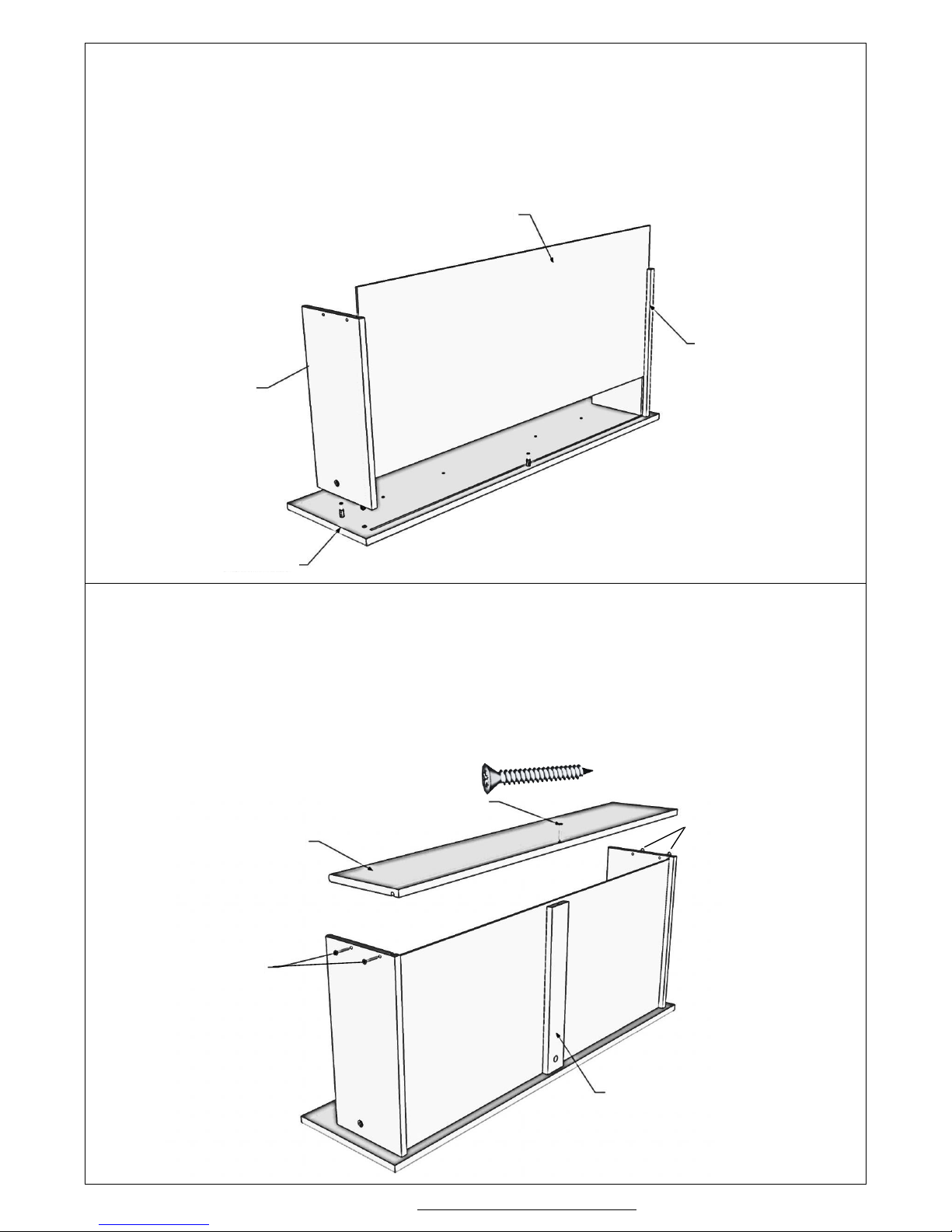

STEP 9 - BACK PANEL
Carefully stand the unit upright.
Take the Bottom Back Panel with the groove (the Top and Bottom Back Panels are
interchangeable). Slide this between the grooves in the Ends of the cabinet. Ensure that the Bottom
Back Panel fits into the groove in the Base, and that the groove in the edge of the Bottom Back
Panel is facing towards the top of the unit.
Take the Centre Back Panel, with the tongues. Slide this between the grooves in the Ends of the
cabinet. The tongue on the bottom edge will fit into the groove in the Bottom Back Panel.
Take the Top Back Panel. Fit this into place in the same way as the previous two panels.
STEP 10 - Top
Fit the H1 Connecting Bolts installed in the Top to the H2 Cams installed in the Ends. Ensure that the
Finished Edge of the Top is facing the same way as the finished edge of the Ends. The Top Back
Panel will fit into the groove in the back of the Top.
Turn the Metal Cams installed in the Ends in a clockwise direction to lock the Top to the Ends. Ensure
they turn a least a ¼ to ½ a turn

BOSTON –BOS-TB105 12
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
ASSEMBLE THE DRAWERS
Your Boston 5 Drawer Tallboy has five drawers. All Drawers are constructed from the same parts and are
therefore assembled the same way.

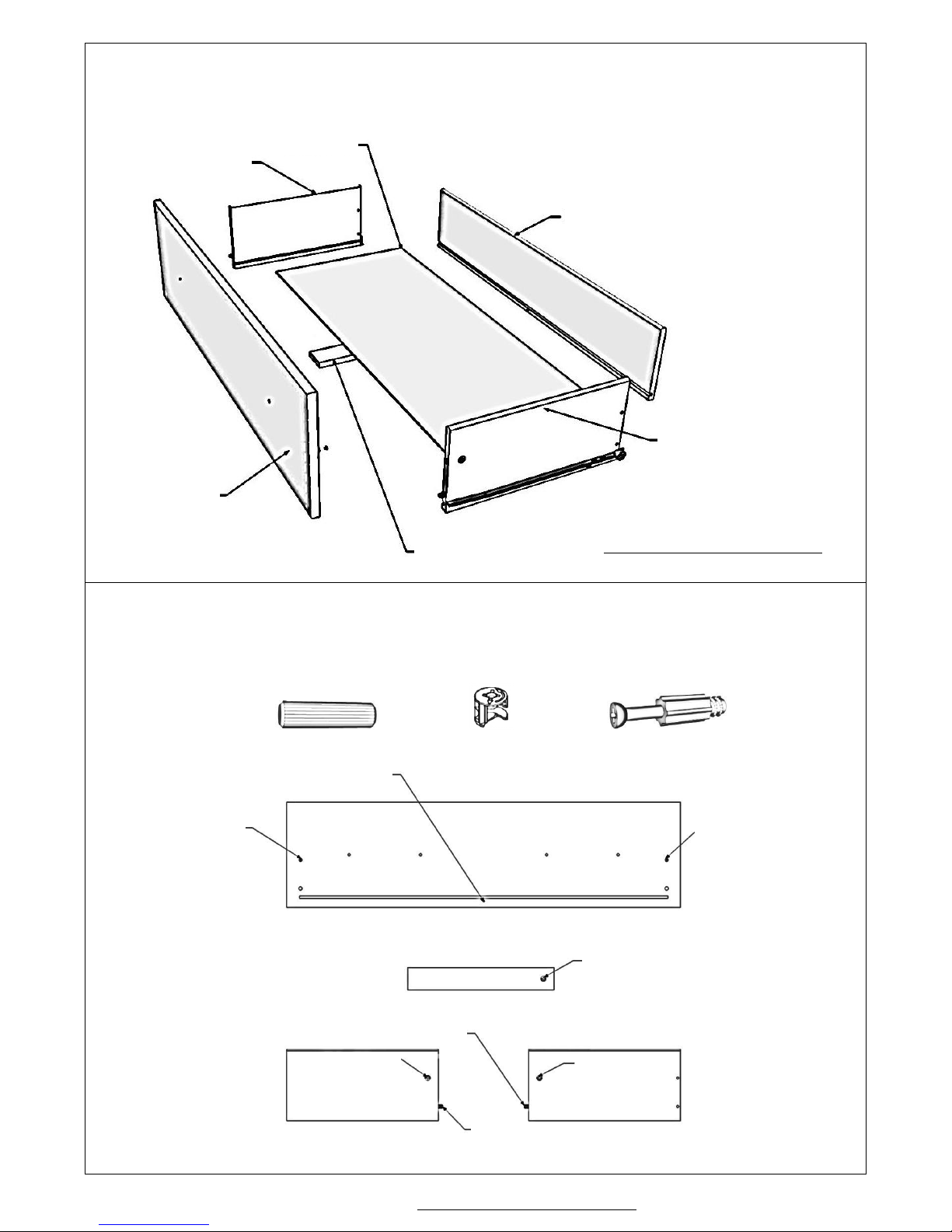

STEP 11 - INSTALL HARDWARE /DRAWERS
Install the hardware in the drawer parts as shown below.NOTE: Be sure that the arrow on the Small
Cam points to the end of the drawer side nearest it.
H15H3 H1
DRAWER FRONT
H1 Connecting Bolt
RH DRAWER SIDE
LH DRAWER SIDE
H1 Connecting Bolt
H3 Cam
H3 Cam
H3 Cam
H15 Dowel
H15 Dowel
LH Drawer Side
RH Drawer Side
Drawer Back
Drawer Bottom
Drawer Front
RH Drawer Side
Drawer Front
Drawer Bottom Support
To see a demonstration of how to
put a drawer together, click on
the assembly assistance tab at
www.warehousefurniture.co.nz
H1 Connecting Bolt
DRAWER BOTTOM SUPPORT

BOSTON –BOS-TB105 13
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
STEP 12 –sides and bottom
Lay the Drawer Front face down on a smooth, clean surface.
Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in
the Drawer Front.
Turn the Small Cams clockwise to lock the Drawer Sides in place.
Slide the Drawer Bottom into place in the grooves in the Drawer Sides and Drawer Front.
STEP 13 - ATTACH DRAWER BACK
Fit the Drawer Bottom Support into place underneath the Drawer Bottom, the H1 Connecting Bolt in
the centre back of the Drawer Front will fit up into the H3 Small Cam.
Turn the H3 Small Cam in a clockwise direction to lock the Drawer Bottom Support in place.
Fit the Drawer Back into place between the Drawer Sides. The groove in the Drawer Back will fit over
the end of the Drawer Bottom.
Secure the Drawer Sides and Drawer Bottom Support to the Drawer Back with five H9 Screws as
shown below.
H9
Drawer Bottom
RH Drawer Side
LH Drawer Side
Drawer Front
2 x H9 Screws
H9 Screw
Drawer Back
Drawer Bottom Support
2 x H9 Screws

BOSTON –BOS-TB105 14
For assembly advice or parts go to www.warehousefurniture.co.nz or call 0800 100 858
STEP 14 - ATTACH THE DRAWER SLIDES
Turn the drawer upside-down as shown and attach the Drawer Slides (DR and DL) with the four H6
Small Woodscrews as shown below. Ensure that the ends of the slides without the wheels are hard up
against the back of the drawer front as shown. Each slide requires two screws.
H6
STEP 15 - ATTACH HANDLES AND FIT DRAWERS INTO CABINET
Turn the drawer over and attach the handle using the screws provided.
Fit the drawers into the cabinet. Start with the top drawers and work your way down.
CONGRATULATIONS, YOUR Boston 5 Drawer Tallboy IS NOW COMPLETE.
THANK-YOU FOR SUPPORTING NEW ZEALAND MADE FURNITURE
Angle the drawer slightly to ensure that
the wheel at the back of the drawer slide
goes behind the front wheel on the
cabinet slide. Then lift the drawer up and
slide it into the channel of the drawer slide.
RH Drawer Slide (DR)
LH Drawer Slide (DL)
H6 Small Woodscrew
H6 Small Woodscrew
