COMPANION LP GAS LANTERN User manual

OWNERS MANUAL
Part No. 2162-65 (MANUAL IGNITION), 2169-65 (PIEZO IGNITION)
LP GAS
LANTERN
200 WATT
AS 2658
Cert. GSCS20059
SAI Global
AUSTRALIA ONLY
GAS SAFETY CERTIFICATION
TM

2
IMPORTANT: Read these instructions for use carefully. Familiarise yourself with the appliance before
connecting it to its gas container. Keep these instructions for future reference.
GENERAL WARNINGS
This appliance shall only be used with an LPG (Propane)
rellable cylinder certied to Standard AS 2469 that has
a 3/8"LH BSP inlet tting.
IT MAY BE HAZARDOUS TO ATTEMPT TO FIT OTHER
TYPES OF GAS CONTAINERS.
ONLY USE IN WELL-VENTILATED AREAS.
CARBON MONOXIDE HAZARD - USING THIS APPLIANCE
IN AN ENCLOSED SPACE MAY CAUSE DEATH. DO NOT
USE IN CARAVANS, TENTS, MARINE CRAFT, CARS,
MOBILE HOMES OR SIMILAR LOCATIONS.
WARNING! USE OUTDOORS ONLY.
CAUTION: accessible parts may be very hot. Keep young
children away.
SAFETY INFORMATION
Inspect the appliance regularly for signs of wear, leaks
or incorrect operation. If symptoms such as aring of
the burner, issues with lighting, damages to hoses
or connections or leaks from seals or gas controls
are identied do not attempt to repair, return to your
authorised stockist for service and maintenance.
Do not modify this appliance.
Check that seals between the appliance and the gas
container are in place and in good condition before
connecting the gas container. See gure 1.
Do not use this appliance if it has damaged or worn
seals.
Do not use the appliance if it is leaking, damaged or
does not operate properly.
This appliance is to be operated on a stable, horizontal,
non-ammable surface.
The appliance should be protected from direct drafts
and in a well ventilated place.
Gas orices and burner must be kept clear of dirt and
cobwebs. Flow of combustion and ventilation air through
the perforated portions of the appliance must not be
obstructed.
Any cleaning agent used on the appliance must be of a
non-combustible and non-corrosive nature.
Gas containers shall be changed in a well-ventilated
location, preferably outside, away from people and any
source of ignition, such as naked ames, pilot ame,
electric heaters/equipment.

3
LP GAS LANTERN OWNERS MANUAL
CARBON MONOXIDE HAZARD
Using this appliance in an enclosed space may cause DEATH.
Do not use in caravans, tents, marine craft, cars, mobile homes
or similar locations.
This appliance is designed for connection directly to the
cylinder - DO NOT USE ADAPTORS.
Return to your place of purchase for spare parts, service
and repair.
This appliance must only be serviced by an authorised
person.
This appliance must be operated away from any
ammable material or surfaces and materials.
Always operate appliance a minimum of 1000 mm from
ammable materials, walls and from ceiling.
Ensure all packaging is removed prior to use.
Do not operate this appliance before reading the
instruction booklet.
Do not place articles on or against this appliance.
Do not store chemicals or ammable materials, or spray
aerosols near this appliance.
Do not operate with panels, covers or guards removed
from this appliance.
Do not operate in an enclosed area without ventilation.
Do not operate in a boat, caravan or tent.

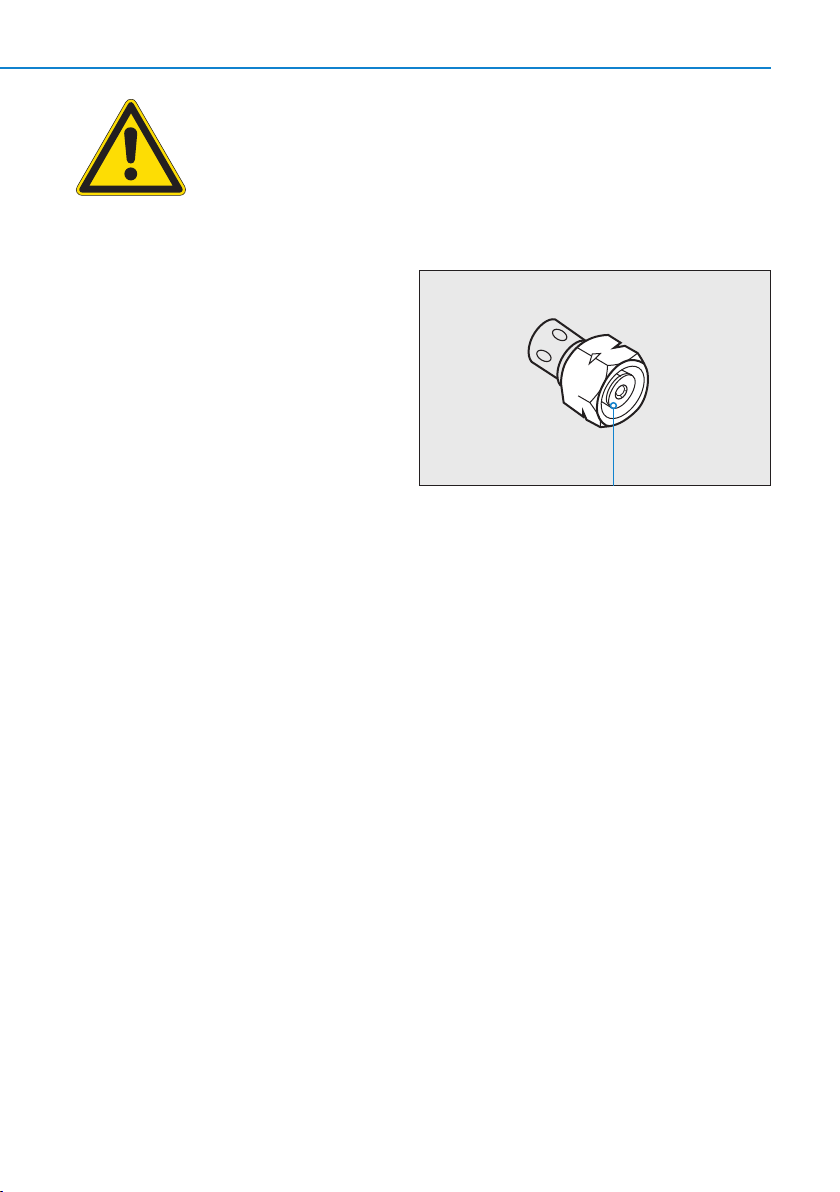

Figure 1: O-Ring seal located inside the gas tting.

4

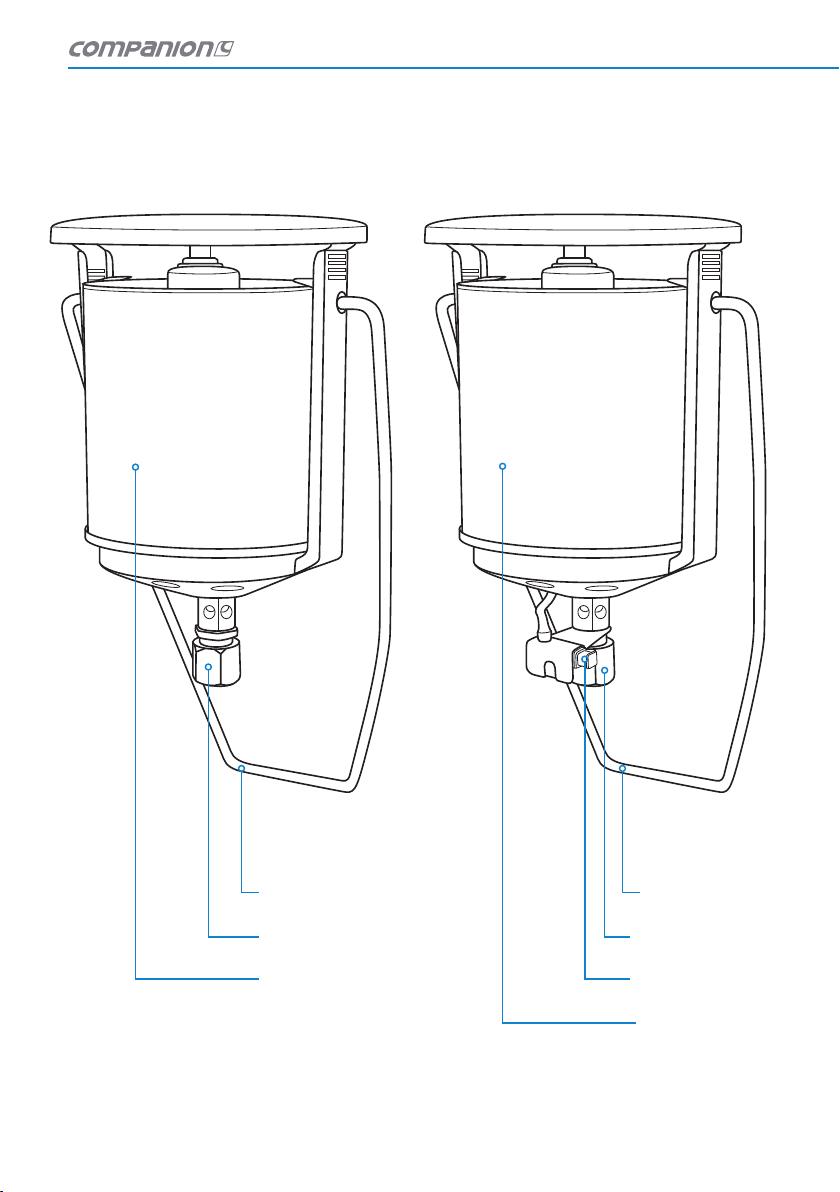

UNDERSTANDING YOUR APPLIANCE
CARRY HANDLE CARRY HANDLE
CYLINDER CONNECTION
PIEZO IGNITION
CYLINDER CONNECTION
FROSTED GLASS
FROSTED GLASS
2162-65 2169-65

5
LP GAS LANTERN OWNERS MANUAL

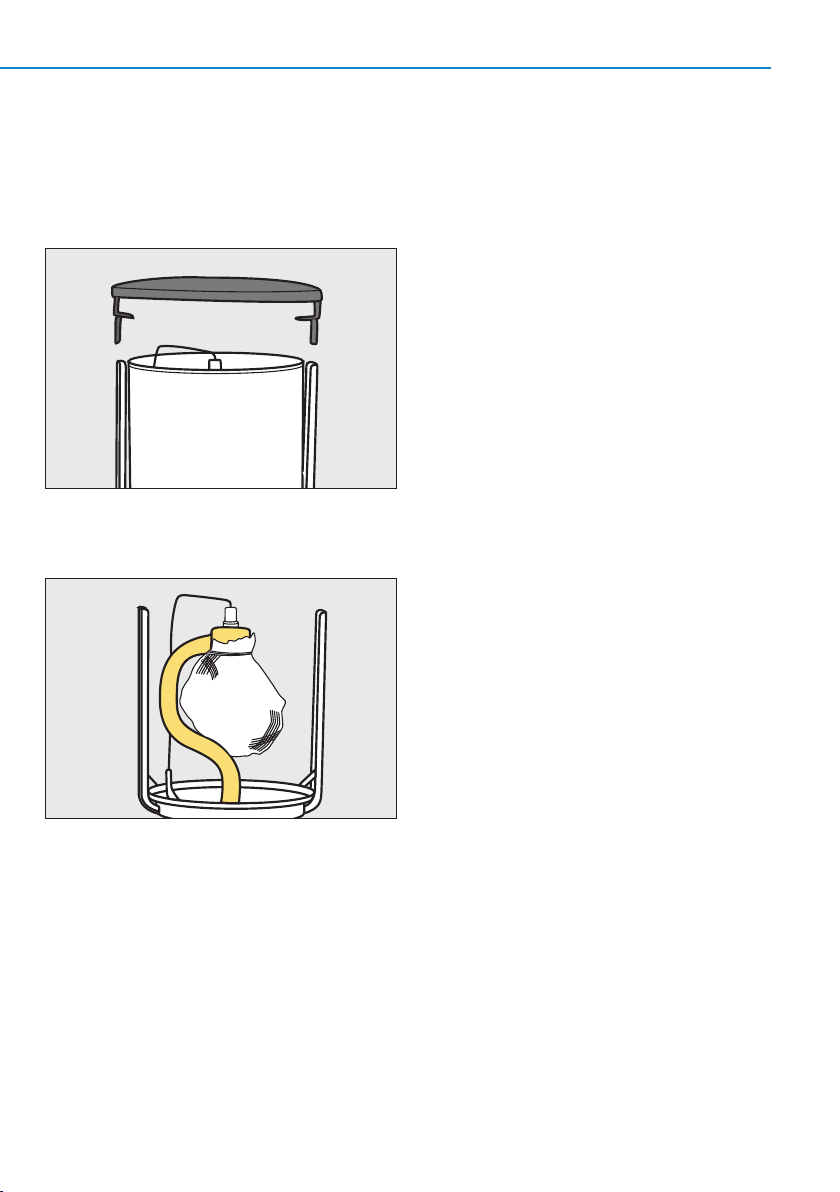

MANTEL INSTALLATION
Step 1. With the lantern attached to the LP gas
cylinder, remove the carry handle and top cover and
gently remove the lantern glass and place in a safe
location to avoid this being broken.
Step 2. Slip the open end of the mantel over the
burner tube and then tighten.
PRE-CONDITION PROCESS
This process is important as it prepares the mantel for
the rst time use by converting the cloth bers to leave a
natural source chemical ash that when heated produces
a bright incandescent light.
You should always light the mantle with a match and let
them burn to ash before lighting the lantern.
DO NOT have the gas turned on for this process as this
can cause a mantle to tear or break.
It is recommended that this process is carried out for
both manual or piezo ignition lanterns.
CARRY HANDLE
PIEZO IGNITION
CYLINDER CONNECTION
FROSTED GLASS

6
CHECKING FOR GAS LEAKS
Check that all connections are tight and that the gas
cylinder connection has been tightened before you turn
the cylinder gas valve on.
If there is a leak on your appliance (smell of gas)
immediately attempt to turn off the cylinder valve.
Remove the appliance to a well-ventilated location away
from any ignition source.
NEVER check for leaks with a ame or pilot light.
Check for leaks using Companion Gas Leak Detection
Spray or soapy water, coat all connections, if bubbles
appear turn the cylinder gas control off and re-tighten
the connection before re-testing.
SAFE LOCATIONS
This appliance shall only be used in an above ground
open air situation with natural ventilation, without
stagnant areas, where gas leakage and products of
combustion are rapidly dispersed by wind and natural
convection.
Any enclosure in which the appliance is used shall
comply with one of the following:
An enclosure with walls on all sides, but with no
overhead cover (see example 1).
Within a partial enclosure that includes an overhead
cover and no more than two walls (see examples 2 & 3)
Within a partial enclosure that includes an overhead
cover and more than two walls, the following shall apply:
At least 25% of the total wall area is completely open.
30% or more in total of the remaining wall side, back
and front wall areas is open and unrestricted
(see examples 4 & 5).
In the case of balconies, 20% or more of the total wall
area shall remain open and unrestricted.
DIAGRAMMATIC REPRESENTATION OF OUTDOOR AREAS
The following examples are diagrammatic
representations of outdoor areas. Rectangular areas
have been used in these examples - the same principles
apply to any other shaped area.
Example 1
Example 2
Example 3
Example 4
Example 5
Both ends open
Open side at least 25% of total wall area.
30% or more in total of the remaining wall area is open and unrestricted.
Open side at least 25% of total wall area.
30% or more in total of the remaining wall area is open and unrestricted.

7
LP GAS LANTERN OWNERS MANUAL
IMPORTANT INFORMATION FOR USE
During operation all surfaces will be extremely hot and
should not be touched or handled.
Take care that the primary air intakes, located on the
burner tube of this appliance are not obstructed, or that
air ow is restricted by placing items or other appliances
close to or adjacent to the inlets.
Do not attempt to move or relocate the appliance when
it is operating, extinguish the burner and allow to cool,
disengage the gas cylinder then move the appliance.
This appliance is to be stored in a dry and well-
ventilated location free from direct sunlight. Do not store
when still connected to the cylinder.
Make sure that the cylinder is disconnected and is stored
in a well ventilated area, out of the reach of children,
free from direct sunlight, heat and ignition sources. If
being stored indoors, ensure that the location complies
with the standard AS/NZS 1596.
Never leave appliance unattended when operating.
Do not use as a space heater.
Use as a lighting appliance only, is not to be used as
heater or modify for any other reason.
After use, turn the gas cylinder valve off and wait for
the ame to go out.
To check if gas remains in the cylinder, disconnect from
the appliance and hold the cylinder in a vertical position
then shake from side to side, if there is a sound or feel of
liquid movement inside, the cylinder contains gas.

8

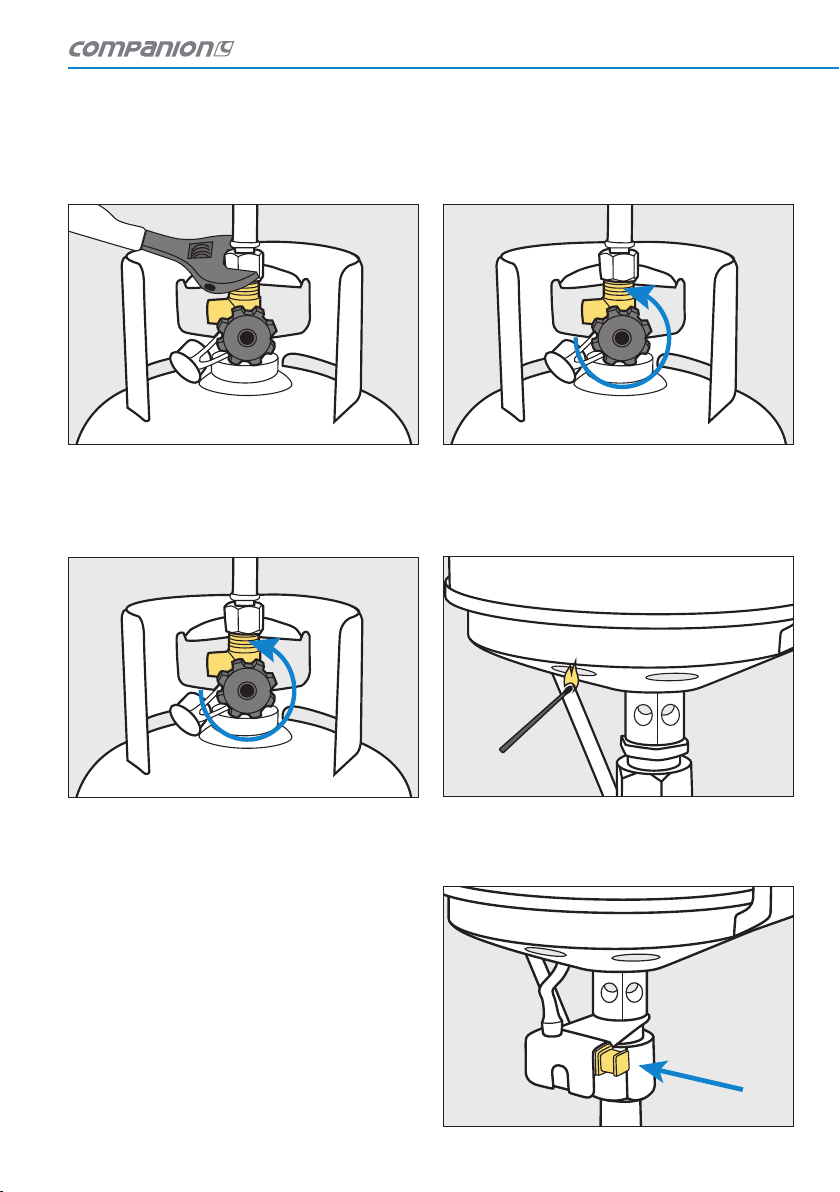

CONNECTION
Step 1. Take the lantern connector and attach to the
gas inlet on the appliance, tighten up using a spanner.
Step 2. Turn the cylinder gas valve on in an anti-
clockwise direction for one full turn and then check
the connections for leaks
NOTE: If a leak is detected turn the cylinder gas valve
OFF and retighten all connections then retest.
LIGHTING LANTERN
(MANUAL AND PIEZO)
Step 1. Turn the Gas Control Valve 1/4 of a turn.
Step 2. 2162-65: Insert a long lit match into the base
of the lantern, making sure that it is positioned as
close to the mantel as possible.
Step 2. 2169-65: Depress the Piezo Igniter two or
three times.

9
LP GAS LANTERN OWNERS MANUAL
NOTE: If the lantern does not ignite, turn the gas
control in the clockwise direction to the OFF position
and allow the residual gas to disperse before
attempting to reignite the burner.

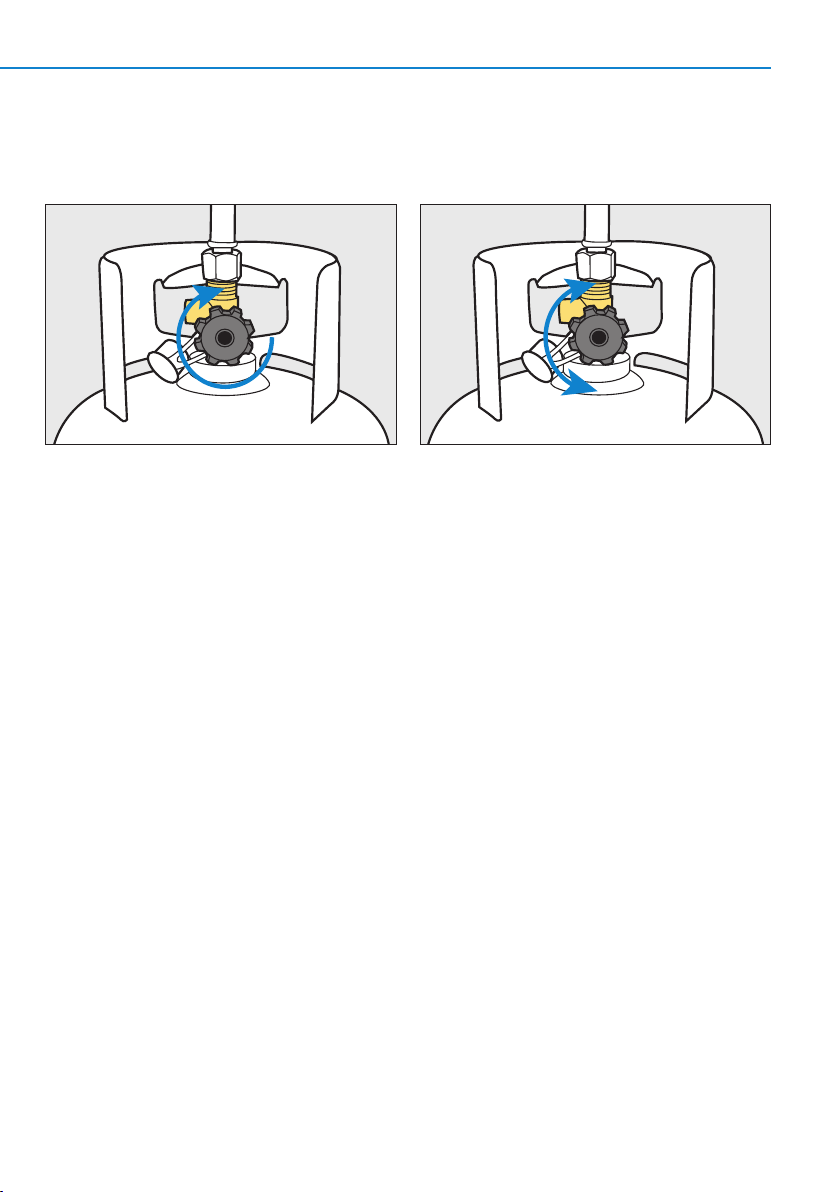

ADJUSTING FLAME
Turn the gas control in an anti-clockwise direction
to achieve a higher brightness and in the clockwise
direction for a lower brightness.

10
CARE INSTRUCTIONS
Using warm soapy water with a mild detergent wipe
down all surfaces and areas of the appliance, taking
care not to allow water to enter the burner outlets or
aeration holes located in the burner tube.
Do not submerge the appliance in a sink or bowl.
Do not use abrasive cleaners or bleach.
MAINTENANCE AND SERVICE
During operation if it is noted that the burner ame is
unstable, is changing colour from blue to yellow or has a
distinct smell it is important that you take the appliance
to your local authorised gas appliance repairer for
inspection.
Periodically check the gas control is tight and has no
leaks, follow the testing for leaks procedure.
For further information or assistance please contact
customer service.
A selection of spare parts and components are available
for your appliance to ensure years of operation.
For more information in Australia call 1300 555 197
or email: [e-mail]
SPECIFICATIONS
Part no. 2162-65 / 2169-65
Model no. LP Gas Lantern
Gas type Propane
Gas jet size 0.12 mm +/- 0.01
Gas consumption 5.5 MJ/h - 100 g/h
Dimensions
Lid: Ø 205 mm
Body: Ø 135 mm
Weight 0.60 kg
Certicate number GSCS20059
