Modular Array Configuration Guide
Introduction
The purpose of this configuration guide is to list the components that have
been qualified in and can be installed in RETMA cabinets. The predefined and
Configure-To-Order solutions are assembled in the Modular Storage Cabinets.
These cabinets include Power Distribution Units and are pre-cabled.
The Series 9000 cabinets are available in three heights: 42U, 36U and 22U.
The top gun blue RETMA cabinet is available in a 41U height.
Single-Bus Mode or Dual-Bus Mode
The HSG80 controller firmware (ACS 8.5) can address up to 12 drives per
UltraSCSI bus. In single-bus mode this means that 12 of the 14 drive bays are
used. The 2 extra drive bays can be used for in-cabinet inventory. In dual-bus
mode the firmware can see seven drives on each bus allowing use of all 14
drives.
The Model 4214R disk enclosure is a single-bus enclosure that has slots for 14
drives. It supports 12 drives in single bus mode. It does not support daisy
chaining between shelves.
The Model 4254 is a dual-bus enclosure that has slots for 14 drives. It supports
seven drives per bus, for a total of 14 drives.
Table 1 describes the advantages and disadvantages between single-bus and
dual-bus mode.

2Modular Array Configuration Guide
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Table 1
Single-Bus and Dual-Bus Modes
Mode Advantages Disadvantages
Single Bus Greater disk capacity per
controller channel.
Shelf failure only effects one
channel.
More drives per channel can
degrade performance.
Doubles rack space consumed
versus dual bus shelves.
Dual Bus Fewer drives per channel may
increase performance.
Half the rack space consumed
versus single bus shelves
allows greater disk and
controller capacity per cabinet.
Less disk capacity per controller
channel.
Shelf failure effects two channels
possibly causing RAIDset failure.
The maximum number of drives behind an HSG80 (single or cooperating pair)
using six single-bus Model 4214 disk enclosures is 72.
The maximum number of drives behind an HSG80 (single or cooperating pair)
using three dual-bus Model 4254 disk enclosures is 42.

Modular Array Configuration Guide 3
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Rack Configurations
Figure 1 shows an example of the cabinets.
Figure 1. Example of the 42U, 36U, and 22U cabinets
Table 2 lists the height of the various components that can be installed in the
cabinets.
Table 2
Component Height
Component Height
Model 2200 controller enclosure 4U
Model 4214 disk enclosure 3U
Model 4254 disk enclosure 3U
Compaq StorageWorks SAN Switch 8 1U
Compaq StorageWorks SAN Switch 16 2U
Fibre Channel Hub, 7-port 1U
(2 hubs can be mounted side-by side)
Fibre Channel Hub, 12-port 1U

4Modular Array Configuration Guide
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Modular Building Blocks
A Model 2200 controller enclosure can support up to six Model 4214R disk
enclosures or three Model 4254 disk enclosures.
A typical building block using Model 4214R disk enclosures (single-bus)
consists of one Model 2200 controller enclosure with one to six Model 4214R
disk enclosures. Typically, when more than three disk enclosures are used, the
first three would be installed under the Model 2200 controller enclosure, the
next three would be installed on top of the controller enclosure (see Figure 2).

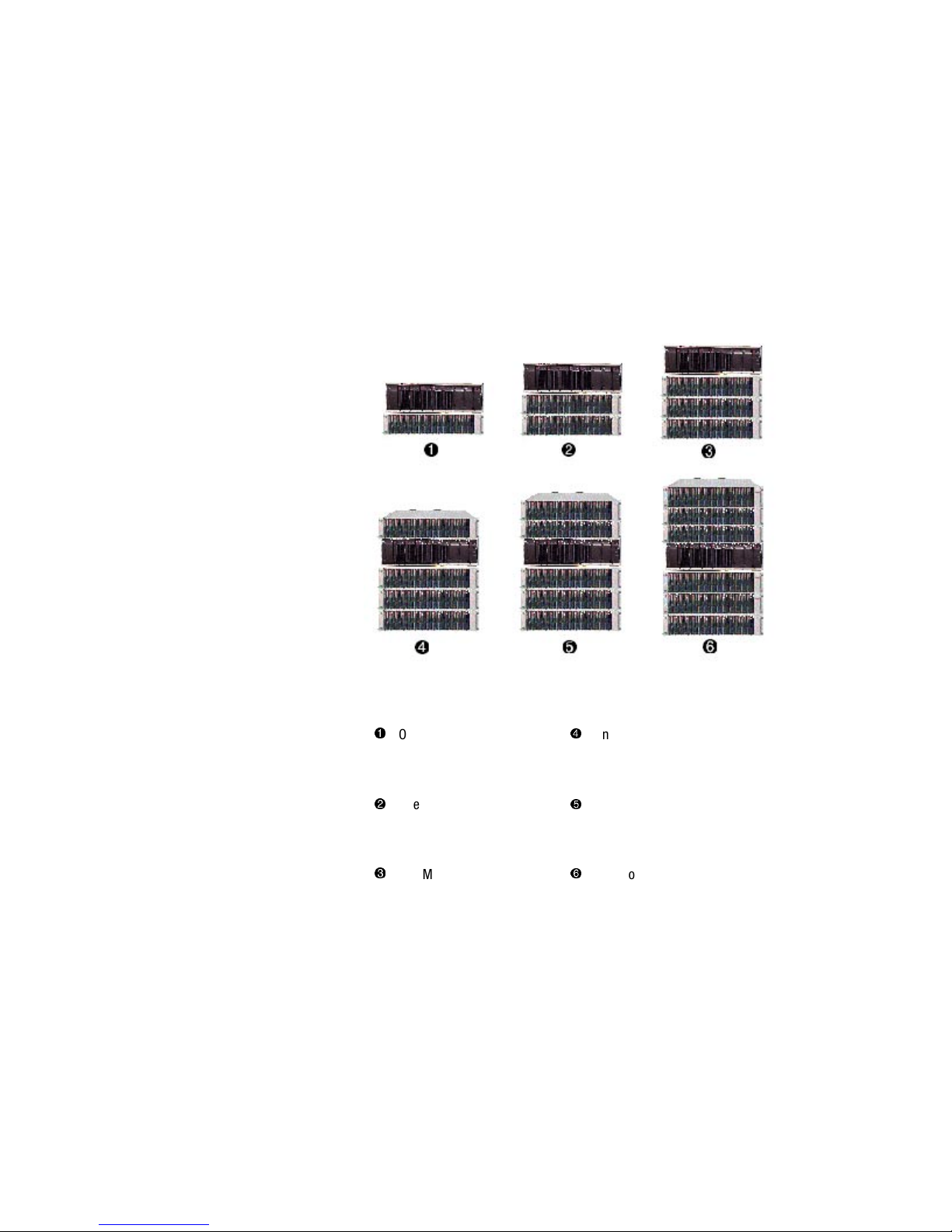

Figure 2. Examples of modular building blocks using Model 4214R disk
enclosures (single-bus)
1
One Model 2200 controller
enclosure and one Model
4214R disk enclosure
4
One Model 2200 controller
enclosure and four Model
4214R disk enclosures
2 One Model 2200 controller
enclosure and two Model
4214R disk enclosures
5 One Model 2200 controller
enclosure and five Model
4214R disk enclosures
3
One Model 2200 controller
enclosure and three Model
4214R disk enclosures
6
One Model 2200 controller
enclosure and six Model
4214R disk enclosures

Modular Array Configuration Guide 5
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
A typical building block using Model 4254 disk enclosures (dual-bus) consists
of one Model 2200 controller enclosure with three Model 4254 disk enclosures
(see Figure 3). The Model 4214R can also be configured in this manner.
NOTE: If a Model 4214R disk enclosure is configured in this manner, only three of the I/O
ports are being used.
Figure 3. Examples of modular building blocks using either the Model 4214R
(single-bus) or Model 4254 (dual-bus) disk enclosures
1
One Model 2200 controller
enclosure and three Model
4214R disk enclosures
or One Model 2200 controller
enclosure and three Model
4254 disk enclosures
2 Two Model 2200 controller
enclosure and six Model
4214R disk enclosures
or Two Model 2200 controller
enclosure and six Model 4254
disk enclosures
3
Three Model 2200 controller
enclosure and nine Model
4214R disk enclosures
or Three Model 2200 controller
enclosure and nine Model
4254 disk enclosures

6Modular Array Configuration Guide
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Configuration using a 41U Modular Storage
Cabinet
The 41U modular storage cabinet supports the following configurations:
NOTE: The following lists what the maximum number of each component that can be
installed in a 41U cabinet. The total number of components that will physically fit into the
41U cabinet is limited by the amount of space. See Table 2 for individual component
height.
■No more than two Model 2200 controller enclosure shelves (each
controller enclosure can contain a maximum of two HSG80 controllers)
(DS-SE2ZS-C8 / 135820-B21)
■No more than six Model 4214R disk enclosure shelves
(DS-SSL14-RS / 103381-001)
or six Model 4254 disk enclosure shelves
(DS-SSL14-RM / 103381-001)
■No more than two Compaq StorageWorks SAN Switch 8
(DS-DSGGB-AA / 158222-B21)
■No more than two Compaq StorageWorks SAN Switch 16
(DS-DSGGB-AB / 158223-B21)
■No more than seven Fibre Channel Hub, 7-port
(DS-SWXHB-07 / 234453-001)
(DS-SWXHB-I7 / 234453-B31)
(DS-SWXHB-J7 / 234453-291)
■No more than two Fibre Channel Hub, 12-port
(DS-GHGGB-AA / 295573-B22)

Modular Array Configuration Guide 7
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Configuration using a 42U Modular Storage
Cabinet
The 42U modular storage cabinet supports the following configurations:
NOTE: The following lists what the maximum number of each component that can be
installed in a 42U cabinet. The total number of components that will physically fit into the
42U cabinet is limited by the amount of space. See Table 2 for individual component
height.
■No more than three Model 2200 controller enclosure shelves (each
controller enclosure can contain a maximum of two HSG80 controllers)
(DS-SE2ZS-C8 / 135820-B21)
■No more than nine Model 4214R disk enclosure shelves
(DS-SSL14-RS / 103381-001)
or nine Model 4254 disk enclosure shelves
(DS-SSL14-RM / 103381-001)
■No more than two Compaq StorageWorks SAN Switch 8
(DS-DSGGB-AA / 158222-B21)
■No more than two Compaq StorageWorks SAN Switch 16
(DS-DSGGB-AB / 158223-B21)
■No more than seven Fibre Channel Hub, 7-port
(DS-SWXHB-07 / 234453-001)
(DS-SWXHB-I7 / 234453-B31)
(DS-SWXHB-J7 / 234453-291)
■No more than two Fibre Channel Hub, 12-port
(DS-GHGGB-AA / 295573-B22)

8Modular Array Configuration Guide
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Configuration using a 36U Modular Storage
Cabinet
The 36U modular storage cabinet supports the following configurations:
NOTE: The following lists what the maximum number of each component that can be
installed in a 36U cabinet. The total number of components that will physically fit into the
36U cabinet is limited by the amount of space. See Table 2 for individual component
height.
■No more than two Model 2200 controller enclosure shelves (each
controller enclosure can contain a maximum of two HSG80 controllers)
(DS-SE2ZS-C8 / 135820-B21)
■No more than six Model 4214R disk enclosure shelves
(DS-SSL14-RS / 103381-001)
or six Model 4254 disk enclosure shelves
(DS-SSL14-RM / 103381-001)
■No more than two Compaq StorageWorks SAN Switch 8
(DS-DSGGB-AA / 158222-B21)
■No more than two Compaq StorageWorks SAN Switch 16
(DS-DSGGB-AB / 158223-B21)
■No more than seven Fibre Channel Hub, 7-port
(DS-SWXHB-07 / 234453-001)
(DS-SWXHB-I7 / 234453-B31)
(DS-SWXHB-J7 / 234453-291)
■No more than two Fibre Channel Hub, 12-port
(DS-GHGGB-AA / 295573-B22)

Modular Array Configuration Guide 9
Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
Configuration using a 22U Modular Storage
Cabinet
The 22U modular storage cabinet supports the following configurations:
NOTE: The following lists what the maximum number of each component that can be
installed in a 22U cabinet. The total number of components that will physically fit into the
22U cabinet is limited by the amount of space. See Table 2 for individual component
height.
■No more than two Model 2200 controller enclosure shelves (each
controller enclosure can contain a maximum of two HSG80 controllers)
(DS-SE2ZS-C8 / 135820-B21)
■No more than six Model 4214R disk enclosure shelves
(DS-SSL14-RS / 103381-001)
or six Model 4254 disk enclosure shelves
(DS-SSL14-RM / 103381-001)
■No more than two Compaq StorageWorks SAN Switch 8
(DS-DSGGB-AA / 158222-B21)
■No more than two Compaq StorageWorks SAN Switch 16
(DS-DSGGB-AB / 158223-B21)
■No more than seven Fibre Channel Hub, 7-port
(DS-SWXHB-07 / 234453-001)
(DS-SWXHB-I7 / 234453-B31)
(DS-SWXHB-J7 / 234453-291)
■No more than two Fibre Channel Hub, 12-port
(DS-GHGGB-AA / 295573-B22)

Compaq Confidential –Need to Know Required
Writer: Patrick Waychoff Project: Modular Array Configuration Guide Comments:
Part Number: EK-MACON-CA. A01 File Name: EK-MACON-CA-A01.doc Last Saved On: 4/3/00 3:52 PM
