Compaq Armada E700 Series User instructions

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Overview
17/26/99 Division – Portables
Compaq Armada E700
BENEFITS AT
A GLANCE
•Intel Mobile Pentium®II processor
400 MHz
•128 MB SDRAM
•14GB1SMART Hard Drive
•14.1-in TFT 1024 x 768 display
•AGP (Accelerated Graphics Port)
Implementation
- 8 MB Video SDRAM
- 66-MHz graphics bus
•Tri-view display support (TV-out
NTSC &PAL)
•Choice of Windows NT or 95
•Integrated Mini PCI modem
•Full-size keyboard
•User removable hard drive
•Dual-stacked Multibay providing
integral 3-spindle support
•Dual battery support
•Integrated stereo-speakers
•Protected by a three-year,
Worldwide Limited Warranty1,
Pick-up anywhere within Australia
with a 48-hour service workshop
turnaround repair time.

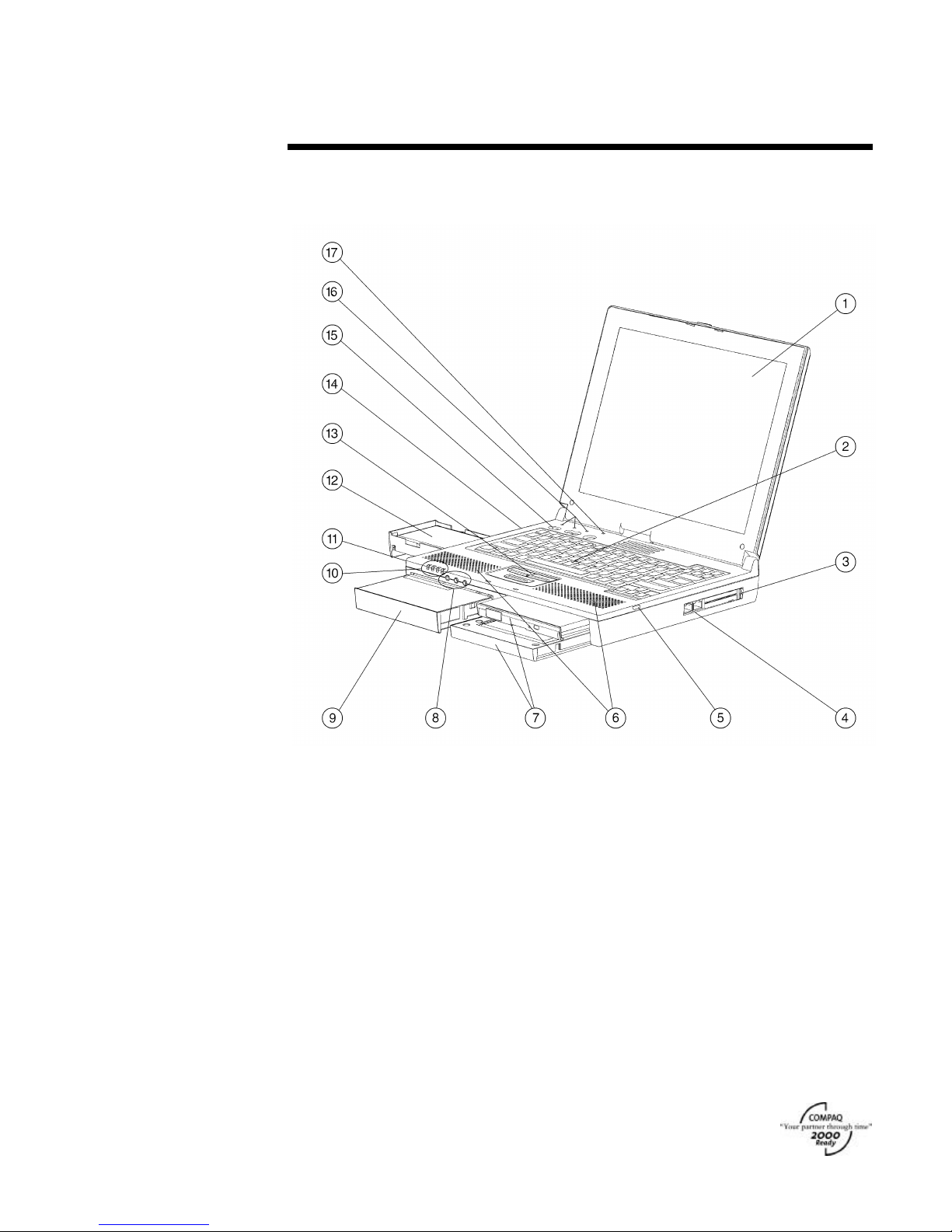

1. 14.1-in Color TFT Display
2. EasyPoint IV Pointing Stick
3. PC Card Slots (2)
4. RJ-11 Jack
5. Acoustic Ports (2)
6. Stereo Speakers (2)
7. Dual-stacked MultiBay (hold: 12.7 mm diskette
drive, CD-ROM, SuperDisk LS-120, second battery,
or MultiBay HDD. Also can hold: one 12-cell battery,
or one 17 mm HDD (w/HDD adapter)
8. Microphone jack, Stereo Speaker/Headphone jack,
Stereo Line-in jack
9. 8-cell Battery
10. Battery light, Power/Suspend light, HDD light,
MultiBay light
11. Integrated Microphone (on left-side)
12. Primary HDD
13. Left, Right, and Scroll Pointing-Stick Buttons
14. Video-out Port (on left-side)
15. Power, Volume (2), Suspend Buttons
16. Num Lock, Scroll Lock, Caps Lock lights
17. Display Switch

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
27/14/99 Division – Portables
Compaq Armada E700
Processor
Intel Mobile Pentium II processor 400 MHz with MMX™ technology
Cache Memory
Integrated 256-KB level 2
Memory
Standard 128 MB
Maximum 320 MB
Communications
Integrated industry-standard Mini-PCI v.90, 56/33.6/14.4 Kb/s controllerless modem with protection from power
surges and digital phone lines
6400/T14/14.0/V/M/1
6400/T14/14.0/V/M/3
Keyboard
101-key compatible keyboard with isolated, inverted-T cursor control keys and right-control key; special feature
hotkeys for instant access to power conservation QuickLock/QuickBlank , battery charge status, brightness, mute and
toggle between internal, external or simultaneous displays
Pointing Device
Keyboard-integrated, textured, EasyPoint IV™ with 3 button support for easy selection, scrolling and magnification
PC Card Slots
Two Type II/One Type III PC Card Slot(s) support both 32-bit CardBus2and 16-bit PC Cards; Zoomed Video support
in both slots.
Storage
Diskette Drives 1.44 MB
DVD-ROM Drive 6400/T14/14.0/V/M/1
6400/T14/14.0/V/M/3
Hard Drives 14 GB3
Multimedia
Integrated PCI audio controller based on ESS Maestro-3E with ES1920 AC’97 Rev 2.0 codec and selectable 2 MB/4
MB wavetable with WDM drivers for Win 98. Compaq Premier•Sound™ for enhanced stereo audio (16-bit Sound
Blaster Pro compatible), integrated stereo speakers and microphone, software volume control, stereo line-in,
headphone out, microphone in jacks, standard DVD-ROM Drive and software MPEG1. Software MPEG2 is available.
MODELS
Windows NT Workstation 4.0
with integrated modem
6400/T14/14.0/V/M/3
113364-011
Windows 95 with integrated
modem
6400/T14/14.0/V/M/1
113367-011

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
37/14/99 Division – Portables
Compaq Armada E700
Interfaces
PC Card Two Type II/One Type III Slot(s)
Enhanced Parallel 1
Serial 1
External Monitor 1
External Keyboard/
Pointing Device 1
Convenience Base 1
Headphone/Line out 1
Microphone in 1
TV-out 1
AC Power 1
DC Power 1
RJ-11 1
Infrared 1 (4 Mb/s4support)
USB 1
Graphics
2X AGP implementation with dedicated 66-MHz AGP graphics bus. ATI Mobility-P™ graphics controller with 8 MB of
125 MHz SDRAM. Up to 100 Hz external refresh at SVGA resolution up to 16.8 M colors. Supports Tri-view display
with TV-out, with 2 different images on 2 different displays at different refresh rates. NTSC & PAL TV-out support via
optional dongle up to 1024 x 768 resolution
Display
14.1-inch color TFT with 1024 x 768 resolution (up to 16.8 M colors)
Software
Microsoft Windows NT Workstation 4.0 SP4
Compaq Intelligent Manageability
Security 32
Diagnostics for Windows NT
Compaq Power Management
Online Safety and Comfort Guide
Reference Guide
Carbon Copy
Microsoft Windows 95 OSR 2.5
Compaq Intelligent Manageability
Security 32
Diagnostics for Windows 95
Compaq Power Management
Online Safety and Comfort Guide
Reference Guide
Carbon Copy
OS Support
Windows NT Workstation 4.0 SP4
Windows NT Workstation 4.0 SP3
Windows 98
Windows 95 OSR 2.5
Intelligent Manageability
Lowers cost of ownership by providing enhanced security, asset management and fault prediction. Also provides
system alerts such as SMART Drive alert, battery fault alert, thermal alert, and memory alert for investment and data
protection

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Standard Features
47/14/99 Division – Portables
Compaq Armada E700
Security
Cable lock support
Power-on and setup passwords
QuickLock/QuickBlank
Ability to disable serial port, parallel port, PC Card slots, diskette drive, diskette drive boot sequence, infrared port
Memory door security screw (tool included)
DriveLock Security for advanced data protection
Password protection resides on the drive
Power Supply
Integrated AC Adapter for less bulky transportation; 8-foot power cord included
Battery5
Li-Ion Battery Pack provides up to 3.7 hours of battery life6; a second battery can be supported in the MultiBay for
increased battery life: Battery QuickCheck button on battery pack provides instant visual indication of charge status
Power Conservation
Hibernation, Instant-On via Suspend; pop-ups with three presets and one custom level of power conservation
Service and Support
Compaq Services provides a range of services for the Armada E700, including a three-year, Worldwide Limited
Warranty. In Australia warranty includes Pick-up anywhere in Australia with 48-hour service workshop turnaround
repair time.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Options
57/14/99 Division – Portables
Compaq Armada E700
Memory
128-MB Memory Upgrade 400313-B21
64-MB Memory Upgrade 400312-B21
32-MB Memory Upgrade 400311-B21
Monitors
TFT8000 Flat Panel - 18" 307906-011
TFT5000 Flat Panel - 15" Pivot 325700-011
TFT5000S Flat Panel – 15” 122729-011
P110 Colour - 21" 325600-011
P75 Colour - 17" 307806-011
S900 Colour - 19" 360562-011
S700 Colour - 17" 360512-011
V500 Colour - 15" 325900-011
Hard Drives
10- GB SMART Hard Drive (Multibay) 134107-B21
14-GB SMART Hard Drive (Dual Bay) 354231-B25
PC Cards/Communications
Compaq Microcom 420 56K Global
Modem 317900-011
Compaq Microcom 520 56K Modem +
10/100 Ethernet PC Card 321550-011
10/100 TX PC Card UTP Controller 335506-B21
Nettelligent 16/4 IBM TR PC Card 301208-B21
Compaq Speedpaq GSM Radio PC Card 294650-021
Multimedia
DVD-to-Go (PCMCIA DVD MPEG-2) 202861-B21
Expansion Bases
ArmadaStation II (Opal) 203100-012
ArmadaStation II (Carbon) 112162-012
MiniStationE 327137-012
MiniStationEX 327138-012
Opal Tower Stand 267863-001
Opal Monitor Stand 319660-001
ArmadaStation EM with Intel NIC TBA
ArmadaStation EM with 3Com NIC TBA
Armada Convenience Base EM with Intel
NIC TBA
Armada Convenience Base EM with
3Com NIC TBA
Armada Port Replicator EM 382300-011
Convenience Base EM Monitor Stand 122296-B25
ArmadaStation Tower Stand 122599-B25
Power
Primary Battery (8-cells) 109095-B21
DualBay Battery (12-cells) 109094-B21
MultiBay Battery (6 cell ) 387937-B25
AC Adapter 120765-B21
External Battery Charger 135555-B21
Auto Charger 401043-B25
AircraftAdapter 386504-B21
AC Line Cord (10-ft) 217932-012
Input Devices
External Enhanced III Keyboard
(carbon) 118003-018
Compaq Mouse (opal) 143315-B21
Compaq Mouse (carbon) 103180-B21
Useful Accessories
Security Lock 294316-B21
Armada Headset with microphone 220460-001
UniversalMonitorStand 294315-B21
Carrying Cases
Compaq Value Case, Nylon 318370-001
Compaq Global Case 255818-001
Compaq Leather Case 318151-001
MultiBay Devices
4x DVD-ROM Drive 118103-B25
SuperDisk LS 120 Drive 296502-B25
10- GB SMART Hard Drive (Multibay) 134107-B21
14-GB SMART Hard Drive (Dual Bay) 354231-B25
MultiBay Battery (6 cell ) 387937-B25
DualBay Battery (12-cells) 109094-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Memory
67/14/99 Division – Portables
Compaq Armada E700
Compaq Armada E700
STANDARD MEMORY
128 MB installed – 64 MB SDRAM installed on the System Board and 64 MB installed in 1 slot (1
slot available)
Standard Slot Slot
1 2
128 MB Empty
STANDARD MEMORY PLUS
OPTIONAL MEMORY
Support for up to 256 MB of SDRAM is available with the installation of an optional Memory
Upgrade.
Up To Slot Slot
1 2
160 MB
192 MB
256 MB
STANDARD MEMORY REPLACED
WITH OPTIONAL MEMORY
Support for up to 320 MB of SDRAM memory is available with the removal of the standard 64 MB
SDRAM Memory Upgrade and the installation of optional SDRAM Memory Kits in addition to the
64 MB SDRAM on the System Board.
Up To Slot Slot
1 2
320 MB
Note: Because on memory slot is occupied in these products, the 64 MB SDRAM Memory Upgrade
(which ships standard) must be removed to reach the maximum memory of 320 MB. This chart
does not represent all possible configurations.
Following are memory options available from Compaq:
•128-MB Memory Upgrade 400313-B21
•64-MB Memory Upgrade 400312-B21
•32-MB Memory Upgrade 400311-B21

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Storage
77/14/99 Division – Portables
Compaq Armada E700
DRIVE SUPPORT Quantity
Supported Drive Bay Supported
Removable Media
1.44-MB Diskette Drive 1MultiBay (Bottom Bay Only)
24X Max7CD-ROM Drive 1MultiBay
4x DVD-ROM 1MultiBay
SuperDisk LS-120 1MultiBay
Hard Drives
14-GB3SMART Hard Drive 2Dedicated hard drive bay and
MultiBay

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specification
87/14/99 Division – Portables
Compaq Armada E700
System Unit Dimensions (HxWxD) 2 x 12.6 x 10.2 in/5.08 x 32 x 25.9 cm
Weight (with modem installed)
DVD-ROM/FDD configured (14.1-in)
Without Power Cord 8.8 lbx/4.0 kg
With Power Cord (total carrying weight) 9.2 lbs/4.2 kg
DVD-ROM/Weight Saver configured (14.1-in)
Without Power Cord 8.4 lbs/3.8 kg
With Power Cord (total carrying weight) 8.8 lbs/4.0 kg
12-cell Battery configured (14.1-in)
Without Power Cord 9 lbs/4.1 kg
With Power Cord (total carrying weight) 9.4 lbs/4.3 kg
Stand-Alone Power Requirements
Average Operating Power 15W
Peak Operating Power 30W
Power Supply
Rated Input Voltage 100 to 120/220 to 240 VAC
Rated Input Current 1.2/0.6A
Rated Frequency 50 to 60 Hz
Temperature
Operating 5° to 104°F/10° to 40°C
Non-operating –4° to 140°F/–20° to 60°C
Relative Humidity (non-condensing)
Operating 10% to 90% relative humidity, non-condensing
Non-operating 5% to 95% relative humidity, 101.6°F/38.7°C Maximum
webulb temperature
Shock
Operating 10 G, 11 ms, half sine
Non-operating 60 G, 11 ms, half sine
Vibration
Operating 0.25 G, 50 to 500 Hz sine, 1/2 octave/minute sweep
Non-operating 1 G, 50 to 500 Hz sine, 1/2 octave/ minute sweep
Maximum Altitude (unpressurized)
Operating 0 to 10,000 ft/3,048 m (14.7 to 10.1 psia)
Non-operating 0 to 30,000 ft/9,144 m (14.7 to 4.4 psia)

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specifications
97/14/99 Division – Portables
Compaq Armada E700
Dimensions (HxW) 8.5 x 11.27 in/21.59 x 28.63 cm14.1-Inch Color TFT XGA
Display Diagonal Size 14.1 in/35.81 cm
Mounting Internal Panel Supports
Number of Colors Up to 16.8 M with dithering
Contrast Ratio 150:1
Brightness 150 cd/m2
Pixel Resolution
Pitch 0.279 x 0.279 mm
Format 1024 x 768
Configuration RGB stripe
Backlight CCFT (Cold Cathode Fluorescent Tube)
Character Display 80 x 25
Total Power Consumption 4.5W
14 GB3Capacity 14.13GB Seek Time (typical reads, including settling)
Height Single Track 4 ms
Width Average 12 ms
Interface Full-Stroke 23 ms
Transfer Rate RotationalSpeed 4,900 rpm
Synchronous Physical Configuration
(Max) Bytes/sector 512 KB
Hard Drives
Operating Temperature
Diskette Drive Diskette Size 3.5 in
Light On system
Height 0.5 in/12.7 mm
Bytes per Sector 512
Sectors per track
High density 18 (1.44 MB)/15 (1.2 MB)
Low density 9
Tracks per side
High density 80 (1.44 MB)/80 (1.2 MB)
Low density 80
Read/Write heads 2
Access Times
Track-to track (high/low) 3 ms/6 ms
Average (high/low) 94 ms/174 ms
Settling time 15 ms
Latency average 100 ms

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
QUICKSPECS
Technical Specification
10 7/14/99 Division – Portables
Compaq Armada E700
Li-Ion Battery Pack Dimensions (HxWxL) 0.92 x 3.46 x 5.44 in/2.34 x 8.8 x 13.82 cm
Weight 0.89 lbs/0.4 kg
Energy (Primary 8-cell Battery)
Voltage 14.4 V
Amp-hour capacity 3.2 Ah
Watt-hour capacity 46Wh (w/calibration)
Energy (Optional 12-cell Battery)
Voltage 14.4 V
Amp-hour capacity 4.9 Ah
Watt-hour capacity 69Wh (w/calibration)
Energy (Optional 6-cell Battery)
Voltage 10.8 V
Amp-hour capacity 2.8 Ah
Watt-hour capacity 30Wh (w/calibration)
Performance
Single primary battery life 3.5 hours
Dual battery life (8-cell and 12-cell) 8.8 hours
Dual battery life (8-cell and 6-cell) 5.8 hours
Temperature
Operating 50° to 104°F/10° to 40°C
Non-operating –12° to 140°F/–30° to 60°C
DVD-ROM Drive Center Hole Diameter 0.59 in/1.49 cm
Disc Diameter 12 cm, 8 cm
Disk Thickness 1.2 mm
Track Pitch 0.74 ìm
Access Times (typical reads, including settling)
Random < 150 ms
Full-Stroke < 225 ms
Audio Output Level
Line out 0.7 Vrms (typical)
Cache Buffer 128 Kb/s (minimum)
Data Transfer Rate
Sustained (1X) 150 Kb/s
Sustained DVD 2,760 Kb/s
Normal PIO Mode 4 (single burst) 16.6 Mb/s
Start-up Time < 15 sec (typical)
Stop Time < 6 sec
1Certain restrictions and exclusions apply. Consult the Compaq Care Centre for details: 1300 368 369.
2Full support in Windows 9.x
3For Hard Drives, GB = Billion Bytes
4IrDA 4 MB compliant. IR performance will vary depending on performance of IR peripherals and applications used.
5When tested in the standard configuration using Ziff-Davis BatteryMark test version 2.0, the battery life of the Armada E700 family will
range from 3 hours 0 minutes to 3.5 hours and 0 minutes depending on individual usage.
6Actual results may vary with individual usage. When tested in a standard configuration, using the Ziff-Davis BatteryMark test version
2.0, the Battery life of the Armada E700 will range up to 3.7 hours. Standard configuration is considered to one battery, a 1024 X 768
(64k colors) 14.1" panel set at 50 percent brightness, 128-MB RAM and no drives other than the hard drive active.
7Standard 24X Max CD-ROM data transfer rates currently vary from 150Kbps to 3600Kbps.
