EM800 Digital Multimedia Platform
User Manual
V1.0
Beijing Compunicate Technologies Inc.
2010-6

2
Preface
Beijing Compunicate Technologies Inc. is China’s leading supplier of DVB head-end products
and solutions.
Compunicate was founded in January 1997 by several scientists, experts, Ph.D holders with
background in image compression and digital video broadcast technology. Since 1996,
Compunicate has begun to participate in the establishment of digital TV standards and the
research and development of corresponding products and systems, accumulating a wealth of
experience in the field of digital TV.
In recent years, we have been actively cooperating with related instruction departments of the
national digital television industry, and actively participating in the standards of Chinese digital
TV studies and settings, which include core technology standards such as Audio Video
Standard (AVS), Conditional Access (CA), Interactive TV Receiving.
Compunicate has established quality guarantee system according to the international
standard and has gained ISO9001 certificate, which increases the company’s
competitiveness and establishes a firm basis for its sustainable development.
Compunicate insists on the independent R&D. Its products include different parts of head-end
infrastructure and value-added service platforms of digital TV, including：
Encoder Digital Playout System
Multiplexer MosaicGenerator
Scrambler ObjectCarouselGenerator
QAMModulator DigitalProgramInserter
CAS DTVLogoInserter
PMM StillPictureBroadcasting
SMM KaraokeSystem
SI-EPGSystem DTV-MobileShortMessagePlatform
Our conditional access products are the ones which first meet the DVB Simulcrypt Standards
in China. And New Vision Mosaic System is the first global integrated navigation system with
whole functions. Our products hold the first market share compared with similar products.
With the birth and growth of China's digital television, Compunicate has formed a positive
engineer culture, which pursues innovation and excellence, pays attention to commitment
and practice. We are willing to cooperate with colleagues in the industry to promote a healthy
and orderly development in digital television industry.

3
Introduction
About this manual
This manual describes the configurations and operational approaches of Compunicate
EM800 digital multimedia platform in details.
Please read this manual carefully, and then you will be able to operate the EM800 digital
multimedia platform correctly.
The suitable version: Hardware V1.0
SoftwareV1.0
Document structure
This manual includes the following contents：
1．Product description：Introduce the basic principles and penal structure of the product.
2．Operation guide：Introduce how to use network management and panels to complete the
functions.

4
This manual Tips
Warning
Warn that maloperation may result in equipment failure.
Attention
Remind the user of how to prevent damage to hardware or loss of data.
Note
Note signals important information that requires special attention
Terminology
TS: Transport Stream
SPTS：Single Program Transport Stream, it means there are only related streams of one
program existing in one TS stream.
MPTS: Multiple Program Transport Stream, it means there are streams of multiple programs
existing in one TS stream.
ASI: Asynchronous Serial Interface
DCT: Discrete Cosine Transform
GOP: Group of Pictures
SPI: Synchronous Parallel Interface
VBR: Variable Bit Rate
CBR: Constant Bit Rate
Attention：
Please use high quality cable and confirm good connection.
Please make sure your power meets requirement, don't use power line without grounding.
Please don't open the lid.
Please leave space in the machine to ensure good heat dissipation.
The company reserves the right to modify the manual without notice, keep
constantly the right to improve the accuracy adequacy and integrity of
information in manual. For incorrect use without the manual, we assume no
liability. In addition, only our clients are eligible for post-sale support. We
hope that the users browse the company's website to obtain the latest
information on this product, and enjoy good after-sale service.

5
Content
PREFACE..............................................................................................................................................2
CHAPTER 1 PRODUCT DESCRIPTION.........................................................................................6
1.1 PRODUCT INTRODUCTION ..............................................................................................................6
1.2 OVERALL FUNCTION FEATURES .....................................................................................................7
1.3 ENCODER CARD FUNCTION FEATURES ...........................................................................................7
1.4 EM800 INTERFACE ........................................................................................................................8
1.5 FRONT PANEL.................................................................................................................................8
1.6 MENU STRUCTURE.......................................................................................................................10
1.7 BACK PANEL ................................................................................................................................11
CHAPTER 2 OPERATION GUIDE..................................................................................................12
2.1 PANEL OPERATION GUIDE.............................................................................................................12
2.1.1 Start up ................................................................................................................12
2.1.2 Network configuration ..........................................................................................13
2.1.3 Factory reset........................................................................................................13
2.1.4 Lock keyboard .....................................................................................................13
2.1.5 Password configuration .......................................................................................15
2.2 NETWORK MANAGEMENT GUIDE .................................................................................................16
2.2.1 Search online device ...........................................................................................17
2.2.2 Enter configuration...............................................................................................18
2.2.3 Output configuration ............................................................................................19
2.2.4 Forward program .................................................................................................21
2.2.5 Login conservation...............................................................................................22

6
CHAPTER 1 PRODUCT DESCRIPTION
1.1 Product introduction
EM800 is a brand new digital media platform of Compunicate. This platform adopts the
computer card design, 1U device has the functions of encoding, multiplexing and scrambling.
It supports 8 MPEG-2/H.264 encoding at most, 16 ASI input multiplexing and scrambling at
most, and gigabit IP output. This manual is only related to the contents of encoding.
This product applies to the construction and expansion digital TV head-end system, has the
advantages of stable performance, good compatibility, high integration, and easy to operate
etc, can save a lot of maintenance costs and space for the operators.
Figure 1-1 EM800 encoder external view

7
1.2 Overall function features
¾Each device supports 5 slots, 4 of them can freely configure encoder card and ASI input
card, the rest one is used for output.
¾Supporting ASI output or giga IP output
¾IP encoding output is accordance with RTP or UDP protocol
¾Local monitoring：button and LCD display screen
¾Remote monitoring：TCP/IP,XML protocol.
1.3 Encoder card function features
MPEG-2 encoder card
¾MPEG-2 4:2:0 MP@ML Video encoding
¾Video input mode NTSC/PAL adaptive
¾MPEG-1 LayerII Audio Encoding (sampling frequency 32KHz,44.1KHz,48KHz)
¾Supporting mono, double mono, stereo, joint stereo
¾Output code rate mode：VBR、CBR
H.264 encoder card
¾H.264 HP@L4 Video encoding(sampling frequency 48KHz)
¾Video input NTSC/PAL adaptive
¾MPEG-1 LayerII Audio Encoding(sampling frequency 48KHz)
¾Supporting AAC Audio Encoding (optional)
¾Supporting mono, stereo
¾Output code rate mode：VBR、CBR

8
1.4 EM800 interface
Video 2 CVBS
Analog MPEG-2
Encoder Card Audio 2 analog audio
Video 2 SDI
Digital （SDI）MPEG-2
Encoder Card Audio 2 SDI embedded audio
Video 2 CVBS
Analog H.264 SD
Encoder Card Audio 2 analog audio
Video 2 SDI video
Digital （SDI）H.264
HD/SD Encoder Card Audio 2 SDI embedded audio
Input card
ASI input card 4 ASI input（2 Mirrors）
ASI 4 ASI output
ASI output card
IP 1 100M/10M network
management
ASI 2 ASI output
Output card
Giga IP output card
IP
1 100M/10M network
management interface
1 1000M network
management interface
1.5 Front panel
The layout of front panel is shown as figure 1.5. It includes one LCD display screen, 4 rows of
indicators and 6 buttons to form the front panel. Respective descriptions are as follows:
Figure 1.5 EM800 front panel

9
¾Six buttons
MENU、OK are used to choose menu and configure parameters.
The respective functions corresponding to digit 5、6、7、8、9、10 are：
[] change value and parameters
[] change value and parameters
[] move cursor towards to the right
[] move cursor towards to the left
[OK] 1) setting parameter: confirm current configuration is effective and return
to the upper menu.
2) browsing menu: enter into the selected submenu.
[MENU] 1）setting parameter: keep current configuration and return to the
upper menu.
2) Browsing menu: return to the previous menu.
¾Four rows of indicators, corresponding to 1、2、3、4
Indicator 1: power light, on: the encoder is powered up;
Indicator 2: status light, a) error indicator, b）overflow indicator, c）PID lose
indicator.
Indicator 3: encoding status light
The 8 encoding status lights are respectively corresponding to 8 encoding.
All of them are on: it means this encoding is chosen and signal source is
locked.
Half of them are on: it means this encoding isn’t chosen.
Off: it means there is no encoder card.
Flash: it means this coding is chosen and signal source is unlocked.
Indicator 4: multiplexing input status light

10
1.6 Menu structure
The operation menu is divided into three levels, shown as figure 1.6:
Figure 1.6

11
1.7 Back panel
If there are multiple cards in a device, including CVBS input and SDI input, the sequence of
corresponding network management is shown as figure 1.7:
Figure 1.7
Thereinto,0、1、2、3、4、5、6 and 7 are corresponding to Import-0、Import-1、Import-2、
Import-3、Import-4、Import-5、Import-6 and Import-7 in network management.

12
CHAPTER 2 OPERATION GUIDE
2.1 Panel operation guide
This encoder is easy to operate. It can work after connecting to input and output lines and
power. If you need to change the work environment and parameter settings, use the buttons
with the guide of menu displayed on the screen.
Attention
1. limited by the number of words shown, it could not display all menu items of the
same-level at one time. Press “↑↓”these two buttons to switch among brother menu items
in a certain order.
2. Only in the final level menu can you modify the parameters. Click "OK" button into lower
level menu when it is not the final level menu, and choose more detailed items or modify
their parameters in lower level.
3. There are many choices for entering into lower level menu from superior menu. It will
enter into the submenu item which is most recently changed or browsed.
4. Entering into the final level menu, if modification is allowed, modify the parameters and
press the "OK" to confirm. If you don't want to change the original parameters, click
"MENU" to return to the upper level.
5. When coding is in progress, on matter which menu you are at, LCD screen will
automatically go back to the main interface over certain time (5 minutes), which is the
initial status.
2.1.1 Start up
Power on to start up the encoder, it will display the uploading status:
The encoder automatically encodes after starting up, it will display a resident interface as
follows:
¾Operation

13
1. Switch from “resident interface” to “network, factory reset, lock buttons, modify
password” menu: double click “MENU” button. “Resident interface” is equivalent
to the top level of the whole menu.
2. Switch from “network, factory reset, lock buttons, modify password” menu to
“resident interface”: click “MENU” button.
2.1.2 Network configuration
zOptions：IP、Gateway
Æ
As above figure, click “OK” button to enter:
IP：192.168.1.3
Gateway：192.168.1.1
Netmask：255.255.255.0
Note
The factory default IP of EM800 digital multimedia platform is 200.121.2.169.
Network configuration can only be operated in panels, and cannot be modified.
2.1.3 Factory reset
zAfter complementing “factory set”, click “OK” button, wait for several seconds, the device
parameters will recover to factory default.
2.1.4 Lock keyboard
zAfter locking system, the set password takes effect, shown as follows:
zAfter locking system, when user press“MENU”button enter menu from resident

14
interface, enter password as prompt, shown as the following interface:
zIf the password is incorrect, press “OK” key to prompt that user password is incorrect,
which is shown as the following interface; press “MENU” key to switch to password input
interface.
zIf password is correct, press “OK” key to enter system menu interface, the system
unlocking in successful. After that, user press “MENU”to enter menu directly, it won’t
prompt to enter password any more. If need to lock the system again, complement
“Lock KeyBoard”menu.

15
2.1.5 Password configuration
z“Modify password” description:
zAfter complementing this menu, it will display the following interface:
zEnter “ÍÎÏДin “-”. When entering each one, the corresponding “-”will become
“*”and the cursor will move back a bit.
zPassword is defined 8 characters;
The initial password is “ÏÏÏÐÐÐÐД, it is the factory default password and can be
modified.
zWhen the cursor is in any position, press “MENU” key to quit current configuration and
return to the upper menu.

16
2.2 Network management guide
Operation steps process:
Search online device Æinput and output configuration (include input and output)Æforward
program Ælogin conservation
Interface description
Double click EM800.exe, it will display figure 4-1：
Figure 4-1
The interface in figure 4-1 can be divided into three parts: the upper part is the available
toolbar , the left of the lower part displays the device numbers which
are connected to the network, the right of the upper part displays encoder parameters, and
the right of the lower part displays the status of encoder output interface.
In the toolbar, icon is to create a new encoder.
Icon is to open file, the opened file is the file saved in this device after user modifying
encoder parameter.
Icon is to save the modified parameter to this device.

17
Icon is the mark to log in network management software.
Icon is the refresh mark. If the device is not connected after login, press this key to find
the device which just logs in without display.
It displays the encoder number on the left of the interface. Each encoder has a corresponding
IP address and a green light.
It displays the detailed parameters which can be modified of the encoder on the right of the
interface. In the parameter list, the video bitrate cannot be modified. When setting video total
bitrate, the system will automatically generate video bitrate, other parameters can operate
according to the above system prompts. If the setting goes beyond system specified range, it
will prompt a prompt dialogbox to show how to complete modification.
It displays output status of the encoder on the right of the interface to report the encoder’s
current status: that is, whether the login is correct or not, whether there is video resource input
or not, the time of information, etc. From this window, you can obtain encoder working status
intuitively.
2.2.1 Search online device
Right click “Devices list” on the right, shown as following figure:
After clicking, it will show up the following window:
Enter IP address in the above address, it must be in the same network segment with encoder.
At the time, it will display the corresponding encoder information on the left:

18
2.2.2 Enter configuration

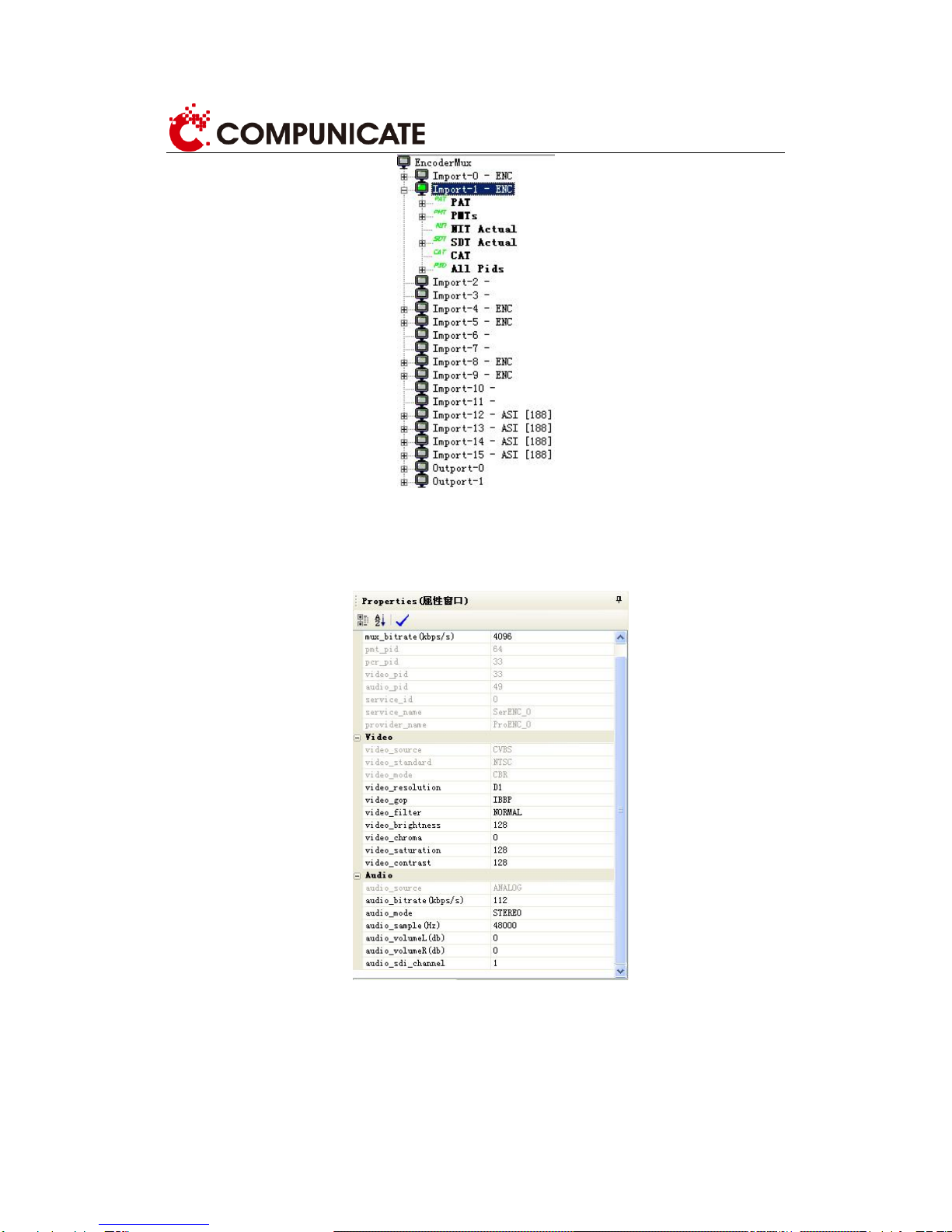

Click “PMT” in input port, it will display the following interface on the right of the window:
Services:
Mux_bitrate(kbps/s): configure input bit rate, the scope is 1000-15000
Video:
Video_resolution:D1/HALFD1/SIF/QSIF for options.

19
Video_gop:IBBP/IBP/IP/I for options
Video_filter:NORMAL/SOFT/SHARP for options
Video_brightness: the scope is 0-255
Video_chroma: the scope is -128~+128
Video_saturation:0-255
Video_contrast:0-255
Audio:
Audio_bitrate(kbps/s):32/48/56/64/96/112/128/160/192/224/256/320/384 for options
Audio_mode:SINGLE/DUAL/STEREO/JOINTSTEREO for options
Audio_sample:32000/44100/48000 for options
Audio_volumeL(db): the scope is -50~12
Audio_volumeR(db): the scope is -50~12
Audio_sdi_channel:1/2/3/4 for options
2.2.3 Output configuration
Click output-0 on the left, it will display the following window on the right:
Set_bitrate(): configure the total bitrate of port 0.
Ts_len: choose the length of data package, 188 or 244 for options.
Ip_addr: if it uses network output, enter multicast address, such as 224.2.2.2.
IP_port: enter multicast port, such as 1234 etc.
Click PAT, it will display the following interface:
Send_PAT: choose whether to send PAT table or not
Pat_sendtimer(ms): sending time span

20
Pat_version_number: pat version number
Transport_stream_id: TS stream number
Click IN-1 under the PMT of output port, it will display the following window:
Send_PMT: choose whether to send PMT table or not, yes is to send, no is not to send.
Pmt_version_number: pmt version number, the scope is 0-15
Program_number: program number, the scope is 0-65535
Pmt_pid: can modify manually, also can maintain the default value, but cannot repeat, the
scope is 20-8191.
Pcr_pid: can modify manually, also can maintain the default value, but cannot repeat, the
scope is 20-8191
Stream_type: TS stream type
Stream_id: can modify manually, also can maintain the default value, but cannot repeat.
Click NIT, it will display the following interface in the right window:
Send_NIT: choose whether to send NIT table or not, yes is to send, no is not to send.
Nit_sendtimer(ms): 2000
Nit_version_number: NIT version number, the scope is 0-15
Network_id: network identification number, the scope is 0-65535
Click SDT, it will display the following interface in the right window:
