Concept LED Lights V-PIX Quad Bar User manual

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]

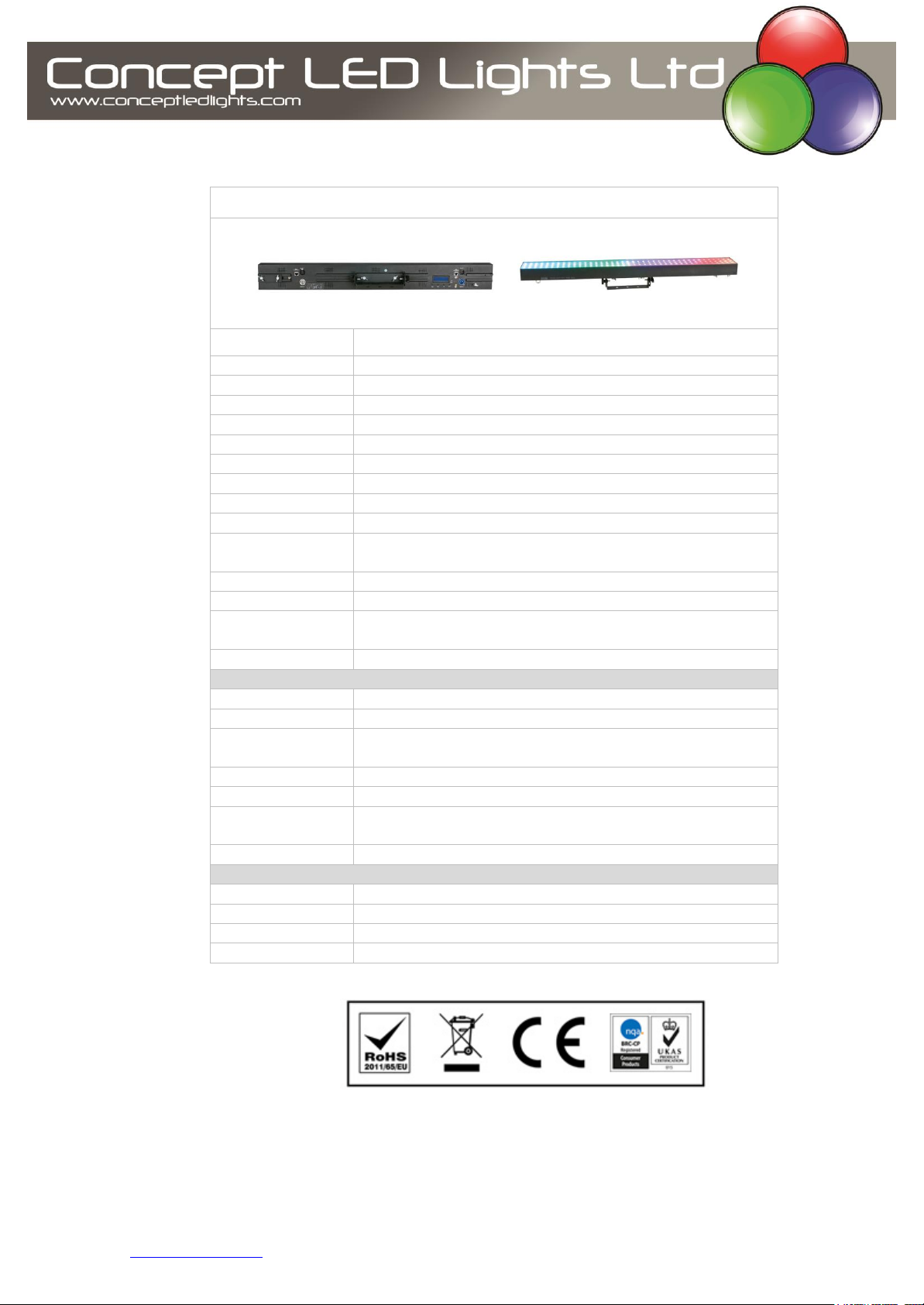

TECHNICAL DATA
V-PIX™ Quad Bar
Specification
Product
Product code
CL-VPIX-4-40
Light colour
Full spectrum
Channels
8 / 480 (see above)
Driver
Built in
Control protocol
Art-Net, DMX512, Kling-Net
Power and Current
51W, 0.36A @120V, 60Hz
Beam angle
120°
Filter colour
2 filters supplied: clear and frosted
IP rating
IP20
Operating
temperature
-5~40°C
Data connector
RJ45
Refresh rate
100Hz
Max strobe
frequency
25Hz
Max connections
16 (4 x 4) via RJ45 in and out
Pixel Quality
Type
SMD 5050 RGB
Pixel quantity
160 (4 x 40)
Lumens
Clear filter: 2586
Frosted filter: 2160
Pixel Pitch
25mm
Life (hours)
<50,000
CE and RoHS
certified
Yes
Warranty
2 years
Dimensions
Length (mm)
1000
Width (mm)
107
Depth (mm)
117
Weight (kg)
3.5

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
DMX Value:
8CH DMX Model
Functions
Numerical value
CH1
Master Dimmer
0-255
CH2
Strobe –Slow to Fast
0-255
CH3
Colour Red
0-255
CH4
Colour Green
0-255
CH5
Colour Blue
0-255
CH6
Auto Programs1-15
0-255
NB: when using this CH,
the CH1&CH2 must be at
the value of 0
CH7
Auto Programs16-30
0-255
NB: when using this CH,
the CH1&CH2 must be at
the value of 0.
When it is at the Value of
255,the auto programs will
run automatically
CH8
Auto Program Speed –Slow to
Fast
0-255
480CH DMX Model
Functions
Numerical Value
CH1
Red color of Led 1
0-255
CH2
Green color of led 1
0-255
CH3
Blue color of led 1
0-255
CH4 ~ CH480
Each colors of each LEDs,
In total is 160pcs x
3CHs= 480CH
0-255

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
V-PIX™ Quad Bar
User Manual

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Safety Notes:
Read all the following Safety Notes before working with this product. These notes
include important information about the installation, usage, and maintenance of this product
This icon indicates critical installation, configuration, or operation information.
Failure to comply with this information may render the fixture partially or
completely inoperative, damage third-party equipment, or cause harm to the user
There are no user-serviceable parts in this product. Any reference to servicing
in this guide applies only to properly certified technicians. Do not open the housing or attempt
any repairs unless you are certified
This icon indicates useful, although non-critical information.
· Please refer to all applicable local codes and regulations for proper installation of this
product.
· Always disconnect this product from its power source before servicing.
· Always connect this product to a grounded circuit to avoid the risk of electrocution.
· Do not touch this product’s housing during operation because it may be very hot.
· Do not operate this product if you see damage on the housing, lenses, or mounting bracket.
Have any damaged parts replaced by a certified technician at once. In the unlikely event that
your product may require service, contact Concept LED Lights Ltd.
· Do not cover the ventilation slots when operating to avoid internal overheating.
· The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at a
higher temperature.
· In case of a serious operating problem, stop using this product immediately

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Product Description:
The V-PIX™ Quad Bar is a near-effortless pixel mapping one-meter bar that combines to
make a system that sets up in minutes with minimal technical knowledge.
Controlled by the DMX512 or using Art-Net Kling-Net, the V-PIX™ Quad Bar intuitively
configures images and effects in any orientation and eliminates the hassle of pixel-by-pixel
programming. When combined with other products to create multiple configurations and
displayed in any orientation on a mounting structure, the entire design is transformed into a
dynamic low-resolution display.
What Is Included:
The following items should be included in the package:
· V-PIX™ Quad Bar
· Quick Reference Guide
· Clear Filter
If there are any missing pieces, please contact Concept LED Lights Ltd

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Product Dimensions:
Product Overview:

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Installation Procedure:
Before installing any product, you should completely read through the guide that was
shipped with the product.
1. Carefully remove all items from the package and install on a secure foundation.
2. Connect the V-PIX™ Quad Bar to the output of the AC power using a standard cable.
Clear/Frost Filter Installation:
The V-PIX™ Quad Bar includes a frost filter already installed. Follow the procedure below to
install the clear filter.
1. Locate the end cap of the product that does not have the connecting hardware.
2. Remove the 4 screws from the end cap of the product.
3. Remove filter.
4. Re-install end cap
Be sure to install the frost filter with the shiny side facing toward the LEDs

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Mounting:
For either mounting on the floor or on the wall. The safety loop is used to attach a safety
cable. You must supply your own clamps and make sure the clamps are capable of
supporting the weight of this product. Before mounting the product, read and follow the safety
recommendations indicated in the Safety Notes
Mounting Guidelines:
We recommends using the following guidelines when mounting this
product:
· Before deciding on a location, always make sure there is easy access to the bar for
maintenance and programming.
· Make sure that the structure or surface onto which you are mounting the bar can support the
product’s weight (see the Technical Specifications).
· When mounting the product overhead, always use a safety cable. Mount the bar securely to
a rigging point, such as an elevated platform or a truss.
· When rigging the bar onto a truss, you should use a mounting clamp of appropriate weight
capacity.
· The bracket adjustment knobs allow for directional adjustment when aiming the product to the
desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage
the knobs.
· When mounting the bar on the floor, make sure that the product and cables are away from
people and vehicles.

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]

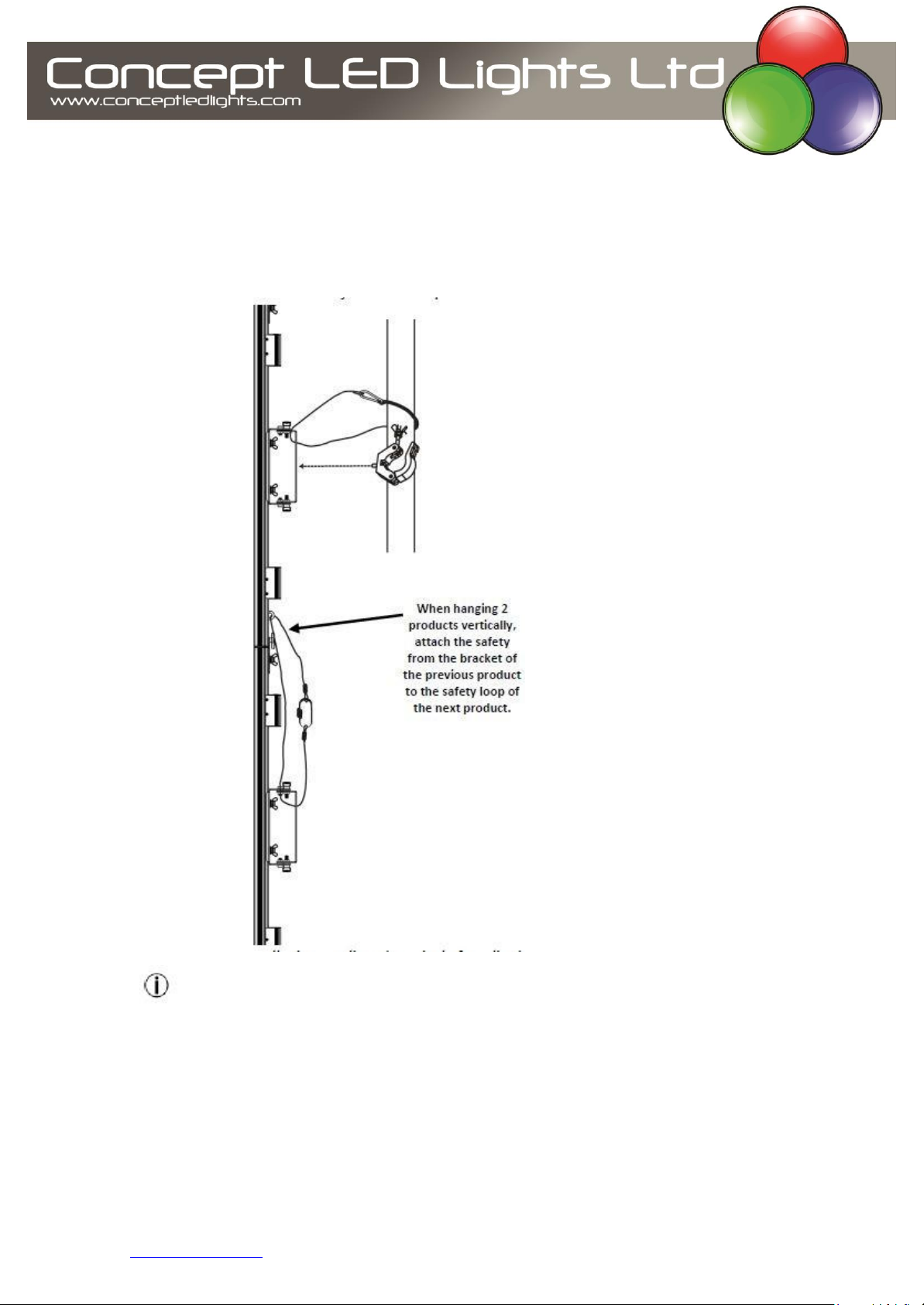

Vertical Mounting Instructions:
1. Attach the clamp to the mounting bracket.
2. Attach the clamp to the desired structure or surface.
3. Attach a safety cable to the product’s safety loop.
Never attach more than 1 products from the initial product when hanging vertically

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]

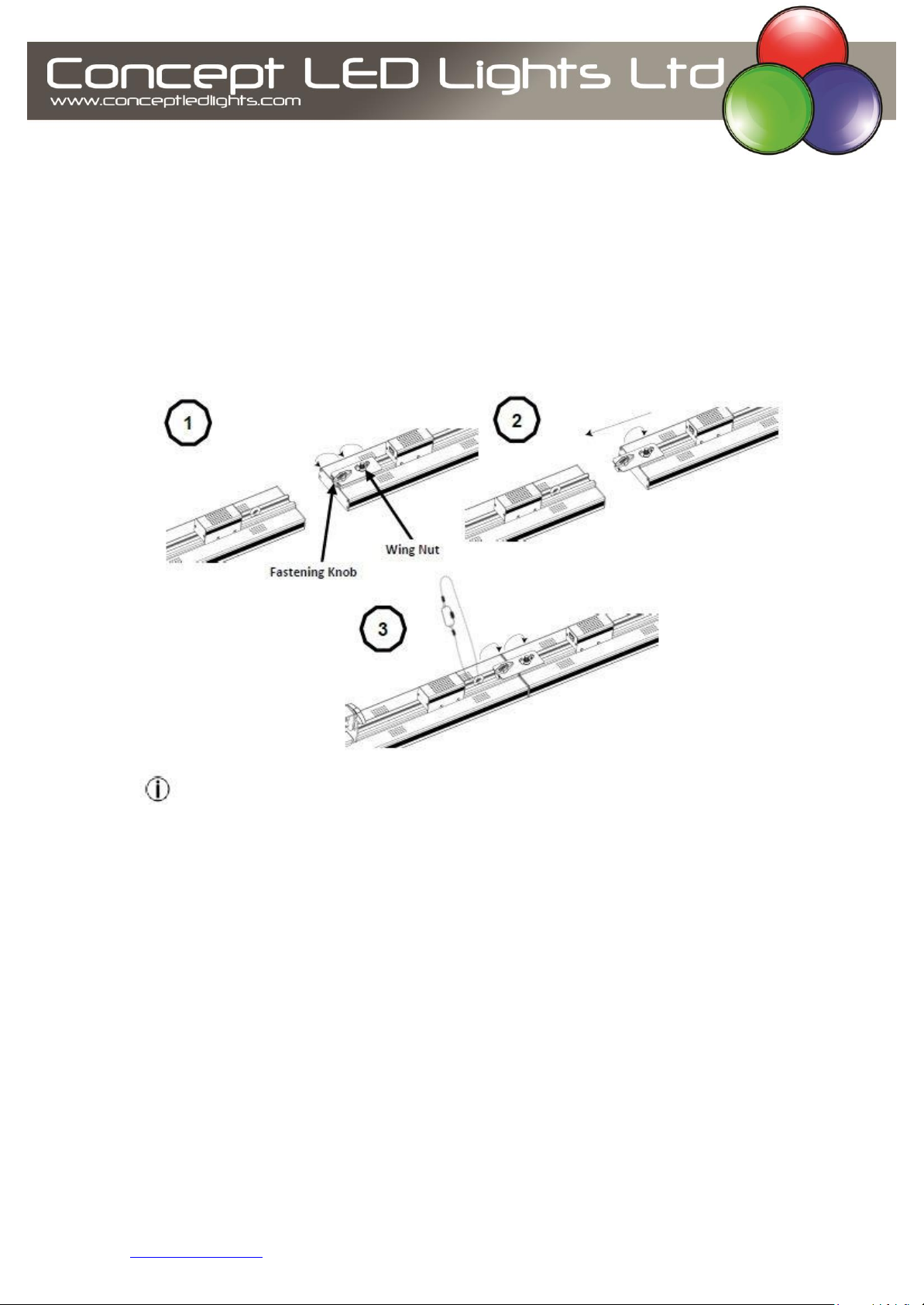

Series Attachment Instructions:
The V-PIX™ Quad Bar can be attached in an end to end formation to create a bar up to 2
meters long from just one rigging point. Do not connect any more than a total of 2
V-PIX™ Quad Bars in a row when hanging vertically.
1. Loosen the fastening knob and wing nut.
2. Slide the connecting bracket out till it stops and tighten the wing nut.
3. Slide the 2nd V-PIX™ Quad Bar into the connecting bracket and tighten the fastening knob,
then attach the safety cable.
Be sure to install the safety cable last when attaching the products in series

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Power/Signal Connection Procedure:
The following diagram illustrates how to assemble the data connections

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Product Maintenance:
To maintain optimum performance and minimize wear, you should clean this product frequently. Usage
and environment are contributing factors in determining the cleaning frequency.
As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and
can cause overheating. This can lead to reduced light source life and increased mechanical wear.
Cleaning the V-PIX™ Quad Bar:
1. Unplug the product.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external vents
and accessible internal components.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or isopropyl alcohol.
5. Apply a solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.
Wipe any dirt or grime to the outside edge of the surface. Gently polish the surfaces with the
lint-free cotton cloth or lens cleaning tissue until they are free of haze and lint. Always dry the external
surfaces carefully after cleaning them.
Expected LED Lifespan:
LEDs gradually decline in brightness over time, mostly because of heat. Packaged in clusters,
LEDs exhibit higher operating temperatures than in ideal, single LED conditions. For this
reason, using clustered LEDs at their fullest intensity significantly reduces the LEDs’lifespan.
Under normal conditions, this lifespan can be 40,000 to 50,000 hours.
If extending this lifespan is vital, lower the operating temperature by improving the ventilation
around the product and reducing the ambient temperature to an optimal operating range. In
addition, limiting the overall projection intensity may also help to extend the LED’s lifespan.

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Schematic Diagram of Menu:

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]

Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
Product Features:
 Near-effortless pixel mapping and video one-meter bar, wi th four rows of LEDs, that combine to make a
system that sets up in minutes with mi n im a l technical kno w- ho w
 Easily control using Art-Net, ArK aos , DMX512 or Kling-Net
 Quickly configure these V-PIX™ Quad bars and link up to four in-lines with network cable to create vertical
effects with new hardware linking syste m
 Achieve wide viewing angles and excellent color r ende ri ng with tri-colored SMD5050 LEDs covered by a
s m ooth diffuser p l ate
 Easily manage configuration and software updates with the network-based remote web se r ve r
 Works with ArKaos Media Master Express for a p l ug - n - p l ay system that requires little training to ope r ate

14
V-PIX™ Quad Bar
Concept LED Lights Ltd
www.conceptledlights.co.uk
01553 617591 / 08711 339037 [e-mail]
DMX Value:
8CH DMX Model
Functions
Numerical value
CH1
Master Dimmer
0-255
CH2
Strobe –Slow to Fast
0-255
CH3
Colour Red
0-255
CH4
Colour Green
0-255
CH5
Colour Blue
0-255
CH6
Auto Programs1-15
0-255
NB: when using this CH,
the CH1&CH2 must be at
the value of 0
CH7
Auto Programs16-30
0-255
NB: when using this CH,
the CH1&CH2 must be at
the value of 0.
When it is at the Value of
255,the auto programs will
run automatically
CH8
Auto Program Speed –Slow to
Fast
0-255
480CH DMX Model
Functions
Numerical Value
CH1
Red color of Led 1
0-255
CH2
Green color of led 1
0-255
CH3
Blue color of led 1
0-255
CH4 ~ CH480
Each colors of each LEDs,
In total is 160pcs x
3CHs= 480CH
0-255
