Concept2 B1 User manual

ID: 17041
B1 Operating Instructions
Battery Powered Smoke System

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Please read these instructions fully before operating
your Smoke Machine!
Equipment Supplied
B1 Smoke System
Battery Pack / Cradle
Charger
250ml Fluid Reservoir with Silicone Fluid Pipe
Please check whether all the products you ordered are supplied.
General Operating Principle
The B1 is a battery operated, microprocessor-controlled fog generator. It is based (as most fog generators)
on the vaporizer principle, i.e. a glycol fluid is evaporated and condenses into fog when leaving the fog
nozzle. However, the B1 only heats when fog is actually needed.
Because of the sleep mode the machine uses only 1.5 milliamperes in idle status and consequently it may
remain connected to the battery for many hours with minimal discharging –the standby-time is approx.
250 hours on a 12Ah battery
Quick Reference
Only use the B1 in dry and well ventilated areas with:
Sufficient distance (at least 60cm) from flammable materials
Very little vibration
An ambient operating temperature between 5°C and 45°C
A relative air humidity of less than 80%
Having filled the reservoir with B1 smoke fluid and connecting a fully charged battery to the B1 you
produce smoke by depressing and holding down the test button on the handle.
The sequence is then:
1 second delay (whilst the coil heats)
Pump starts
Smoke is produced
To stop producing smoke release the button - smoke will cease after approx. 10-15 seconds.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Overview

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Technical Data (Smoke Machine)
Power requirement
400 Watts
Voltage
12 V battery
Warm up time
1 second
Fluid tank capacity
250ml
Fluid consumption
10ml per minute (continuous / maximum)
Temperature control
Microprocessor
Control / Activation
Test button
XLR connection for remote operation
Dimensions
16cm x 10cm x 7.5cm
Weight
970g
Preparation / Installation
Fully charge the B1 battery, see “The Charger – Operation”.
Pour B1 Smoke Fluid into the fluid bottle and firmly lock the bottle. Plug the connecting spout of the fluid
tubing into the quick connector of the fluid bottle (audible click). Check the fluid bottle and smoke fluid
are clean, so that no dirt (fluff etc.) can be sucked in by the pump. Even the smallest impurity immediately
leads to clogging of the machine.
Connect the battery pack to the machine. Plug in the battery connector (Speakon) (6) into the socket (12),
at the back of the machine. Press Smoke switch (grey) (1) to create smoke.
Remote Operation
You may control remotely using an optional XLR Remote, DMX Interface, Timer Interface or Radio Remote
Control.
Battery Status Display / Sleep Mode
The yellow light-emitting diode (LED) on the B1 indicates how strong / efficient the battery still is when it
receives an activation signal, and / or when it must be recharged.
LED flashes slowly: Battery capacity of 15% - 100%, the battery is fully operational.
LED flashes fast: Battery capacity below 15%, the battery should be changed and/or charged.
LED lights up permanently: the battery is flat or the vaporizer is damaged.
LED does not light although the battery is connected: Approx. 40 Seconds after the last fogging the
B1 changes into the sleep mode automatically. It then only needs a current of 1.5 mA. To awake
the machine press the Test Button on the B1 or send a remote signal to produce smoke

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Safety Notes
Very hot vapour escapes from the nozzle. Avoid objects coming into contact with the smoke within
60cm of machine
Occasionally very hot droplets of fluid may escape when in operation, so never aim at persons
directly and keep a minimum distance of 3 m to the nozzle.
Never touch the nozzle when in operation
If the machine is used is housed in an enclosure, allow minimum of 75mm on all sides for cooling.
Ensure the enclosure in non-flammable
Keep a minimum distance of 60cm to all flammable, combustible objects and objects sensitive to
heat.
Never point the fog at sources of ignition
Never open the machine and leave the machine unattended when connected to a power supply.
We recommend a visibility of 2 m+ when people are in smoke filled environments
Only use the supplied B1 Smoke Fluid. Different types of fluid do not generate the fog you require
and can damage your fog generator and void your warranty
Do not drink the fog fluid. Keep it away from children. In case of eye contact, rinse with a lot of
water. Consult a doctor should you have accidently swallowed some fluid.
Spilled fluid of splashed fluid droplets can cause slip hazard. Mop up the fluid and dispose of it
according to the regulations. B1 Smoke Fluid is completely water-soluble and biodegradable.
Smoke may activate smoke detectors.
We recommend: that those suffering from severe respiratory conditions / asthma should not be exposed
to dense concentrations of artificially produced fog
Smoke Fluid
Use only original B1 Smoke Fluid.
Use of other liquids can block the vaporizer and void the warranty.
Please do not use B1 Smoke Fluid if it looks blue or green. This can clog the vaporizer.
NOTE: If the B1 will not be in use for a long period, please empty the fluid tank and pour the B1 Smoke
Fluid back into the original fluid bottle despatched with the unit. We recommend changing the B1 fluid
annually.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
The Battery Pack
The supplied battery is a maintenance free 12V lead-gel accumulator which is calibrated in the best
possible way with the connected loads of the B1. It can be used in any attitude. The 12v battery is
connected to the B1 via a SpeakOn NL4FX high current plug. When used correctly, the battery maintains
its capacity for several years and / or several hundred charge/discharge cycles.
The battery has a capacity of 12 Ah and is normally supplied in a charged state. A fully-charged battery can
generate more than 100 fog emissions of 4-5 seconds. Alternatively, it can produce fog continuously for
approximately 10 minutes.
Lead-gel batteries are a very robust bank of capacitors which need little care and maintenance. However,
their working life can be shortened rapidly by storing them when discharged. Always ensure they are
fully charged prior to storing, and ensure the SpeakOn connector to the B1 is disconnected from the
machine prior to storage. Even in storage, we recommend that the battery is charged every 2/3 months.
Safety Regulations (Battery)
The supplied battery can supply high discharging currents, therefore:
Never short-circuit the battery.
Never change the cable sizes or short circuit the Speakon cable.
Positioning the battery:
Make sure the battery is not placed near sources of heat. Batteries can explode if subjected to
significant heat / fire.
Using the battery in enclosures:
Don’t use the battery in completely sealed casings or units.
Ensure adequate ventilation.
Dismantling the battery:
Don’t dismantle batteries as they do contain electrolytes which may damage clothing or hurt the
skin. If the electrolyte comes in contact with skin or eyes, immediately rinse with water or consult a
doctor.
Technical Data (Battery)
Model
Panasonic LC-RA1212PG Lead-gel battery
Output Voltage
12V / 12Ah
Temperature Range
5°C to 45°C
Dimensions
22 x 10 x 11.5cm
Weight
4.5kg

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
The Charger
An automatic charger for the 12V lead-gel battery is supplied. Charge the battery of the B1 with the
SpeakOn connector to the B1 machine disconnected.
Connect the charger to a power socket (100-240V~/50Hz-60Hz).
Connect the output line of the charger with the battery to be charged.
Check whether the charger display (LED) lights red / orange (if so the battery does need charging)
A green LED on the charger shows that the battery is fully charged.
When finished disconnect the charger from the socket.
Disconnect the battery from the charger.
If the control display lights up red permanently, this might indicate a problem with the battery:
Short circuit within the battery or in the output lines
The battery voltage cannot reach 13.8V (especially in the case of old batteries).
Protect the unit against rain.
Use the charger exclusively for charging the B1 battery.
Technical Data (Charger)
Model
MPP 15
Input Voltage
90 –240v~/50Hz-60Hz
Output Voltage
12 V=/1000 mA
Temperature Range
0°C to 4°C
Display
≤75 mA LED lights green (battery is fully charged)
≤300 mA, Ub > 6V LED lights re (battery is in charge)
Dimensions
8.75 x 5.15 x 3.4cm
Weight
165g
General Service & Maintenance
There will be no fog if:
The battery is discharged (yellow charge indicator (LED) lights up permanently on the B1, the pump
automatically cuts off) = charge the battery
The fluid tank is empty = refill the fluid tank (do not run the fluid tank dry if possible as pump
damage can occur)
The vaporizer is clogged or broken
The yellow LED lights permanently if:
The battery is discharged = disconnect the machine from the battery and charge the battery
The vaporizer is clogged or broken
To get the best out of the B1:
Make sure the fluid bottle is clean and free from any contamination / dirt
Wipe the unit from time to time, especially if you use it in a confined enclosure.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Warranty Conditions
The B1 is guaranteed for 12 months against faulty parts or manufacture, provided it is used in accordance
with these instructions. The B1 is a sealed unit and must be returned for service / maintenance to
Concept.
If you should send the unit for service, do not forget to remove any liquid from the fluid bottle.

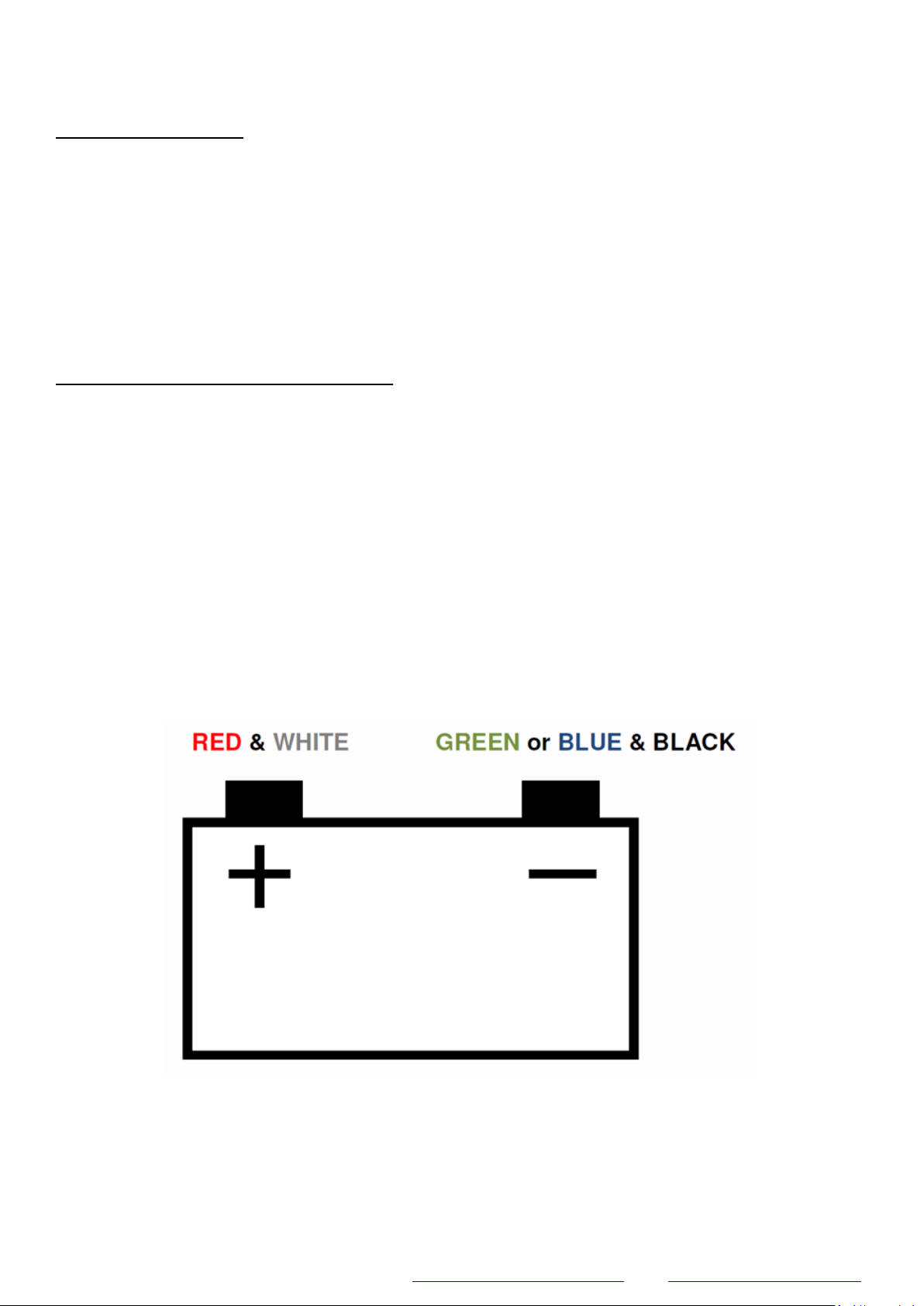

External Battery Lead (Optional Item)
The extended battery lead provided (to allow operation from an independent 12v DC battery of suitable
capacity) the red and white leads are positive (+ve), the green (or blue) and black leads are negative (–ve).
For best performance keep this lead as short as practical, ideally cutting it back from the length provided to
reduce voltage drop and optimise performance. This lead should be fused at 50 / 60A on the +ve or –ve
line.
If a longer run to the battery is required, use heavy duty battery cable eg 10mm² (suitably fused at source
to protect the cable), and step down to the external battery lead (fusing at 50 / 60A on either the +ve or
-ve line) as close to the B1 as practical.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com

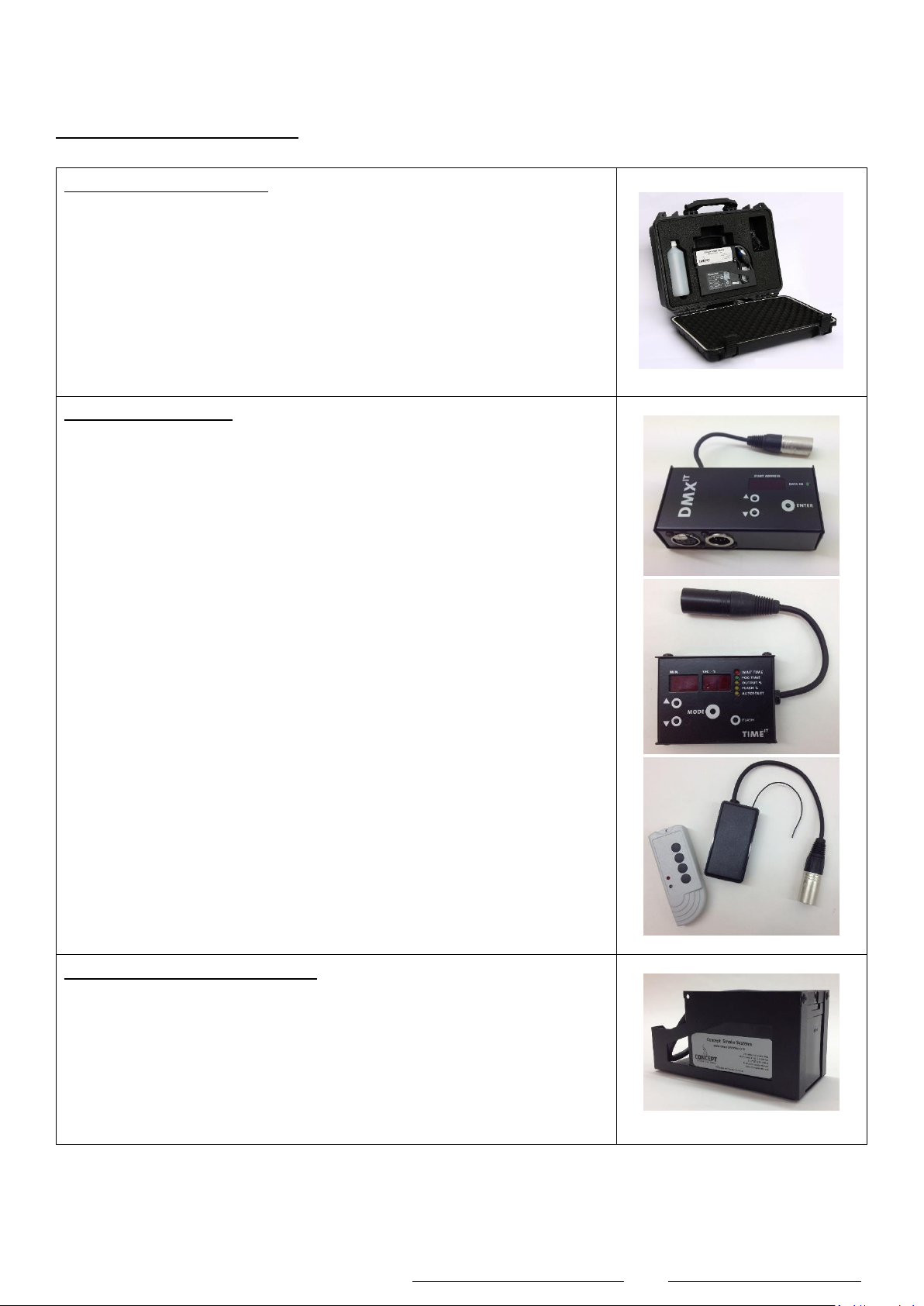

Accessories / Consumables
Heavy Duty Carry Case
Order Code: (FC-ECO-B1)
These custom made transport cases are specifically designed to protect
the B1 smoke machine from the elements. Each case has space for the
B1 (complete with battery pack), 500ml of smoke fluid & the charger.
The case is waterproof, has a built-in pressure valve, corrosion proof &
can be padlocked.
Remote Operation
Order Code: (B1-DMX, B1-TIMER, B1-RRC)
The B1 DMX Module will allow you to operate the B1 via a 512 channel
DMX control source. A clear digital display will indicate what channel
the B1 is set for.
The B1 Timer is a simple plug in module that will allow users to digitally
control how long the B1 will make smoke for and also the interval (rest)
period.
This radio remote control has a range of 100 mtr's (line of sight). It
comes as a complete set including both the receiver and transmitter.
The remote is set for momentary smoke.
Spare Battery Pack & Cradle
Order Code: (B1-SBP)
A spare battery pack and cradle is available for use with the B1. This
battery (and the standard battery that comes with the unit) will last the
B1 approx. 10 minutes on continuous maximum output. The spare
battery pack comes complete with the integrated battery connection
lead.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
Accessories / Consumables
B1 Ducting Adapter & Hose
Order Code: (B1-ADAP, HOSE-NEO-32)
This 32mm adapter is custom made to suit the B1 Smoke Machine. It
can be used in conjunction with the 32mm Hose (see below) to
precisely place the smoke where it is needed.
Mains Adaption Kit
Order Code (B1-MAK)
If longer running periods are required or you run out of battery, the
mains adaption kit can be a useful accessory.
B1 Smoke Fluid
Order Code: (S/FLUID-B1-5L, S/FLUID-B1-2.5L, S/FLUID-B1-0.5L)
Additional Smoke Fluid is available for the B1 in 5Ltr, 2.5Ltr or 500ml
containers.
Other items & spare parts are available –contact Concept for more information.

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
NOTES:
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….
………………………………………………………………………………………….

Drawing Number: 17041 Issue: 1 By: AMD Date: 01.06.18 Approved: TAD
Concept Engineering / Smoke Systems Limited
TEL: [phone] FAX: [phone] EMAIL: i nf o@ co n ce pt - sm o ke .c o. u k WEB: www.conce ptsm ok e. com
