The installation of QASAIR Rangehoods must comply with the information in this booklet. QASAIR Rangehoods are
designed and made to work efciently over all domestic cookware available on the Australian market.
It is necessary to allow electrical disconnection of the rangehood after installation.
This may be achieved by either.
a) Installing a power point to an accessible area for the Rangehood.
b) Incorporating a wall switch to the xed wiring that suppliaes the Rangehood.
Clearance from cooktop to Rangehood
For electric hot plate cooktops
As there are no regulations for Rangehoods over an electric hot plate, please follow the manufacturers Instructions /
Recommendations.
For Induction cooktops
Induction cooktops may present problems with condensation on lters of Rangehoods.
All Qasair Rangehoods installed above an induction cooktop must be installed no less than 750mm between the
induction cooktop and the Rangehood, with the exception of the Eastmore (EAS) Rangehood which can be installed
no less than 600mm. Undermount (NDCH) and Conley (CON) Rangehoods are not suitable for induction cooktops.
For gas cooktops
All Qasair Rangehood installations over a gas appliance must comply with (AS/NZS 5601.1).
The Regulations for the installation of Gas Appliances (AS/NZS 5601.1) states that the clearance between the
highest part of the burner of a gas cooking appliance and a Rangehood be no less than 600mm. If the gas
appliance is designed for use without a cooking vessel like an open ame grill, then the clearance from the cooking
surface to the Rangehood shall be no less than 1200mm.
All Qasair Rangehoods installed above a gas cooktop must be installed no less than 600mm between the highest
part of the burner and the Rangehood.
The recommendation for Qasair Wallmount Rangehoods is that they be installed between 700 to 800mm above the
highest part of the burner. When the Rangehood is installed in a galley or partially enclosed kitchen the Rangehood
can be installed between 900 to 1000mm above the highest part of the burner.
Qasair Island Rangehoods should not be installed any higher than 800mm above the highest part of the burner as
any movement around the bench will result in fumes being drawn out from the catchment area of the Rangehood
with the exception of the Thermidor and Liverpool which for aesthetic reasons is installed ush with the ceiling.
Ducting
For all your ducting requirements please refer to our Qasair Rangehoods Ducting Pieces brochure included
with your Rangehood or please consult our website where it can be viewed or downloaded.
1. Every QASAIR Rangehood must be ducted to the outside atmosphere by the use of zinc-alume duct or
non-porous and non-ammable materials. Do not use of any type of exible ducting or plastic PVC piping.
Rangehoods must not be vented into a wall cavity or a ceiling space. Externally ducting the rangehood prevents
a build up of grease, which can be a re risk. Ensure the external outlet vent does not restrict the airow in any
way, as this may result in reduced performance.
2. QASAIR Rangehoods must be ducted in duct work equivalent to the outlet of the rangehood ie: The cross
sectional area of the rangehood outlet and the duct work must be equal. Do not reduce the duct size or have
sharp bends. Enlarge the duct size if the duct is to run 6 metres or longer. Advice from CONDARI is available to
ensure optimum performance. Always use nonammable materials to minimise the risk of re in the duct.
3. Ensure all ducting pieces are correctly tted and sealed with either duct tape or silicone to ensure that fumes
do not escape into the ceiling space and seep into living areas through vents or light ttings.
IMPORTANT INFORMATION

Qasair Rangehoods Installation Instructions 5
Other Important Information
1. Always adequately ventilate the room when the rangehood is in use at the same time as appliances burning gas
or other fuels.
2. WARNING: Incorrect venting will result in additional noise and a reduction in efciency. Exhaust air must not be
discharged into any chimney or ue, which may carry combustible products from other sources.
a) Do not discharge the air-ow from the rangehood into a ue used for exhausting fumes
from burning gas or fuel;
b) For cleaning purposes please refer to page 33 of installation instructions for stainless steel;
c) If cleaning is not carried out in accordance with the instructions as listed on page 33, there may be an
increased risk of re;
d) Some parts of the rangehood may become hot when cooking;
e) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
3. The installation and tting of the rangehood should be done in such a way that will allow the unit to be removed
if service is required. Additional costs incurred in the removal of wall tiles, damage to walls or bench tops are not
covered by warranty.
4. To reduce the risk of xing screws coming in contact with live parts, do not drill or screw into the rangehood.
Live wires are encapsulated where possible to prevent user contact. If necessary drill from the inside out and
only through single sheet material.
5. NOTE: CONDARI recommend an air movement of between 1000 to 1400 cubic metres per hour over an indoor
barbecue, depending on the length of the duct run. Ensure a twin motor unit is installed over indoor barbecues
for optimum results. Barbecues should be positioned under the centre of the hood where the fans are mounted
and not near the outer edges where leakage may occur.
6. The lights in the rangehoods are LED and come with a night light.
7. Please contact Condari Pty Ltd to arrange an authorised technician to replace any cracked protective glass
shields for the LED lights.
8. If the supply cord is damaged, an authorised service centre or licensed electrician must replace it.
9. Do not ambé under the rangehood.
10. QASAIR domestic rangehoods must not to be used over barbecues approved for outdoor use only,
CONDARI make a range of hoods specically for outdoor barbecues in alfresco areas under the CONDOR
name.
11. CONDARI can manufacture rangehoods to be used over commercial cookers in domestic applications.
12. NOTE: Ensure all requirements are met with gas and electrical regulations and or state authorities.

Qasair Rangehoods Installation Instructions6
INSTALLATION INSTRUCTIONS
• H SERIES
• PYR
1. Remove canopy and flue from boxes and check you have correct model and flue.
2. Locate centre point of cooktop.
3. Use level or plumb line to mark centre up to ceiling.
4. Mark level line for base of canopy 700-800mm above bench 750mm desirable.
5. Check roof space above for wires and obstructions as now is the time to decide on any changes to location due
to immovable obstructions.
6. Mark flue size on ceiling and cut neat exact hole to pass flue through.
7. For rear ducted models cut hole in wall for vent to pass through.
8. Fix mounting bracket to wall at desired height.
9. Remove fan(s) from canopy by removing side fixing bolts and disconnecting electrical plug at flexible connector.
10. Locate solid fixing points on wall and drill holes in rear of canopy to suit. If no solid fixing is available then now is
the time to install fixing points. Four points are recommended with one on each side at top and one on each side
at bottom.
11. Drill hole in rear of unit to pass power connection through where available on wall.
12. Check flue slides through hole in ceiling.
13. Place canopy flat on floor and fit stainless flue over spigot pushing all the way down for a neat fit. Drill hole in
rear of flue and fix to canopy with pop rivet or screw.
14. Carefully lift canopy into position, guiding flue through ceiling and feeding power cable through hole in rear of
canopy. Make sure canopy is sitting correctly on mounting bracket then fix to wall through fixing holes with solid
screws. (You may need to place a packer behind canopy if wall is bowed to make the canopy sit correctly).
15. Complete electrical connection to 10 AMP junction box to local electrical authority regulations ensuring power is
turned off during work.
16. Fit ducting to outside or exterior wall vent for rear ducted models. (Seal rear vents onto rear of hood with
silicone). A plumber should seal roof penetration with appropriate flashing. All joins in ducting need to be sealed
with duct tape or silicone and only use approved ducting of the correct size for your canopy.
17. Fit motor(s) back into canopy with fixing bolts and plug electrical connector in.
18. Test run hood.
MOUNTING BRACKET
• Use vertically punched slot for centre line
• Before cutting any holes check ceiling space for structural beams. It may be possible at this point to relocate the
hood position.
The fixing points are prepunched holes in the back of the hood and it may be necessary to drill through the back
of the hood into the wall stud.
Recommended xing points
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.

Qasair Rangehoods Installation Instructions 7

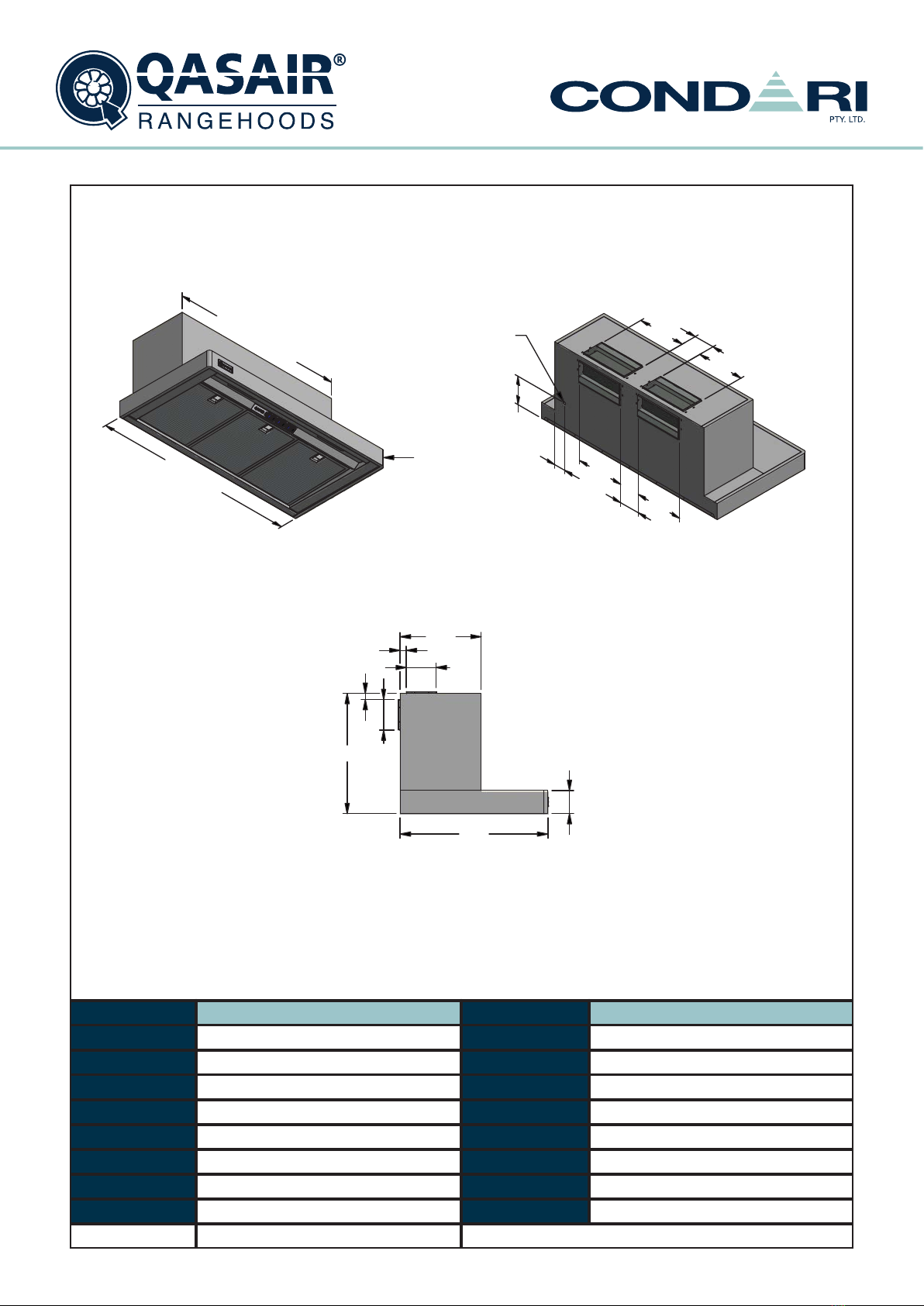

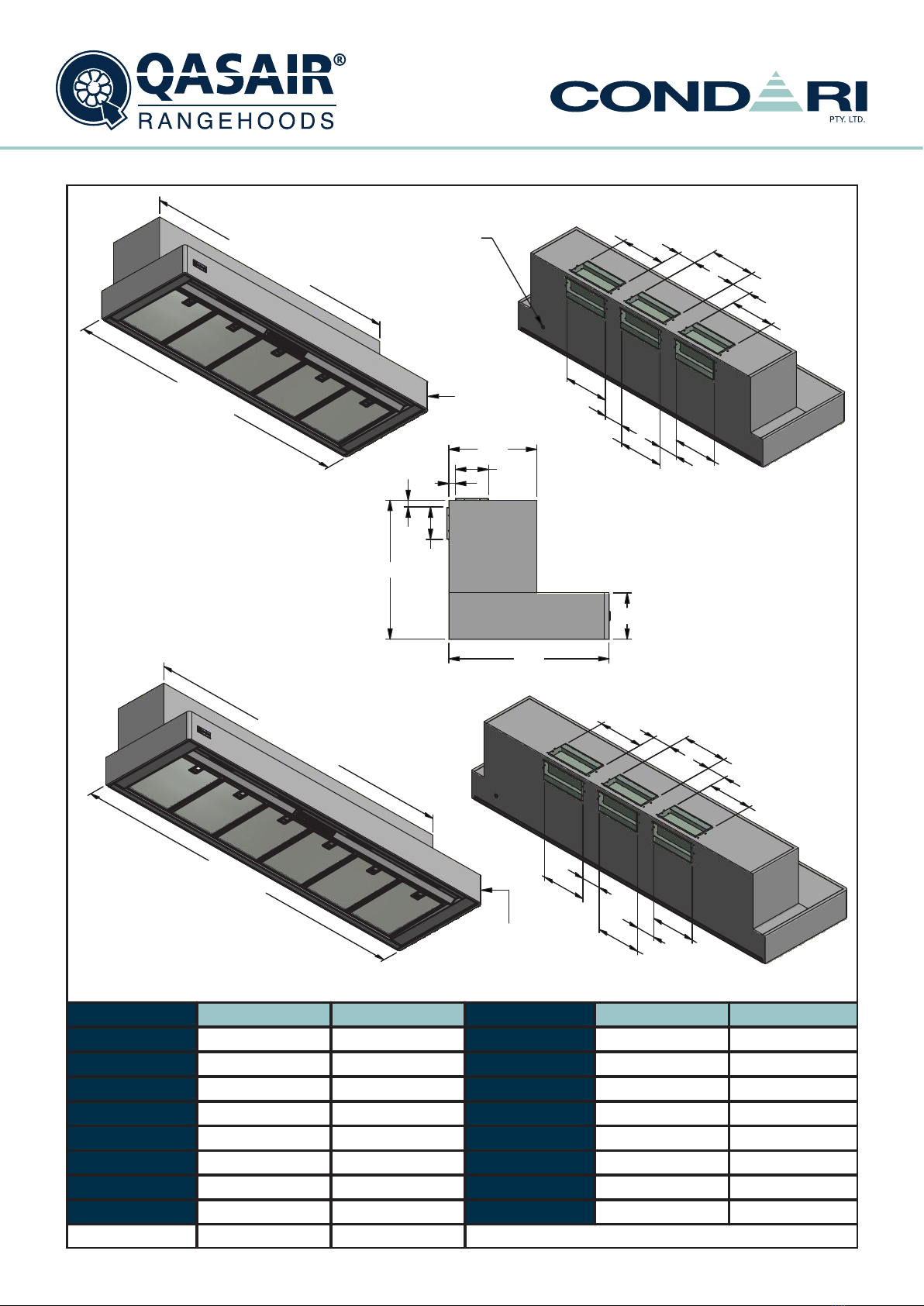

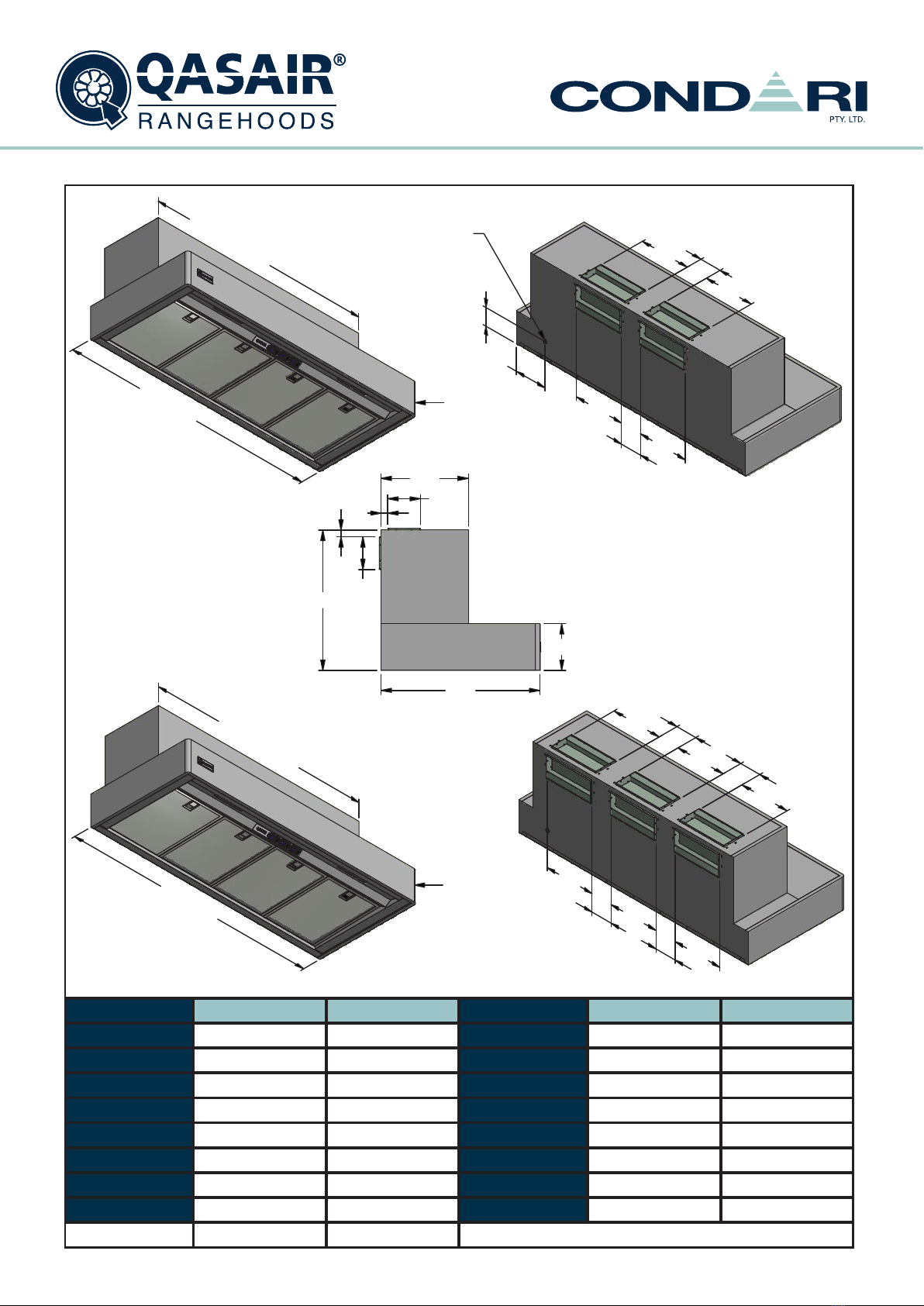

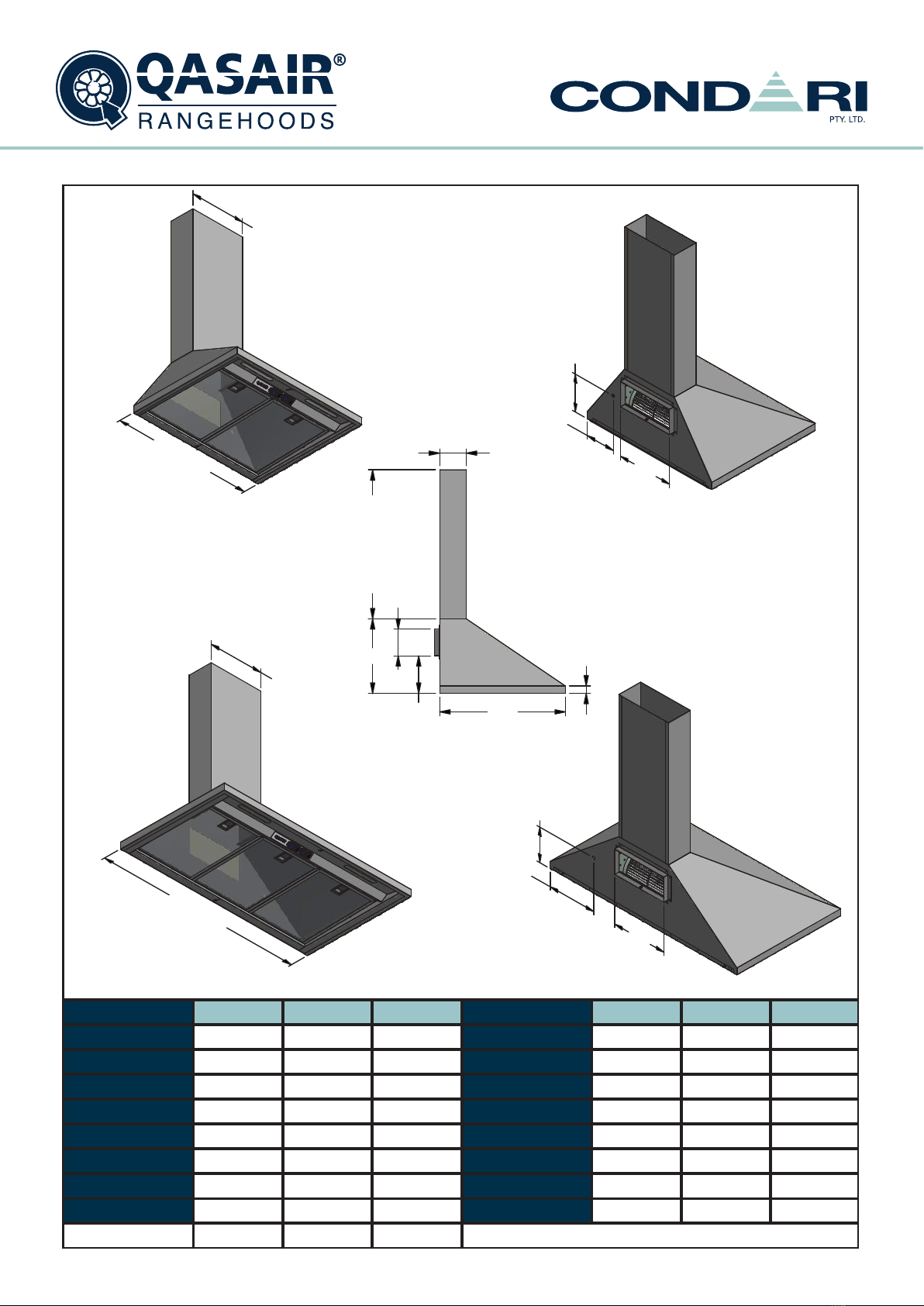

HERITAGE - H
Heritage
Technical Specification Sheet
HWall Mounted
PMS539C
R=0
G=48
B= 73
PMS5503C
R=156
G= 197
B= 202
3
310mm
Power Entry Vertical
Light Centres
Light Qty
600mm
600HL-1
LED Light
Conversion
Top/Back Back/Top
Nightlight
2
Condari Pty Ltd.
Filter Qty 2
Motor Qty
Motor Box /
Flue Width
150mm
Version: G 29/07/2019F
Body Width
Model 600HL-1
Page 1 of 2
Filter Size
272mm x 355mm
NO
700HL-1
Square Square
130mm
900HL-1
N/A
N/A
125mm
Power Entry Horizontal
PowderKote 
Available
Corner Type
Electrical Connection
N/A
Outlet Spacing
900mm
240mm
Cool
11
700HL-1
Cool
510mm
22
310mm
YES
Junction Box
NO
Junction Box
135mm 210mm
NO
N/A
Square
N/A N/A
272mm x 355mm290mm x 355mm
150mm
Junction Box
Model900HL-1
YESYES
1
240mm
Cool
240mm
700mm
2
B
o
d
y
W
i
d
t
h
500
300
150
110
Available Lengths:
DLE 600mm
DLE 900mm
DLE 1200mm
DLE 1500mm
110
30
F
l
u
e
W
i
d
t
h
F
l
u
e
W
i
d
t
h
2
3
5
P
o
w
e
r
E
n
t
r
y
H
o
r
i
z
o
n
t
a
l
P
o
w
e
r
E
n
t
r
y
V
e
r
t
i
c
a
l
2
3
5
P
o
w
e
r
E
n
t
r
y
H
o
r
i
z
o
n
t
a
l
P
o
w
e
r
E
n
t
r
y
V
e
r
t
i
c
a
l
MinimumHeight: 300mm
MaximumHeight: 1800mm
B
o
d
y
W
i
d
t
h

Qasair Rangehoods Installation Instructions8
1200HL-21000HL-2
Corner Type
Condari Pty Ltd.
Maximum Height
(H =)
PowderKote

Available
Minimum Height
(H =)
Electrical Connection
Conversion
Top/Back Back/Top
Filter Size
Model1200HL-2
All-thread
Fixing Centres
1000HL-2
Body Width
Motor Box /
Flue Width
Motor Qty
LED Light
Light Centres
Filter Qty
Model
Nightlight
Light Qty
Page 2 of 2
Version: G 29/07/2019
2
Cool
YES
2
510mm
3
1000mm
370mm
N/A
150mm
N/A
Square
Junction Box
130mm
NO
290mm x 355mm
N/A
250mm
100mm
Square
Junction Box
190mm
NO
272mm x 355mm
Heritage
Technical Specification Sheet
HWall Mounted
4
648mm
2
YES
Cool
2
370mm
1200mm
B
o
d
y
W
i
d
t
h
F
l
u
e
W
i
d
t
h
*1000HL-2 B Uses
250SQ Outlet
As Shown here
2
5
0
4
5
2
5
0
P
o
w
e
r
E
n
t
r
y
H
o
r
i
z
o
n
t
a
l
P
o
w
e
r
E
n
t
r
y
V
e
r
t
i
c
a
l
152
Available Lengths:
DLE-2 600mm
DLE-2 900mm
DLE-2 1200mm
DLE-2 1500mm
375 110
150
30
500
F
l
u
e
W
i
d
t
h
B
o
d
y
W
i
d
th
P
o
w
e
r
E
n
t
r
y
H
o
r
i
z
o
n
t
a
l
P
o
w
e
r
E
n
t
r
y
V
e
r
t
i
c
a
l
2
3
5
O
u
t
l
e
t
S
p
a
c
i
n
g
2
3
5
MinimumHeight: 375mm
MaximumHeight: 1800mm
HERITAGE - H

Qasair Rangehoods Installation Instructions 9
Pyramid
Technical Specification Sheet
PYR Wall Mounted
Conversion
Top/Back Back/Top
Filter Size
Model
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote 
Available
All-thread
Fixing Centres
Page 1 of 1
Corner Type
N/A
Filter Qty 3
Motor Qty
Light Qty
Light Centres
Motor Box /
Flue Width
Body Width
Model
Cool
YES
2
PYR 900L-1
1
900mm
270mm
510mm
LED Light
Nightlight
Condari Pty Ltd.
Junction Box
PYR 900L-1
Square
Version: B 20/01/2015F
NO
N/A
N/A
N/A
272mm
x 355mm
500
380
150
110
30
Power Entry
280
Available Lengths:
DLP 600mm
DLP 900mm
DLP 1200mm
DLP 1500mm
20110
500
30
230
PYRAMID - PYR

Qasair Rangehoods Installation Instructions10
INSTALLATION INSTRUCTIONS
• 3F
• SMF
• CM
• STA
1. Prepare wall by marking level line at desired height above cooktop.
2. Plumb line from centre of cooktop to ceiling and mark flue cut out.
3. Mark level line for base of canopy 700-800mm above bench 750mm desirable.
4. Position mounting bracket on wall and fix with four screws.
5. Cut a neat hole through the ceiling and remove any obstructing timbers.
6. Note: Various offsets are available from your QASAIR dealer to duct around any major structural beams which
cannot be removed. Ask your QASAIR dealer for advice.
7. In the case of back ducted models, cut a hole in the wall at the desired height.
8. Locate solid fixing point in wall to support hood. If there is no solid fixing point it will have to be placed in the wall
before proceeding. QASAIR recommend at least four (4) fixing points.
9. Drill holes in back of unit at suitable fixing points.
10. Drill 20mm hole in the rear of unit for 240 volt power cable as close as possible to junction box or use hole below
the junction box.
11. Attach flue (if applicable), then carefully lift into position on level line. Ensure flue is pushed into position and
electrical cable is fed into rear of unit.
12. Duct in approved manner to outside atmosphere.
Recommended xing points
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.

Qasair Rangehoods Installation Instructions 11
3 Flare

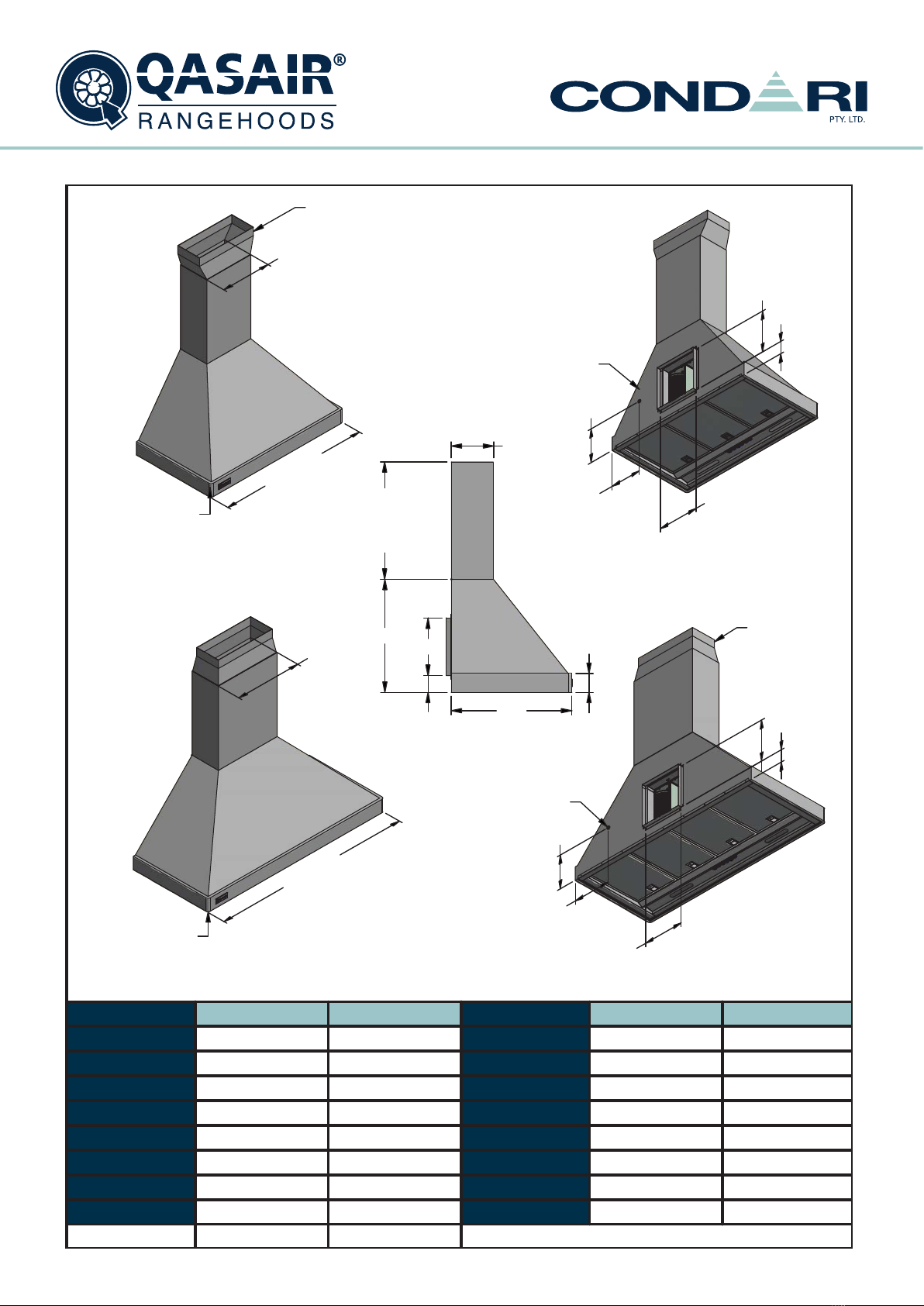

Technical Specification Sheet
3F Wall Mounted
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
3F 1200L-2
2
3
510mm
YESYES
2
1200mm
400mm
22
300mm
Cool
900mm
3F 900L-2
Cool
Light Centres
Filter Qty
Nightlight
Light Qty
LED Light
Motor Qty
Model
Body Width
Maximum Height
(H =)
Corner Type
648mm
Condari Pty Ltd.
4
All-thread
Fixing Centres
PowderKote

Available
Filter Size
Conversion
Top/Back Back/Top
Page 1 of 1
Motor Box /
Flue Width
Minimum Height
(H =)
Model
Electrical Connection
480mm
NO
3F 900L-2
272mm x 355mm
Version: G 15/02/2021F
YES
1680mm
Junction Box Junction Box
NO
1680mm
YES
480mm
Round
N/A
Round
N/A
272mm x 355mm
3F 1200L-2
Power Entry
Power Entry
A Transition is supplied to suit standard DL2 ducting. Flues made to order for back ducted models.
Body W
idth
Flue
W
idth
Ø15mm Radius
Ø15mm Radius
510
80
70
250
480
180
Available Lengths:
600mm
900mm
1200mm
BodyW
idth
Flue
W
idth
250
70
250
250
70
250
185.00
200
200
225
TRANSITION TO
DL-2 DUCTING
TRANSITION TO
DL-2 DUCTING
3 FLARE - 3F

Qasair Rangehoods Installation Instructions12
Maitland
Technical Specification Sheet
SMF Wall Mounted
Model
Conversion
Top/Back Back/Top
Minimum Height
(H =)
Electrical Connection
Filter Size
Body Width
Motor Box /
Flue Width
Model
Maximum Height
(H =)
SMF 1200L-2
272mm x 355mm
N/A
All-thread
Fixing Centres
Corner Type
Version: E 06/03/2020F
648mm
4
Condari Pty Ltd.
Round
N/A
N/A
Round
YES
Motor Qty
Page 1 of 3
N/A
YES
Nightlight
Light Qty
1050mm
1200mm
SMF 1200L-2
648mm
4
LED Light
Light Centres
Filter Qty
Junction Box
YES
SMF 1200L-3
3
SMF 1200L-3
2
YES
2
Cool
2
N/ACool
YES
1050mm
1200mm
272mm x 355mm
YES
Junction Box
N/A
PowderKote

Available
PMS5503C
R=156
G= 197
B= 202
PMS539C
R=0
G= 48
B= 73
280
110
20
450
20
110
150
510
Ø15mm
Radius
Ø15mm
Radius
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
2
3
5
1
0
0
2
3
5
2
3
5
1
0
0
2
3
5
M
o
to
r
B
o
x
W
i
d
t
h
B
o
d
y
W
i
dt
h
2
3
5
2
3
5
2
3
5
2
3
52
3
5
1
0
0
10
0
2
3
5
1
0
0
1
0
0
Junction Box location
is the same for all
SMF models.
1
5
0
8
5
MAITLAND - SMF

Qasair Rangehoods Installation Instructions 13
SMF 1800L-3SMF 1500L-3
Corner Type
Condari Pty Ltd.
Maximum Height
(H =)
PowderKote

Available
Minimum Height
(H =)
Electrical Connection
Conversion
Top/Back Back/Top
Filter Size
ModelSMF 1800L-3
All-thread
Fixing Centres
SMF 1500L-3
Body Width
Motor Box /
Flue Width
Motor Qty
LED Light
Light Centres
Filter Qty
Model
Nightlight
Light Qty
Page 2 of 3
Version: E 06/03/2020F
3
Cool
YES
2
816mm
5
1500mm
1350mm
YES
N/A
N/A
Round
Junction Box
N/A
YES
272mm x 355mm
YES
N/A
N/A
Round
Junction Box
N/A
YES
290mm x 355mm
Maitland
Technical Specification Sheet
SMF Wall Mounted
6
422mm
4
YES
Cool
3
1650mm
1800mm
280
110
20
450
20
110
150
510
B
o
d
y
W
i
d
th
M
o
t
o
r
B
o
x
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
B
o
d
y
W
i
dt
h
2
3
5
2
3
5
2
3
5
2
3
5
Junction Box location
is the same for all
SMF models.
Ø15mm Radius
Ø15mm
Radius
2
3
5
2
3
5
2
3
5
2
3
5
1
0
0
2
3
5
1
0
0
2
3
5
1
0
0
1
0
0
1
0
0
1
0
0
2
3
5
2
3
5
1
0
0
1
0
0
MAITLAND - SMF

Qasair Rangehoods Installation Instructions14

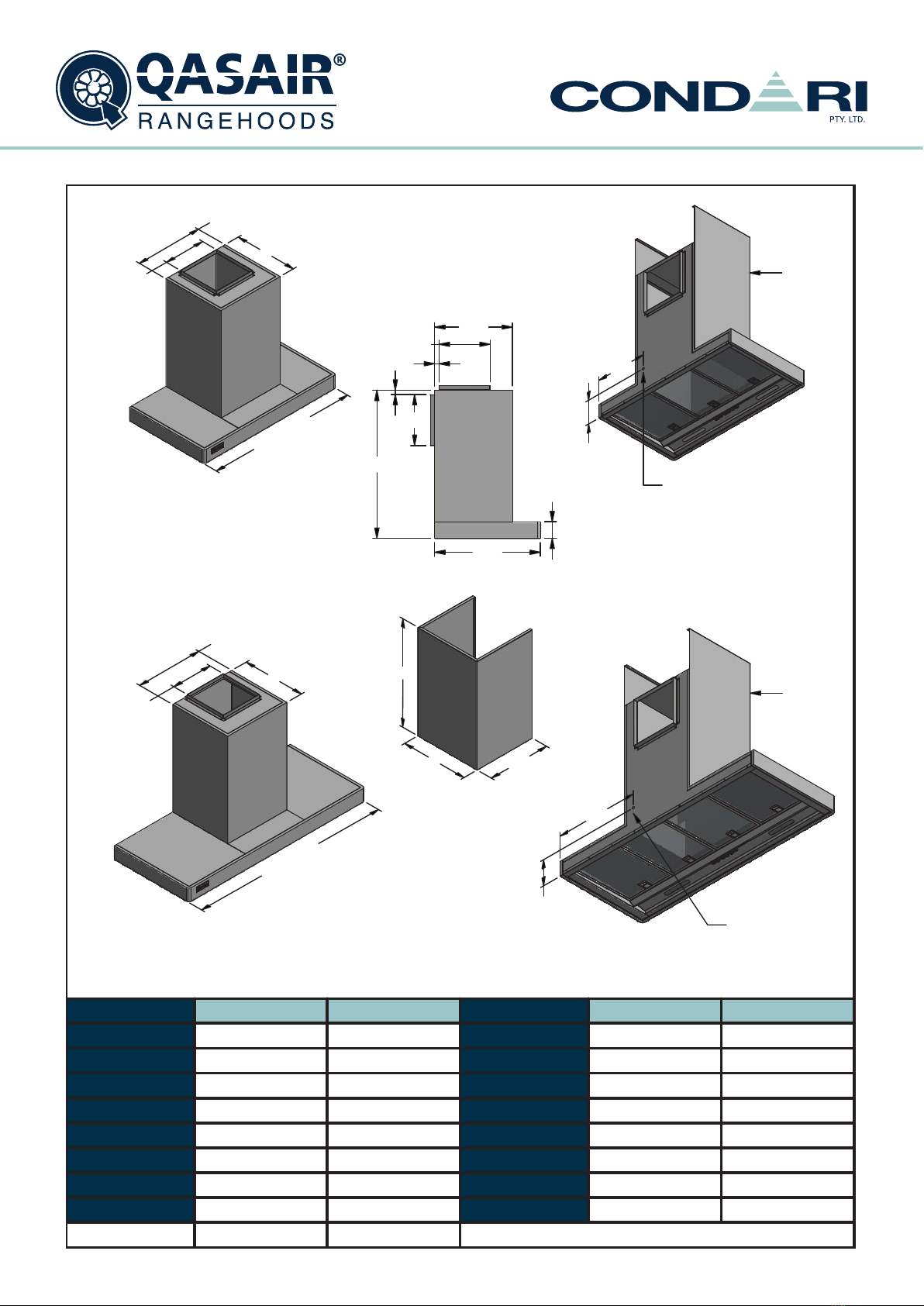

SMF 1200L-2 SHROUD
SMF 1200L-3 SHROUD
SMF 1500L-3 SHROUD
SMF 1800L-3 SHROUD
Wall Mounted
Maitland
Technical Specification Sheet
SMF
YES YES
1450mm1450mm
SMF 1500L-3
SHROUD
300mm
Version: E 06/03/2020F Page 3 of 3
SMF 1200L-2
SHROUD
Condari Pty Ltd.
Model
300mm
Minimum Height
(H =)
Maximum Height
(H =)
Powderkote

Available
YES
1450mm
300mm
YES
300mm
1450mm
SMF 1200L-3
SHROUD
SMF 1800L-3
SHROUD
1
0
5
2
2
8
4
1
3
5
2
2
8
4
1
6
5
2
2
8
4
H
H
H
MAITLAND - SMF

Qasair Rangehoods Installation Instructions 15
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
CM 900L-2CM 600L-1
Corner Type
Condari Pty Ltd.
Maximum Height
(H =)
PowderKote


Available
Minimum Height
(H =)
Electrical Connection
Conversion
Top/Back Back/Top
Filter Size
ModelCM 900L-2
All-thread
Fixing Centres
CM 600L-1
Body Width
Motor Box /
Flue Width
Motor Qty
LED Light
Light Centres
Filter Qty
Model
Nightlight
Light Qty
Page 1 of 3
Version: F 16/03/3030F
1
Cool
YES
2
310mm
2
600mm
450mm
YES
N/A
N/A
Round
Junction Box
N/A
YES
255 x 355mm
Yes
N/A
N/A
Round
Junction Box
N/A
YES
272mm x 355mm
Compact

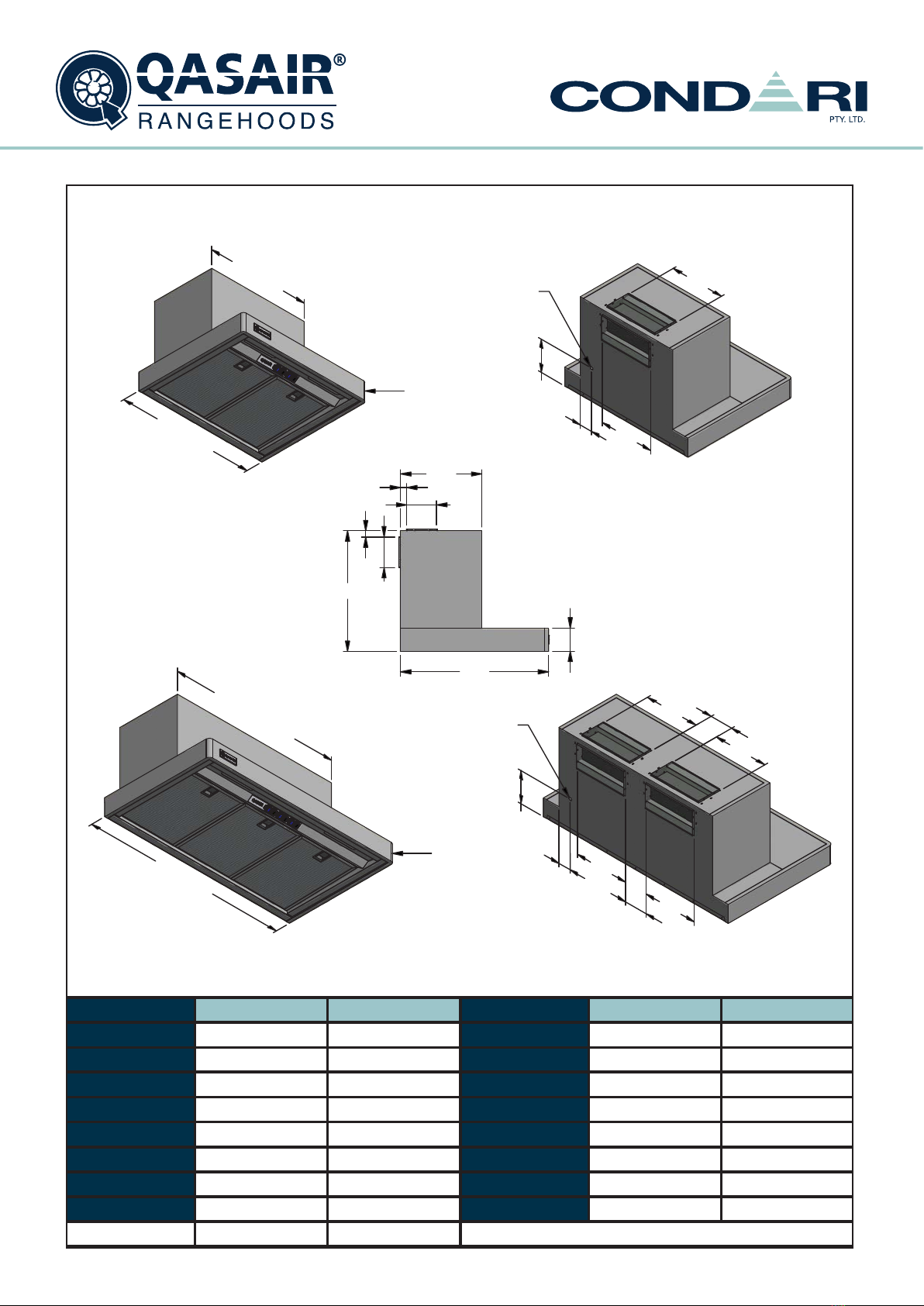

Technical Specification Sheet
CM Wall Mounted
3
510mm
2
YES
Cool
2
750mm
900mm
510
80
20
110
415
110
20
280
BodyW
idth
M
otorBoxW
idth
Ø15mm
Radius
235
100
235
235
100
235
Power Entry
Body W
idth
M
otorBox
W
idth
Ø15mm
Radius
235
235
Power Entry
CM 600L-1 CM 600L-1
CM 900L-2 CM 900L-2
55
140
55
140
COMPACT - CM

Qasair Rangehoods Installation Instructions16
Compact
Technical Specification Sheet
CM Wall Mounted
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
CM 1000L-2
Corner Type
Condari Pty Ltd.
Maximum Height
(H =)
PowderKote


Available
Minimum Height
(H =)
Electrical Connection
Conversion
Top/Back Back/Top
Filter Size
Model
All-thread
Fixing Centres
CM 1000L-2
Body Width
Motor Box /
Flue Width
Motor Qty
LED Light
Light Centres
Filter Qty
Model
Nightlight
Light Qty
Page 2 of 3
Version: F 16/03/2020F
2
Cool
YES
2
510mm
3
1000mm
850mm
YES
N/A
N/A
Round
Junction Box
N/A
YES
290mm x 355mm
Compact
Technical Specification Sheet
CM Wall Mounted
Ø15mm
Radius
280
20
110
415 110
20
80
510
Body W
idth
M
otorBoxW
idth
235
100
235
235
100
235
Power Entry
CM 1000L-2 CM 1000L-2
55
140
COMPACT - CM

Qasair Rangehoods Installation Instructions 17
CCMM660000LL--11SSHHRROOUUDDCCMM990000LL--22SSHHRROOUUDD
CCMM11000000LL--22SSHHRROOUUDD
Wall Mounted
Compact
Technical Specification Sheet
CM
Condari Pty Ltd. Version: F 16/03/2020F Page 3 of 3
YES
Powderkote

AAvvaaiillaabblleeYES
Maximum Height
(H =)
Minimum Height
(H =)
1450mm
335mm335mm
1450mm
Model CM 1000L-2 SHROUD
1450mm
YES
335mm
CM 900L-2 SHROUDCM 600L-1 SHROUD
PMS 539C
R= 0
G= 48
B= 73
PMS 5503C
R= 156
G= 197
B= 202
452
284
752
284
852
284
H
H
H
COMPACT - CM

Qasair Rangehoods Installation Instructions18

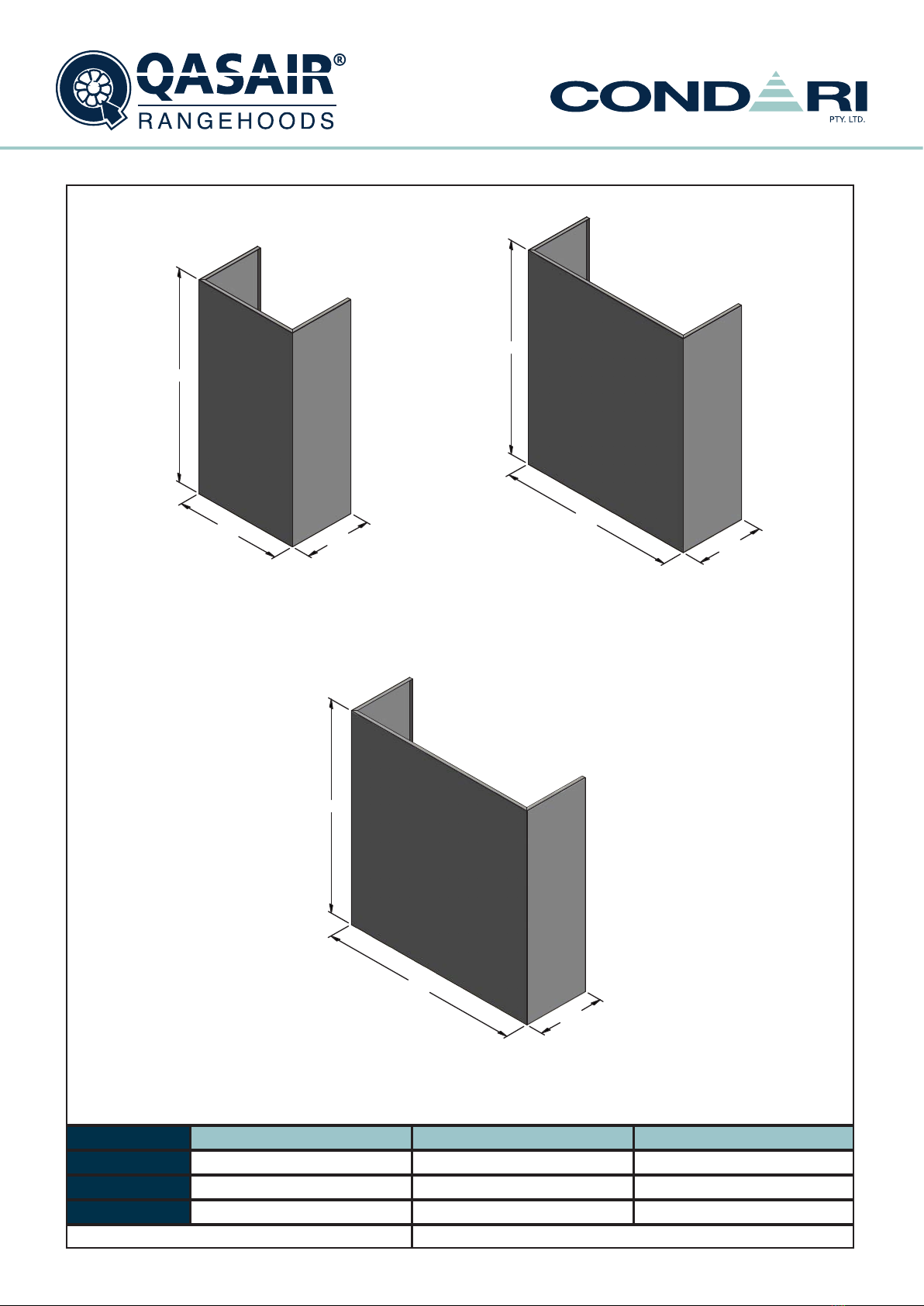

Shroud
Wall Mounted
Statesman
Technical Specification Sheet
STA
PMS539C
R=0
G= 48
B= 73
PMS5503C
R=156
G= 197
B= 202
Minimum Height
(H =)
Maximum Height
(H =)
Corner Type
Page 1 of 2
Version: G 17/03/2020F
All-thread
Fixing Centres
Light Qty PowderKote 
Available
Conversion
Top/Back Back/Top
Filter Size
Condari Pty Ltd.
Model
Electrical Connection
LED Light
Model
Nightlight
Filter Qty
Light Centres
Motor Qty
Round
Body Width
Motor Box /
Flue Width
STA 900L-1
403mm
900mm
510mm
YES
2
3
1
Cool
1470mm
Junction Box
335mm
YES
N/A
STA 900L-1
272mm x 355mm
YES
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
2
3
5
 15mm
Radius
Shroud
Power Entry
510
80
20
110
415
20
110
280
3
0
5
140
2
8
0
4
0
5
H
2
7
6
STA 900L-1 shown
without shroud.
Rangehood can be ordered as back or top ducted.
STA 900L-1 shown
with shroud.
STATESMAN - STA

Qasair Rangehoods Installation Instructions 19
Shroud
Statesman
Technical Specification Sheet
STA Wall Mounted
Motor Qty
Motor Box /
Flue Width
Body Width
Model
4
648mm
Model
Maximum Height
(H =)
Conversion
Top/Back Back/Top
Minimum Height
(H =)
Version: G 17/03/2020F
N/A
1470mm
Electrical Connection
Filter Size
All-thread
Fixing Centres
Corner Type
Condari Pty Ltd.
Round
1470mm
STA 900L-2
YES
Round
Page 2 of 2
N/A
YES
510mm
403mm
900mm
STA 900L-2
Light Centres
Filter Qty
Nightlight
Light Qty
LED Light
3
Junction Box
YES
272mm x 355mm
STA 1200L-2
2
STA 1200L-2
2
YES
2
Cool
2
660mmCool
YES
403mm
1200mm 272mm x 355mm
YES
Junction Box
660mm
PowderKote

Available
PMS 539C
R=0
G= 48
B= 73
PMS 5503C
R=156
G= 197
B= 202
3
8
0
4
0
5
H
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
x
W
i
d
t
h
2
5
0
3
7
6
STA 900L-2 shown
without shroud.
Power Entry
Shroud
510
80
20
250
740
20
250
380
3
0
5
140
Rangehood is manufactured as top duct only. A conversion kit for back ducted is supplied.
B
o
d
y
W
i
d
t
h
STA 1200L-2 shown
without shroud.
Shroud
4
5
5
140
Power Entry
3
7
6
2
5
0
M
o
t
o
r
B
o
x
W
i
d
t
h
STATESMAN - STA

Qasair Rangehoods Installation Instructions20
INSTALLATION INSTRUCTIONS
• BRH / LAM
• JAM
• MUR
1. Remove hood from packaging being careful not to touch stainless steel front.
2. Locate centre of stove and using level or plumb line, mark centre line up to ceiling.
3. Measure height of hood and mark same distance down from ceiling with level line.
4. Mark where ducting needs to be cut either on wall or ceiling, check for wires and timber, then cut hole for ducting.
5. Locate solid fixing points on wall (This hood is very heavy and requires good solid fixing points). If necessary fit
some solid fixing timber to wall behind hood now.
6. Mark fixing points on rear of hood and drill fixing holes to take solid screws.
7. Drill hole in rear or top of the hood to take electrical cable.
8. It may be easier to remove fans for easier fixing and weight when installing.
9. If you do not have adjustable stands you can cut some temporary timber props to sit canopy on when you lift into
position, to hold it while you fit fixing screws.
10. You need two people to lift this canopy into position. * Do not attempt this on your own, as you could cause
yourself injury and damage the hood or stove. CAUTION: Do not under any circumstances lift from the front of
the hood or put any pressure on the front face as you will damage the hood permanently.
11. Carefully lift hood into position and sit on stands to level hood, then screw hood into position through fixing holes.
Make sure you put fixing holes high up in the hood to stop it falling forward.
12. Fit ducting to hood to the outside atmosphere as required either through the roof with appropriate flashing by a
plumber or through the rear wall vent, which needs to be siliconed to the rear of the hood. Always use approved
ducting and seal all duct joins with duct tape or silicone.
13. An electrician should make the electrical connection to the hood by connecting to the 10 AMP junction box.
Ensure power is turned off during this procedure.
14. Refit fans to hood, insert filters and test.
Handy hints: Sometimes it is easier to lift the hood with a person in the roof space pulling up on a rope attached to a
wooden block placed inside base of hood and a second person down the bottom guiding the hood into position.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
