Condari QASAIR NDCH Assembly Instructions

UNDERCUPBOARD
INSTALLATION & USER
INSTRUCTIONS

Qasair Rangehoods Installation Instructions2

Qasair Rangehoods Installation Instructions 3
Standard Warranty / Extended Warranty
Important Information
Cutout Dimensions
Duct Direction Change Instructions
Instructions for Models
MT / MC
Instructions for Models
FA
Instructions for Models
CON / NDCH / LIS / ETN
Instructions for Models
WCV
Instructions for Models
WES / EAS
Installation Ideas
Operation Details, Rangehood Cleaning, Filter Cleaning
Ducting Pieces
Remote Switching Specications
Appliance Guarantee
Guarantee Exclusions
6
4
7
8
11
13
23
27
51
46
34
31
52
53
54

Qasair Rangehoods Installation Instructions4
The installation of QASAIR Rangehoods must comply with the information in this booklet. QASAIR Rangehoods are
designed and made to work efciently over all domestic cookware available on the Australian market.
Clearance from cooktop to Rangehood
For electric hot plate cooktops
As there are no regulations for Rangehoods over an electric hot plate, please follow the manufacturers Instructions /
Recommendations.
For Induction cooktops
Induction cooktops may present problems with condensation on lters of Rangehoods.
All Qasair Rangehoods installed above an induction cooktop must be installed no less than 750mm between the
induction cooktop and the Rangehood, with the exception of the Eastmore (EAS) Rangehood which can be installed
no less than 600mm. Undermount (NDCH) and Conley (CON) Rangehoods are not suitable for induction cooktops.
For gas cooktops
All Qasair Rangehood installations over a gas appliance must comply with (AS/NZS 5601.1).
The Regulations for the installation of Gas Appliances (AS/NZS 5601.1) states that the clearance between the
highest part of the burner of a gas cooking appliance and a Rangehood be no less than 600mm. If the gas
appliance is designed for use without a cooking vessel like an indoor barbecue or open ame grill, then the
clearance from the cooking surface to the Rangehood shall be no less than 1200mm.
All Qasair Rangehoods installed above a gas cooktop must be installed no less than 600mm between the highest
part of the burner and the Rangehood.
The recommendation for Qasair Wallmount Rangehoods is that they be installed between 700 to 800mm above the
highest part of the burner. When the Rangehood is installed in a galley or partially enclosed kitchen the Rangehood
can be installed between 900 to 1000mm above the highest part of the burner.
Qasair Island Rangehoods should not be installed any higher than 800mm above the highest part of the burner as
any movement around the bench will result in fumes being drawn out from the catchment area of the Rangehood
with the exception of the Thermidor and Liverpool which for aesthetic reasons is installed ush with the ceiling.
Ducting
1. Every QASAIR Rangehood must be ducted to the outside atmosphere by the use of zinc-alume duct or
non-porous and non-ammable materials. Do not use of any type of exible ducting or plastic PVC piping.
Rangehoods must not be vented into a wall cavity or a ceiling space. Externally ducting the rangehood prevents
a build up of grease, which can be a re risk. Ensure the external outlet vent does not restrict the airow in any
way, as this may result in reduced performance.
2. QASAIR Rangehoods must be ducted in duct work equivalent to the outlet of the rangehood ie: The cross
sectional area of the rangehood outlet and the duct work must be equal. Do not reduce the duct size or have
sharp bends. Enlarge the duct size if the duct is to run 6 metres or longer. Advice from CONDARI is available to
ensure optimum performance. Always use nonammable materials to minimise the risk of re in the duct.
3. Ensure all ducting pieces are correctly tted and sealed with either duct tape or silicone to ensure that fumes
do not escape into the ceiling space and seep into living areas through vents or light ttings.
IMPORTANT INFORMATION

Qasair Rangehoods Installation Instructions 5
Other Important Information
1. Always adequately ventilate the room when the rangehood is in use at the same time as appliances
burning gas or other fuels.
2. WARNING: Incorrect venting will result in additional noise and a reduction in efciency. Exhaust air must not be
discharged into any chimney or ue, which may carry combustible products from other sources.
a) Do not discharge the air-ow from the rangehood into a ue used for exhausting fumes
from burning gas or fuel;
b) For cleaning purposes please refer to page 51 of installation instructions for stainless steel;
c) If cleaning is not carried out in accordance with the instructions as listed on page 51, there may be an
increased risk of re;
d) Some parts of the rangehood may become hot when cooking;
e) This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
3. The installation and tting of the rangehood should be done in such a way that will allow the unit to be removed
if service is required. Additional costs incurred in the removal of wall tiles, damage to walls or bench tops are not
covered by warranty.
4. To reduce the risk of xing screws coming in contact with live parts, do not drill or screw into the rangehood.
Live wires are encapsulated where possible to prevent user contact. If necessary drill from the inside out and
only through single sheet material.
5. NOTE: CONDARI recommend an air movement of between 1000 to 1400 cubic metres per hour over an indoor
barbecue, depending on the length of the duct run. Ensure a twin motor unit is installed over indoor barbecues
for optimum results. Barbecues should be positioned under the centre of the hood where the fans are mounted
and not near the outer edges where leakage may occur.
6. The lights in the rangehoods are LED and come with a night light except for D400L-1 and SEN400L-1.
7. If the supply cord is damaged, an authorised service centre or licensed electrician must replace it.
8. Do not ambé under the rangehood.
9. QASAIR domestic rangehoods must not to be used over barbecues approved for outdoor use only,
CONDARI make a range of hoods specically for outdoor barbecues in alfresco areas under the CONDOR
name.
10. CONDARI can manufacture rangehoods to be used over commercial cookers in domestic applications.
12. NOTE: Ensure all requirements are met with gas and electrical regulations and or state authorities.

Qasair Rangehoods Installation Instructions6
INSTALLATION INSTRUCTIONS
EXECUTIVE / FLINDERS RANGE
CUTOUT DIMENSIONS
MODEL HOOD SIZE BASE SIZE
PROUD MOUNT
CUT OUT DIMENSION
FLUSH MOUNT
CUT OUT DIMENSION
CON 60L 243 x 580 280 x 600 258 x 585 280 x 600
CON 80L 243 x 780 280 x 800 258 x 785 280 x 800
NDCH 90L 243 x 880 280 x 900 258 x 885 280 x 900
NDCH 100L 243 x 980 280 x 1000 258 x 985 280 x 1000
NDCH 120L 243 x 1180 280 x 1200 258 x 1185 280 x 1200
LIS 500L 390 x 480 430 x 500 400 x 485 430 x 500
LIS 800L 390 x 780 430 x 800 400 x 785 430 x 800
LIS 900L 390 x 870 430 x 900 400 x 885 430 x 900
LIS 1000L 390 x 980 430 x 1000 400 x 985 430 x 1000
LIS 1200L 390 x 1180 430 x 1200 400 x 1185 430 x 1200
LIS 1500L 390 x 1480 430 x 1500 400 x 1485 430 x 1500
WES 60L / EAS 60L 290 x 565 330 x 600 300 x 570 330 x 600
WES 80L / EAS 80L 290 x 780 330 x 800 300 x 785 330 x 800
WES 90L / EAS 90L 290 x 880 330 x 900 300 x 885 330 x 900
WES 100L / EAS 100L 290 x 980 330 x 1000 300 x 985 330 x 1000
WES 120L / EAS 120L 290 x 1180 330 x 1200 300 x 1185 330 x 1200
WCV 1000L 560 x 980 600 x 1000 570 x 985 600 x 1000
WCV 1300L 560 x 1280 600 x 1300 570 x 1285 600 x 1300
WCV 1600L 560 x 1580 600 x 1600 570 x 1585 600 x 1600
WCV 1800L 560 x 1780 600 x 1800 570 x 1785 600 x 1800
ETN 600L 340 x 580 380 x 600 355 x 585 380 x 600
ETN 900L 340 x 880 380 x 900 355 x 885 380 x 900
ETN 1200L 340 x 1180 380 x 1200 355 x 1185 380 x 1200

Qasair Rangehoods Installation Instructions 7
DUCT DIRECTION CHANGE INSTRUCTIONS
Before installing your rangehood check whether it has the fan mounted for back or top ducting.
For top ducting, the unit will have the air outlet at the top, and for back ducting, the unit will have the air outlet at the
back.
To change from top to back or back to top, proceed as follows:
Duct direction for ETN, NDCH and CON models
The motor shown is fitted to the back plate (P) and this plate is attached to the hood by screws (S). To change from
top to back, remove the filters, unplug fan(s). Undo all the screw (S), carefully remove the plate and turn it around so
the motor points out the way required. Fit and reconnect the fan(s), and fit all the screws again and tighten.
Duct direction for LIS / FA / MT / MC / EAS and WES
To change the duct direction, proceed as follows:
1. Remove the screws from the fan access panel and remove access panel (for MT and MC models only).
2. Disconnect fan(s).
3. Unscrew the 2 x 7mm screws (B) fixing the fan to the hood. Remove fan entirely. Repeat for each fan.
4. Rotate the fan assembly and re-install so that the air outlet meets with the rangehood outlet hole through which
you are going to vent (top or back).
5. Replace the 2 x 7mm screws holding each fan.
6. Reconnect the fan(s)
7. Refit the fan access panel (for MT, EAS and WES models only).
LIS model – Rear duct

Qasair Rangehoods Installation Instructions8
INSTALLATION INSTRUCTIONS
• MT
• MC
1. Fit a shelf at 410mm from the base of the cupboard.
2. Note hinge location prior to drilling.
3. Work from the centre line mark and drill 4 x M5 to M8 holes.
4. For top ducted models, cut out hole for the ducting allow 20mm clearance.
5. Fix left and right hand mounting brackets (supplied) 145mm from the base of the cupboard flush with the rear
of the unit. Notch to the back.
6. Lift rangehood onto mounting brackets by holding either end. DO NOT use the slide mechanism as this may
cause damage.
7. Insert the 4 x 50mm pan head screws supplied through the shelf and into the rangehood. Turn clockwise to level
the rangehood.
8. Fix the rangehood position by inserting 2 x no 8 1/2 inch screws through the left and right hand brackets.
9. Fit doors.
10. Minor adjustments may be required on the rangehood handle. Loosen the screws on the rear of the handle and
adjust handle position and re- tighten. The rangehood handle can be replaced.
11. All of the rangehoods shown on pages 1 and 8 are supplied with a 10AMP plug and lead for connection
to a 10AMP GPO, which must be in an accessible position.
12. The handle can be removed and replaced with one made by the cabinet maker to fit in with the kitchen cabinets.
The MT 90 has 3 screws and the MT 60 has 2 screws. These can be accessed by sliding the facia out and
un-screwing the front from underneath and behind the facia. The handle will come off by tilting it forward from
the top.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.

Qasair Rangehoods Installation Instructions 9
Mini Trim

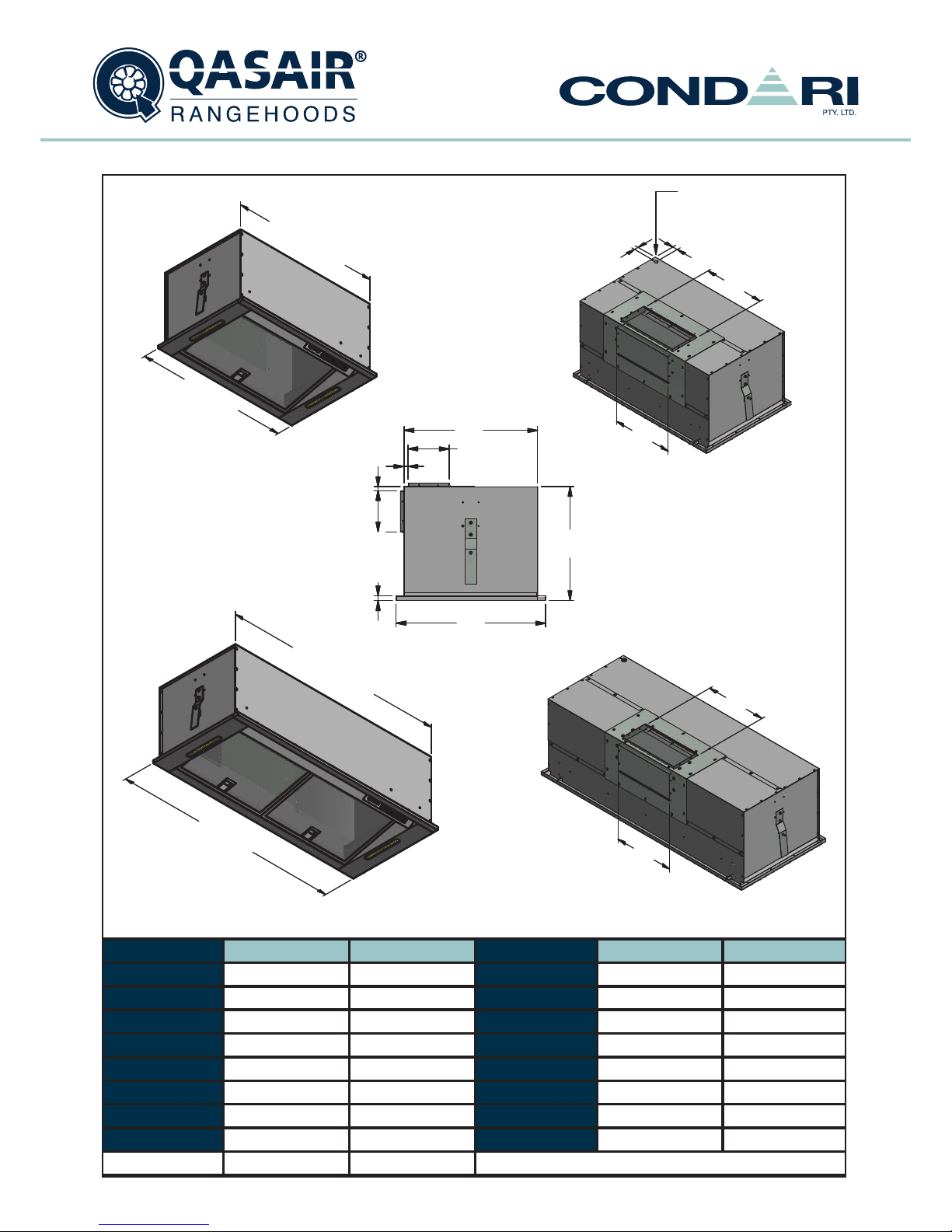

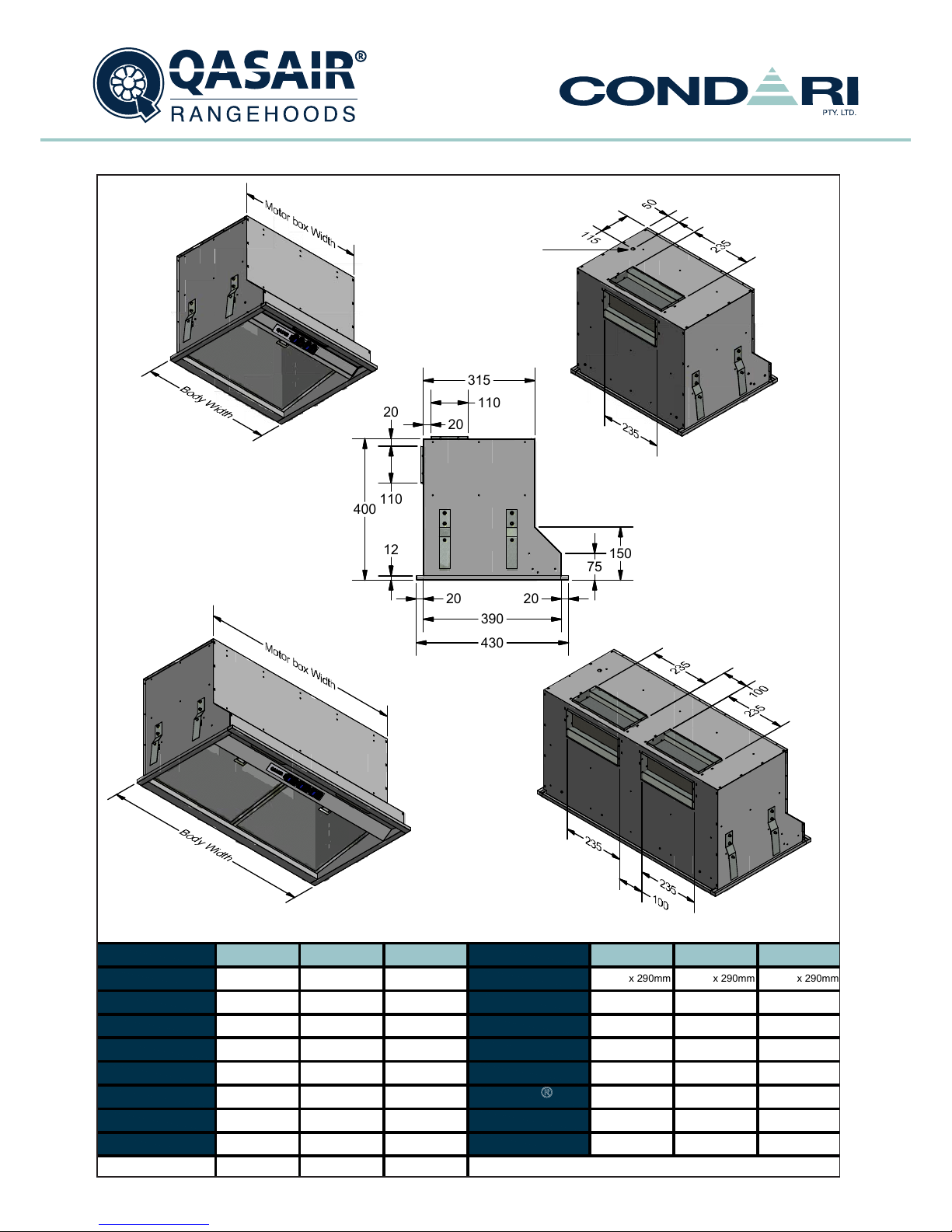

Technical Specification Sheet
MT Slide Out
Motor Box /
Flue Width
Body Width
Light Centres
LED Light
Light Qty
Motor Qty
Filter Qty 1
N/A
Model Model MT 60L-1
2
320mm
Nightlight
N/A
Minimum Height
(H =)
Page 1 of 1Condari Pty Ltd.
All-thread
Fixing Centres
PowderKote 
Available
Maximum Height
(H =)
Corner Type
Conversion
Top/Back Back/Top
Electrical Connection
YES
N/A
10 Amp Lead
N/A
Square
N/A
Version: B 03/12/2014F
N/A
514mm
x 177mm
2
MT 90L-1
1
Cool
YES
MT 60L-1
600mm
518mm
110 Amp Lead
YES
407mm
x 177mm
MT 90L-1
N/A
Square
Cool
YES
518mm
900mm
1
Filter Size
N/A
N/A
Power entry location
is the same for all
MT models.
20
38
275170
120
395
255
20
110
20
110
This view is shown
with slide out trim
in closed position.
MINI TRIM - MT

Qasair Rangehoods Installation Instructions10
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 1
Version: B 03/12/2014
F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote 
Available
All-thread
Fixing Centres
Corner Type
MC 1000L-2MC 1000L-2
1000mm
918mm
2
Cool
YES
2
320mm
2
457mm
x 177mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Marcel

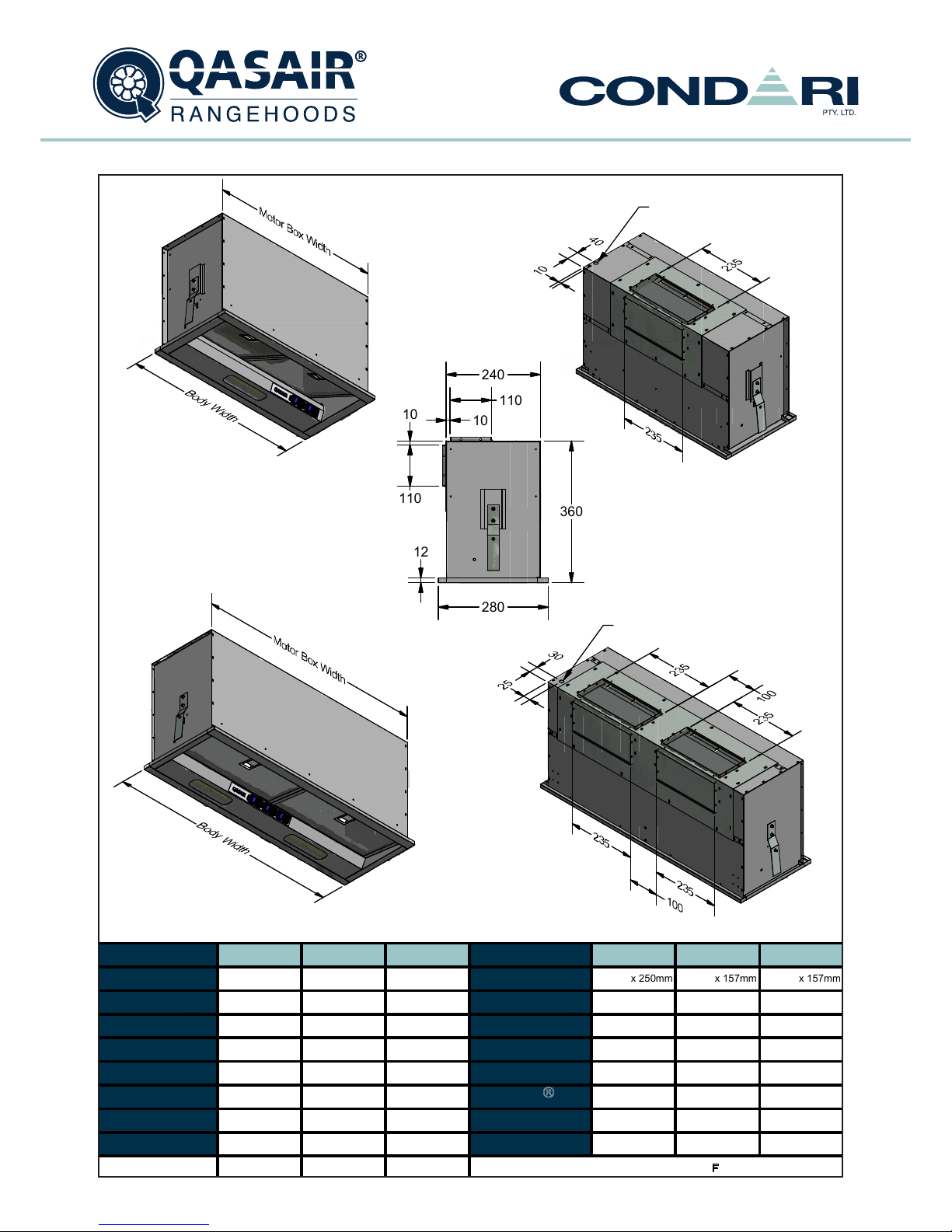

Technical Specification Sheet
MC Slide Out
Power Entry
170 275
455
179
100
20
255
20
110
20
110
This view is shown
with slide out trim
in closed position.
MARCEL - MC

Qasair Rangehoods Installation Instructions 11
INSTALLATION INSTRUCTIONS
• FA
1. The rangehood is designed to be fitted within joinery and can be installed by inserting screws in the three holes
provided on each side, or to the top or back by drilling your own mounting holes as required.
2. When installed, cover the access holes to the side fixing screws with the plastic plugs supplied.
3. Fit filters.
4. Install front panel to suit as per your kitchen design.
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.

Qasair Rangehoods Installation Instructions12
Door Width
Condari Pty Ltd. Page 1 of 1
Version: B 03/12/2014F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote 
Available
All-thread
Fixing Centres
Corner Type
FA 60L-1 FA 90L-2FA 90L-1FA 60L-1FA 90L-2FA 90L-1
598mm
Centre
2
573.4mm
1
Cool
YES
1
274mm
x 290mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
898mm
873.4mm
1
Cool
YES
2
350mm
2
898mm
873.4mm
2
Cool
YES
2
350mm
2
424mm
x 290mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
424mm
x 290
mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Foldaway

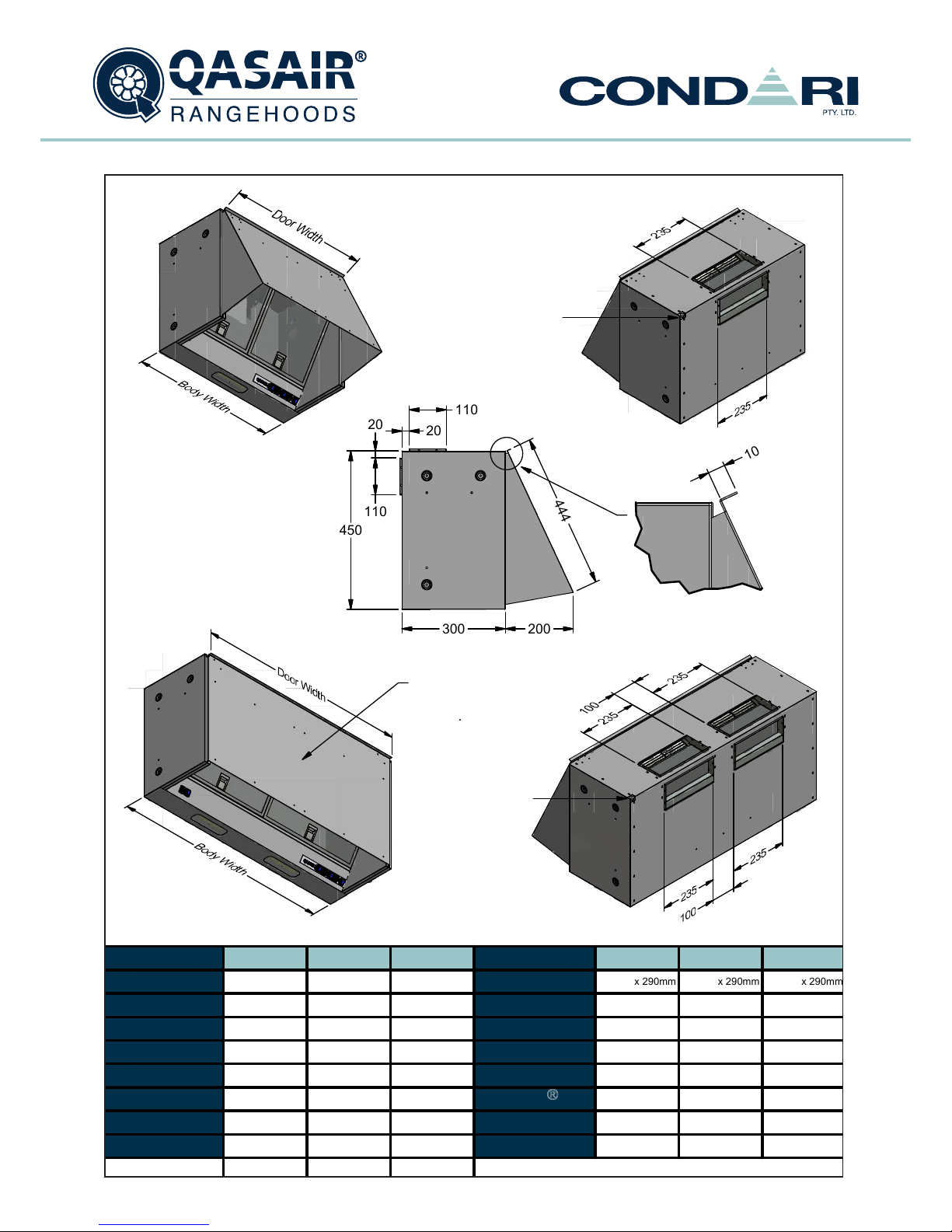

Technical Specification Sheet
FA Undercupboard
Power Entry
300
450
20
110
200
444
20
110
Power Entry
This view is shown
with door in closed
position .
10
FOLDAWAY - FA

Qasair Rangehoods Installation Instructions 13
INSTALLATION INSTRUCTIONS
• CON
• NDCH
• LIS
• ETN

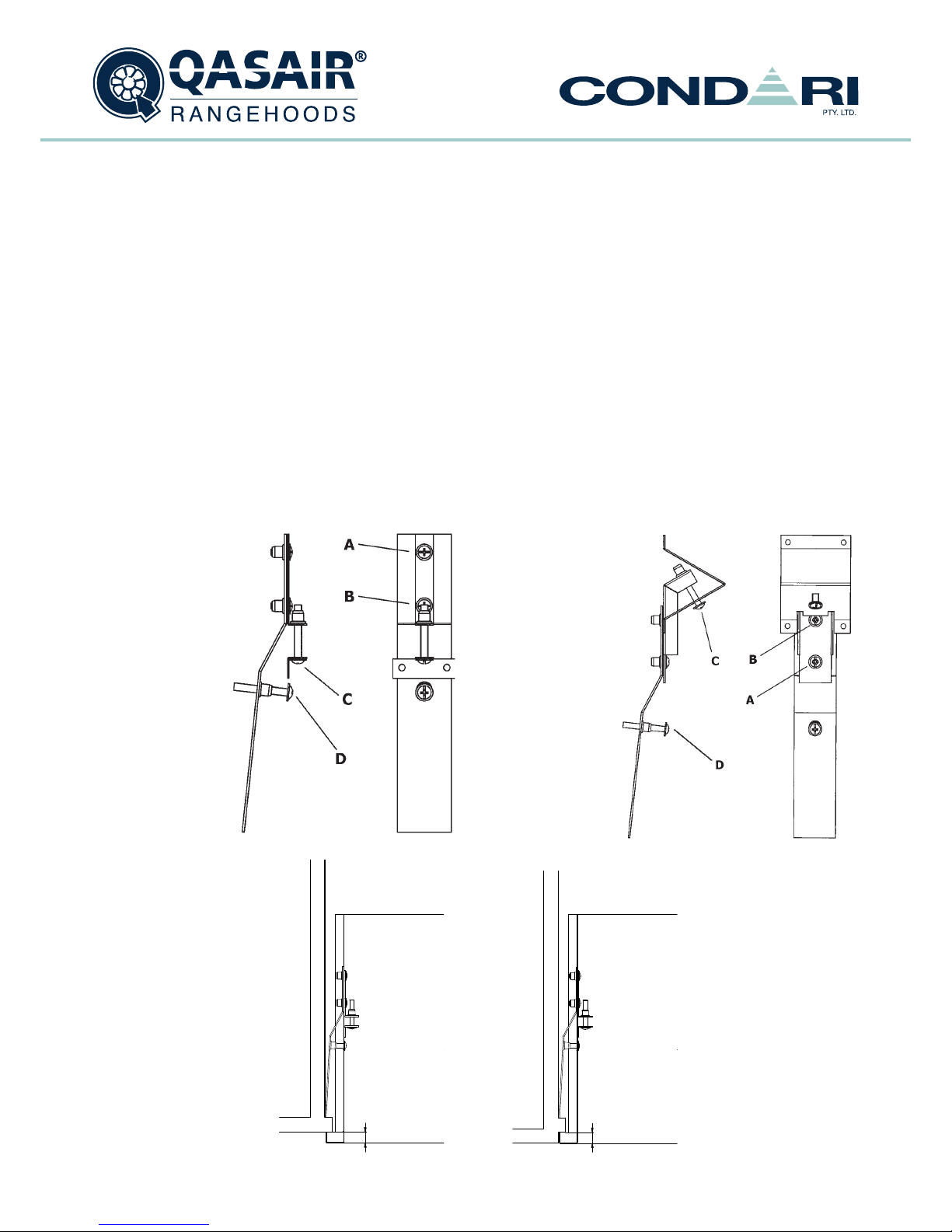

1. Loosen screws A and B by turning anti-clockwise.
2. Turn screw ‘D’ anti-clockwise to extend the outer spring bracket.
3. Insert rangehood into cut out and turn screw ‘C’ clockwise to align rangehood with cupboard base.
4. Do not over tighten.
5. Tighten screw ‘A’ by turning clockwise to lock xing bracket.
6. Fit off ductwork as required.
7. To remove rangehood, turn screw ‘D’ clockwise.
Models: ETN
NDCH
Models: LIS
CON
RANGEHOOD SPRING BRACKETS
MOUNTING POSITION
Installation must be carried out by the procedure outlined.
Failure to do so may void the guarantee.
Electrical: Wiring to the appliance must comply with State and local Regulations.
Connection to be carried out by a registered electrician.
Flush Mount ( 1 : 4 )Proud Mount ( 1 : 4 )
AAB B
Cupboard
Front of Rangehood
FLUSH MOUNT
Cupboard
Front of Rangehood
PROUD MOUNT
12
12

Qasair Rangehoods Installation Instructions
14
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 1
Version: A 01/07/2014 F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote 
Available
All-thread
Fixing Centres
Corner Type
CON 60L-1 CON 80L-2CON 80L-1CON 60L-1CON 80L-2CON 80L-1
600mm
Centre
2
580mm
1
Cool
YES
1
269mm
x 250mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
800mm
780mm
1
Cool
YES
2
379mm
2
800mm
780mm
2
Cool
YES
2
379mm
2
379mm
x 157mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
379mm
x 157
mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Conley
Technical Specification Sheet
CON Undercupboard
Power Entry
280
360
12
10
110
10
110
Power Entry
240
CONLEY - CON

Qasair Rangehoods Installation Instructions
15
Undermount
Technical Specification Sheet
NDCH Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
880mm
900mm
NDCH 90L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote 
Available
2
770mm
NDCH 90L-2
2
770mm
880mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type Square
N/AN/A
Version: B 19/12/2014F
Square
Electrical Connection
N/A
N/A
340mm
x 260mm
YES
NDCH 90L-1 NDCH 90L-2
Cool
YES
900mm
2
2
10 Amp Lead
YES
340mm
x 260mm
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for all
NDCH models.
280
12
360
10
110
240
10
110
UNDERMOUNT - NDCH

Qasair Rangehoods Installation Instructions
16
Undermount
Technical Specification Sheet
NDCH Undercupboard
2
Light Centres
Filter Qty
860mm
Motor Box /
Flue Width
Body Width
Motor Qty
Nightlight
Light Qty
LED Light
1060mm
Cool
NDCH 120L-2
1180mm
YES
2
NDCH 100L-2
Cool
980mm
Model
2
All-thread
Fixing Centres
Page 2 of 2
Version: B 19/12/2014F
Condari Pty Ltd.
2Corner Type
Maximum Height
(H =)
2
1000mm 1200mm Filter Size
Electrical Connection
Minimum Height
(H =)
Square
N/A
N/A N/A
Square
Model
PowderKote 
Available N/A
N/A
10 Amp Lead
N/A
N/A
YES
479mm
x 260mm
N/A
NDCH 100L-2
YES
NDCH 120L-2
10 Amp Lead
379mm
x 260mm
YES
2
Conversion
Top/Back Back/Top
Power entry location
is the same for all
NDCH models.
280
12
360
10
110
240
10
110
UNDERMOUNT - NDCH

Qasair Rangehoods Installation Instructions
17
Motor Box /
Flue Width
Condari Pty Ltd. Page 1 of 3
Version: B 03/12/2014F
Body Width
Model
Motor Qty
Light Centres
Light Qty
Nightlight
LED Light
Filter Qty
Model
Filter Size
Conversion
Top/Back Back/Top
Electrical Connection
Minimum Height
(H =)
Maximum Height
(H =)
PowderKote 
Available
All-thread
Fixing Centres
Corner Type
LIS 500L-1 LIS 800L-2LIS 800L-1LIS 500L-1LIS 800L-2LIS 800L-1
500mm
Centre
1
480mm
1
Cool
YES
1
459mm
x 290mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
800mm
780mm
1
Cool
YES
2
380mm
2
800mm
780mm
2
Cool
YES
2
380mm
2
379mm
x 290mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
379mm
x 290
mm
YES
10 Amp Lead
N/A
N/A
N/A
N/A
Square
Lismore
Technical Specification Sheet
LIS Undercupboard
Power entry location
is the same for all
LIS models.
430
2020
400
20
110
315
20
110
75
390
12150
LISMORE - LIS

Qasair Rangehoods Installation Instructions
18
Lismore
Technical Specification Sheet
LIS Undercupboard
Motor Box /
Flue Width
Body Width
Light Centres
LED Light
Light Qty
Motor Qty
Filter Qty 2
424mm
Model Model LIS 900L-2
2
480mm
Nightlight
N/A
Minimum Height
(H =)
Page 2 of 3Condari Pty Ltd.
All-thread
Fixing Centres
PowderKote 
Available
Maximum Height
(H =)
Corner Type
Conversion
Top/Back Back/Top
Electrical Connection
YES
N/A
10 Amp Lead
N/A
Square
N/A
Version: B 03/12/2014F
N/A
424mm
x 290mm
2
LIS 1000L-2
2
Cool
YES
LIS 900L-2
900mm
870mm
210 Amp Lead
YES
479mm
x 290mm
LIS 1000L-2
N/A
Square
Cool
YES
980mm
1000mm
2
Filter Size
N/A
N/A
Power entry location
is the same for all
LIS models.
430
2020
400
20
110
20
110
315
390
75
12150
LISMORE - LIS

Qasair Rangehoods Installation Instructions
19
Minimum Height
(H =)
Filter Size
Model
Conversion
Top/Back Back/Top
N/A
LIS 1200L-3
Electrical Connection
Page 3 of 3
Body Width
Motor Box /
Flue Width
Motor Qty
Model
Nightlight
Filter Qty
Light Qty
Version: B 03/12/2014F
Light Centres
Maximum Height
(H =)
Corner Type
Condari Pty Ltd.
1180mm
1200mm
LIS 1200L-2
4
LED Light
580mm
YES
N/A
N/A
10 Amp Lead
290mm
x 290mm
LIS 1200L-2
N/A
LIS 1500L-3
N/A
YESYES
2
N/A
290mm
x 290mm365mm x 290
mm
All-thread
Fixing Centres
PowderKote 
Available
LIS 1500L-3
1500mm
1480mm
3
3
1200mm
1180mm
452mm
4
YES
4
Cool Cool
3
2
LIS 1200L-3
N/A
Square
YES
10 Amp Lead10 Amp Lead
YES
N/A
Square
N/A
N/A
N/A
Square
N/A
580mm
2
Cool
Lismore
Technical Specification Sheet
LIS Undercupboard
Power entry location
is the same for all
LIS models.
430
2020
400
20
110
20
110
315
75
12
390
150
LISMORE - LIS

Qasair Rangehoods Installation Instructions
20
Eaton
Technical Specification Sheet
ETN Undercupboard
Motor Qty
LED Light
Nightlight
Model
Body Width
Motor Box /
Flue Width
Light Qty
Light Centres
Filter Qty
Cool
YES
1
580mm
600mm
ETN 600L-1
2
Page 1 of 2
All-thread
Fixing Centres
Condari Pty Ltd.
PowderKote 
Available
2
800mm
ETN 900L-1
1
520mm
880mm
Minimum Height
(H =)
Model
Maximum Height
(H =)
Corner Type Square
N/AN/A
Version: C 2/6/2016F
Square
Electrical Connection
N/A
N/A
479mm x 290mm
YES
ETN 600L-1 ETN 900L-1
Cool
YES
900mm
1
2
10 Amp Lead
YES
379mm x 290mm
10 Amp Lead
N/A
Filter Size
Conversion
Top/Back Back/Top
N/A
N/A
N/A
Power entry location
is the same for
all ECH models.
2
3
5
2
3
5
2
0
1
7
110 10
110
10
340
290
12
380
2
3
5
2
3
5
M
o
t
o
r
B
o
x
W
i
d
th
B
o
d
y
W
i
d
t
h
M
o
t
o
r
B
o
d
y
W
i
dt
h
B
o
d
y
W
i
d
t
h
EATON - ETN
