Connection Technology Systems WPC-2012 Series User manual

Trademarks
CTS is a registered trademark of Connection Technology Systems Inc.. Contents
subject to revision without prior notice. All other trademarks remain the property of their
owners.
Copyright Statement
Copyright Connection Technology Systems Inc.
This publication may not be reproduced as a whole or in part, in any way whatsoever
unless prior consent has been obtained from Connection Technology Systems Inc..
FCC Warning
WPC-2012 Series Media Converters have been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These
standards are designed to provide reasonable protection against harmful interference
when these devices are operated in a commercial environment. These devices generate,
use, and can radiate radio frequency energy and may cause harmful interference to
radio communications unless installed in accordance with this User’s Guide. Operation f
these devices in a residential area is likely to cause harmful interference which will make
the user responsible for the appropriate remedial action at his / her own expense.
CE Mark Warning
These are Class A products. In a domestic environment these products may cause radio
interference in which case the user will need to consider adequate preventative
methods.
1. Checklist
The WPC-2012 package should contain the following items:
-
WPC-2012 Converter
-
The Power Supply (Optional)
-
This User’s Guide
Please notify your sales representative immediately if any item is
missing or damaged.
2. Overview
WPC-2012 Media Converters Series support IEEE 802.3af/at
PoE feature and are specifically designed to supply power to
PoE-enabled devices such as WiFi AP or surveillance cameras.
WPC-2012 Media Converters are power supply equipments (PSE)
that can transmit data and supply power at the same time to the
powered devices (PD). The maximum cable distance that can
reach the powered devices from WPC-2012 is up to 100M,
allowing your powered devices to be installed in a place where the
power is not easily accessible.
Besides, WPC-2012 aims at industrial applications that demand a
wide range of operating temperature and require redundant power
supplies to create a reliable and stable networking environment in
the event of power failure. They can also be mounted on the wall
or onto 35mm DIN rail using DIN rail clip on the media converter.
The installation and operation procedures of WPC-2012 are
simple and straightforward. Operation status can be locally
monitored through a set of Diagnostic LED indicators on the front
panel.
Major Features:
-
Support Auto-Negotiation or Manual mode for TP port’s speed
& duplex configuration.
-
Pass through/Store and Forward Switching Mechanism
-
Compatible with IEEE 802.3af/at PoE+
-
Support MDI/MDIX Auto-Crossover
-
Support Link Alarm function
-
Support the fault alarm for the port failure
-
Support 1K MAC address
-
Support 9K bytes Jumbo Frame
-
Support redundant AC and DC power supply
-
Support a wide range of operating temperature (-20oC ~60oC)
-
Support both DIN-rail and wall-mounting installation methods
-
Support 12K bytes packet buffer
3. Network Installation
Please follow the steps described below to complete the network
installation.

Attach a fiber cable from WPC-2012 to the fiber network.

Attach a UTP cable from the 10/100Base-TX network to
the RJ-45 port on WPC-2012.

Connect the power supply to WPC-2012 and the Power
LED will light up. The TP and F/O Link/ACT LEDs will light
up as soon as if all the cable connections are satisfactory.
4. DIP SWITCH Setting
The default setting for PIN 1 through PIN 9 is OFF.
PIN NO.
Function
OFF
ON
1
TP Auto-Negotiation
Enable
Disable
2
Manual TP Speed
100M
10M
3
Manual TP Duplex
Full
Half
4
Link Alarm
Disable
Enable
5
Reserved
Always Keep OFF
6
Reserved
Always Keep OFF
7
Pass Through Mode
Disable
Enable
8
F/O Fault Alarm
Disable
Enable
9
TP Fault Alarm
Disable
Enable
NOTE:
1. Before adjusting the configuration of the DIP Switch, the
power should be unplugged.
2. Disable TP Auto-Negotiation function before configuring TP
speed/duplex manually.
5. Terminal Block
TB1 and TB2 Power Supply: Two sets of DC 48V power inputs,
TB1 and TB2, on the terminal block are offered for power
redundancy purpose. You can use both pairs of power supply
(TB1 and TB2) or use either one pair of power supply on the
terminal block and AC-DC external power supply to create the
redundant setup. The redundant power supply will take over
seamlessly when one power source is down to protect your
device or network from the loss of power. When you use only
one power supply (no redundant power is available), the LED of
PWR/Port Status will flash in orange color to alert the user.
Port Fault Alarm: One pair of port fault connection on the
terminal block is used to connect alarm devices such as
speakers or LEDs to alert users when TP or F/O port link is
disconnected. To make this function work, you must first set PIN
8 and PIN 9 on the DIP Switch to “ON”position (Enable).
6. Link Alarm
Link Alarm allows users to easily identify and diagnose the linking
status. If Link Alarm is enabled (PIN 4 is set to ON), the UTP and
fiber port can link up only when both linking conditions are good. In
addition, if the fiber or UTP port link is down during the operation,
the other port link will also be turned into the “Down” status to alert
the user. Configure Link Alarm DIP switch as “Enabled” status, it
Use flat-head
screwdriver to
loosen and tighten
the screw.
Insert positive or
negative wire as
indicated.
WPC-2012
WPC-2012
WPC-2012
WPC-2012

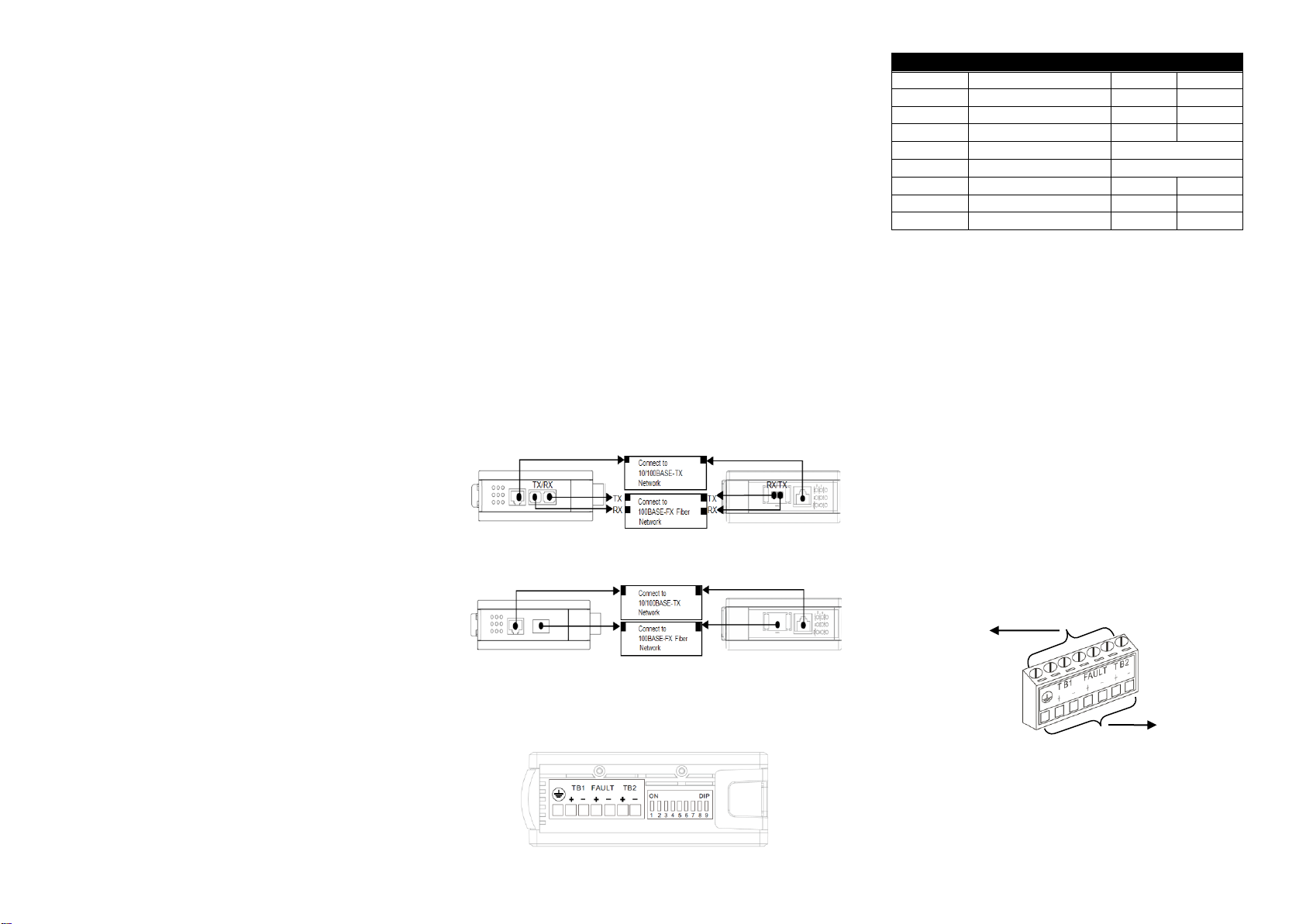

Fig. 3 Terminal Block and DIP Switch of WPC-2012
Fig. 1 Basic Network Connection for BTFX models
Fig. 2 Basic Network Connection for WDM/SFP models
Fig. 4 Top View of
Terminal Block

provides users transparent link indication between two network
devices interconnected by WPC-2012.
If Link Alarm is disabled, the UTP and fiber port will link up based
on their individual linking condition. Furthermore, if the fiber port
link is down during the operation, the UTP port link will not be
turned into the “Down” status, and vice versa.
7. LED Description
8. Technical Specifications
Standards
IEEE 802.3, 802.3u, 802.3af/at
Interface
1 X 10/100Base-TX RJ-45 connector
1 X 100Base-FX SC/ST F/O port or SFP slot
LED
PWR, PW T1, PW T2, FDX, Speed, TP Link/ACT,
F/O Link/ACT, PoE and PWR/Port Status
Power
DC Input Voltage: 48V DC,
AC-DC Power Jack x 1,
DC Power Input x 2 on Terminal Block
Power
Consumption
36W
Shipping Weight
0.295KG
Dimensions
105mm(W)X93mm(D)X35mm(H)
Temperature
Operating: -20ºC~60ºC
Storage: -20ºC~70ºC
Humidity
5%~90% RH non-condensing
EMC Safety
FCC Part 15 Class A, CE
Media
TP:
Cat. 5 UTP cable
Fiber:
50/125, 62.5/125m multi-mode fiber
9/125m single-mode fiber
*Please contact us for further reports and updates.
9. Fiber Transceiver Information
100M Multi-Mode:
TYPE
BTFC
BTFT
Connector Type
SC
ST
Wavelength
1310nm
1310nm
Typical Distance
2Km
2Km
Min/Max TX PWR
-20.0dBm/-14.0dBm
-20.0dBm/-14.0dBm
Sensitivity
-31.0dBm
-31.0dBm
Link Budget
11.0dB
11.0dB
100M Single-Mode:
TYPE
BTFC(SM-30)
BTFC(SM-50)
BTFC(SM-80)
BTFC(SM-100)
Connector Type
SC
SC
SC
SC
Wavelength
1310nm
1310nm
1310nm
1550nm
Typical
Distance
30Km
50Km
80Km
100Km
Min TX PWR
-15.0dBm
-5.0dBm
0dBm
-5.0dBm
Max TX PWR
-8.0dBm
0dBm
5.0dBm
0dBm
Sensitivity
-34.0dBm
-35.0dBm
-36.0dBm
-35.0dBm
Link Budget
19.0dB
30.0dB
36.0dB
30.0dB
100M Wave-Length WDM:
TYPE
W2A(SM-20)
W2B(SM-20)
W2A(SM-40)
W2B(SM-40)
Connector Type
SC
SC
SC
SC
TX Wavelength
1310nm
1550nm
1310nm
1550nm
RX Wavelength
1550nm
1310nm
1550nm
1310nm
Typical Distance
20 Km
20 Km
40 Km
40 Km
Min TX PWR
-14.0dBm
-14.0dBm
-8.0dBm
-8.0dBm
Max TX PWR
-8.0dBm
-8.0dBm
0dBm
0dBm
Sensitivity
-31.0dBm
-31.0dBm
-34.0dBm
-34.0dBm
Link Budget
17.0 dB
17.0 dB
26.0 dB
26.0 dB
NOTE: Specifications may change without prior notice.
Contact Information
Connection Technology Systems INC (CTS)
18F-6, No.79, Sec.1, Xintai 5th Rd., Xizhi Dist.,
New Taipei City 221, TAIWAN, R.O.C.
TEL: [phone] FAX: [phone]
E-Mail: [e-mail]

WPC-2012 SERIES
10/100Base-TX to
100Base-FX Fast Ethernet
PoE/PSE Media Converter
User’s Guide
Version 2.0
LED
Color
Function
PWR
Green
Lit when power is available.
PW T1
Green
Lit when TB1 on Terminal Block powers up.
PW T2
Green
Lit when TB2 on Terminal Block powers up.
TP
Link/ACT
Green
Lit when TP port link is up.
Blinking when TP port is receiving and transmitting
data.
Off when TP port link is down.
Orange
Blinking when the port link down caused byFiber port
in case Link Alarm is enabled.
Speed
Green
Lit when TP 100M port link is up.
Off when TP 10M port link is up or no port link exists.
FDX
Green
Lit when TP port works in full-duplex mode.
Off when TP port works in half-duplex mode.
F/O
Link/ACT
Green
Lit when Fiber port link is up.
Blinking when Fiber port is receiving and transmitting
data.
Off when Fiber port link is down.
Orange
Blinking when the port link down caused by TP port in
case Link Alarm is enabled.
PWR/Port
Status
Orange
Lit when TP/Fiber port link is down and two power
sources are available, or TP/Fiber port link is down
and only one power source is available. (This
indication onlyworks when PIN 8 and PIN 9 on the DIP
Switch are set to “Enable”.)
Blinking when the redundancy system works
abnormally (only one power source is available) and
port links work normally.
Off when two power sources are available and port
links work normally.
PoE
Green
Lit when the device is supplying the power.
Blinking when the device does not supply the power.
Rapidly blinking when the device’s PoE function works
abnormally.
