Connection SLI 2.2 User manual

OWNER’S MANUAL
SLI 2.2 - SLI 4.2
connection.eu
Manuale SLI 2/ SLI 4_2019.indd 1 22/05/19 15:19

Manuale SLI 2/ SLI 4_2019.indd 2 22/05/19 15:19

3
WARNING
•Before you start your installation, make sure you carefully read and understand all instructions.
Disregarding them might cause accidental harms or damage your devices.
•The vehicle electric system must have 12 VDC voltage with negative to ground. Make sure
 yourcarhasitinordertoavoidanydamagestoyouramplierandtothevehicle.
•Install the device in the vehicle parts where temperature is between 0° C (32° F) and 55° C (131° F).
•Make sure the location you chose for the components does not affect the correct functioning
of the vehicle mechanical and electric devices.
•Do not run the cables or install the device next to electronic gearcases.
•Always wear protective eyewear when using tools that may generate splinters.
•When installation is over, and before plugging the main power supply fuse, check the system
wiring and make sure all connections were done in the right way.
•Safetymustbeattherstplacewhiledriving.Listeningvolumemustnevercovernoisecomingfrom
the outside and from the vehicle, in order for you to be able to promptly face emergency situation.
•AlwaysinsulatetheconnectionbetweentheSLIandtheOEMheadunit/OEMamplierto
avoid damage them.
•AlwaysinsulatetheconnectionbetweentheSLIandthe+12Vpowersupplysystem(battery).
•Alwaysfuse+12VSLIcable(RED)with1Afusetoavoidanydamagetothevehicleelectrical
 systemandoreventofre.
Elettromediawillnotbeliableforthedirectorindirectdamagesduetoawronguseorawrong
connection of the device.
Manuale SLI 2/ SLI 4_2019.indd 3 22/05/19 15:19

4

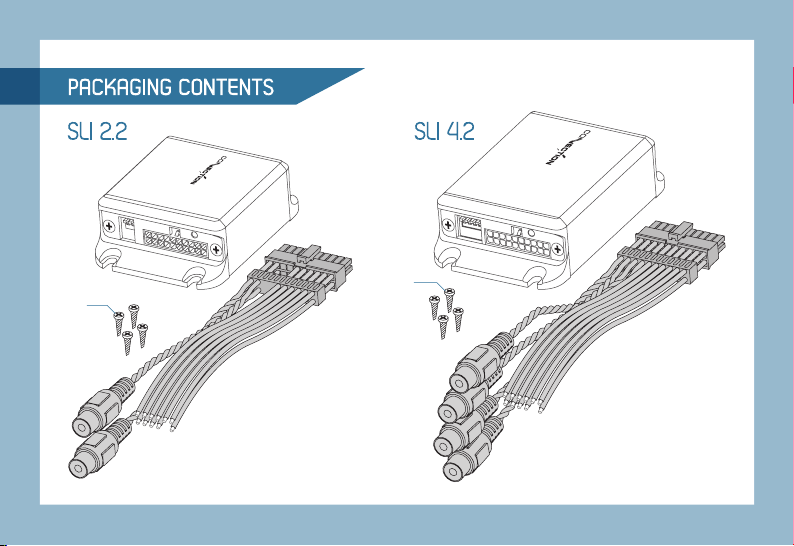

PACKAGING CONTENTS
SLI 2.2 SLI 4.2
x 4
x 4
Manuale SLI 2/ SLI 4_2019.indd 4 22/05/19 15:19

5
INSTALLATION - FIXING - SIZE
D
H
W
CLICK
SLI 2.2 -SLI 4.2
W H D
SLI 2.2 61
(2.4)
82
(3.2)
28
(1.1)
mm
(in.)
SLI 4.2 61
(2.4)
102
(4)
28
(1.1)
mm
(in.)
Manuale SLI 2/ SLI 4_2019.indd 5 22/05/19 15:19

6
CONNECTIONS
SLI 2.2
*ConversionnotoperatedforRearinputchannelsonSLI2.2,onlyUSSandARTfunctionisactiveontheseinputs.
UNIVERSAL SPEAKERS
SIMULATOR circuit, simulates
theloadoftheOEMspeakers
onthe4Front+Rearinput
channels, for a complete
compatibilitywithOEM
Headunit/OEMAmplier.
SLI 2.2 CABLE OUTPUT VIEW
RCA
OUT
GND (Black)
NC
IN RR- (Purple/Black)
IN RL- (Green/Black)
IN FR- (Grey/Black)
IN FL- (White/Black)
NC
NC
OUT FR- (Grey/Black)
OUT FL- (White/Black)
(Red) +12V
(Blue) REM OUT
(Purple) IN RR+
(Green) IN RL+
(Grey) IN FR+
(White) IN FL+
NC
NC
(Grey) OUT FR+
(White) OUT FL+
+12V
GND
RCA
Front Right
Out
RCA
Front Left
Out
RemOut
INRR+
INRL+
INFR+
INFL+
INRR-
INRL-
INFR-
INFL-
Rear
Right
Front
Right
Rear
Left
Front
Left
Manuale SLI 2/ SLI 4_2019.indd 6 22/05/19 15:19

7
CONNECTIONS
SLI 4.2
UNIVERSAL SPEAKERS
SIMULATOR circuit, simulates
theloadoftheOEMspeakers
onthe4Front+Rearinput
channels, for a complete
compatibilitywithOEM
Headunit/OEMAmplier.
RCA
OUT
+12V
GND
RCA
Front Right
Out
RCA
Rear Right
Out
RCA
Front Left
Out
RCA
Rear Left
Out
RemOut
INRR+
INRL+
INFR+
INFL+
INRR-
INRL-
INFR-
INFL-
Rear
Right
Front
Right
Rear
Left
Front
Left
SLI 4.2 CABLE OUTPUT VIEW
GND (Black)
NC
IN RR- (Purple/Black)
IN RL- (Green/Black)
IN FR- (Grey/Black)
IN FL- (White/Black)
OUT RR- (Purple/Black)
OUT RL- (Green/Black)
OUT FR- (Grey/Black)
OUT FL- (White/Black)
(Red) +12V
(Blue) REM OUT
(Purple) IN RR+
(Green) IN RL+
(Grey) IN FR+
(White) IN FL+
(Purple) OUT RR+
(Green) OUT RL+
(Grey) OUT FR+
(White) OUT FL+
Manuale SLI 2/ SLI 4_2019.indd 7 22/05/19 15:19

8

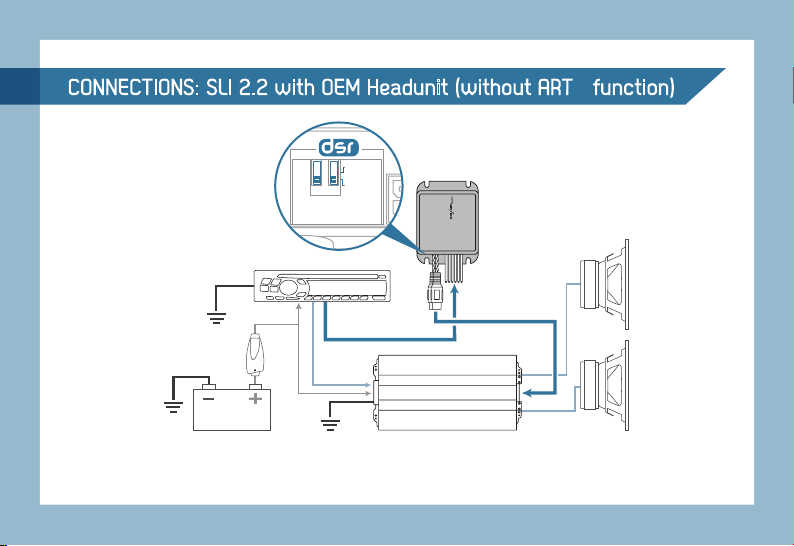

CONNECTIONS: SLI 2.2 with OEM Headunit (without ART™function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
OEM Headunit
+ Batt
Fuse
IN (high level)
OUT (low level)
Remote
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OFF
ON
Manuale SLI 2/ SLI 4_2019.indd 8 22/05/19 15:19

9
CONNECTIONS: SLI 2.2 with OEM Headunit (with ART™function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™:AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
 (availableonlywhenSLIispowered).
*ConversionnotoperatedforRearinputchannelsonSLI2.2,onlyUSSandARTfunctionisactiveontheseinputs.
**IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
OFF
ON
OEM Headunit
+ Batt
+ Batt
Fuse
IN (high level) OUT (low level)
RED
+12 V
GND
Black
REM OUT
Blue
Remote
ARTTM FUNCTION
Manuale SLI 2/ SLI 4_2019.indd 9 22/05/19 15:19

10
CONNECTIONS: SLI 4.2 with OEM Headunit (without ART™function)
OEM Headunit
+ Batt
Fuse
IN (high level)
OUT (low level)
Remote
Front
Front
Rear
Rear
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
Manuale SLI 2/ SLI 4_2019.indd 10 22/05/19 15:19

11
CONNECTIONS: SLI 4.2 with OEM Headunit (with ART™function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™:AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
 (availableonlywhenSLIispowered).
**IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
RED
+12 V
GND
Black
REM OUT
Blue
ARTTM FUNCTION
+ Batt
OEM Headunit
+ Batt
Fuse
IN (high level)
OUT (low level)
Remote
Front
Front
Rear
Rear
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
Manuale SLI 2/ SLI 4_2019.indd 11 22/05/19 15:19

12
CONNECTIONS: SLI 2.2 with OEM Amplifier (with ART™function)
RED
+12 V
GND
Black
REM OUT
Blue
ARTTM FUNCTION
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™:AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
 (availableonlywhenSLIispowered).
*ConversionnotoperatedforRearinputchannelsonSLI2.2,onlyUSSandARTfunctionisactiveontheseinputs.
**IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
OEM
AMPLIFIER
+ Batt
Fuse
IN
(high level)
OUT (low level)
Remote
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
Manuale SLI 2/ SLI 4_2019.indd 12 22/05/19 15:19

13
CONNECTIONS: SLI 4.2 with OEM Amplifier (with ART™function)
DSR: DOUBLESTEP-DOWNRATIO,allowscorrectlevelinterfacingwithOEMHeadunitorOEMAmplierbyswitchselection.
ART™:AUTOMATICREMOTETURN-ON/OFFfunction,generatesa12VremoteoutputwhentheOEMHeadunit/AmplieristurnedON/OFF
 (availableonlywhenSLIispowered).
**IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
RED
+12 V
GND
Black
REM OUT
Blue
ARTTM FUNCTION
OEM
AMPLIFIER
+ Batt
Fuse
IN (high level)
Rear
Rear
Front
Front
OUT (low level)
Remote
OFF
ON
High Power
(OEM AMP)
Low Power
(OEM SOURCE)
Manuale SLI 2/ SLI 4_2019.indd 13 22/05/19 15:19

14
TECHNICAL SPECIFICATIONS
SLI 2.2 SLI 4.2
Input / Output Channels 4*/2 4/4
Maximum Input Power 50W@4Ω(Lo-Power)/150W@4Ω(Hi-Power)
Nominal Conversion Ratio 4:1Lo-Power/8:1Hi-Power
Input Impedance** 200Ω
Output Impedance 400Ω
Distortion
(THD+N@25W rms input, Lo-Power)
0,15% 100 Hz,
0,07% 1 kHz,
0,07% 10 kHz
Frequency Response (-3dB) 15 ÷ 40 kHz
Remote Out***
(Only when LSI is Powered) 12VDC-100mAmax@13VDCinput
Weight (kg. / lb.) including cable 0,16 (0.36) 0,25 (0.55)
*ConversionnotoperatedforRearinputchannelsonSLI2.2,onlyUSSandARTfunctionisactiveontheseinputs.
**InputimpedancewhentheUSSfunctionisOff.
***IncountrieswherethelegislationonelectromagneticcompatibilityisnotmandatoryunderECE/UNRegulationno.10/5.
Manuale SLI 2/ SLI 4_2019.indd 14 22/05/19 15:19

Manuale SLI 2/ SLI 4_2019.indd 15 22/05/19 15:19

16
WARRANTY
INFO
CONNECTION PART OF ELETTROMEDIA
62018 Potenza Picena (MC) Italy - T [phone] - F [phone] - www.elettromedia.it
The products are guaranteed according to the laws in force.
Possibledamagedproductsmustbesentback,withauthorization,to
CONNECTIONdealertoberepairedorreplaced.
Productsdamagedbyincorrectuse/installationarenotcoveredbywarranty.
LFL000_Rev.19C
In Italy: suppor[email protected]
Abroad: [email protected]
