Contec PWI-60D6D2 User manual

IPC Series
DC/DC Converter Power Supply
PWI-60D6D2
User’s Manual
CONTEC CO., LTD.

PWI-60D6D2 User’s manual i
Check Your Package
Thank you for purchasing the CONTEC product.
The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items,
contact your retailer.
Product Configuration List
PWI-60D6D2
Name
Pcs.
BOX-PC
1
The attachment fittings
2*1
Power supply
connector
complete set
Power Connector
(4pin)
2
Power Connector
(8pin)
1
Contact
16
USB Cable (1.8m)
1
USB Cable Attachment
1
Product guide
1
IPC Precaution List
1
Warranty Certificate
1
Serial Number Label
1
*1 It is attached to the main body.
* With it, since information such as a setup of hardware, each component function is indicated, please refer to it if
needed.

ii PWI-60D6D2 User’s manual
Product Configuration Image
* See the Product Configuration List to check if all the components are included for the specified number of units.
Copyright
Copyright 2016 CONTEC CO., LTD. ALL RIGHTS RESERVED.
No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this
document.
The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for results obtained by the user as a result of using this product.
Trademarks
Intel, Intel Atom, Intel Core and Celeron are registered trademarks of Intel Corporation. MS, Microsoft
and Windows are trademarks of Microsoft Corporation. Other brand and product names are trademarks
of their respective holder.
Warranty
XXXXXXXXXXXXX
XXXXXXXXXXXXX
IPC
Precaution
List
Product 
Guide
The main body
Power Connector
(4pin)
Power Connector
(8pin)
Contact USB Cable
(1.8m)
Product GuideUSB Cable
Attachment
IPC Precaution List Warranty
Certificate
Serial Number Label

PWI-60D6D2 User’s manual iii
Table of Contents
Check your package..................................................................................................................................... i
Copyright .....................................................................................................................................................ii
Trademarks ..................................................................................................................................................ii
Table of Contents.......................................................................................................................................iii
1. INTRODUCTION 1
About the Product........................................................................................................................................ 1
Features................................................................................................................................................. 1
Customer Support........................................................................................................................................ 3
Web Site................................................................................................................................................ 3
Limited One-Year Warranty ...................................................................................................................... 3
How to Obtain Service................................................................................................................................ 3
Liability........................................................................................................................................................ 3
Safety Precautions....................................................................................................................................... 4
Safety Information............................................................................................................................... 4
2. SYSTEM REFERENCE 7
Specifications............................................................................................................................................... 7
Physical Dimensions................................................................................................................................. 10
3. HARDWARE SETUP 11
What Is Setup?...........................................................................................................................................11
Step1 Hardware setting............................................................................................................................. 12
Component Name ..............................................................................................................................12
Stetp2 Installation of the software........................................................................................................... 13
Step3 Installation of the hardware........................................................................................................... 17
Connecting the Product .....................................................................................................................17
Step4 Initial settings of the software .......................................................................................................20
Step5 How to operate the software.......................................................................................................... 21
Uninstall software ..................................................................................................................................... 22
When You Cannot Perform Setup Correctly ..........................................................................................23
Hardware Setup .........................................................................................................................................24
Attaching the Attachment Fittings....................................................................................................24

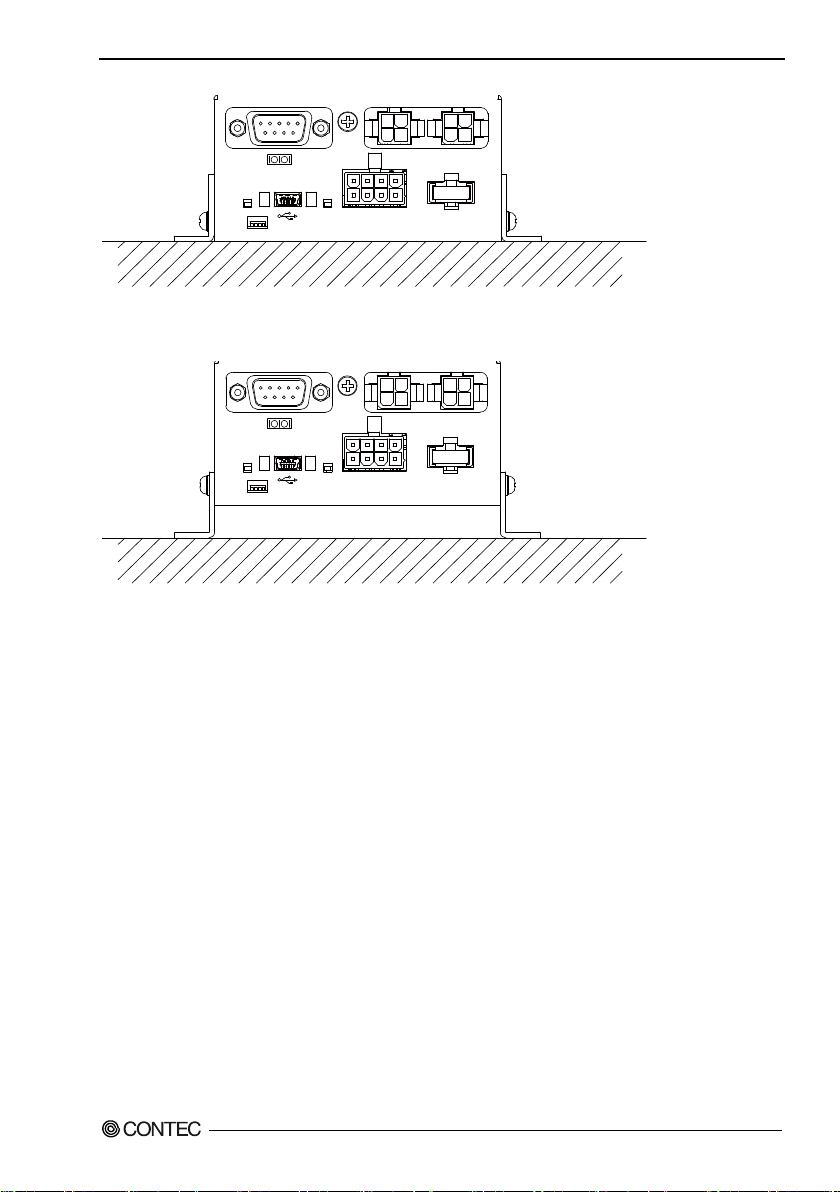

Installation Requirements..................................................................................................................25
4. EACH COMPONENT FUNCTION 29
Component Name...................................................................................................................................... 29

iv PWI-60D6D2 User’s manual

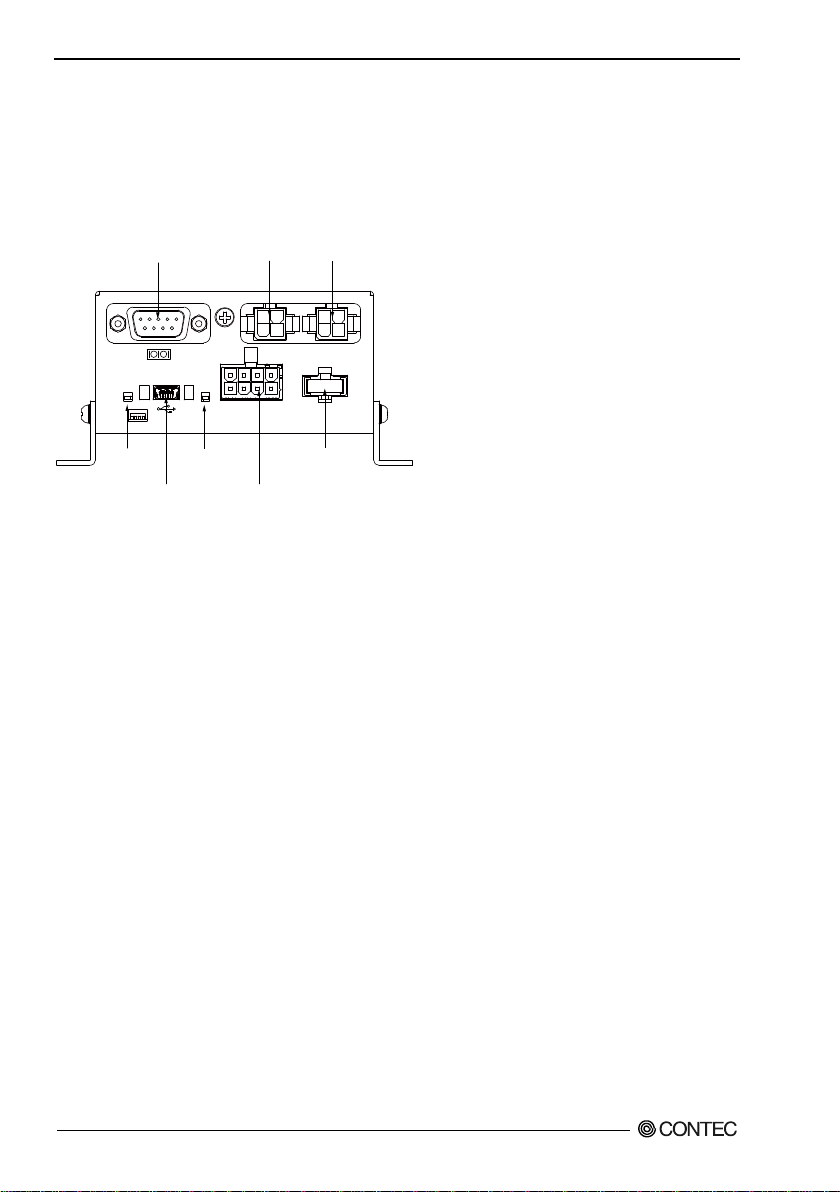

Front View.......................................................................................................................................... 29
System Configuration............................................................................................................................... 30
Component Function................................................................................................................................. 31
LED: LED 1, LED 2.......................................................................................................................... 31
DC Power Input Connector: DC-IN................................................................................................. 31
DC Power Input Connector: DC-OUT (PC), DC-OUT (OTHER)................................................32
Serial port interface: SERIAL .......................................................................................................... 32
5. APPENDIX 33
Operation Flow.......................................................................................................................................... 33
Power sequence......................................................................................................................................... 36

1. Introduction
PWI-60D6D2 User’s manual 1
1. Introduction
About the Product
This product is a power supply unit that generates a stable power supply from a 12VDC or 24VDC car
battery power supply.
Even though it has a compact, slitless case with dimensions of 86 (W) × 155 (D) × 44 (H) mm, it
supports a wide range of temperatures from -20 to 70°C. This product can be used to protect computer
systems from unstable power supply environments in which problems such as surges, voltage
fluctuations, and instantaneous voltage drops occur randomly.
It is equipped with a separate power supply output for external devices other than a computer, so it can
provide stable power to other devices in the same manner as the stable power that is provided to the PC.
If you install on your computer the utility software (which can be downloaded free of charge) for use in
Windows, you can start and shut down the computer by linking to the ignition switch.
This product can be used with the CONTEC models shown below.
BOX-PC : BX-955SD-DCxxxx, BX-220D-DCxxxxxx, BX-830D-DC7xxxxx
BX-956SD-DC7xxxxx*1
*1: Use a consumption power of 24V/1.5A when performing cranking with the BX-956S Series.
Features

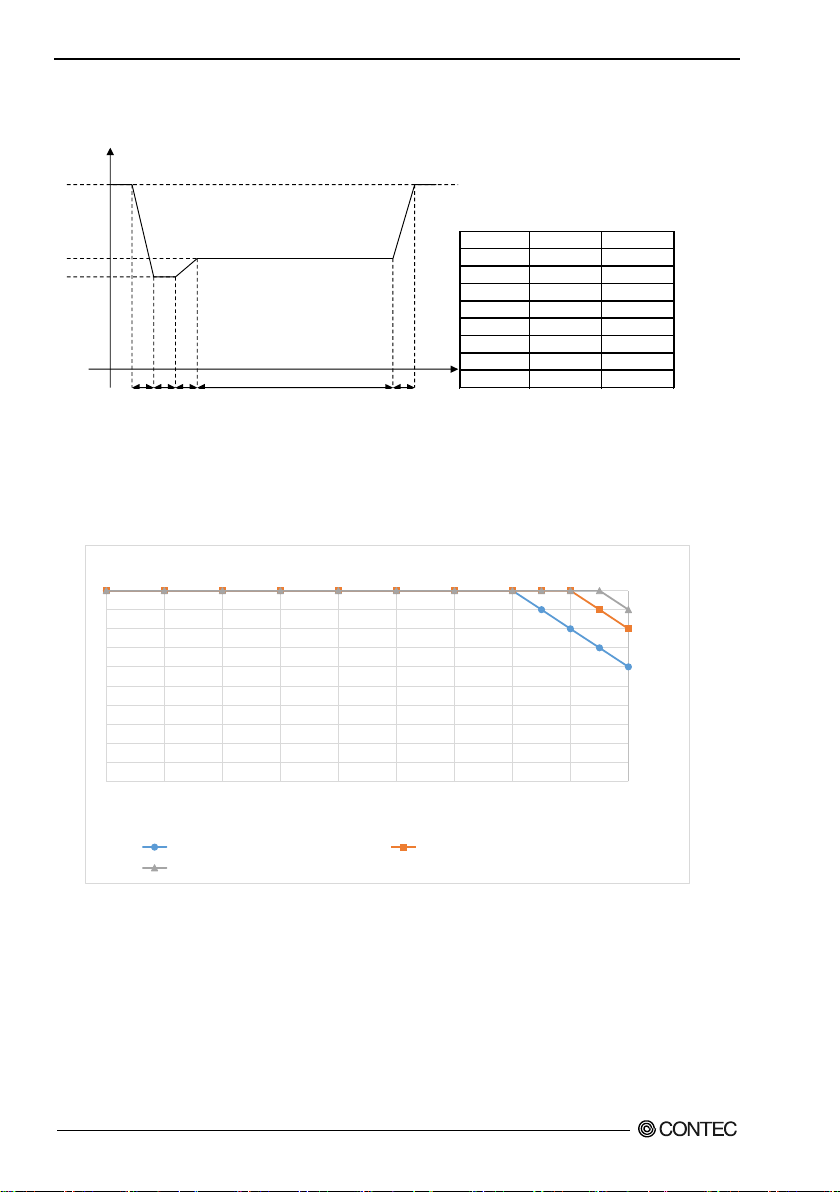

Supports the voltage drops that occur when an engine starts
When an engine starts, the battery voltage drops and may remain at a low voltage for a fixed length of
time. This product continues to provide the BOX-PC with a stable power supply even during this period
of time.
Applicable models: BOX-PC BX-220 Series, BOX-PC BX-955S Series
BOX-PC BX-830 Series
BOX-PC BX-956S Series
*1: Use a consumption power of 24V/1.5A when performing cranking with the BX-956S Series.
Power supply monitoring utility software is available for managing the power supply to industrial
equipment
The starting and shutting down of BOX-PCs can be linked to the operation of the ignition switch. BOX-
PCs can be connected to this product by way of a serial or USB interface.
Supports a wide range of temperatures with operations guaranteed from -20 to 70°C *
Stable operations of this product are possible over a wide range of temperatures from -20 to 70°C.
* After checking the temperature derating, adjust the load factor to match the usage environment.
A USB cable attachment is available to prevent problems caused by cable disconnections
The USB cable attachment enables you to prevent disconnections of the included USB cable, which
enables you to prevent problems from occurring.

1. Introduction
2PWI-60D6D2 User’s manual
Contributes to the miniaturization and weight reduction of equipment and supports front access
This product has a case size of 86 (W) × 155 (D) × 44 (H) mm and a weight of 650g. It supports front
access, which makes maintenance easy to perform.

1. Introduction
PWI-60D6D2 User’s manual 3
Customer Support
CONTEC provides the following support services for you to use CONTEC products more efficiently
and comfortably.
Web Site
Japanese http: //www.contec.co.jp/
English http: //www.contec.com/
Chinese http: //www.contec.com.cn/
Latest product information
CONTEC provides up-to-date information on products.
CONTEC also provides product manuals and various technical documents in the PDF.
Free download
You can download updated driver software and differential files as well as sample programs available in
several languages.
Note! For product information
Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.
Limited One-Year Warranty
CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and
workmanship for up to one year from the date of purchase by the original purchaser.
Repair will be free of charge only when this device is returned freight prepaid with a copy of the
original invoice and a Return Merchandise Authorization to the distributor or the CONTEC group
office, from which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and
original products. The warranty is not applicable if the device has been tampered with or damaged
through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in
which case repairs will be considered beyond the warranty policy.
How to Obtain Service
For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please
obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you
purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.
Liability
The obligation of the warrantor is solely to repair or replace the product.In no event will the warrantor
be liable for any incidental or consequential damages due to such defect or consequences that arise from
inexperienced usage, misuse, or malfunction of this device.

1. Introduction
4PWI-60D6D2 User’s manual
Safety Precautions
Understand the following definitions and precautions to use the product safely.
Safety Information
This document provides safety information using the following symbols to prevent accidents resulting
in injury or death and the destruction of equipment and resources. Understand the meanings of these
labels to operate the equipment safely.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or in property damage.
Handling Precautions
- Do not use the product in locations exposed to a flammable or corrosive gas.
It may cause explosion, fire, electrical shock, or malfunction.
- If you sense abnormality (smoke, odor, or noise), immediately unplug the power cord from the wall
outlet and contact the CONTEC sales representative or sales office.
- To avoid electrocution, do not use the product with a wet hand.
- Be sure to connect the product to the stipulated power supply voltage. Connecting to a different
voltage might cause a fire or electrical shock.
- Do not use the product with the other power device. It may cause fire or malfunction.
- When the cable or main body is damaged, stop using and repair it immediately. Using it as it is may
cause fire, electrical shock or malfunction.
- Use the product with the specified models by the CONTEC. Not doing so may cause fire or
malfunction.
- Use the product in the specified operating condition (temperature and humidity)
- Always check that the power supply is turned off before connecting or disconnecting power cables.
- Do not modify the product.
- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other
applications that require a very high level of reliability. Do not use the product in such applications.
- Before using this product in applications related to safety such as devicesused in trains, disaster
prevention, or crime prevention, contact your retailer.
DANGER
WARNING
CAUTION
WARNING

1. Introduction
PWI-60D6D2 User’s manual 5
- Do not use or store this product in a location exposed to high or low temperature that exceeds range
of specification or susceptible to rapid temperature changes.
Example: - Exposure to direct sun
- In the vicinity of a heat source
- Do not use this product in extremely humid or dusty locations. It is extremely dangerous to use this
product with its interior penetrated by water or any other fluid or conductive dust. If this product
must be used in such an environment, install it on a dust-proof control panel, for example.
- Avoid using or storing this product in locations subject to shock or vibration that exceeds range of
specification.
- Do not use this product in the vicinity of devices that generate strong magnetic force or noise. Such
products will cause this product to malfunction.
- Do not use or store this product in the presence of chemicals.
- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent.
Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or
discoloration of the paint.
- This product’s case may become hot. To avoid being burned, do not touch that section while this
product is in operation or immediately after turning off the power. Avoid installation in a location
where people may come into contact with that section.
- CONTEC reserves the right to refuse to service a product modified by the user.
- In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power
cord immediately and contact your retailer.
- If the fuse needs to be replaced, the product will have to be repaired. In this situation, contact your
retailer.
ECE R10.05 compliance
The ECE R10.05 test has been performed on this product as an aftermarket device that is not related to
the immunity function.
CAUTION
