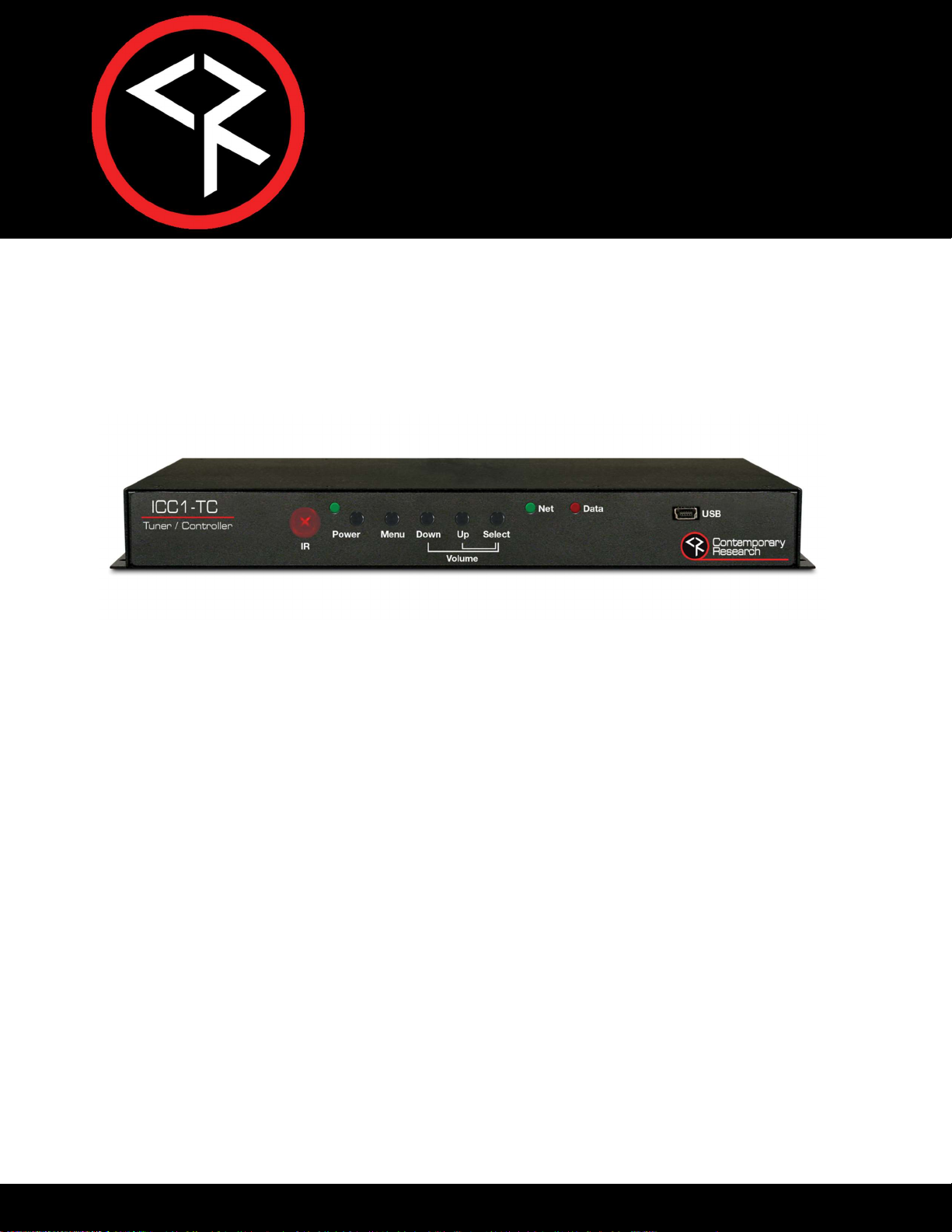

ICC1-TC Tuner/Controller
Product Manual

Page | 2 ICC1-TC Tuner/Controller Product Manual 082020
Contents
Overview ............................................................................................................................................................................................. 3
Installing the ICC1-TC .......................................................................................................................................................................... 4
ICC1-TC Control and Setup .................................................................................................................................................................. 4
Front Panel Operation ......................................................................................................................................................................... 5
Rear Panel Connections ....................................................................................................................................................................... 6
Setup Notes ......................................................................................................................................................................................... 7
On-Screen Text Menus ........................................................................................................................................................................ 7
On-Screen Graphical AV Menus ........................................................................................................................................................10

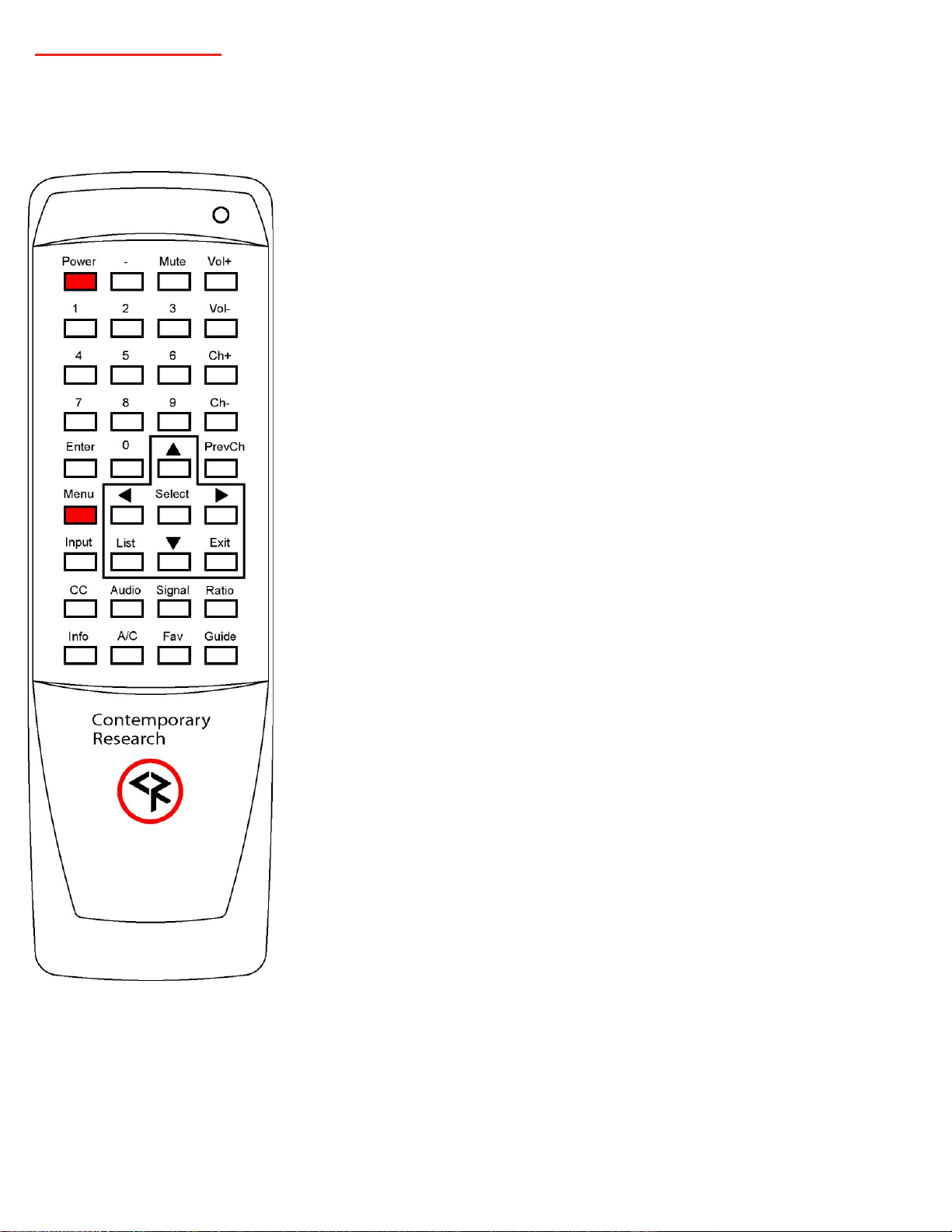

HD2-RC IR Remote .............................................................................................................................................................................14
iCC-Net Control Overview .................................................................................................................................................................15
Integrated Display Controller ............................................................................................................................................................16
HDMI CEC Control .............................................................................................................................................................................16
RS-232 Display Control ......................................................................................................................................................................16
iCC-Net Protocol Format ...................................................................................................................................................................18
Command String Protocol .................................................................................................................................................................19
Table of iCC-Net Control Commands .................................................................................................................................................20
ICC1-TC Specifications .......................................................................................................................................................................25
Safety Instructions and Warranty ......................................................................................................................................................27

Page | 3 ICC1-TC Tuner/Controller Product Manual 082020
Overview
The Contemporary Research ICC1-TC Tuner/Controller is a full featured ATSC/NTSC HDTV tuner with an integrated display controller. The
ICC1-TC will tune ATSC air, clear QAM cable, and NTSC air and cable channels. The low-profile design allows for mounting behind flat panel
displays.
The ICC1-TC Tuner/Controller features an HDMI output with video scaling from 480i to 2160p.
Front panel controls are available for channel selection, volume, power, and menu. The unit may also be controlled by the optional HD2-RC
IR remote via the front panel IR sensor or remote IR sensor connected to the rear panel IR port.
When used as part of an RF based iCC-Net control system, the tuner will respond to power, channel and volume commands and the
integrated display controller may be used to control power and source selection on the connected display device. The ICC1-TC
tuner/controller has an onboard control database of RS-232 protocols for many common flat panel displays and video projectors. The
display type may be selected when configuring the unit.
The iCC-Net commands are received over the same coax cable as the source channels from an ICE-HE-DXL display control center. The
control interface may be the Display Express Lite application included with an ICE-HE-DXL Display Control Center, Display Express software,
or a third-party control system.
Features
Tuning
 ATSC air and Clear QAM cable channels
 NTSC air and cable channels
 Air channels 2-69
 Cable channels 2-135, Standard, HRC, and IRC
Decoding
 MPEG-2 or H.254 digital channels
 Supports AC-3, MPEG-1 Layer 2, or AAC audio formats
 Supports multiple audio programs
Video
 HDMI Type A, Version 1.4b
 Output scaling to 480i, 480p, 720p, 1080i, 1080p, and 2160p
Audio
 HDMI embedded AC-3 pass-through, PCM Fixed, or PCM Variable
 Variable Analog stereo
Closed Captions
 Decodes analog and digital closed captioning
Setup and Control
 Front panel control for Power, Channel, Volume, and Menu
 Control via optional HD2-RC handheld IR remote
 RS-232 port for display control
 Receives iCC-Net protocol control commands over the coax for channel selection, volume, and display control functions
 CEC control available on HDMI output for most CEC enabled displays.
 Setup via On-screen menus or iCC-Net commands

Page | 4 ICC1-TC Tuner/Controller Product Manual 082020
Installing the ICC1-TC
The slim profile of the ICC1-TC allows for mounting behind a flat panel display. The unit may be attached to the flat panel display with user
provided hook and loop fastener adhesive tape or attached to the wall using the mounting ears. The unit may also be set flat on a suitable
shelf or other stable flat surface.
Connect the HDMI output to a video display. Analog and SPDIF digital audio outputs are available for connection to an amplifier or audio
system processor. Connect a coaxial cable from the CATV or antenna source to the RF in connector. Connect the supplied short coaxial
cable from the RF out to the Air/Cable input. The ICC1-TC will need to be connected to an appropriate power source.
After the ICC1-TC is connected, a channel scan will need to be performed prior to viewing programs. The channel scan may be initiated in
the on-screen text A/V menu, the on-screen graphical menu, or iCC-Net command.
ICC1-TC Control and Setup
The control and setup functions of the ICC1-TC may be accessible by:
 On-Screen menus accessible from front panel or handheld IR remote
 One-way iCC-Net protocol commands delivered over the coax through an ICE-HE-DXL display control center

Page | 5 ICC1-TC Tuner/Controller Product Manual 082020

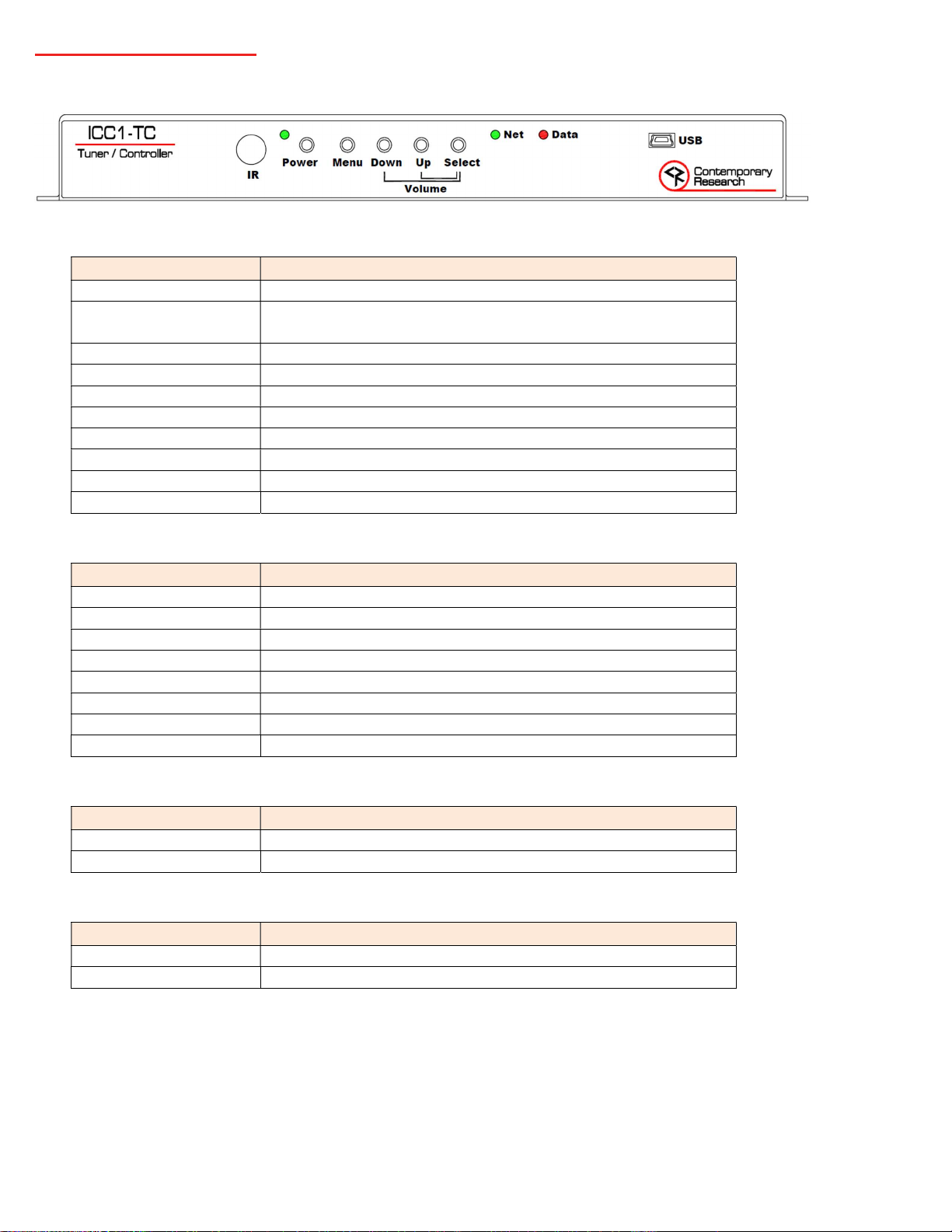

Front Panel Operation
Front Panel Button Operation
Button
Operation
Power Toggles On | Off
Menu Push to display on-screen Graphical Audio/Video menu
Hold to display on-screen Text Setup menu
Down Channel Down
Up Channel Up
Select Displays on-screen info banner
Select + Down Volume Down
Select + Up Volume Up
Down + Up Toggles Audio Mute
Select + Menu Reset A/V to factory settings
Up + Menu Unlocks previously locked buttons until power cycle
Power LED Operation
Mode
Status
Red Solid On Unit is Off
Green Solid On Receiving valid video input stream
Green Slow Blink Waiting for valid video stream (one second on, one second off)
Green Fast Blink Powering up (¼ second on, ¼ second off)
Red Flash IR remote button press
Green, Staggered Blink On-screen Menu (Blink-Blink-Pause sequence)
Red Fast Blink Bootloader Mode (uses RS-232 connector)
Red/Green Alternating Firmware Update Mode
Net LED Operation
Mode
Status
Green Flash Receiving iCC-Net heartbeat
Green Solid Not receiving iCC-Net heartbeat
RS-232 Data LED Operation
Mode
Status
Red Flash RS-232 Data Transmit
Green Flash RS-232 Data Receive

Page | 6 ICC1-TC Tuner/Controller Product Manual 082020
Rear Panel Connections
RF In
For connection from RF headend, input used for the controller to extract the iCC-Net control data.
RF Out
Loop out for connection to Air/Cable input.
Air/Cable
Input to tuner.
USB
USB-A service port. May be used for tuner/decoder firmware updates.
HDMI
HDMI receptacle, Type A, Version 1.4b. Output resolutions available are 2160p, 1080p, 1080i, 720p, 480p, and 480i. The output may be
configured for Auto, HDMI, or DVI. The output normally automatically detects a DVI display. The audio format follows the digital audio
output settings.
Audio
3.5mm TRS output for stereo analog audio. The analog audio level always follows the volume control settings.
RS-232
DB-9 port for RS-232 data link to for video display control. Port settings are automatically configured for the display device type selected
unless otherwise noted May also be used for application and bootloader firmware updates.
IR In
3.5 mm TRS jack for optional external IR receiver or wired IR from a control system processor.
Tip= +5v DC (50mA max)
Ring= Input
Sleeve= Ground
12VDC
Power input 2.1mm coaxial jack (inside center conductor positive).

Page | 7 ICC1-TC Tuner/Controller Product Manual 082020
Setup Notes
Channel Scan
A channel scan will be required prior to initial use and subsequently following any changes to the received channel line-up. The channel
scan may be initiated in either on-screen setup menu or by iCC-Net command. The Air or Cable scan mode should be selected for the
intended application prior to initiating the scan.
Tuning Cable Channels
The ICC1-TC will skip encrypted channels automatically during a channel scan. The scan of analog channels may be skipped by pressing
Select after the scan has started. Typically, the digital channels will not use the same Guide numbers as a cable box.
Air/Cable
The ICC1-TC has separate channel memories for air and cable channels. It is possible to toggle between the two channel memories. A
separate channel scan for each mode will be required. The toggle may be initiated by simultaneously pressing the Up and Down buttons on
the front panel or pressing the A/C button on the IR remote.
DVI
Compatibility with DVI displays is normally supported and automatically detected. Forced DVI may be manually selected from the HDMI-DVI
menu setting.
Audio
The HDMI digital audio format may be selected as AC-3, PCM or PCM variable. The volume settings do not affect HDMI digital audio in AC-3
or PCM modes. PCM Variable supports volume control on all audio outputs. The analog audio outputs always follow the volume control
settings. If there is no audio, make sure the volume is all the way up (and not muted). A “motorboat” sound means the display does not
support AC-3, and the mode should be changed to PCM.
IR Control
 Interference from room fluorescent lights can cause problems with IR remote operation. If this occurs, the frequency of the IR may
be changed in the HD2-RC remote. Hold Select and press “9” to set the IR frequency at 57 KHz. Hold Select and press “4” to set the
IR to the normal 38 KHz frequency.
 If there is significant IR interference, an IR-RXD Remote Sensor may be required. Cover the front-panel IR sensor to reduce
interference.
 Disabling the IR sensor in the configuration settings will disable the front panel IR sensor and the rear panel IR In jack.
 The ICC1-TC will respond to a universal remote with the TV type set to Sharp.
Restore Factory Default Settings
The unit may have the configuration restored to the factory default settings. The channel list is not changed as this data is stored in
separate memory.
The factory default settings may be restored using the on-screen text menu. Hold the Menu button to open the on-screen text menu.
Select the System menu and scroll to Firmware. Verify that the System firmware is displayed. Press Select to bring up the blinking cursor.
Simultaneously press Select and Menu to restore the default settings.
On-Screen Text Menus

Page | 8 ICC1-TC Tuner/Controller Product Manual 082020
The on-screen text menus contain settings for communication and control as well as some A/V related settings. The menus may be
accessed by holding the Menu button on the front panel or handheld IR remote.
On-Screen Setup Menu Button Operation
Button
Function
Power Exit OSD Menu Mode
Menu Hold to enter OSD Menu Mode
Push to exit OSD Menu Mode
Down Next menu item
Up Previous menu item
Select Data Entry Mode See table below
Data Entry Mode Button Operation
Button
Function
Menu Go to previous field, back to Menu, or exit Menu
Up / Down Change selected data
Select Go to next field or save selected data and go back to Menu
On-Screen Text Menu Settings
Setting
Options
(default settings in
Bold
)
System
Menu
RS232 Baud Rate 1200 | 2400 | 4800 | 9600 | 19.2K | 38.4K | 115.2K | 230.4K
RS232 Comm Prms 8 N 1 | 8 O 1 | 8 E 1 | 8 N 2 | 7 O 1 | 7 E 1 |7 N 2| 8 M 1 | 8 S 1 | 7 M 1 | 7 S 1
Device Num Enter display device number for iCC-Net Control
1 – 4000
Pnl Lockout None | Ch+Menu | Vol+Menu | CH+Vol+Menu |Power | Menu | All | Pwr+Menu
IR Receive On | Off
Display CTL None | CEC | RS-232
CEC Mode Disabled | Display On | Display OnOff
Display Type Enter the code of the Display Type for RS-232 Control
00 – 64
Firmware Press Select, then Up/Down to scroll through versions
iCC1-TC V1.17 – System Firmware
Boot Ldr V1.00 – Bootloader Version
Enter Boot Mode
HD Vers V1.00 – Demodulator/Decoder Firmware
HW Rev A0 – Hardware Version
Volt In 11.8 – Power Supply voltage
RSSI 120 – Relative Signal Strength Indicator
Setting
Options (default settings in
Bold
)
A/V
Menu

Page | 9 ICC1-TC Tuner/Controller Product Manual 082020
HD Output YPbPr | RGB
Output Resolution 480i | 480p |720p | 1080i |1080p | 2160p | Auto
Refresh Rate 59.94Hz | 60Hz
Scan Mode Sets the mode for the channel scan
Analog & Digital | Analog, Keep Digital | Analog, Del Digital
Digital, Keep Analog | Digital, Del Analog
Chan Scan Press Select to initiate channel scan
Overscan % Sets the image overscan 0 – 9%
HDMI-DVI Auto | HDMI | DVI
HDMI Audio On | Off
AC3 Cmpr Mod Sets the compressor mode for the AC-3 downmix
Line | RF
Channel Box Enables the channel box on-screen graphic that appears during a channel change
On | Off

Page | 10 ICC1-TC Tuner/Controller Product Manual 082020

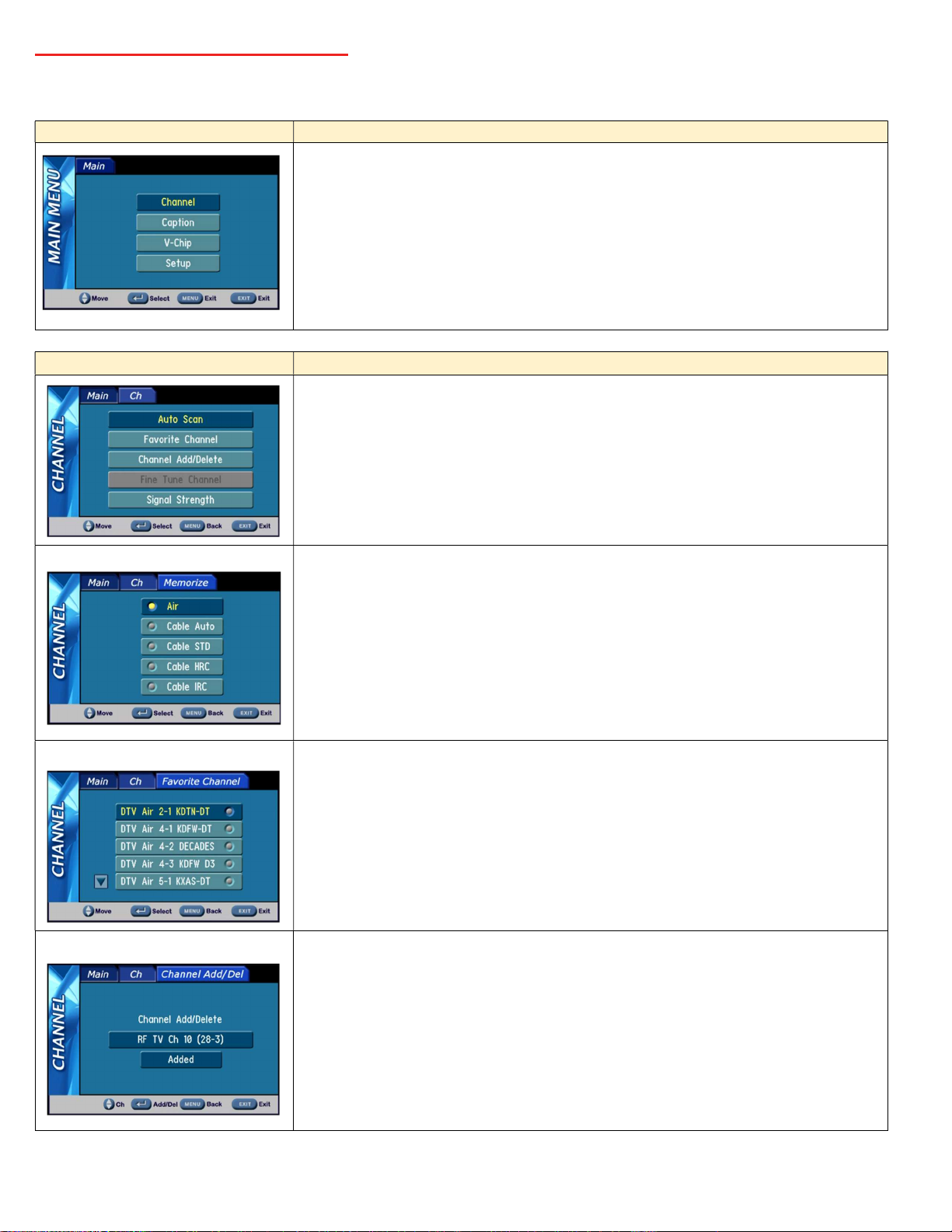

On-Screen Graphical AV Menus
Press Menu on the front panel or optional HD2-RC handheld infrared remote to access on-screen AV Menu.
Main Menu
Select Sub Menus
 Down or Up highlights option
 Select + Down moves left (front panel control only)
 Select + Up moves right (front panel control only)
 Select chooses Option
 Menu steps back or exits menu
Channel Menus
Sub menu for Channels offers options for:
 Channel Auto Scan
 Favorite Channels
 Channel Add/Delete
 Fine Tune Channel (Analog Channels Only)
 Signal Strength (Digital Channels Only)
Auto Scan
 Press Up/Down to highlight scan mode
 Press Select to initiate channel scan
Analog channels will be scanned first, then digital channels. The channel list will be
populated as channels are found. Press Select during scan to skip analog channels.
Favorite Channels
Menu page for creating a list of favorite channels. Channels will be advanced by FAV
button or favorite channel commend
 Press Up/Down to highlight channel
 Press Select to Add//Delete from list
Channel Add/Delete
Channels may be added or deleted from the list of memorized channels. Channel
Up/Down will step through the physical RF channels displaying the virtual channel
numbers of received channels. Select will add or delete the selected channel. Note that in
the case of multiple sub channels on a physical channel, only the displayed sub channel will
be added or deleted.

Page | 11 ICC1-TC Tuner/Controller Product Manual 082020
Signal Strength
This page can also be displayed from the Signal remote command. The graphic shows the
current signal strength and changes in real time. The strength of a channel may be
monitored as the antenna positioning is adjusted for optimum reception.
Caption Menu
s
This menu accesses captioning features:
 On/Off — turns captions on/off
Note: Other options are not available if captions are off.
 Analog Mode — CC 1-4 and Text 1-4
 Digital Mode — Service 1-6
 Digital Font Options
o Size — Standard (15 pixels), Large (21 pixels), or Small (11 pixels)
o Style — 1-6
o Color — 8 shades of background, foreground, and edge colors
o Opacity — foreground and background
o Edge — 6 style options
Version Info
Displays the hardware type of the decoder/demodulator board and HD firmware version.
Also displays the AC-3 firmware version.
V
-
Chip Menu
This menu manages access to programming based on US and Canadian ratings standards.
A PIN number is required to access any of the sub menus. The default PIN number for
access is 0000 (four zeros).
 Changing PIN accesses menu to create new PIN
 Open V-chip Setting clears all rating settings
US Rating Setting
Use navigation and Select buttons to select/deselect options. The padlock symbol
indicates channels with the selected rating will be blocked and the PIN will be required for
viewing.

Page | 12 ICC1-TC Tuner/Controller Product Manual 082020
Canada Rating Setting
Sub menu equivalent to US Rating setting for Canadian applications.
Setup Menus
This series of menus select the options for tuner operation:
 Screen Format —16:9 or 4:3
 Time
 Sound Settings
 Video Noise Reduction — Available only for analog channels
 Menu Language
Screen Format
Select the appropriate aspect ratio for the connected display.
Time
Sub menus for time settings.
Time data is extracted from the System Time Table in the digital channel’s transport stream
if available.
When Daylight Saving is enabled, the tuner will adjust the time as needed if the daylight
savings flag is enabled in the System Time Table.
Time Zo
ne
Move cursor left and right to select the time zone. Select stores the highlighted zone.
Front panel navigation
 Select + Down to move left
 Select + Up to move right

Page | 13 ICC1-TC Tuner/Controller Product Manual 082020
Sound
Select from a variety of options:
 Analog MTS — Mono, Stereo, SAP
 Multi-Track Sound — English, French, Spanish
 Digital Out — AC-3, PCM, or variable-level PCM.
 Auto Volume — On or Off
Menu Language
Select the language for the on-screen A/V graphic menus.
Info Banner
On-screen Info banner may be accessed by the following:
 Info button press on IR remote
 Hold Select button on the front panel
 iCC-Net command
 RS-232 command
Guide
On-screen Guide with a list of upcoming programs may be accessed by the following:
 Guide button press on IR remote
 iCC-Net command
Use Up/Down to highlight a program. Info button press or equivalent will bring up a
program description. Guide list is limited to twelve hours of programming.

Page | 14 ICC1-TC Tuner/Controller Product Manual 082020
HD2-RC IR Remote
The optional HD2-RC IR Remote (5024-004) may be used to setup the ICC1-TC and for daily operation. The ICC1-TC is equipped with a front
panel IR sensor and a rear panel IR input jack for connection to an optional IR-RXD (5034-001) or compatible remote IR receiver. Each of the
functions on the remote have equivalent commands in RS-232 and wired IR formats.
Power
Press to toggle on and off.
Volume Control
Use the Vol+, Vol- and Mute buttons to control volume.
Channel Selection
Two-part major/minor channel numbers are separated by a – (dash). Example 21-3
One-part channels are accessed by entering the channel numbert digital channels are
Ch+, Ch- and PrevCh can be used to access and recall channels
Menu Operation
Press Menu to access the on-screen menus.
 Use the directional arrows, Select and Exit to navigate the on-screen menus.
 Exit closes the on-screen menu
 Menu reverts to the previous menu or closes the on-screen menu from the Main
Menu
 Enter selects the menu choice
Special Functions
 CC steps through available closed-captioning options
 Audio steps through main and SAP audio options
 Signal launches up on-screen signal strength meter (digital channels only)
 Ratio steps through aspect ratio options.
 Input steps through the display inputs set with ER command
 Info launches on-screen information banner.
 A/C toggles air or cable tuning
 Fav displays list of favorite channels
 Guide launches on-screen guide, select a program and press Info to display program
information
Some features of the special function commands may only be available if supported
in the received channel.
Hold the Select button and press “9” to set the IR frequency at 57 KHz. Hold the
Select button and press “4” to set the IR to the normal 38 KHz frequency.

Page | 15 ICC1-TC Tuner/Controller Product Manual 082020
iCC-Net Control Overview
The ICC1-TC tuner/controller may be configured to be used as a component in an iCC-Net control system. iCC-Net is a unique and
proprietary control command protocol from Contemporary Research for sending one-way control commands to display controllers, HDTV
tuner/controllers, IPTV decoder/controllers, and HDTV tuners over new or existing video distribution infrastructure. Separate dedicated
control wiring for each component is not required. The user will be able to control the content on the displays via channel commands as
well as volume and power. The video distribution system may be CATV channels delivered over coax, MPEG-TS IPTV streams delivered over
an Ethernet network, or a combination of both.
The structure of the iCC-Net protocol command strings allows for independent control of large numbers of ICC1-TC tuner/controllers. The
integrated display controller will handle processing display related commands for control of the display.
For RF based CATV applications, an ICE-HE-DXL display control center is required. The RF output of the ICE-HE-DXL carrying the control data
is combined with source channels to be distributed through the RF system. The control interface for the ICE-HE-DXL may be the embedded
Display Express Lite web application, a Display Express server PC, or a third-party control system. Each iCC-Net device will be assigned a
display device number. As the command strings are broadcast to all devices on the distribution network, a device will only respond when it
receives a string with a device number value that matches its configured device number. All other devices will ignore the command string.
iCC-Net Control Data Flow with RF System Using Display Express
iCC-Net Control Data Flow with RF System Using Display Express Lite
iCC-Net Control Data Flow with RF System Using Third-Party Control

Page | 16 ICC1-TC Tuner/Controller Product Manual 082020
Integrated Display Controller
The ICC1-TC supports sending control commands to the connected display using RS-232 or HDMI CEC. The power state of the display will
follow the power state of the ICC1-TC.
When used as part of an iCC-Net control system, additional display control functions are available. For RS-232 controlled displays, the
control functions include power, source selection, and the ability to pass through custom RS-232 strings from the control system.
Display control will need to be enabled in the on-screen text System menu or via RS-232 command. The options are HDMI CEC or RS-232. If
RS-232 is selected, the RS-232 port will only function as transmit only to control the display.
The RS-232 protocols for many common TV and display makes and models are built in to the ICC1-TC application firmware. If a desired
display type is not listed, contact Contemporary Research support for assistance.
HDMI CEC Control
HDMI CEC may be selected for sending power commands to the display. No other control functions are available for CEC control. HDMI CEC
sends standardized control commands over the HDMI cable. CEC functionality is available in many TVs and displays designed for the
consumer market. If control of the TV or display via HDMI CEC is desired, it is important to check the TV or display’s documentation to
determine if CEC is supported.
It is common for manufacturers to use their own unique term to refer to HDMI CEC. For example, Samsung refers to CEC as Anylink. LG
refers to it as SimpLink.
CEC will likely need to be enabled in the display. Some displays will automatically detect that a CEC supported device has been connected
and prompt for confirmation.
Although the industry strives for standardization relating to CEC, it is possible that some or all CEC control communication between the
ICC1-TC and connected display may not function depending on display make and model. In this situation, RS-232 is recommended for
reliable display control.
RS-232 Display Control
One-way RS-232 display control is available through the rear panel DB-9 RS-232 port. The RS-232 port may be used to send commands for
power and input source selection. When used with Display Express or a third-party control system using iCC-Net protocols, it is possible to
forward custom RS-232 strings to the display.
The connection to the display should be with an RS-232 null modem cable. Most displays with a 3.5mm RS-232 port are compatible with the
optional Contemporary Research CC-COM 3.5 (5061-009) serial cable. Typically, displays from LG with a 3.5mm RS-232 port require a DB-9
male to female null modem adaptor (5061-012) if used with the CC-COM 3.5 serial cable or equivalent.
The RS-232 display (TV) type will need to be selected via the on-screen text menu or RS-232 command. Refer to the table for a list of the
supported display types. If the desired display type is not listed, contact Contemporary Research support for assistance. The com port
parameters will automatically be changed to match the requirements of the selected display type unless otherwise noted.

Page | 17 ICC1-TC Tuner/Controller Product Manual 082020
Available RS-232 Display Control Commands
ICC1-TC Control Source RS-232 Commands
Front Panel, IR
Power On
Power Off
Display Express Lite via ICE
-
HE
-
DXL
Power On
Power Off
Input Source Selection
Display Expr
ess Software via ICE
-
HE-DXL or Broadcast UDP
Power On
Power Off
Custom RS-232 Strings
Input Source Selection
Third
-
Party Controller via ICE
-
HE or
Broadcast UDP
Power On
Power Off
Custom RS-232 Strings
Input Source Selection
Codes for RS-232 Control Display Types
Type Make Display Baud Notes
10
Samsung
Monitor
9600
Ex
-
Link
11
Samsung
Monitor
9600
14
NEC
Monitor
9600
E
-
Series
22
Hitachi / Christie
Projector
9600
Hitachi CP
-
S317, CP
-
S318, CP
-
X327, CP
-
X328
Christie LW650, LW750, LS700, DU951, DHD951,
LWU501i, LWU504
24
Epson
Projector
9600
VP 595wi, 1925W
33
Sharp
Monitor
9600
LC46LE820UN
46
Sharp
Monitor
9600
PN
-
V601
47
Sharp
Monitor
9600
48
NEC
Monitor
9600
M
-
, P
-
, V
-
, X
-
Series
49
Christie
Projector
19.2K
DHD800
50
NEC
Projector
9600
NP
-
M
402H (
set
projector
baud rate
to 9600
)
51
Barco
Projector
115.2K
RLS
-
W12
54
LG
Monitor
9600
55
Christie
Projector
115.2K
DHD850
57
Christie
Projector
9600
FHQ981

Page | 18 ICC1-TC Tuner/Controller Product Manual 082020
iCC-Net Protocol Format
The iCC-Net command string includes the display device number, the command, and command parameters if required.
Display Device Numbers
A unique display device number from 1 to 4094 is assigned to each TV controller, tuner controller, QIP-D decoder/controller, QIP-DVX
decoder/controller, or tuner to which control commands are addressed. The displays are organized into 16 zones of up to 255 devices each.
The Zone/Unit concept is used with Display Express, Display Express Lite, and when writing command strings for third-party control systems.
Display Express Lite is limited to 128 display devices in zone 1. Unit numbers are restricted to the range of 1 to 128 corresponding to display
device numbers 257 to 384.
The display device number is represented in the iCC-Net command string by the zone number and the unit number. The hex equivalent of
the zone number and the unit number is equal to the hex equivalent of the display device number.
Example:
Zone 3 = hex 03
Unit 201 = hex C9
Display Device 969 = Hex 03 C9
The device number can be calculated in decimal using the formula ‘(zone number x 256) + unit number = display device number’.
All display controllers in a zone will respond to a command sent to unit number 0. All display controllers will respond to a command sent to
Zone 15, Unit 255.
Zone # Zone x 256 Unit # Display Device #
0 0 1-255 1-255
1 256 1-255 257-511
2 512 1-255 513-767
3 768 1-255 769-1023
4 1024 1-255 1025-1279
5 1280 1-255 1281-1535
6 1536 1-255 1537-1791
7 1792 1-255 1793-2047
8 2048 1-255 2049-2303
9 2304 1-255 2305-2559
10 2560 1-255 2561-2815
11 2816 1-255 2817-3071
12 3072 1-255 3073-3327
13 3328 1-255 3329-3583
14 3584 1-255 3585-3839
15 3840 1-254 3841-4094
All Zones 4095

Page | 19 ICC1-TC Tuner/Controller Product Manual 082020
Command String Protocol
“$A5,<dh>,<dl>,<ncb>,<cmd1>,<parameter>[<cmdN>]”
$A5 Starts the command
<dh> The zone or high order byte of the display device
<dl> The unit or low order byte of the display device (0 for global zone)
<ncb> The number of command bytes to follow
<cmd1> The first two-character command
<parameter> Command parameters (not used in all commands)
[<cmdN>] Multiple commands can be concatenated, with byte count added to <ncb>
Characters in command strings are expressed in a combination of hex and ASCII characters. For clarity, the following protocol examples use
the following conventions:
 Single-byte hex numbers are preceded by the ‘$’ symbol.
 ASCII characters or strings are enclosed in single quotes.
 Numbers not marked as hex or ASCII are the decimal equivalent of a single hex byte.
 Parameters shown in < > brackets are single hex byte.
 A series of multiple commands or parameters are set apart by [ ] brackets.
 Commas separate the bytes, but they are not part of the protocol.
 Double quotes enclose the command string, but they are not part of the protocol.
A Decimal/ASCII/Hex conversion chart may be found at www.asciitable.com .
String Format
Every software application has a different denotation for handling hex, ASCII, and decimal formats. The examples in this manual are in AMX
format, which is understood by many in the control industry:
 Hex values begin with a dollar ($) symbol
 ASCII values are enclosed in single quotes
 Decimal values are shown as normal
When planning to use a mixed-format structure for commands, convert the symbols to the types required by your specific software
application. For example, a Tune Digital Channel 12-3 command to display device 280 could be shown several ways:
 AMX Mixed Format = “$A5,1,24,5,’TH’,2,12,3”
 AMX Hex Format “$A5 $01 $18 $05 $54 $48 $02 $0C $03”
 Standard Hex (no denotation) = A5 01 18 05 54 48 02 0C 03
 Crestron Hex Format = \0xA5\0x01\0x18\0x05\0x54\0x48\0x02\0x0C\0x03
 RTI = Select port, Hex mode, enter A5 01 18 05 54 48 02 0C 03 - Note that when you go back to normal editing mode, the app
inserts a \x before each Hex character.
Go to www.asciitable.com for a handy Decimal/ASCII/Hex conversion chart.

Page | 20 ICC1-TC Tuner/Controller Product Manual 082020
Table of iCC-Net Control Commands
Code Function Operation
Power
P1 Power On "$A5,<dh>,<dl>,2,'P1'" (6 bytes)
P0 Power Off "$A5,<dh>,<dl>,2,'P0'" (6 bytes)
PT Power Toggle "$A5,<dh>,<dl>,2,'PT'" (6 bytes)
LM Control Lock "$A5,<dh>,<dl>,3,'LM',<Control>" (7 bytes)
Locks out ICC1-TC control from an IR remote or front-panel buttons.
<Control> Total value of control options below
0=Disabled
1=Front panel button lockout enabled
64=Volume control lockout enabled
128=IR remote sensor disabled
Example:
"$A5,6,124,3,'LM',193" Device 1660, Locks out all control
Channel Selection
TH Set Digital Channel "$A5,<dh>,<dl>,5,'TH',<H1>,<Major>,<Minor>" (9 bytes)
Sets digital channel with one-part virtual channel numbers and two-part channel numbers up to 255-
255
<H1> Tuning Style
0=No Change in tuning style
1=Five digit one-part channel (Major=high byte, Minor=low byte)
Formula: (high byte x 256) + low byte = channel number
2=Two-part virtual channel number (Major-Minor)
3=Two-part physical channel number (Major-Minor)
Examples:
"$A5,1,4,5,'TH',2,2,3" Device 260, virtual channel 2-3
"$A5,1,4,5,'TH',1,1,69" Device 260, channel 325 (256+69)
TJ Set Digital Channel "$A5,<dh>,<dl>,6,'TJ',<Major high>,<Major low>,<Minor high>,<Minor low>" (10 bytes)
Sets digital channel with two-part virtual channel numbers up to 999-999
Formula: (high byte x 256) + low byte = channel number
Example:
"$A5,2,44,6,'TJ',1,40,0,1" Device 580, channel 296-1
TC Set Analog Channel "$A5,<dh>,<dl>,3,'TC',<Channel>" (7 bytes)
H1 Tuning Style "$A5,<dh>,<dl>,3,'H1',<Style>" (7 bytes)
Sets the tuning style used with the TH channel command. This setting is stored in memory and only
needs to be sent one time. Subsequent TH channel commands may have the <H1> byte set to 0.
<Style>
1=Five digit one-part virtual channel number
2=Two-part major-minor virtual channel number
3=Two-part major-minor physical channel number
