Continental Fireplaces CDIZC - N User manual

1
W415-0224 / G / 04.05.11
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada /
103 Miller Drive, Crittenden, Kentucky, USA, 41030
Phone [phone] • Fax [phone] • www.continentalfireplaces.com • ask@continentalfire.on.ca
1.24A
$10.00
CERTIFIED FOR CANADAAND UNITED STATES USINGANSI/CSA METHODS.
SAFETY INFORMATION
!WARNING
- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbour’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
This appliance may be installed as an OEM
installation in manufactured home (USA only) or
mobile home and must be installed in accordance
with the manufacturer’s instructions and the
Manufactured Home Construction and Safety
Standard, Title 24 CFR, Part 3280, in the United
States or the Standard for Installation in Mobile
Homes, CAN/CSA Z240 MH, in Canada.
This appliance is only for use with the type(s) of
gas indicated on the rating plate. A conversion kit
is supplied with the appliance.
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
!
WARNING
CERTIFIED UNDER CANADIANAND AMERICAN NATIONAL STANDARDS: CSA 2.33,ANSI Z21.88 FOR VENTED GAS FIREPLACE HEATERS.
CDIZC-N
NATURAL GAS
CDIZC-P
PROPANE

2
W415-0224 / G / 02.28.11
TABLE OF CONTENTS
1.0 INSTALLATION OVERVIEW 3
2.0 INTRODUCTION 4
2.1 DIMENSIONS 5
2.2 MINIMUM OPENING 5
2.3 GENERAL INSTRUCTIONS 6
2.4 GENERAL INFORMATION 7
2.5 RATING PLATE INFORMATION 8
3.0 INSTALLATION 9
3.1 LEVELLING THE APPLIANCE 9
3.2 CHIMNEY CONNECTION 10
3.3 GAS INSTALLATION 11
3.4 OPTIONAL WALL SWITCH 12
4.0 FINISHING 12
4.1 MINIMUM MANTEL CLEARANCES 12
4.2 DOOR REMOVALAND INSTALLATION 13
4.3 LOG PLACEMENT 14
4.4 GLOWING EMBERS 14
4.5 LOGO PLACEMENT 15
4.6 ALUMINUM EXTRUSION TRIM KIT INSTALLATION 15
5.0 OPERATION 16
6.0 ADJUSTMENTS 17
6.1 PILOT BURNER ADJUSTMENT 17
6.2 VENTURI ADJUSTMENT 17
6.3 FLAME CHARACTERISTICS 18
6.4 RESTRICTING VERTICAL VENTS 18
7.0 MAINTENANCE 19
7.1 CARE OF GLASS 19
7.2 CARE OF PLATED PARTS 19
7.3 DOOR GLASS REPLACEMENT 20
7.4 REPLACEMENT BLOWER INSTALLATION 21
8.0 REPLACEMENTS 22
9.0 TROUBLE SHOOTING 25
10.0 WARRANTY 27
11.0 SERVICE HISTORY 28
NOTE: changes, other than editorial, are denoted by a vertical line in the margin.

3
W415-0224 / G / 04.05.11
Venting, see “CHIMNEY
CONNECTION” section.
Trim, see “ALUMINUM EXTRUSION
TRIM KIT INSTALLATION” section.
Door, see “DOOR
REMOVAL AND
INSTALLATION” section.
Rating Plate, see
“RATING PLATE
INFORMATION” section.
Logs, see “LOG PLACEMENT”
section.
1.0 INSTALLATION OVERVIEW

4
W415-0224 / G / 02.28.11
2.0 INTRODUCTION
3.1C
!
WARNING
• THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• ANY CHANGES TO THIS APPLIANCE OR IT’S CONTROLS CAN BE DANGEROUS AND IS PROHIBITED.
• Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance
according to operating instructions could cause fire or injury.
• Risk of fire or asphyxiation do not operate appliance with fixed glass removed.
• Do not connect 110 volts to the control valve.
• Risk of burns. The appliance should be turned off and cooled before servicing.
• Do not install damaged, incomplete or substitute components.
• Risk of cuts and abrasions. Wear protective gloves and safety glasses during installation. Sheet metal edges may be
sharp.
• Do not burn wood or other materials in this appliance.
• Children and adults should be alerted to the hazards of high surface temperature and should stay away to avoid burns or
clothing ignition.
• Young children should be carefully supervised when they are in the same room as the appliance. Toddlers,
young children and others may be susceptible to accidental contact burns. Aphysical barrier is recommended if there
are at risk individuals in the house. To restrict access to an appliance or stove, install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of the room and away from hot surfaces.
• Clothing or other flammable material should not be placed on or near the appliance.
• Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
• Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
• Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
• Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from hot surfaces.
These screens and guards must be fastened to the floor.
• Any safety screen or guard removed for servicing must be replaced prior to operating the appliance.
• The appliance is a vented gas-fired appliance. Do not burn wood or other materials in the appliance.
• It is imperative that the control compartments, burners and circulating blower and its passageway in the appliance
and venting system are kept clean. The appliance and its venting system should be inspected before use and at least
annually by a qualified service person. More frequent cleaning may be required due to excessive lint from carpeting,
bedding material, etc. The appliance area must be kept clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
• Under no circumstances should this appliance be modified.
• This appliance must not be connected to a chimney flue pipe serving a separate solid fuel burning appliance.
• Do not use this appliance if any part has been under water. Immediately call a qualified service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
• Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass should be done
by a licensed or qualified service person.
• Do not strike or slam shut the appliance glass door.
• When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent exhaust
fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping through these
openings can also cause the surrounding combustible materials to overheat and catch fire.Only doors / optional fronts
certified with the unit are to be installed on the appliance.
• Only doors / optional fronts certified with the unit are to be installed on the appliance.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with all plastic
bags, these are not toys and should be kept away from children and infants.
• As with any combustion appliance, we recommend having your appliance regularly inspected and serviced as well as
having a Carbon Monoxide Detector installed in the same area to defend you and your family against Carbon Monoxide.
• Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance. Elevated
temperatures on the wall or in the air above the appliance can cause melting, discolouration or damage to decorations, a
T.V. or other electronic components.
• This appliance uses and requires a fast acting thermocouple. Replace only with a fast acting thermocouple supplied by
Wolf Steel Ltd.

5
W415-0224 / G / 04.05.11
2.1 DIMENSIONS
Thisappliance mustberecessedinto a vented noncombustiblewood-burning fireplace (prefabricated ormasonry)
only. The minimum fireplace opening size in which the appliance is to be installed is:
HEIGHT 14.5" WIDTH 25" DEPTH 11"
The minimum allowable chimney flue size is 6" round.
2.2 MINIMUM OPENING
44 7/8"
36 1/2"
4 SIDED BACKER PLATE
ALUMINUM TRIM
36"
15 1/2"
25"
10 9/16"
5 ½"
AIR
INLET
4 15/16"
15 1/2"
44 7/8"
27"
3 SIDED BACKER PLATE
ALUMINUM TRIM
24 1/8"
11 5/8"
7 3/8"
14"15 1/2"
20 3/4"
3"Ø
EXHAUST
FRONT VIEW
3 & 4 SIDED BACKER PLATES - SIDE VIEWS
TOP VIEW
FRONT VIEW

6
W415-0224 / G / 02.28.11
4.1A
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifics that apply to your area, for example in Massachusetts State:
• This product must be installed by a licensed plumber or gas fitter when installed within the commonwealth
of Massachusetts.
• The appliance damper must be removed or welded in the open position prior to installation of a appliance
insert or gas log.
• The appliance off valve must be a “T” handle gas cock.
• The flexible connector must not be longer than 36 inches.
• A Carbon Monoxide detector is required in all rooms containing gas fired appliances.
• The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed in
accordance with the current standard CAN/CSA Z240MH
Series, for gas equipped mobile homes, in Canada or
A
NSI Z223.1 and NFPA 54 in the United States.
A
s long as the required clearance to combustibles is
maintained, the most desirable and beneficial location for an appliance is in the center of a building, thereby
allowing the most efficient use of the heat created. The location of windows, doors and the traffic flow in the
room where the appliance is to be located should be considered. If possible, you should choose a location
where the vent will pass through the house without cutting a floor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
® (NFI) as NFI Gas
Specialists
www.ncertied.org
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT,
WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48” FROM THE
FRONT FACE OF THE UNIT.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE PRESSURE
TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG.
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
!
WARNING
2.3 GENERAL INSTRUCTIONS

7
W415-0224 / G / 04.05.11
2.4 GENERAL INFORMATION
FOR YOUR SATISFACTION, THIS APPLIANCE HAS BEEN TEST-FIRED TOASSURE ITS OPERATION AND
QUALITY!
CDIZC
NG LP
Altitude (FT) 0-4,500 0-4,500
Max. Input (BTU/HR) 24,000 24,000
Max. Output (BTU/HR) 20,400 20,400
Efficiency (w/the fan on) 85% 85%
A.F.U.E. (maximum value) 79% 79%
Min. Inlet Gas Supply Pressure 4.5" Water Column 11" Water Column
Max. Inlet Gas Supply Pressure 7" Water Column 13" Water Column
Manifold Pressure (Under Flow Conditions) 3.5" Water Column 10" Water Column
When the appliance is installed at elevations above 4,500ft, and in the absence of specific recommendations
from the local authority having jurisdiction, the certified high altitude input rating shall be reduced at the rate
of 4% for each additional 1,000ft. Expansion / contraction noises during
heating up and cooling down cycles are normal and to be expected.
This appliance is not approved for closet or recessed installations. It
is approved for bathroom, bedroom and bed-sitting room installations
and is suitable for mobile homes. The natural gas model is suitable for
installation in a mobile home that is permanently positioned on its site
and fuelled with natural gas.
65.5%
CDIZC

8
W415-0224 / G / 02.28.11
2.5 RATING PLATE INFORMATION INSTALLER: It is your responsibility to
check off the appropriate box on the rating
plate according to the model, venting and
gas type of the appliance.
For rating plate location, see “INSTALLATION
OVERVIEW” section.
This illustration is for reference only. Refer to
the rating plate on the appliance for accurate
information.
W385-0198 / G
SERIALNUMBER
NO.DESERIE GDIZC / CDIZC
GDIZC-N / CDIZC-N MODEL GDIZC-P / CDIZC-P
0 - 4500FT ALTITUDE/ELEVATION 0 - 4500FT
24,000 BTU/h INPUT /ALIMENTATION 24,000 BTU/h
14,000 BTU/h REDUCED INPUT /ALIMENTATION REDUITE 15,000 BTU/h
17,160BTU/h OUTPUT / RENDEMENT 17,160 BTU/h
THIS FIREPLACE USES AND REQUIRES AFAST ACTING THERMOCOUPLE. REPLACE ONLY WITH
A FASTACTING THERMOCOUPLE SUPPLIED BY WOLF STEEL LTD. APPROVED FOR BEDROOM,
BATHROOM & BEDSITTING ROOM INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION
IF INSTALLED IN ACCORDANCE WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS
EQUIPPED MOBILE HOMES, IN CANADA OR IN THE UNITED STATES THE MANUFACTURED
HOME CONSTRUCTION AND SAFETY STANDARD, TITLE 24 CFR, PART 3280. WHEN THIS US
STANDARD IS NOT APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR
MANUFACTURED HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A.
CE FOYER UTILISE ET REQUIERT UN THERMOCOUPLE À ACTION RAPIDE. REMPLACEZ
UNIQUEMENT AVEC UN THERMOCOUPLE À ACTION RAPIDE DE WOLF STEEL LTÉE.
HOMOLOGUE POUR INSTALLATION DANS UNE CHAMBRE ACOUCHER, UNE SALLE DE BAIN ET
UN STUDIO. APPROPRIE POUR INSTALLATION DANS UNE MAISON MOBILE SI SON INSTALLA-
TION CONFORME AUX EXIGENCES DE LA NORME CAN/CSAZ240MH SERIE DE MAISONS
MOBILES EQUIPEES AU GAZ, EN VIGUEUR AU CANADAOU AUX ETATS-UNIS DE LA NORME DE
SECURITE ET DE CONSTRUCTION DE MAISONS MANUFACTUREES, TITRE 24 CFR, SECTION
3280. DANS LE CAS OU CETTE NORME D'ETATS-UNIS NE PEUT ETRE APPLIQUEE, SE REFERER
A LA NORME RELATIVEAU CRITERE DE MESURES DE SECURITE CONTRE L'INCENDIE POUR
LES INSTALLATIONS DANS LES MAISONS MANUFACTURES, LES SITES ET LES COMMU-
NAUTES, ANSI/NFPA 501A.
STEADY STATE EFFICIENCY (NG/LP): 71.5% FAN OFF / 73% FAN ON
EFFICACITE CONSTANTE (GN/P): 71.5% VENT. ARRETE / 73% VENT. FONCTIONNE
STEADY STATE EFFICIENCY APPLIES TO CANADA ONLY / L'EFFICACITE CONSTANTE
S'APPLIQUENT SEULEMENT AU CANADA.
AFUE (NG/LP) (GN/P): 65%
MINIMUM AND MAXIMUM VERTICAL VENT LENGTHSARE 7 FEETAND 35 FEET
RESPECTIVELY. LES LONGUEURS VERTICALES MINIMALES ET MAXIMALES SONT 7 PIEDS ET
35 PIEDS RESPECTIVEMENT.
MANIFOLD PRESSURE: 3.5 INCHES W.C. (NG) / 10 INCHES W.C.(LP)
PRESSION AU COLLECTEUR : 3.5" D'UNE COLONNE D'EAU(GN) / 10" D'UNE COLONNE D'EAU (P)
MIN SUPPLY PRESSURE: 4.5" W.C.(NG) / 11" W.C. (LP)
PRESSION D'ALIMENTATION MIN : 4.5" D'UNE COLONNE D'EAU (GN) / 11" D'UNE COLONNE
D'EAU (P)
MAX. SUPPLY PRESSURE: 7" W.C. (NG) / 13" W.C. (LP)
PRESSION D'ALIMENTATION MAX : 7" D'UNE COLONNE D'EAU (GN) / 13" D'UNE COLONNE
D'EAU (P)
FOR USE WITH GLASS DOORS CERTIFIED WITH THIS UNIT ONLY.
UTILISER AVEC LES PORTES VITREES HOMOLOGUEES SEULEMENT AVEC CETTE UNITE.
WARNING: DO NOT ADDANY MATERIALTO THEAPPLIANCE, WHICH WILL COME IN CONTACT
WITH THE FLAMES, OTHER THAN THAT SUPPLIED BY THE MANUFACTURER WITH THE
APPLIANCE.
AVERTISSEMENT : N'AJOUTEZ PAS ACETAPPAREIL AUCUN MATERIAU DEVANT
ENTRER EN CONTACT AVEC LES FLAMMESAUTRE QUE CELUI QUI EST FOURNIAVEC CET
APPAREIL PAR LE FABRICANT.
ELECTRICAL RATING / CLASS.: 115V 1.5AMP 60HZ
THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE
OWNERS INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND
RESEALING IS NECESSARYAFTER SERVICING THE VENTAIR INTAKE SYSTEM.
L'APPAREIL DOIT EVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'EVACUATION PROPRE A
WOLF STEEL. REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POUR L'EVACUATION
PRECISE. IL EST IMPORTANT DE BIEN REINSTALLER ET RESCELLER L'EVENTAPRES AVOIR
ASSURE LE MAINTIEN DU SYSTEME DE PRISE D'AIR.
WARNING: FOR INSTALLATION INTO AVENTED NON-COMBUSTIBLE FIREPLACE
ONLY. THE MINIMUM FIREPLACE SIZE IS: HEIGHT 14 1/2”, DEPTH 11”, WIDTH 25”. THE MINIMUM
INSIDE FLUE SIZE IS 7”. THE MINIMUM DISTANCE, FROM THE BOTTOM OFACOMBUSTIBLE
MANTLE PROJECTING A MAXIMUM 3” FROM THE WALL TO THE TOP OFTHE STANDARD TRIM IS
3”. SEE OWNERS MANUAL FOR GREATER EXTENSIONS.
ATTENTION : POUR INSTALLATION DANS UN FOYER VENTILE EN MACONNERIE.
LES DIMENSIONS MINIMUMS SONT: HAUTEUR 14 1/2”, PROFONDEUR 11”, LARGEUR 25”. LE
DIAMETRE INTERIEUR MINIMUM DE CONDUIT D’EVACUATION EST DE 7”.
LA DISTANCE MINIMALE, DU BAS DU MANTEAU COMBUSTIBLE FORMANTUNE
PROJECTION MAXIMALE DE 3” DU MUR AU DESSUS DE LA GARNITURE NORMALE EST 3”.
REFERER AU MANUEL D’INSTALLATION POUR DES EXTENSIONS PLUS GRANDES.
NOT FOR USE WITH SOLID FUEL / UN COMBUSTIBLE
SOLIDE NE DOIT PAS ETRE UTILSE AVEC CET APPAREIL
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
9700539 (WSL) 4001657 (NGZ)
4001658 (NAC) 4001659 (WUSA)
CERTIFIED UNDER: CSA 2.33-2009, ANSI
Z21.88-2009 VENTED GASFIREPLACE
HEATER.
HOMOLOGUE SELONLESNORMES: CSA
2.33-2009, ANSI Z21.88-2009 FOYER
DE CHAUFFAGE AU GAZ AVEC
EVACUATION.
SAMPLE
SAMPLE
M,,
IONON
ES GASS GAS
REDRED
THIS USTHIS US
IA FORFOR
FPA 501A.A
REMPLACEZ
TEEL LTÉE.
R, UNE SALLE DE BAIN ETR, UNE SALLE DE BAIN ET
MOBILE SI SON INSTALLAMOBILE SI
-
0MH SERIE DE MAISONSH SERIE DE M
UX ETATS-UNIS DE LA NORME DES-UNIS DE LA NORME DE
CTUREES, TITRE 24 CFR, SECTIONTUREES, TITRE 24 CFR, SECTION
E PEUT ETREAPPLIQUEE, SE REFEREE PEUT ETREAPPLIQUEE, SE REFER
E SECURITE CONTRE L'INCENDIE POUSECURITE CONTRE L'INCENDIE PO
ACTURES, LES SITES ET LES COMMUCTURES, LES SITES ET LES COMMU
FAN OFF / 73% FAN ONFAN OFF / 73% FAN ON
ENT. ARRETE / 73% VENT. FONCTIONENT. ARRETE / 73% VENT
O CANADA ONLY / L'EFFICACITE CONO CANADA ONLY / L'EFFICACI
ADA.A.
CAL VENT LENGTHS ARE 7 FEETANDCAL VENT LENGTHS ARE 7 FEET AND
EURS VERTICALES MINIMALES ET MAEURS VERTICALES MINIMALES ET
NT.NT.
:
3.5 INCHES W.C. (NG) / 10 INCHES WNCHES W.C. (NG) / 10 INCHES W
ECTEUR :
3.5" D'UNE COLONNE D'EAU3.5" D'UNE COLONNE D'E
SSURE:SSU
4.5" W.C.(NG) / 11" W.C. (LP).(NG) / 11" W.C. (LP)
LIMENTATION MIN :LIMENTATIO
4.5" D'UNE COLON5" D'UNE CO
PPLY PRESSURE:Y PRESSURE:
7" W.C. (NG) / 13" W.7" W.C. (NG) / 13" W
SION D'ALIMENTATION MAX :LIMENTATION MAX :
7" D'UNE7" D'UN
AU (P)
OR USE WITH GLASS DOORS CERTIFOR USE WITH GLASS DOORS CERTIF
UTILISER AVEC LES PORTES VITREUTILISER AVEC LES PORTES
WARNING
:WARNIN
DO NOT ADD ANY MATDO NOT ADD ANY
WITH THE FLAMES, OTHER THWITH THE FLAMES, OTHER TH
APPLIAN
C
E.
APPLIANCE.
A
VERTISSEMENT
:AVERTISSEMENT :
N'AJON'AJO
ENTRER EN CONTACTENTRER EN CONTA
APPAREIL PAR LE FAREIL PAR LE
ELECTRICAL RAECTRICAL RA
HE APPLIANCHE APPLIAN
NERS IN
L

9
W415-0224 / G / 04.05.11
3.0 INSTALLATION
3.1 LEVELLING THE APPLIANCE
68.4
Clean out ashes from the inside of the wood-burning appliance. Make sure that the chimney and wood-burning
appliance are in a clean and sound condition and constructed of non-combustible materials. If necessary have
any repair work done by a qualified person before installing the insert. Remove the existing appliance damper
or lock into an open position.
Using screws, attach the appliance warning tag
to the inside of the firebox of the appliance into
which the insert is being installed.
The sheet-metal parts of the appliance, in which
the gas appliance insert is to be installed, must
not be cut.
If the wood-burning factory-built appliance has
no gas access hole(s) provided, an access hole of 1½ inch or less may be drilled through the lower sides or
bottom of the appliance in a proper workman like manner. This access hole must be plugged with non-combus
-
tible insulation after the gas supply line has been installed.
Ensure that existing chimney cleanouts fit properly.
The refractory, glass doors, screen rails, screen mesh and log grates may be removed from the existing appli-
ance before installing the gas appliance insert.
Smoke shelves, shields and baffles may be removed if attached by mechanical fasteners.
The ventilation openings in the existing appliance may be obstructed by the backer plates, aluminium trim etc.
but these parts are not to be applied so as to have an airtight seal.
!
WARNING
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
IF USING CO-AXIAL VENTING WITH SPACERS, THE VENT SYSTEM MUST BE SUPPORTED EVERY 3
FEET FOR BOTH VERTICAL AND HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES
FOR BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.
W385-0199_B
WARNING: THIS FIREPLACE HAS BEEN CONVERTED FOR USE WITHAGAS FIREPLACE
INSERT ONLYAND CANNOT BE USED FOR BURNING WOOD OR SOLID FUELS UNLESSALL ORIGINAL
PARTS HAVE BEEN REPLACED AND THE FIREPLACE IS RE-APPROVED BY THEAUTHORITY HAVING
JURISDICTION.
ATTENTION: CE FOYER AETE CONVERTIAFIN D’ETRE UTILISE SEULEMENT
COMME FOYER ENCASTRE AU GAZ ET NE PEUT ETRE UTILSE POUR BRULER DU BOIS OU
TOUTAUTRE COMBUSTIBLE SOLIDE, SANS QUE TOUTES LES PIECES ORIGINALESAIENT
ETE REMPLACEES ET QUE LE FOYER SOITAPPROUVE DE NOUVEAU PAR LES AUTORITES
AYANT JURIDICTION.
ADVERTENCIA: ESTA CHIMENEASE REMODELÓ PARA USARSE SOLO CON UNA
INSERCIÓN DE CHIMENEAAGAS Y NO PUEDE USARSE PARA QUEMAR MADERA NI COMBUSTIBLES
SÓLIDOS, A MENOS QUE SE HAYAN REEMPLAZADO TODAS LAS PIEZAS ORIGINALES, YLAAUTORI-
DAD JURISDICCIONAL LA HAYA VUELTO A APROBAR.
Move the appliance close to its final position. This appliance is equipped with levelling screws located on the
base. Level using the levelling screws. Levelling the appliance will eliminate rocking or excessive noise when
the fan is in operation. Once the appliance is level, move it partially into place to allow for all connections to be
made. It is not practical to level the appliance once it has been installed. Determine the required depth prior to
installing the appliance and adjust the levelling screws accordingly. 67.2

10
W415-0224 / G / 02.28.11
While the liners must be continuous from the appliance to the terminal, to achieve the needed length, they may be
coupled, using an approved coupler.
We recommend that exhaust vents that pass through unheated spaces, such as tall exterior chimneys, be
wrapped in a protective sleeve to minimize condensation and reverse flow
symptoms. See Trouble Shooting for details.
This appliance is approved for use with a 2" liner for air intake and a 3" liner
for exhaust. For best performance, however, it is recommended to use two 3"
liners.
If a 2" liner is used for the intake, it may be necessary to adjust the primary air
shutter.
A. OUTSIDE: Slip the one end of a liner a minimum of 2" over the
sleeve of the air terminal. Secure using 3 screws. Then seal the
joint and screw heads with high temperature sealant. Repeat with
the other liner.
NOTE: We recommend that the other end of the exhaust
liner be marked to eliminate the exhaust liner being
connected to the intake collar at the appliance.
B. Gently stretch the liners to the required lengths and insert into
the chimney. Trim and fit the flashing plate to suit the chimney
termination. Place the air terminal onto the top of the chimney.
Make weather tight by sealing with caulking (not supplied).
Fasten to the chimney with screws and plugs (not supplied).
C. INSIDE: Attach and secure the flex liners to the vent
connection assembly using the same procedure as before,
ensuring that the marked exhaust liner is attached to
the exhaust collar.
D. Detach the two screws from the back of the firebox and
remove the panel, as illustrated.
E. Reaching in through the appliance, manoeuvre the vent
connection assembly through the openings in the firebox
top, taking care not to damage the gasket. In case of a
low ceiling fireplace, the extension should be removed and
reinstalled after the vent connection is secured to
the firebox. Attach the restrictor plate to the centre
stud and secure the assembly using the three studs
and ¼-20 hex nuts.
FLASHING
PLATE
2” OVERLAP
SEALANT
HI-TEMP
INTAKE
EXHAUST
3.2 CHIMNEY CONNECTION
Chimney installation must conform to both national and local code requirements. The chimney must be lined
with one 2" or 3" diameter liner for intake and one 3" diameter liner for exhaust. The minimum and maximum
vent lengths are 10 and 35 feet respectively. Recommended kits come in 3 lengths:
1-2" & 1-3" DOUBLE PLY ALUMINUM LINER-INLET AND EXHAUST & 2-3" TO 2" REDUCER:
GDI-2320KT VENT KIT 20FT
GDI-2325KT VENT KIT 25FT
GDI-2335KT VENT KIT 35FT
2-3" DOUBLE PLY ALUMINUM LINER-INLET AND EXHAUST:
GDI-320KT VENT KIT 20FT
GDI-325KT VENT KIT 25 FT
GDI-335KT VENT KIT 35 FT
2" OVERLAP
EXHAUST
SEALANT
HI-TEMP
INTAKE
VENT
CONNECTION
ASSEMBLY
RESTRICTO
R
PLATE
STUDS
VENT
CONNECTOR
EXTENSION

11
W415-0224 / G / 04.05.11
3.3 GAS INSTALLATION
30.1A
Installation and servicing to be done by a qualified installer.
A. Move the appliance into position and secure.
B. If equipped with a flex connector the appliance is designed to accept a 1/2” gas supply. Without the
connector it is designed to accept a 3/8” gas supply. The appliance is equipped with a manual shut off
valve to turn off the gas supply to the appliance.
C. Connect the gas supply in accordance to local codes. In the absence of local codes, install to the
current CAN/CSA-B149.1 Installation Code in Canada or to the current National Fuel Gas Code, ANSI
Z223.1 / NFPA 54 in the United States.
D. When flexing any gas line, support the gas valve so that the lines are not bent or kinked.
E. The gas line flex-connector should be installed to provide sufficient movement for shifting the burner
assembly on it’s side to aid with servicing components.
F. Check for gas leaks by brushing on a soap and water solution. Do not use open flame.
!
WARNING
RISK OF FIRE, EXPLOSION OR ASPHYXIATION. ENSURE THERE ARE NO IGNITION SOURCES SUCH AS
SPARKS OR OPEN FLAMES.
SUPPORT GAS CONTROL WHEN ATTACHING GAS SUPPLY PIPE TO PREVENT DAMAGING GAS LINE.
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN OUT
WITH THE GLASS DOOR OPENED OR REMOVED. PURGING OF THE GAS SUPPLY LINE SHOULD BE
PERFORMED BY A QUALIFIED SERVICE TECHNICIAN. ASSURE THAT A CONTINUOUS GAS FLOW IS AT
THE BURNER BEFORE CLOSING THE DOOR. ENSURE ADEQUATE VENTILATION. FOR GAS AND
ELECTRICAL LOCATIONS, SEE “DIMENSION” SECTION.
ALL GAS CONNECTIONS MUST BE CONTAINED WITHIN THE APPLIANCE WHEN COMPLETE.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG.
VALVE SETTINGS HAVE BEEN FACTORY SET, DO NOT CHANGE.
The appliance may now be pushed into its final position inside the wood burning
fireplace. Secure the appliance to the fireplace using perforated strapping attached to
the two securing holes on either side of the appliance as shown. We recommend that
the trim be installed before the appliance is placed into its final position.
SECURING
HOLES

12
W415-0224 / G / 02.28.11
4.0 FINISHING
Combustible mantel clearance can vary according to the mantel depth. Use
the graph to help evaluate the clearance needed. These same requirements
apply to any combustibles protruding on either side of the appliance. The
minimum distance, from the bottom of a combustible mantel projecting 3"
maximum from the wall to the top of the aluminum trim, is 3".
!
WARNING
RISK OF FIRE, MAINTAIN ALL SPECIFIED AIR SPACE CLEARANCES TO COMBUSTIBLES. FAILURE
TO COMPLY WITH THESE INSTRUCTIONS MAY CAUSE A FIRE OR CAUSE THE APPLIANCE TO
OVERHEAT. ENSURE ALL CLEARANCES (I.E. BACK, SIDE, TOP, VENT, MANTEL, FRONT, ETC.) ARE
CLEARLY MAINTAINED.
WHEN USING PAINT OR LACQUER TO FINISH THE MANTEL, THE PAINT OR LACQUER MUST BE
HEAT RESISTANT TO PREVENT DISCOLOURATION. 73.1
!
WARNING
RISK OF FIRE!
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
THE FRONT OF THE APPLIANCE MUST BE FINISHED WITH ANY NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK, MARBLE, GRANITE, ETC., PROVIDED THAT THESE MATERIALS DO NOT GO
BELOW THE SPECIFIED DIMENSION AS ILLUSTRATED.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
FACING AND/OR FINISHING MATERIAL MUST NEVER OVERHANG INTO THE APPLIANCE OPENING.
72.1A
4.1 MINIMUM MANTEL CLEARANCES
034 7
8
9
11
13
12 56
7
10
12
+
(
,
*
+
7
0
$
1
7
(
/
MANTEL WIDTH
3”
6” 5” 4”
6” MANTEL
5”
3”
4”
3.4 OPTIONAL WALL SWITCH
For ease of accessibility, an optional remote wall switch or millivolt thermostat may be installed in a convenient
location. Route a 2 strand, solid core millivolt wire from the valve to the wall switch or millivolt thermostat. The
recommended maximum lead length depends on wire size:
WIRE SIZE MAX. LENGTH
14 gauge 100 feet
16 gauge 60 feet
18 gauge 40 feet
Disconnect the existing wires from terminals 1 and 3 (from the
ON/OFF switch) and replace with the leads from the wall switch / millivolt thermostat.
50.1
3
1
2
!
WARNING
DO NOT CONNECT EITHER THE WALL SWITCH, THERMOSTAT OR GAS VALVE DIRECTLY TO 110
VOLT ELECTRICITY.

13
W415-0224 / G / 04.05.11
4.2 DOOR REMOVAL AND INSTALLATION
!
WARNING
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
THE DOOR LATCHES ARE PART OF A SAFETY SYSTEM AND MUST BE PROPERLY ENGAGED. DO
NOT OPERATE THE APPLIANCE WITH LATCHES DISENGAGED.
FACING AND/OR FINISHING MATERIALS MUST NOT INTERFERE WITH AIR FLOW THROUGH AIR
OPENINGS, LOUVRES OPENINGS, OPERATION OF LOUVRES OR DOORS OR ACCESS FOR
SERVICE. OBSERVE ALL CLEARANCES WHEN APPLYING COMBUSTIBLE MATERIALS.
BEFORE DOOR IS REMOVED TURN THE APPLIANCE OFF AND WAIT UNTIL APPLIANCE IS COOL TO
THE TOUCH. DOORS ARE HEAVY AND FRAGILE SO HANDLE WITH CARE.
75.1
LOWER DOOR BRACKET
Place the door into the two lower door brackets, and secure at the top of the appliance with two #10-24 machine screws.

14
W415-0224 / G / 02.28.11
4.3 LOG PLACEMENT
!
WARNING
FAILURE TO POSITION THE LOGS IN ACCORDANCE WITH THESE DIAGRAMS OR FAILURE TO USE
ONLY LOGS SPECIFICALLY APPROVED WITH THIS APPLIANCE MAY RESULT IN PROPERTY
DAMAGE OR PERSONAL INJURY.
LOGS MUST BE PLACED IN THEIR EXACT LOCATION IN THE APPLIANCE. DO NOT MODIFY THE
PROPER LOG POSITIONS, SINCE APPLIANCE MAY NOT FUNCTION PROPERLY AND DELAYED
IGNITION MAY OCCUR.
THE LOGS ARE FRAGILE AND SHOULD BE HANDLED WITH CARE.
76.1A
PHAZERTM logs and glowing embers exclusive to Continental Fireplaces, provide a unique and realistic glowing effect that
is different in every installation. Take the time to carefully position the glowing embers for a maximum glowing effect.
Log colours may vary. During the initial use of the fireplace, the colours will become more uniform as colour
pigments burn in during the heat activated curing process.
A.
Place the rear log (#1) onto the two log supports
and against the air intake pipe. B. Position logs #2 and #3 against the grate posts
and line up the studs located on the burner with the
holes on the bottom of the logs. Keep slightly back
of the front row of ports.
C. Fit the centre log (#4) into place behind log #3 and
into the pocket provided on the back log.
Tear the embers into pieces and place along the front
row of ports covering all of the burner area in front of the
logs. Care should be taken to shred the embers into thin,
small irregular pieces as only the exposed edges of the
fibre hairs will glow. The ember material will only glow
when exposed to direct flame; however, care should
be taken to not block the burner ports.
Blocked burner ports can cause an incorrect flame
pattern, carbon deposits and delayed ignition.
PHAZERTM logs glow when exposed to direct flame. Use only certified "glowing embers" and PHAZERTM logs
available from your authorized dealer / distributor.
4.4 GLOWING EMBERS
GLOWING EMBERS
#3
#2
#1
#4

15
W415-0224 / G / 04.05.11
97.1
Remove the backing o
f
the logo supplied and place on the glass viewing door,
as indicated. ½"
½"
LOGO
4.5 LOGO PLACEMENT
4.6 ALUMINUM EXTRUSION TRIM KIT INSTALLATION
In order to close off the fireplace opening or if the opening is larger than the 3- or 4-sided aluminum extrusion
trim kits, it is recommended to reduce the opening using a noncombustible material such as ceramic tile,
marble, etc or the GIZBP6-3 or GIZBP6-4 backer plate kits. The outside edge of the backer plate is finished
off with gold trim included in each kit.A deluxe flashing kit complete with marquis trim may also be used to
complete the installation. These flashing and trim combinations are available in 6 and 9 inch widths as well
as many finishes to accent any room decor. Mounting brackets, GIZBRKT, are required to install the deluxe
flashing. Detailed installation instructions are included with each kit.
If this appliance is being installed into an existing wood burning, zero clearance fireplace, then be aware of this
precaution: Any circulation air opening may be covered (with noncombustible material) but not sealed!
The appliance can be equipped with either a 3- or 4-sided trim kit to finish off the
fireplace opening. Slide the trim assembly over the keyholes (2 per side) and
drop into place. If installing the optional 3- or 4-sided backer plate (GIZBP6-3
or GIZBP6-4), it must be hung prior to the trim kit installation using the same
keyholes.
To adjust the trim: If the mitre is out of alignment, open each side and loosen the
two screws at either side trim hinge. Slide the trim up or down to adjust and re-
tighten screws. There is also a very slight in/out adjustment that can be made.
Note: Since the side panels open and close, to access the controls, a gap is
necessary at the mitre joint.
The top trim piece has an adjustable securing bracket which enables the trim to be
secured to the firebox shell.
FIRE VIEWING DOOR
VALVE
CONTROL
DOOR
LOOSEN
SCREWS
SLIDE TO
ADJUST

16
W415-0224 / G / 02.28.11

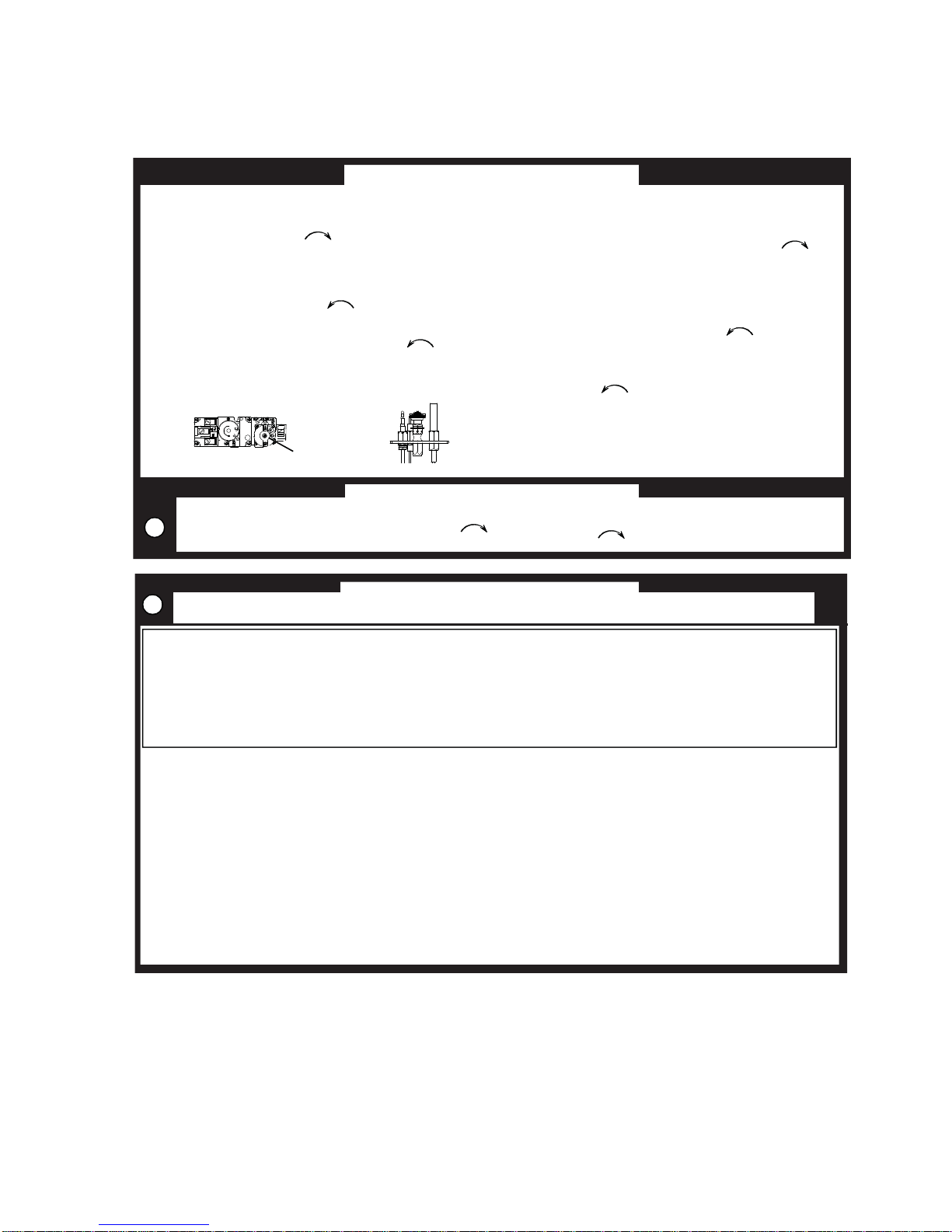

5.0 OPERATION
GAS KNOB TO OFF
BOUTON DU GAZ A
“OFF”
LIGHTINGINSTRUCTIONS /INSTRUCTIONS D'ALLUMAGE
WHEN LIGHTING AND RE-LIGHTING, THE GAS KNOB CANNOT BE TURNED FROM PILOT
UNLESS THE KNOB IS DEPRESSED.
1. STOP! READ THE SAFETY INFORMATION ON THE OPERATING LABEL.
2. TURN OFFALL ELECTRIC POWER TO THE FIREPLACE.
3. TURN THE GAS KNOB CLOCKWISE TO OFF.
4. WAIT FIVE (5) MINUTES TO CLEAR OUTANY GAS. IF YOU SMELL GAS, INCLUDING
NEAR THE FLOOR, STOP! FOLLOW “B” ON THE OPERATING LABEL. IF YOU DON’T
SMELL GAS GO TO THE NEXT STEP.
5. IF FIREPLACE IS EQUIPPED WITH FLAMEADJUSTMENT VALVE TURN CLOCKWISE TO
OFF.
6. FIND PILOT LOCATED IN FRONT OF BACK LOG.
7. TURN GAS KNOB COUNTER-CLOCKWISE TO PILOT.
8. DEPRESSAND HOLD GAS KNOB WHILE LIGHTING THE PILOT WITH THE PUSH
BUTTON IGNITOR. KEEP KNOB FULLY DEPRESSED FOR ONE MINUTE, THEN
RELEASE. IF PILOT DOES NOT CONTINUE TO BURN REPEAT STEPS 3 THROUGH 7.
9. WITH PILOT LIT, TURN GAS KNOB COUNTER-CLOCKWISE TO ON.
10. IF EQUIPPED WITH FLAME ADJUSTMENT VALVE, PUSHAND TURN KNOB TO HIGH.
11. IF EQUIPPED WITH REMOTE ON-OFF SWITCH, MAIN BURNER MAY NOT COME ON
WHEN YOU TURN THE VALVE TO ON OR HIGH. REMOTE SWITCH MUST BE IN THE ON
POSITION TO IGNITE BURNER.
12. TURN ON ALL ELECTRIC POWER TO THE FIREPLACE.
TO TURN OFF GAS / COUPER L’ALIMENTATION EN GAZ
LORSQUE LE GAZ ESTALLUME OU RE-ALLUME LE BOUTON DE GAZ NE PEUTPAS
ETRE TOURNE DE PILOTE A FERME A MOINS QU'IL SOIT ENFONCE.
1. ARRETEZ! LISEZ LES INSTRUCTIONS DE SECURITE SUR L’ETIQUETTE DE
FONCTIONNEMENT.
2. COUPEZ L'ALIMENTATION ELECTRIQUE AU FOYER.
3. TOURNEZ LE BOUTON DE CONTROLE DU GAZ VERS LA DROITE A
"OFF".
4. ATTENDEZ CINQ (5) MINUTES AFIN D'EVACUER TOUT LES GAZ. SI VOUS
SENTEZ LE GAZ COMPRIS PRES DU REVETEMENT, ARRETEZ! OBSERVEZ
L'ITEM "B" SURL’ETIQUETTE DE FONCTIONNEMENT.SI VOUS NE SENTEZ
PAS LE GAZ, CONTINUEZ A L'ETAPE SUIVANTE.
5. SI L'APPAREIL EST MUNI D'UNE SOUPAPE DE REGLAGE DE LA FLAMME.
TOURNEZ LE BOUTON VERS LA DROITE A "OFF".
6. LOCALISEZ LA VEILLEUSE DEVENT LA BUCHE ARRIERE.
7. TOURNE LE BOUTON DU GAZ VERS LA GAUCHE A PILOTE.
8. ENFONCEZ ET GARDEZ LE BOUTON DU GAZ ENFONCE PENDANT QUE
VOUS ALLUMEZ LA VEILLEUSE EN PRENFONCE PENDANT UNE MINUTE ET
RE-LACHEZ-LE. SI LA VEILLEUSE NE RESTE PAS ALLUMEE, REPETEZ LES
ETAPES DE 3 A 7.
9. LORSQUE LA VEILLEUSE EST ALLUMEE, TOURNEZ LE BOUTON DU GAZ
VERS LA GAUCHE A "ON".
10. SI L'APPAREIL EST MUNI D'UNE SOUPAPE DE REGLAGE DE LA FLAMME,
PRESSEZ ET TOURNEZ LE BOUTON A "HIGH".
11. SI L'APPAREIL EST MUNI D'UNE INTERRUPTEUR OUVERT/FERME A DISTANCE,
LE BRULEUR PRINCIPAL PEUT NE PAS S'ALLUMER QUAND VOUS TOURNEZ
LA SOUPAPE OUVERT OU "HIGH". L'INTERRUPTEUR A DISTANCE DOIT ETRE
EN POSITION OUVERT POUR QUE LE BRULEUR PRINCIPAL S'ALLUME.
12. RE-ALIMENTEZ L'APPAREIL EN ELECTRICITE.
1. TURN OFF ALL ELECTRIC POWER TO THE FIREPLACE IF SERVICE IS TO
BE PERFORMED.
2. PUSH IN GAS CONTROL KNOB SLIGHTLY AND TURN CLOCKWISE
TO OFF. DO NOT FORCE.
1. COUPEZ L'ALIMENTATION ELECTRIQUE AU FOYER SI LE SERVICE EST
EFFECTUE.
2. ENFONCEZ LEGEREMENT LE BOUTON DE CONTROLE DU GAZ ET TOURNEZ
VERS LA DROITE A “OFF”. NE FORCEZ PAS.
W385-0201/A /05.28.04
OPERATINGINSTRUCTIONS/INSTRUCTIONSD'OPERATION
FOR YOURSAFETY READBEFOREOPERATING/POUR VOTRESECURITELIRE AVANT DE FAIRE FONCTIONNER
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS
EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING
PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
INITIAL LIGHTING OF THE PILOT AND MAIN BURNERS MUST BE
DONE WITH THE GLASS DOOR OFF.
DO NOT CONNECT WALVE OR WALL SWITCH TO ELECTRICITY.
SEE INSTALLATION INSTRUCTIONS.
ATTENTION: SI VOUS N'OBSERVEZ PAS CES INSTRUCTIONS A LA
LETTRE, UN FEU OU UNE EXPLOSION POURRAIT EN RESULTER
CAUSANT AINSI DES DOMMAGES A LA PROPRIETE, DES BLESSURES
CORPORELLES OU PERTE DE VIE.
L’ALLUMAGE INITIAL DE LA VEITLLEUSE ET DU BRULEUR PRINCIPAL
DOIT SE FAIRE AVEC LA PORTE VITREE ENLEVEE.
NE RACCORDEZ PAS LA SOUPAPE OU L’INTERRUPTEUR MURAL A
L’ELECTRICITE. CONSULTEZ LES INSTRUCTIONS D’INSTALLATION.
A. THIS FIREPLACE IS EQUIPPED WITH A PILOT WHICH MUST BE LIT BY
HAND WHILE FOLLOWING THESE INSTRUCTIONS EXACTLY.
B. BEFORE OPERATING SMELL ALL AROUND THE FIREPLACE AREA FOR GAS AND
NEXT TO THE FLOOR BECAUSE SOME GAS IS HEAVIER THAN AIR AND WILL
SETTLE ON THE FLOOR.
WHAT TO DO IF YOU SMELL GAS:
TURN OFF ALL GAS TO THE FIREPLACE.
OPEN WINDOWS.
DO NOT TRY TO LIGHT ANY APPLIANCE.
DO NOT TOUCH ANY ELECTRIC SWITCH; DO NOT USE ANY PHONE IN
YOUR BUILDING.
IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOUR’S PHONE.
FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.
IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL THE FIRE DEPARTMENT.
C. USE ONLY YOUR HAND TO TURN THE GAS CONTROL KNOB / MANUAL SHUT-OFF
KNOB. NEVER USE TOOLS. IF THE KNOB WILL NOT TURN BY HAND, DO NOT TRY
TO REPAIR IT. CALL A QUALIFIED SERVICE TECHNICIAN. FORCE OR ATTEMPTED
REPAIR MAY RESULT IN A FIRE OR EXPLOSION.
D. DO NOT USE THIS FIREPLACE IF ANY PART HAS BEEN UNDER WATER. IMMEDI-
ATELY CALL A QUALIFIED SERVICE TECHNICIAN TO INSPECT THE FIREPLACE AND
REPLACE ANY PART OF THE CONTROL SYSTEM AND ANY GAS CONTROL WHICH
HAS BEEN UNDER WATER.
A. CE FOYER EST MUNI D'UNE VEILLEUSE QUI DOIT ETRE ALLUMEE MANUELLEMENT TOUT EN
SUIVANT EXACTEMENT CES INSTRUCTIONS.
B. AVENT D'ALLUMER SENTEZ TOUT AUTOUR DU FOYER AFIN DE DETECTER DES FUITES DE GAZ
POSSIBLES. SENTEZ EGALEMENT AU NIVEAU DU PLANCHER CAR CERAINS GAZ SONT PLUS LOURD
QUE L'AIR ET POURRONT SE DEPOSER SUR LE PLANCHER.
QUE FAIRE S'IL Y A PRESENCE DE GAZ:
COUPEZ ENTIEREMENT L'ALIMENTTION DE GAZ PRINCIPALE.
OUVREZ LES FENETRES.
N'ALLUMEZ AUCUN APPAREIL.
NE TOUCHEZ PAS AUX INTERRUPTEURS ELECTRIQUES; N'UTILISEZ AUCUN TELEPHONE DANS
VOTRE EDIFICE.
A PARTIR
D'UN VOISIN, COMMUNIQUEZ IMMEDIATEMENT AVEC VOTRE FOURNISSEUR EN GAZ ET
SUIVEZ CES INSTRUCTIONS.
SI VOUS NE POUVEZ PAS REJOINDRE VOTRE FOURNISSEUR EN GAZ, COMMUNIQUE AVEC VOTRE
SERVICE D'INCENDIES.
C. TOURNEZ LE BOUTON DE GAZ / LE BOUTON MANUEL D'ARRET AVEC LA MAIN SEULEMENT
N'UTILISEZ JAMAIS D'OUTILS. SI LE BOUTON NE TOURNE PAS MANUELLEMENT N'ESSAYEZ PAS DE
LA REPARER. APPELEZ UN TECHNICIEN DE SERVICE QUALIFIE. FORCER LE MOUVEMENT OU
TENTER DE REPARER LE MECANISME PEUT TRADUIRE PAR UN FEU OU UNE EXPLOSION.
D. N'UTILISEZ PAS CE FOYER SI UNE DE SES PARTIES A ETE SUBMERGEE. APPELEZ IMMEDIATEMENT
UN TECHNICIEN DE SERVICE QUALIFIE POUR INSPECTER LE FOYER ET REMPLACER TOUTE
COMPOSANTE DU SYSTEME DE CONTROLE OU DU SYSTEME D'ALIMENTAION QUI AURAIT ETE
SUBMERGEE.
The on-off switch is located behind the left side control door.

17
W415-0224 / G / 04.05.11
6.0 ADJUSTMENTS
6.1 PILOT BURNER ADJUSTMENT
Remove the pilot screw cap. Adjust the pilot screw to provide properly
sized flame. Turn in a clockwise direction to reduce the gas flow.
Re-install the pilot screw cap.
Inlet pressure can be checked by turning screw (A)
counter-clockwise until loosened and then placing pressure
gauge tubing over the test point. Gauge should read 7”
(minimum 4.5”) water column for natural gas or 13” (11” minimum)
water column for propane. Check that main burner is operating on “HI”.
Outlet pressure can be checked the same as above using screw (B).
Gauge should read 3.5” water column for natural gas or 10” water
column for propane. Check that main burner is operating on “HI”.
AFTER TAKING PRESSURE READINGS, TIGHTEN
SCREWS FIRMLY TO SEAL. DO NOT OVER
TORQUE. LEAK TEST.
39.6
PILOT
BURNER
THERMOCOUPLE
THERMOPILE
P
I
L
O
T
PILOT SCREW
AB
6.2 VENTURI ADJUSTMENT
This appliance has an air shutter that has been factory set open according
to the chart below:
Regardless of venturi orientation, closing the air shutter will cause a more
yellow flame, but can lead to carboning. Opening the air shutter will cause a
more blue flame, but can cause flame lifting from the burner ports. The
flame may not appear yellow immediately; allow 15 to 30 minutes for the
final flame colour to be established.
AIR SHUTTER ADJUSTMENT MUST ONLY BE DONE BY A QUALIFIED
INSTALLER!
AIR
SHUTTER
OPENING
VENTURI
BURNER
ORIFICE
49.1
AIR SHUTTER SETTING
3" / 3" Liner System 2" / 3" Liner System
NG 1/16” 1/8"
LP 3/16” 5/16"
This appliance is approved for use with a 2" liner for air intake and a 3" liner for exhaust. For best performance, however,
it is recommended to use two 3" liners.

18
W415-0224 / G / 02.28.11
It’s important to periodically perform a visual check of the pilot and
burner flames. Compare them to the illustrations provided. If any flames
appear abnormal call a service person.
54.2
3/8” - 1/2”
FLAME MUST
ENVELOPE UPPER
3/8" TO 1/2" OF
THERMOCOUPLE &
THERMOPILE
6.3 FLAME CHARACTERISTICS
6.4 RESTRICTING VERTICAL VENTS
Some vent configurations may display a very active
flame. If this appearance is not desirable, the vent exit
may be restricted using a restrictor plate. Bend the flap
up as shown to reduce the velocity of the exhaust gases,
slowing down the flame pattern and creating a more
traditional appearance.

19
W415-0224 / G / 04.05.11
7.0 MAINTENANCE
CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper
and dangerous operation. Verify proper operation after servicing. This appliance and its venting system
should be inspected before use and at least annually by a qualified service person. The appliance area must
be kept clear and free of combustible materials, gasoline or other flammable vapors and liquids. The flow of
combustion and ventilation air must not be obstructed.
1. In order to properly clean the burner and pilot assembly, remove the logs, rocks and/or glass to
expose both assemblies.
2. Keep the control compartment, media, burner, air shutter opening and the area surrounding the logs
clean by vacuuming or brushing, at least once a year.
3. Check to see that all burner ports are burning. Clean out any of the ports which may not be burning or
are not burning properly.
4. Check to see that the pilot flame is large enough to engulf the flame sensor and/or thermocouple /
thermopile as well as reaches the burner.
5. Replace the cleaned logs, rocks or glass. Failure to properly position the media may cause carboning
which can be distributed in the surrounding living area.
6. Check to see that the main burner ignites completely on all openings when turned on. A 5 to 10
second total light-up period is satisfactory. If ignition takes longer, consult your local authorized dealer /
distributor.
7. Check that the gasketing on the sides, top and bottom of the door is not broken or missing. Replace if
necessary.
8. If for any reason the vent air intake system is disassembled, re-install and re-seal per the instructions
provided for the initial installation. 40.1
MAINTENANCE
MAINTENANCE
MAINTENANCE
TURN OFF THE GAS AND ELECTRICAL POWER BEFORE SERVICING THE APPLIANCE.
APPLIANCE MAY BE HOT, DO NOT SERVICE UNTIL APPLIANCE HAS COOLED.
DO NOT USE ABRASIVE CLEANERS.
!
WARNING
7.1 CARE OF GLASS
5.1
DO NOT CLEAN GLASS WHEN HOT! DO NOT USE
ABRASIVE CLEANERS TO CLEAN GLASS.
Buff lightly with a clean dry soft cloth. Clean both sides
of the glass after the first 10 hours of operation with a
recommended fireplace glass cleaner. Thereafter clean
as required. If the glass is not kept clean permanent
discoloration and / or blemishes may result.
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
!
WARNING
7.2 CARE OF PLATED PARTS
6.1
If the appliance is equipped with plated parts, you must clean fingerprints or other marks from the plated
surfaces before operating the appliance for the first time. Use a glass cleaner or vinegar and towel to clean.
If not cleaned properly before operating for the first time, the marks can cause permanent blemishes on
the plating. After the plating is cured, the fingerprints and oils will not affect the finish and little maintenance
is required, just wipe clean as needed. Prolonged high temperature burning with the door ajar may cause
discolouration on plated parts.
NOTE: The protective wrap on plated parts is best removed when the assembly is at room
temperature but this can be improved if the assembly is warmed, using a hair dryer or similar heat
source.

20
W415-0224 / G / 02.28.11
7.3 DOOR GLASS REPLACEMENT
A. Place the door frame face down careful not to scratch the
paint.
B. Center the gasketed glass inside the door frame with the thick
side of the gasket facing up.
C. Bend the glass retainers located along the edge of the door
frame over the gasket holding the glass in place. Careful not
to break the glass.
GLASS
GASKET
DOOR
FRAME
GLASS
RETAINER
!
WARNING
DO NOT USE SUBSTITUTE MATERIALS.
GLASS MAY BE HOT, DO NOT TOUCH GLASS UNTIL COOLED.
CARE MUST BE TAKEN WHEN REMOVING AND DISPOSING OF ANY BROKEN DOOR GLASS OR
DAMAGED COMPONENTS. BE SURE TO VACUUM UP ANY BROKEN GLASS FROM INSIDE THE
APPLIANCE BEFORE OPERATION.
DO NOT STRIKE, SLAM OR SCRATCH GLASS. DO NOT OPERATE APPLIANCE WITH GLASS
REMOVED, CRACKED, BROKEN OR SCRATCHED.
56.1
