Continental Fireplaces CB36NTR User manual

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
NEVER LEAVE CHILDREN OR OTHER AT RISK INDIVIDUALS ALONE WITH THE APPLIANCE.
INSTALLATION AND
OPERATING INSTRUCTIONS
CERTIFIED TO CANADIAN AND AMERICAN NATIONAL STANDARDS: CSA 2.22 AND ANSI Z21.50, FOR VENTED DECORATIVE GAS APPLIANCES.
EN
FR
PG
73
FOR INDOOR USE ONLY
SAFETY INFORMATION
! WARNING
If the information in these instructions
are not followed exactly, a fire or
explosion may result causing property
damage, personal injury or loss of life.
- Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
•Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Immediately call your gas supplier from a
neighbour‟s phone. Follow the gas
supplier‟s instructions.
•If you cannot reach your gas supplier, call the
fire department.
- Installation and service must be performed by a
qualified installer, service agency or the supplier.
This appliance may be installed in an
aftermarket, permanently located, manufactured
home (USA only) or mobile home, where not
prohibited by local codes.
This appliance is only for use with the type of
gas indicated on the rating plate. This appliance
is not convertible for use with other gases,
unless a certified kit is used.
CB36NTR / CB36NTRE &
CX36NTR-1 / GCX36NTRE-1
NATURAL GAS MODEL
CB36PTR / CB36PTRE &
CX36PTR-1 / CX36PTRE-1
PROPANE GAS MODEL
SAFETY
BARRIER
CB36
ILLUSTRATED
! DANGER
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON, L4M 0G8 Canada / 103 Miller Drive,
Crittenden, Kentucky, USA, 41030 Phone [phone] www.continentalfi
replaces.com ask@continentalfi re.on.ca
W415-1679 / D / 03.09.18

2
EN
table of contents
NOTE: The camera icon indicates video tutorials are available as additional reference.
Visit http://mynapoleon.napoleonproducts.com/download/index/44/1
1.0 installation overview
2.0 introduction
2.1 dimensions for CB36 / CX36-1
2.2 general instructions
2.3 general information
2.4 rating plate information
3.0
venting
3.1
venting lengths and components
3.2
typical vent installation
3.3

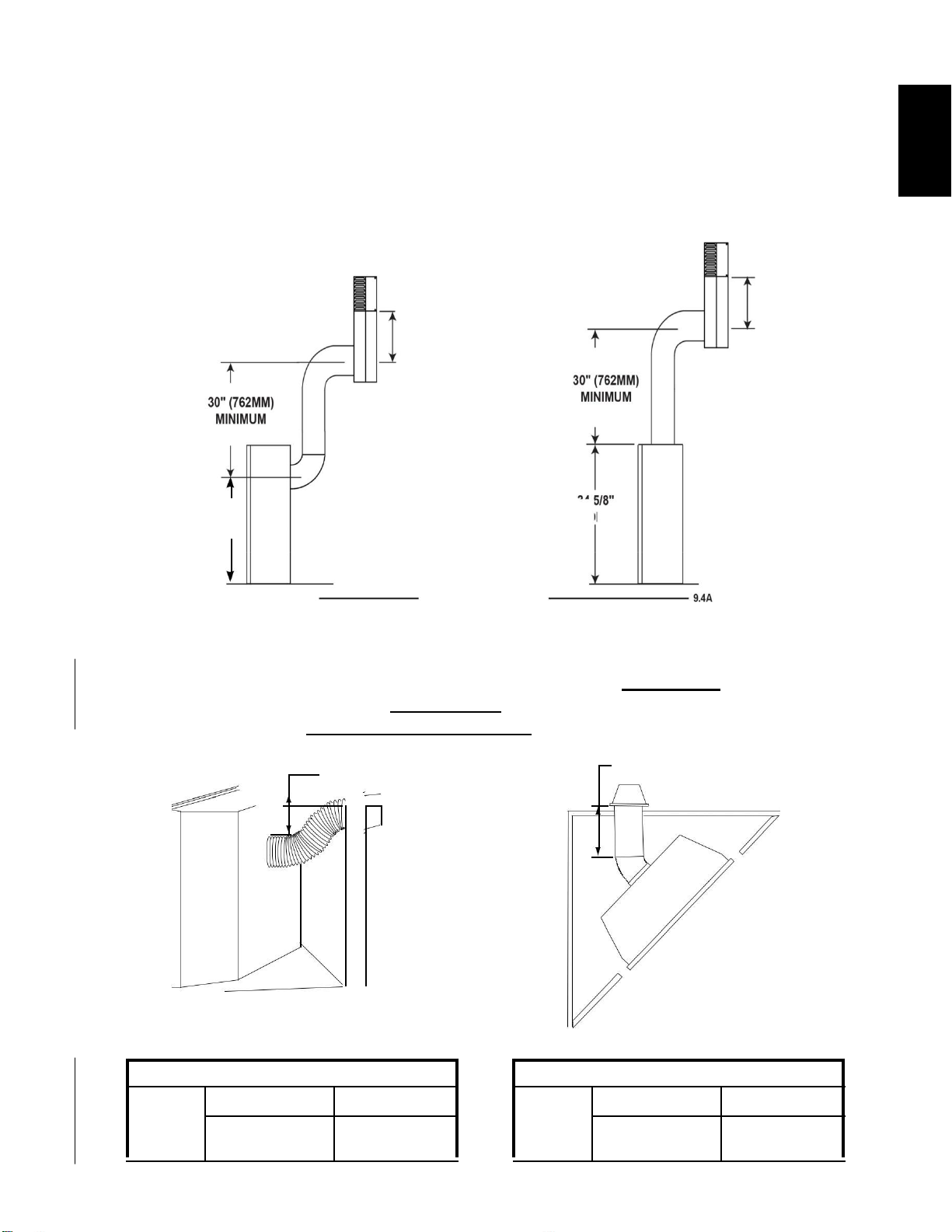

special vent installations
3.3.1
periscope termination
3.3.2
corner termination

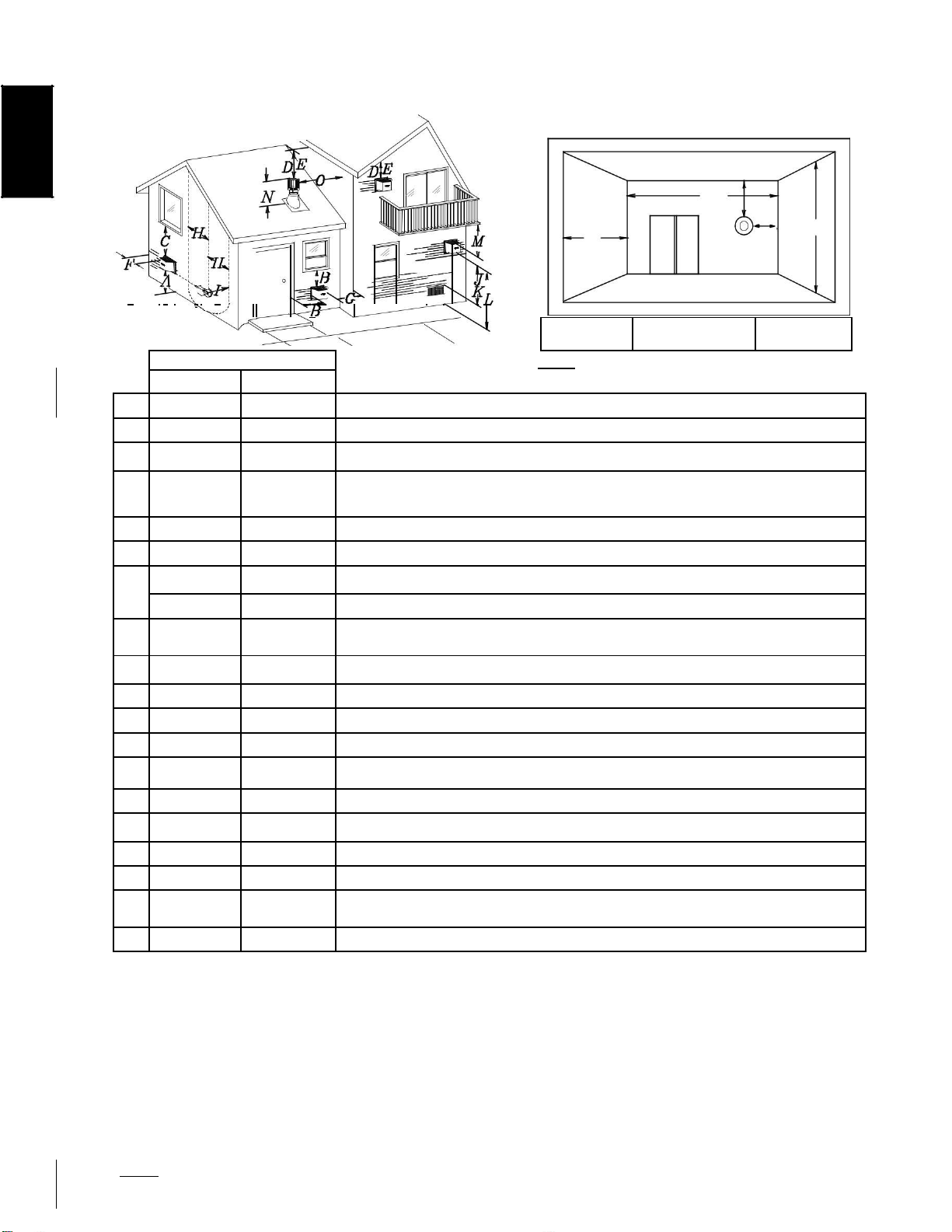

3.4
minimum air terminal location
clearances
3.5
venting application flow chart
3.6
definitions
3.7
elbow vent length values
3.8
top exit horizontal termination
3.9
rear exit horizontal termination
3.10
top and rear exit vertical termination
3.11
rear exit
3.12
rear exit shield (for rear vent only)
3.13
top exit
4.0
installation
4.1
wall and ceiling protection
4.1.1
horizontal installation
4.1.2
vertical installation
4.2
using flexible vent components
4.2.1
horizontal air terminal installation
4.2.2
vertical air terminal installation
4.2.3
appliance vent connection
4.3
using rigid vent components
4.3.1
horizontal air terminal installation
4.3.2
vertical air terminal installation
4.3.3
restricting vertical vents
4.4
vertical through existing chimney
4.5
mobile home installation
4.6
gas installation
4.7
optional wall switch
5.0
framing
5.1
framing for CB36 / CX36-1
5.1.1 minimum framing dimensions for
CB36 / CX36-1
5.2
minimum enclosure clearances
5.3
non-combustible facing material for
CB36 / CX36-1
5.4
alcove clearances
5.5
recessed installation
5.6
minimum mantel clearances
5.7
nailing tab installation
3 6.0
4
5
6
7
8
9
1011
7.0
13
13
13 8.0
14 9.0
1516
10.0
16
17
19
21
23
2324
11.0
25
25
2626
12.0
27
27
28
29
29
29
30 13.0
3132
14.0
34 15.0
34 16.0
35 17.033
35
36
38
42
42
43
44
44
finishing
45
6.1
safety barrier & door
removal / installation
45
6.2
front hood installation
46
6.3
CB36 / CX36-1 log placement
47
6.4
charcoal embers
48
6.5
glowing embers
48
6.6
battery back-up installation
48
wiring diagram
49
7.1
wiring requirements for CB36 / CX36-1
49
7.2
CB36 electronic wiring diagram
49
7.3
CX36-1 electronic wiring diagram
50
operation (electronic)
51
operation (millivolt)
52
adjustment
53
10.1
pilot burner adjustment
53
10.2
venturi adjustment
53
10.3
flame characteristics
54
10.4
optional anti-condensation switch
(models CB36NTRE/CB36PTRE/
CX36NTRE-1 & CX36PTRE-1 only)
54
maintenance
55
11.1
annual maintenance
56
11.2
door glass replacement
56
11.3
care of glass
57
replacements
57
12.1
CB36 overview
58
12.2
CB36 millivolt valve assembly
59
12.3
CB36 electronic valve assembly
60
12.4
CX36-1 overview
61
12.5
CX36-1 millivolt valve assembly
62
12.6
CX36-1 electronic valve assembly
63
CB36 accessories
64
CX36-1 accessories
65
CX36-1 accessories (page 2)
66
troubleshooting (electronic)
67
troubleshooting (millivolt)
69
warranty
71
NOTE: Changes, other than editorial, are denoted by a vertical line in the margin.

W415-1679 / D / 03.09.18

3

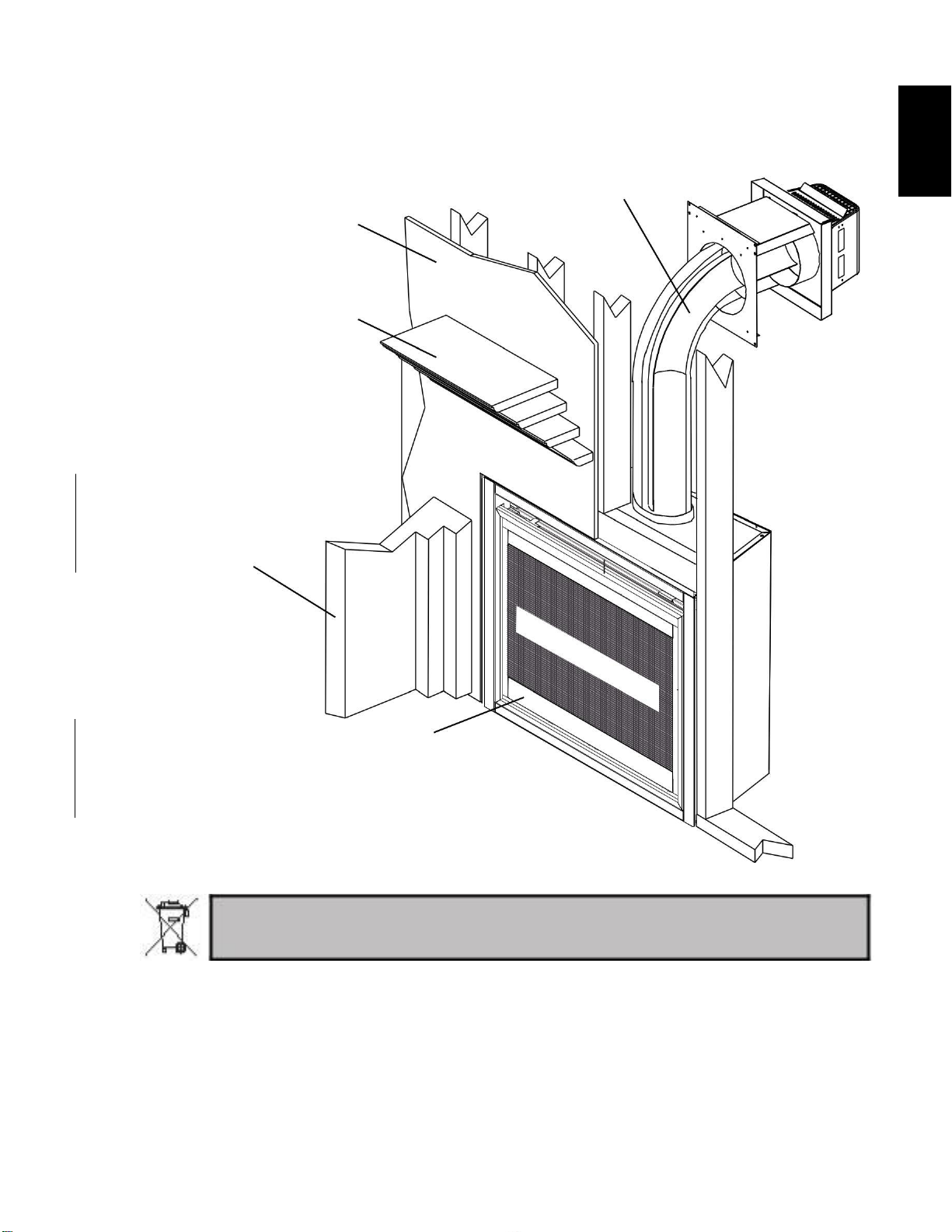

1.0 installation overview
See “minimum enclosure
clearances” section for
drywall (or other combustible
material).
See “minimum mantel
clearances” section.
EN
See “venting” and
“installation” sections.
See “minimum framing
dimensions” and
“non-combustible
facing materials for
CB36 / CX36-1”
sections.
Side
Wall
Rating plate located here.
See “rating plate
information” section.
See “framing”
section.
SAFETY
BARRIER
CB36
ILLUSTRATED
Batteries must be disposed of according to the local laws and regulations. Some batteries may be
recycled, and may be accepted for disposal at your local recycling center. Check with your
municipality for recycling instructions.
W415-1679 / D / 03.09.18

4
2.0 introduction
EN
! WARNING
•THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED.
•ANY CHANGES TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND ARE PROHIBITED.
•Do not operate appliance before reading and understanding operating instructions. Failure to operate
appliance according to operating instructions could cause fi re or injury.
•Risk of fi re or asphyxiation do not operate appliance with fi xed glass removed.
•Do not connect 110 volts to the control valve.
•Risk of burns. The appliance should be turned off and cooled before servicing.
•Do not install damaged, incomplete or substitute components.
•Risk of cuts and abrasions. Wear protective footwear, gloves and safety glasses during installation. Sheet
metal edges may be sharp.
•Children and adults should be alerted to the hazards of high surface temperature and should stay
away to avoid burns or clothing ignition.
•Young children should be carefully supervised when they are in the same room as the appliance.
Toddlers, young children and others may be susceptible to accidental contact burns. A physical
barrier is recommended if there are at risk individuals in the house. To restrict access to an appliance
or stove, install an adjustable safety gate to keep toddlers, young children and other at risk
individuals out of the room and away from hot surfaces.
•Clothing or other flammable material should not be placed on or near the appliance.
•Due to high temperatures, the appliance should be located out of traffic and away from furniture and draperies.
•Ensure you have incorporated adequate safety measure to protect infants/toddlers from touching hot surfaces.
•Even after the appliance is out, the glass and/or screen will remain hot for an extended period of time.
•Check with your local hearth specialty dealer for safety screens and hearth guards to protect children from
hot surfaces. These screens and guards must be fastened to the fl oor.
•Any safety screen, guard or barrier removed for servicing the appliance, must be replaced prior
to operating the appliance.
•The appliance is a vented gas-fi red appliance. Do not burn wood or other materials in the appliance.
•The appliance area must be kept clear and free from combustible materials, gasoline and other fl ammable vapors and liquids.
•Under no circumstances should this appliance be modifi ed.
•This appliance must not be connected to a chimney fl ue pipe serving a separate solid fuel burning appliance.
•Do not use this appliance if any part has been under water. Immediately call a qualifi ed service technician to inspect the
appliance and to replace any part of the control system and any gas control which has been under water.
•Do not operate the appliance with the glass door removed, cracked or broken. Replacement of the glass
should be done by a licensed or qualifi ed service person.
•Do not strike or slam shut the appliance glass door.
•When equipped with pressure relief doors, they must be kept closed while the appliance is operating to prevent
exhaust fumes containing carbon monoxide, from entering into the home. Temperatures of the exhaust escaping
through these openings can also cause the surrounding combustible materials to overheat and catch fi re.
•Only doors / optional fronts certified with the unit are to be installed on the appliance.
•Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with
all plastic bags, these are not toys and should be kept away from children and infants.
•As with any combustion appliance, we recommend having a Carbon Monoxide Detector installed in the
same area to defend you and your family against Carbon Monoxide.
•Ensure clearances to combustibles are maintained when building a mantel or shelves above the appliance.
Elevated temperatures on the wall or in the air above the appliance can cause melting, discolouration or
damage to decorations, a T.V. or other electronic components.
•A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this
appliance or sold as a mandatory option and shall be installed.
•If the barrier becomes damaged, the barrier shall be replaced with the manufacturer‟s barrier for this appliance.
•Installation and repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent cleaning
may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that
control compartments, burners and circulating air passageways of the appliance be kept clean.
•The millivolt version of this appliance uses and requires a fast acting thermocouple. Replace only with a fast
acting thermocouple supplied by Wolf Steel Ltd.
W415-1679 / D / 03.09.18

2.1 dimensions for CB36 / CX36-1
BARRIERSAFET
Y
.55
879mm5/8"34
2
3
/
1 6
"
5m
m
400
mm3
/4"15
2 0 3 m m
8 "
INLETGAS
610mm
24"
5
EN
FRONT VIEW
SIDE VIEW
8 8 9 m m 3 5 "
391mm3/8"15
VIEWT
OP
1/16"
178mm
102mm
9
230 mm
7"
4"
W415-1679 / D / 03.09.18

6
2.2 general instructions
EN ! WARNING
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RUN
OUT, WITH THE GLASS DOOR OPENED OR REMOVED.
PROVIDE ADEQUATE CLEARANCE FOR SERVICING AND OPERATING THE APPLIANCE.
PROVIDE ADEQUATE VENTILATION.
NEVER OBSTRUCT THE FRONT OPENING OF THE APPLIANCE.
OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48 INCHES
(121.9cm) FROM THE FRONT FACE OF THE APPLIANCE.
SURFACES AROUND AND ESPECIALLY ABOVE THE APPLIANCE CAN BECOME HOT. AVOID CONTACT
WHEN THE APPLIANCE IS OPERATING.
FIRE RISK. EXPLOSION HAZARD.
HIGH PRESSURE WILL DAMAGE VALVE. DISCONNECT GAS SUPPLY PIPING BEFORE PRESSURE TESTING GAS
LINE AT TEST PRESSURES ABOVE 1/2 PSIG. CLOSE THE MANUAL SHUT-OFF VALVE BEFORE
PRESSURE TESTING GAS LINE AT TEST PRESSURES EQUAL TO OR LESS THAN 1/2 PSIG (35mb).
USE ONLY WOLF STEEL APPROVED OPTIONAL ACCESSORIES AND REPLACEMENT PARTS WITH THIS APPLIANCE.
USING NON-LISTED ACCESSORIES (BLOWERS, DOORS, LOUVRES, TRIMS, GAS COMPONENTS, VENTING
COMPONENTS, ETC.) COULD RESULT IN A SAFETY HAZARD AND WILL VOID THE WARRANTY AND CERTIFICATION.
THE APPLIANCE MUST NOT BE OPERATED AT TEMPERATURES BELOW FREEZING (32°F / 0°C).
ALLOW THE APPLIANCE TO WARM TO ABOVE FREEZING PRIOR TO OPERATION.
THIS GAS APPLIANCE SHOULD BE INSTALLED AND SERVICED BY A QUALIFIED INSTALLER to
conform with local codes. Installation practices vary from region to region and it is important to know the
specifi cs that apply to your area, for example in Massachusetts State:
This product must be installed by a licensed plumber or gas fi tter when installed within the
commonwealth of Massachusetts.
The appliance damper must be removed or welded in the open position prior to installation of an
appliance insert or gas log.
The appliance off valve must be a “T” handle gas cock.
The fl exible connector must not be longer than 3 feet (91.4cm).
A Carbon Monoxide detector is required in all rooms containing gas fi red appliances.
The appliance is not approved for installation in a bedroom or bathroom unless the unit is a direct vent
sealed combustion product.
The installation must conform with local codes or, in
absence of local codes, the National Gas and Propane
Installation Code CSA B149.1 in Canada, or the National
Fuel Gas Code, ANSI Z223.1 / NFPA 54 in the United
States. Suitable for mobile home installation if installed
in accordance with the current standard CAN/CSA
Z240MH Series, for gas equipped mobile homes, in
Canada or ANSI Z223.1 and NFPA 54 in the United
States.
www.n certi ed.org
We suggest that our gas
hearth products be installed
and serviced by
professionals who are certi
ed in the U.S. by the
National Fireplace Institute®
(NFI) as NFI Gas Specialists
As long as the required clearance to combustibles is
maintained, the most desirable and benefi cial location for an appliance is in the center of a building, thereby
allowing the most effi cient use of the heat created. The location of windows, doors and the traffi c fl ow in
the room where the appliance is to be located should be considered. If possible, you should choose a
location where the vent will pass through the house without cutting a fl oor or roof joist.
If the appliance is installed directly on carpeting, vinyl tile or other combustible material other than wood
fl ooring, the appliance shall be installed on a metal or wood panel extending the full width and depth.
Some appliances have optional fans or blowers. If an optional fan or blower is installed, the junction box must
be electrically connected and grounded in accordance with local codes, use the current CSA C22.1 Canadian
Electrical Code in Canada or the ANSI/NFPA 70 National Electrical code in the United States.
W415-1679 / D / 03.09.18

7
2.3 general information
For your satisfaction, this appliance has been test-fired to assure its operation and quality.
EN
RATES AND EFFICIENCIES
CB36
CX36-1
NG
P
NG
P
Altitude (FT)
0-4,500
0-4500
0-4,500
0-4,500
Max. Input (BTU/HR)
18,000
18,000
25,000
25,000
Min. Inlet Gas Supply
4.5" (11mb) w.c.
11" (27mb) w.c.
4.5" (11mb) w.c.
11" (27mb) w.c.
Pressure
Max. Inlet Gas Supply
13" (32mb) w.c.
13" (32mb) w.c.
13" (17mb) w.c.
13" (32mb) w.c.
Pressure
Manifold Pressure (Under
3.5" (9mb) w.c.
10" (25mb) w.c.
3.5" (9mb) w.c.
10" (25mb) w.c.
Flow Conditions)
MODEL DESIGNATIONS
FUEL TYPE
OPERATING SYSTEM
CB36NTR
NATURAL
MILLIVOLT
CB36NTRE
NATURAL
ELECTRONIC IGNITION
CB36PTR
PROPANE
MILLIVOLT
CB36PTRE
PROPANE
ELECTRONIC IGNITION
CX36NTR-1
NATURAL
MILLIVOLT
CX36NTRE-1
NATURAL
ELECTRONIC IGNITION
CX36PTR-1
PROPANE
MILLIVOLT
CX36PTRE-1
PROPANE
ELECTRONIC IGNITION
When the appliance is installed at elevations above 4,500 ft (1371m), and in the absence of specific
recommendations from the local authority having jurisdiction, the certified high altitude input rating
shall be reduced at the rate of 4% for each additional 1,000 ft (305m).
This appliance is approved for bathroom, bedroom and bed-sitting room installations and is suitable for
mobile home installation.
No external electricity (110 volts or 24 volts) is required for the gas millivolt system operation.
However, optional blower requires 110 volts.
Expansion / contraction noises during heating up and cooling down cycles are normal and are to
be expected.
A barrier designed to reduce the risk of burns from the hot viewing glass is provided with the
appliance and must be installed.
W415-1679 / D / 03.09.18

8
2.4 rating plate information
EN
CONFORMS TO / CONFORME AUX: ANSI Z21.50-2016, CERTIFIED TO / CERTIFIE CSA 2.22-2016 VENTED DECORATIVE GAS APPLIANCE / FOY R À GAZ DÉCORATIF VENTILÉ.
DIRECT VENT GAS FIREPLACE. SUITABLE FOR BEDROOM, BATHROOM AND BED-SITTING ROOM
FOYER À GAZ VENTILÉ DIR CT. HOMOLOGUÉ POUR INSTALLATION DANS UNE CHAMBRE À COUCHER,
INSTALLATION. SUITABLE FOR MOBILE HOME INSTALLATION IF INSTALLED IN ACCORDANCE
UNE SALLE DE BAIN
T UN STUDIO. APPROPRIÉ POUR INSTALLATION DANS UNE MAISON MOBILE SI
WITH THE CURRENT STANDARD CAN/CSA Z240MH SERIES GAS EQUIPPED MOBILE HOMES,
SON INSTALLATION CONFORMÉ AUX XIG NC S DE LA NORME CAN/CSA Z240MH SÉRIE DE MAISONS
IN CANADA OR IN THE UNITED STATES THE MANUFACTURED HOME CONTRUCTION AND
MOBILES ÉQUIPÉ S AU GAZ, N VIGU UR AU CANADA OU AUX ÉTATS-UNIS DE LA NORME DE
SAFETY STANDARD, TITLE
24 CFR, PART 3280. WHEN THIS US STANDARD IS NOT
SÉCURITÉ ET DE CONSTRUCTION DE MAISONS MANUFACTURÉES, TITRE 24 CFR, SECTION 3280.
APPLICABLE USE THE STANDARD FOR FIRE SAFETY CRITERIA FOR MANUFACTURED
DANS
E CAS OÙ C TTE NORME D'ÉTATS-UNIS NE P UT ÊTRE APPLIQUÉE, SE RÉFÉRER À LA
HOME INSTALLATIONS, SITES AND COMMUNITIES, ANSI / NFPA 501A. FOR USE WITH BARRIER
NORME RE ATIVE AU CRITÈRE DE M SUR S DE SÉCURITÉ CONTRE L'INCENDIE POUR LES
W565-0144. FOLLOW THE INSTALLATION INSTRUCTIONS LOCATED IN THE INSTALLATION MANUAL.
INSTA
ATIONS DANS
S MAISONS MANUFACTURÉS, L S SITES ET LES COMMUNAUTES, ANSI/NFPA
9700539 (WSL)
4001657 (NGZ)
501A. POUR UNE UTILISER AVEC BARRIÈRE
W565-0144. SUIVEZ LES INSTRUCTIONS
4001658 (NAC)
4001659 (WUSA)
D'INSTALLATION SE TROUVENT DANS LE MANUEL
B36NTR
CB36NTR
MODEL
CB36 TR
B36PTR
D'INSTALLATION
B36NTRE
CB36NTRE
CB36 TRE
B36PTRE
0-4500FT (0-1370m)
ALTITUDE / ELEVATION
0-4500FT (0-1370m)
18,000 BTU/h
IN
UT / ALI
ENTATION
18,000 BTU/h
13,000 BTU/h
REDUCED IN
UT / ALI
ENTATION REDUITE
13,500 BTU/h
MANIFOLD PRESSURE: 3.5" (9
B) WATER COLU
N
ANIFO D RESSURE: 10" (25MB) WATER COLUMN
PRESSION AU COLLECTEUR: 3.5" (9
B) D'UNE COLONNE D'EAU
RESSION AU COLLECTEUR: 10" (25MB) D'UNE COLONNE D'EAU
MINIMUM SUPPLY PRESSURE: 4.5" (11
B) WATER COLU
N
INIMUM SU
LY
RESSURE: 11" (27MB) WATER COLUMN
PRESSION D'
LIMENT TION MINIM LE: 4.5" (11
B) D'UNE COLONNE D'EAU
RESSION D'ALIMENTATION MINIMALE: 11" (27MB) D'UNE COLONNE D'EAU
M XIMUM SUPPLY PRESSURE: 7.0" (17
B) WATER COLU
N
AXIMUM SU
LY
RESSURE: 13" (32MB) WATER COLUMN
PRESSION D'
LIMENT TION M
XIM LE: 7.0" (17
B) D'UNE COLONNE D'EAU
RESSION D'ALIMENTATION MAXIMALE: 13" (32MB) D'UNE COLONNE D'EAU
P4: 51.7%
P4: 51.7%
NOT FOR USE WITH SOLID FUEL. FOR USE WITH GL SS DOORS
UN COMBUSTIBLE SOLIDE NE DOIT PAS ÊTRE UTILISÉ AVEC CET
CERTIFIED WITH THIS UNIT ONLY.
APPAREIL. UTILISER AVEC LES PORTES VITRÉES HOMOLOGUÉES
WARNING: THIS FIREPLACE U ES
ND REQUIRES
F ST CTING THER OCOUPLE. REPLACE
SEULEMENT AVEC CETTE UNITÉ.
ONLY WITH A FA T ACTING THERMOCOUPLE UPPLIED BY WOLF STEEL LTD.
AVERTISSEMENT: CE FOYER UTILISÉ ET REQUIÈRT UN THERMOCOUPLE À ACTION RAPIDE.
DO NOT ADD ANY MATERIAL TO THE PPLI NCE, WHICH WILL COME IN CONT CT WITH THE FLAMES,
OTHER THAN THAT
UPPLIED BY THE
NUF CTURER WITH THE PPLI NCE. MINIMUM CLEARANCE
REMPLACEZ UNIQUEMENT AVEC UN THERMOCOUPLE À ACTION RAPIDE DE WOLF STEEL LTÉE.
TO COMBUSTIBLE MATERIALS /
N‟AJOUTEZ PAS A CET APPAREIL AUCUN MATÉRIAU DEVANT ENTRER EN CONTACT AVEC LES FLAMMES
DEGAGEMENTS MINIMAUX DES MATERI UX COMBU TIBLES:
AUTRE QUE CELUI QUI EST FOURNI AVEC CET APPAREIL PAR LE FABRICANT.
TOP/ DESSUS
0
RECE
ED DEPTH / PROFONDEUR D'ENC STRE
16"
THE APPLIANCE MUST BE VENTED USING THE APPROPRIATE WOLF STEEL VENT KITS. SEE OWNERS
FLOOR / PLANCHER
0
VENT
IDES / COTES DE L'EVENT
1"
INSTALLATION MANUAL FOR VENTING SPECIFICS. PROPER REINSTALLATION AND RESEALING IS
SIDES / COTES
0
VENT TOP / EVENT UPERIEUR
3"
NECESSARY AFTER SERVICING THE VENT-AIR INTAKE SYSTEM.
BACK / ARRIERE
0
VENT BOTTOM / EVENT INFERIEUR
1"
L'APPAREIL DOIT ÉVACUER SES GAZ EN UTILISANT L'ENSEMBLE D'ÉVACUATION PROPRE À NAPOLÉON.
MANTEL / MANTEAU
2" *
RÉFÉRER AU MANUEL D'INSTALLATION DE PROPRIÉTAIRE POUR L'ÉVACUATION PRÉCISE. IL EST
* MAXIMUM HORIZONTAL EXTEN ION / L'EXTEN ION HORIZONTALE MAXIMALE: 2". SEE INSTRUCTION
IMPORTANT DE BIEN REINSTALLER ET RESCELLER L'ÉVENT APRÈS AVOIR ASSURÉ LE MAINTIEN DU
MANUAL FOR GREATERSAMPLEEXTENIONS.REFERERAUMANUELD'INSTRUCTIONPOURDES
EXTENSIONS PLUS GRANDES.
SYSTÈME DE PRISE D'AIR.
DECORATIVE PRODUCT: NOT FOR USE AS A HEATING APPLIANCE
SEE OWNER'S INSTRUCTION MANUAL FOR MINIMUM AND MAXIMUM VENT LENGTHS.
PRODUIT DÉCORATIF: NE PAS UTILISER COMME APPPAREIL DE CHAUFFAGE.
REFERER AU MANUEL D'INSTALLATION DE PROPRIETAIRE POUR LES LONGUEURS
ELECTRICAL RATING / CLASSIFICATION: 115V 0.82AMP, 60HZ
D'EVACUATION MINIMALE ET MAXIMALE.
OPTIONAL FAN KIT / ENSEMBLE DE VENTILATEUR FACULTATIF: EP35
WOLF STEEL LTD.
24 NAPOLEON ROAD, BARRIE, ON, L4M 0G8 CANADA
SERIAL NUMBER/NO. DE SERIE:
B36
W385-19 87 / A
For rating plate location, see “installation overview” section.
This illustration is for reference only. Refer to the rating plate on the appliance for accurate information.
NOTE: The rating plate must remain with the appliance at all times. It must not be removed.
W415-1679 / D / 03.09.18

9
3.0 venting
! WARNING EN
RISK OF FIRE, MAINTAIN SPECIFIED AIR SPACE CLEARANCES TO VENT PIPE AND APPLIANCE.
THE VENT SYSTEM MUST BE SUPPORTED EVERY 3FT (0.9m) FOR BOTH VERTICAL AND
HORIZONTAL RUNS. USE SUPPORTS OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE REQUIRED CLEARANCE FROM
COMBUSTIBLES. USE WOLF STEEL LTD. SUPPORT RING ASSEMBLY W010-0370 OR EQUIVALENT
NON-COMBUSTIBLE STRAPPING TO MAINTAIN THE MINIMUM CLEARANCE TO COMBUSTIBLES FOR
BOTH VERTICAL AND HORIZONTAL RUNS. SPACERS ARE ATTACHED TO THE INNER PIPE AT
PREDETERMINED INTERVALS TO MAINTAIN AN EVEN AIR GAP TO THE OUTER PIPE. THIS GAP IS
REQUIRED FOR SAFE OPERATION. A SPACER IS REQUIRED AT THE START, MIDDLE AND END OF
EACH ELBOW TO ENSURE THIS GAP IS MAINTAINED. THESE SPACERS MUST NOT BE REMOVED.
THIS APPLIANCE USES A 4” (102mm) EXHAUST / 7” (178mm) AIR INTAKE VENT PIPE SYSTEM.
Refer to the section applicable to your installation.
For safe and proper operation of the appliance follow the venting instruction exactly. Deviation from the
minimum vertical vent length can create diffi culty in burner start-up and/or carboning. Under extreme vent
confi gurations, allow several minutes (5-15) for the fl ame to stabilize after ignition. Although not a
requirement, it is recommended for vent lengths that pass through unheated spaces (attics, garages, crawl
spaces) be insulated with the insulation wrapped in a protective sleeve to minimize condensation. Provide a
means for visually checking the vent connection to the appliance after the appliance is installed. Use a fi
restop, vent pipe shield or attic insulation shield when penetrating interior walls, fl oor or ceiling.
The vent terminal may be painted with a high temperature paint to match exterior colours. Use an outdoor
paint suitable for 400°F (204°C). Application and performance of paint is the consumer‟s responsibility. Spot
testing is recommended.
NOTE: If for any reason the vent air intake system is disassembled; reinstall per the
instructions provided for the initial installation.
NOTE: This appliance must be installed with a continuous connection of exhaust and air intake vent pipes.
Utilizing alternate constructions such as a chimney as part of the vent system is not permitted.
W415-1679 / D / 03.09.18

10

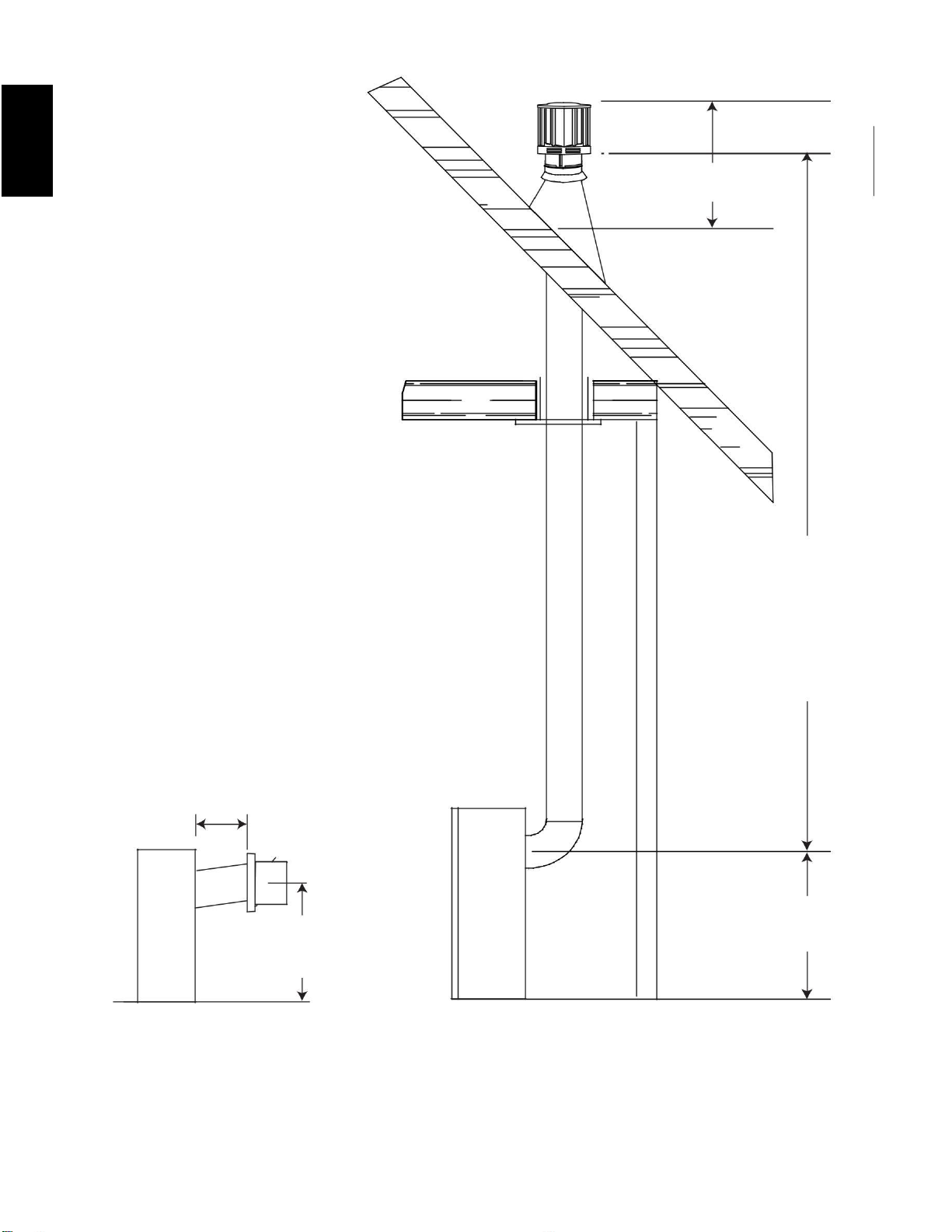

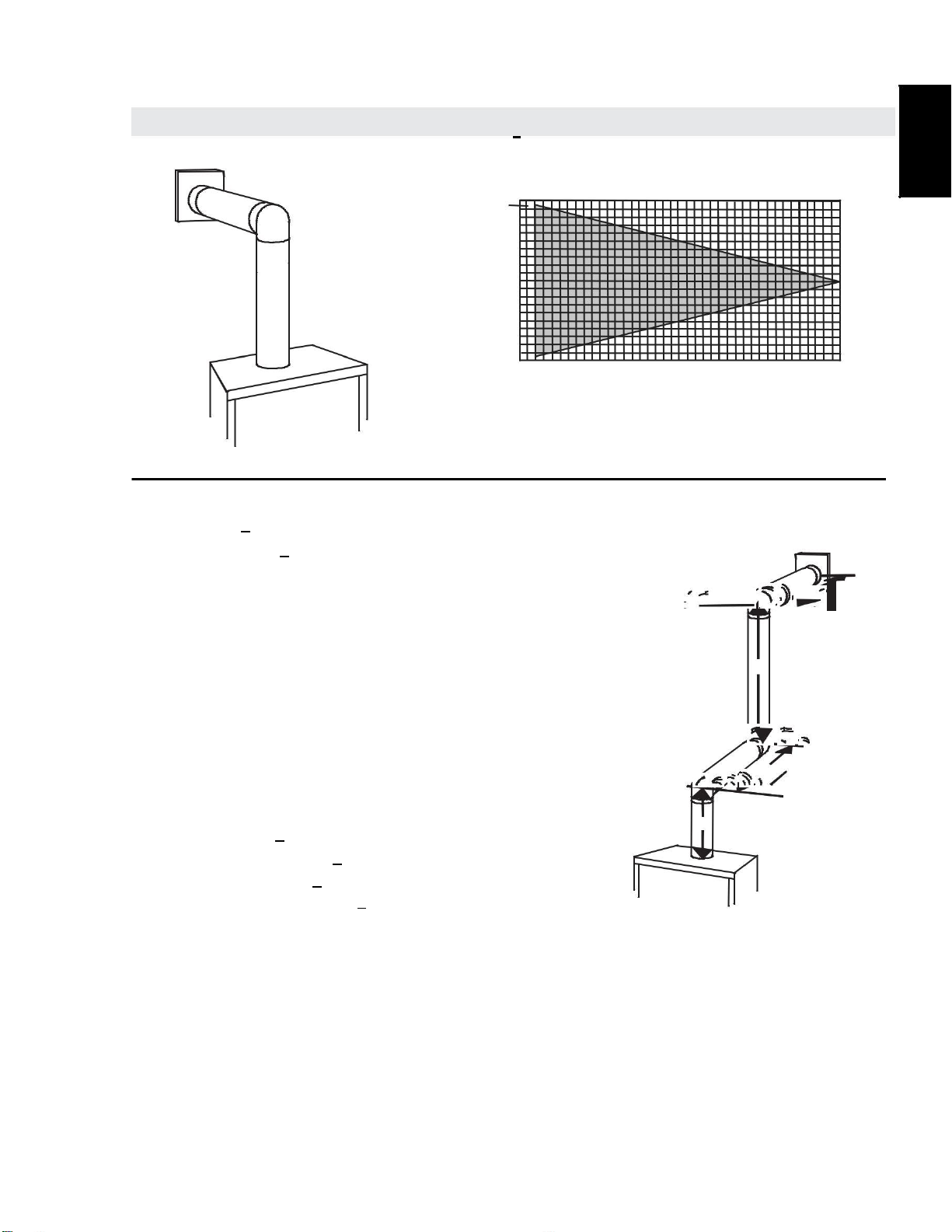

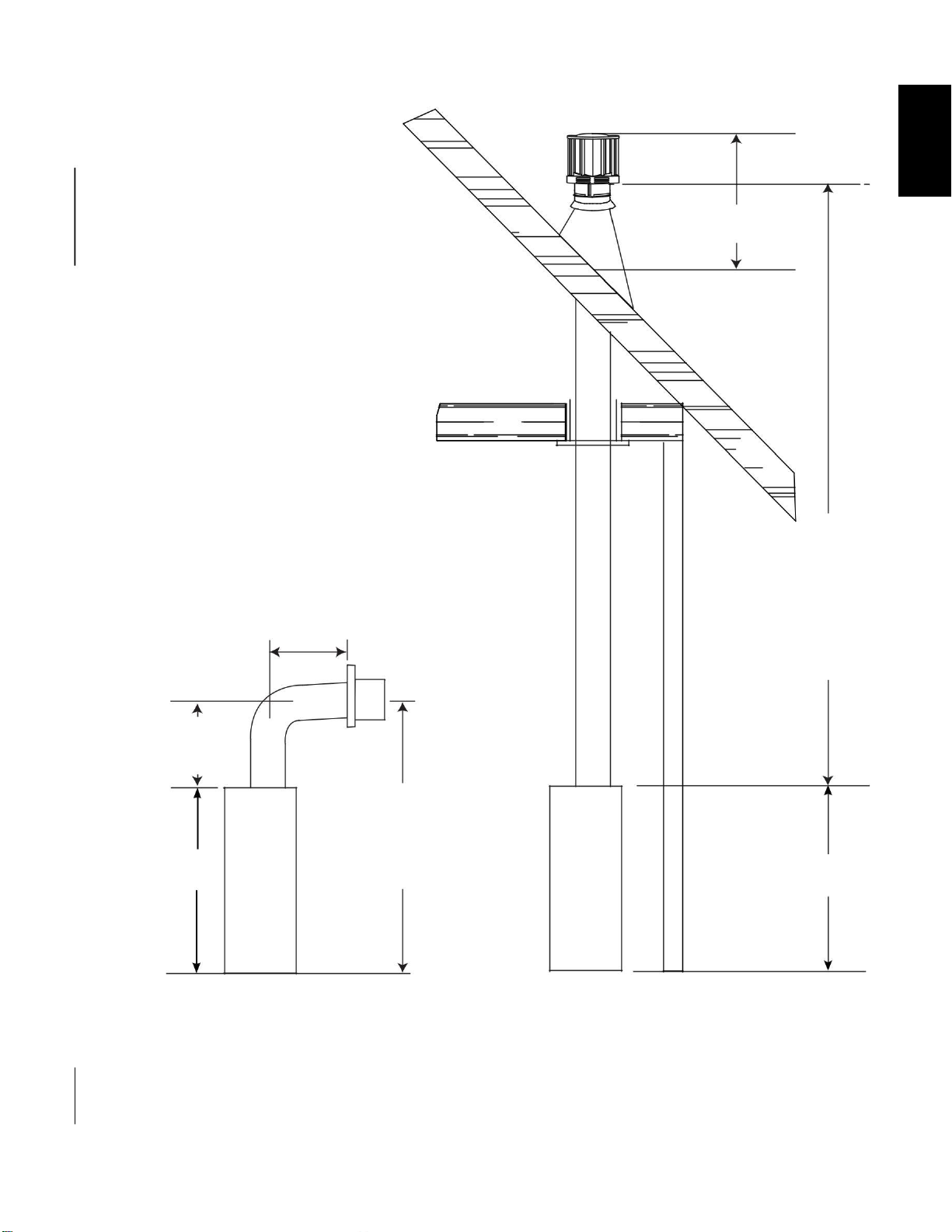

3.1 venting lengths and components
Use only Wolf Steel, Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent or Metal-Fab
EN venting components. Minimum and maximum vent lengths, for both horizontal and vertical installations,
clearances from vent pipes to combustibles and air terminal locations as set out in this manual apply to
all vent systems and must be adhered to. For Simpson Dura-Vent, Selkirk Direct Temp, American Metal
Amerivent and Metal-Fab follow the installation procedure provided with the venting components.
A starter adaptor must be used with the following vent systems and may be purchased from the
corresponding supplier:
VENT
STARTER ADAPTER
SUPPLIER
WEBSITE
MANUFACTURER
PART NUMBER
Duravent
W175-0053
Wolf Steel
www.duravent.com
Amerivent
4DSC-N2
American Metal
www.americanmetalproducts.com
Direct Temp
4DT-AAN
Selkirk
www.selkirkcorp.com
SuperSeal
4DNA
Metal-Fab
www.mtlfab.com
For Simpson Dura-Vent, Selkirk Direct Temp, American Metal Amerivent and Metal-Fab follow the
installation procedure found on the website for your venting supplier.
For vent systems that provide seals on the inner exhaust fl ue, only the outer air intake joints must be sealed
using a red high temperature silicone (RTV). This same sealant may be used on both the inner exhaust and
outer intake vent pipe joints of all other approved vent systems except for the exhaust vent pipe connection
to the appliance fl ue collar which must be sealed using the black high temperature sealant Mill Pac. High
temperature sealant must be ordered separately.
When using Wolf Steel venting components, use only approved Wolf Steel rigid / fl exible components with
the following termination kits: wall terminal kit GD-222, GD-222R, or 1/12 to 7/12 pitch roof terminal kit GD-
110, 8/12 to 12/12 roof terminal kit GD-111, fl at roof terminal kit GD-112 or periscope kit GD-201 (for wall
penetration below grade). With fl exible venting, in conjunction with the various terminations, use either the
5 foot (1.5m) vent kit GD-220 or the 10 foot (3.1m) vent kit GD-330.
For optimum flame appearance and appliance performance, keep the vent length and number of
elbows to a minimum. The air terminal must remain unobstructed at all times. Examine the air
terminal at least once a year to verify that it is unobstructed and undamaged.
Rigid and flexible venting systems must not be combined. Different venting manufacturer
components must not be combined.
These vent kits allow for either horizontal or vertical venting of the appliance. The maximum allowable
horizontal run is 20 feet (6.1m). The maximum allowable vertical vent length is 40 feet (12.2m). The
maximum number of vent connections is two horizontally or three vertically (excluding the appliance and the
air terminal connections) when using fl exible venting.
For optimum performance, it is recommended that all horizontal runs have a 1" (25mm) rise per foot.
CX36-1 REQUIRED RISE ON HORIZONTAL
CB36 REQUIRED RISE ON HORIZONTAL
VENTING
VENTING
Rear Vent
Rigid Venting
1" (25mm) / FT**
Rear Vent
Rigid Venting
0" / FT
Flexible Venting
1" (25mm) / FT**
Flexible Venting
0" / FT
Top Vent
Rigid Venting
0" / FT
Top Vent
Rigid Venting
0" / FT
Flexible Venting
0" / FT
Flexible Venting
0" / FT
Rear Vent
Rigid Venting
6" (152mm)
Rear Vent
Rigid Venting
0"
Corner
Corner
Flexible Venting
6" (152mm)
Flexible Venting
6" (152mm)
** When a vertical rise is used as part of the venting configuration, a 0" (0mm) rise per foot is acceptable.
W415-1679 / D / 03.09.18

3.2 typical vent installation
24" (61cm)
MAXIMUM
8" (20.3cm)
MINIMUM
42 5/8"
(108cm)
MINIMUM
34 5/8" PLUS RISE*
(88cm)
TOP VENT
* Refer to "venting" section.
11
EN
16" (40.6cm)
MINIMUM
40 FT (12.2m)
MAXIMUM
3 FT (1m)
MINIMUM
34 5/8"
(88cm)
W415-1679 / D / 03.09.18

12
EN
20"
(50.8cm)
MAX
24" (61cm)
MINIMUM
PLUS RISE*
16" (40.6cm)
MINIMUM
40 FT (12.2M)
MAXIMUM
3 FT (1M)
MINIMUM
24"
(61cm)
REAR VENT
* Refer to "venting" section.
W415-1679 / D / 03.09.18

3.3 special vent installations
3.3.1 periscope termination
Use the periscope kit to locate the air termination above grade. The periscope must be installed so that
when fi nal grading is completed, the bottom air slot is located a minimum 12” (30.5cm) above grade.
The maximum allowable vent length is 10‟ (3.1m).
12" (30.5cm)
MINIMUM
12" (30.5cm)
TO GRADE
MINIMUM
TO GRADE
30"
(76.2cm)
30"
(76.2cm)
MINIMUM
MINIMUM
34 5/8"
24"
(88cm)
(61cm)
13
EN
3.3.2 corner termination
The maximum vent length for a corner installation is 20" (50.8cm) of horizontal run, in addition to the 45°
offset. In this case, zero rise is acceptable when using rigid venting for CB36 models; 6" (152mm) rise is
required when using rigid venting for CX36-1 models. It is required to maintain a 6" (152.4mm) rise when
using flexible venting for both CB36 and CX36-1 models (see charts and illustrations below).
6” (152mm)
20” (50.8cm)
MAXIMUM
RISE MINIMUM
FLEXIBLE VENTING
CB36 Required Rise
Rear
Rigid Venting
0"
Vent
Flexible Venting
6" (152mm)
Corner
RIGID VENTING
CX36-1 Required Rise
Rear
Rigid Venting
6" (152mm)
Vent
Flexible Venting
6" (152mm)
Corner
W415-1679 / D / 03.09.18

14
3.4 minimum air terminal location clearances
COVERED BALCONY APPLICATIONS ††*
EN
QS
R
G
P
G
QMIN = 3 feet
RMAX = 2 xQACTUAL
RMAX ≤ 15 feet
(0.9m)
(4.6m)
INSTALLATIONS
NOTE: Wall terminals are for illustration purposes only.
CANADA
U.S.A.
Size and shapes may vary.
A
12” (30.5cm)
12” (30.5cm)
Clearance above grade, veranda porch, deck or balcony.
B
12” (30.5cm)
9” (229mm)
Clearance to windows or doors that open.
C
12”
(30.5cm)*
12” (30.5cm) *
Clearance to permanently closed windows.
D
18”
18”
Vertical clearance to ventilated soffi ts located above the terminal within a horizontal distance of 2‟
(45.7cm)*
*
(45.7cm)**
(0.6m) from the center line of the terminal.
E
12” (30.5cm)**
12” (30.5cm)**
Clearance to unventilated soffi t.
F
0” (0mm)
0” (0mm)
Clearance to an outside corner wall.
G
0”
(0mm)***
0” (0mm)***
Clearance to an inside non -combustible corner wall or protruding non -combustible obstructions (chimney, etc.).
2” (51mm)***
2” (51mm)***
Clearance to an inside combustible corner wall or protruding combustible obstructions (vent chase, etc.).
H
3‟(0.9m)
3‟(0.9m)****
Clearance to each side of the center line extended above the meter / regulator assembly to a maxi-
mum vertical distance of 15‟ (4.6m).
I
3‟ (0.9m)
3‟
(0.9m)****
Clearance to a service regulator vent outlet.
J
12” (30.5cm)
9” (229mm)
Clearance to a non-mechanical air supply inlet to the building or a combustion air inlet to any other appliance.
K
6‟ (1.8m)
3‟ (0.9m) †
Clearance to a mechanical air supply inlet.
L
7‟ (2.1m) ‡
7‟ (2.1m) ****
Clearance above a paved sidewalk or paved driveway located on public property.
M
12” (30.5cm)††
12” (30.5cm)****
Clearance under a veranda, porch or deck.
N
16” (40.6cm)
16” (40.6cm)
Clearance above the roof.
O
2‟
(0.6m)†*
2‟ (0.6m) †*
Clearance from an adjacent wall including neighbouring buildings.
P
8‟ (2.4m)
8‟ (2.4m)
Roof must be non-combustible without openings.
Q
3‟ (0.9m)
3‟ (0.9m)
See chart for wider wall dimensions.
R
6‟ (1.8m)
6‟ (1.8m)
See chart for deeper wall dimensions. The terminal shall not be installed on any wall that has an
opening between the terminal and the open side of the structure.
S
12” (30.5cm)
12” (30.5cm)
Clearance under a covered balcony
The terminal shall not be located less than 6 feet under a window that opens on a horizontal plane in a structure with three walls and a roof.
*Recommended to prevent condensation on windows and thermal breakage
**It is recommended to use a heat shield and to maximize the distance to vinyl clad soffi ts.
***The periscope requires a minimum 18 inches clearance from an inside corner.
****This is a recommended distance. For additional requirements check local codes.
†3 feet above if within 10 feet horizontally.
‡ A vent shall not terminate where it may cause hazardous frost or ice accumulations on adjacent property surfaces. ††
Permitted only if the veranda, porch, or deck is fully open on a minimum of two sides beneath the fl oor.
†*
††*
Recommended to prevent recirculation of exhaust products. For additional requirements check local codes.
Permitted only if the balcony is fully open on a minimum of one side.
NOTE: Clearances are to be in accordance with local installation codes and the requirements of the gas supplier. In
their absence, clearances are to be as listed above and are based on national codes.
W415-1679 / D / 03.09.18

15
3.5 venting application flow chart
TOP EXIT
EN
Horizontal Termination
Vertical Termination
Vertical rise is equal
Vertical rise is less
Vertical rise is equal
to or greater than
to or greater than
than horizontal run
the horizontal run
the horizontal run
Horizontal run +
Horizontal run +
Horizontal run +
vertical rise to
vertical rise to
vertical rise to
maximum of
maximum of 24.75
maximum of
35 feet (10.7m)
feet (7.5m)
35 feet (10.7m)
4.2 times the
vertical rise equal to
or greater than the
horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of
35 feet (10.7m)
3 times the vertical
rise equal to or
greater than the
horizontal run
REAR EXIT
Horizontal Termination
Vertical Termination
Vertical rise is equal
Vertical rise is less
Vertical rise is equal
to or greater than
to or greater than
than horizontal run
the horizontal run
the horizontal run
Horizontal run +
Horizontal run +
Horizontal run +
vertical rise to
vertical rise to
vertical rise to
maximum of 40 feet
maximum of
maximum of 40 feet
(12m)
24.75 feet (7.5m)
(12m)
3.5 times the
vertical rise equal to
or greater than the
horizontal run
Vertical rise is less
than horizontal run
Horizontal run +
vertical rise to
maximum of 40
feet (12m)
3 times the vertical
rise equal to or
greater than the
horizontal run
W415-1679 / D / 03.09.18

16
3.6
definitions
EN
For the following symbols used in the venting calculations and examples are:
> - greater than
> - equal to or greater than
< - less than
< - equal to or less than
- total of both horizontal vent lengths (Hr) and offsets (Ho) in feet
H
T
H
R
- combined horizontal vent lengths in feet
H
O
- offset factor: .03 (total degrees of offset - 90°*) in feet
V
T
- combined vertical vent lengths in feet
14.1
3.7
elbow vent length values
1°
FEET
INCHES
MILLIMETERS
0.03
0.5
12.7
15°
0.45
6.0
152.4
30°
0.9
11.0
279.4
45°
1.35
16.0
406.4
90°*
2.7
32.0
812.8
* The fi rst 90° offset has a zero value and is shown in the formula as - 90°
W415-1679 / D / 03.09.18

17
3.8
top exit horizontal termination
(HT) < (VT)
EN
Simple venting configuration (only one 90° elbow)
See graph to determine the required vertical
rise V
T
for the required horizontal run H
T
.
40 (12.2)
39 (11.9)
REQUIRED
30 (9.1)
VERTICAL
RISE IN FEET
20 (6.1)
(METERS) V
T
10 (3.1)
0
2.5
5
7.5
10
12.5
15
17.5
20
(0.8)
(1.5)
(2.3)
(3.1)
(3.8)
(4.6)
(5.3)
(6.1)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET
(METERS) HT
The shaded area within the lines represents
acceptable values for HTand VT
For vent configurations requiring more than one 90° elbow, the following formulas apply:
Formula 1: H
T
<
V
T
<
Formula 2: H
T
+ VT
40 feet (12.2m)
Example:
V1
= 3 FT (0.9m)
V2
= 8 FT (2.4m)
VT
= V1+ V2= 3 FT (0.9m ) + 8 FT (2.4m) = 11 FT (3.4m)
H1
= 2.5 FT (0.8m)
H2
= 2 FT (0.6m)
H
R
= H
1
+ H
2
= 2.5 FT (0.8m) + 2 FT (0.6m) = 4.5 FT (1.4m)
HO = .03 (three 90° elbows - 90°) = .03
(270° - 90°) = 5.4 FT (1.7m)
HT
= H
R
+ HO
= 4.5 FT (1.4m) + 5.4
FT (1.6m) = 9.9 FT (3m)
H
T
+ VT
= 9.9 FT (3m) + 11
FT (3.4m) = 20.9 FT (6.4m)
Formula 1:
HT
<
VT
< 11 FT (3.4m)
9.9 FT (3m)
Formula 2:
HT+ VT
<
40 FT (12.2m)
20.9 FT (6.4m) < 40 FT (12.2m)
Since both formulas are met, this vent confi guration is acceptable.
90° H2
V2
90°
90° H1
V1
W415-1679 / D / 03.09.18

18
EN
Simple venting configuration
(only one 90° elbow)
(H T)>(V T)
Seegraph to determine the required vertical rise VTfor the required horizontal run HT.
150(381)
147 (373)
REQUIRED
VERTICAL
100
(254)
RISE IN INCHES
(CENTIMETERS) V
T
57 (145)
50
(127)
8(20.3)
0
5
10
15
20 (6.1)
2
(1.5)
(3.1)
12.5
(4.6)
19.5
(0.6)
(3.8)
(5.9)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
The shaded area within the lines represents acceptable values for HTand
VT
For vent configurations requiring more than one 90° elbow, the following formulas apply:
Formula 1: HT< 4.2 VT
Formula 2: HT+ VT< 24.75 feet (7.5m)
Example:
V1=VT= 6 FT (1.8m)
H1= 3 FT (0.9m)
H2= 5 FT (1.5m)
HR=H1+ H2= 3FT (0.9m) + 5FT (1.5m) = 8FT (2.4m)
HO= .03 (two 90° elbows - 90°) = .03 (180° - 90°) = 2.7FT (0.8m)
HT=HR+ HO= 8FT (2.4m) + 2.7FT (0.8m) = 10.7FT (3.3m)
HT+ VT= 10.7FT (3.3m) + 6FT (1.8m) = 16.7FT (5.1m)
90°
H 1
H 2
90°
V1
Formula 1:
H
T
< 4.2 VT
4.2 VT= 4.2FT (1.3m) x 6FT (1.8m) = 25.2FT (7.7m)
Formula 2:
H
T
+ VT< 24.75 FT (7.5m)
90°
90°
16.7 FT (5.1m) < 24.75 FT (7.5m)
H1
Since both formulas are met, this vent configuration is acceptable.
H2
Example:
V
= 4 FT (1.2m)
V1
90°
V
21
= 1.5 FT (0.5m)
V
T
= V + V
2
= 4 FT (1.2m) + 1.5 FT (0.5m) = 5.5 FT (1.7m)
1
H
1
= 2 FT (0.6m)
H
2
= 1 FT (0.3m)
H
3
= 1 FT (0.3m)
H4
= 1.5 FT (0.5m)
H
R
= H
1
+ H
2
+ H
3
+ H4= 2FT (0.6m) + 1FT (0.3m) + 1FT (0.3m) + 1.5FT (0.5m) = 5.5 FT (1.7m)
H
O
= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)
H
T
= H
R
+ HO= 5.5 FT (1.7m) + 8.1 FT (2.5m) = 13.6 FT (4.2m)
H
T
+ VT
= 13.6 FT (4.2m) + 5.5 FT (1.7m) = 19.1 FT (5.8m)
Formula 1:
H
T
< 4.2 VT
4.2 VT= 4.2 FT (1.3m) x 5.5 FT (1.7m) = 23.1 FT (7m)
13.6 FT (4.2m) < 23.1 FT (7m)
Formula 2:
HT
+ VT< 24.75 FT (7.5m)
19.1 FT (5.8m) < 24.75 FT (7.5m)
Since both formulas are met, this vent configuration is acceptable.
W415-1679 / D / 03.09.18

19
3.9
rear exit horizontal termination
(H
T
) < (V
T
)
EN
Simple venting configuration
See graph to determine the required vertical rise V
T
for the required
(only two 90° elbows)
horizontal run H
T
.
40 (12.2)
35.3 (10.7)
REQUIRED
30 (9.1)
VERTICAL
RISE IN
20 (6.1)
FEET
(METERS) V
T
10 (3.1)
2 (0.6)
0
2.5
5
7.5
10
12.5
15
17.5
20
(0.8)
(1.5)
(2.3)
(3.1)
(3.8)
(4.6)
(5.3)
(6.1)
1.6
(0.5)
HORIZONTAL VENT RUN PLUS OFFSET IN FEET (METERS) HT
The shaded area within the lines represents acceptable values for HT
and HT
For vent configurations requiring more than two 90° elbows, the following formulas apply:
Formula 1: HT
<
VT
90°
Formula 2: HT
+ VT< 40 feet (12.2m)
H
3
Example:
V1
= 9 FT (2.7m)
V2
V2
= 6 FT (1.8m)
90°
VT
= V1
+ V2= 9FT (2.7m) + 6FT (1.8m) = 15FT (4.6m)
H2
H1
= 3 FT (0.9m)
H2
= 2 FT (0.6m)
H
= 1.5 FT (0.5m)
H
R3
= H
1
+ H
2
+ H
3
90°
= 3FT (0.9m) + 2FT (0.6m) + 1.5FT (0.5m) = 6.5FT (2m)
V1
H
O
= .03 (four 90° elbows - 90°) = .03 (360° - 90°) = 8.1 FT (2.5m)
H
T
= H
R
+ HO= 6.5FT (2m) + 8.1FT (2.5m) = 14.6FT (4.5m)
H
T
+ V
T
= 14.6FT (4.5m) + 15FT (4.6m) = 29.6 FT (9m)
H1
Formula 1:
HT
<
VT
90°
14.6 FT (4.5m) < 15 FT (4.6m)
Formula 2:
H
T
+ V
T
<
40 FT (12.2m)
29.6 FT (9m) < 40 FT (12.2m)
Since both formulas are met, this vent configuration is acceptable.
W415-1679 / D / 03.09.18
