Majestic NV360 Mounting instructions

Homeowner's Installation and
Operating Manual
INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER
Decorative Gas Appliance
Models: NV360
NV580
DO NOT STORE
OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY
OF THIS OR ANY OTHER
APPLIANCE.
WHAT TO DO IF YOU SMELL
GAS:
•Do not try to light any
appliance.
•Do not touch any electric
switch; do not use any phone
in your building.
•Immediately call your gas
supplier from your neighbor's
phone. Follow the gas
suppliers instructions.
•If you cannot reach your gas
supplier call the fire
department.
WARNING!
IF THE INFORMATION IN THIS
MANUAL IS NOT FOLLOWED
EXACTLY, A FIRE OR
EXPLOSION MAY RESULT
CAUSING PROPERTY
DAMAGE, PERSONAL INJURY
OR LOSS OF LIFE.
PLEASE READ THIS MANUAL
BEFORE INSTALLING AND
USING APPLIANCE
INSTALLER/CONSUMER
SAFETY INFORMATION
CERTIFIED
D
E
S
I
G
N
C
E
R
T
I
F
I
E
D
20003565 12/02 Rev. 4
FOR YOUR SAFETY
Installation and service must
be performed by a qualified
installer, service agency or
the gas supplier.
410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777
www.majesticproducts.com • www.vermontcastings.com
Vermont Castings, Majestic Products
3565

2
Vermont Castings Majestic Products NV360/580 Series
20003565
Table of Contents
Thank you and Congratulations on your purchase of a
Vermont Castings, Majestic Products fireplace.
PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING THE APPLIANCE
IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these
instructions may result in a possible fire hazard and will void the warranty.
Installation & Operating Instructions...........................................................................................3
Important Burning / Curing Instructions..............................................................................3
Fireplace Dimensions.........................................................................................................4
Clearance to Combustibles ................................................................................................5
Mantels ..............................................................................................................................5
Mantel Chart.......................................................................................................................5
Hearth ..............................................................................................................................5
Framing & Finishing ...........................................................................................................6
Final Finishing ....................................................................................................................6
Gas Specifications .............................................................................................................6
Gas Inlet & Manifold Pressures..........................................................................................6
High Elevations ..................................................................................................................6
Gas Line Installation...........................................................................................................6
Remote Switch Installation.................................................................................................7
Alternate Switch Location...................................................................................................7
EB-1 Electrical Box ............................................................................................................7
Install the Venting System, Flashing, and Termination ......................................................8
Venting Runs......................................................................................................................9
Operating Instructions
Glass Information .............................................................................................................10
Louvre Removal ...............................................................................................................10
Window Frame Assembly Removal .................................................................................10
Glass Cleaning.................................................................................................................10
Log Installation .................................................................................................................10
Ember Material Placement...............................................................................................11
Lava Rock ........................................................................................................................11
Flame Adjustment ............................................................................................................11
Flame Characteristics ......................................................................................................12
Inspecting the Venting System.........................................................................................12
Test Chimney Draw..........................................................................................................12
First Firing ........................................................................................................................12
Lighting & Operating Instructions .....................................................................................13
Vent Safety Switch ...........................................................................................................14
Electrical Connection .......................................................................................................14
Troubleshooting ...............................................................................................................15
Fuel Conversion Procedure .............................................................................................17
Replacement of Ceramic Hearth Panels..........................................................................18
Replacement Parts.......................................................................................................................19
Optional Accessories ..................................................................................................................21

3
Vermont Castings Majestic Products NV360/580 Series
20003565
This gas appliance should be installed by a qualified
installer in accordance with local building codes and
with current CSA-B149.1 Installation codes for Gas
Burning Appliances and Equipment. If the unit is being
installed in a mobile home, the installation should
comply with the current CAN/CSA Z 240.4 code. For
U.S.A installations follow local codes and/or the current
National Fuel Gas Code. ANSI Z223.1.
FOR SAFE INSTALLATION AND OPERATION
PLEASE NOTE THE FOLLOWING:
1. This fireplace gives off high temperatures and
should be located out of high traffic areas and away
from furniture and draperies.
2. Children and adults should be alerted to the hazards
of the high surface temperatures of this fireplace
and should stay away to avoid burns or ignition of
clothing.
3. Children should be carefully supervised when in the
same room as your fireplace.
4. Under no circumstances should this fireplace be
modified. Parts removed for servicing should be
replaced prior to operating this fireplace again.
5. Installation and any repairs to this fireplace must be
performed by a qualified installer, service agency or
gas supplier. A professional service person should
be contacted to inspect this fireplace annually.
Make it a practice to have all of your gas fireplaces
checked annually. More frequent cleaning may be
required due to excess lint and dust from carpeting,
bedding materials, etc.
6. Control compartments, burners and air passages in
this fireplace should be kept clean and free of dust
and lint. Make sure the gas valve and pilot light are
turned off before you attempt to clean this fireplace.
7. The venting system (chimney) of this fireplace
should be checked at least once a year and if
needed your venting system should be cleaned.
8. Keep the area around your fireplace clear of com-
bustible materials, gasoline and other flammable
vapor and liquids. This fireplace should not be used
as a drying rack for clothing, nor should Christmas
stocking or decorations be hung in the area of it.
9. Under no circumstances should any solid fuels
Installation & Operating Instructions
IMPORTANT:
PLEASE READ THE FOLLOWING CAREFULLY
(wood, coal, paper or cardboard etc.) be used in this
fireplace.
10. The flow of combustion and ventilation air must not
be obstructed in any way.
11. When fireplace is installed directly on carpeting,
vinyl tile or any combustible material other than
wood, this fireplace must be installed on a metal or
wood panel extending the full width and depth of the
fireplace.
12. This fireplace requires adequate ventilation and
combustion air to operate properly.
13. This fireplace must not be connected to a chimney
flue serving a separate solid fuel burning fireplace.
14. When the fireplace is not in use it is recommended
that the gas valve be left in the “OFF” position.
This appliance has been approved for aftermar-
ket mobile home installations.
Remove any plastic from trim parts before turning
the fireplace “ON”.
It is normal for fireplaces fabricated of steel to give
off some expansion and/or contraction noises during
the start up or cool down cycle. Similar noises are
found with your furnace heat exchanger or car
engine.
It is not unusual for your Vermont Castings Majestic
Products Company gas fireplace to give off some
odor the first time it is burned. This is due to the
curing of the paint and any undetected oil used in
the manufacturing process.
Please ensure that your room is well ventilated.
Open all windows.
It is recommended that you burn your fireplace for at
least ten (10) continuous hours the first time you use
it. If the optional fan kit has been installed, place the
fan switch in the “OFF” position during this time.
Proposition 65 Warning: Fuels used in gas,
woodburning or oil fired appliances, and the products of
combustion of such fuels, contain chemicals known to
the State of California to cause cancer, birth defects
and other reproductive harm.
California Health & Safety Code Sec. 25249.6

4
Vermont Castings Majestic Products NV360/580 Series
20003565
3565a

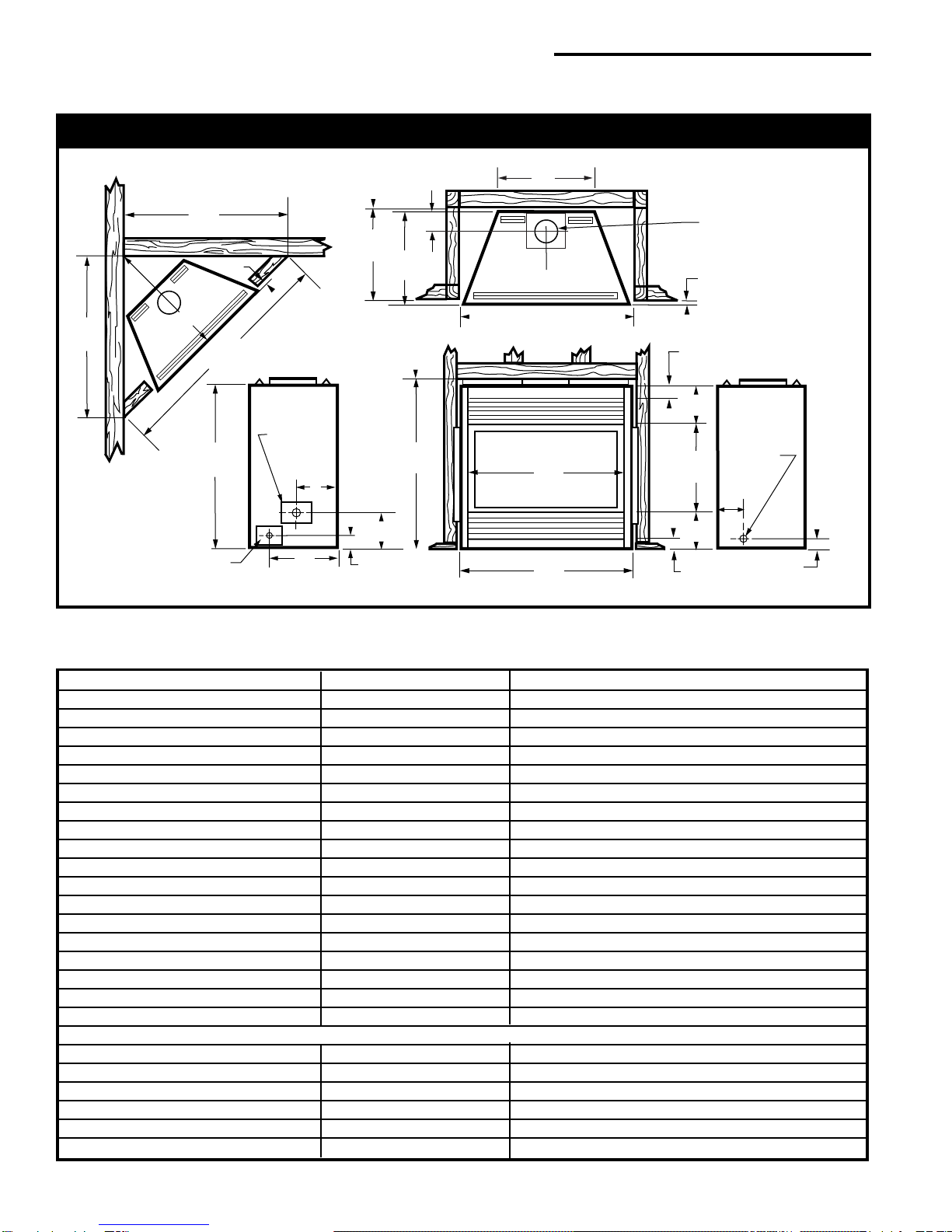

Fireplace Dimensions
A
S
K
J
C
L
T - Rough Opening Width
R
D
G
C
Rough
Opening
Height
Electrical Access
Rough
Opening
Depth
Recessed
Nailing Flange
Gas Line
Access
M
Outside Air
W
V
X
W
K
U
H
I
G
F
E
Q
P
N
O
L
B
Fig. 1 Fireplace specifications and framing dimensions.
Ref. NV360 NV580
A41” (1046mm) 47” (1194mm)
B 37¹⁄₂” (953mm) 41¹⁄₄” (1048mm)
C36” (914mm) 42” (1067mm)
D 24¹⁄₂” (622mm) 28¹⁄₂” (724mm)
E7” (179mm) 7” (179mm)
F6” (152mm) 6” (152mm)
G1¹⁄₄” (32mm) 1¹⁄₄” (32mm)
H 19¹⁄₄” (489mm) 23¹⁄₂” (591mm)
I5¹⁄₂” (140mm) 5¹⁄₂” (140mm)
J 25¹⁄₄” (641mm) 31¹⁄₄” (794mm)
K5/8” (16mm) 5/8” (16mm)
L9¹⁄₄” (235mm) 9¹⁄₄” (235mm)
M5¹⁄₂” (140mm) 5¹⁄₂” (140mm)
N3” (76mm) 3” (76mm)
O 15¹⁄₄” (387mm) 15¹⁄₄” (387mm)
P8” (203mm) 6³⁄₄” (172mm)
Q2¹⁄₈” (54mm) 1¹⁄₈” (79mm)
R6” (152mm) Dia. 8” (203mm) Dia.
Framing Dimensions
S 38¹⁄₂” (978mm) 42¹⁄₂” (1080mm)
T41” 1041mm) 47¹⁄₄” (1200mm)
U 19¹⁄₄” (489mm) 23¹⁄₂” (591mm)
V62¹⁄₄” (1581mm) 75” (1905mm)
W44” (1118mm) 53” (1346mm)
X 31³⁄₄” (807mm) 38” (965mm)

5
Vermont Castings Majestic Products NV360/580 Series
20003565
Hearth
A hearth is not mandatory but is recommended for
aesthetic purposes. We recommend a noncombustible
hearth.
O
NM
L
K
J
F
G
H
I
Mantel
Leg
CFM164a
Fig. 2b Combustible mantel leg minimum installation.
Man-
tel
Leg
CFM170
Mantel Mantel Leg from Side
Ref. Leg Depth Ref. of Comb. Opening
F10” (254mm) K 11¹⁄₂” (292mm)
G8” (203mm) L 9¹⁄₂” (241mm)
H6” (152mm) M 7¹⁄₂” (191mm)
I4” (101mm) N 5¹⁄₂” (140mm)
J2” (50mm) O 3¹⁄₂” (89mm)
Cold climate installation recommendation:
When installing this unit against a non-
insulated exterior wall or chase, it is
mandatory that the outer walls be
insulated to conform to applicable
insulation codes.
Side of Combus-
tion Chamber
Black
Surround
Face
Mantels\
The height that a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.
For the correct mounting height and widths refer to
Figures 2a, 2b and the Mantel Chart below.
The distances and reference points are not affected by
the fitting of a bay window front trim kit.
Noncombustible mantels and legs may be installed at
any height and width around the appliance.
When using paint or lacquer to finish the mantel,
such paint or lacquer must be heat resistant to
prevent discoloration.
Clearance to Combustibles
Appliances
Top ..........................................0” (0mm)
Bottom .....................................0” (0mm)
Side .........................................0” (0mm)
Back.........................................0” (0mm)
Perpendicular Sidewall............0” (0mm)
Top of unit to ceiling ................36” (914mm)
Front of unit to combustibles ...36” (914mm)
Venting
B-Vent......................................1” (25mm)
Side View
Fig. 2a Combustible mantel minimum installation.
CFM146
Mantel Chart
Mantel Shelf Mantel from Top
Ref. or Breast Plate Ref. of Comb. Chamber
V10” (254mm) A 19” (483mm)
W8” (203mm) B 17” (432mm)
X6” (152mm) C 15” (381mm)
Y4” (101mm) D 13” (330mm)
Z 2” (50mm) E 11” (279mm)
ABCDE
V
W
X
Y
Z
Fireplace
Louvre Assembly Top
Top of Comb. Chamber
Bottom of Door Trim

6
Vermont Castings Majestic Products NV360/580 Series
20003565
FP297A
Fig. 4 Typical gas supply installation.
1/2" Gas Supply 1/2" NPT X 1/2" Flare Shut-off Valve
3/8" Flex line
(from valve)
Final Finishing
Noncombustible materials such as brick and tile can be
extended over the face of the unit (Do not cover the
glass door or grilles) If a Trim Kit is to be installed,
brick and tile will have to be installed flush with the side
of this appliance.
Framing and Finishing
Check fireplace to make sure it is lev-
elled and properly positioned.
1. Choose the unit location.
2. Nailing flanges are supplied with the fireplace
(found on the fireplace hearth). To level the box and
secure it firmly in place, remove the nailing flanges
from the hearth and install at the sides of the fire-
place as shown in Figure 3.
3. Screw through the slotted holes in the drywall strip
and into pre-drilled holes in fireplace side. Measure
from face of fireplace to the face of the drywall strip
to confirm the final depth. High Elevations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to
4,500 feet (1,370m) above sea level.
For elevations above 4,500 feet (1,370m) in USA,
installations must be in accordance with the
current ANSI Z223.1 and/or local codes having
jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370m).
NV360 / NV580
CERTIFIED TO
ANSI Z21.50a-1999/CSA 2.22A-M-99
Vented Gas Fireplace
When purging gas line the front glass
must be removed. Purging gas lines
must comply with the NFPA-54 or B-149.
The gas pipeline can be brought in through the right
side of the appliance. A knockout is provided to allow
for the gas pipe installation and testing of any gas
connection.
The gas line connection can be made with properly
tinned 3/8" copper tubing, 1/2" rigid pipe or an approved
flex connector. Since some municipalities have
additional local codes, it is always best to consult your
local authority and the CSA-B149.1 installation code.
For USA installations, consult the current National Fuel
Gas Code, ANSI Z223.1.
C
A
B
Adjustable Drywall Strip
(Nailing Flange)
Screw Drywall
Position Depths
A1/2” / 13mm
B5/8” / 16mm
C3/4” / 19mm
FP1023
Adjustable
1/2”, 5/8” &
3/4” Spacing
Fig. 3 Nailing flanges.
Gas Line Installation
Gas Inlet & Manifold Pressures
Natural LP
Minimum Inlet Pressure 5.5” w.c. 11.0” w.c.
Maximum Inlet Pressure 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5”w.c. 10.0” w.c.
Gas Specifications
Max. Min.
Model Fuel Gas Input Input
Control B.T.U.H B.T.U.H.
NV360RN Natural Gas Millivolt Hi/Lo 33,500 23,500
NV360RP Propane Millivolt Hi/Lo 33,500 23,700
NV580RN Natural Gas Millivolt Hi/Lo 45,000 31,500
NV580RP Propane Millivolt Hi/Lo 45,000 31,900

7
Vermont Castings Majestic Products NV360/580 Series
20003565
EB-1 Electrical Box
The fireplace, when installed, must be
electrically connected and grounded in
accordance with local codes or, in the
absence of local codes, with the current
CSA C22.1 Canadian Electrical Code.
For USA installations, follow local codes
and the National Electrical Code, ANSI/
NFPA No. 70.
It is strongly suggested that the wiring of
the EB-1 electrical junction box be
carried out by a licensed electrician.
Ensure that the power to the supply line
has been disconnected before commenc-
ing this procedure.
The EB-1 electrical junction box has been supplied
standard on the NV360/580 models to allow for the
easy installation of an optional fan kit.
To connect the EB-1 box to the house electrical supply,
follow the steps below:
1. Unscrew the retaining screw from the EB-1 base
plate (Fig. 7) and remove the EB-1 assembly from
the fireplace.
2. Remove the front cover of the EB-1 box.
3. Remove the plug socket assembly from the EB-1
box.
4. Feed the supply line in from the outside through the
cable clamp. (Fig. 7)
5. Connect black wire of the power supply line to the
brass screw (polarized) of the socket assembly.
Fig. 6 Alternate switch location.
FP1024
The fireplace valve must not be sub-
jected to any test pressures exceeding
1/2 psi. Isolate or disconnect this or any
other gas appliance control from the gas
line when pressure testing.
The gas control is equipped with a captured screw type
pressure test point, therefore it is not necessary to
provide a 1/8" test point up stream of the control.
When using copper or flex connector use only ap-
proved fittings. Always provide a union when using
black iron pipe so the gas line can be easily discon-
nected for burner or fan servicing. (Fig. 4) See gas
specification for pressure details and ratings.
Remote Switch Installation
TPTH TH
TP
Thermopile

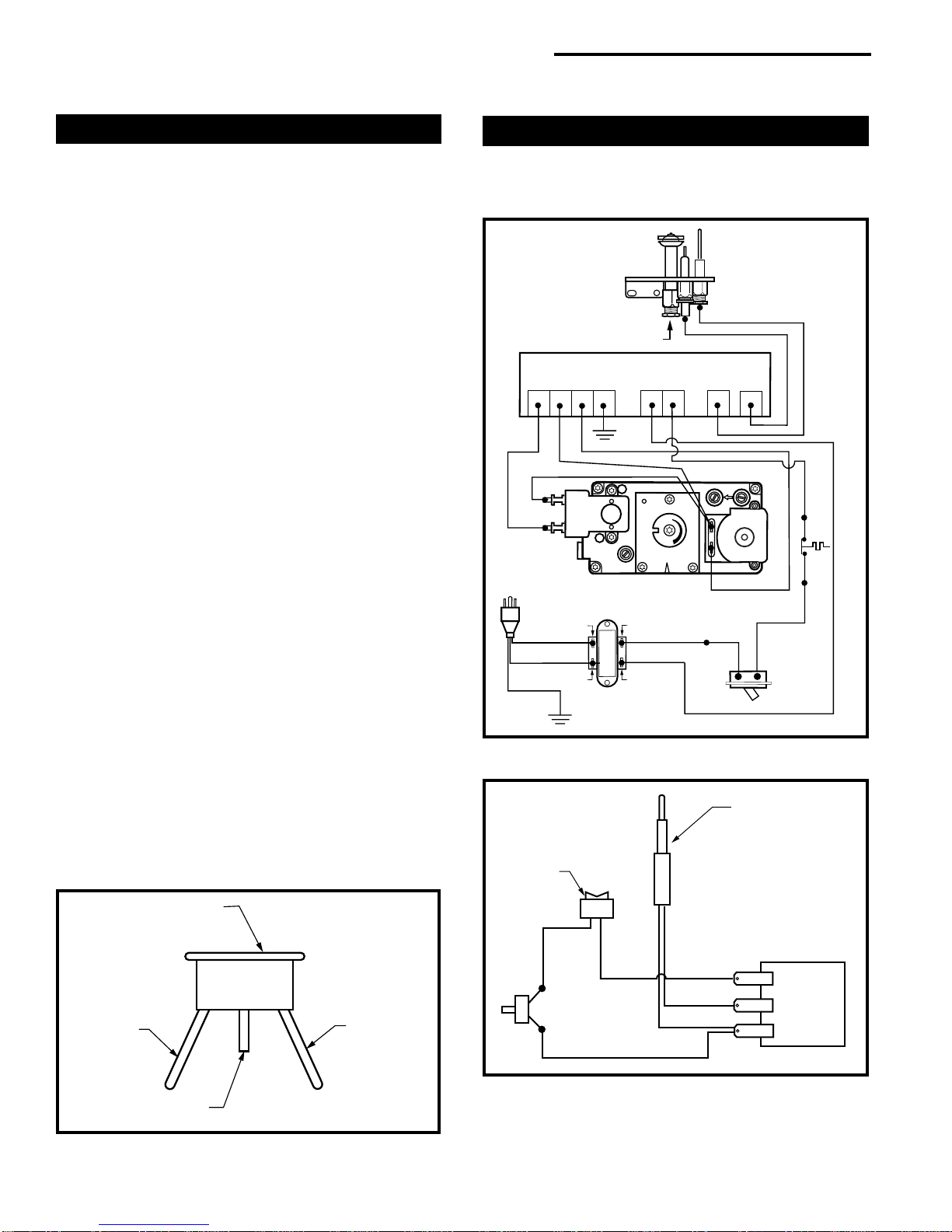

Fig. 5 Remote switch wiring diagram for R models. W584-9
Switch Gas Valve
Always check for gas leaks with a mild
soap and water solution applied with a
brush no larger than 1” (25mm). Never
apply soap and water solution with a
spray bottle. Do not use an open flame
for leak testing.
Do not wire remote “ON/OFF” wall switch
for this gas appliance into a 120v power
supply.
1. Thread wire through the electrical knockout located
on either side of fireplace. Do not cut wire or insula-
tion on metal edges. Ensure that wire is protected.
Run the other end to a conveniently located wall
receptacle box.
2. Attach wire to switch and install switch into recepta-
cle box. Attach cover plate to switch.
3. Connect wiring to gas valve. (Fig. 5)
Alternate Switch Location
The remote switch can be installed on either side of the
access door. Simply mount the switch to the switch
bracket provided. Screw the bracket on either side of
the frame, lining up the screws with the prepunched
holes. (Fig. 6)

8
Vermont Castings Majestic Products NV360/580 Series
20003565
Attic Insulation
Firestop position when area above ceiling is an attic
Nails (4)
Firestop Spacer
Joist
Ceiling Installation
Firestop position when area above ceiling is NOT an attic
(Firestop/draftstop
appearances may
vary. Only one (1)
firestop required
per frame.)
FP384
Fig. 8 Firestop/draftstop positions.
Install the Venting System, Flashing
and Termination
NOTE: The NV360 uses a 6” B-vent system. The
NV580 uses an 8” B-vent system (refer to Accessories,
Page 25, for adapter).
Refer to venting installation instructions provided by the
B-vent manufacturer.
Refer to Page 4, Figure 1 to locate chimney centerline
dimension from a combustible back wall.
•Minimum vertical chimney height - 12 feet
(3.65m) (measured from the bottom of the fire-
place)
•Maximum vertical height - 40 feet (12m)
•Minimum height with two elbows - 18 feet (4.6m)
•Elbow requirements allow a maximum of two 90°
elbows or four 45°elbows per installation. (Two
45°elbows = one 90°elbow.) Refer to the venting
chart for proper elbow offset runs.
For firestop positioning, refer to Figure 8. Only one (1)
firestop required per frame. NOTE: A firestop is not
required at the roof.
FP580
OUTSIDE
ELECTRICAL BOX
FRONT OF UNIT
INSIDE
FRONT OF UNIT
Fig. 7 EB-1 receptacle.
6. Connect the white wire of the power line to the
chrome screw of the socket assembly.
7. Connect the ground wire of the supply line to the
green screw of the socket assembly.
8. Refit the socket assembly back into the electrical
box and replace the cover plate. Secure the cable
with the clamp on the outside of the unit to prevent
strain on the connections.
9. The EB-1 electrical junction box is now ready to
supply power to the FK12 or FK24 fan kits if fitted.

9
Vermont Castings Majestic Products NV360/580 Series
20003565

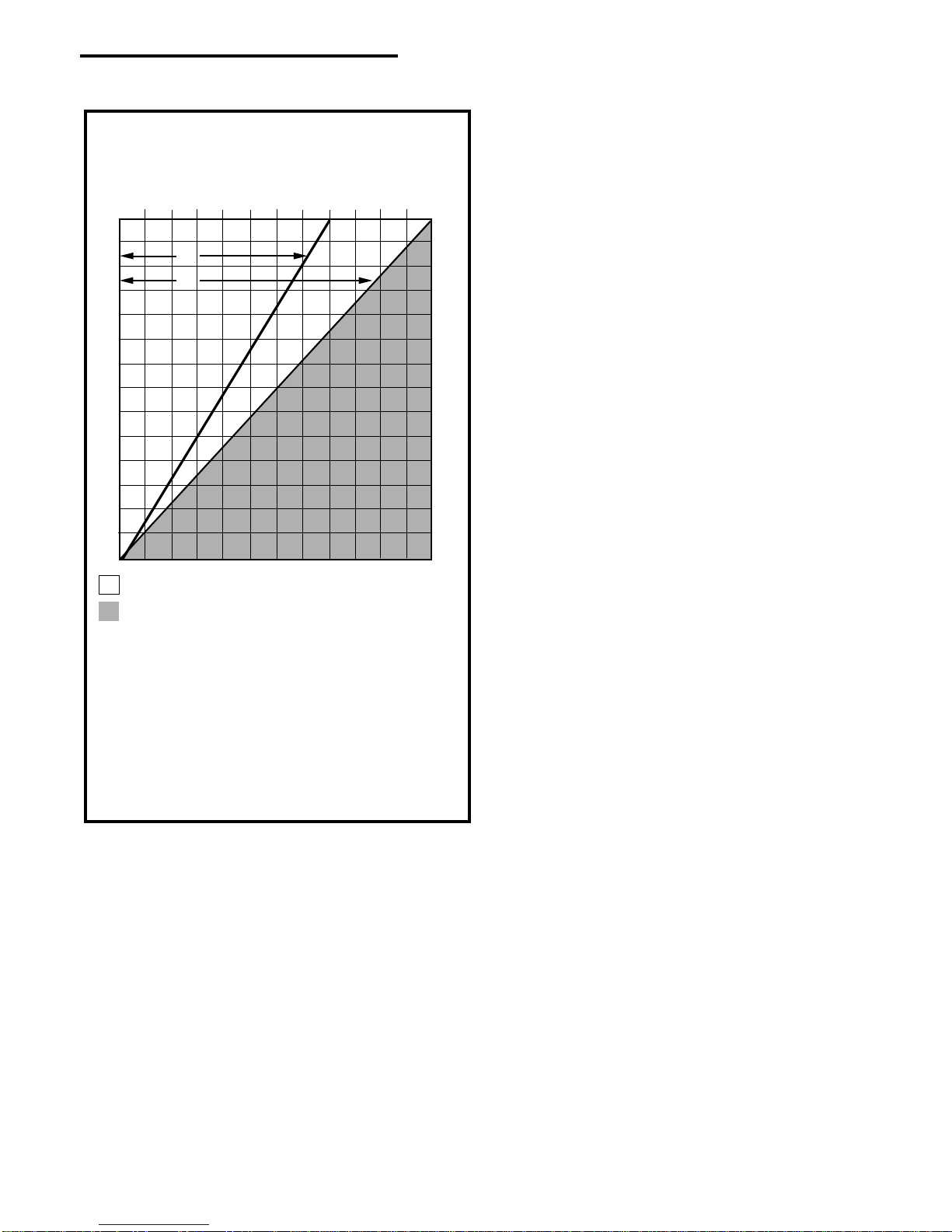

Venting Runs
40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
8 9 10 11 121 2 3 4 5 6 7
Horizontal Run (in feet)
Vertical Run (in feet)
A
A: Vertical installations up to 40 feet (12m) in
height. Up to an 8 ft. horizontal vent run can be
installed within the vent system using a
maximum of two (2) 90-degree elbows or four (4)
45-degree elbows.
B: Vertical installations up to 40 feet (12m) in
height. Up to a 12 ft. horizontal vent run can be
installed within the vent system using a
maximum of two (2) 45-degree elbows.
B
= Acceptable venting configuration
= Unacceptable venting configuration
FP567a
Table 1 Venting configurations.

10
Vermont Castings Majestic Products NV360/580 Series
20003565
Log Installation
1 . Remove window frame assembly. (Refer to page 10)
2. Remove logs from packaging.
As with all plastics — these are not toys
and should be kept away from children
and infants.
3. Place rear log on rear bracket (ensure log is seated
properly, leveled and centered to the unit), so it will
not move from side to side and is firmly positioned
on the bracket. Be sure log is as far back as possible
on bracket.
Only glass approved for use in Majestic
Fireplaces products may be used for
replacement.
•The use of any non-approved replacement glass will
void all product warranties.
•Care must be taken to avoid breakage of the glass.
•Under no circumstances should this appliance be
operated without the front glass or with broken
glass. Replacement of the glass (with gasket) as
supplied by the manufacturer should be completed
by a licensed qualified service person.
•Replacement glass (complete with gasket) is
available through your Majestic Fireplaces dealer
and should only be installed by a licensed qualified
service person.

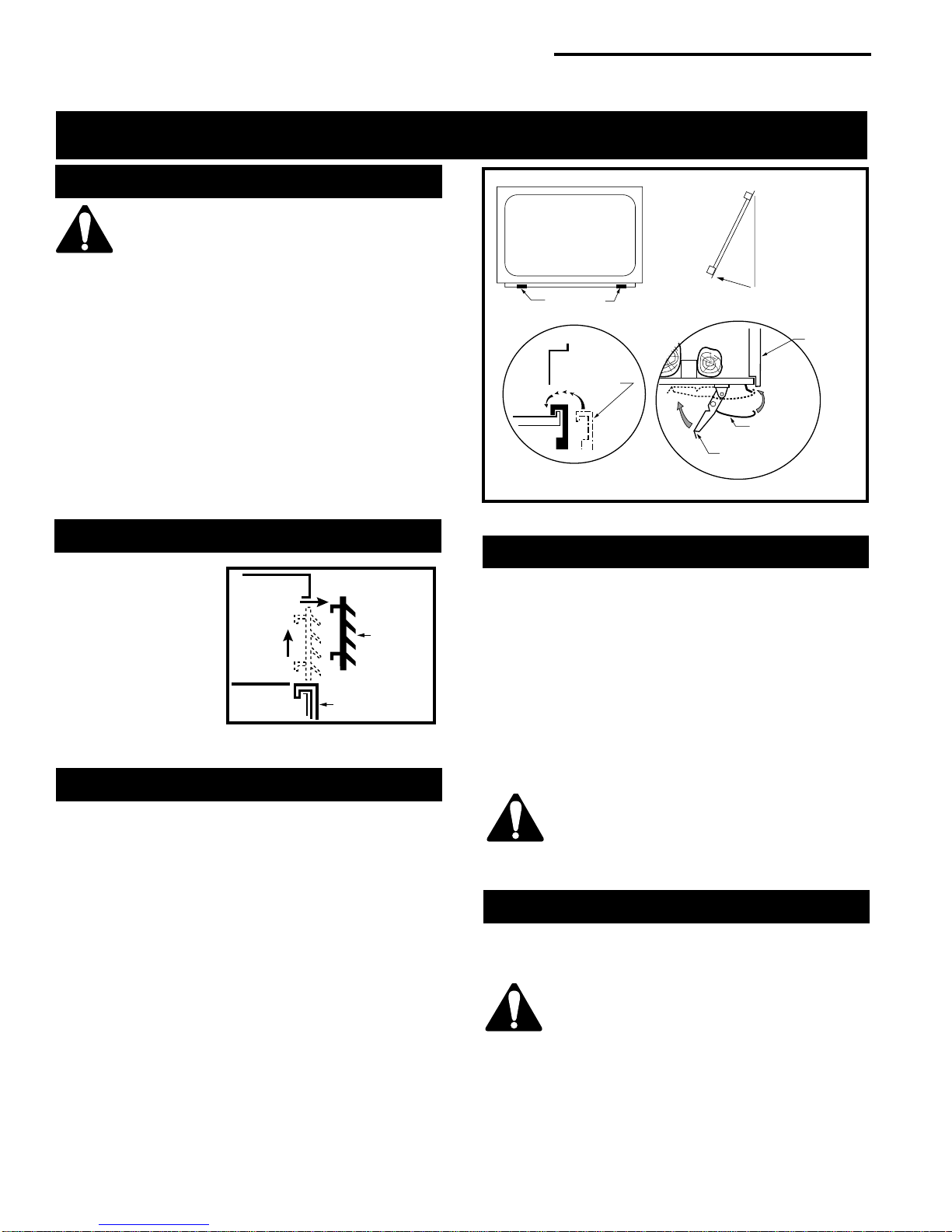

Louvre Removal
To remove louvre
assembly top, pull
louvre up, then lift out.
(Fig. 9) The bottom
louvre assembly is
hinged at the bottom
edge and swings
down.

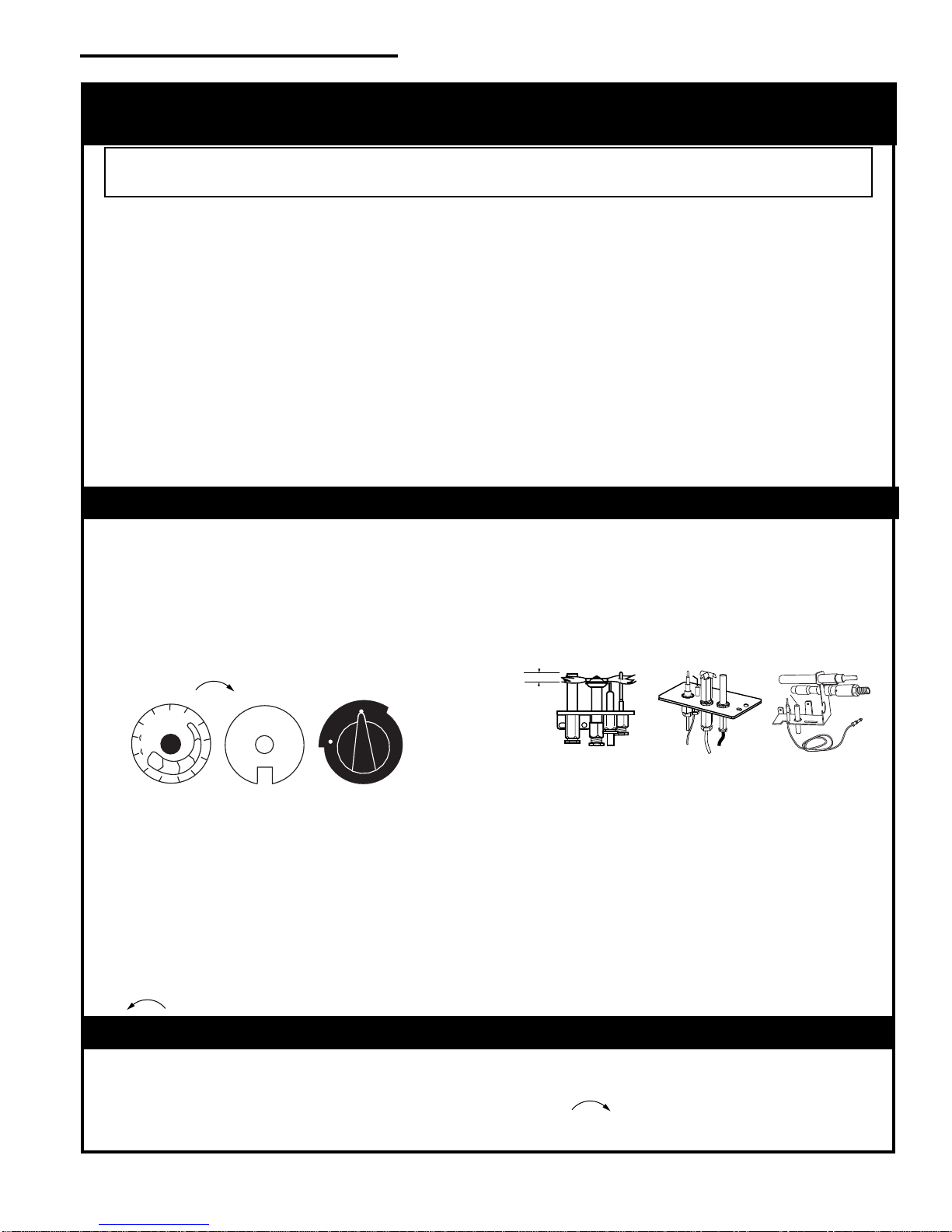

Operating Instructions
Glass Information
Clamps
Glass Frame
Fireplace
Front
Glass
Panel
Glass
Panel
Pull
Clamp Hook
G584-501
Push
Clamp Handle
Fig. 10 Glass panel removal.
Fig. 9 Remove louvre assembly
top.
1.
2.
Louvre
Assembly
Top
Glass Panel
FP444
Window Frame Assembly Removal
1. Shut off gas.
2. Let the fireplace cool if it has been operating.
3. Remove louvre assembly top. (Refer to Louvre
Removal, Fig. 9)
4. Open the bottom louvre assembly.
5. Release the two (2) clamps at the bottom of the
window frame by pulling down on the clamp handles.
6. Lift off the window frame assembly as shown. (Fig.
10)
7. To reinstall window frame assembly follow the above
procedure in reverse.
Glass Cleaning
It is necessary to clean the glass periodically. During
start-up, condensation, which is normal, forms on the
inside of the glass and causes lint, dust and other
airborne particles to cling to the glass surface. Also
initial paint curing may deposit a slight film on the glass.
After the first two weeks of operation, it is
recommended the glass be cleaned two or three times
with a non-ammonia household cleaner and warm
water (gas fireplace glass cleaner is recommended).
After initial use glass should be cleaned two or three
times during heating season.
Clean glass after first two weeks of
operation.
Do not clean glass when hot.
Do not use abrasive cleaners.
Do not strike or slam the glass.

11
Vermont Castings Majestic Products NV360/580 Series
20003565
Lava Rock
The lava rock provided with this fireplace must be
placed on the firebox base around the sides of the
burner assembly and on the tray beneath the grate.
Under no circumstances should this lava
rock be placed on any part of the burner
assembly.
Ember Material Placement
Place the hard ceramic ember material on the burner in
front of the front logs. Place small dime size ceramic
wool on top of hard ceramic embers. Place small pieces
in hole of top cross log and on front of the front logs by
placing a small piece of wool on your fingertip and
pushing it onto the log. Do not place ember material in
the inside corners of the front logs.
LOGS NV360 NV580
Log Front Left B25 E1
Log Front Right B26 E2
Log Rear B27 E3
Log Top Left B28 E4
Log Top Center Left -- E5
Log Top Center Right -- E6
Log Top Right B29 E7
Fig. 12 NV360 log and ember placement.
Log Front
Right
Log Rear
Log Front
Left
Log Top Right
Log Top
Left
LG119
Ember Material
Lava Rock
Top logs must be placed properly onto
notches.
4. Place front left log on top of burner, left side. Align
log's bottom holes with left bracket log locator studs.
5. Place front right log on top of burner, right side.
Align log's bottom holes with right bracket log locator
studs.
7. Place top cross logs onto locator notches. Ensure
logs are secure. (Fig. 11 or 12)
Fig. 11 NV580 log, lava rock and ember placement.
LG120
Log Top
Left Log Top
Right
Log
Rear
Embers
Lava Rock
Log Front
Right
Log Front
Left
Log Top
Center Right
Log Top
Center Left
Flame Adjustment
For fireplaces equipped with Hi/Lo valves, flame adjust-
ment is accomplished by rotating the Hi/Lo adjustment
knob located near the center of the gas control. (Fig. 13
or 14)
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height
I
H
LO
HV116
Fig. 14 Flame adjustment knob for SIT 820 valve.
Fig. 13 Flame adjustment knob for Honeywell valve.
HV102
LO
HI
Turn
counterclockwise
to increase
flame height
Turn clockwise
to decrease
flame height

12
Vermont Castings Majestic Products NV360/580 Series
20003565
First Firing
Upon completing the gas line connection, a small
amount of air will be trapped in the line. When first
lighting the unit with the pilot light, it will take a few
minutes to purge the trapped air. Once purging is
complete, the pilot and burner will light and operate as
indicated in the instruction manual. Subsequent
lightings of the appliance will not require purging.
When lit for the first time, the appliance will emit a slight
odor for an hour or two. This is due to paint and lubri-
cants used in the manufacturing process. After lighting,
vapor may condense and fog the glass; this moisture
disappears within a few minutes of burning.
Inspecting the Venting System
This appliance venting system was designed and
constructed to develop a positive flow adequate to
remove flue gases to the outside atmosphere.
Any foreign objects in the venting system, except those
designed specifically for the venting system, may cause
spillage of flue gases.
To inspect the venting system, make sure the main gas
valve is off. Remove glass frame (See Window Frame
Assembly Removal Section). Using a flashlight, check
the area above the baffle in the combustion dome.
Clean if necessary.

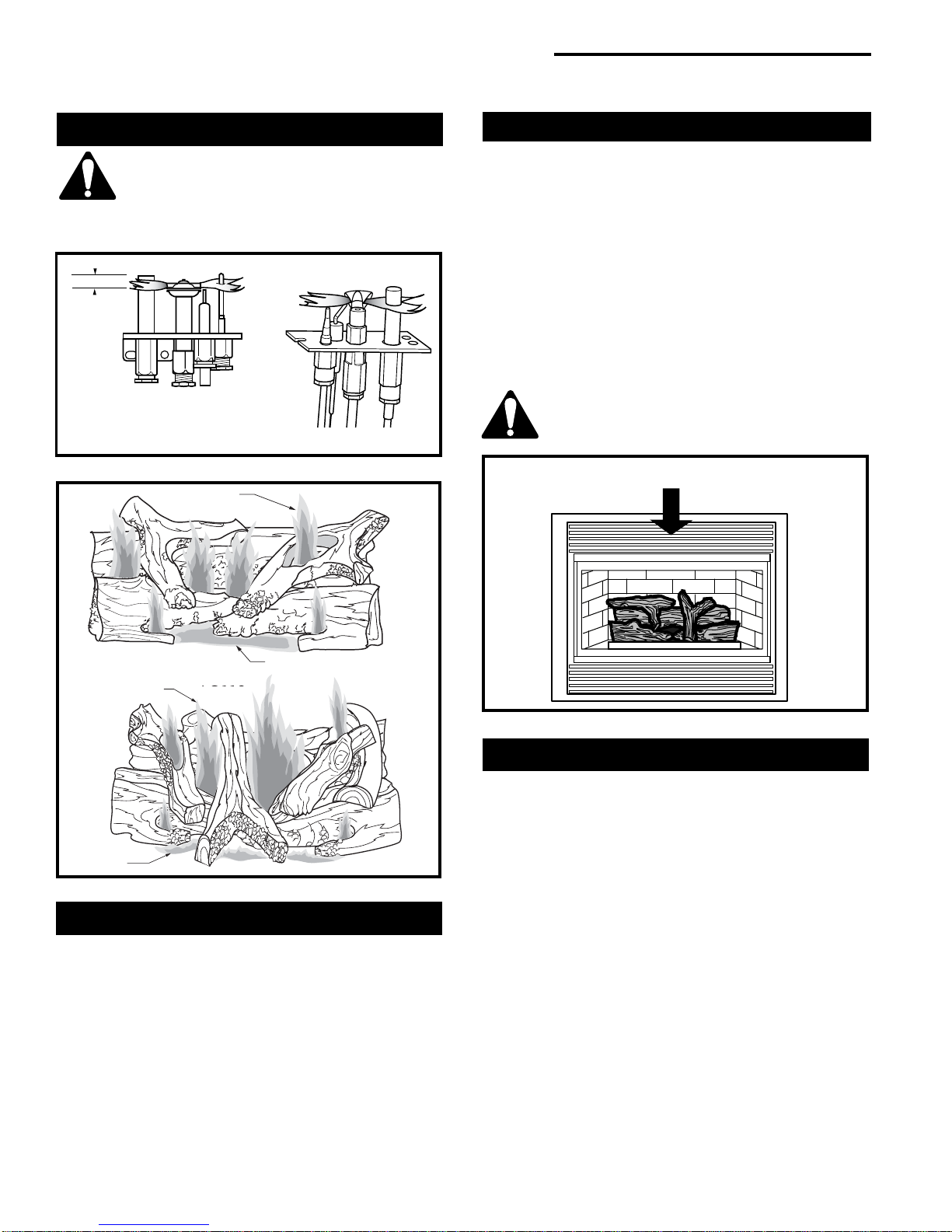

Flame Characteristics
It is important to periodically perform a
visual check of the pilot and the burner
flames. Compare them to the illustrations
below (Figs. 15, 16, 17). If any of the flames appear
abnormal call a service person.
3/8" - 1/2"

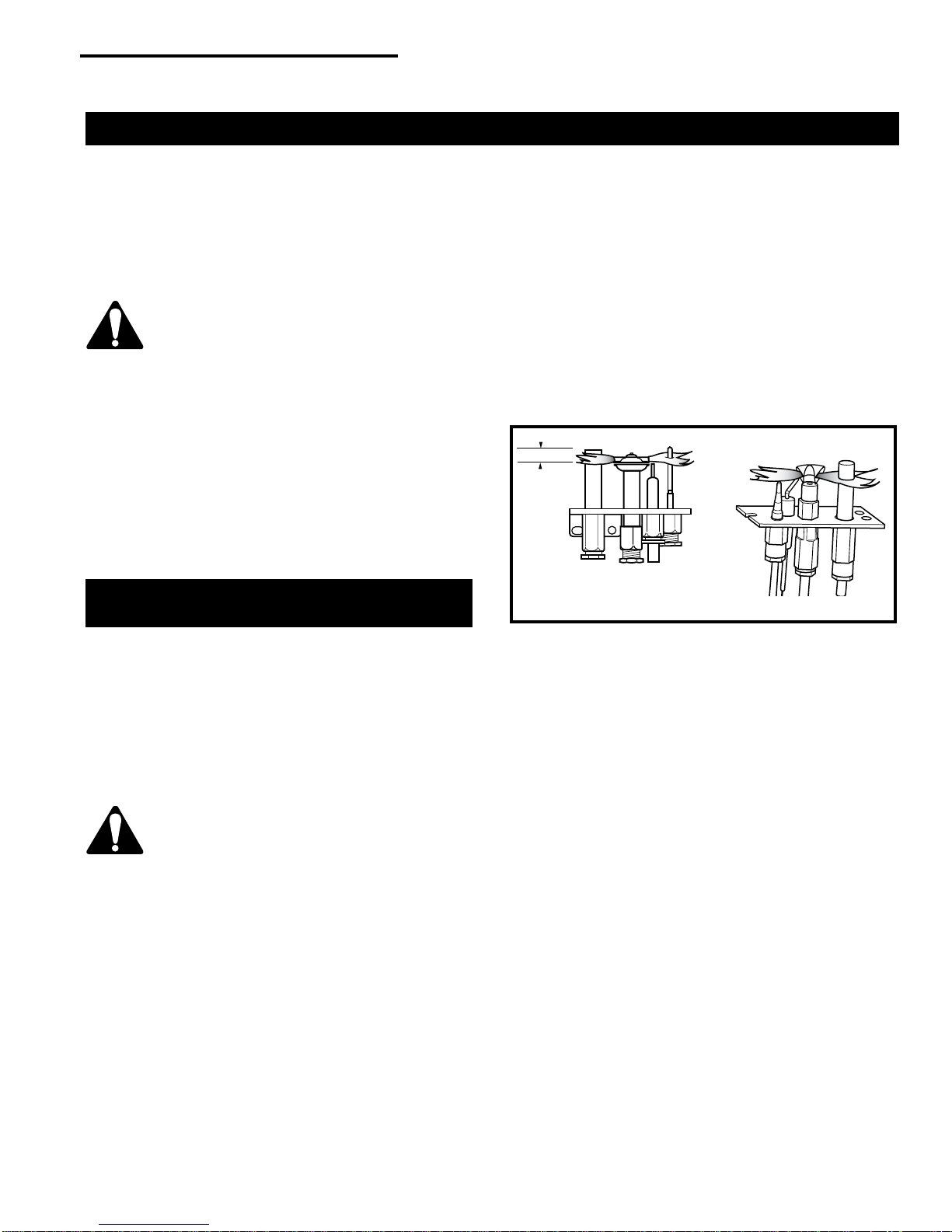

Fig. 15 Correct pilot flame appearance.
F584-703
PSE Pilot
SIT Pilot
Fig. 16 Correct burner flame appearance.
LG118
LG118
Yellow Flame
Red Glow
LG121
Yellow Flame
Red Glow
Test Chimney Draw
A "Chimney Draw" test must be made before the
installation is complete.
1. Close all doors and windows in the home and start
exhaust fans in the kitchen and bathroom.
2. Light unit and operate for 5 minutes.
3. Hold an ignited match, cigarette, or smoke match in
front of the unit. Refer to Figure 17 for location of the
draft hood opening.
4. Check to make sure smoke from the match, cigarette
or smoke match is drawn into the fireplace. If it is
not, turn the unit off and check for causes creating
the lack of adequate draft.
Do not operate the unit until lack of
adequate draft has been determined and
rectified.
Test for Draft at This Location
FP1197
Fig. 17 Draft test location.

13
Vermont Castings Majestic Products NV360/580 Series
20003565
3. Open control access panel.
4. Push in gas control knob slightly and turn clock-
wise to "OFF" position. Do not force.
5. Close control access panel.
1. STOP! Read the safety information above.
2. Turn OFF all electrical power to the fireplace.
3. For MN/MP/TN/TP appliances ONLY, go on to
Step 4. For RN/RP appliances turn the On/Off
switch to “OFF” position or set thermostat to
lowest level.
4. Open control access panel.
5. Push in gas control knob slightly and turn
clockwise to "OFF" position.
10. Push the control knob all the way in and hold.
Immediately light the pilot by repeatedly depress-
ing the Piezo Spark Ignitor until a flame appears.
Continue to hold the control knob in for about one
(1) minute after the pilot is lit. Release knob and it
will pop back up. Pilot should remain lit. If it goes
out, repeat Steps 5 through 8.
FOR YOUR SAFETY READ BEFORE LIGHTING
•If you cannot reach your gas supplier, call the
Fire Department
C. Use only your hand to push in or turn the gas
control knob. Never use tools. If the knob will not
push in or turn by hand, do not try to repair it, call a
qualified service technician. Applying force or any
attempted repair may result in a fire or explosion.
D. Do not use this fireplace if any part has been under
water. Immediately call a qualified service techni-
cian to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
A. This heater has a pilot which must be lit manu-
ally. When lighting the pilot follow these instruc-
tions exactly.
B. BEFORE LIGHTING smell all around the heater
area for gas. Be sure to smell next to the floor
because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS
•Do not try to light any fireplace
•Do not touch any electric switch
• Do not use any phone in your building
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
To Turn Off Gas To Heater
Lighting And Operating Instructions
1. Turn the On/Off switch to “OFF” position or set
the thermostat to lowest setting.
2. Turn off all electric power to the fireplace if
service is to be performed.
Lighting Instructions
PILOT
ON
OFF
ON
P
I
L
O
T
O
F
F
O
F
F
5
4
3
2
1
O
F
F
P
i
l
o
t
6. Wait five (5) minutes to clear out any gas. Then
smell for gas, including near the floor. If you
smell gas, STOP! Follow "B" in the safety
information above. If you do not smell gas, go
to the next step.
7. Remove window frame assembly before
lighting pilot. (See Window Frame Assembly
Removal section).
8. Visibly locate pilot by the main burner.
9. Turn knob on gas control counterclockwise
to "PILOT" position.
Euro SIT SIT NOVA Honeywell •If knob does not pop up when released, stop
and immediately call your service technician or
gas supplier.
• If after several tries, the pilot will not stay lit,
turn the gas control knob to "OFF" position and
call your service technician or gas supplier.
11. Replace glass door.
12. Turn gas control knob to “ON” position.
13. For RN/RP appliances turn the On/Off switch to
“ON” position or set thermostat to desired setting.
14. Turn on all electrical power to the fireplace.
WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life.
3/8" - 1/2"

14
Vermont Castings Majestic Products NV360/580 Series
20003565
Vent Safety Switch
This fireplace incorporates the use of a Vent Safety
Shut-off Switch. The sensor and wiring are factory
installed and should not be removed or altered during
installation.
In the event of total flue blockage the system will detect
the increased heat buildup and will automatically shut
down the main burner assembly.
The sensor is located above the firebox behind the top
louvre assembly. It is accessible by removing the top
louvre assembly.
CAUTION: The firebox, Vent Safety Switch sensor
and surrounding panels become very hot during
normal operation. Allow time for the components to
cool before carrying out any service or inspection.
If the sensor is activated and shuts off the burner
assembly, the following procedure should be followed:
•Observe that the pilot flame is still “ON”. If the pilot
flame has gone out the reason for the fireplace shut
down is not the vent safety switch.
•Turn the pilot flame “OFF” and close all controls.
Allow the fireplace to cool.
•Check the flue and venting components for blockage
or restrictions.
•Remove the front louvre assembly.
•Locate the sensor.
•Reset the sensor by pressing the reset pin between
the two wire terminals. (Fig. 18)
CAUTION: The components may still be hot.
•Light the fireplace and check for downdrafts.
•Operate the fireplace in the normal manner. If the
burner assembly shuts down again after a period of
operation, DO NOT ATTEMPT TO RESET THE
SENSOR AGAIN. Turn off the fireplace and contact
your service technician.
Electrical Connection
The sensor is wired in series between the wall mounted
“ON/OFF” switch and the Electronic Ignition Module
(Fig. 19) or the thermopile and the gas valve (Fig. 20)
Sensor
Wire
Terminal
Reset Pin FP1160
Fig. 18 Vent Safety Switch.
Wire
Terminal
24 VAC HOT
24 VAC RTN
"ON/OFF"
SWITCH
NOVA SIT 822 VALVE
HONEYWELL S8600 B IGNITION MODULE
120 VAC RTN
40VA
TRANSFORMER
120 VAC HOT
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
WHITE
BLACK
PILOT
H
I
L
O
EA
P
I
L
O
T
1 5
3 4
GREEN
MV MVPV PV GND
(BURNER) 24V
GND 24V SENSE SPARK
FP670
Fig. 19 Vent Safety Switch wiring, EN/EP units.
TH
TP
TH
TP
Gas
Valve
Thermopile
“ON/OFF”
Switch
Vent
Safety
Switch
FP1161
Fig. 20 RN/RP units using a remote “ON/OFF” switch.

15
Vermont Castings Majestic Products NV360/580 Series
20003565
Remove glass door before service work
START CHECK
Gas Supply On
▼
▼
▼
▼▼
Pilot Lights With Piezo
Ignitor
•Lockout Has Engaged. Wait 60
Seconds And Try Again.
•For Spark At Electrode While
Depressing Piezo
1/8" Gap To Pilot Hood Needed.
•All Wiring Connections
•Replace Piezo Ignitor
•Supply Line Hooked Up
•Shut off Valve Open
Pilot Stays Lit
•For Air In The Lines
•Thermopile Needs A Min.
325mv. Adjust Pilot Flame
Height.
•All Wiring Connections
•Replace Thermopile
•Thermocouple Needs A Min. Of
14mv
•Defective Valve. Turn To Pilot,
Meter Should Read Greater
Than 100mv. If Not, Replace.
Pilot Lights Main Burner
•Valve Is Turned On
•Wall Switch Is Not Turned On.
Watch For Grounded Wires!
•Thermopile Needs A Min. 325mv.
•Plugged Burner Orifice
System Ok
▼
YES
NO
NO
▼
NO
▼
NO
YES
YES
YES
Troubleshooting
Honeywell VS8421

16
Vermont Castings Majestic Products NV360/580 Series
20003565
WARNING: BEFORE DOING ANY GAS CONTROL SERVICE WORK, REMOVE GLASS FRONT.
SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION
1.Spark ignitor will not light A. Defective or misaligned Using a match, light pilot. If pilot lights, turn off
electrode at pilot. pilot and push the red button again. If pilot will not
light - check gap at electrode and pilot-should be
1/8" to have a strong spark.
B. Defective ignitor (Push Button) Push Piezo Ignitor button. Check for spark at
electrode and pilot. If no spark to pilot, and elec
trode wire is properly connected, replace ignitor.
2.Pilot will not stay lit after A. Defective pilot generator Check pilot flame. Must impinge on thermo
carefully following lighting (thermocouple), remote wall couple/thermopile. Note: this pilot burner assem
instructions. switch. bly utilizes both - a thermocouple and a thermopile.
The thermocouple operates the main valve
operation (“ON “and “OFF”). Clean and or adjust
pilot for maximum flame impingement on thermopile and
thermocouple.
B. Defective automatic valve Turn valve knob to “PILOT”. Maintain flow to pilot;
milivolt meter should read greater than 10 mV. If
the reading is okay and the pilot does not stay on,
replace the gas valve. Note: An interrupter block
(not supplied) must be used to conduct this test.
3.Pilot burning, no gas to A. Wall switch or wires defective Check wall switch and wires for proper connec
main burner tions. Jumper wire accross terminals at wall
switch, if burner comes on, replace defective wall
switch. If okay, jumper wires across wall switch
wires at valve, if burner comes on, wires are faulty
or connections are bad.
B. Thermopile may not be 1. Be sure wire connections from thermopile at
generating sufficient gas valve terminals are tight and thermopile is
millivoltage. fully inserted into pilot bracket.
2. One of the wall switch wires may be grounded.
Remove wall switch wires from valve terminals if
pilot now stays lit, trace wall switch wiring for
ground. May be grounded to fireplace or gas
supply.
3. Check thermopile with millivolt meter. Take
reading at thermopile terminals of gas valve.
Should read 250-300 millivolts (minimum 150)
while holding valve knob depressed in pilot
position and wall switch “OFF”. Replace faulty
thermopile if reading is below specified minimum.
C. Plugged burner orifice. Check burner orifices for debris and remove.
D. Defective automatic valve Turn valve knob to “ON”, place wall switch to “ON”
operator. millivolt meter should read greater than 100 mV. If
the reading is okay and the burner does not come
on, replace the gas valve.
4.Frequent pilot outage A. Pilot flame may be too low Clean and/or adjust pilot flame for maximum flame
problem. or blowing (high) causing the impingement on thermopile and thermocouple.
pilot safety to drop out.
B. Possible blockage of the vent Check the vent terminal for blockage (recycling the
terminal. flue gases)
Troubleshooting the Gas Control System
Note: Before trouble shooting the gas control system, be sure external gas shut off is in the “ON” position.
SIT NOVA 820 MILLIVOLT VALVE

17
Vermont Castings Majestic Products NV360/580 Series
20003565

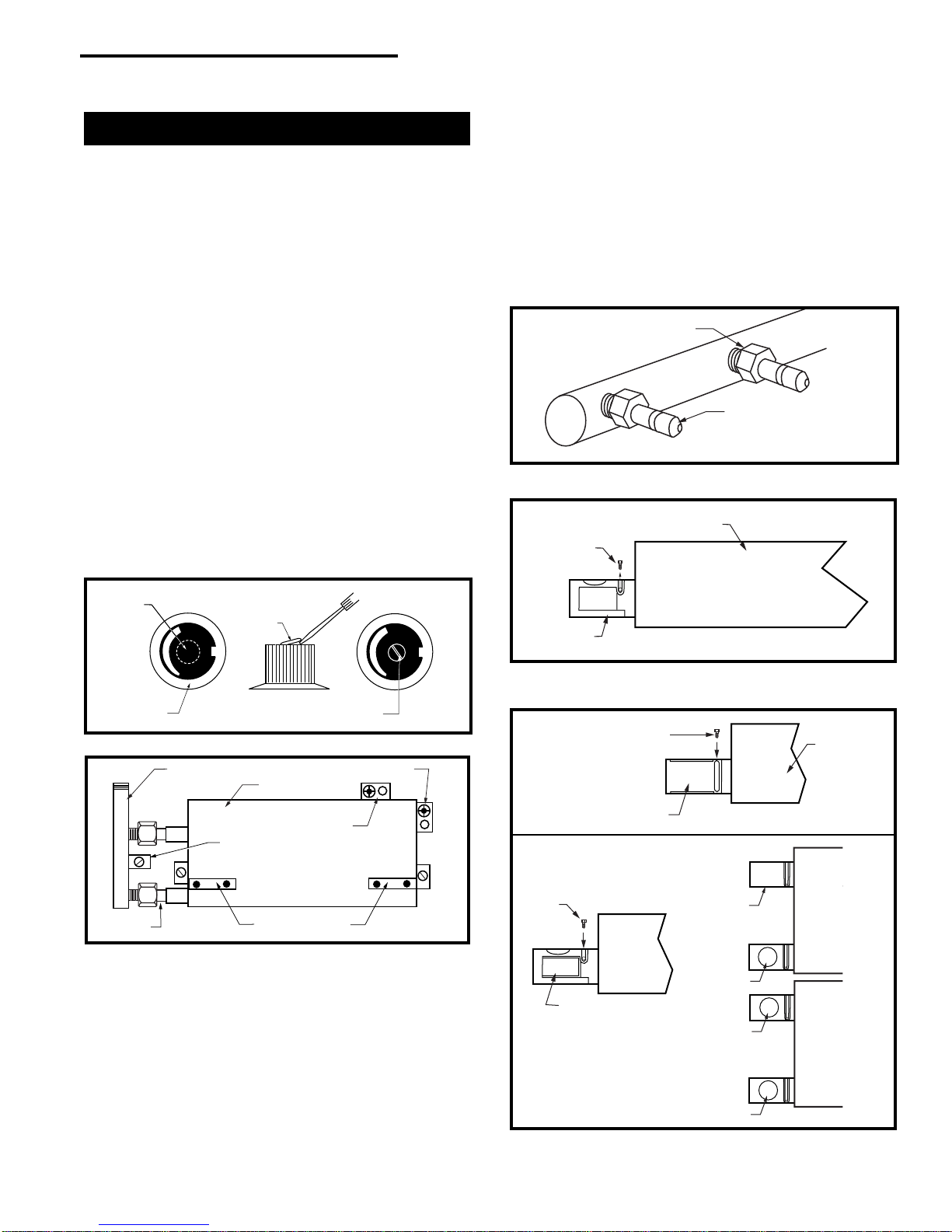

Fuel Conversion Procedure
Honeywell Valve Only
This conversion is for the NV360/580 equipped with a
Honeywell valve only. Before proceeding, turn control
knob on valve to “OFF” and turn gas supply OFF. Turn
OFF any electricity that may be going to the appliance.
CAUTION: Logs may be HOT! Allow to cool before
proceeding.
1. Open bottom grille to gain access to valve. Remove
glass door. (See "Window Frame Assembly Re-
moval", Page 10, Fig. 10)
2. Remove logs if previously installed.
3. Remove cap from Hi/Lo knob. This can be accom-
plished by lifting the plastic cap off the screw. (Fig.
21)
4. Remove the screw from center of Hi/Lo knob with
small screwdriver turning counterclockwise. (Fig. 21)
5. Insert conversion screw supplied in kit. Blue for
Natural Gas and Red for LP Gas.
6. Tighten screw, replace cap.
7. Remove manifold mounting screw from burner. (Fig.
22)
8. Remove burner orifice from manifold assembly using
3/8" wrench. (Fig. 23)
9. Install conversion orifices in place of orifices just
removed.
10. Remove both air shutters from burner pan by
removing shutter retaining screw then air shutter.
(Fig. 24)
Fuel conversion must be completed by qualified personnel
L
O
H
I
L
O
H
I
Hi-Lo Knob
Cap Lift Open
Remove
Center Screw CO100
Fig. 21 Removing center screw from Hi/Lo knob.
Manifold
Assembly
Orifice Log Support
NV580 Pilot Location
CO101a
Burner Pan
NV360 Pilot Location
Manifold Mounting
Screw
Fig. 22 Removing manifold assembly.
CO102a
Rear Burner Orifice:
#53 (NV360)
#51 (NV580)
Front Burner Orifice:
#74 (NV360)
#65 (NV580)
Fig. 23 Remove burner orifice, replace with LP orifice.
Fig. 24 Remove air shutter from burner pan.
Shutter
Retaining
Screw
Burner Pan
Air Shutter Front View CO103
Shutter Retaining Screw
Slots Covered
Burner
Pan
One (1) Hole Closed
Holes Open
Natural Gas
Front View
Holes Open
Holes Open
Burner Pan
NV360
Burner Pan
NV580
Shuter
Retaining
Screw
Slots Open
Front View
Top View
CO110
Fig. 25 Install conversion air shutters.
11. Install air shutters supplied in kit on burner pan.
Replace shutter retaining screw. For conversion to
Natural Gas adjust new air shutters so slots are
covered. For conversion to Propane Gas, adjust new
air shutters so slots are open. NOTE: NV360 air
shutter has only one hole, closed. Secure shutter
retaining screws. (Fig. 25)
12. Re-install manifold to burner pan.
NOTE: It is not necessary to remove the pilot tube
for conversion.

18
Vermont Castings Majestic Products NV360/580 Series
20003565
13. Remove pilot hood by lifting up. (Fig. 26)
14. Remove pilot orifice with allen wrench. (Fig. 27)
15. Install LP pilot orifice.
16. Re-install pilot hood and be sure to align with index
tab. Installation is complete.
Replacement of Ceramic Hearth Panels
1. Turn unit OFF. NOTE: Be sure unit is cool.
2. Remove glass.
3. Remove logs. Remove old hearth panels and
discard.
4. Remove two (2) screws securing grate to hearth
pan. (Fig. 28)
5. Set left and right panels on hearth and bring towards
front of unit.
6. Replace grate assembly.
7. Replace logs.
8. Reinstall glass panels.
Fig. 26 Remove pilot hood.
CO105a
Pilot Hood
Pilot Bracket
Grate
Burner
Hearth Panels
Front of Unit H100a
Fig. 28 Hearth panel location.
Screw Screw
Fig. 27 Remove pilot orifice. CO106a
Snap Ring
Index Tab Allen
Wrench

19
Vermont Castings Majestic Products NV360/580 Series
20003565
Burner and Burner Compartment
It is important to keep the burner and the burner
compartment clean. At least once per year the logs and
lava rock/ember material should be removed and the
burner compartment vacuumed and wiped out. Remove
and replace the logs as per the instructions in this
manual. Always handle the logs with care as they
are fragile and may also be hot if the
fireplace has been in use.
FK12 Fan Assembly
The fan unit requires periodic cleaning. At least once
per month in the operating season, open the lower
louvre panels and wipe or vacuum the area around the
fan to remove any build up of dust or lint.
Brass Trim
Clean the brass trim pieces using a soft cloth lightly
dampened with lemon oil. Do not use water or
household cleaners on any brass components.
Contact your local representative to arrange an annual
service program.
Cleaning the Standing
Pilot Control System
The burner and control system consists of
• burner tube •gas orifice
• pilot assembly •thermopile
• millivolt gas valve
Most of these components may require only an occa-
sional checkup and cleaning and some may require
adjustment. If repair is necessary, it should be
performed by a qualified technician.
Logs May be Hot!!
1. Turn off pilot light at gas valve side.
2. Let fireplace cool if it has been running.
3. Remove window frame assembly. (Refer to Window
Frame Assembly Removal section)
4. Remove logs.
5. Vacuum burner compartment especially around
orifice primary air openings.
6. Visually inspect pilot. Brush or blow away any dust
or lint accumulation.
7. Reinstall logs.
8. Ignite pilot - Refer to Lighting Instructions.
9. Reinstall window frame assembly.
To obtain proper operation, it is imperative that the pilot
and burner’s flame characteristics are steady, not lifting
or floating.
Typically, the top 3/8” or 1/2” of the thermopile should
be engulfed in the pilot flame. (Fig. 59)
To adjust pilot burner; (by qualified service technician)
1. Remove pilot adjustment cap.
2. Adjust pilot screw to provide properly sized flame.
3. Replace pilot adjustment cap.
The primary air shutter is set at factory and should only
be adjusted, if necessary, by a qualified service techni-
cian.
Maintenance
3/8” - 1/2”
F584-703
Fig. 59 Correct pilot flame appearance.

20
Vermont Castings Majestic Products NV360/580 Series
20003565
1d
1e
1c
1a
1b
DV360
1d
1e
1c
1a 1b
1f
DV580
5a,b
8a 8b
11
12
21a-d
22
1g
2
3
4
6
9
16
37
36a
7
10a
13
15
14
17
18
PILOT
ON
OFF
PILOT
ADJ
L
O
H
I
TPTH TH
TP
23 a/b 24 a/b
25
29
34a/b
35
19
20
26
31
27
28
32 33
38 39
40
41
42
10b
36b
47
3565
Vermont Castings, Majestic Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and
products at any time, without notice.
NV360/580
Ref. Description NV360 NV580
1. Log Set 20002397 20002071
1a. Log Front Left B25 E1
1b. Log Front right B26 E2
1c. Log Rear B27 E3
1d. Log Top Left B28 E4
1e. Log Top Right B29 E7
1f. Log Top Center Left -- E5
1g. Log Top Center Right -- E6
2. Volcanic Rock 20000376 20000376
3. Ember (Package) 51915 51915
4. Lava Rock (Burner) 57897 57897
5a. Burner Housing Assembly - NG 20002411 20004268
5b. Burner Housing Assembly - LP 20004145 20002402
