Controll-A-Door P Diamond User manual

www.bnd.com.au
N1854
B&D Doors is a division of B&D Australia Pty Ltd
ABN 25 010 473 971

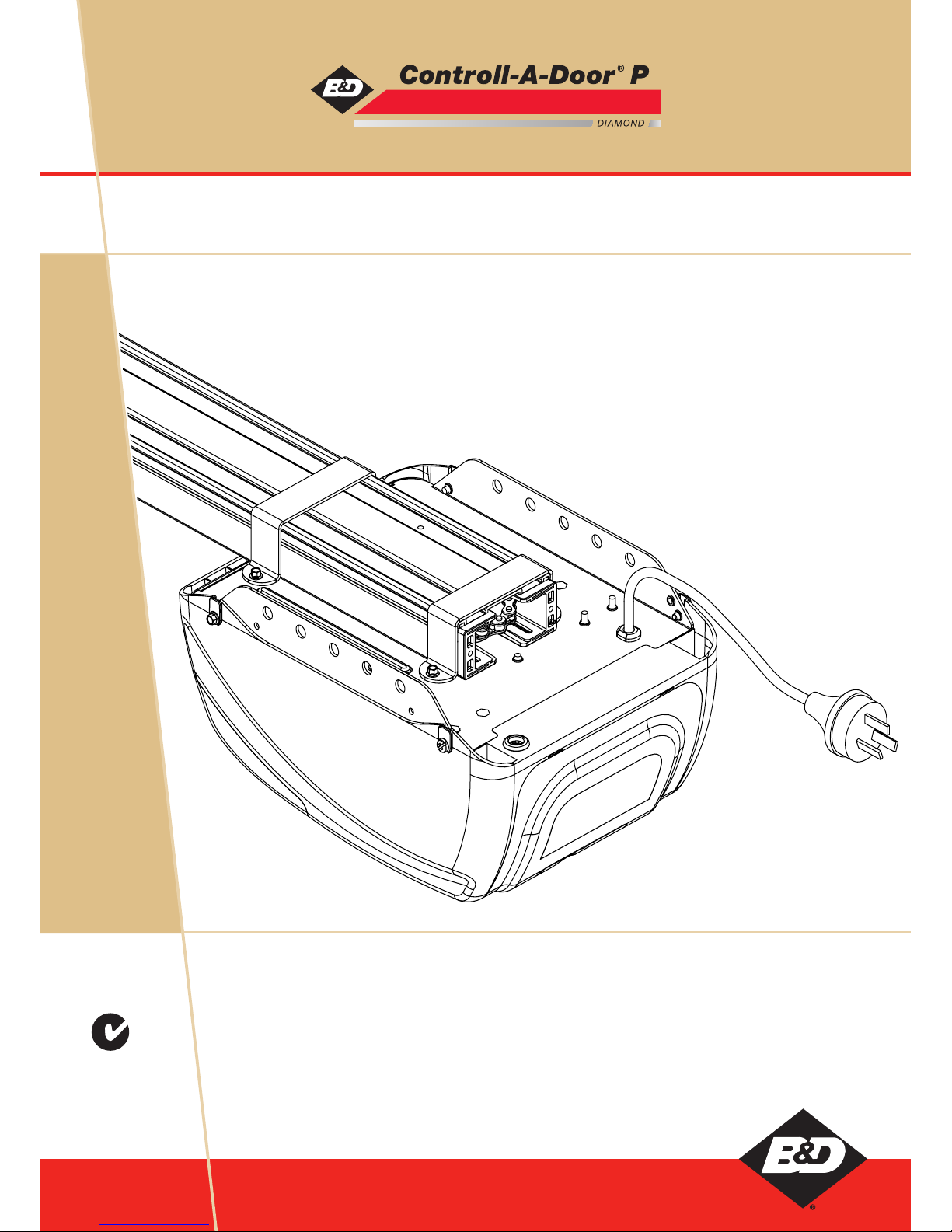

Controll-A-Door®P Diamond
and Whisper Quiet
Instruction Manual
Sectional Door Opener
Manufacturer’s Part # 79075 (Manual)

Safety Rules 03
Default Settings & Specifications 04
About Your Opener 05
Operating Controls 06
Kit Contents 08
Installation 10

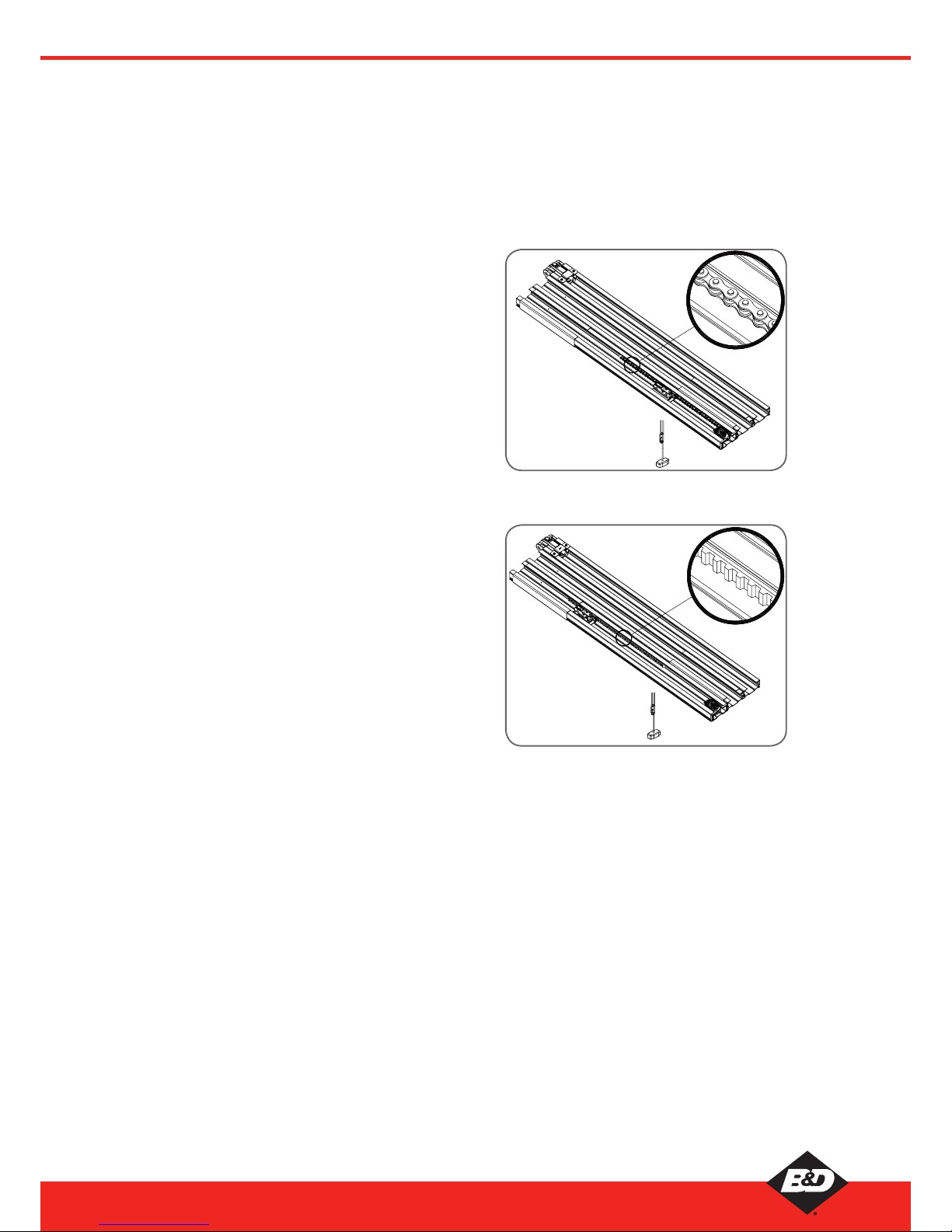

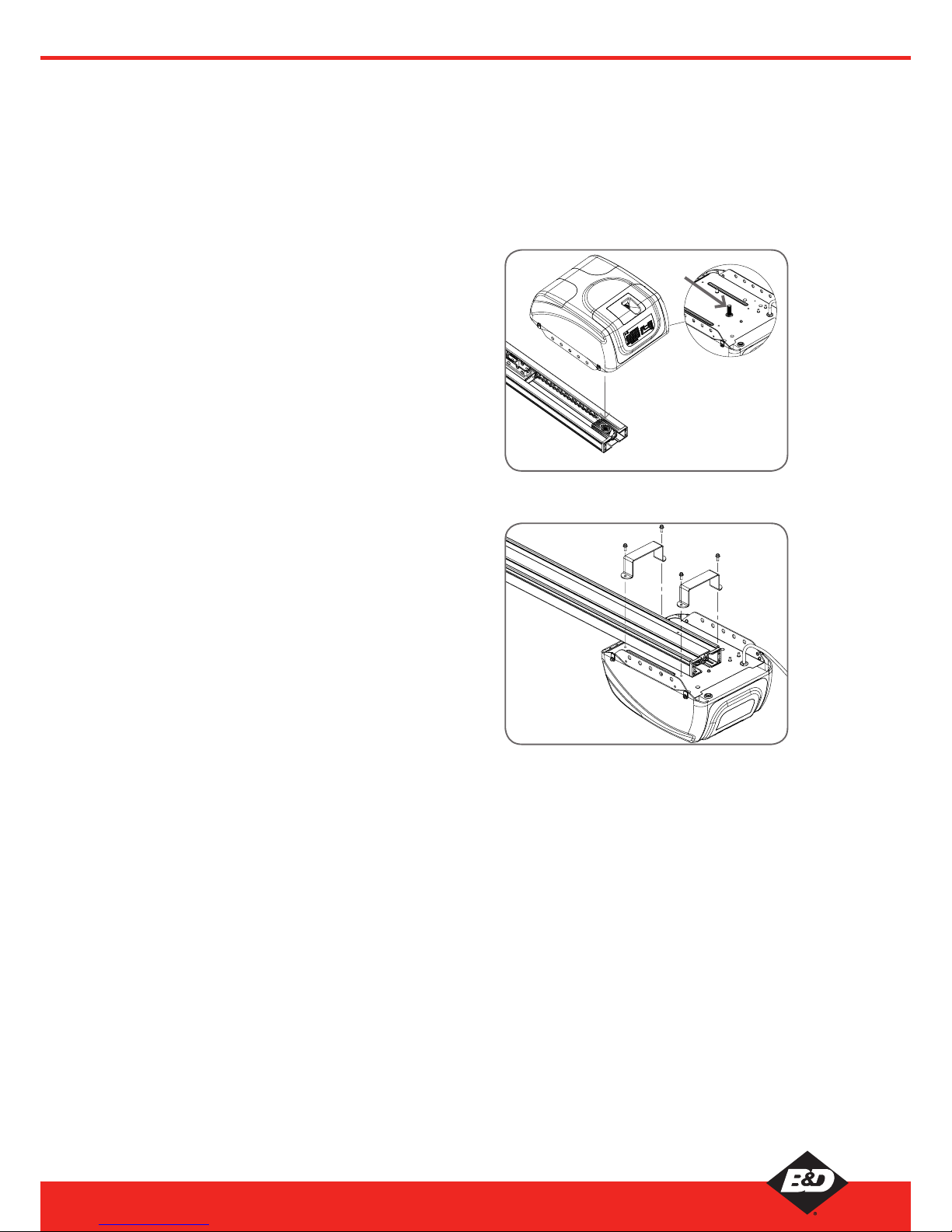

Knockdown C-Rail Assembly 10
Determine Door Type 12

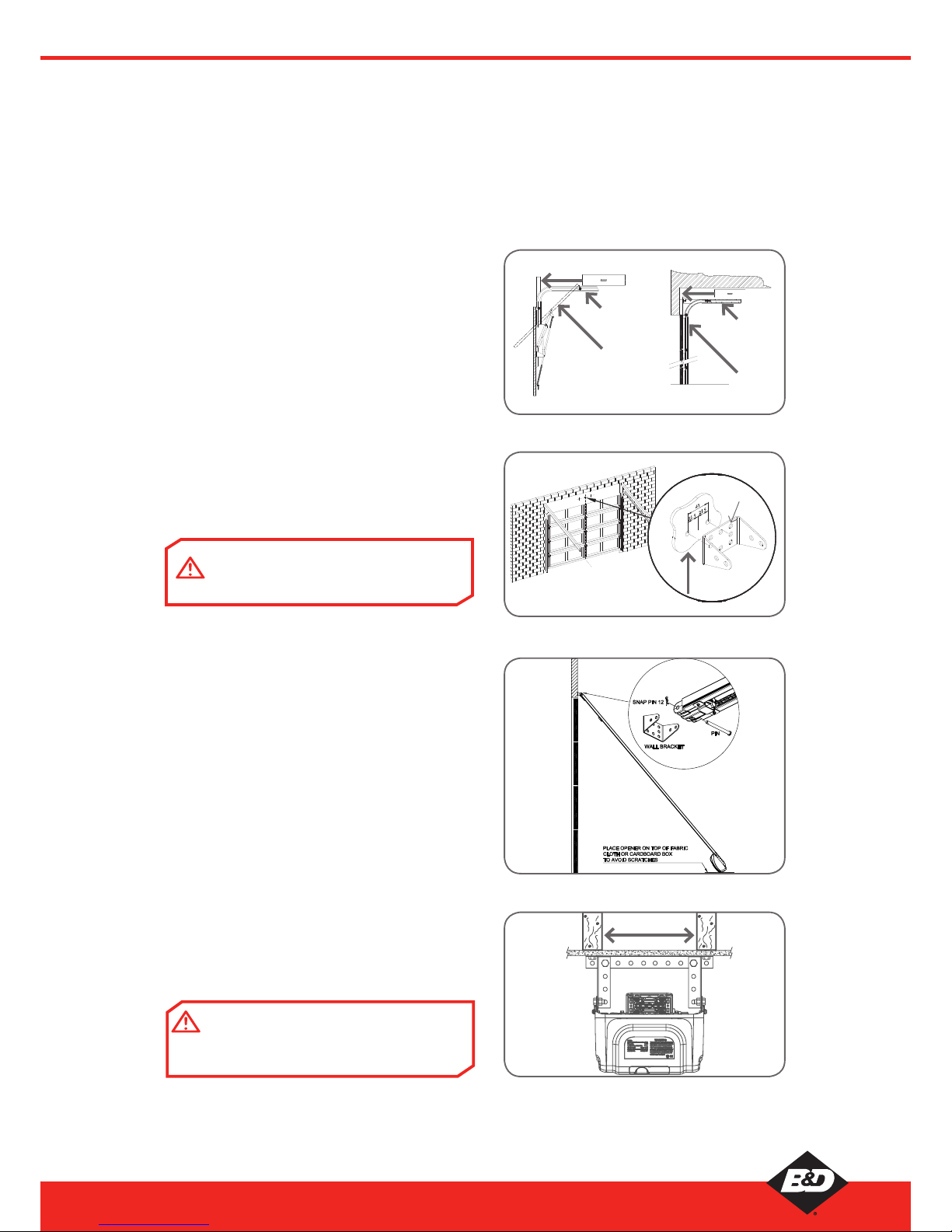

Mounting - Track Type Door 13
Mounting - Non-Track Type Door 14

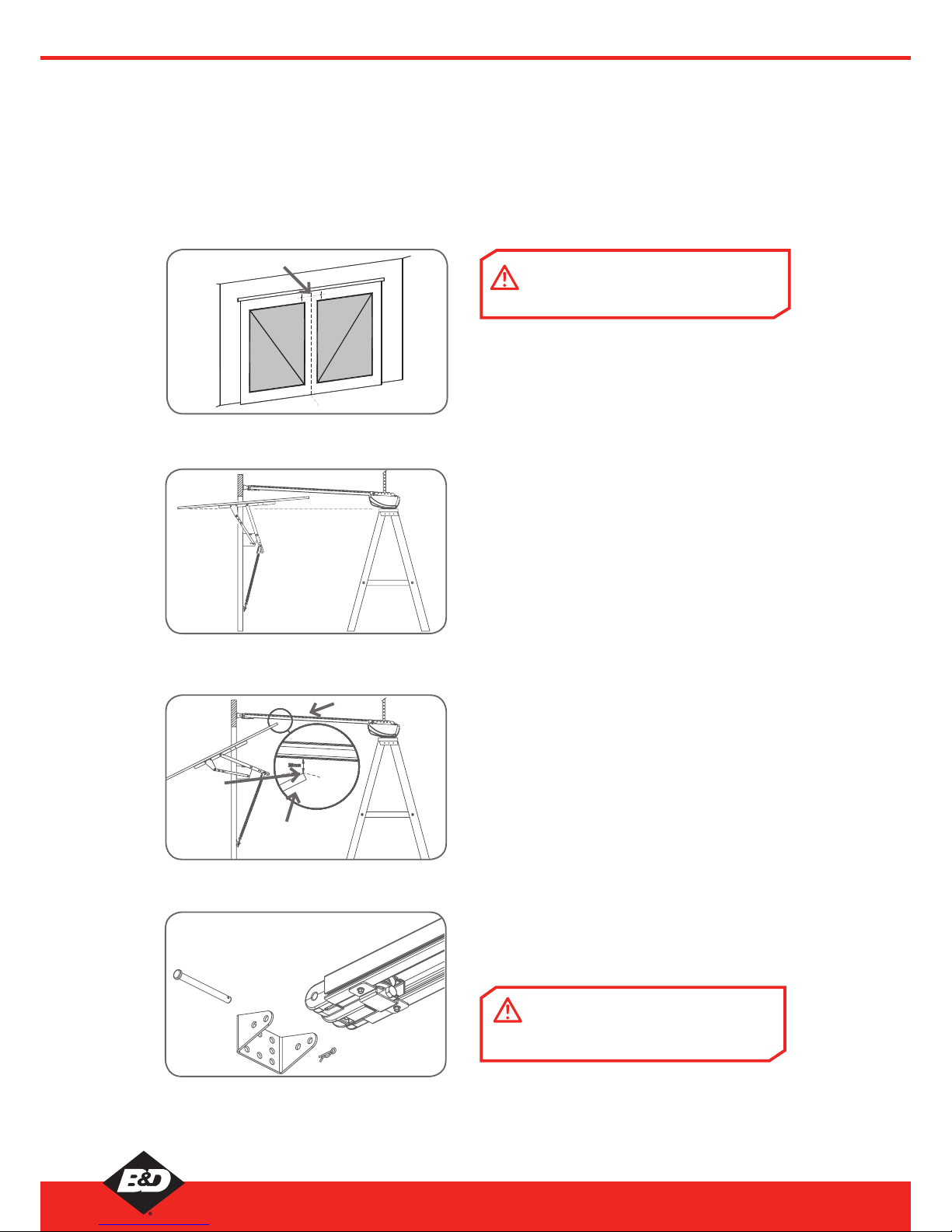

Mounting Door Bracket & Arms 15
Programming the Opener 16

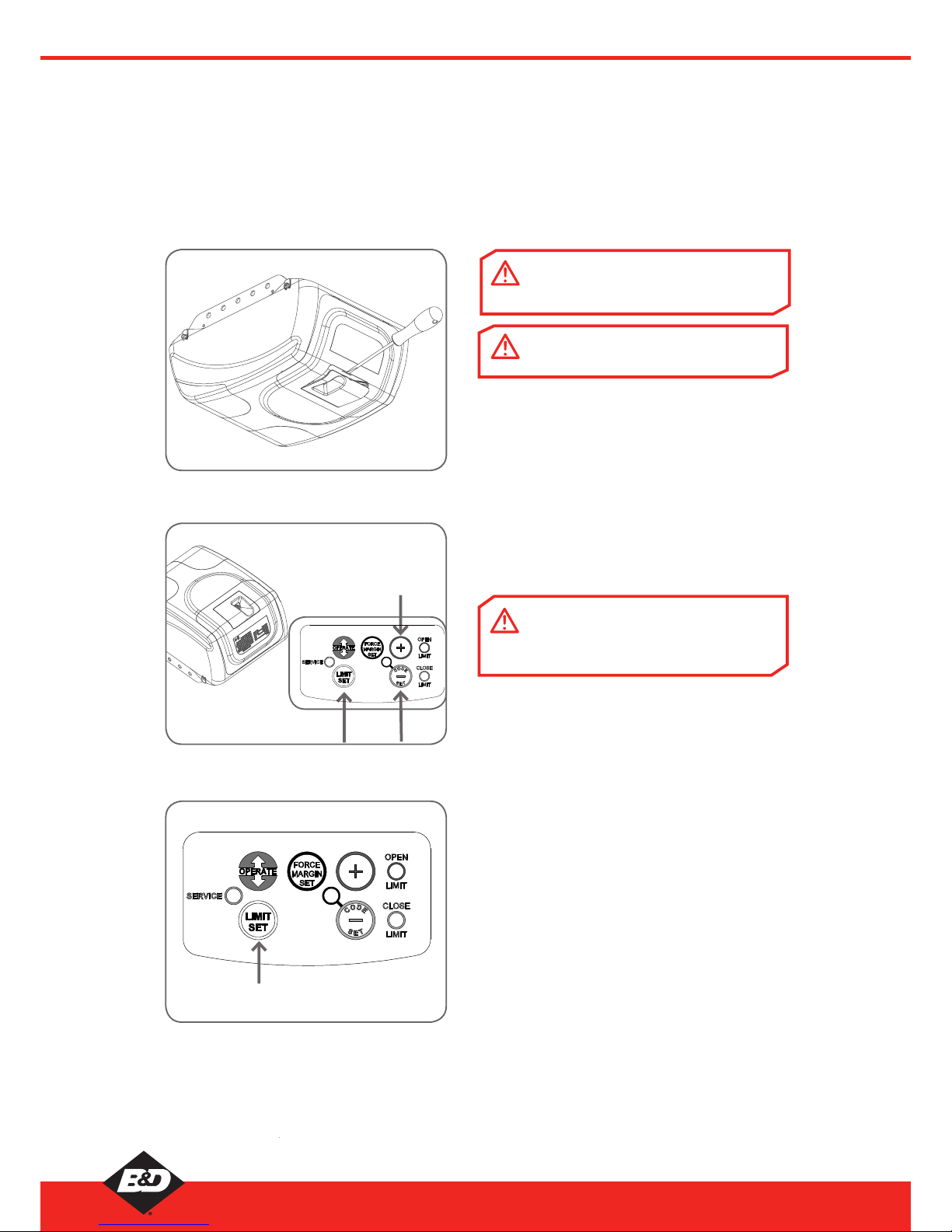

Setting Travel Limits 16
Testing Safety Obstruction Force 17

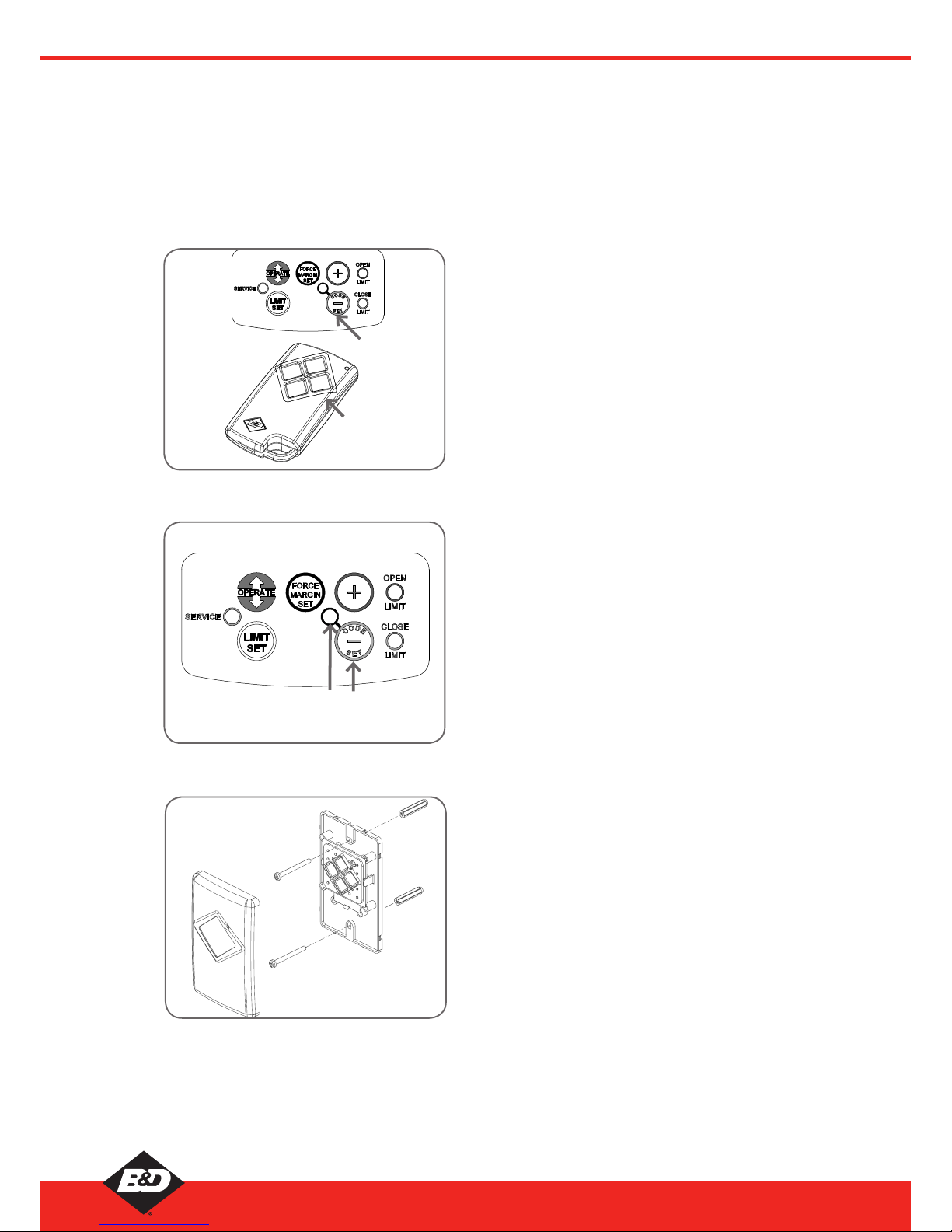

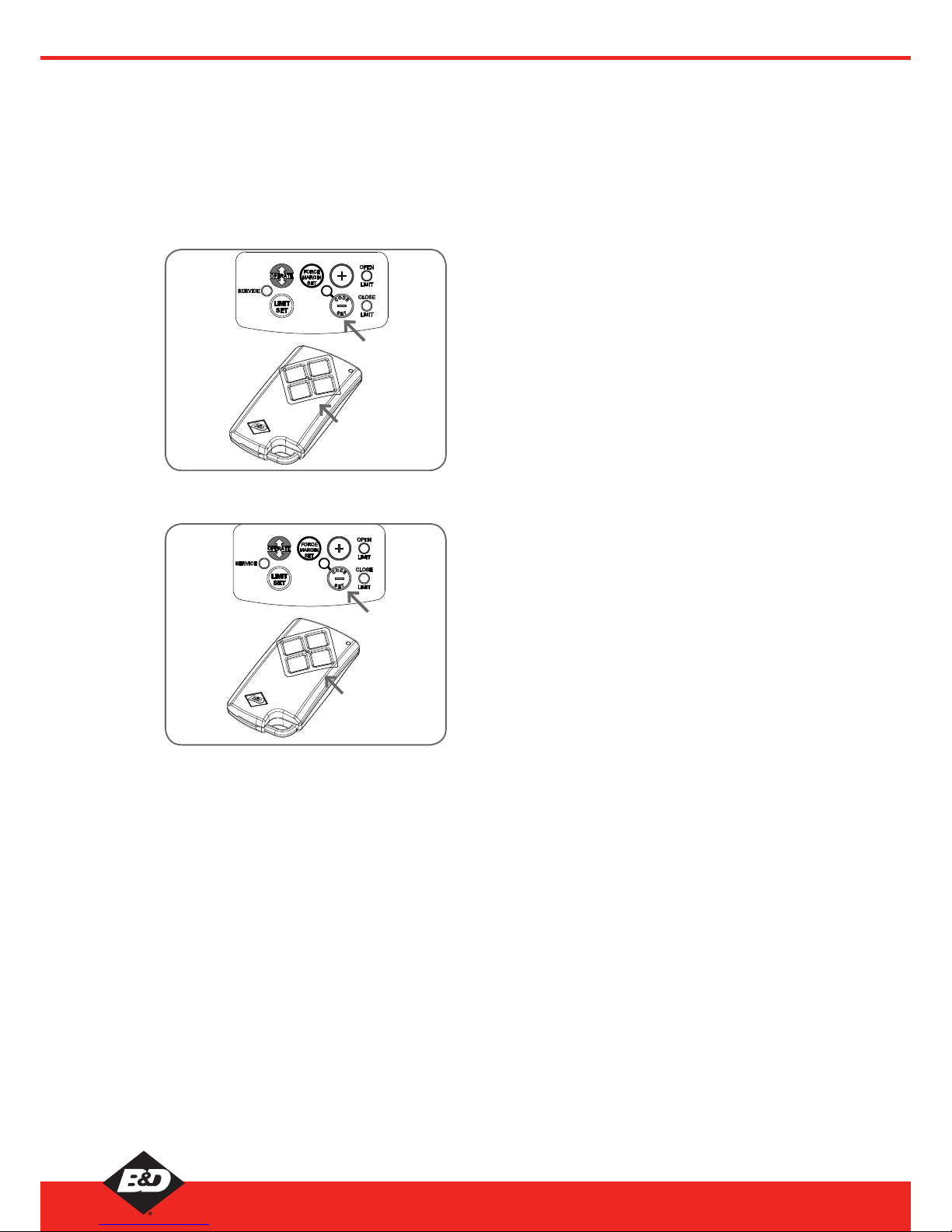

Coding Transmitters 18
Door 18
Courtesy Light 18
Vacation Mode 19
Auxiliary Output 19
Pet (Pedestrian) Mode 20
Erasing Transmitter Codes 20
Mounting Wall Transmitter 20
Accessories 21
Terminal Block 21
Remote Aerial 21
Safety Infra-red Beam 22
Electric Key Switch 22
Battery Back Up Installation 23
How To Use Your Opener 24
Transmitter 24
Transmitter Battery 25
Locking 25
Manual Release 25
Power Failure 25
Safety Infra-red Beam 26
Auto-Close 26
Courtesy Light 26
Auxiliary Output 26
Vacation Mode 26
Pet Mode 26
Maintenance 27
Troubleshooting Guide 28
Parameters 29
Parts List 30 – 31
Warranty 32 – 33
Optional Accessories 34
Controll-A-Door®P Diamond
Sectional Door Opener
Controll-A-Door®P Diamond Instruction Manual2

Safety Rules
Please read these important safety rules
These safety alert symbols indicate a personal safety or property damage
instruction exists. READ THESE INSTRUCTIONS CAREFULLY.
This automatic garage door opener is designed and tested to offer safe
service provided it is installed and operated in strict accordance with the
following safety rules. Failure to comply with the following instructions may
result in death, serious personal injury or property damage.
CAUTION: If your garage has no pedestrian entrance
door, an emergency access device should be installed.
This accessory allows manual operation of the garage door from
outside in case of power failure.
Position the Garage Door Opener so that the power plug
is accessible when inserted into the power outlet (EN
60335-1).
This opener should be installed in accordance with
relevant Australian Standards.
Do not allow children to play with door opener controls.
Keep transmitters away from children.
Watch the moving door and keep people away until the
door is completely opened or closed.
Activate the opener only when the garage door is in full
view, free of obstructions and with the opener properly
adjusted.
Keep the garage door balanced. Sticking or binding
doors must be repaired. Garage doors, door springs,
brackets and their hardware are under extreme tension and
can cause serious personal injury. Do not attempt any garage
door adjustment. Do not use if repair or adjustment is needed.
Call for professional garage door service.
Install the optional wall transmitter in a location where the
garage door is visible, but out of the reach of children at
a height of at least 1.5m from the floor.
Disconnect electric power to the garage door opener
before removing covers.
Doors requiring over 400N of force to move must have
Safety Infra-red Beams fitted.
Do not wear rings, watches or loose clothing while
installing or servicing a garage door opener.
This opener is not suitable for commercial, industrial
or common entry applications.
To avoid serious personal injury from entanglement,
remove all unnecessary ropes or chains and disable
any equipment such as locks which are not needed for
powered operation.
Installation and wiring must be in compliance with
your local building and electrical codes. Connect
the power cord only to properly earthed mains. If an
extension lead must be used, make sure it is a 3-core lead
and approved to 7 amp capacity.
If the power cord is damaged, it must be replaced
by the manufacturer, its service agent or a similarly
qualified person in order to avoid a hazard.
When using optional Auto-Close mode, a Safety
Infra-red Beam (Part No 062734) must be fitted
correctly and tested at regular intervals. Extreme caution
is recommended when using Auto-Close mode. All safety
rules must be followed.
This opener is a plug in domestic appliance and is
designed for indoor use only. It must be installed in
a dry position that is protected from the weather.
The opener is not intended for use by young children
or infirm persons without supervision.
B&D Doors to the extent that such may be lawfully excluded hereby expressly disclaims all conditions or warranties, statutory or otherwise which may be implied by laws as
conditions or warranties of purchase of a B&D Garage Door Opener. B&D Doors hereby further expressly excludes all or any liability for any injury, damage, cost, expense or claim
whatsoever suffered by any person as a result whether directly or indirectly from failure to install the B&D Garage Door Opener in accordance with these installation instructions.
WARNING! It is vital for the safety of
persons to follow all instructions. Save
these instructions.
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
3Controll-A-Door®P Diamond Instruction Manual

Default Settings & Specifications
Factory default settings
Default Step Minimum Maximum
Maximum opener run time 30 seconds ---
Courtesy light time 4 minutes
(approx.)
---
Obstruction force margin 21014
Auto-Close time 30 seconds ---
Technical specifications
Rated temperature +5° to 40°C
Power supply 230V - 240Va.c. 50Hz
Transformer rating 24Vd.c.
Standby power 2.2 Watts
Motor power 100 Watts
Motor type 24Vd.c. permanent magnet
Shuttle travel distance in the C-Rail 2.7m approx. (standard)
Maximum shuttle travel distance in the C-Rail 3.750 m (with one extension)
Maximum door opening: Width:
Height:
Weight:
5500mm (16.5m2)
3000mm
100kg
Minimum headroom 30mm
Short term peak force 1000N (100kg) with Chain
800N (80kg) with Timing Belt
Lift force 600N (60kg) with Chain
500N (50kg) with Timing Belt
Nominal force 150N (15kg)
Receiver type UHF Multi-frequency FM Receiver
Receiver code storage capacity 14 X 4 button Transmitter Codes
Transmitter frequency UHF Multi-frequency FM Transmitter
Coding type Code Hopping
Number of code combinations Over 4.29 billion random codes
Code generation Non-linear encryption algorithm
Transmitter battery CR2032 (3 Volts)
Courtesy light LED (Light Emitting Diodes)
Controller fuse 10A slow blow
*The actual travel of the door depends on configuration of the connecting arms.
Note: Intermittent operations may occur in areas which experience very strong winds. The strong wind puts extra pressure
on the door and tracks which may in turn intermittently trigger the safety obstruction detection system.
Controll-A-Door®P Diamond Instruction Manual4

Thank you for choosing a Controll-A-Door® P Diamond
automatic garage door opener, designed and developed in
Australia by B&D Doors.
The technically advanced construction of this opener
ensures you enjoy the following benefits:
Warranty
Five (5) year/10,000 cycles full parts and labour warranty
on motor, electronics and mechanical components of
the opener when installed by an Approved B&D Dealer
(conditions such as annual garage door servicing apply).
Tri-Tran Frequency Hopping Technology
Every time a transmitter is used, it simultaneously sends a
signal over three different frequencies, reducing the chance
of interference from other radio frequency sources.
Code Hopping Technology
Every time a transmitter is used a new security code
is generated from over 4.29 billion possible code
combinations. This greatly enhances the security of the
system and makes “code grabbing” a thing of the past!
Multi-Channel Transmitter
Multi-channel transmitters allow you to operate other
devices such as an adjoining garage door or automated
gate from the same handy unit.
Warranty Expired Indicator
The opener will indicate that the number of cycles covered
by the warranty has been reached by flashing the courtesy
light 10 times after each operation. This flashing will
continue for 20 cycles unless it is reset by pressing the
LIMIT SET button while the courtesy light is flashing.
Safety Reversing System
The automatic safety reverse system significantly reduces
the risk of death or serious injury if trapped by a closing door.
The safety reverse force can be adjusted for environmental
conditions such as windy areas.
LED Courtesy Light
Using the latest Light Emitting Diode (LED) technology, the
opener features two light modules consisting of three LEDs
each. These modules produce a brilliant white light that
illuminates the garage upon activation.
The LED courtesy light automatically switches on for
approximately four (4) minutes (time programmable)
when operating the door. This can also be programmed to
turn on and off from a transmitter.
Battery Back Up
Optional Battery Back Up or solar power is available.
Memory Retention
In case of a power failure the opener does not lose the
transmitter codes or limit settings.
Soft Start/Soft Stop
The opener eases into and out of each cycle making
for smoother and quieter operation, as well as reducing
wear and tear on the door and opener.
Manual Release
The manual release handle allows the door to be
operated by hand in the event of a power failure.
Handle needs to be a minimum of 1.8m from floor.
Self Locking
There is no need to manually lock your garage door, as
the opener ‘positively’ locks the door when closed.
Periodic Maintenance Indicator
The SERVICE LED will illuminate to indicate that
periodic maintenance is required. Contact your dealer/
installer for service.
Service Fault Indicator
Flashing LEDs on the control panel easily identify
operational problems or service requirements.
Dynamic Door Profiling
Changing door characteristics are automatically
compensated for and “learnt” with every seven
operations of the door.
Auto-Close
The Auto-Close option can be programmed to close
the door approximately 30 seconds after the door has
opened. PLEASE NOTE - Safety Infra-red Beams must
be installed for this option to function.
External Aerial
An external aerial can be connected for sites where
radio reception is poor.
Vacation Mode
A transmitter can be programmed to disable the
garage door opener radio receiver. This is ideal if the
door is to be left idle for prolonged periods.
Pet (Pedestrian) Mode
A transmitter can be programmed to open the door
partially to allow pets access to the garage. The door
opening height is adjustable via a handheld programmer.
Auxiliary Output
You can program a spare button on your transmitter to
operate this output, which can control items that use a
momentary close switching mechanism.
About Your B&D Opener
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
5Controll-A-Door®P Diamond Instruction Manual

Operating Controls
10 Amp fuse to protect the electronic circuit board.
Terminal is used to connect Va.c. power to the control board.
SBY-3 Battery Charger connection to attach a Battery Back Up kit.
24Vd.c. Motor Connection.
OPERATE button (Blue) is used during installation to test the open, stop and close cycles for the opener. The opener
has to be initialised by the LIMIT SET button to make the OPERATE button operable.
PLUS (+) button (Green) is used during installation to help set the open limit position. Pressing and holding this button
will move the door in the open direction. Movement stops when the button is released.
NOTE: The safety obstruction system is inoperable whenever the PLUS (+) button is used to move the door.
PROG INPUT is used to connect the Universal Handheld Programmer to edit control and receiver functions.
OPEN LIMIT LED (Green) is used during installation to help set the open limit position. It also illuminates and flashes
as the door opens, and remains on when the open limit position has been reached.
FORCE MARGIN SET button. The obstruction force margin is set automatically during installation. The margin can
be adjusted manually using the FORCE MARGIN SET button (White). Holding the FORCE MARGIN SET button and
pressing PLUS (+) or MINUS (-) buttons will increase or decrease the amount of force. The FORCE MARGIN SET button
should only be used if environmental factors, such as high winds, affect the door’s operation.
CLOSE LIMIT LED (Red) is used during installation to help set the close limit position. It also illuminates and flashes as
the door closes, and remains on when the close limit position has been reached.
MINUS (-) button (Red) is used during installation to set the close limit position. Pressing and holding this button will
move the door in the close direction. Movement stops when the button is released. This button is also used for storing
or erasing the transmitter button you wish to use to command the door to open, stop or close.
NOTE: The safety obstruction system is inoperable whenever the MINUS (-) button is used to move the door.
CODE SET LED (Red) flashes when a transmitter button is stored.
LIMIT SET button (White) is used during installation, together with the PLUS (+) and MINUS (-) buttons, to set the door
limit positions. The LIMIT SET button is also used to re-initialise the opener.
SERVICE LED (Yellow) indicates when the opener requires service or repairs.
Courtesy Light LED Module connects the 24V LED lighting modules.
Terminal Block:
30V PWR is used to power devices such as Safety Infra-red Beams and external receiver (100 milliamp max).
P.E input is used to connect to Safety Infra-red Beam.
P.E 0V is a 0 volt connection for Safety Infra-red Beam.
GND is a common -ve ground for accessories
OPERATE is used for the connection of a wired switch (momentary contact). This switch can then be used to open,
stop or close the door. Install the wall switch in a location where the switch is out of reach of children and the garage
door is visible.
AUX OUT This function allows the opener to operate other devices such as external lights, or an alarm system.
01.
02.
03.
04.
05.
06.
07.
08.
09.
10.
11.
12.
13.
14.
15.
16.
Controll-A-Door®P Diamond Instruction Manual6

03
Fig. 01
04
02
01
16
15
14
13
12
07
08
09
10
11
05
06
15
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
7Controll-A-Door®P Diamond Instruction Manual

Kit Contents
Powerhead Unit (Fig. 02)
1 x Controll-A-Door®P Diamond powerhead
1 x Transmitter pack
(Pack includes two keyring transmitters and batteries)
1 x Wall mount transmitter with battery
2 x Door attachment arms
1 x Accessory and hardware pack
1 x Installation Manual
Single Piece C-Rail with Pre-Assembled Chain
(Fig. 03)
NOTE: Chain in one piece rail has been tensioned by the
factory. Adjust the tension of the chain to suit.
IMPORTANT NOTE: If a modification to the length of the
track is required, the adjustment must be made from the
powerhead end only.
Single Piece C-Rail with
Pre-Assembled Timing Belt (Fig. 04)
Note: timing belt in one piece rail has been tensioned by
the factory. Do not adjust the tension of the timing belt.
IMPORTANT NOTE: If modification to the track length is
required, adjustment must be made only from powerhead
end.
Fig. 02
Fig. 04
Fig. 03
OR
PLUS
OR
Controll-A-Door®P Diamond Instruction Manual8

Multi Piece Knockdown C-Rail with
Pre-Assembled Chain (Fig. 05)
IMPORTANT NOTE: If a modification to the length of the
track is required, the adjustment must be made from the
powerhead end only.
Multi Piece Knockdown C-Rail with
Pre-Assembled Timing Belt (Fig. 06)
IMPORTANT NOTE: If a modification to the length of the
track is required, the adjustment must be made from the
powerhead end only.
Kit Contents
Fig. 05
Fig.06
OR
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
9Controll-A-Door®P Diamond Instruction Manual

Knockdown C-Rail Assembly
Step 1 - Assemble the C-Rail (Knockdown C-Rail units only)
Unpack and assemble the C-Rail using the steps outlined below in (Fig. 07).
Fig. 07
TENSION 13mm HEX BOLT
13mm HEX BOLT TO TENSION CHAIN OR TIMING BELT
Controll-A-Door®P Diamond Instruction Manual10

C-Rail Assembly
Step 2 - Attach C-Rail to Powerhead
Locate and insert the powerhead’s shaft into the C-Rail’s
sprocket as shown in (Fig. 08).
Step 3 - Secure C-Rail to Powerhead
Fix the two track brackets as shown in (Fig. 09). Fix with
the four screws supplied in accessory pack.
Locate shaft into sprocket
Shaft
Hex flange screw taptite ‘S’ M4 X 10
Track bracket (x2)
Fig.09
Fig. 08
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
11Controll-A-Door®P Diamond Instruction Manual

Fig. 12
Fig. 11
Fig. 10
Determine the Door Type
Step 4 - Determine the Door Type
Determine which type of garage door you have as illustrated
in (Fig. 10) to (Fig. 12).
For a sectional (panel) door on tracks (Fig. 10)
proceed with the installation from Step 5.
For a one piece door on tracks (Fig. 11)
proceed with the installation from Step 5.
For a one piece door without tracks (on springs) (Fig. 12)
proceed with the installation from Step 9 (page 14).
Proceed from Step 5
Door
Track
Sectional door with track
One piece door with track
Door
Track
Door
Proceed from Step 5
Proceed from Step 9 on page 13
One piece door without track
Controll-A-Door®P Diamond Instruction Manual12

Track
Door
Track
Level
Level
Door
Drilled holes
Structural member
Fig. 16
Fig. 15
Fig. 14
Fig. 13
Mounting on a Track Type Door
Step 5 - Determine Bracket Position
Open the door and find the highest point of travel ofa.
the top door panel.
Using a level, transfer this height to the wall above theb.
door (Fig. 13) and mark a line 60mm above it.
Determine the centre point on the wall above and onc.
top of the door. Then draw two (2) lines extending
21.5mm from each side of the centre point.(Fig. 14)
Step 6 - Mounting the Wall Bracket
Centre the bracket over the intersection of these twoa.
lines. Mark centres for at least two holes (Fig. 14).
Ensure a solid mounting point is behind•
these holes.
Drill holes into the wall with an appropriate sized bit.b.
Secure bracket to the wall using:c.
IF CONCRETE OR BRICK - 10mm dynabolts.
IF TIMBER - wood screw #20 or equivalent
(minimum 50mm long).
WARNING: Make sure concrete, brick wall
or timber lintels are solid and sound so as to
form a secure mounting platform.
Step 7 - Attach the C-Rail to the Wall Bracket
Attach the C-Rail assembly to the wall bracket with thea.
90mm long clevis pin and secure with the supplied
snap pin (Fig. 15).
Leave the powerhead in its packing box for protectionb.
during installation.
Step 8 - Securing the Powerhead to the Ceiling
Raise the powerhead from the packing box anda.
support it in the horizontal position with a step ladder
or support system above the door.
Open the garage door. Rest the opener on the openb.
door and use a scrap piece of wood to bring it to
horizontal level.
Line up the track perpendicular to the wall.c.
Secure the perforated angle (not supplied) to thed.
ceiling above where powerhead’s mounting holes will
be once fully installed. A representative mounting is
shown (Fig. 16).
Connect the powerhead to the ceiling mountede.
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of powerhead mounting holes (Fig. 16).
For an alternative mounting option, go to Step 12.1
WARNING: The opener must be securely
fastened to structural supports, otherwise
opener failure may ensue causing serious
personal injury and/or property damage.
11mm
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
13Controll-A-Door®P Diamond Instruction Manual

Centre of door
Step
Ladder
Step
Ladder
C rail
Door
Highest point
of door travel
Fig. 19
Fig. 18
Fig. 17
Fig. 20
Mounting on a Non-Track Type Door
WARNING: Make sure concrete, brick wall or
timber lintels are solid and sound so as to form
a secure mounting platform.
Step 9 - Determine the Door’s Centre
Find the centre of the door and mark this location botha.
above the door and on top of the door.
Draw two lines 21.5mm either side of thisb. (Fig. 17).
Step 10 - Prepositioning the Opener
Raise the door to open position.a.
Rest the opener on the top edge of the door with endb.
of the C-Rail against the wall (Fig. 18).
Support the powerhead level with the lowest point ofc.
the open door (Fig. 18).
NOTE: Do not slide C-Rail along the face of the door.
Step 11 - Mounting the C-Rail
Close the door slowly. The C-Rail will be elevated bya.
the top edge of the door as it moves.
Stop the door when it is at its highest point of travel.b.
Allow 25mm additional height for clearance between
the door and the track (Fig. 19).
Support the C-Rail in this position and close the doorc.
The height determined in Step 11(b) will be the heightd.
at which to mount the wall bracket.
Centre the bracket along the line determined in Step 9.e.
Using the bracket as a template, mark a minimumf.
of two holes and drill with appropriate size bit. For a
more secure fitting, the wall bracket can be anchored
using more than two holes.
Secure the bracket to the wall using:g.
IF CONCRETE OR BRICK - 10mm dynabolts.
IF TIMBER - wood screw #20 or equivalent
(minimum 50mm long).
Attach the wall bracket to the C-Rail with the 90mmh.
long clevis pin (Fig. 20) and secure by a snap pin.
Step 12 - Securing the Powerhead to the Ceiling
Secure the perforated angle (not supplied) to thea.
ceiling above where powerhead’s mounting holes will
be. See (Fig. 16) for a representative mounting.
Connect the powerhead to the ceiling mountedb.
perforated angle with M8x20mm screws and nuts.
Strips should not extend more than 18mm below
centre of powerhead mounting holes (Fig. 16).
WARNING: The opener must be securely
fastened to structural supports, otherwise
opener failure may ensue causing serious
personal injury and/or property damage.
Controll-A-Door®P Diamond Instruction Manual14

A
Ceiling
Aluminium rail
Shuttle assembly
Drill hole at centre of track
(recommended bolt size
M6 or M8)
The height of bolt
head must not
exceed 6 mm
Fig. 21
Fig. 22
Fig. 23
Fig. 24
Mounting Door Bracket and Arms
Step 12.1 - Alternative Mounting Option
The opener can be fastened to the roof by driving a bolt
through the C-Rail into a structural timber support. The bolt
head’s height must not exceed 6mm (Fig. 21).
Step 13 - Mounting Door Bracket
The door bracket comes in two parts. The bottom plate
with two mounting holes is used on its own for one piece
doors. For sectional doors, the top plate is placed over the
bottom plate and is fixed with four (4) screws (Fig. 22).
Mount the door bracket, or bracket assembly, on thea.
door’s centre line one-third down the top panel (Fig.
22) using M6 or equivalent screws (not supplied),
NOTE: If in doubt about the door’s strength,
reinforcement may be added to the door’s
frame where necessary. Door damage may
occur if the bracket is installed on a panel
with insufficient strength. The opener’s
warranty does not cover damage caused to
the door and/or door panels.
Step 14 - Attaching the Arms
FOR SECTIONAL AND ONE PIECE DOORS WITH TRACK:
Assemble the bent and straight arms with boltsa.
and nuts supplied in the accessory pack (Fig. 23).
Always use both bent and straight arms.
Connect the assembled arm to the bracket and theb.
disengaged trolley with clevis and snap pins. The
angle “A” must be more than 10° (Fig. 23).
WARNING: Connecting the bent arm other
way around may damage the door.
FOR ONE PIECE DOORS WITHOUT TRACK
Assemble the bent and straight arms as shown ina. (Fig.
24) with bolts and nuts supplied in the accessory
pack. Always use both the bent and straight arms.
Connect the assembled arm to the bracket and theb.
disengaged trolley with clevis and snap pins.
If installing on a door with a bad wave action,c.
lengthening the arm will assist in reducing this effect.
IMPORTANT NOTE - If the manual release
handle is more than 1.8 metres from floor
level when the opener is installed, extend the
handle to a height less than 1.8 metres.
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
15Controll-A-Door®P Diamond Instruction Manual

Setting Travel Limits
IMPORTANT NOTE: The OPERATE button
will not function until the open and close
limit positions are set.
NOTE: The door and shuttle must be engaged
into the chain index. The door should be open
approximately half way.
Step 15.1 - Setting Limits Positions
Remove the controls cover to access the controlsa.
panel as shown in (Fig. 25). Replace it when setup
is completed.
Press and hold the MINUS (-) button to start the doorb.
closing. Release the button once you have reached
your desired closed limit position (Fig. 26).
Press the LIMIT SET button. This action will store thec.
close limit position into memory.
Press and hold the PLUS (+) button to start the doord.
opening. Release the button once you have reached
your desired open limit position.
Read the WARNING below.e.
IMPORTANT WARNING: The garage door will
automatically close, open and close again once
the LIMIT SET button is pressed. Ensure there
are no persons or objects in the door’s path
before pressing the LIMIT SET button.
Press the LIMIT SET button to store into memory thef.
open limit position. The door will now automatically close
to its close limit position then fully open to calculate the
Safety Obstruction Forces
BE AWARE OF THE ABOVE WARNING.
The opener can now be operated via the OPERATE button.
Step 15.2 - Resetting Door Limit Positions
To enter new limit positions the existing settings must be
deleted as follows:
Press and hold the LIMIT SET buttona. (Fig. 27) for six
(6) seconds, until you hear three beeps and the CLOSE
LIMIT LED starts to flash.
Release the button.b.
Follow Step 15.1 to set new limit positions.c.
Fig. 27
Fig. 26
Fig. 25
Controll-A-Door®P Diamond Instruction Manual16

Testing Safety Obstruction Force
CAUTION: Take care when testing the safety
obstruction force. Failure to follow this warning
can result in serious personal injury and/or
property damage.
16.1 Test the Close Cycle
Press the OPERATE button to open the doora. (Fig. 28).
Place a piece of timber approximately 40mm highb.
on the floor directly under the door (Fig. 29) or
when testing the opener one could use the box the
opener comes in which is a good test to reverse off the
cardboard box.
Press the OPERATE button to close door.c.
The door should strike the object and re-open.d.
16.2 Testing the Open Cycle
Press the OPERATE button to close the doora. (Fig. 28).
Press again to open the door.b.
When the door reaches approximately half way, firmlyc.
grab the door’s bottom rail - the door should stop.
If the door does not reverse readily when closing, or stop
when opening, the force may be excessive and need
adjustment, refer to Step 16.4.
IMPORTANT WARNING: If the door is closing
and is unable to re-open when obstructed,
discontinue use. Do not use a door with faulty
obstruction sensing. Repair fault and re-test
before using.
Adjusting Safety Obstruction Force
The safety obstruction force is calculated automatically
and normally does not require adjustment. The only time
the force may need to be adjusted is due to environmental
conditions, such as areas that are windy, dusty or have
extreme temperature changes that affect the operability
and movement of the door.
WARNING: Doors requiring over 400N of force
to move must have Safety Infra-red Beams fitted
for safety.
Step 16.3 - To Increase Force Pressure
Press and hold the FORCE MARGIN SET buttona. (Fig.
28).
While holding down the FORCE MARGIN SET button,b.
press the PLUS (+) button.
Each press will increase the force margin one step.c.
The OPEN LIMIT LED will flash each time the PLUS
(+) button is pressed to indicate an increase in force.
Test the force again as per Steps 16.1 and 16.2.d.
If the OPEN LIMIT LED flashes continuously when thee.
PLUS (+) button is being pressed, this indicates that
the maximum force setting has been reached.
Step 16.4 - To Decrease Force Pressure
Press and hold the FORCE MARGIN SET buttona.
(Fig. 28).
While holding down the FORCE MARGIN SETb.
button, press the MINUS (-) button.
Each press will decrease the force margin onec.
step. The CLOSE LIMIT LED will flash each time
the MINUS (-) button is pressed to indicate a
decrease in force.
Test the force again as per Steps 16.1 and 16.2.d.
If the CLOSE LIMIT LED flashes continuouslye.
when the MINUS (-) button is being pressed,
this indicates that the minimum force setting has
been reached.
Step 16.5 - To Recall Factory Set Force
Holding down the FORCE MARGIN SET buttona.
and the LIMIT SET button for two seconds.
Release both buttons. The default setting shouldb.
now be recalled.
Fig. 29
Fig. 28
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
17Controll-A-Door®P Diamond Instruction Manual

Coding Transmitters
Press CODE SET
button once
Select one of the four
buttons you wish to use
to control the door
Press CODE SET
button twice
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
the courtesy light
Fig. 30
Fig. 31
Step 17.1 - Storing the Transmitter Code
The opener can only operate from transmitters that have
been programmed into its receiver. The receiver needs to
learn the codes of any transmitter that will be used with the
operator. Up to fourteen (14) codes can be stored in the
receiver’s memory.
Ensure that the battery is inserted into thea.
transmitter.
Press theb. CODE SET button and release. The
CODE SET LED will illuminate to indicate the
opener is in Code Learn mode. If a valid code is
not stored within 15 seconds the opener will exit
Code Learn (Fig. 30).
Press the transmitter button (one of four) that you wantc.
to control the door. The CODE SET LED will begin to
flash.
Press the same transmitter button again. The CODEd.
SET LED will illuminate for one second and then go
out.
The transmitter is now coded to operate the door - presse.
the button to test.
Step 17.2 - Setting the Transmitter to Operate the
Courtesy Light
Although the courtesy light comes on with each operation of
the opener, it may also be controlled by a transmitter without
operating the door.
Press thea. CODE SET button twice. The CODE SET
LED will illuminate and the courtesy light will turn on to
indicate that the light code learning is active (Fig. 31).
Choose a transmitter button not already coded into theb.
receiver. Press this button and the CODE SET LED will
begin to flash.
Press the same transmitter button again. The CODEc.
SET LED will illuminate for one second and then go
out.
The transmitter is now coded to operate the light - pressd.
the button to test.
Controll-A-Door®P Diamond Instruction Manual18

Press CODE SET
button three times
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
the Auxiliary out put
Press CODE SET
button four times
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
the Vacation Mode
Fig. 33
Fig. 32
Coding Transmitters
Step 17.3 - Setting the Transmitter to Operate
Vacation Mode
The opener can be programmed into a “Vacation Mode”
where the opener will not respond to any transmitter except
one preprogrammed unit.
Pressa. CODE SET button three times. The CODE SET
LED will illuminate and the courtesy light will flash
slowly (once every two seconds) to indicate Vacation
learning mode is active. (Fig. 32)
Choose a transmitter button not already coded into theb.
receiver. Press this button and the CODE SET LED will
begin to flash.
Press the same transmitter button again. The CODEc.
SET LED will illuminate for one second and then go out,
and the courtesy light will also switch off. This indicates
the code has been stored (Fig. 32).
To activate Vacation Mode, close the garage door andd.
press the coded button transmitter for 5 seconds.
The CODE SET LED will illuminate to indicate that the
opener is in Vacation Mode.
To exit Vacation Mode press the transmitter buttone.
momentarily until the CODE SET LED turns off.
Step 17.4 - Setting the Transmitter to Operate the
Auxiliary Output
It is possible to operate other devices (e.g. alarm systems)
using one of the spare buttons of a multi-channel transmitter
coded into the Auxiliary Output feature.
Pressa. CODE SET button four times. The CODE SET
LED will illuminate and the courtesy light will flash
quickly (twice per second) to indicate that learning
mode for the Auxiliary Output is active.
Choose a transmitter button not already coded into theb.
receiver. Press this button and the CODE SET LED will
begin to flash.
Press the same transmitter button again. The CODEc.
SET LED will illuminate for one second and then go out,
and the courtesy light will also switch off. This indicates
the code has been stored (Fig. 33).
Diamond PD Power Drive : Instruction Manual
© Copyright 2007 B&D Doors
19Controll-A-Door®P Diamond Instruction Manual

Press CODE SET
button five times
Select one of the
four buttons (not
programmed yet ) you
wish to use to control
the door for pet position
Fig. 34
Fig. 35
Fig. 36
Coding Transmitters
Step 17.5 - Setting the Transmitter to Operate Pet
(Pedestrian) Mode
The opener can be programmed into a “Pet Mode” where the
door opens partially to allow pets to enter/exit the garage:
Press thea. CODE SET button five times, the CODE SET
LED will illuminate and the courtesy light will flash
quickly (twice per second) to indicate learning mode for
Pet Mode is active.
Choose a transmitter button not already coded into theb.
receiver. Press this button and the CODE SET LED will
begin to flash.
Press the same transmitter button again. The CODEc.
SET LED will illuminate for one second and then go out,
and the courtesy light will also switch off. This indicates
the code has been stored. This indicates the code has
been stored (Fig. 34).
Step 17.6 - To Erase Programmed Codes
If the CODE SET button is pressed and held for 6 seconds the
CODE SET LED will blink rapidly for one second to indicate
that all programmed codes have been erased. (Fig. 35)
Step 17.7 - Installation of the Wall Mounted
Transmitter
Mount the transmitter in a convenient location, yet outa.
of reach of children and at least 1.5m off the ground
(Fig. 36).
Make sure the door is visible from this location.b.
To set the transmitter codes refer to Step 17.1.c.
Controll-A-Door®P Diamond Instruction Manual20
