Convair M3000 Coolmaster User manual

®
OWNER’S MANUAL
Portable Evaporative Cooler
(English) (M3000)
ILL1409-A
M3000 Coolmaster

SEELEY INTERNATIONAL – OWNER’S MANUAL 1
CONTENTS
SAFETY 1
COMPONENT LOCATION 2
ASSEMBLY 3
OPERATING THE COOLER 4-5
MAINTENANCE 6-7
TROUBLESHOOTING 8

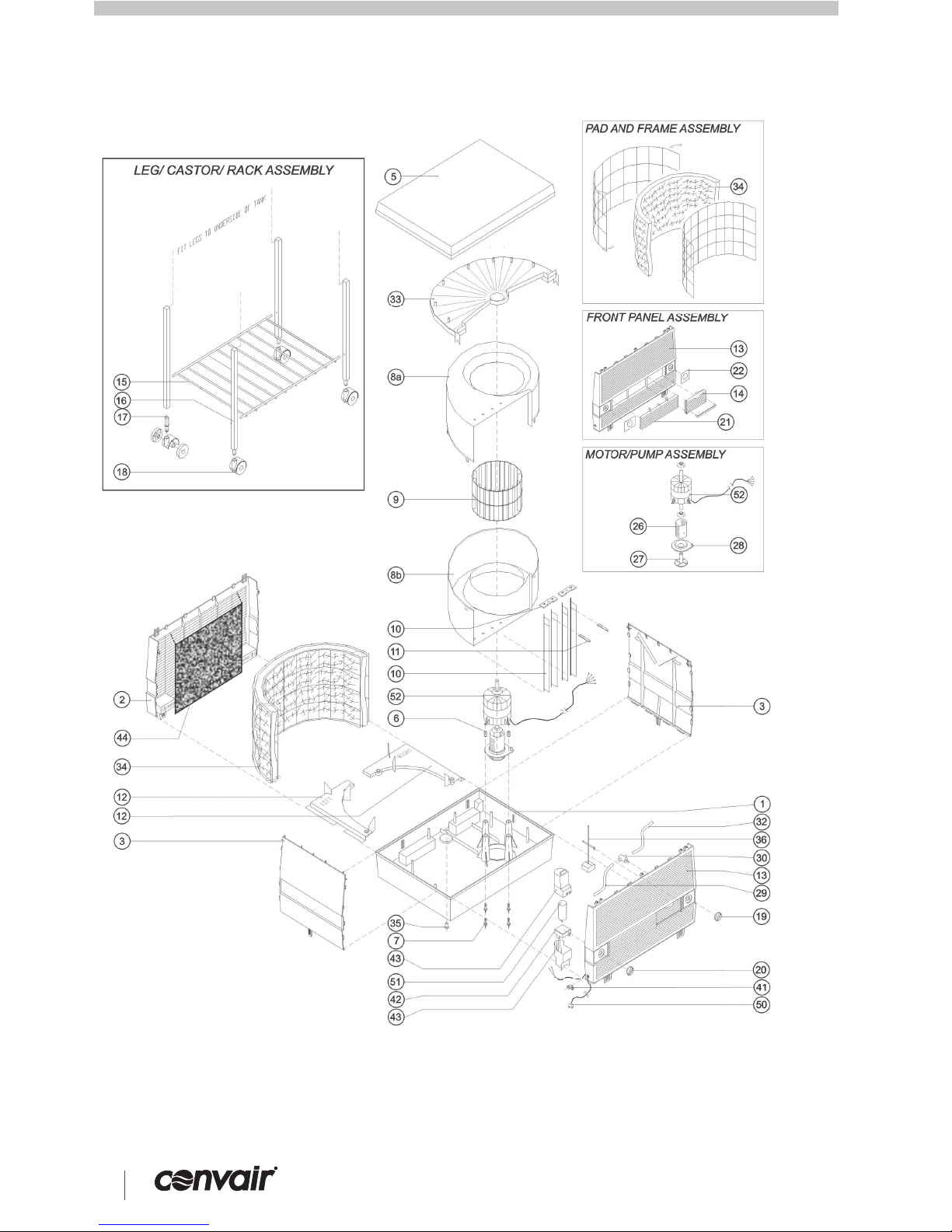

SPARE PARTS LIST & EXPLODED VIEW 9-10
WARRANTY 11-13
.........................................................................
General Safety
Electrical Safety
............................................
...................................................................
.........................................
Caution - Check Voltage
How to get the best cooling performance
Filling with water
Using the cooler - Low fan speed
High fan speed
Fan only (vent)
Conditioning of Cooling pads
Air direction control
............................................................
Cleaning the cooler
Unplug the cooler
To drain water
Top panel removal (cleaning inside of cooler)
..................................................
..................
..................................................................
Waste electrical products must not be disposed of with household waste. This product
should be taken to your local recycling centre for safe treatment.
i
®
M3000 Coolmaster Portable Evaporative Cooler
SAFETY
Electrical Safety
Caution! before connecting the electrical
power cord to a power outlet, check that
the air cooler voltage is the same as your
power supply (refer to the rating label
located on the rear of the unit).
Do not pull the unit along by the power
cord or place the power cord near a
source of heat. Always unroll the power
cord completely before use.
Switch off and unplug when not in use.
If the power supply cord is damaged it
must be replaced by the manufacturer, a
service agent or similarly qualified
persons in order to avoid a hazard.
Portable evaporative air cooler -
important safety instructions
Please read these instructions before
assembling the cooler and keep for future
reference.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
Clean the air inlets and outlets at regular
intervals to prevent airflow reduction (refer
Maintenance section).
Do not store or operate the appliance near
any flammable substances.
During operation, water is present in the
bottom tank of the air cooler. Be careful when
moving the unit to prevent water from spilling.
General Safety
For indoor use only.
Use only in the upright position on a flat level
surface and at least 50cm from any objects.
Do not place objects on the air cooler, or
through the ventilating slots or restrict the air
inlets & outlets.
Closely supervise any children and pets when
the air cooler is in use.
Always switch your cooler off and unplug it
before cleaning or maintenance.

SEELEY INTERNATIONAL –OWNER’S MANUAL 1
CONTENTS
SAFETY 1
COMPONENT LOCATION 2
ASSEMBLY 3
OPERATING THE COOLER 4-5
MAINTENANCE 6-7
TROUBLESHOOTING 8
SPARE PARTS LIST & EXPLODED VIEW 9-10
WARRANTY 11-13
.........................................................................
General Safety
Electrical Safety
............................................
...................................................................
.........................................
Caution - Check Voltage
How to get the best cooling performance
Filling with water
Using the cooler - Low fan speed
High fan speed
Fan only (vent)
Conditioning of Cooling pads
Air direction control
............................................................
Cleaning the cooler
Unplug the cooler
To drain water
Top panel removal (cleaning inside of cooler)
..................................................
..................
..................................................................
Waste electrical products must not be disposed of with household waste. This product
should be taken to your local recycling centre for safe treatment.
i
®
M3000 Coolmaster Portable Evaporative Cooler
SAFETY
Electrical Safety
Caution! before connecting the electrical
power cord to a power outlet, check that
the air cooler voltage is the same as your
power supply (refer to the rating label
located on the rear of the unit).
Do not pull the unit along by the power
cord or place the power cord near a
source of heat. Always unroll the power
cord completely before use.
Switch off and unplug when not in use.
If the power supply cord is damaged it
must be replaced by the manufacturer, a
service agent or similarly qualified
persons in order to avoid a hazard.
Portable evaporative air cooler -
important safety instructions
Please read these instructions before
assembling the cooler and keep for future
reference.
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure that
they do not play with the appliance.
Clean the air inlets and outlets at regular
intervals to prevent airflow reduction (refer
Maintenance section).
Do not store or operate the appliance near
any flammable substances.
During operation, water is present in the
bottom tank of the air cooler. Be careful when
moving the unit to prevent water from spilling.
General Safety
For indoor use only.
Use only in the upright position on a flat level
surface and at least 50cm from any objects.
Do not place objects on the air cooler, or
through the ventilating slots or restrict the air
inlets & outlets.
Closely supervise any children and pets when
the air cooler is in use.
Always switch your cooler off and unplug it
before cleaning or maintenance.

SEELEY INTERNATIONAL –OWNER’S MANUAL 32
®
COMPONENT LOCATION ASSEMBLY
Congratulations on purchasing your
Convair cooler, manufactured and backed
by Convair, a world leader in climate
control.
In one compact, lightweight, easy to use
and attractive design, the Convair cooler
keeps your office or home space clean
and cool all year long.
M3000 Coolmaster Portable Evaporative Cooler
KEY
A Leg (trolley)
B Magazine rack
C Drain plug (removed)
D Controls
E Water level indicator
F Air direction controls
G Water inlet door
H Reservoir
ILL1409-A
E
F
D
G
H
D
C
B
A
The Convair cooler is a powerful evaporative
cooler, that will give you plenty of cool, fresh
air. Place the cooler in front of an open door
or window so that it is drawing in fresh air.
Open a door or window opposite to create
flow through ventilation. Ensuring the
cooler has adequate ventilation is
important in maintaining cooler
performance.
CAUTION! - Check Voltage
Before connecting your electrical power cord
to a power outlet, check that the cooler
voltage is the same as your power supply.
The cooler voltage will be stated on the rating
label at the rear of the cooler (Fig 5).
ILL224-A
ILL222-A
ILL221 - A
IL L 2 23 - A
Unpacking the cooler
Unpack the cooler onto a carpet or similar
soft surface. The legs and wheels are located
underneath the unit.
Before assembling the trolley push the
wheels onto plastic pins in the legs (Fig 2).
Assembly of trolley
Press two of the legs into the corner recesses
at one end of the cabinet so that the holes for
the magazine rack face the other two
recesses (Fig 3).
Introduce the ends of the magazine rack into
the holes.
Connect the opposite end of the magazine
rack to the other two legs, then push the legs
firmly into the cabinet (Fig 4). This is a tight fit
(the interference fit holds the trolley into
place).
Invert the cooler and check that it is stable.
2
1
3
4
5

SEELEY INTERNATIONAL –OWNER’S MANUAL 32
®
COMPONENT LOCATION ASSEMBLY
Congratulations on purchasing your
Convair cooler, manufactured and backed
by Convair, a world leader in climate
control.
In one compact, lightweight, easy to use
and attractive design, the Convair cooler
keeps your office or home space clean
and cool all year long.
M3000 Coolmaster Portable Evaporative Cooler
KEY
A Leg (trolley)
B Magazine rack
C Drain plug (removed)
D Controls
E Water level indicator
F Air direction controls
G Water inlet door
H Reservoir
ILL1409-A
E
F
D
G
H
D
C
B
A
The Convair cooler is a powerful evaporative
cooler, that will give you plenty of cool, fresh
air. Place the cooler in front of an open door
or window so that it is drawing in fresh air.
Open a door or window opposite to create
flow through ventilation. Ensuring the
cooler has adequate ventilation is
important in maintaining cooler
performance.
CAUTION! - Check Voltage
Before connecting your electrical power cord
to a power outlet, check that the cooler
voltage is the same as your power supply.
The cooler voltage will be stated on the rating
label at the rear of the cooler (Fig 5).
ILL224-A
ILL222-A
IL L 2 21 - A
IL L 2 23 - A
Unpacking the cooler
Unpack the cooler onto a carpet or similar
soft surface. The legs and wheels are located
underneath the unit.
Before assembling the trolley push the
wheels onto plastic pins in the legs (Fig 2).
Assembly of trolley
Press two of the legs into the corner recesses
at one end of the cabinet so that the holes for
the magazine rack face the other two
recesses (Fig 3).
Introduce the ends of the magazine rack into
the holes.
Connect the opposite end of the magazine
rack to the other two legs, then push the legs
firmly into the cabinet (Fig 4). This is a tight fit
(the interference fit holds the trolley into
place).
Invert the cooler and check that it is stable.
2
1
3
4
5

4 5SEELEY INTERNATIONAL –OWNER’S MANUAL
®
OPERATING THE COOLER OPERATING THE COOLER cont.
M3000 Coolmaster Portable Evaporative Cooler
ILL227-A
1
9
Filling with water
Turn the cooler off before filling. The water
inlet door is opened by pulling it at the top
(Fig 7). Fill the appliance with clean water.
The water capacity is 18 litres. The minimum
amount of water needed for the pump to
operate is 4 litres (Fig 8).
Try to position the cooler where you wish to
use it before you fill to avoid unnecessary
spillage. Do not overfill as water will spill out
of the cooler! The cooler is full when the
water level indicator shows the highest
reading. Close the water inlet door after
filling.
ILL225-A
6
How to get the best cooling
performance
Place the cooler with its back near to an
open window or door so it can draw in 100%
fresh air. Open another window or door on
the opposite side of the room for 'flow
through' ventilation (Fig 6).
This cooler will not cool properly in a closed
room.
Safety instructions
As this cooler contains water, ensure it is
moved carefully and is not tilted as water
may spill (Fig 9).
Always switch off and remove the plug before
servicing the cooler.
Do not store anything on top of the cooler.
7
6
7
8
9
Using the cooler
Low fan speed
High fan speed
Fan only (ventilation)
(1) is selected for quietest
operation (Fig 11).
(3) is for maximum cooling
(Fig 12).
.
When this appliance is used as an air cooler
it should be filled with water and the 'COOL'
knob turned to the 'ON' position (Fig 10).
The cooler may be
used as a fan only. This is set by turning the
'COOL' knob to the 'OFF' position (Fig 13).
Conditioning of the aspen cooling
pad
To get the best performance from your cooler,
we recommend that when first used it is run
with water for at least 10 minutes at the
setting in Fig 12.
During this process the water becomes
slightly yellow, and there is a natural smell of
damp wood. This is normal.
Air direction control
Adjust the air guide vane levers as required.
They are located at the top of the front grille
(Fig 14).
ILL228-A
10
ILL229-A
AIR
0
2
3
1
COOL
On Off
10
ILL1439-A
AIR
0
2
3
1
COOL
On Off
11
ILL230-A
AIR
0
2
3
1
COOL
On Off
13
ILL231-A
AIR
0
2
3
1
COOL
On Off
12
14

4 5SEELEY INTERNATIONAL –OWNER’S MANUAL
®
OPERATING THE COOLER OPERATING THE COOLER cont.
M3000 Coolmaster Portable Evaporative Cooler
ILL227-A
1
9
Filling with water
Turn the cooler off before filling. The water
inlet door is opened by pulling it at the top
(Fig 7). Fill the appliance with clean water.
The water capacity is 18 litres. The minimum
amount of water needed for the pump to
operate is 4 litres (Fig 8).
Try to position the cooler where you wish to
use it before you fill to avoid unnecessary
spillage. Do not overfill as water will spill out
of the cooler! The cooler is full when the
water level indicator shows the highest
reading. Close the water inlet door after
filling.
ILL225-A
6
How to get the best cooling
performance
Place the cooler with its back near to an
open window or door so it can draw in 100%
fresh air. Open another window or door on
the opposite side of the room for 'flow
through' ventilation (Fig 6).
This cooler will not cool properly in a closed
room.
Safety instructions
As this cooler contains water, ensure it is
moved carefully and is not tilted as water
may spill (Fig 9).
Always switch off and remove the plug before
servicing the cooler.
Do not store anything on top of the cooler.
7
6
7
8
9
Using the cooler
Low fan speed
High fan speed
Fan only (ventilation)
(1) is selected for quietest
operation (Fig 11).
(3) is for maximum cooling
(Fig 12).
.
When this appliance is used as an air cooler
it should be filled with water and the 'COOL'
knob turned to the 'ON' position (Fig 10).
The cooler may be
used as a fan only. This is set by turning the
'COOL' knob to the 'OFF' position (Fig 13).
Conditioning of the aspen cooling
pad
To get the best performance from your cooler,
we recommend that when first used it is run
with water for at least 10 minutes at the
setting in Fig 12.
During this process the water becomes
slightly yellow, and there is a natural smell of
damp wood. This is normal.
Air direction control
Adjust the air guide vane levers as required.
They are located at the top of the front grille
(Fig 14).
ILL228-A
10
ILL229-A
AIR
0
2
3
1
COOL
On Off
10
ILL1439-A
AIR
0
2
3
1
COOL
On Off
11
ILL230-A
AIR
0
2
3
1
COOL
On Off
13
ILL231-A
AIR
0
2
3
1
COOL
On Off
12
14

6
®
7SEELEY INTERNATIONAL –OWNER’S MANUAL
MAINTENANCE
M3000 Coolmaster Portable Evaporative Cooler
Cleaning
The exterior surfaces can be wiped with a
damp cloth and a little household detergent.
Do not use abrasive cleaners and solvents
(Fig 15).
To drain water
Place a bucket under the cooler and drain
the water from the reservoir through the drain
plug hole (refer Fig 1 part C).
Unplug the cooler from the power
supply before servicing.
At least once per year at the end of summer
it is advisable to perform some
simple cleaning on your cooler to maintain its
high efficiency. This involves cleaning the
water system and Aspen filter pad.
Top panel removal (cleaning inside of
unit)
To gain access to the unit for cleaning
remove the top panel by carefully releasing
the 4 catches located inside the top.
Using a small screwdriver, push the clips in
about 3mm (Fig 16) and at the same time
push the panel upwards.
ILL235-A
1
16
ILL232-B 14
15 ILL233-B
L
J
K
15
Cleaning inside of unit
Wash the Aspen pad with water; replace if
worn or deteriorated.
Clean the pump strainer (Fig 19) by removing
dirt and rubbish. Clean the inside of the
reservoir.
Spreader pad removal
Remove the Aspen pad assembly (J, K & L)
by lifting it upwards. Disconnect the water
hose from the spreader (L) before removing
the Aspen pad assembly completely.
Internal view (fig 17,18 & 19 )
J Aspen cooling pad
K Wire mesh support
L Spreader
N Water Strainer
ILL234-A
1
K
L
J
16
14
17
18
ILL237-A
N
19
MAINTENANCE cont.

6
®
7SEELEY INTERNATIONAL –OWNER’S MANUAL
MAINTENANCE
M3000 Coolmaster Portable Evaporative Cooler
Cleaning
The exterior surfaces can be wiped with a
damp cloth and a little household detergent.
Do not use abrasive cleaners and solvents
(Fig 15).
To drain water
Place a bucket under the cooler and drain
the water from the reservoir through the drain
plug hole (refer Fig 1 part C).
Unplug the cooler from the power
supply before servicing.
At least once per year at the end of summer
it is advisable to perform some
simple cleaning on your cooler to maintain its
high efficiency. This involves cleaning the
water system and Aspen filter pad.
Top panel removal (cleaning inside of
unit)
To gain access to the unit for cleaning
remove the top panel by carefully releasing
the 4 catches located inside the top.
Using a small screwdriver, push the clips in
about 3mm (Fig 16) and at the same time
push the panel upwards.
ILL235-A
1
16
ILL232-B 14
15 ILL233-B
L
J
K
15
Cleaning inside of unit
Wash the Aspen pad with water; replace if
worn or deteriorated.
Clean the pump strainer (Fig 19) by removing
dirt and rubbish. Clean the inside of the
reservoir.
Spreader pad removal
Remove the Aspen pad assembly (J, K & L)
by lifting it upwards. Disconnect the water
hose from the spreader (L) before removing
the Aspen pad assembly completely.
Internal view (fig 17,18 & 19 )
J Aspen cooling pad
K Wire mesh support
L Spreader
N Water Strainer
ILL234-A
1
K
L
J
16
14
17
18
ILL237-A
N
19
MAINTENANCE cont.

9SEELEY INTERNATIONAL –OWNER’S MANUAL8
®
When ordering replacement parts please quote Item Number, Description, Product Number and Serial Number.
SPARE PARTS LIST
M3000 Coolmaster Portable Evaporative Cooler
When ordering spare parts, please specify the model / serial number and colour of
your cooler.
Item Description
1Tank & Baffles
2Rear Panel
3Side Panel
5Top Panel
6Grommet Motor Mounting
7Clip Motor Mounting
8Scroll Assembly
8.1 Scroll Upper
8.2 Scroll Lower
9Fan Wheel (centrifugal)
10 Vane Link Assy (4 vanes, 2 links)
11 Lever Vane
12 Baffles Tank (Left & Right)
13
14 Filler Door/Name Badge Assembly
14.1 Filler Door
14.2 Name Badge
15 Magazine Rack
16
17
Leg & Pintle Assembly Pintle
18 Castor Wheel Assembly
19
20
Knob - Cool Knob - Fan
21 Louvre Horizontal Set
22 Decal Control Set
26 Pump Strainer
27 Impellor Pump
28 Cover Pump
29 Pump Tube PVC 9.5 ID * 450ø
Item Description
30 Water Valve
32 Spreader Tube PVC 9.5 ø ID * 350
33 Spreader Cap Assembly
34.1 Filter Pad & Pad Frame Assembly
34.2 Filter Pad without Pad Frame Assembly
35 Plug Tank
36 Indicator Float
41 Cord Grommet Flat
42 Switch
43 Enclosure Switch & Capacitor
44 Foam Back 435 * 300
45 Quick Connect Joiner
50
51
Plug & Cord set Capacitor
52
Wiring Diagram (5 lead) (SI P/No. 856490) Wiring Diagram (6 lead) (SI P/No. 846491) Electric Motor 230V 50Hz (6 lead)
Panel Front
(Replaces 5 lead Motor 090351/904955
3.6 Fan/pump not running
fast enough on low speed.
3.7 Pump impellor broken.
3.6.1 Check that supply voltage is up to correct level.
3.6.2 Fan and pump will pick up speed slightly as the motor
reaches normal operating temperature. Allow the cooler to run for
30-60 minutes and check again. If there is no improvement have
the cooler checked by a service agent.
3.7.1 Have the cooler repaired by a service agent.
4.1 Reservoir or cooling
pad dirty.
4.2 Water quality is poor.
4.1.1 Drain reservoir and fill the cooler with clean water. If it still
smells clean the reservoir and replace the cooling pad or proceed
to 4.2.1.
4.2.1 Add a little vanilla essence or perfume to the water.
4. Cooler makes
bad smell.
5.1 Dirt has accumulated
inside pump.
5.1.1 Proceed as in 3.5.1
5. Cooler makes
scraping or rattling
noise on new
season start up.
6.1 Too much water in
reservoir.
6.1.1 Drain some water out (see page 6).
6. Water overflows
from reservoir.
7.1 Electrical fault. 7.1.1 Electrical parts must only be repaired and replaced by
Authorised Service Agents.
7. Cooler will not
operate at all.
8.1.1 If the power supply cord of this appliance is damaged it
must be replaced. Electrical parts must only be repaired and
replaced by Authorised Service Agents.
8. Damaged
power supply
cord.
3. No cooling. 3.1 Cooling control is off.
3.2 Reservoir is empty or
nearly empty.
3.3 Weather is too humid.
3.4 Aspen cooling pad and
/ or pump inlet screen
blocked or dirty.
3.5 Pump is not working
properly.
3.1.1 Turn cool knob to 'COOL'.
3.2.1 Fill with water again until water level indicator is at the
'FULL' position. Water capacity is 18 litres
3.3.1 Turn cool knob to '0' and use cooler as a fan only.
3.4.1 Clean parts - see maintenance page 6.
3.5.1 The pump is NOT a separate electric pump. It is connected
to the fan motor and is driven mechanically. Turn the cooler off
and completely drain the reservoir. Refill with water. Switch fan
knob to high speed (3), turn the cool knob to 'COOL',run the
cooler for 10-15 minutes non-stop. This will help dissolve and
flush out the dirt. The cooling pad should now be wet. If the pad is
not visibly wet and there is no cooling, have the cooler checked by
a service agent.
1. Cooler will not
operate at first.
2. Cooler stops
operating after
running for some
time.
1.1 Power outlet or supply
faulty.
1.2 Wrong voltage.
2.1 Motor overheated
(safety cutout).
1.1.1 Switch on power outlet.
1.1.2 Check power supply.
1.1.3 Check power outlet.
1.2.1 Check that power supply is the same as specified on the
rating label.
2.1.1 Wait 30-45 minutes for motor to cool down and it will restart
automatically. If condition persists take the cooler to a service
agent.
TROUBLESHOOTING
CONDITION POSSIBLE CAUSE REMEDY

9SEELEY INTERNATIONAL –OWNER’S MANUAL8
®
When ordering replacement parts please quote Item Number, Description, Product Number and Serial Number.
SPARE PARTS LIST
M3000 Coolmaster Portable Evaporative Cooler
When ordering spare parts, please specify the model / serial number and colour of
your cooler.
Item Description
1Tank & Baffles
2Rear Panel
3Side Panel
5Top Panel
6Grommet Motor Mounting
7Clip Motor Mounting
8Scroll Assembly
8.1 Scroll Upper
8.2 Scroll Lower
9Fan Wheel (centrifugal)
10 Vane Link Assy (4 vanes, 2 links)
11 Lever Vane
12 Baffles Tank (Left & Right)
13
14 Filler Door/Name Badge Assembly
14.1 Filler Door
14.2 Name Badge
15 Magazine Rack
16
17
Leg & Pintle Assembly Pintle
18 Castor Wheel Assembly
19
20
Knob - Cool Knob - Fan
21 Louvre Horizontal Set
22 Decal Control Set
26 Pump Strainer
27 Impellor Pump
28 Cover Pump
29 Pump Tube PVC 9.5 ID * 450ø
Item Description
30 Water Valve
32 Spreader Tube PVC 9.5 ø ID * 350
33 Spreader Cap Assembly
34.1 Filter Pad & Pad Frame Assembly
34.2 Filter Pad without Pad Frame Assembly
35 Plug Tank
36 Indicator Float
41 Cord Grommet Flat
42 Switch
43 Enclosure Switch & Capacitor
44 Foam Back 435 * 300
45 Quick Connect Joiner
50
51
Plug & Cord set Capacitor
52
Wiring Diagram (5 lead) (SI P/No. 856490) Wiring Diagram (6 lead) (SI P/No. 846491) Electric Motor 230V 50Hz (6 lead)
Panel Front
(Replaces 5 lead Motor 090351/904955
3.6 Fan/pump not running
fast enough on low speed.
3.7 Pump impellor broken.
3.6.1 Check that supply voltage is up to correct level.
3.6.2 Fan and pump will pick up speed slightly as the motor
reaches normal operating temperature. Allow the cooler to run for
30-60 minutes and check again. If there is no improvement have
the cooler checked by a service agent.
3.7.1 Have the cooler repaired by a service agent.
4.1 Reservoir or cooling
pad dirty.
4.2 Water quality is poor.
4.1.1 Drain reservoir and fill the cooler with clean water. If it still
smells clean the reservoir and replace the cooling pad or proceed
to 4.2.1.
4.2.1 Add a little vanilla essence or perfume to the water.
4. Cooler makes
bad smell.
5.1 Dirt has accumulated
inside pump.
5.1.1 Proceed as in 3.5.1
5. Cooler makes
scraping or rattling
noise on new
season start up.
6.1 Too much water in
reservoir.
6.1.1 Drain some water out (see page 6).
6. Water overflows
from reservoir.
7.1 Electrical fault. 7.1.1 Electrical parts must only be repaired and replaced by
Authorised Service Agents.
7. Cooler will not
operate at all.
8.1.1 If the power supply cord of this appliance is damaged it
must be replaced. Electrical parts must only be repaired and
replaced by Authorised Service Agents.
8. Damaged
power supply
cord.
3. No cooling. 3.1 Cooling control is off.
3.2 Reservoir is empty or
nearly empty.
3.3 Weather is too humid.
3.4 Aspen cooling pad and
/ or pump inlet screen
blocked or dirty.
3.5 Pump is not working
properly.
3.1.1 Turn cool knob to 'COOL'.
3.2.1 Fill with water again until water level indicator is at the
'FULL' position. Water capacity is 18 litres
3.3.1 Turn cool knob to '0' and use cooler as a fan only.
3.4.1 Clean parts - see maintenance page 6.
3.5.1 The pump is NOT a separate electric pump. It is connected
to the fan motor and is driven mechanically. Turn the cooler off
and completely drain the reservoir. Refill with water. Switch fan
knob to high speed (3), turn the cool knob to 'COOL',run the
cooler for 10-15 minutes non-stop. This will help dissolve and
flush out the dirt. The cooling pad should now be wet. If the pad is
not visibly wet and there is no cooling, have the cooler checked by
a service agent.
1. Cooler will not
operate at first.
2. Cooler stops
operating after
running for some
time.
1.1 Power outlet or supply
faulty.
1.2 Wrong voltage.
2.1 Motor overheated
(safety cutout).
1.1.1 Switch on power outlet.
1.1.2 Check power supply.
1.1.3 Check power outlet.
1.2.1 Check that power supply is the same as specified on the
rating label.
2.1.1 Wait 30-45 minutes for motor to cool down and it will restart
automatically. If condition persists take the cooler to a service
agent.
TROUBLESHOOTING
CONDITION POSSIBLE CAUSE REMEDY

1110 SEELEY INTERNATIONAL –OWNER’S MANUAL
®
M3000 Coolmaster Portable Evaporative Cooler
M3000 COOLMASTER EXPLODED VIEW
As the policy of this company is one of continuous improvement, all specifications are subject to change without notice.
WARRANTY
In this warranty:
or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact details
are set out at the end of this warranty;
means you, the original end-user purchaser of the Goods;
means the authorised distributor or retailer of the Goods that sold you the Goods
in Australia; and
means the product, unit, appliance or equipment which was accompanied by this
warranty and purchased in Australia.
Our Goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
Goods repaired or replaced if the Goods fail to be of acceptable quality and the failure
does not amount to a major failure.
In addition to any rights and remedies that You may have under the Australian Consumer
Law or any other law, subject to the terms of this warranty, We provide the following
warranty:
1. If, during the first 24 months from the date of first retail purchase ( ),
the Goods upon examination prove defective by reason of improper workmanship or
material, We will repair at our nearest service centre or replace (at our option), the
product or any part thereof without charge. Should we deem in our absolute discretion
to replace the Goods, we may substitute any similar good even if it is not on our current
price/equipment list. Further, Goods presented for repair may be replaced by
refurbished goods of the same type rather than being repaired. Refurbished parts may
be used to repair the Goods.
2. We are under no obligation to repair or replace the Goods under clause 1 if the Goods
have not been used only for personal, domestic or household purposes or have not
been operated and maintained in accordance with the instructions in the Owner's
Manual. The addition of any third party device or the removal or the alteration of any of
our components will void this warranty. In addition, the warranty granted under clause 1
does not apply to:
•Consumable components such as filters,
•Adjustments necessary due to misuse of the cooler,
•Normal user maintenance,
•Setting of controls,
•Transit damage, or
•Damage caused by user misuse, tampering, or failure to observe the care and
special provisions in the instructions.
3. The warranty granted under clause 1 is limited to repair or replacement only. As far as
the law permits, We will not be liable for any consequential loss suffered through, or
resulting from, the non operation, or ineffective operation of the Goods. The warranty
granted under clause 1 does not cover damage to the Goods or other loss resulting
from acts of God.
We
You
Supplier
Goods
Warranty Period

1110 SEELEY INTERNATIONAL –OWNER’S MANUAL
®
M3000 Coolmaster Portable Evaporative Cooler
M3000 COOLMASTER EXPLODED VIEW
As the policy of this company is one of continuous improvement, all specifications are subject to change without notice.
WARRANTY
In this warranty:
or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact details
are set out at the end of this warranty;
means you, the original end-user purchaser of the Goods;
means the authorised distributor or retailer of the Goods that sold you the Goods
in Australia; and
means the product, unit, appliance or equipment which was accompanied by this
warranty and purchased in Australia.
Our Goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
Goods repaired or replaced if the Goods fail to be of acceptable quality and the failure
does not amount to a major failure.
In addition to any rights and remedies that You may have under the Australian Consumer
Law or any other law, subject to the terms of this warranty, We provide the following
warranty:
1. If, during the first 24 months from the date of first retail purchase ( ),
the Goods upon examination prove defective by reason of improper workmanship or
material, We will repair at our nearest service centre or replace (at our option), the
product or any part thereof without charge. Should we deem in our absolute discretion
to replace the Goods, we may substitute any similar good even if it is not on our current
price/equipment list. Further, Goods presented for repair may be replaced by
refurbished goods of the same type rather than being repaired. Refurbished parts may
be used to repair the Goods.
2. We are under no obligation to repair or replace the Goods under clause 1 if the Goods
have not been used only for personal, domestic or household purposes or have not
been operated and maintained in accordance with the instructions in the Owner's
Manual. The addition of any third party device or the removal or the alteration of any of
our components will void this warranty. In addition, the warranty granted under clause 1
does not apply to:
•Consumable components such as filters,
•Adjustments necessary due to misuse of the cooler,
•Normal user maintenance,
•Setting of controls,
•Transit damage, or
•Damage caused by user misuse, tampering, or failure to observe the care and
special provisions in the instructions.
3. The warranty granted under clause 1 is limited to repair or replacement only. As far as
the law permits, We will not be liable for any consequential loss suffered through, or
resulting from, the non operation, or ineffective operation of the Goods. The warranty
granted under clause 1 does not cover damage to the Goods or other loss resulting
from acts of God.
We
You
Supplier
Goods
Warranty Period

12
®
SEELEY INTERNATIONAL –OWNER’S MANUAL 13
M3000 Coolmaster Portable Evaporative Cooler
WARRANTY cont.
4. We are not responsible in any way for any failure and/or inadequate performance of the
Goods which arises from or is connected to the use in the Goods of non-genuine spare
parts. We strongly recommend that only spare parts supplied or approved by us are
used in the Goods.
5. No other person, firm or corporation is authorised by us to offer or give on our behalf
any other or greater warranty than that given under this warranty. The benefits
conferred by this warranty are in favour of You and any person deriving title to the
Goods through or under such person and are intended to be separate from and
additional to all other rights and remedies that they may have in law in respect of the
Goods.
6. In order to claim under the warranty granted under clause 1 you must:
(a) either:
(i) contact us within the Warranty Period on: ;
or
(ii) log a claim on our website www.seeleyinternational.com within the Warranty
Period; and
(b) return the Goods to your nearest service centre (or to us at the address below) by
prepaid freight within the Warranty Period, together with (i) the legible and
unmodified proof of purchase, which clearly indicates the name and address of the
original retailer, the date and place of purchase, the product name or other product
serial number, and (ii) a copy of the completed Warranty Information page below.
(If you choose to return the Goods to us, there is an additional requirement - they
will also need to be accompanied by a covering letter which states your name and
address and daytime telephone number, and the model and serial number of the
goods.)
7. This warranty does not cover the cost of claiming under the warranty, it is your
responsibility to cover all forwarding and return freight costs incurred in sending the
Goods to and from your nearest service centre or us.
8. This warranty is only valid and enforceable in Australia.
Our liability under this warranty is limited to the extent permitted by law. That is, to the
extent that it is fair and reasonable, if the Goods are not of a kind ordinarily acquired for
personal, domestic or household use or consumption, your remedies associated with any
failure or defect of the Product will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods;
(d) the payment of the cost of having the Goods repaired
and subject to the terms and conditions included in this warranty.
1300 650 644
WARRANTY cont.
To ensure that service either pursuant to the above warranty or otherwise is readily
available, we have established in all States authorised service centres, which are available
to deal with service requirements.
For further information about your nearest service centre and other enquiries please call
our Service Centre on:
Complete the following for your records:
:
: ...................................................................
...................................................................
...................................................................
: ....../....../......
1300 650 644
Please retain your receipt as proof of purchase. Every request for warranty must be
accompanied by proof of purchase.
:
Serial Number:
Product
Model
Purchased from
Date purchased
Convair
Coolmaster M30001
Service Department
Seeley International Pty Ltd
112 O'Sullivan Beach Road, Lonsdale, South Australia, 5160
Customer service centre in Australia: 1300 650 644
Website: www.seeleyinternational.com

12
®
SEELEY INTERNATIONAL –OWNER’S MANUAL 13
M3000 Coolmaster Portable Evaporative Cooler
WARRANTY cont.
4. We are not responsible in any way for any failure and/or inadequate performance of the
Goods which arises from or is connected to the use in the Goods of non-genuine spare
parts. We strongly recommend that only spare parts supplied or approved by us are
used in the Goods.
5. No other person, firm or corporation is authorised by us to offer or give on our behalf
any other or greater warranty than that given under this warranty. The benefits
conferred by this warranty are in favour of You and any person deriving title to the
Goods through or under such person and are intended to be separate from and
additional to all other rights and remedies that they may have in law in respect of the
Goods.
6. In order to claim under the warranty granted under clause 1 you must:
(a) either:
(i) contact us within the Warranty Period on: ;
or
(ii) log a claim on our website www.seeleyinternational.com within the Warranty
Period; and
(b) return the Goods to your nearest service centre (or to us at the address below) by
prepaid freight within the Warranty Period, together with (i) the legible and
unmodified proof of purchase, which clearly indicates the name and address of the
original retailer, the date and place of purchase, the product name or other product
serial number, and (ii) a copy of the completed Warranty Information page below.
(If you choose to return the Goods to us, there is an additional requirement - they
will also need to be accompanied by a covering letter which states your name and
address and daytime telephone number, and the model and serial number of the
goods.)
7. This warranty does not cover the cost of claiming under the warranty, it is your
responsibility to cover all forwarding and return freight costs incurred in sending the
Goods to and from your nearest service centre or us.
8. This warranty is only valid and enforceable in Australia.
Our liability under this warranty is limited to the extent permitted by law. That is, to the
extent that it is fair and reasonable, if the Goods are not of a kind ordinarily acquired for
personal, domestic or household use or consumption, your remedies associated with any
failure or defect of the Product will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods;
(d) the payment of the cost of having the Goods repaired
and subject to the terms and conditions included in this warranty.
1300 650 644
WARRANTY cont.
To ensure that service either pursuant to the above warranty or otherwise is readily
available, we have established in all States authorised service centres, which are available
to deal with service requirements.
For further information about your nearest service centre and other enquiries please call
our Service Centre on:
Complete the following for your records:
:
: ...................................................................
...................................................................
...................................................................
: ....../....../......
1300 650 644
Please retain your receipt as proof of purchase. Every request for warranty must be
accompanied by proof of purchase.
:
Serial Number:
Product
Model
Purchased from
Date purchased
Convair
Coolmaster M30001
Service Department
Seeley International Pty Ltd
112 O'Sullivan Beach Road, Lonsdale, South Australia, 5160
Customer service centre in Australia: 1300 650 644
Website: www.seeleyinternational.com

830018-C convair.net.au AU 1111
Warranty Service
Australia 1-300-650-644
seeleyinternational.com
It is the policy of Seeley International to introduce continual
product improvement. Accordingly, specifications are
subject to change without notice. Please consult with your
dealer to confirm the specifications of the model selected.
®
