Convair ClimateMaster CM9RW User manual

Instruction Manual
ClimateMaster CM9RW
ClimateMaster
Portable Refrigerated Air Conditioner

Waste electrical products must not be disposed of with
household waste. This product should be taken to your local
recycling centre for safe treatment.
Please read these instructions prior to using the
appliance and save them for future reference.

CONTENTS
Introduction......................................1
Safety ..............................................2
Component location.........................3
Installing the exhaust hose ..............4
Control panel ...................................5
Remote control ................................6
Operation.........................................7
Functions......................................8-9
Maintenance ..................................10
Troubleshooting .............................11
Specifications ................................12
THANK YOU for choosing a Convair
Air Conditioner. This appliance has
been carefully engineered to bring
you trouble-free personal air
conditioning. Please read this
manual carefully so that you take
full advantage of the many benefits
your Convair provides.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction in
using the appliance by a person
responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance. Do not place anything
through the ventilating slots.
Your Convair cooler is a portable air
conditioning unit that supplies
refrigerated air to a personal area
within a room. It is not intended to
function as a house or room air
conditioner.
Be sure the appliance has been
securely and correctly installed
according to th e i n s t a l l a t i o n
instructions contained within this
manual.
Personal Cooling
Energy Saving Tips
D
D
D
D
D
Do not locate the air conditioner
where furniture or other objects can
obstruct the air flow.
Keep curtains and blinds closed
during the hottest part of the day.
Keep the filter clean.
Set the air conditioner to maximum
cooling and high fan speed initially,
then adjust to a comfortable setting.
Do not wait until the room is
excessively hot before using the air
conditioner.
INTRODUCTION
1

General Safety
Transport the air conditioner in an
upright position only, or leave it in an
upright position for at least 2 hours
before use (Fig 1).
Electrical Safety
For indoor use only.
Use only in the upright position on a flat
level surface and at least 50cm from any
objects.
Do not place objects on the air conditioner
or restrict air inlets / outlets (Fig 2).
Closely supervise any children and pets
when the air conditioner is in use.
Ensure the appliance has been installed in
accordance with national wiring
regulations.
Do not store or operate the appliance near
any flammable substances.
During operation, water will collect in the
bottom tank of the air conditioner. Be
careful when moving the unit to prevent
water from spilling.
Electrical Safety (cont)
Caution! before connecting the
electrical power cord to a power outlet,
check that the air conditioner voltage is
the same as your power supply (refer to
the rating label located on the back of the
unit). Ensure the power supply is correctly
earthed and rated.
Plug the air conditioner directly into a
properly installed power outlet. Never use
an extension cord, double adaptor or multi
power outlet board to run this air
conditioner.
Do not pull the unit along by the power cord
or place the power cord near a source of
heat. Always unroll the power cord
completely before use.
If the power cord is damaged, in order to
avoid a hazard it must be replaced by an
electrician or similarly qualified person or
service agent.
Switch off and unplug when not in use.
Do not use in humid environments such as
bathrooms or other steamy or wet areas.
Do not touch or operate the air conditioner
with wet or damp hands or when standing
barefoot.
12
SAFETY
2

4
3
Remote Control
Air outlet
Handle
OSC
Mode Temp Speed
On / OffTimer
OSC
Remote
Sensor
Control panel
Air Filter
Air Intake
Power cord
Air Intake
(side panel)
Exhaust Air Outlet
Drain
Exhaust Hose
Window Kit
Exhaust
Fitting
(cooler end)
Exhaust
Fitting
(window
end)
Rating
Label
COMPONENT LOCATION
3
Drain
Tray

Assembling the exhaust hose (Fig 5)
Step 1:
Step 2:
Installing the exhaust hose to the air
conditioner (Fig 6).
Step 1:
Step 2:
Installing the exhaust hose to the
window (Fig 6).
Step 1:
Step 2
Fit the square exhaust fitting
onto the hose end with the 2 ‘pips’. The
pips will lock into the holes.
Fit the oblong exhaust fitting
onto the other end of the hose.
Position the square exhaust
fitting above the grooves on the exhaust
air outlet, with the open end facing down.
Push the hose fitting down into
the outlet until it is completely covered.
Snap the oblong connector into
position on the window attachment.
: Open the window and fit the
adjustable window attachment. Extend
the attachment as required and lock into
place with the wing nut. Ensure the outlet
is not obscured. The window attachment
can be installed horizontally or vertically,
depending on the window type.
Note!
Note!
The minimum distance required
from the operating air conditioner to
any obstructing objects or walls is
50cm (Fig 6).
Keep the exhaust hose as short and
straight as possible and minimise
kinks. This will maximise the cooling
performance.
Don’t use extension pieces for the
exhaust pipe as this will reduce the
cooling performance.
Hot air and possibly mist will be
emitted from the exhaust hose.
It is critical to the cooler’s
performance that the hot exhaust air
is completely removed from the space
being cooled.
5
hole
locating
pip
50cm
6
INSTALLING THE EXHAUST
4

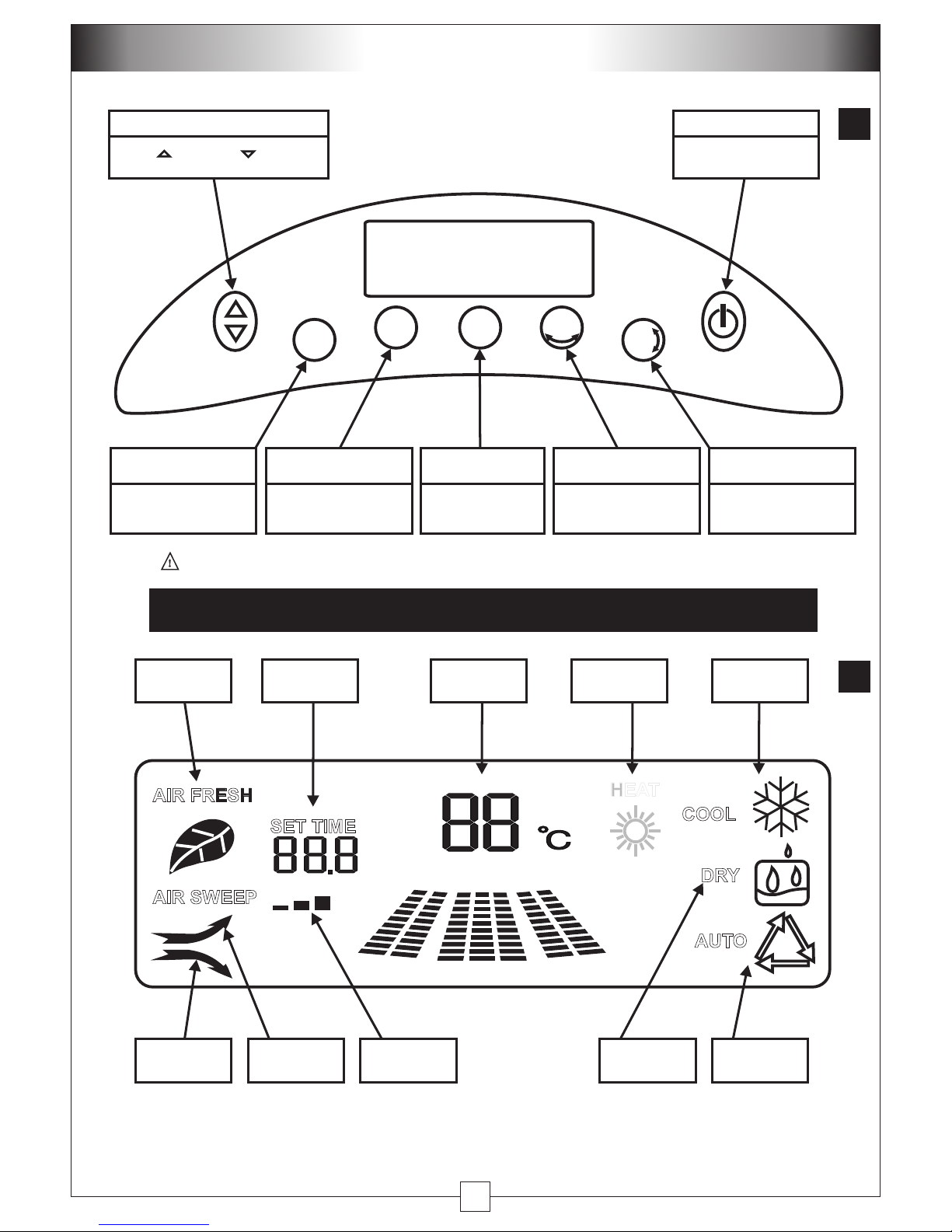

TEMP/TIME ON / OFF
SPEED
OSC
MODE TIMER OSC
AIR SWEEP
AIR FRESH
SET TIME COOL
HEAT
DRY
AUTO
h
Temperature & Timer adjust button Power ON / OFF button
Fan Speed
control button
Negative Ion
Indicator
Sweep Indicator
(Horizontal)
Sweep Indicator
(Vertical)
Fan Speed
Indicator
Dry Mode
Indicator
Auto Mode
Indicator
Timer Duration
Indicator
Temperature
Display
Heating Mode
(not included)
Cooling Mode
Indicator
Timer Set
button
Horizontal Swing
Vane button
Vertical Swing
Vane button
Mode Select
button
Press to increase, to decrease
the set temperature or timer
Press to turn the air
conditioner on and off
Press to cycle the fan
speed between low,
medium and high
Press to enter the
timer setting mode
Press to start or stop
the outlet vanes sweeping
from side to side
Press to start or stop
the outlet vanes sweeping
up and down
Press to cycle from Auto,
Cooling, Dry and Fan
only modes.
To avoid damage to the control panel, do not operate with sharp objects.
NOTE!
CONTROL PANEL DISPLAY
7
8
CONTROL PANEL
5

9
OSC
Mode Temp Speed
On / OffTimer
OSC
If there are two of the same air
conditioners installed, they cannot be
controlled separately. When you operate
either remote, it will turn on both air
conditioners if they are both within signal
range (6 metres).
Don’t let the remote control drop onto hard
surfaces or be subjected to sudden
shocks in any way. The warranty does not
cover misuse or accidental damage.
Don’t place the remote control in direct
sunlight, or near extremes of temperature.
This will affect the control’s temperature
reading.
Don’t allow the remote control to get wet.
Don’t place near strong electromagnetic
waves.
Don’t mix old and new batteries ! If the
remote control will not be used for a long
time, remove the batteries to avoid
corrosion.
Care of your remote control
Preparation before operation
During Operation
Remove the battery cover and insert new
batteries
.
If there is no display, or only part display,
remove the batteries and replace with new
ones. If this does not solve the problem
contact your nearest service centre for
advice.
(AAA), making sure the + and -
are matching the compartment markings
(Fig 10)
If the display disappears, or the remote
control will not operate the air conditioner,
the batteries may need to be replaced.
T
d
n
t
(
Note! he air conditioner must be
plugged in and switched on for the
remote control to operate the air
con itioner. To use, point at the signal
receiving wi dow on the front panel and
press the remote but on. The air
conditioner will “beep”when a signal
has been received. If there is no beep,
press the remote button again, ensuring
it is within range 6 metres) of the air
conditioner.
!
NOTE:
WASTE BATTERIES SHOULD
BE DISPOSED OF CORRECTLY

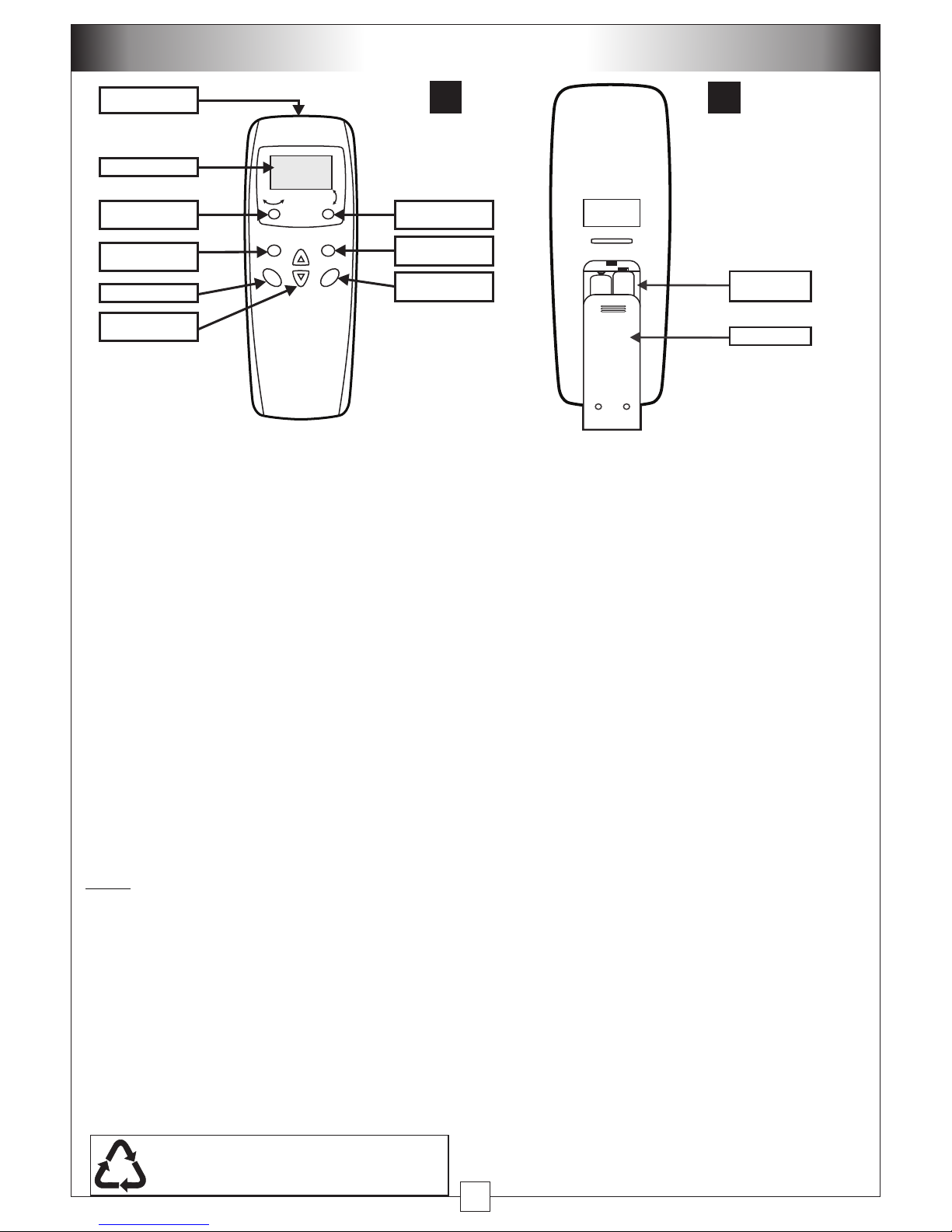

Signal
transmission point
Display area
Mode Select
button
Temperature /
Timer adjust buttons
Timer button
Sweep button
(horizontal)
Sweep button
(vertical)
Fan Speed
adjust button
Power ON / OFF
button
Battery
compartment
Battery cover
10
REMOTE CONTROL
6

12 13

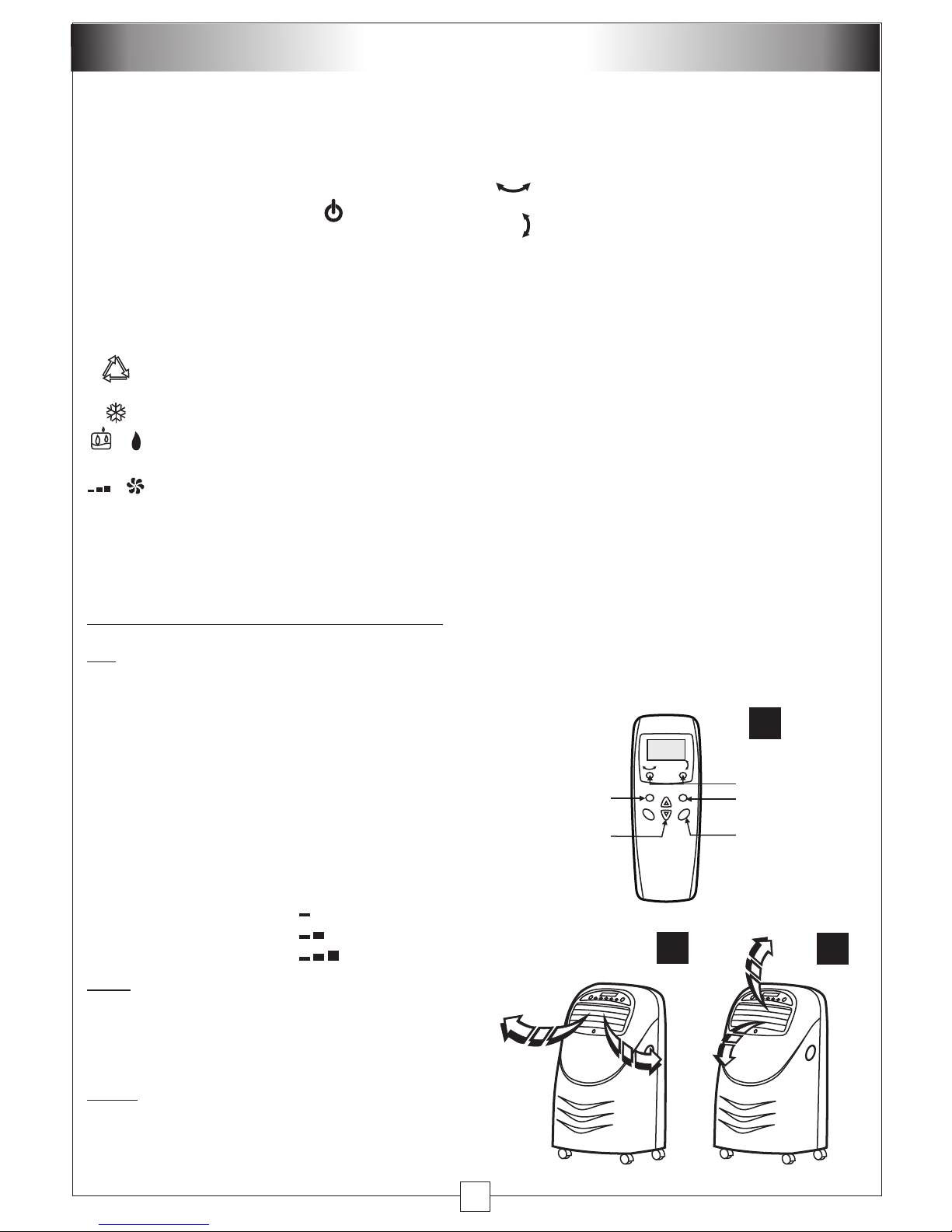

Starting the air conditioner
Step 1: Ensure the cooler is plugged in and
switched on.
Step 2:
Step 3:
Step 4:
!
Note:
Step 5:
!
Press the ON/OFF button on the
remote control or ON/OFF button on the
control panel to start the air conditioner.
Press the MODE button on the
control panel or MODE button on the
remote control to select the desired
operating mode (Fig. 11):
Press / on the control panel
or on the remote control to select the
desired operating ‘set’ temperature.
Do not set the cooling temperature too
low. This will consume more power. 24°C
is the recommended set temperature, with
high fan speed.
Changing the set temperature will
have no effect in FAN or DRY modes.
Press the SPEED button on the
control panel or the remote control to adjust
the fan speed. Each press will cycle the fan
speed as below:
Low speed
Medium speed
High speed
In Dry mode, the fan will always be
set to low speed. In heating and cooling
modes, the fan may automatically change
to high speed to protect the refrigeration
system.
In Cooling mode, the fan will
continue to run even when the compressor
has cycled off.
Auto mode
Cooling mode
Dry mode
Fan mode
- automatic selection of
operating mode
- refrigerated cooling
- refrigerated moisture
removal from the air
- Fan only operation (no
cooling)
r s
The set temperature range is 16°C-31°C
Tip
Note
Note!
Step 6:
Do not attempt to move the
motorised vanes by hand !
Note!
Important !
The air conditioner has 2 sets of
motorised air direction vanes. Press
the OSC buttons on the control panel or the
remote control to turn the vanes on or off.
operates the horizontal vanes - air
will sweep from side to side (Fig 12)
operates the vertical vanes - air will
sweep up and down (Fig 13)
Press the buttons again to stop the sweeping
vanes.
The cooler will store the last mode
selected in memory and return to this when
next switched on.
During cooling mode, water will
collect in the air conditioner’s tank. This will
be recirculated and some will be exhausted
out with the hot air, but will slowly fill up the
tank. This occurs more quickly in humid
conditions. If the tank should fill, error code
“E2” will appear on the control panel, the unit
will ‘beep’ 10 times and then shut down.
Refer to the Maintenance section for draining
the tank should this occur.
Step.2
Step.5
Step.3
Step.4
Step.6
11
OSC
Mode Temp Speed
On / OffTimer
OSC
OPERATION
7
OSC
OSC

OSC
OSC
Mode
Mode
Temp
Temp
Speed
Speed
On / Off
On / Off
Timer
Timer
OSC
OSC

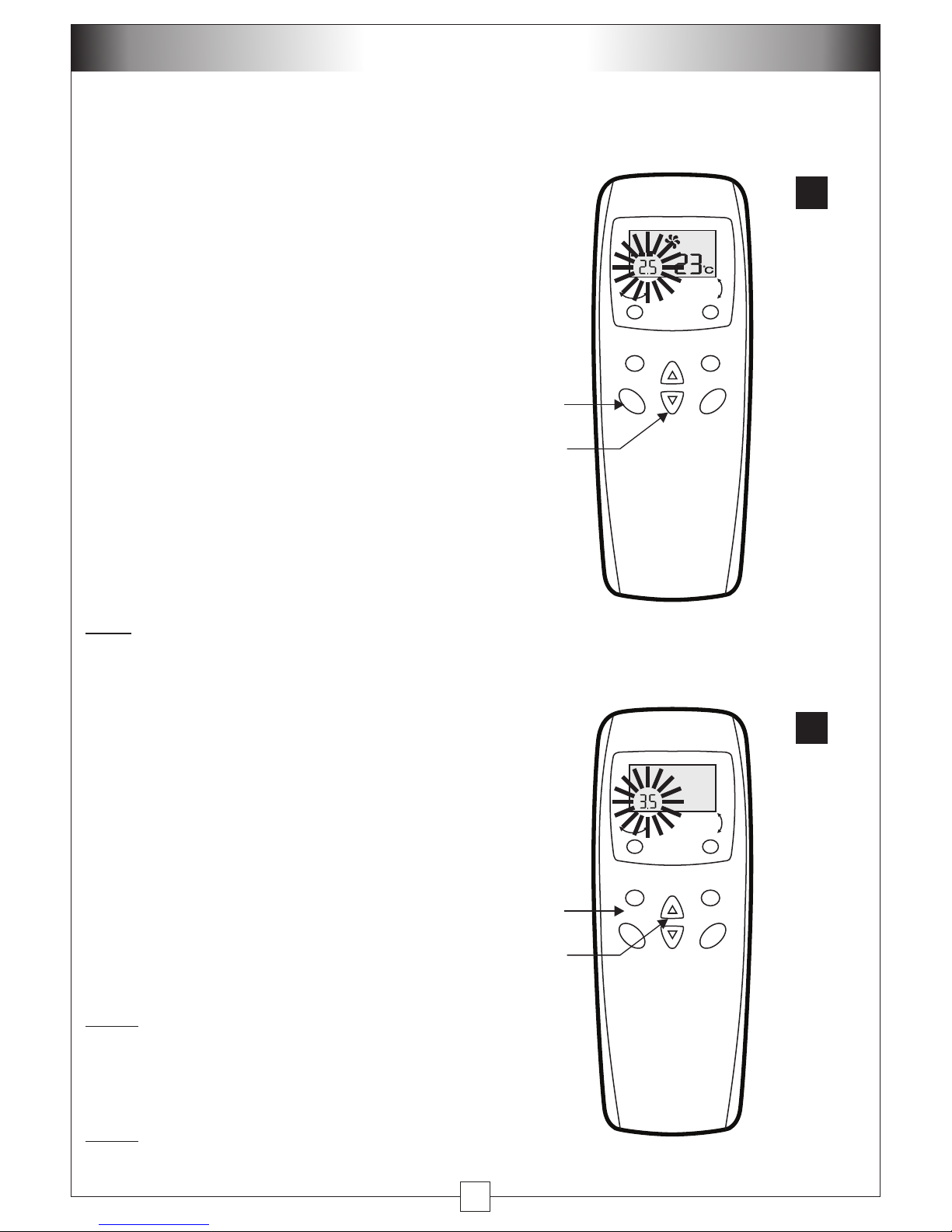

Timer Function - Remote Control
setup
Setting the OFF time
Step 1: ON
0.0
Step 2:
The air conditioner is fitted with a timer
function. This can be set so that the air
conditioner is operating before you wake
up, or to be cooling when you get home
from work, up to 12 hours in advance. To
use this function, the cooler must be
plugged in and ready to operate.
(Fig 14)
With the air conditioner ,
press the TIMER button on the remote
control. The display will show in the
bottom LH corner.
Press the TEMP/TIMER button to
adjust the time in 0.5 hour increments
from 0.5 - 12 hrs
.
(Fig 14 shows the cooler
will turn off after 2.5 hrs)
When the air conditioner is
working, only the TIMER OFF can be set.
When the air conditioner is off, only the
TIMER ON can be set.
(Fig 15)
With the air conditioner ,
press the TIMER button on the remote
control. The display will show in the
bottom LH corner.
Press the TEMP/TIMER button to
adjust the time in 0.5 hour increments
from 0.5 - 12 hrs (Fig 15 shows the cooler
will turn on after 3.5 hrs).
Remember to have the remote
control within range of the air conditioner.
The cooler will “BEEP” with each button
press.
Pressing the TIMER button after it
is set will cancel the TIMER.
Note
Note!
Note!
!
Setting the ON time
Step 1: OFF
0.0
Step 2:
14
Step.1
Step.1
Step.2
Step.2
15
FUNCTIONS
8

How to cancel the timer
0.0
Setting the timer at the cooler
SET TIME
Self check function
To cancel the timer, press the TIMER
button when either the TIMER OFF or
TIMER ON has been set. The SET TIME
will revert to and will disappear after 5
seconds.
Follow the same setting procedures as
above, for both TIMER OFF and TIMER
ON functions, by pressing the TIMER
button on the control panel.
and the timer durations in hours will be
displayed. Adjust by pressing the
TEMP/TIMER button to increase or
decrease in 0.5 hr increments.
To cancel the TIMER, change the SET
TIME to 0.0 h - after 2 seconds the SET
TIME will disappear.
The air conditioner incorporates its own
self diagnostics. The following table
shows the code and problem.
FUNCTIONS
9
Code Problem
E1
E2 Water tank is full (cooler will ‘beep’ 10
times to alert you) - refer maintenance
section for draining the tank
E3/E4/ Refrigeration pipe is damaged - contact a
E5 service centre for repair
Indoor temperature or coil sensor is
damaged - contact a service centre for
repair

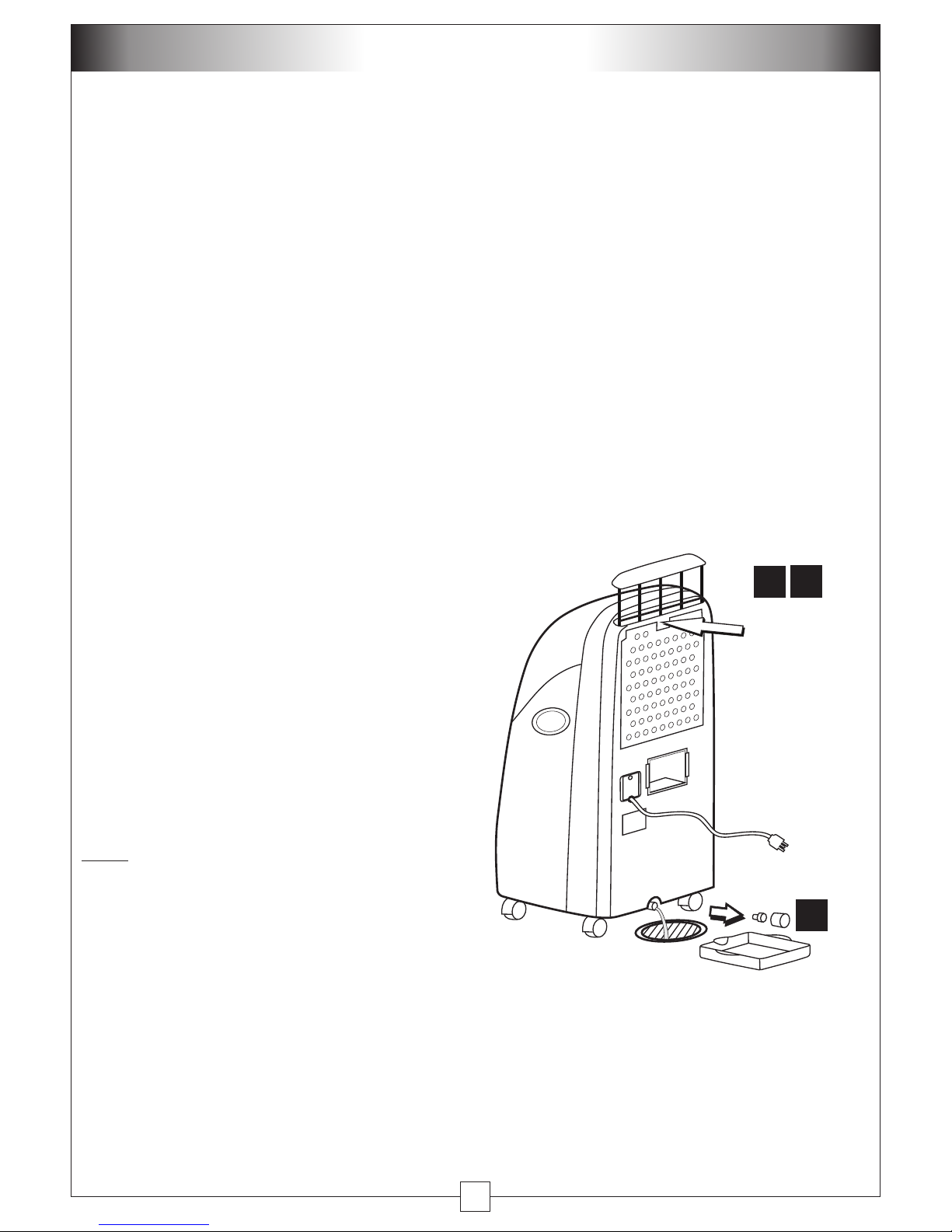

Draining the Air Conditioner
! Always replace the drain plug
immediately after draining.
To drain the air conditioner, place it over a
drain or put the drain tray (provided) under
the drain point before unscrewing the cap
and removing the drain plug, as the water will
flow out as soon as the plug is removed.
Remove the plug at the bottom rear of the
appliance and allow the tank to completely
drain (Fig 16B).
Note
End of season storage:
Always disconnect the air conditioner from the electricity mains before
cleaning or draining.
To maximize the efficiency of the air conditioner, clean regularly.
Cleaning the housing
Cleaning the filter
Note! Never operate the air conditioner without the filter.
Use a soft, damp cloth to wipe the body clean.
Never use aggressive chemicals, spirits, detergents, chemically treated cloths, or
other cleansing solutions. These substances could possibly damage the cabinet
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the
filter and then rinse thoroughly under running water (no hotter than 40°C).
Dry thoroughly before replacing.
Take care to replace the filter back into the track at the rear of the holder.
.
Remove the filter as shown (Fig 16A).
·
·
·
·
Drain any water from the unit.
Operate the unit in ventilation only mode for a few hours, to
thoroughly dry the inside.
Clean or change the filter.
Replace in the original carton or cover for storage.
Unplug and carefully store the power cord and plug end.
·
16 A
B
Remove screw and
lift filter holder from
the compartment.
MAINTENANCE
10

Never try to dismantle the air conditioner yourself.
Problem Check
The air conditioner does
not run.
Is the air conditioner plugged in ?
Is there a power failure ?
Is the "WATER FULL" error code “E2”flashing?
Drain the tank as shown (Fig 16).
Is the room temperature below the set temperature ?
The air conditioner has little
effect (firstly ensure that the
room being cooled is not too
large for the stated capacity
of the air conditioner).
Is there direct sunshine ? Remember to close
curtains or blinds.
Are windows or doors open ?
More people in the room will generate more heat.
Is there something in the room producing excessive
heat ?
Is the exhaust fitted correctly or obstructed ? All
exhaust air needs to be completely removed from
the room.
The air conditioner is not as
cool as it once was.
Is the filter dusty or dirty, restricting the airflow ?
Is the air inlet or outlet blocked ?
Is the room temperature below the set temperature ?
The air conditioner is too
noisy.
Is the air conditioner positioned unevenly, so as to
create vibration ?
Is the floor beneath the air conditioner uneven ?
It is possible that the overheat protection for the
compressor is on. Wait for it to reset.
Note: when changing between different modes
(cooling to fan or heating mode etc) the compressor
will turn off. A 3 minute delay will occur before the
compressor will turn on again.
The compressor will not run.
In case of problems that cannot be fixed by using the above guide,
or if service on your air conditioner is required, please contact your
dealer or designated service agent.
TROUBLESHOOTING
11

As a policy of continual product improvement, this manual, its contents and specifications are subject to change without notice.
SEELEY INTERNATIONAL - CLIMATEMASTER
PORTABLE AIR CONDITIONER
ClimateMaster CM9RW
Personal Cooling
2,600 (9000 Btu/hr)
2.0
240
£51
220-240 V ~, 50 Hz
1100
5
3.15 A / 250V
R407C / 0.4
2.7
0.7
IPX0
32
385 / 400 / 725
Model
Function
Cooling Capacity (Watts) †
Dehumidifying Capacity (L/hr)
Air Flow Volume (m / hr)
3
Noise Level - Sound Pressure (dB(A))
Power Supply
Input Power (Watts)
Input Current (Amperes)
Fuse Type
Refrigerant Type / Charge (kg)
High Side Pressure - Maximum (MPa)
Low Side Pressure - Maximum (MPa)
Water Ingress Protection Rating
Weight (kg)
Dimensions (mm)
(width / depth / height)
†Based on manufacturer's test results using the Air Enthalpy method
3-PIN
SUPPLY
PLUG
L
N
PIPE
ROOM
COMPRESSOR
R
C
WIRING DIAGRAM
S
CONTROL PANEL
7 WIRE
LOOM
CONDENSOR
FAN
8 WIRE
LOOM
EVAPORATOR
FAN
PUMP
REMOTE
CONTROL
SENSOR
3 WIRE
LOOM
SWING
MOTOR
(HORZ)
5 WIRE
LOOM
SWING
MOTOR
(VERT)
5 WIRE
LOOM
SPECIFICATIONS
12

NOTES
13

133003-E 1112
Service
Australia 1-300-650-644
seeleyinternational.com
It is the policy of Seeley International to introduce continual
product improvement. Accordingly, specifications are
subject to change without notice. Please consult with your
dealer to confirm the specifications of the model selected.
133003-E seeleyinternational.com AU 1112
