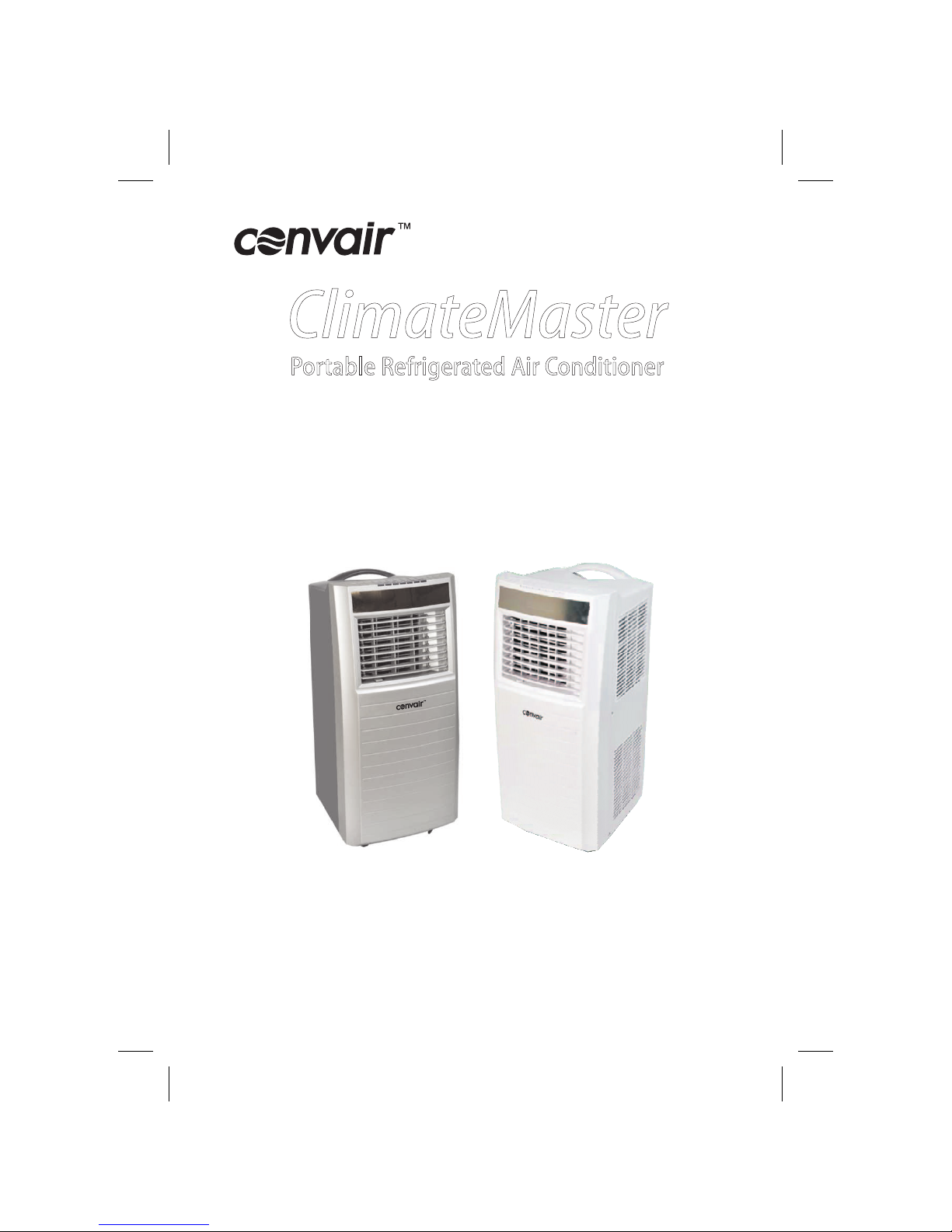

Convair ClimateMaster CP10S User manual

Instruction Manual
CP10S CM10W
ClimateMaster
Portable Refrigerated Air Conditioner

CONTENTS
Introduction......................................1
Safety ..............................................2
Component location.........................3
Installing the exhaust hose ..............4
Control panel ...................................5
Remote control ................................6
Operation......................................7-8
Maintenance ....................................9
Troubleshooting .............................10
Specifications.................................11
Warranty ........................................12
CONTENTS
i

Waste electrical products must not be disposed of with
household waste. This product should be taken to your local
recycling centre for safe treatment.
Please read these instructions prior to using the
appliance and save them for future reference.
i

THANK YOU for choosing a Convair
Air Conditioner. This appliance has
been carefully engineered to bring
you trouble-free personal air
conditioning. Please read this
manual carefully so that you take
full advantage of the many benefits
your Convair provides.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience and
knowledge, unless they have been
given supervision or instruction in
using the appliance by a person
responsible for their safety.
Children should be supervised to
ensure that they do not play with the
appliance. Do not place anything
through the ventilating slots.
Your Convair cooler is a portable air
conditioning unit that supplies
refrigerated air to a personal area
within a room. It is not intended to
function as a house or room air
conditioner.
Be sure the appliance has been
securely and correctly installed
ac co rdi ng t o the i nst all at ion
instructions contained within this
manual.
Personal Cooling
Energy Saving Tips
Warranty
D
D
D
D
D
Do not locate the air conditioner
where furniture or other objects can
obstruct the air flow.
Keep curtains and blinds closed
during the hottest part of the day.
Keep the filters clean.
Set the air conditioner to maximum
cooling and high fan speed initially,
then adjust to a comfortable setting.
Do not wait until the room is
excessively hot before using the air
conditioner.
Co nvai r air c ondi tio ners a re
warranted against faulty manufacture
for 2 years after purchase. Please
refer to page 12 for more details on
warranty.
INTRODUCTION
1

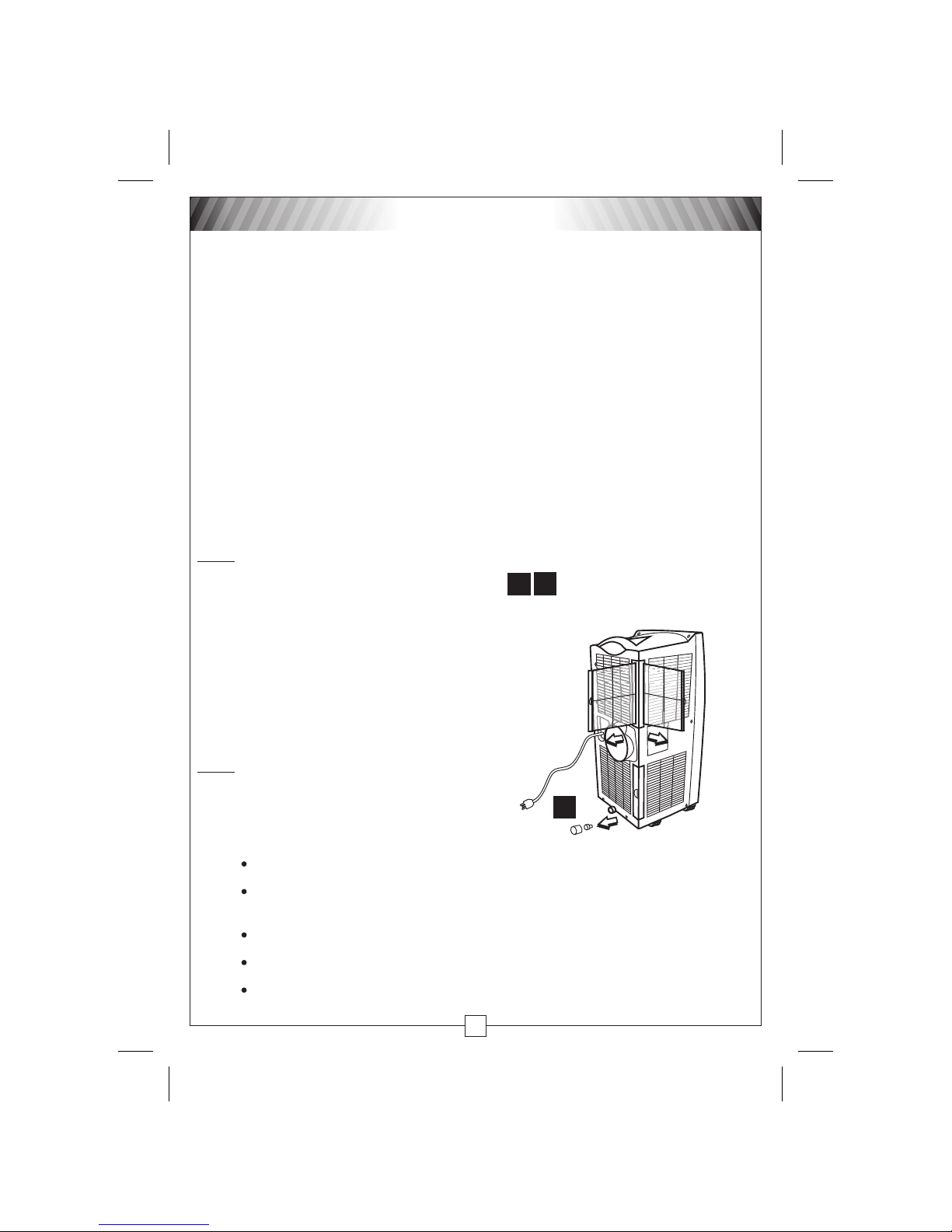

General Safety
Transport the air conditioner in an
upright position only, or leave it in an
upright position for at least 2 hours
before use (Fig 1).
Use only in the upright position on a flat
level surface and at least 50cm from any
objects.
Do not place objects on the air conditioner,
or through the ventilating slots or restrict
the air inlets & outlets (Fig 2).
Closely supervise any children and pets
when the air conditioner is in use.
For indoor use only.
Ensure the appliance has been installed in
acco rdance w ith nati onal wiring
regulations.
Electrical Safety
Do not store or operate the appliance near
any flammable substances.
During operation, water will collect in the
bottom tank of the air conditioner. Be
careful when moving the unit to prevent
water from spilling.
Electrical Safety (cont)
Caution! before connecting the
electrical power cord to a power outlet,
check that the air conditioner voltage is
the same as your power supply (refer to
the rating label located on the side of the
unit - refer Fig 4). Ensure the power supply
is correctly earthed and rated.
Plug the air conditioner directly into a
properly installed power outlet. Never use
an extension cord, double adaptor or multi
power outlet board to run this air
conditioner.
Do not pull the unit along by the power cord
or place the power cord near a source of
heat. Always unroll the power cord
completely before use.
Switch off and unplug when not in use.
Do not use in humid environments such as
bathrooms, laundries or other steamy or
wet areas.
Do not touch or operate the air conditioner
with wet or damp hands or when standing
barefoot.
If the power supply cord is damaged it
must be replaced by the manufacturer, a
service agent or similarly qualified persons
in order to avoid a hazard.
12
SAFETY
2

4
3

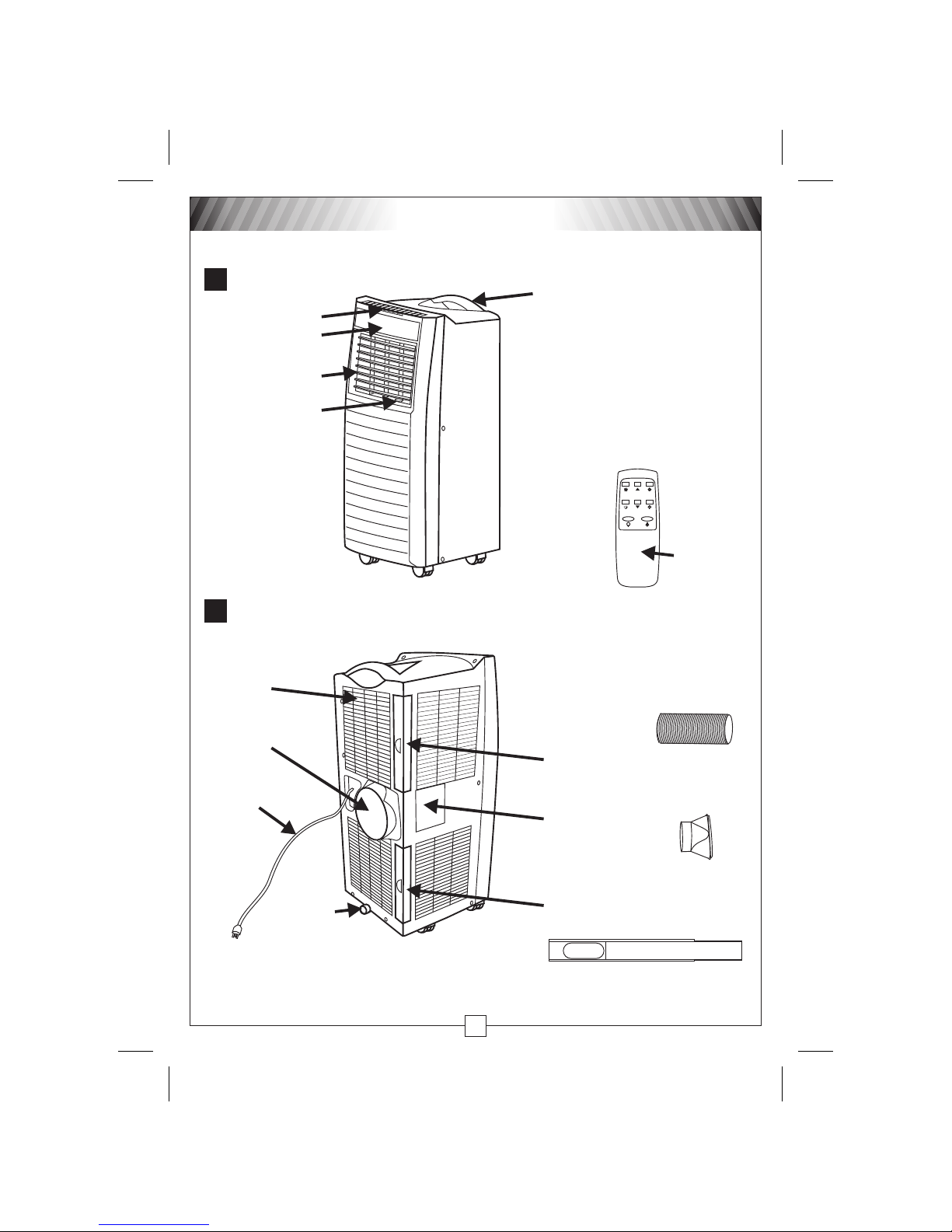

Remote
Control
Air Outlet
Handle
Vane Lever
Display Panel
Control Panel
Air Filter
Air Filter
Drain
Air Intake
Power
Cord
Exhaust Air
Outlet
Exhaust Hose
Window Attachment
Exhaust Fitting
(window end)
Rating
Label
COMPONENT LOCATION
3

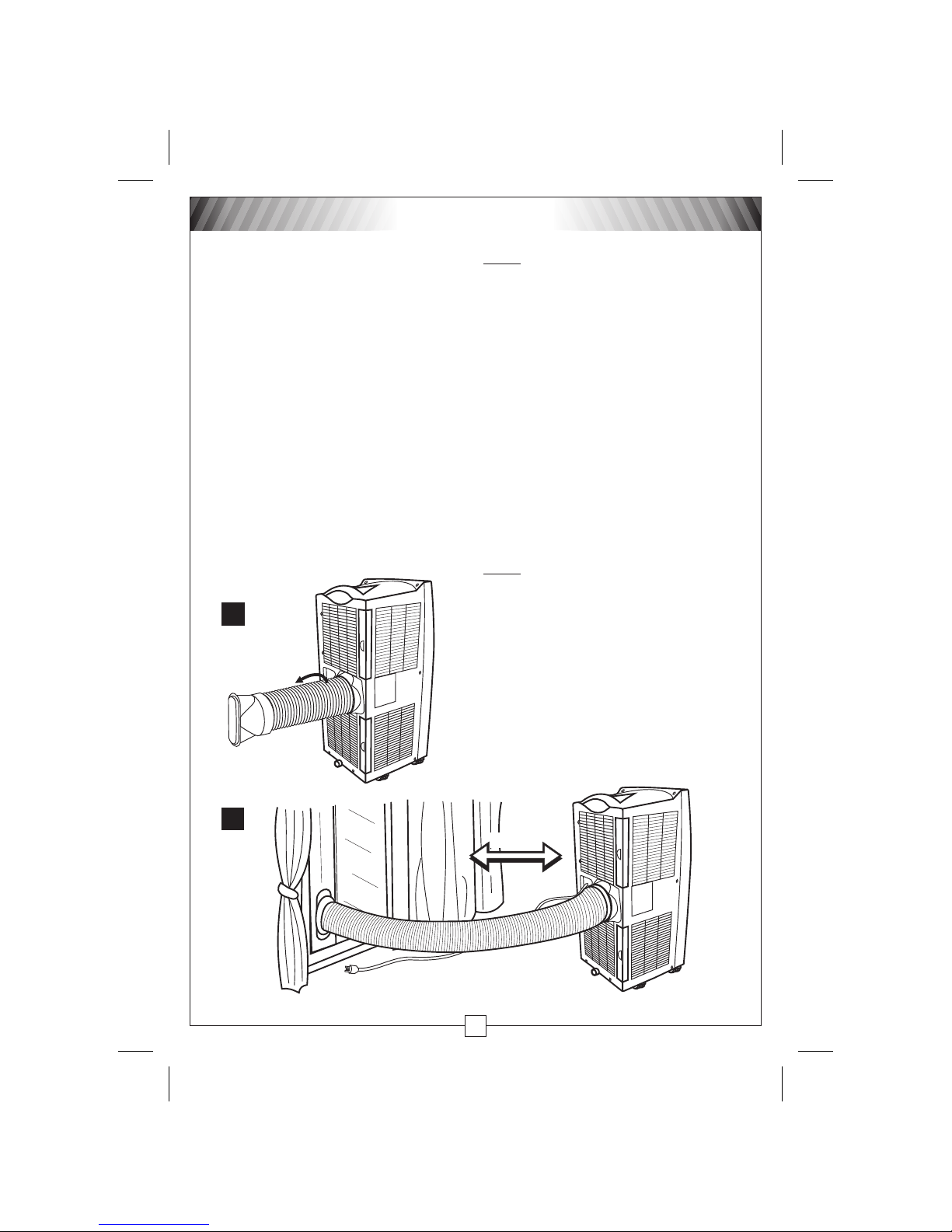

Assembling the exhaust hose (Fig 5,6)
Step 1:
Step 2:
Step 3:
Fit the exhaust hose to the rear
panel outlet by screwing the hose in a
counter-clockwise direction
Snap the oblong connector into
position on the window attachment.
Open the window and fit the
adjustable window attachment. Extend
the attachment as required and lock into
place with the locking screw. Ensure the
outlet is not obscured. The window
attachment can be installed horizontally
or vertically, depending on the window
type.
Note!
Note!
The minimum distance required
from the operating air conditioner to
any obstructing objects or walls is
50cm (Fig 6).
Keep the exhaust hose as short and
straight as possible and minimise
kinks. This will maximise the cooling
performance.
Don’t use extension pieces for the
exhaust pipe as this will reduce the
cooling performance and possibly
r e s u l t i n d a m a g e t o t h e a i r
conditioner.
Hot air and possibly mist will be
emitted from the exhaust hose.
It is critical to the cooler’s
performance that the hot exhaust air
is completely removed from the space
being cooled.
6
INSTALLING THE EXHAUST
5
50cm
4

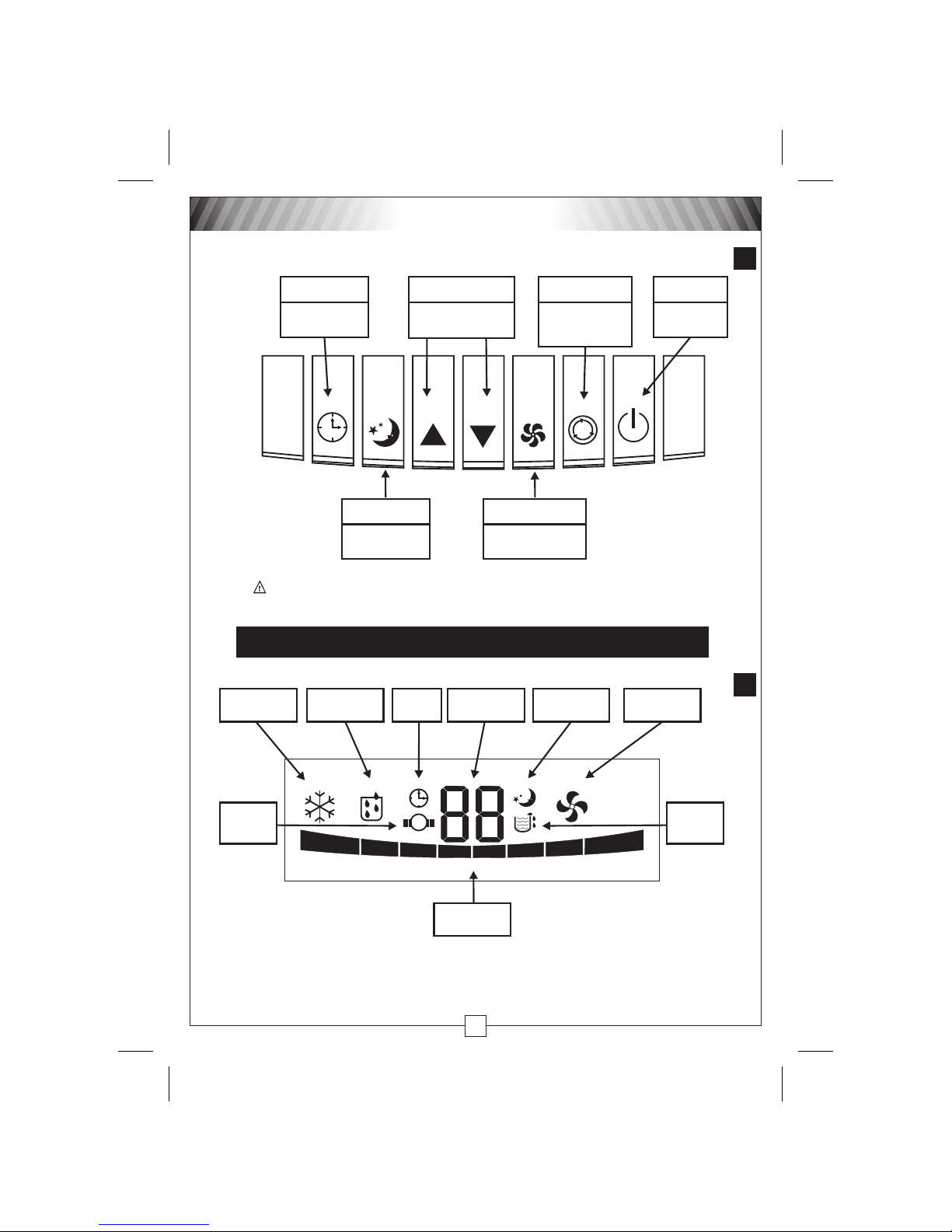

Fan Speed
control button
Press to cycle the fan
speed between low
and high
Sleep
button
Press to enter the
sleep mode
To avoid damage to the control panel, do not operate with sharp objects.
NOTE!
7
CONTROL PANEL
DISPLAY PANEL
8
Press to cycle from
Cooling, Dehumidifying
and Fan modes.
Press to enter the
timer setting mode
and time
Press to turn the
air conditioner on
and off
Press to increase,
to decrease the
set temperature
r
s
Power ON / OFF
button
Timer Set
button
Mode Select
button
Temperature adjust
buttons
comp
Cooling Mode
Indicator
Compressor
Active
Indicator
Water Tank
Full
Indicator
Dehumidifying
Mode Indicator
Timer
Indicator
Set Temperature
Display
Fan Speed
Indicator
Sleep Mode
Indicator
Fan Mode
Indicator
5

9
If there are two of the same air
conditioners installed, they cannot be
controlled separately. When you operate
either remote, it will turn on both air
conditioners if they are both within signal
range (6 metres).
Don’t let the remote control drop onto hard
surfaces or be subjected to sudden
shocks in any way. The warranty does not
cover misuse or accidental damage.
Don’t place the remote control in direct
sunlight, or near extremes of temperature.
This will affect the control’s temperature
reading.
Don’t allow the remote control to get wet.
Don’t place near strong electromagnetic
waves.
Don’t mix old and new batteries ! If the
remote control will not be used for a long
time, remove the batteries to avoid
corrosion.
Care of your remote control
Preparation before operation
During Operation
Remove the battery cover and insert new
batteries
.
Remove the batteries and replace with new
ones. If this does not solve the problem
contact your nearest service centre for
advice.
(AAA), making sure the + and -
are matching the compartment markings
(Fig 10)
If the remote control will not operate the air
conditioner, the batteries may need to be
replaced.
The air conditioner must be plugged
in and switched on for the remote control to
operate the air conditioner. To use, point at
the signal receiving window on the front
panel and press the remote button. The air
conditioner will “beep” when a signal has
been received. If there is no beep, press
the remote button again, ensuring it is
within range (6 metres) of the air
conditioner.
Note!
!
NOTE:
WASTE BATTERIES SHOULD
BE DISPOSED OF CORRECTLY
Signal
transmission point
Temperature
adjust buttons
Sleep mode button
Ioniser button
(not used)
Fan speed
adjust button
Mode buttons
(Cool-Dehumidify-Fan)
Timer on / adjust
button
Power ON / OFF
button
Battery
compartment
Battery cover
10
REMOTE CONTROL
6

Starting the air conditioner
Step 1: Ensure the cooler is plugged in
and switched on.
Step 2:
Step 3:
Cooling mode
Dehumidifying mode
Fan mode
Step 4:
!
Step 5:
Press the ON/OFF button on the
remote control or ON/OFF button on the
control panel to start the air conditioner.
Press the MODE button o n
the control panel or remote control to
select the desired operating mode (Fig.7
&11):
- refrigerated
cooling
- for
extracting moisture from the air
- Fan only operation
(no cooling)
Press / on the control panel
or on the remote control to select the
desired operating ‘set’temperature.
In Cooling mode, cooling will occur if the
set temperature is less than the room
temperature.
Do not set the cooling temperature too
low. This will consume more power. 24°C
is the recommended set temperature, with
high fan speed.
Changing the set temperature will
have no effect in DEHUMIDIFYING or FAN
modes.
Press the FAN SPEED button
on the control panel or remote control to
adjust the fan speed. Each press will cycle
the fan speed between low and high.
In Cooling mode, the fan will
continue to run even when the compressor
has cycled off.
r s
The set temperature range is 16°C-31°C
Tip
Note!
Note!
Step.2
Step.7
Step.3
Step.5
Step.4
Step.6
OPERATION
7
11
12
Air Direction Vanes: The air conditioner
is fitted with 2 sets of air direction vanes for
horizontal and vertical air direction.
Carefully move the vanes to the desired
position by hand (Fig 12).
During cooling mode, water
will collect in the air conditioner’s tank.
This water is recirculated and some will be
exhausted out with the hot air, but will
slowly fill up the tank. This occurs more
quickly in humid conditions. If the tank
should fill, the ‘water full’ s y m b o l
will flash on the control display, the unit will
‘beep’ and then shut down. The cooler
cannot be restarted until the water tank is
drained. Refer to the Maintenance section
for draining the tank should this occur.
Important!

OPERATION
8
Air Conditioner Features
Step 6:
Timer Function
Step 7: Setting the timer
Your air conditioner has a SLEEP
mode, activated by pressing the button on
the control panel or remote control.
SLEEP mode will change the fan speed to
low and increase the set temperature by
1°C each hour for 2 hours. No further
change will occur after the 2nd hour.
Sleep Mode can only be used during
Cooling mode.
The air conditioner is fitted with a timer
function. This can be set up to 24 hours
in advance. To use this function, the
cooler must be plugged in and ready to
operate.
With the air conditioner ON, press the
TIMER button on the remote control or
control panel. The control panel display
will flash and show the time setting. Press
the TIMER button to increase the time in 1
hour increments from 1 - 24 hrs. After 5
seconds the display will revert to the SET
temperature.
When the air conditioner is OFF (but still
plugged in), repeat the above to set the
ON time. The air conditioner will start up
with the last settings used.
When the air conditioner is working,
only the TIMER OFF can be set. When the
air conditioner is off, only the TIMER ON
can be set.
The timer function cannot be used for
dehumidifying mode.
Note!
How to cancel the timer
0To cancel the timer, set the time to using
the control panel or remote control. The
TIMER indicator will stop glowing.

Draining the Air Conditioner
Always replace the drain plug
immediately after draining.
To drain the air conditioner, place it over a
drain point before unscrewing the cap and
removing the drain plug, as water will flow out
as soon as the plug is removed.
Remove the plug at the bottom rear of the
appliance and allow the tank to completely
drain (Fig 13B).
Note!
End of season storage:
Always disconnect the air conditioner from the electricity mains before
cleaning or draining.
To maximize the efficiency of the air conditioner, clean regularly.
Cleaning the housing
Cleaning the filters
Never operate the air conditioner without the filters.Note!
Use a soft, damp cloth to wipe the body clean.
Never use aggressive chemicals, spirits, detergents, chemically treated cloths, or
other cleansing solutions. These substances could possibly damage the cabinet
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt and
then rinse under running water (no hotter than 40°C).
Dry thoroughly before replacing.
Take care to replace the filters back into the slots in the cooler.
.
Remove the filters as shown (Fig 13A).
Drain any water from the unit.
Operate the unit in fan only mode for a few hours, to thoroughly
dry the inside.
Clean or change the filters.
Replace in the original carton or cover for storage.
Unplug and carefully store the power cord and plug end.
MAINTENANCE
9
B
13 A
Remove all filters (4 total)
from the air conditioner
and clean every 2 weeks.

Never try to dismantle the air conditioner yourself.
Problem Check
The air conditioner does
not run.
Is the air conditioner plugged in ?
Is there a power failure ?
Is the "WATER FULL" error code flashing?
Drain the tank as shown (Fig 13).
Is the room temperature below the set temperature ?
The air conditioner has little
effect (firstly ensure that the
room being cooled is not too
large for the stated capacity
of the air conditioner).
Is there direct sunshine ? Remember to close
curtains or blinds.
Are windows or doors open ?
More people in the room will generate more heat.
Is there something in the room producing excessive
heat ?
Is the exhaust fitted correctly or obstructed ? All
exhaust air needs to be completely removed from
the room.
The air conditioner is not as
cool as it once was.
Are the filters dusty or dirty, restricting the airflow ?
Is the air inlet or outlet blocked ?
Is the room temperature below the set temperature ?
The air conditioner is too
noisy.
Is the air conditioner positioned unevenly, so as to
create vibration ?
Is the floor beneath the air conditioner uneven ?
It is possible that the overheat protection for the
compressor is on. Wait for it to reset.
Note: when changing between different modes
(cooling to fan or dehumidifying mode etc) the
compressor will turn off. A 3 minute delay will occur
before the compressor will turn on again.
The compressor will not run.
In case of problems that cannot be fixed by using the above guide,
or if service on your air conditioner is required, please contact your
dealer or designated service agent.
TROUBLESHOOTING
10

SEELEY INTERNATIONAL - CLIMATEMASTER
PORTABLE AIR CONDITIONER
CP10S, CM10W
Personal Cooling
2,900 (10,000 Btu/hr)
400
≤55
220-240 V ~, 50 Hz
1100
3.15 A / 250V
R410A / 0.46
3.2
0.8
IP20
22
320 / 360 / 730
Model(s)
Function
Cooling Capacity (Watts) †
Air Flow Volume (m / hr)
3
Noise Level - Sound Pressure (dB(A))
Power Supply
Input Power (Watts)
Fuse Type
Refrigerant Type / Charge (kg)
High Side Pressure - Maximum (MPa)
Low Side Pressure - Maximum (MPa)
Water Ingress Protection Rating
Weight (kg)
Dimensions (mm)
(width / depth / height)
†Based on manufacturer's test results using the Air Enthalpy method
As a policy of continual product improvement, this manual, its contents and specifications are subject to change without notice.
SPECIFICATIONS
11
WIRING DIAGRAM
LEVEL
SWITCH
PIPE TEMP
SENSOR
ROOM TEMP
SENSOR
BROWN
YELLOW
DISPLAY
BOARD
WT
MCU BROWN
RED
RED
WHITE
BLUE
BLACK
YELLOW
RED
BLUE
BLACK
BLUE
YELLOW
& GREEN
COMP
PUMP
PUMP
PUMP
S C
R
FAN
FAN
MOTOR
AC-L
PT RT
CONTROL BOARD

WARRANTY
12
In this warranty:
or us means Seeley International Pty Ltd ABN 23 054 687 035, and our contact
details are set out at the end of this warranty;
means you, the original end-user purchaser of the Goods;
means the authorised distributor or retailer of the Goods that sold you the
Goods in Australia; and
means the product, unit, appliance or equipment which was accompanied by
this warranty and purchased in Australia.
Our Goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the Goods repaired or replaced if the Goods fail to be of acceptable
quality and the failure does not amount to a major failure.
In addition to any rights and remedies that You may have under the Australian
Consumer Law or any other law, subject to the terms of this warranty, We provide the
following warranty:
1. If, during the first 24 months from the date of first retail purchase (
), the Goods upon examination prove defective by reason of improper
workmanship or material, We will repair at our nearest service centre or replace (at
our option), the product or any part thereof without charge. Should we deem in our
absolute discretion to replace the Goods, we may substitute any similar good even
if it is not on our current price/equipment list. Further, Goods presented for repair
may be replaced by refurbished goods of the same type rather than being repaired.
Refurbished parts may be used to repair the Goods.
2. We are under no obligation to repair or replace the Goods under clause 1 if the
Goods have not been used only for personal, domestic or household purposes or
have not been operated and maintained in accordance with the instructions in the
Owner's Instruction Manual. The addition of any third party device or the removal
or the alteration of any of our components will void this warranty. In addition, the
warranty granted under clause 1 does not apply to:
Consumable components such as filters,
Adjustments necessary due to misuse of the cooler,
Normal user maintenance,
Setting of controls,
Transit damage, or
Damage caused by user misuse, tampering, or failure to observe the
care and special provisions in the instructions.
We
You
Supplier
Goods
Warranty
Period
·
·
·
·
·
·

WARRANTY
13
3. The warranty granted under clause 1 is limited to repair or replacement only. As far
as the law permits, We will not be liable for any consequential loss suffered through,
or resulting from, the non operation, or ineffective operation of the Goods. The
warranty granted under clause 1 does not cover damage to the Goods or other loss
resulting from acts of God.
4. We are not responsible in any way for any failure and/or inadequate performance of
the Goods which arises from or is connected to the use in the Goods of non-
genuine spare parts. We strongly recommend that only spare parts supplied or
approved by us are used in the Goods.
5. No other person, firm or corporation is authorised by us to offer or give on our
behalf any other or greater warranty than that given under this warranty. The
benefits conferred by this warranty are in favour of You and any person deriving
title to the Goods through or under such person and are intended to be separate
from and additional to all other rights and remedies that they may have in law in
respect of the Goods.
6.
(a) either:
(i) contact us within the Warranty Period on: 1300 650 644;
or
(ii)log a claim on our website www.seeleyinternational.com within the Warranty
Period; and
(b) return the Goods to your nearest service centre (or to us at the address below)
by prepaid freight within the Warranty Period, together with (i) the legible and
unmodified proof of purchase, which clearly indicates the name and address of
the original retailer, the date and place of purchase, the product name or other
product serial number, and (ii) a copy of the completed Warranty Information
below. (If you choose to return the Goods to us, there is an additional
requirement - they will also need to be accompanied by a covering letter which
states your name and address and daytime telephone number, and the model
and serial number of the goods.)
8. This warranty does not cover the cost of claiming under the warranty, it is your
responsibility to cover all forwarding and return freight costs incurred in sending the
Goods to and from your nearest service centre or us.
9. This warranty is only valid and enforceable in Australia.
If it is less than fifteen (15) days from the date of purchase of the Goods, in order to
claim under the warranty granted under clause 1 You must return the Goods to the
Supplier at the place of purchase together with the proof of purchase. It is your
responsibility to cover all costs of returning the Goods to the Supplier at the place
of purchase.
7. If it is more than fifteen (15) days after the date of purchase, in order to claim under
the warranty granted under clause 1 You must:

WARRANTY
14
Our liability under this warranty is limited to the extent permitted by law. That is, to the
extent that it is fair and reasonable, if the Goods are not of a kind ordinarily acquired
for personal, domestic or household use or consumption, your remedies associated
with any failure or defect of the Product will be limited to:
(a) the replacement of the Goods or the supply of equivalent goods;
(b) the repair of the Goods;
(c) the payment of the cost of replacing the Goods or of acquiring equivalent goods; or
(d) the payment of the cost of having the Goods repaired
and subject to the terms and conditions included in this warranty.
To ensure that service either pursuant to the above warranty or otherwise is readily
available, we have established in all States authorised service centres, which are
available to deal with service requirements.
For further information about your nearest service centre and other enquiries please
call our Service Centre on:
: CP10S CM10W
: ....../....../......
Please retain your receipt as proof of purchase. Every request for warranty must
be accompanied by proof of purchase.
:
Complete the following for your records:
: ...................................................................
...................................................................
Serial Number:
Model
Date purchased
Product
Purchased from
Convair CLIMATE MASTER
1 1
Service Department
Seeley International Pty Ltd
112 O'Sullivan Beach Road, Lonsdale, South Australia 5160
Customer service centre in Australia: 1300 650 644
Website: www.seeleyinternational.com
1300 650 644

15
NOTES

Warranty Service
Australia 1-300-650-644
seeleyinternational.com
It is the policy of Seeley International to introduce continual
product improvement. Accordingly, specifications are
subject to change without notice. Please consult with your
dealer to confirm the specifications of the model selected.
00240801-C seeleyinternational.com AU 1111
