TECHNICAL & SERVICE MANUAL
PUH-P8YE, PUH-P10YE
2000
(Single andTwin/Triple/Four)
Models
AIR-COOLED HEAT PUMP TYPE
PACKAGED AIR CONDITIONERS
For use with the R407
<Outdoor unit>

Page
Contents
11
11
1PRECAUTIONS FOR DEVICESTHAT USE R407C REFRIGERANT ....................................... 1
[1] Storage of Piping Material ...................................................................................................2
[2] Piping Machining ................................................................................................................. 3
[3] Necessary Apparatus and Materials and Notes on Their Handling ..................................... 4
[4] Brazing................................................................................................................................. 5
[5] Airtightness Test .................................................................................................................. 6
[6] Vacuuming ........................................................................................................................... 6
[7] Charging of Refrigerant ....................................................................................................... 7
22
22
2SPECIFICATIONS ...................................................................................................................... 8
33
33

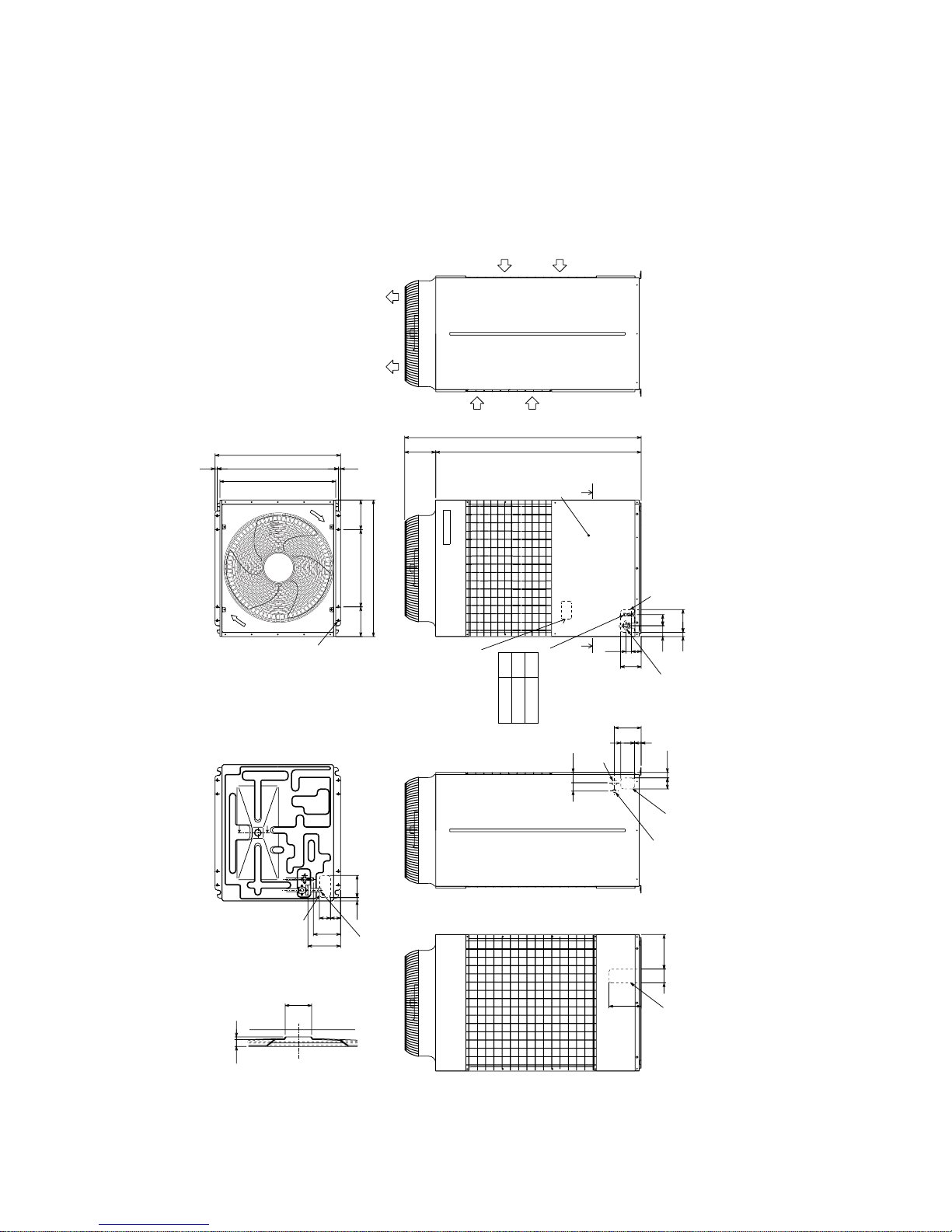

3EXTERNAL DIMENSIONS....................................................................................................... 10
44
44
4ELECTRICALWIRING DIAGRAM ........................................................................................... 11
[1] Outdoor Unit ...................................................................................................................... 11

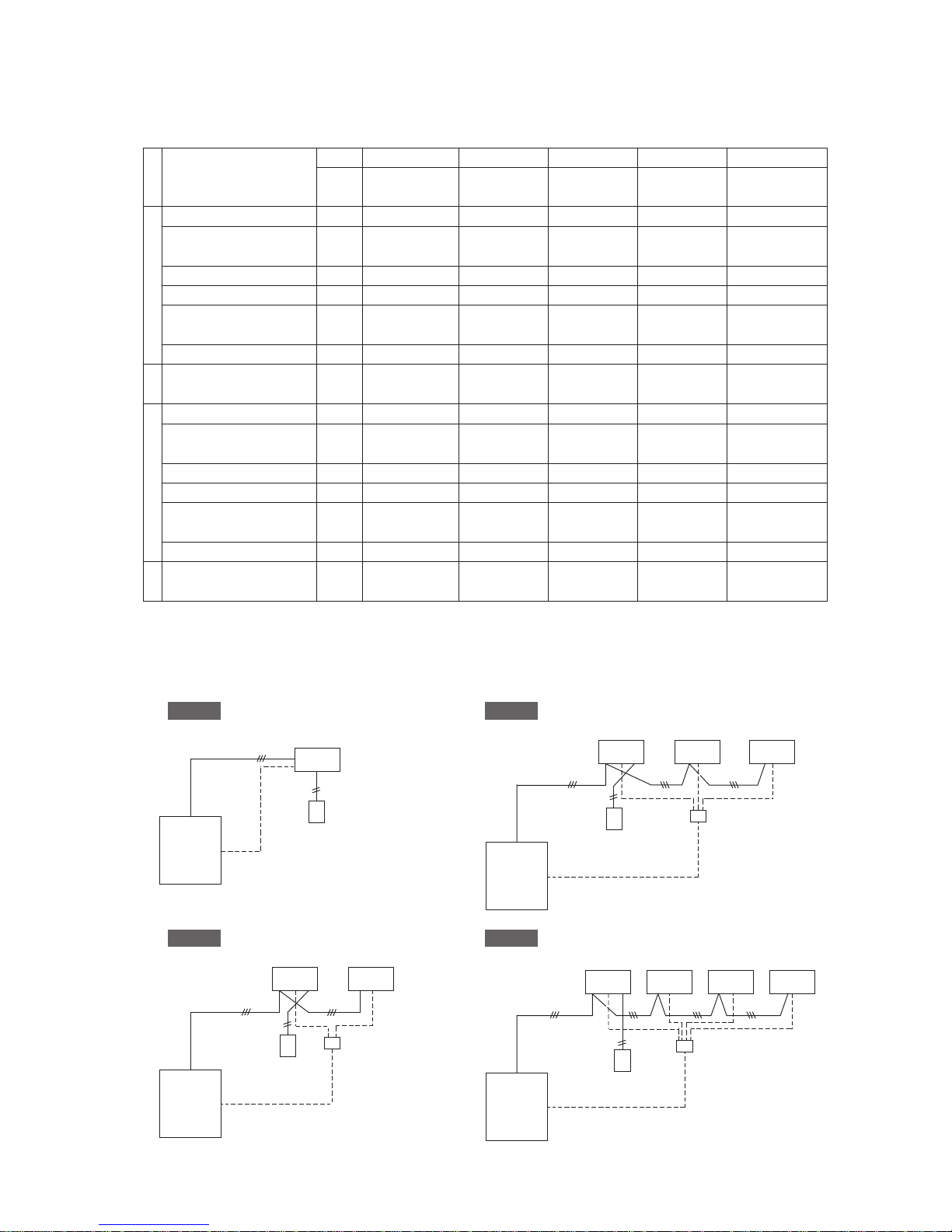

[2] Skelton of Indoor/Outdoor Connection .............................................................................. 12
55
55
5Technical Data of PUH-8/10YD to Meet LVD ......................................................................... 13
[1] Standard Operation Data................................................................................................... 13

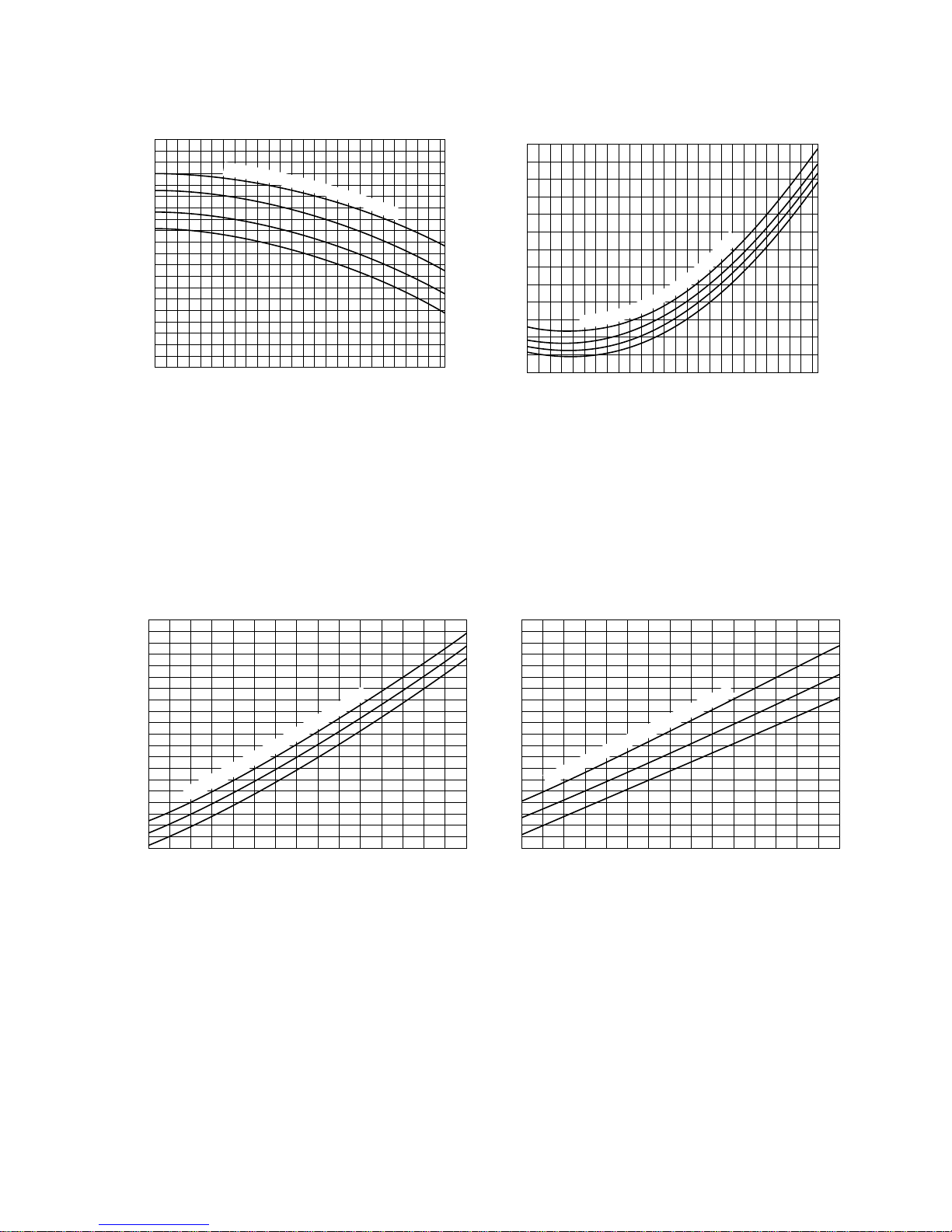

[2] Cooling Capacity Curves ................................................................................................... 14
[3] Heating Capacity Curves................................................................................................... 14

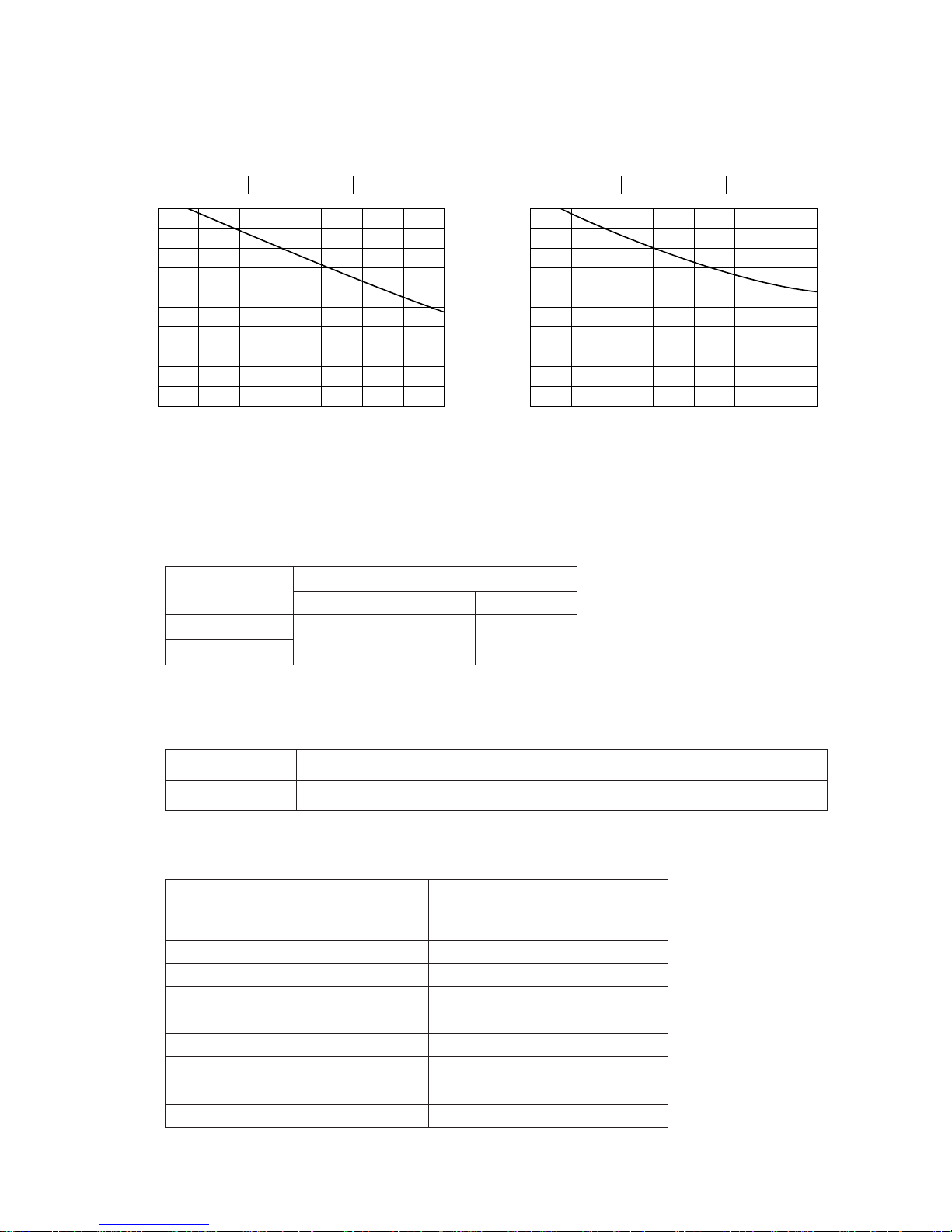

[4] Capacity Reduction Ratio due to Changes in Piping Length ............................................. 15
[5] Center of Gravity (Outdoor unit) ........................................................................................ 16

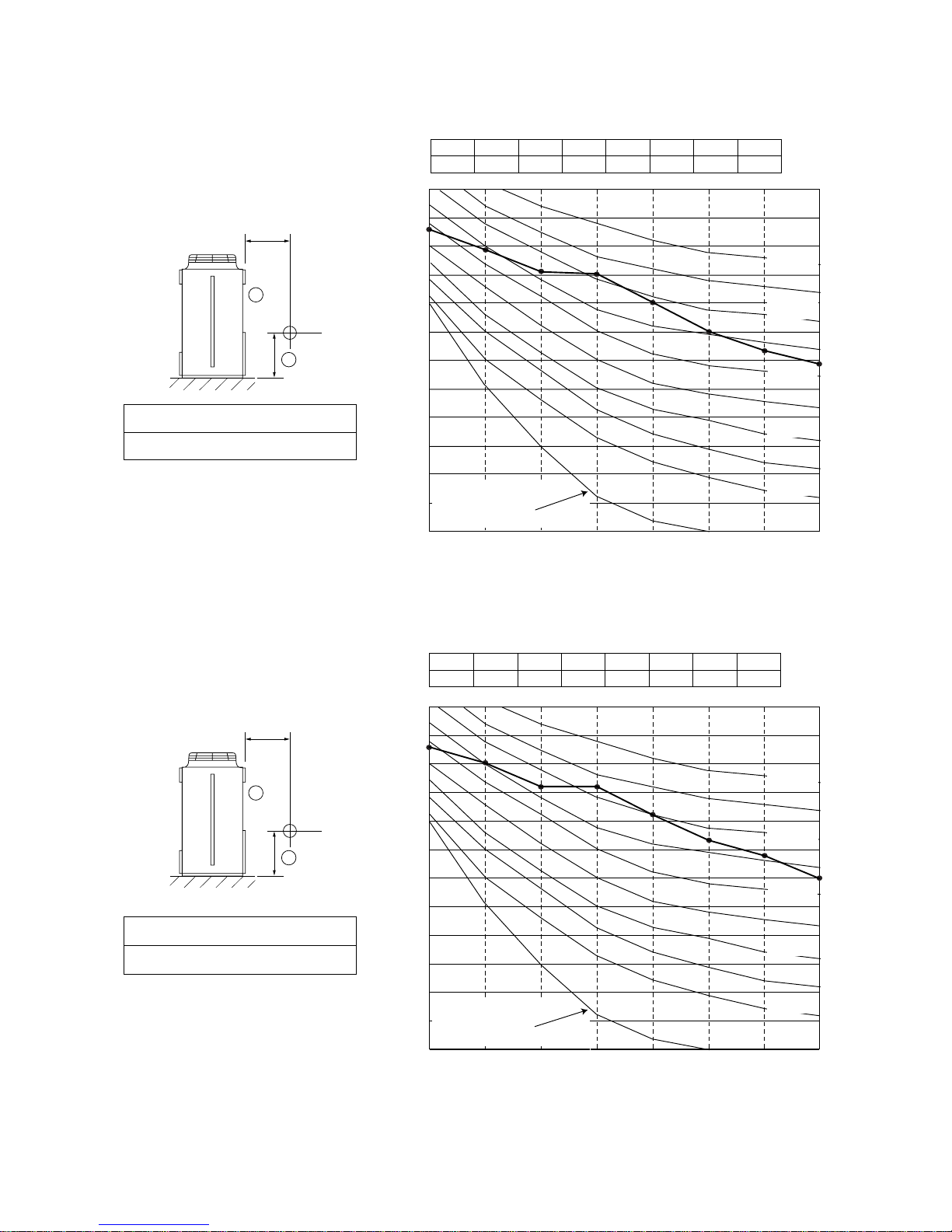

[6] NC Curve (Outdoor unit)................................................................................................... 17
66
66
6SERVICE DATA ........................................................................................................................ 18

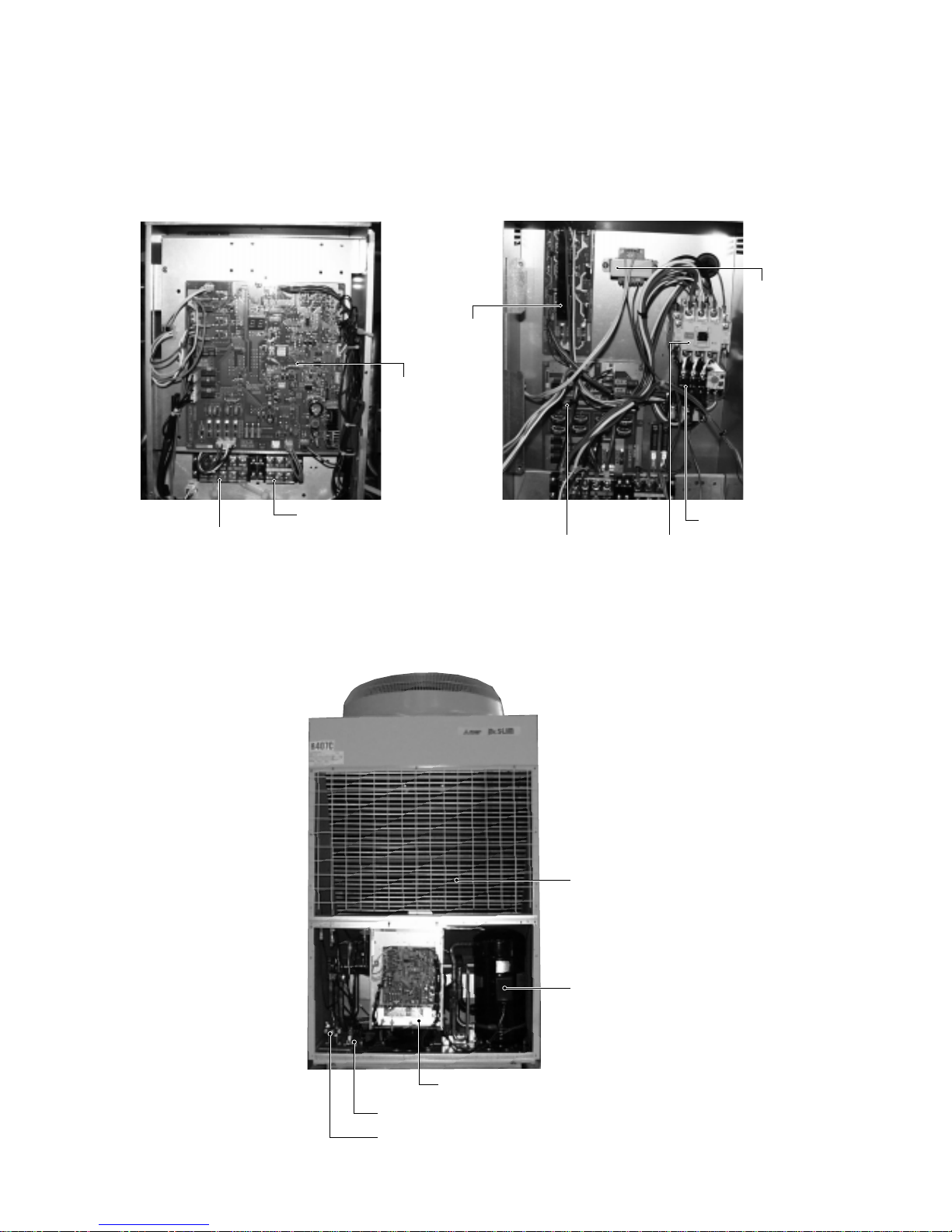

[1] Appearance of Equipment ................................................................................................. 18
[2] Refrigerant Circuit.............................................................................................................. 20
[3] Limitation of Refrigerant Piping Length.............................................................................. 20
[4] Refrigerant Piping .............................................................................................................. 21
[5] Refrigerant Charge ............................................................................................................ 21
[6] Operation Rage ................................................................................................................. 21
77
77
7CONTROL ................................................................................................................................ 22
[1] Composition of Control ...................................................................................................... 22
[2] Control specifications......................................................................................................... 23
[3] Function of switches and connectors (outdoor unit) .......................................................... 27
[4] Simple parts check method ............................................................................................... 35
[5] Reference Data.................................................................................................................. 36
[6] Troubleshooting of each part ............................................................................................. 37
[7] Emergency operation......................................................................................................... 40
[8] Self-diagnosis and troubleshooting.................................................................................... 42
88
88
8Test run .................................................................................................................................... 51

–1–
11
11
1PRECAUTIONS FOR DEVICESTHAT USE R407C REFRIGERANT
Caution
Do not use the existing refrigerant piping.
• The old refrigerant and refrigerator oil in the existing
piping contains a large amount of chlorine which may
cause the refrigerator oil of the new unit to deterio-
rate.
Use refrigerant piping made of C1220 (CU-DHP) phos-
phorus deoxidized copper as specified in the *JIS
H3300“Copper and copper alloy seamless pipes and
tubes”. In addition, be sure that the inner and outer
surfaces of the pipes are clean and free of hazard-
ous sulphur,oxides,dust/dirt,shaving particles,oils,
moisture, or any other contaminant.
• Contaminants on the inside of the refrigerant piping
may cause the refrigerant residual oil to deteriorate.
*JIS: Japanese Industrial Standard
Storethe piping to be used during installation indoors
and keep both ends of the piping sealed until just
before brazing. (Store elbows and other joints in a
plastic bag.)
• If dust, dirt, or water enters the refrigerant cycle, de-
terioration of the oil and compressor trouble may re-
sult.
Use ester oil,ether oil or alkylbenzene (small amount)
as the refrigerator oil to coat flares and flange con-
nections.
• The refrigerator oil will degrade if it is mixed with a
large amount of mineral oil.
Use liquid refrigerant to seal the system.
• If gas refrigerant is used to seal the system, the com-
position of the refrigerant in the cylinder will change
and performance may drop.
Do not use a refrigerant other than R407C.
• If another refrigerant (R22, etc.) is used, the chlorine
in the refrigerant may cause the refrigerator oil to de-
teriorate.
Use a vacuum pump with a reverse flow check valve.
• The vacuum pump oil may flow back into the refriger-
ant cycle and cause the refrigerator oil to deteriorate.
Do not use the following tools that have been used
with conventional refrigerants.
(Gauge manifold, charge hose, gas leak detector, re-
verse flow check valve, refrigerant charge base,
vacuum gauge, refrigerant recovery equipment)
• If the conventional refrigerant and refrigerator oil are
mixed in the R407C, the refrigerant may deteriorated.
• If water is mixed in the R407C, the refrigerator oil may
deteriorate.
• Since R407C does not contain any chlorine, gas leak
detectors for conventional refrigerants will not react to
it.
Do not use a charging cylinder.
• Using a charging cylinder may cause the refrigerant
to deteriorate.
Be especially careful when managing the tools.
• If dust, dirt, or water gets in the refrigerant cycle, the
refrigerant may deteriorate.
If the refrigerant leaks, recover the refrigerant in the
refrigerant cycle, then recharge the cycle with the
specified amount of the liquid refrigerant indicated
on the air conditioner.
• Since R407C is a nonazeotropic refrigerant, if addi-
tionallycharged whenthe refrigerant leaked,the com-
position of the refrigerant in the refrigerant cycle will
change and result in a drop in performance or abnor-
mal stopping.

–2–

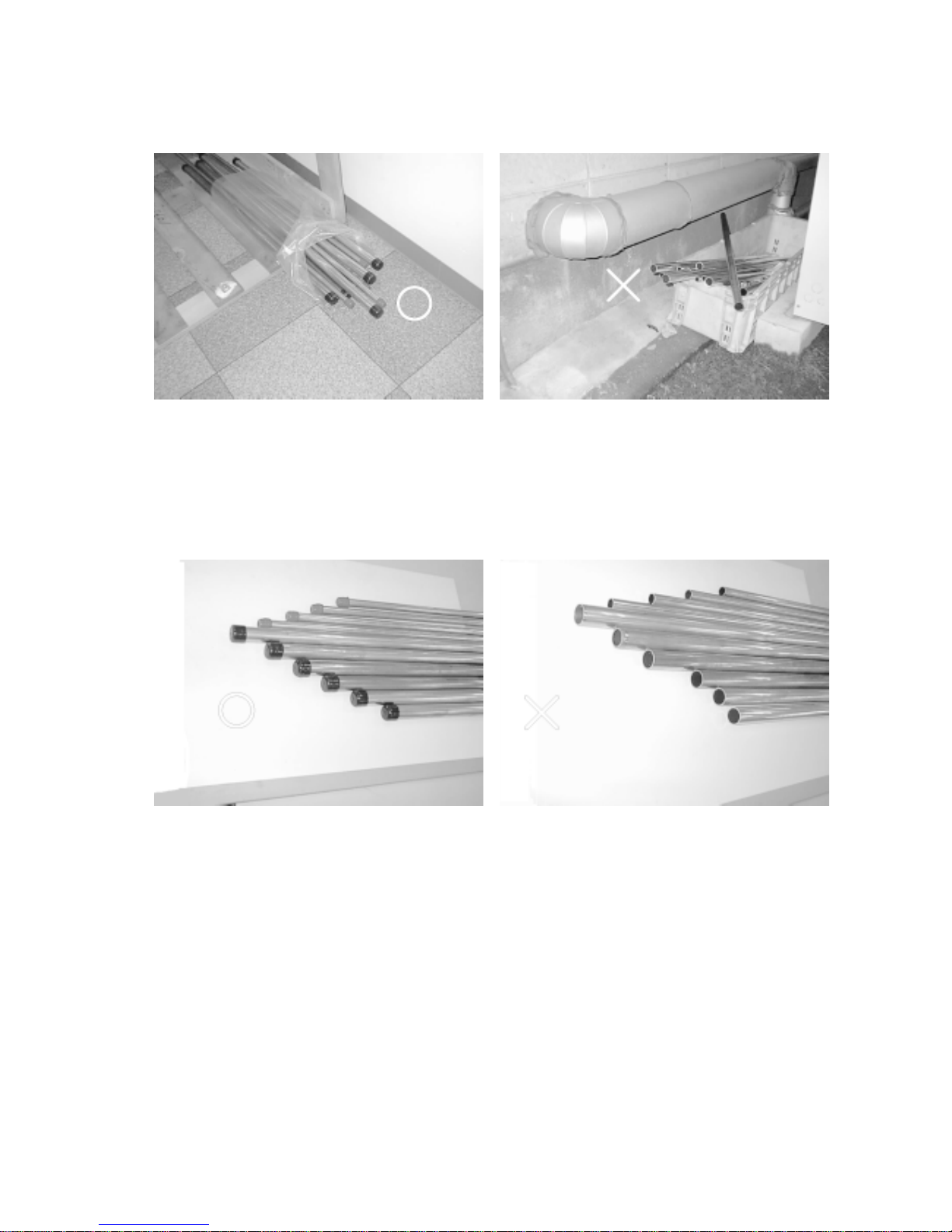

[1] Storage of Piping Material
(1) Storage location
Store the pipes to be used indoors.(Warehouse at site or owner’s warehouse)
Storing them outdoors may cause dirt, waste, or water to infiltrate.
(2) Pipe sealing before storage
Both ends of the pipes should be sealed until immediately before brazing.
Wrap elbows andT’s in plastic bags for storage.
* The new refrigerator oil is 10 times more hygroscopic than the conventional refrigerator oil (such as Suniso). Water
infiltration in the refrigerant circuit may deteriorate the oil or cause a compressor failure. Piping materials must be stored
with more care than with the conventional refrigerant pipes.

–3–
[2] Piping Machining
Use ester oil, ether oil or alkylbenzene (small amount) as the refrigerator oil to coat flares and flange connections.
Use only the necessary minimum quantity of oil !
Reason:
1. The refrigerator oil used for the equipment is highly hygroscopic and may introduce water inside.
Notes:
• Introducing a great quantity of mineral oil into the refrigerant circuit may also cause a compressor failure.
• Do not use oils other than ester oil, ether oil or alkylbenzene.

–4–
[3] Necessary Apparatus and Materials and Notes onTheir Handling
The following tools should be marked as dedicated tools for R407C.
<<Comparison of apparatus and materials used for R407C and for R22>>
Apparatus Used Use R22 R407C
Gauge manifold Evacuating, refrigerant filling Current product
Charging hose Operation check Current product
Charging cylinder Refrigerant charging Current product Do not use
Gas leakage detector Gas leakage check Current product Shared with R134a
Refrigerant collector Refrigerant collection R22 For R407C use only
Refrigerant cylinder Refrigerant filling R22 Identification of dedi-
cated use for R407C:
Record refrigerant name
and put brown belt on
upper part of cylinder.
Vacuum pump Vacuum drying Current product Can be used by attach-
ing an adapter with a
check valve.
Vacuum pump with a check valve Current product
Flare tool Flaring of pipes Current product
Bender Bending of pipes Current product
Application oil Applied to flared parts Current product Ester oil or Ether oil or
Alkybenzene (Small
amount)
Torque wrench Tightening of flare nuts Current product
Pipe cutter Cutting of pipes Current product
Welder and nitrogen cylinder Welding of pipes Current product
Refrigerant charging meter Refrigerant charging Current product
Vacuum gauge Checking the vacuum degree Current product
Symbols: To be used for R407C only. Can also be used for conventional refrigerants.
Tools for R407C must be handled with more care than those for conventional refrigerants.They must not come into contact
with any water or dirt.

–5–
[4] Brazing
No changes from the conventional method, but special care is required so that foreign matter (ie. oxide scale, water, dirt,
etc.) does not enter the refrigerant circuit.

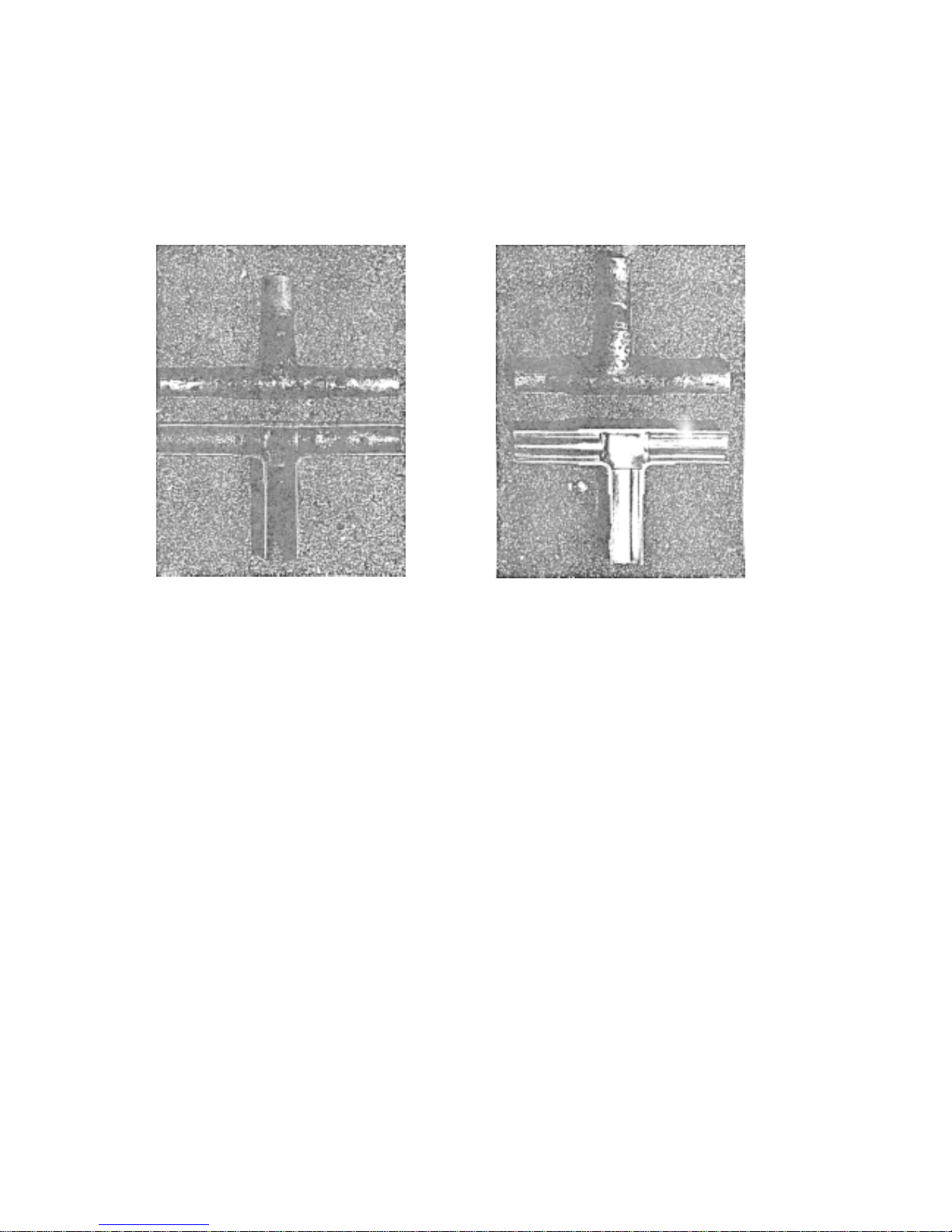

Example: Inner state of brazed section
When non-oxide brazing was not used When non-oxide brazing was used
Items to be strictly observed:
1. Do not conduct refrigerant piping work outdoors on a rainy day.
2. Apply non-oxide brazing.
3. Usea brazingmaterial (Bcup-3) whichrequires no flux when brazingbetweencopper pipes or betweena copper pipe
and copper coupling.
4. If installed refrigerant pipes are not immediately connected to the equipment, then braze and seal both ends of them.
Reasons:
1. The new refrigerant oil is 10 times more hygroscopic than the conventional oil.The probability of a machine failure if
water infiltrates is higher than with conventional refrigerant oil.
2. A flux generally contains chlorine.A residual flux in the refrigerant circuit may generate sludge.
Note:
• Commercially available antioxidants may have adverse effects on the equipment due to its residue, etc. When
applying non-oxide brazing, use nitrogen.

–6–
[5] AirtightnessTest
No changes from the conventional method.Note that a refrigerant leakage detector for R22 cannot detect R407C leakage.
Halide torch R22 leakage detector
Items to be strictly observed:
1. Pressurize the equipment with nitrogen up to the design pressure and then judge the equipment’s airtightness, taking
temperature variations into account.
2. When investigating leakage locations using a refrigerant, be sure to use R407C.
3. Ensure that R407C is in a liquid state when charging.
Reasons:
1. Use of oxygen as the pressurized gas may cause an explosion.
2. Charging with R407C gas will lead the composition of the remaining refrigerant in the cylinder to change and this
refrigerant can then not be used.
Note:
• A leakage detector for R407C is sold commercially and it should be purchased.
[6] Vacuuming
1. Vacuum pump with check valve
A vacuum pump with a check valve is required to prevent the vacuum pump oil from flowing back into the refrigerant
circuit when the vacuum pump power is turned off (power failure).
It is also possible to attach a check valve to the actual vacuum pump afterwards.
2. Standard degree of vacuum for the vacuum pump
Use a pump which reaches 0.5 Torr (500 MICRON) or below after 5 minutes of operation.
In addition, be sure to use a vacuum pump that has been properly maintained and oiled using the specified oil.If the
vacuum pump is not properly maintained, the degree of vacuum may be too low.
3. Required accuracy of the vacuum gauge
Use a vacuum gauge that can measure up to 5Torr.Do not use a general gauge manifold since it cannot measure a
vacuum of 5Torr.
4. Evacuating time
• Evacuate the equipment for 1 hour after –755 mmHg (5 Torr) has been reached.
• After envacuating, leave the equipment for 1 hour and make sure the that vacuum is not lost.
5. Operating procedure when the vacuum pump is stopped
In order to prevent a backflow of the vacuum pump oil, open the relief valve on the vacuum pump side or loosen the
charge hose to drawn in air before stopping operation.
The same operating procedure should be used when using a vacuum pump with a check valve.

–7–
[7] Charging of Refrigerant
R407C must be in a liquid state when charging, because it is a non-azeotropic refrigerant.

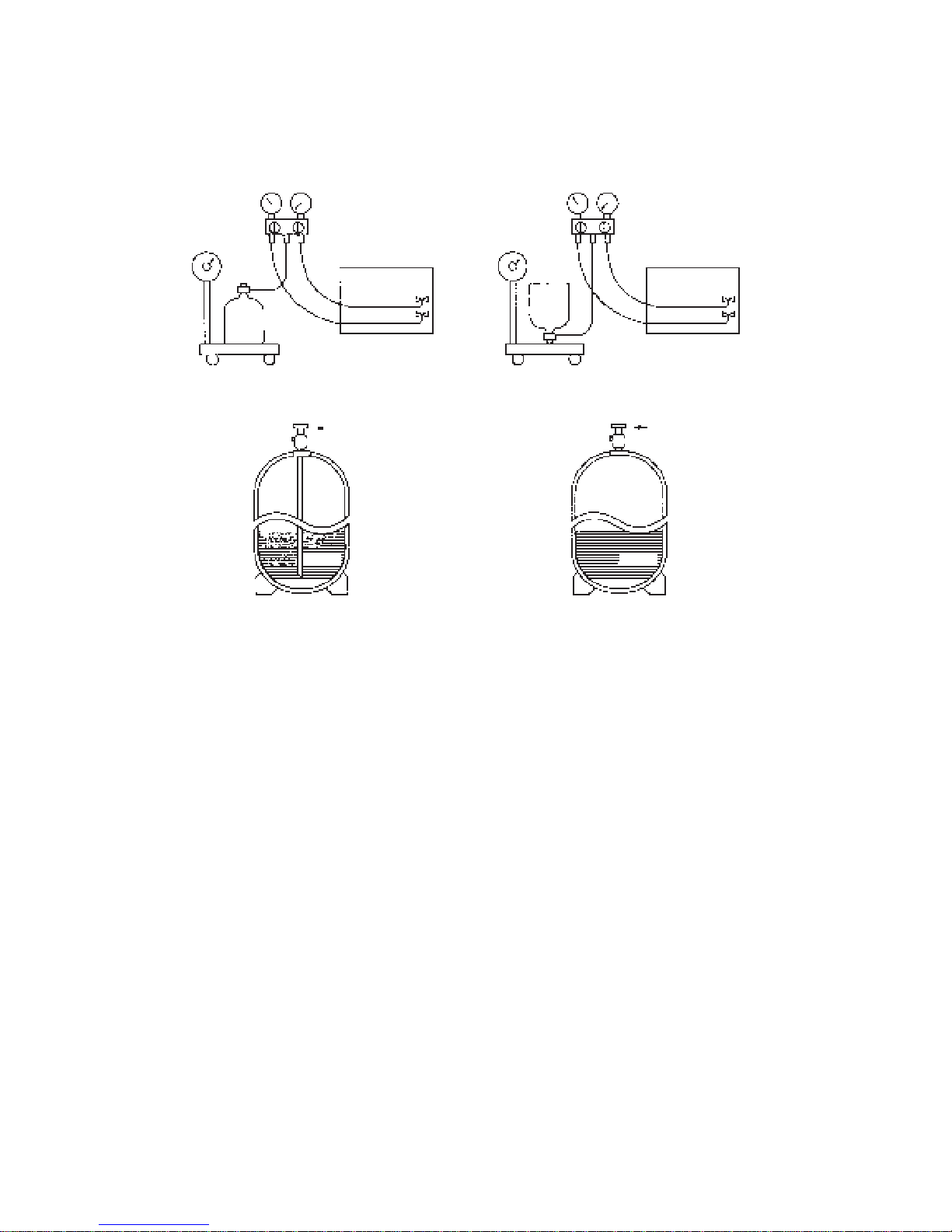

For a cylinder with a syphon attached For a cylinder without a syphon attached
Cylinder color identification R407C-Gray Charged with liquid refrigerant
R410A-Pink
Reasons:
1. R407C is a mixture of 3 refrigerants, each with a different evaporation temperature. Therefore, if the equipment is
charged with R407C gas, then the refrigerant whose evaporation temperature is closest to the outside temperature is
charged first while the rest of refrigerants remain in the cylinder.
Note:
• In the case of a cylinder with a syphon, liquid R407C is charged without turning the cylinder up side down.Check the
type of cylinder before charging.
Cylin-
der
Cylin-
der
Valve Valve
Liquid Liquid

–8–
Cooling Heating
18,000 20,400
20.9 23.7
3N~ 380/400/415 V 50 Hz
7.27 7.17
13.0 12.8
Propeller fan ×1
185
0.38
Hermetic
5.5
0.05 (240 V)
R407C/FVC68D
Steel plate painting with polyester powder
(MUNSELL 5Y8/1 or similar)
1,715(H) ×990(W) ×840(L)
3.3
Overcurrent protection/Thermal switch
ø12.7 Flare / ø25.4 Flange
PEH-P8YE
56
215
Indoor: 15 °CWB~24 °CWB Indoor: 15°CDB~27 °CDB
Outdoor: –5 °CDB~46 °CDB Outdoor:–12 °CWB~18 °CWB
22
22
2SPECIFICATIONS
Specifications of air-source heat pump type packaged air conditioner
(Outdoor unit)
Model name PUH-P8YE Quantity
Capacity kcal/h
kW
Power source
Power input kW
Current A
Type x Quantity
Fan Airflow rate m3/min
Motor output kW
Type
Compressor Motor output kW
Crankcase heater kW
Refrigerant/Lubricant
External finish
External dimension mm
High pressure protection MPa
Compressor/Fan
Refrigerant piping diameter Liquid/Gas mm
Indoor unit
Noise level dB (A)
Net weight kg
Operating temperature range
Notes:
1. Cooling/Heating capacity indicates the maximum value at operation under the following condition.
Cooling Indoor: 27 °CDB/19 °CWB Outdoor: 35
° CDB
Heating Indoor: 20 °CDB Outdoor: 7
° CDB/6 °CWB
Pipe length: 7.5 m Height difference: 0 m
2. Works not included: Installation/Foundation work, Electrical connection work, Duct work, Insulation
work, Power source switch, and other items not specified in this specifications.
Protection
device

–9–
Cooling Heating
22,400 26,200
26.0 30.5
3N~ 380/400/415 V 50 Hz
9.02 8.62
16.0 15.4
Propeller fan ×1
185
0.38
Hermetic
7.5
0.05 (240 V)
R407C/FVC68D
Steel plate painting with polyester powder
(MUNSEL 5Y8/1 or similar)
1,715(H) ×990(W) ×840(L)
3.3
Overcurrent protection/Thermal switch
ø12.7 Flare / ø28.6 Flange
PEH-P10YE
57
220
Indoor: 15 °CWB~24 °CWB Indoor: 15 °CDB~27 °CDB
Outdoor: –5 °CDB~46 °CDB Outdoor: –12 °CWB~18 °CWB
Specifications of air-source heat pump type packaged air conditioner
(Outdoor unit)
Model name PUH-P10YE Quantity
Capacity kcal/h
kW
Power source
Power input kW
Current A
Type x Quantity
Fan Airflow rate m3/min
Motor output kW
Type
Compressor Motor output kW
Crankcase heater kW
Refrigerant/Lubricant
External finish
External dimension mm
High pressure protection MPa
Compressor/Fan
Refrigerant piping diameter Liquid/Gas mm
Indoor unit
Noise level dB (A)
Net weight kg
Operating temperature range
Notes:
1. Cooling/Heating capacity indicates the maximum value at operation under the following condition.
Cooling Indoor: 27 °CDB/19 °CWB Outdoor: 35 °CDB
Heating Indoor: 20 °CDB Outdoor: 7 °CDB/6 °CWB
Pipe length: 7.5 m Height difference: 0 m
2. Works not included: Installation/Foundation work, Electrical connection work, Duct work, Insulation
work, Power source switch,and other items not specified in this specifications.
Protection
device

–10–
33
33
3EXTERNAL DIMENSIONS
• Models PUH-P8YE/P10YE
Rear view
Cross section X-X Plane view Air outlet
Air inlet
Air inlet
Right side view
Knockout hole
Service panel
Knockout hole Front piping hole
Front view
Refrig. service valve (gas) <flange>
Refrig. service valve (liquid)
øA<flare>
Conn. pipe
8 :
ø
25.4<brazed>
10 :
ø
28.58<brazed>
Knockout hole Left piping hole
ø
27 Knockout hole
<Left side hole for the control wiring>
ø
40 Knockout hole
<Left side hole for the power supply>
Left side view
225
1715
Knockout hole
215
< Accessory >
• Refrigerant (gas) conn. pipe
···········
1 pc.
(The connecting pipe is fixed with the unit)
• Packing for conn. pipe
·················
·
1 pc.
(Attached near the ball valve)
• Conduit mouting plate
(Painted the same color as the unit body)
ø
40,
ø
33,
ø
27
·························
each 1pc.
• Tapping screw 4 ✕ 10
················
4 pcs.
1490
215
Note1
Note Please leave a space under the outdoor unit
for the piping When you connect the piping from the bottom.
(Please be careful not to close the hole
of the bottom plate by the basement)
Y
Y
Crosss section Y-Y
50
12 5
,
83
16531
79
70
48 100
194
4080
7560
251100
234
149
560 990
15 880 15
840
910
40
25 160
73 80
Knockout hole Bottom piping hole
237
198
4 ✕ 2 - 14 ✕20
Oval hole
X
X
Unit: mm
PUH-P8YE
MOOEL
PUH-P10YE 12.7
A
12.7

–11–
44
44
4ELECTRICALWIRING DIAGRAM
[1] Outdoor Unit
• Models PUH-P8YE/P10YE
Note:
1. Be sure to apply earth work to the unit. (Use the earth ter-
minal of TB1.)
F03
F02
F04
F2
1
LED1
SW4
1
OFF
ON
4
SW3
OFF
ON
1
2
SW5
OFF
ON
1
SW1
6
6
OFF
ON
1
SW2
1
3
TH3
TH2
(5P)
CNPOW
F.C.
BOARD
(5P)
CNFAN
(6P)
CNFC2
(2P)(2P)
(6P) (2P)
(5P)
(3P)
(3P)
(3P)
(3P)
(3P)
(3P)
(3P)
(3P)
CN28
CNS3
(3P)
CNFG
(3P)
(3P)
(7P)
CNIN
(5P)
(3P)
(3P)
(3P)
(5P)
(3P)
(3P)
(6P)
(6P)
CN20 (7P)
TR
31 3
531
3
311 5
7
5
3
1
LEV
6
1
MF
1
3
CN53
CNOUT2
CNOUT1
CNMNT CN2
1
21 2
CN3
1
2
CN4CN40
2
1
L1
L2
L3
N
N
52C
51C
CN3N
63L
63H2
1
3
CN27
CN24
1
CN3S
CNVMNT
CN3D
1
3
L1 L2 L3
31
CN34
DC power supply
Transmission
Circuite
6
7
1
1
CNFC1
X05
X02
5
SV1
52C X04
X01
X03
CH
52C
MC
CN23
1
3
CN22
1
3
63H1
CN21
1
3
51C
5
3
CN26
3
CN25
CN52
1
1
L1 L2 L3 N
(3P) (1P)
(4P)
TH1
1
F30
F1
F20
F10
4
F01
(5P)
CN51
21S4
Blue Black
White
S1 S2 S3
Red
Black White
Red
N.F.BOARD
Green/Yellow
Controller Box
Power source
3N~
380/400/415 V
50 Hz
TB3
TB1
Unit body
To indoor unit
PUH-P10YE
PUH-P8YE
SW5
1
ON
OFF
4
SW5
1
ON
OFF
44
OFF
ON
1
4
OFF
ON
1
NOTE SW5-4 IS OFF IN CASE OF PUH-P8YE.
SW5-4 IS ON IN CASE OF PUH-P10YE.
Symbol Explanation
Symbol Name
FUSE (15A 250VAC CLASS T)
FUSE (6.3A 250VAC CLASS F)
FUSE (6.3A 250VAC CLASS F)
OVER CURRENT RELAY
MAGNETIC CONTACTOR (COMPRESSOR)
PRESSURE SWITCH (LOW PRESSURE)
PRESSURE SWITCH (HIGH PRESSURE)
PRESSURE SWITCH (FOR CONTROL)
TRANSFORMER
ELECTRIC MOTOR OF COMPRESSOR
FAN MOTOR (HEAT EXCHANGER)
CRANK CASE HEATER (COMPRESSOR)
RELAY
SWITCH
4-WAY VALVE
SORENOID VALVE
ELECTRIC EXPANSION VALVE
LIQUID TEMP
THERMISTOR DISCHARGE TEMP
CONDENSER/EVAPORATOR
TEMP
POWER SOURCETERMINAL BLOCK
INDOOR/OUTDOOR CONNECTION TERMINAL
BLOCK
EARTH TERMINAL
F1, F2
F01~F04
F10~F30
51C
52C
63L
63H1
63H2
TR
MC
MF
CH
X01~X05
SW1~5
21S4
SV1
LEV
TH1
TH2
TH3
TB1
TB3

–12–
Indoor Units
PEH-P*YE
PLH-P*KAH, PLH-P*AAH
PLA-P*KA, PLA-P*AA
PEHD-P*EAH, PEAD-P*EA
PCH-P*GAH, PCA-P*GA
PKH-P*GALH, PKH-P*FALH
PKA-P*GAL, PKA-P*FAL
PSH-P*GAH, PSA-P*GA
Indoor Units
PEH-P*YE
PLH-P*KAH, PLH-P*AAH
PLA-P*KA, PLA-P*AA
PEHD-P*EAH, PEAD-P*EA
PCH-P*GAH, PCA-P*GA
PKH-P*GALH, PKH-P*FALH
PKA-P*GAL, PKA-P*FAL
PSH-P*GAH, PSA-P*GA
Multi distributor pipes
(Option)
25 : 25 : 25 : 25
2HP+2HP
+2HP+2HP
–
j
j
j
j
–
2.5HP+2.5HP+
2.5HP+2.5HP
–
j
j
j
j
–
SDT-1111SA-E
[2] Skelton of Indoor/Outdoor Connection
(1) Applicable combinations of 8 & 10HP [PUH-P8/P10YE]
(2) System
Indoor units
Distributor
Remote
controller
Outdoor unit Pipe work
Transmission
line
3-core cable
Distributor
Remote
controller
Outdoor unit Pipe work
Transmission
line
3-core cable
Indoor unit
Remote
controller
Outdoor unit Pipe work
Transmission line
3-core cable Indoor units
Twin
TripleSingle
Single
8HP
j
–
–
–
–
–
10HP
j
–
–
–
–
–
–
50 : 50
4HP+4HP
–
j
j
j
j
j
5HP+5HP
–
j
j
j
–
j
SDD-50WSA-E
33 : 33 : 33
2.5HP+2.5HP
+2.5HP
–
j
j
j
j
–
3HP+3HP
+3HP
–
j
j
j
j
j
SDT-111SA-E
25 : 25 : 50
2HP+2HP
+4HP
–
j
j
j
j
–
2.5HP+2.5HP
+5HP
–
j
j
j
–
–
SDT-112SA-E
20 : 40 : 40
1.6HP+3HP
+3HP
–
j
j
–
j
–
2HP+4HP
+4HP
–
j
j
j
j
–
SDT-122SA-E
PUH-P10YE PUH-P8YE
Four
Distributor
Remote
controller
Outdoor unit Pipe work
Transmission
line
3-core cable
Indoor units
* indicates applicable HP.

–13–
380 400 415 380 400 415
50 50 50 50 50 50
27/19 27/19 27/19 20/– 20/– 20/–
35/- 35/– 35/– 7/6 7/6 7/6
7.5 7.5 7.5 7.5 7.5 7.5
6.9 6.9 6.9 6.9 6.9 6.9
13.0 13.0 13.0 12.8 12.8 12.8
7.27 7.27 7.27 7.17 7.17 7.17
11.9 11.9 11.9 11.7 11.7 11.7
1.1 1.1 1.1 1.1 1.1 1.1
1.12 1.12 1.12 1.12 1.12 1.12
0.65 0.65 0.65 0.65 0.65 0.65
2.11 2.11 2.11 1.91 1.91 1.91
0.48 0.48 0.48 0.40 0.40 0.40
75 75 75 70 70 70
666000
46 46 46 0 0 0
35 35 35 30 30 30
55
55
5Technical Data of PUH-8/10YD to Meet LVD
[1] Standard Operation Data
1PUH-P8YE
Operating condition
Operating condition Cooling Heating
Voltage V
Power source frequency Hz
Indoor air condition (DB/WB) °C
Outdoor air condition (DB/WB) °C
Piping length m
Refrigerant charge kg
Current A
Input kW
Compressor current A
Fan current A
Current A
Input kW
Discharge pressure MPa
Suction pressure MPa
Discharge refrigerant temperature °C
Suction refrigerant temperature °C
Liquid pipe temperature (at piping sensor) °C
Compressor shell bottom temperature °C
Outdoor unit
Indoor unit
Refrigerant circuit Electrical characteristics
380 400 415 380 400 415
50 50 50 50 50 50
27/19 27/19 27/19 20/– 20/– 20/–
35/- 35/– 35/– 7/6 7/6 7/6
7.5 7.5 7.5 7.5 7.5 7.5
7.4 7.4 7.4 7.4 7.4 7.4
16.0 16.0 16.0 15.4 15.4 15.4
9.02 9.02 9.02 8.62 8.62 8.62
14.9 14.9 14.9 14.3 14.3 14.3
1.1 1.1 1.1 1.1 1.1 1.1
1.64 1.64 1.64 1.64 1.64 1.64
0.94 0.94 0.94 0.94 0.94 0.94
2.22 2.22 2.22 1.75 1.75 1.75
0.50 0.50 0.50 0.38 0.38 0.38
80 80 80 65 65 65
888–1–1–1
48 48 48 0 0 0
30 30 30 20 20 20
2PUH-P10YE
Operating condition
Operating condition Cooling Heating
Voltage V
Power source frequency Hz
Indoor air condition (DB/WB) °C
Outdoor air condition (DB/WB) °C
Piping length m
Refrigerant charge kg
Current A
Input kW
Compressor current A
Fan current A
Current A
Input kW
Discharge pressure MPa
Suction pressure MPa
Discharge refrigerant temperature °C
Suction refrigerant temperature °C
Liquid pipe temperature (at piping sensor) °C
Compressor shell bottom temperature °C
Outdoor unit
Indoor unit
Refrigerant circuit Electrical characteristics
Note: The values listed above indicate that when connected with the indoor unit PEH-P8YE as representative data.
Note: The values listed above indicate that when connected with the indoor unit PEH-P10YE as representative data.

–14–
[2] Cooling Capacity Curves
• PUH-P8YE/P10YE
[3] Heating Capacity Curves
• PUH-P8YE/P10YE
-5-3-113579111315171921232527293133353739414345
22
20
18
16
0.6
0.8
1
1.2
1.4
Capacity ratio
Outdoor air temp.<°CDB>
I
n
d
o
o
r
i
n
l
e
t
a
i
r
w
e
t
b
u
l
b
t
e
m
p
.
<
°
C
W
B
>
-5-3-113579111315171921232527293133353739414345
22
20
18
16
0.7
0.9
1.1
1.22
Input ratio
Outdoor air temp.<°CDB>
I
n
d
o
o
r
i
n
l
e
t
a
i
r
w
e
t
b
u
l
b
t
e
m
p
.
<
°
C
W
B
>
-12-10-8-6-4-2024681012141618
15
20
25
0.6
0.8
1
1.2
1.4
Capacity ratio
Outdoor air temperature <°CWB>
I
n
d
o
o
r
i
n
l
e
t
a
i
r
d
r
y
b
u
l
b
t
e
m
p
e
r
a
t
u
r
e
<
°
C
D
B
>
-12-10-8-6-4-2024681012141618
25
20
15
0.6
0.8
1
1.2
1.4
Input ratio
Outdoor air temperature <°CWB>
Indoor inlet air dry bulb temperature <°CDB>

–15–
[4] Capacity Reduction Ratio due to Changes in Piping Length
(1) Cooling capacity
(2) Heating capacity
(3) Calculation formula of equivalent piping length
PUH-P8YE
PUH-P10YE
Model name Equivalent piping length
- 30 m 30 - 50 m 50 - 70 m
1.0 0.995 0.99
PUH-P8YE Equivalent piping length (m) = Actual piping length (m) + (0.47 ×Number of bend)
PUH-P10YE Equivalent piping length (m) = Actual piping length (m) + (0.5 ×Number of bend)
6 1.0
4 0.98
2 0.88
0 0.85
–2 0.86
–4 0.89
–6 0.92
–8 0.92
–10 0.92
(4) Reduction ratio by frosting
Outdoor unit inlet wet bulb temperature Heating capacity reduction ratio
(°CWB)
Capacity ratio
Equivalent piping length (m)
0 10 20 30 40 50 60 70
0.8
0.9
1
PUH-P8YE
Capacity ratio
Equivalent piping length (m)
0 10 20 30 40 50 60 70
0.8
0.9
1
PUH-P10YE

–16–
[5] Center of Gravity (Outdoor unit)
PUH-P8YE
PUH-P10YE
XYZ
330 350 490 215
300 330 510 220
Item
Model name
Center of gravity (mm) Net weight
(kg)
(1) Caution for Lifting
Blow 40˚
Suspending spot
Protection pad
Name plate
Indicates the unit
front side.
Hanger rope (Over 7m ×2)
Service panel
XY
Z
Compressor position
Center of gravity
G
Inclining to the right
front side of unit.
2-point,front and rear
Warning
Must be durable against unit weight.
For the lifting of unit for movement, please
be sure to suspend at four points, and not
to give any shock to unit.
Never apply two-point lifting as it is
dangerous.
Use pads properly to
prevent the scratching of
external panel
caused by contact
with sling.
Fasten here properly
to prevent unit from
slipping off from
the sling at lifting.
Lift unit slowly by suspending rope uniformly
so that the rope will not slip off or unit will not
incline seriously.
Be careful that unit may fall down if the rope is
not in a proper position as the center or
gravity of unit is being inclined.

–17–
[6] NC Curve (Outdoor unit)
(1) Octave Band Analysis
1PUH-P8YE
2PUH-P8YE
Note: The measuring point is 1m from the bottom of the unit (1m from the front of the unit)
Note: The measuring point is 1m from the bottom of the unit (1m from the front of the unit)
OCTAVE BAND PRESSURE LEVEL< dB> 0dB = 0.0002µbar OCTAVE BAND PRESSURE LEVEL< dB> 0dB = 0.0002µbar
56 dB (A)
57 dB (A)
Sound pressure level in anechoic room
Sound pressure level in anechoic room
Measurement condition
Measurement condition
63Hz
63 125Hz 60 250Hz 56 500Hz 56 1000Hz 51 2000Hz 47 4000Hz 44 8000Hz 40
(dB)
63Hz
63 125Hz 59 250Hz 56 500Hz 55 1000Hz 50 2000Hz 45 4000Hz 42 8000Hz 39
(dB)
1m
1m
A
B
1m
1m
A
B
NC60
NC50
NC40
NC30
NC20
Approximate minimum
audible limit on
continuous noise
70
60
50
40
30
20
63 125 250 500 1000 2000 4000 8000
10
OCTAVE BAND CENTER FREQUENCIES <Hz>
NC60
NC50
NC40
NC30
NC20
70
60
50
40
30
20
63 125 250 500 1000 2000 4000 8000
10
OCTAVE BAND CENTER FREQUENCIES <Hz>
Approximate minimum
audible limit on
continuous noise

–18–
• PUH-P8YE/P10YE Detail of Electrical Parts Box
(with cover removed) (with Main Board Panel removed)
66
66
6SERVICE DATA
[1] Appearance of Equipment
• PUH-P8YE/P10YE (with cover removed)
MAIN
BOARD
Power source
terminal block
Terminal block for
outdoor/indoor
control wiring
connection N. F. BOARD
F. C.
BOARD
Over current relay
<51C>
Magnet contactor for
compresser <52C>
Transformer
Ball valve for refrigerant piping connection <Liquid side> Flare
Ball valve for refrigerant piping connection <Gas side> Flange
Electrical parts Box
Outdoor unit
heat exchanger
Compresser
