ConvaQuip Solo XT550 User manual

Solo XT550
OWNERS GUIDE
IMPORTANT:Read before using!
C24AB
ConvaQuip Ind., Inc.
P.O. Box 3417
Abilene, TX 79604
Toll 800-637-8436
Fax [phone]

IC24AB
CONTENTS
SECTION 1 - Introduction ..................................................................... 1
SECTION 2 - Safety......................................................................... 2 - 3
SECTION 3 - A First Look At Your Solo XT550 .................................... 4
SECTION 4 - Assembly Instructions..................................................5-6
SECTION 5 - Seat Adjustment .............................................................. 6
SECTION 6 - Disassembly of Your Solo XT550 For Transport ......7 - 8

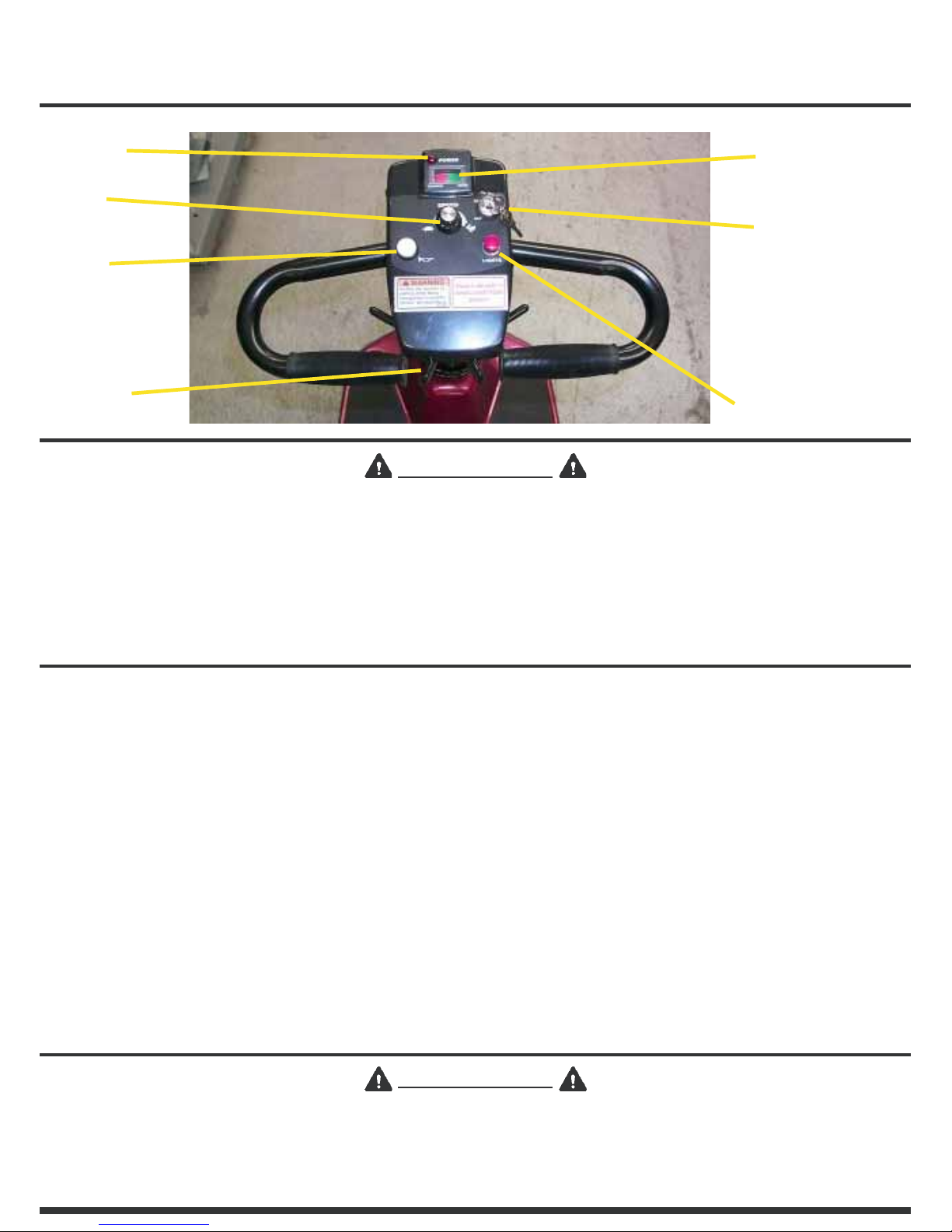

SECTION 7 - Operating Controls for Delta Tiller............................9 - 10
SECTION 8 - Operating Sequence ..................................................... 11
SECTION 9 - Brake Systems ............................................................. 12
SECTION 10 - Batteries ........................................................................ 13
SECTION 11 - Battery Charging ................................................... 14 - 15
SECTION 12 - Routine Maintenance .................................................... 16
SECTION 13 - T roubleshooting ............................................................ 17
SECTION 14 - Specifications ............................................................... 18
SECTION 15 - Electromagnetic Interference ............................... 19 - 20
SECTION 16 - California Proposition 65 Warnings .............................. 21
SECTION 17 - Warranty ....................................................................... 22

C24AB1
INTRODUCTION
SECTION 1
Thank you for choosing the Solo XT550 as your new personal
mobility vehicle. Your Solo XT550 has been designed and
manufactured in America with a great deal of pride, and has been
thoroughly tested prior to shipment. We sincerely hope that your
ownership of a Solo XT550 will bring you many years of freedom and
enjoyment. To that end we ask that you read and understand this
Owners Manual prior to operation, and that you pay particular attention
to the safety precautions listed in Section 2, and in various places
throughout this manual.
Although maintenance on your Solo XT550 is minimal, it is important
that you follow the maintenance instructions listed in Section 12 of this
manual.
Please record the Serial Number of your Solo XT550 on this page.
This is necessary in the event you need to order repair parts. The
serial number is located on a tag under the lifting handle on the rear
drive unit. Also be sure to keep your invoice in a safe place. This is
necessary in the event you require service under the warranty.
SERIAL NUMBER xxxxxxxxxxx_______________
ENJOY YOUR Solo XT550 AND ABOVE ALL - RIDE SAFELY

C24AB2
SAFETY
SECTION 2
It is the responsibility of the OWNER to read this manual and to know the proper
operating precautions and requirements and to make them known to all who may
work with the equipment or be in the working area. Unsafe practices may result in
serious injury or death and equipment damage!
Failure to read this manual is a misuse of the equipment!
SAFETY ALERT SYMBOL
Watch for this symbol. It means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
The SAFETY ALERT SYMBOL is used to identify potential hazards
and to call your attention to instructions concerning your personal
safety. Read the instructions that accompany this symbol and be
aware that to disobey or disregard the message may result in
personal injury or death.
PLEASE NOTE:
The words DANGER, WARNING, and CAUTION are used throughout this manual to
designate the level of a hazards seriousness.
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury. This word is limited to the most extreme situations.
WARNING: Indicates potentially hazardous situation which, if not avoided, could result in
death or serious injury.
CAUTION: Indicates potentially hazardous situation which, if not avoided, may result in
minor or moderate injury. It may also be used to alert against unsafe practices.

C24AB3
GENERAL SAFETY PRECAUTIONS
IMPORTANT: Please be sure you read and understand these Safety Precautions, and
observe them at all times.
√BE SURE to read this Owners Manual before operation.
√ALWAYS reduce speed and use extreme caution when operating indoors or in crowded areas.
√DO NOT carry passengers.
√DO NOT turn the key on until you are properly seated with your feet on the floor.
√DO NOT operate unless the seat is locked facing forward, and the tiller is locked in position.
√DO NOT operate on steep downhill slopes. When going downhill, reduce speed. ALWAYS operate
straight up or down on a hill. NEVER drive “across the slope” on an incline.
√DO NOT get off the Solo XT550 until you have turned the key switch off. Remove key when the Solo
XT550 is unattended.
√DO NOT operate on inclines greater then 6°
√DO NOT make sharp turns while traveling at high speeds or when operating on inclines or uneven
surfaces.
√ALWAYS reduce speed before turning.
√DO NOT adjust tiller angle while moving.
√DO NOT use the Solo XT550 as a seat in a motor vehicle. It DOES NOT meet Federal safety stan-
dards for vehicle seating.
√DO NOT operate your Solo XT550 on streets or roads.
√DO NOT operate the Solo XT550 if the Parking Brake is not operating properly. Refer to Section 8
and to the Maintenance Instructions for details.
√DO NOT operate when carrying a weight greater than 550 lbs.
√ALWAYS disconnect the batteries when transporting the Solo XT550.
√DO NOT disassemble the tire/rim assembly while the tire is pressurized.
√ALWAYS use extreme caution when operating on sidewalks or uneven surfaces.
√ALWAYS use extreme caution when operating near or around electromagnetic equipment, i.e. cellular
phones, or ham radios. Refer to section 16 for more details.
√DO NOT allow your scooter to get wet. Always use a cover if your scooter is left outdoors, or trans-
ported in an open pickup box, in a trailer, or on a lift which is mounted on the outside of a vehicle.
√ALWAYS use the lowest comfortable seat position when operating your Solo XT550 to increase its
stability.
DO NOT operate the Solo XT550 until you are confident of your ability to do so safety. If you need further
instruction, contact yourAuthorized Dealer.

C24AB4
A FIRST LOOK AT YOUR SOLO XT550
SECTION 3
This section describes the major parts and features of your Solo XT550. Many of the
features are described in more detail in other parts of this manual. Refer to the appropriate
Sections as listed.
1. Accelerator Control Panel: (Section 7).
2. Tilt Release Lever: Tiller angle is adjustable from handlebar without reaching down.
3. Seat Height Adjustment, Front/Back Seat Adjustment: (Section 5).
4. Battery Charger Plug: (Section 11).
5. Headlight. (optional)
6. Rear Drive Unit: Transaxle drive for quieter operation and a rugged 24 volt DC motor.
7. Brake Release Lever: Allows the cart to be pushed (Section 9).
8. Seat Swivel Release: Positive lock, not friction lock.
9. Removable Armrests: Width of Armrests is adjustable for your comfort.
10.Fold-up Armrests: Makes getting on and off Solo XT550 easier.
11. Folding Seat.
12.Taillights (optional)
FIGURE 1
1
2
3
4
56
7
8
9
10
11
12

C24AB5
ASSEMBLY INSTRUCTIONS
SECTION 4
If your Solo XT550 has been assembled prior to delivery to you, please disregard this
section. Otherwise, proceed as follows:
1. Open Box No. 1 Containing the Front Frame Section. Open the box packed on the floor
and remove the Seat Post assembly.
2. Open Box No. 2 containing the Rear Drive Unit and the Seat.
3. The seat is adjustable in three positions (front to back). Determine which position you
want and adjust at this time according to instruction in Section 5.

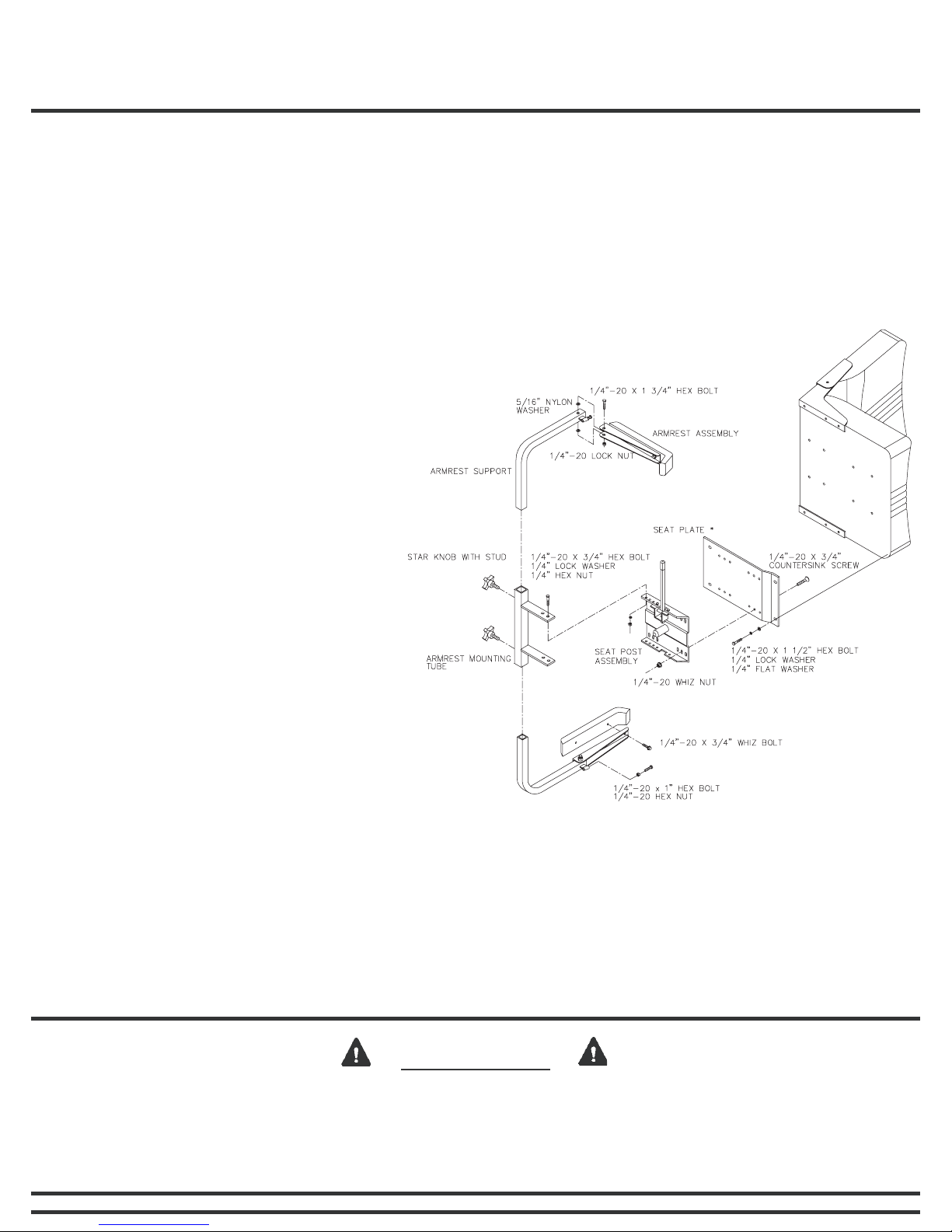

4. Bolt the Seat Post assembly
and Armrest Mount Tube to the
seat bottom with six ¼” bolts,
lockwasher, and flatwashers
packed in the parts bag (fig 2 &
3). On XT550 seats you must
use a “seat plate” between the
seat post and the seat (fig 3).
5. Attach the padded Armrests to
the curved Armrest Support with
¼” x 1¾” bolts and lock nuts.
Two 5/16” nylon washers go
between the Armrest and
support (fig 2 & 3).
6. Connect Front Frame Section
and Rear Drive unit according to
the instructions in Section 6.
7. Install the Seat by placing the
Seat Post in the Seat Base on
the Solo XT550. The seat
height is adjustable by
positioning the seat height adjustment tube in one of the holes provided.
ALWAYS USE THE LOWEST POSITION THAT IS
COMFORTABLE FOR YOU. See Section 5.
8. Slide the Seat Arms into the Armrest Support and lock them in place with the two black
plastic knobs from the parts bag. The Seat Arms are adjustable by loosening the
knobs, sliding the Arms in or out, and retightening the knobs.
CAUTION
We recommend that you do not adjust the arms out so far that they are wider than
the base of the cart, they may catch on doorways or other objects, causing damage
to your Solo XT550 or injury to yourself or others. If it is necessary to do so (such as
on the extra large seat) use extra care.
FIGURE 2

C24AB6
9. Connect the black lead to
the negative (-) post of the
battery, and the red lead to
the positive (+) post of the
battery with the bolts and
nuts supplied with the
batteries. (figure 3).
10.Place the battery in the
battery box and place the
cover on the battery box.
Place the lifting strap
around the battery box and
fasten it in place snugly. (figure 4). FIGURE 4FIGURE 3
SEAT ADJUSTMENT
SECTION 5
The seat on your Solo XT550 is adjustable up and down. In addition, the width of the
armrests are adjustable, and they may be removed from the seat if necessary.
SEATHEIGHT ADJUSTMENT - There are four height positions. ALWAYS USE THE
LOWEST SEAT POSITION THAT IS COMFORTABLE FOR YOU. To change positions,
remove seat, pull the locking pin from the lower seat base, put the height adjustment tube
in the desired location, and lock in place with pin.
FRONT TO BACK ADJUSTMENT - There are three positions. To change position, remove
the seat plate assembly from the bottom of the seat. Remove the four bolts holding the
upper seat post to the seat plate. Bolt the upper seat post back to the seat plate in the set
of holes that provides the proper seat location (Fig 2).
ARMREST ADJUSTMENT/REMOVAL - Loosen the black plastic knobs on the bottom of
the seat and slide the arms in and out. Tighten knobs when adjusted.
CAUTION
Use caution when adjusting the armrest widths. If the arms are wider than the frame
of the Solo XT550, they may catch on the side of the doorway or other obstacle,
causing damage to the Solo XT550 and possible injury to yourself.

C24AB7

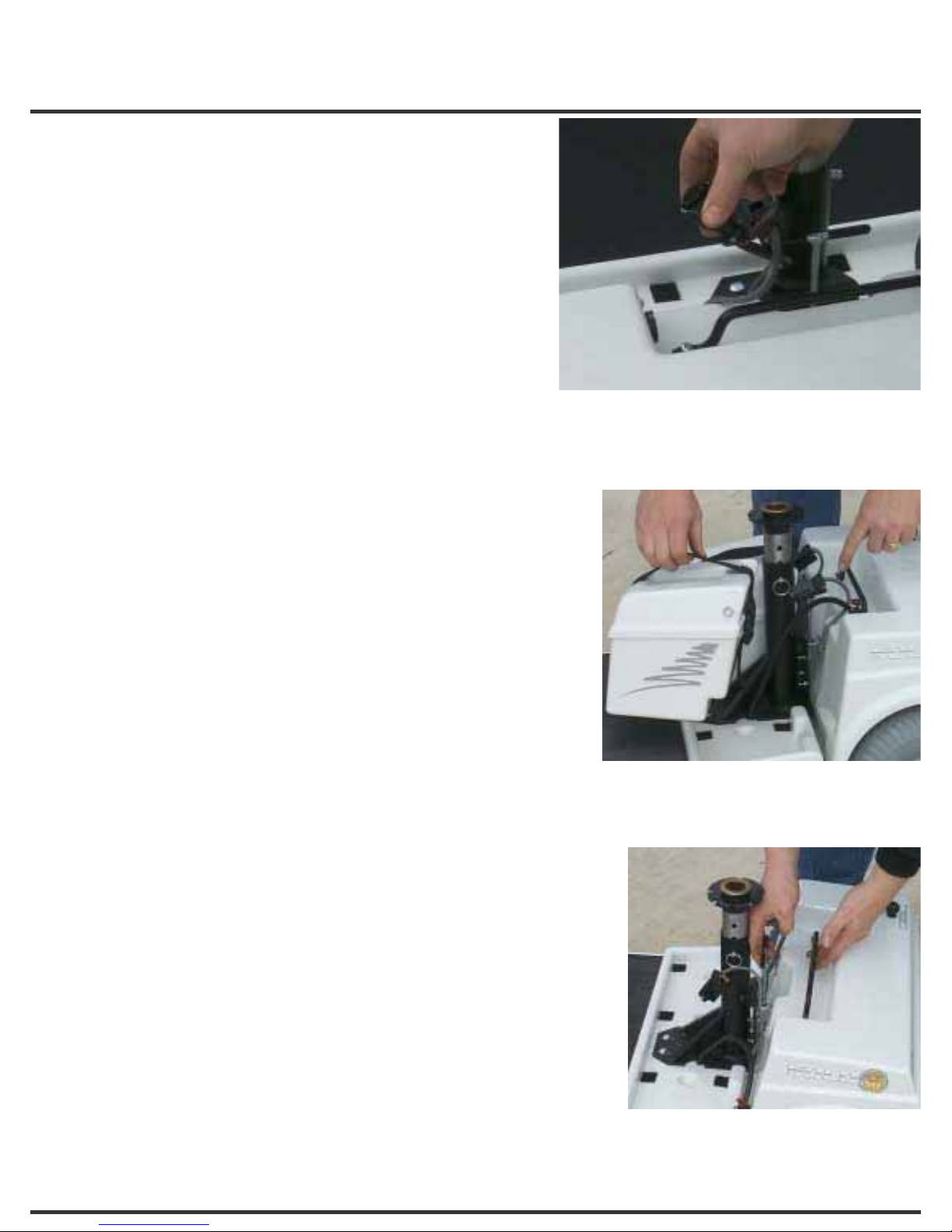

DISASSEMBLY OF YOUR SOLO XT550 FOR TRANSPORT
SECTION 6
One of the most important features of your Solo
XT550 is the ease with which it disassembles for
transport in a car or van.
STEP 1 - Fold the back down on the seat and
remove the seat by lifting straight up.
NOTE: Theswivelmustbeinalocked
position (not free swiveling) in
order to remove the seat.
STEP 2 - Disconnect both battery cables.
Disconnect the motor cable from the
Rear Drive Unit. See Figure 5.
STEP 3 - Grasp the Battery Strap and lift each Battery
out. See Figure 6.
STEP 4 - Grasp the handlebar with one hand. With the
other hand, grasp the “T” handle directly behind
the seat base. See Figure 7.
STEP 5 - Lift up on the handle. Continue to lift until the
Front Frame Section is clear of the Rear Drive
Unit. Lifting the “T” handle both releases the
latch and allows you to lift the front away from
the Rear Drive Unit. See Figure 7.
STEP 6 - Fold the tiller down until it latches. The Front
Frame Section may be picked up with one hand
on the “T” handle and the other hand under the
front bumper. Figure 7
Figure 5
Figure 6

C24AB8

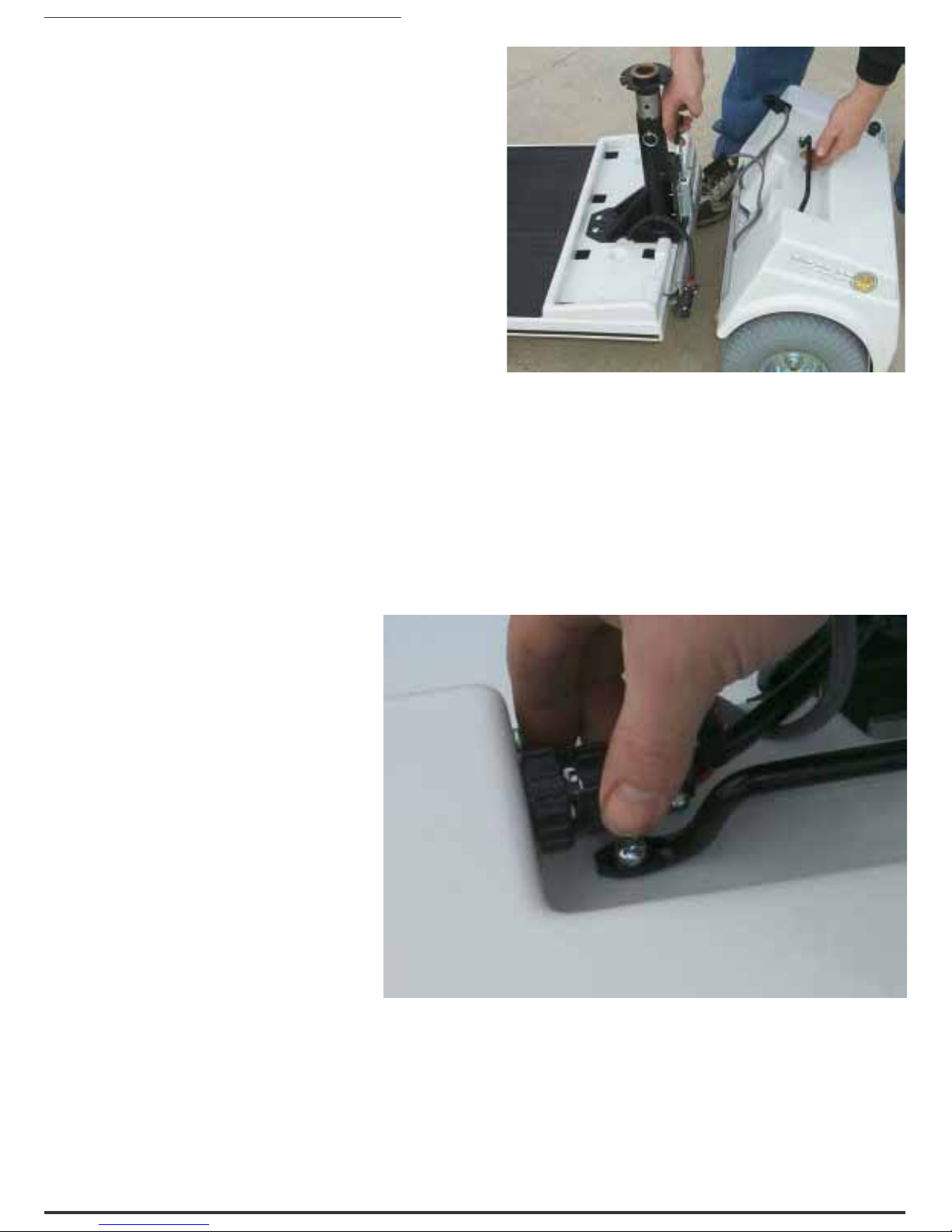

TO RE-ASSEMBLE THE SOLO LTD:
STEP 1 - Place the Rear Drive Unit on the
ground, making sure it is tilting back
and resting on the rear “anti-tip”
wheels. Place the drive lever into
the drive position to lock the brake
and prevent the unit from rolling
while attaching the front of the cart.
STEP 2 - Stand the tiller straight up and grasp
the handlebar with one hand. Grasp
the “T” handle with the other hand.
Lift up on the “T” handle and set the
Front Frame in the “V” groove on the
Rear Drive Unit. Release the “T”
handle and allow the front frame to
drop down engaging the latch. Check to be sure
the latch is engaged.
STEP 3 - Raise the tiller up, reconnect the battery and motor cables, and reinstall the
seat.
NOTE: When reconnecting the motor cable, align the two yellow dots. See
Figure 9.
Figure 8
Figure 9

C24AB9
OPERATING CONTROLS
FOR DELTA TILLER
SECTION 7
1. KEY SWITCH - Insert the key and turn it clockwise one-quarter turn to turn on power.
The Battery Level Meter will move only when the key switch is on.
2. BATTERY LEVEL METER - This shows how much power is left in the batteries. The
batteries are charged when the needle is on the right hand side of the green area, and
low when it is in the red area.
NOTE: Battery condition should be checked when the Solo XT550 is stopped. While
operating, the needle will read lower.
3. HORN - Push button to sound horn.
4. VARIABLE SPEED SELECTOR - This controls the maximum speed you can travel.
Rotate the knob clockwise for higher speeds and counterclockwise for lower speeds.
Operate your Solo XT550 at lower speeds until you are familiar with how it handles.
Always use lower settings in confined or crowded areas. Faster speeds should not be
used except when traveling straight and in open areas.
NOTE: Reducing the speed setting also reduces power. If you are unable to climb a
ramp, you may need to turn the knob clockwise to increase power.
WARNING
Operating too fast for conditions can cause the Solo XT550 to tip over. This may
result in serious injury to yourself and damage to your Solo XT550. ALWAYS
REDUCE SPEED BEFORE TURNING AND WHILE OPERATING ON UNEVEN
SURFACES.
Figure 10
6
4
3
5
2
1
7
WARNING
Accidentally bumping the Accelerator Lever while the key switch is on will cause the
Solo XT550 to move out of control. This may result in an accident, causing serious
injury or property damage. Do not turn the key switch on until you are securely
seated on the Solo XT550. ALWAYS TURN THE KEY OFF WHENEVER YOU ARE NOT
DRIVING THE SOLO XT550, EVEN IF YOU ARE SITTING IN THE SEAT. ALWAYS BE
SURE THE KEY IS REMOVED WHEN YOU ARE NOT SEATED ON THE SOLO XT550
TO PREVENT UNAUTHORIZED USE OR ACCIDENTAL MOVEMENT.

C24AB10
5. ACCELERATOR LEVER - The accelerator
lever controls both your speed and direction of
travel (forward or reverse). The Solo XT550
uses a “proportional” speed control system,
meaning the further forward you push the
Accelerator Lever the faster you will go, up to
the limit you have set on the Variable Speed
Control.
To go FORWARD, place both hands on the
handlebar and use your RIGHT thumb to push
the RIGHT hand side of the Accelerator Lever
ahead. (See Figure 11).
To go in REVERSE, use your LEFT thumb to
push the LEFT hand side of the Accelerator
Lever ahead.(See Figure 12).
Single Handed Operation. Your Solo XT550
can be operated with only one hand if
necessary. If only using the right hand, push
with the thumb to go forward and pull with the
index finger to go in reverse. If using the left
hand push with the thumb for reverse and pull
with the index finger to go forward (See figure
13 for right hand reverse example).
NOTE: If you must operate the Solo XT550 with your left hand only, the operation of the
Accelerator Lever can be permanently reversed for easier use. Consult your
Authorized ConvaQuip Dealer. THIS MODIFICATION MUST BE MADE ONLY BY
AN AUTHORIZED CONVAQUIP DEALER OR THE FACTORY.
6. POWER - The power LED indicates that the key is in the ON position, the Circuit
Breaker is not tripped and the batteries are correctly installed.
7. LIGHT (optional) - This switch turns the headlight and taillights on and off.
Figure 12
Figure 13
Figure 11

C24AB11
OPERATING SEQUENCE
SECTION 8
Be sure you read and understand the Safety Instructions in Section 2 before attempting to
operate the Solo XT550.
1. Seat yourself securely on the Solo XT550, with the seat facing forward and locked in
the forward facing position. Use the armrest to aid in lowering and raising yourself from
the seat. The tiller is not designed for this purpose and it is considered misuse to use it
for this purpose.
2. Be sure both armrests are down and both feet are on the floor.
3. Adjust the steering tiller to a comfortable position and be sure it is locked in place.
4. Check position of Variable Speed Control knob. Always start in a lower setting.
5. Insert the key and turn the key switch on by rotating it 90° clockwise.
6. Check the Battery Level Meter to be sure you have enough power to get where you are
going.
7. Use the Accelerator Lever to go forward or reverse and to control your speed as
described in Section 7.
8. To stop, gradually release the Accelerator Lever, The faster you release the Lever, the
quicker you will stop.
9. Turn the key switch off when you stop, and remove the key when you get off.
As with many things, learning to safely operate a scooter is a skill that requires practice.
Ramps, inclines, and uneven surfaces require extra caution. Make sure you are familiar
with your Solo XT550 and comfortable with its operation and capabilities before attempting
these things.
WARNING
The Solo XT550 is an electrical device. DO NOT ALLOW THE SOLO XT550 TO GET WET!
√√
√√
√Do not spray with water from a source such as a garden hose or a pressure
washer. Take extreme care not to expose the electrical connections and
components to any moisture. Cleaning should be done with a damp cloth.
√√
√√
√Do not leave the Solo XT550 outdoors, uncovered, where moisture may contact it.
√√
√√
√Do not transport the Solo XT550 on the outside of the motor vehicle (such as an
open pickup bed, trailer, or outside mounted scooter lift) without an adequate
cover to protect it from moisture.
If the controller does become wet, do not operate the Solo XT550 for at least 24 hours or
until it has had adequate time for the unit to dry thoroughly. Operating the Solo XT550 or
energizing its electrical components while wet can damage the components and create
hazardous operation conditions.
CAUTION
If the Solo XT550 becomes stalled and does not move after applying full power for five
seconds, release the Accelerator Lever immediately. Continuing to apply power while
the Solo XT550 is not moving can cause severe damage to your electrical system.
CAUTION
Do not reverse directions while the cart is moving. Doing so will cause a very
sudden stop and may cause you to lose control or tip over. It may also damage the
electrical system of your Solo XT550

C24AB12
BRAKE SYSTEMS
SECTION 9
Your Solo XT550 uses two systems for braking, both of which are designed for automatic
operation. When you release the Accelerator Lever, the DYNAMIC BRAKE quickly and
safely brings you to a stop. After you are stopped the PARKING BRAKE automatically
comes on to keep the Solo XT550
from rolling. The PARKING
BRAKE also helps to stop you
when operating on a ramp or
incline.
The PARKING BRAKE is
engaged by spring pressure. It is
automatically released by an
electromagnet whenever you
move the Accelerator Lever. In
the event of a malfunction which
causes a loss of power, the
PARKING BRAKE will
automatically engage. A
MANUAL RELEASE LEVER is
provided which will release the
brake and allow the Solo XT550 to
be pushed. Simply pull up on the
lever (fig 14) to release the brake.
Push down to operate the Solo XT550.
When the MANUAL RELEASE LEVER is in the “released” position, a safety interlock
switch prevents the Solo XT550 from being driven. Do not leave the brake lever in the
“released” position when the Solo XT550 is unattended. A small amount of current is
required to power the interlock relay (even with the key switch off) which could eventually
drain the batteries.
WARNING
Never attempt to operate the Solo XT550 with the MANUAL RELEASE LEVER in the
“released” position. If the safety interlock is not functioning, you will be driving the
Solo XT550 with no PARKING BRAKE. This could result in an accident if operating
on a ramp or incline, causing serious injury and damage to property. Always be sure
the manual release lever is in the “drive” position before operating the Solo XT550.
Figure 14

C24AB13
BATTERIES
SECTION 10
The Solo XT550 is powered by two 12 volt “Deep Cycle” batteries (group 27 U-1 Gel).
ConvaQuip Ind., Inc. strongly recommends the use of gel cell batteries. Gel batteries
are sealed and do not require any water to be added. They are also safer and more
convenient to handle since they are sealed and not subject to spilling.
WARNING
IF YOU DECIDE TO USE UNSEALED LEAD-ACID TYPE BATTERIES, EXTREME CARE
MUST BE EXERCISED TO ENSURE THAT THEY DO NOT LEAK OR SPILL. BATTERY
ACID CAN CAUSE SERIOUS DAMAGE TO YOUR SOLO XT550 AND TO SURFACES
IN YOUR HOME OR CAR THAT COMES IN CONTACT WITH ACID. ALWAYS WEAR
PROPER PROTECTIVE CLOTHING WHEN HANDLING UNSEALED LEAD ACID
BATTERIES. REFER TO INSTRUCTION ON THE BATTERIES FOR FURTHER
INFORMATION.
Use care when connecting or disconnecting wires from the battery terminals. Be
sure that the tools you are using do not accidentally drop, or other wise touch both
terminals together.
Severe electric shock, fire, or explosion can result from tools shorting across the
terminals.
Never wear rings, watches or other jewelry while working on or around batteries as
serious injury can occur if an object shorts across the battery terminals.

C24AB14
To charge gel-cell batteries in the Solo XT550
with the charger:
1. Connect the charger plug to the port on the
right side of the accelerator control box
located at the top of the steering tiller. Then
connect the charger plug to a properly
grounded 115 VAC outlet. (See Figure 15)
NOTE: Your Solo XT550 is equipped with a safety mechanism called a “Battery Charger
Interlock.”
This prevents the cart from being driven with the charger plugged in.
2. Charging time may vary from under ½ hour to up to 18 hours for severely discharged
batteries. Normally an overnight charge will suffice.
3. The charger has an automatic shut off. If the charge of the batteries is unknown check it
by unplugging the charger and turning the key on. This will give a reading on the
BATTERY LEVEL METER located on the ACCELERATOR CONTROL PANEL. The
batteries are fully charged when the needle is all the way to the right in the green area of
the meter. Do not check the meter with the charger plugged in as it will give a false
reading. If after charging, the batteries will not take a charge as shown by the BATTERY
LEVEL METER or one or both batteries get warm during charging it could mean that you
need a new battery. Call your dealer.
4. When the batteries are fully charged disconnect the charger from the 115 VAC outlet.
WARNING
The charger for your Solo XT550 must be
connected to a properly grounded 115 VAC
outlet. If it is absolutely necessary to use an
extension cord, use a 3-prong (grounded)
14 gauge or heavier extension cord.
FAILURE TO OBSERVE THIS WARNING MAY
RESULT IN FIRE OR ELECTRICAL SHOCK.
BATTERY CHARGING
SECTION 11
Figure 15

C24AB15
OCCASIONAL USERS:
Always be sure to charge before an outing and always after active use. The ideal recharge
point is about 50% on the battery level meter.
STORING BATTERIES:
Store batteries FULLY CHARGED. Check them once a month and recharge as needed.
And remember, if storing your scooter for longer than a couple of weeks, it is best to charge
the batteries and then disconnect them.
√√
√√
√Use only the charger that came with your Solo XT550.
√√
√√
√Do not use automotive or wet-type chargers on gel/sealed batteries. They will
ruin your batteries quickly.
√√
√√
√Never run your batteries completely flat.
√√
√√
√Do not “top off” with frequent charges.
√√
√√
√Do not store batteries in temperatures below 32°F
INSTRUCTIONS FOR GEL-CELL BATTERIES WITH YOUR CHARGER:
To charge the batteries on your Solo XT550 begin by connecting the power cord to the
charger. Then plug the charger cord into the right side of the accelerator control box. Now
plug the charger into a 115 volt wall outlet. Turn the charger on and look at the indicator
lights on the end opposite the power switch. The red light should be on indicating power is
on. The other light will be orange when the unit is charging and will turn green when
charging is complete. Always place the charger on a hard flat surface with plenty of air
space around it, do not place the charger on the seat of the vehicle.
WHEN SHOULD I CHARGE MY SOLO XT550?
DAILY USER:
Charge daily. This applies to any one who actually uses his or her equipment for
community mobility outside the home
WARNING
Do not expose any battery charger to moisture. Do not connect the charger while
standing in water or on a wet floor. Use the charger on a hard flat surface only. Do
not place it on the seat of the Solo XT550. Do not restrict airflow around the charger.
FAILURE TO FOLLOW THIS WARNING MAY RESULT IN FIRE OR ELECTRICAL
SHOCK. Read and follow instructions in the charger owners guide.
INSTRUCTIONS FOR LEAD-ACID BATTERIES
If you have decided to use lead-acid batteries instead of gel-cell it is of utmost importance
that you read and follow the instructions in the “personal precautions” section of the
charger owners guide, and on the batteries. FAILURE TO FOLLOW THESE PRECAU-
TIONS COULD RESULT IN SERIOUS BODILY INJURY OR DAMAGE TO PROPERTY.
WARNING
RISK OF EXPLOSIVE GASSES FROM LEAD-ACID BATTERIES. WORKING IN THE
VICINITY OF LEAD-ACID BATTERIES IS DANGEROUS. Batteries generate explosive
gasses during normal operation.
√√
√√
√Do not smoke near the charger.
√√
√√
√Do not operate charger near an ignition source or in a non-ventilated area.

C24AB16
DAILY:
1. Charge Batteries as needed. Batteries should generally be charged daily. Unplug the
charger from both the Solo XT550 and the 115 volt outlet each morning. Do not leave
the charger plugged into the Solo XT550 when it is not operating because there is
always a small current drain for the charger interlock relay.
MONTHLY:
1. Check tire pressure and tread wear. Maintain 45 lbs. in front tires and 45 lbs. in the
rear tires.
2. Check and tighten all nuts and bolts.
3. Parking Brake: Be sure the brake will hold you when parked on an incline. If it will not,
it must be replaced. Consult your ConvaQuip dealer.
4. Inspect all electrical connections for damage and corrosion.
ANNUALLY:
It is recommended that your ConvaQuip dealer perform an annual inspection of your
Solo XT550. Many times he or she may be able to prevent problems before they
happen, saving time and inconvenience.
GENERAL INFORMATION:
Cleaning: The body covers on your Solo XT550 are made from a high grade ABS
plastic. Use only a mild soap and water for cleaning. Do not use any petroleum based
solvents since they can damage the finish. Clean the vinyl seat cushion with a mild
soap and water. The optional cloth seat cushion should be vacuumed or brushed as
needed and cleaned by a furniture cleaning service when necessary.
ROUTINE MAINTENANCE
SECTION 12
WARNING
Air pressure inside the tire can cause an explosion if the bolts holding the wheel
halves together are removed before releasing all pressure from inside the tire. THIS
COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE. Do not
attempt to disassemble a wheel until all the air has been released from the tire.
CAUTION
The Solo XT550 is an electrical device. Do not spray with water from a source such
as a garden hose or a pressure washer. Take extreme care not to expose the
electrical connections and components to any moisture. Cleaning should be done
with a damp cloth. Operating the Solo XT550 or energizing its electrical components
while wet can damage the components and create hazardous operating conditions.
Avoid leaving the Solo XT550 out, uncovered, in the rain. IF the controller does
become wet, DO NOT operate the Solo XT550 for at least 24 hours or until it has had
time for the unit to dry thoroughly.

C24AB17
If your Solo XT550 will not operate, please check the following items before calling your
dealer:
1. Be sure the key switch is turned on. The battery meter needle should move when the
key switch is turned on.
2. Be sure the battery charger is unplugged. The Solo XT550 will not operate when the
battery charger is plugged in.
3. Be sure the Brake Release Lever is in the “Drive” position (down).
4. Be sure that the circuit breaker (located on the lid of the left battery box) is pushed in.
If the circuit breaker continues to trip call your ConvaQuip dealer.
5. Check to be sure that all electrical connectors are properly connected and latched.
Inspect connectors for corrosion or breakage.
6. Be sure the batteries are fully charged.
If these measures do not correct the problem, or if you are experiencing any other
problems, please contact your ConvaQuip dealer.
The SOLO XT550 controller is equipped with an error code indicator. If the controller
detects an error, the power LED located on the accelerator box, which is located on the
steering tiller will flash. If the power LED flashes it will flash a series of times, have a short
pause followed by a series of flashes and a long pause and then start over again. If this
occurs, please call your dealer or authorized service center.
TROUBLESHOOTING
SECTION 13

C24AB18
SOLO XT-550 - 4 WHEEL
Overall Length 48”
Overall Width 24”
Weight of Rear Drive Unit 42 lb.
Total Weight (less batteries) 122 lb.
Shipping Weight 148 lb.
Maximum Speed 5 mph forward
3 mph reverse
Distance Per Charge up to 15 miles
Ground Clearance 4”
Turning Radius: inside front tire 33”
Tire Size: front (gray pneumatic) 9”
rear (gray pneumatic) 10”
Maximum Weight of Operator 550 lb.
Seat Height: Manual Adjustment** 15”-16”-17”-18”
Maximum Incline 6°
Seat Dimensions 16” d x 18” w x 16” h
Seat Type Deluxe Folding Seat
With Flip-Up Armrests
**Measured from floorboard. Add 5-1/2” to ground
NOTE: ConvaQuip Ind., Inc. reserves the right to change specifications without notice.
SPECIFICATIONS - SOLO XT550
SECTION 14
