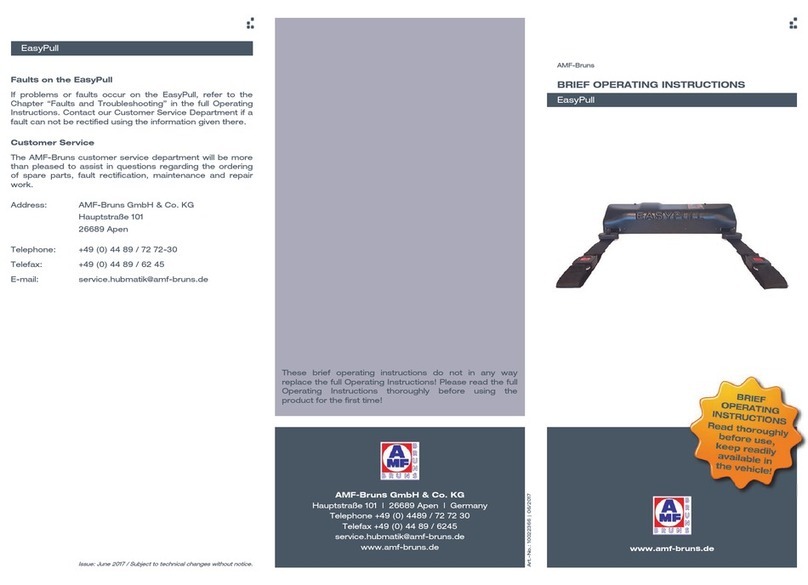

AMF-BRUNS EasyPull User manual

Before Daily Use
• Visually inspect Easy Pull for webbing damage.
• Check that buckles latch correctly, magnets are not broken or missing, etc.
• Check magnets position and tighten magnet locking screws by turning clockwise after
each adjustment.
After Daily Use
• Always fully retract webbing back into housing.
• Report any damage or malfunctions on unit.
System Operation: Load Wheelchair
• Open rear door and unfold ramp.
• Grab and hold both loops of webbing.
• Press & hold the “A” or “C” button on remote control and pull webbing
until you’re at the end of the ramp.
• ONLY USE “C” BUTTON WITHOUT WHEELCHAIR ATTACHED.
• Secure wheelchair by feeding webbing through/around
a solid member of wheelchair’s frame or any location showing
this symbol:
• Adjust magnets according to size of wheelchair.
• Magnets MUST BE minimum 10” ahead of footrest of the wheelchair.
• Release wheelchair brakes.
• Position yourself behind wheelchair.
•Holding chair irmly, press & hold “B” button on the remote control.
• Guide wheelchair safely into vehicle until magnets touch base
(approximately 3 cm / 1 3/16” away).
• Once system locks, pull wheelchair backwards ensuring chair is safely locked.
•Hook up rear securements by anchoring retractor or belt to vehicle’s loor.
• Place hook or loop on a solid frame of
wheelchair frame or any location using this symbol:
• Apply tension on the retractors or belts accordingly.
DO NOT OVER-TENSION. Apply wheelchair breaks.
• Occupant system lap & shoulder belt must always be used.
• Fold ramp and close rear door safely.
AMF-BRUNS
EASYPULL
USER GUIDE

System Operation: Unload Wheelchair / Occupant
• Open rear door and unfold ramp.
• Unhook occupant securement system. Store it away.
• Unhook rear retractors or belts. Store them away.
•Release wheelchair brakes. Place yourself behind the wheelchair. Holding it firmly,
press & hold “A” on the remote control. Guide chair safely out of vehicle.
• Apply wheelchair brakes.
• Remove webbing from wheelchair.
• Hold webbing press & hold “B” on the remote control. Make sure webbing is fully
retracted into base or until magnets reach home position.
IMPORTANT:
• Always make sure Easy Pull belts are fully retracted inside the housing when not in
use. This requires placing magnets at home position, which is touching the base (or
approximately 3 cm / 1 3/16” away).
• If Easy Pull belts are left outside the housing, the unit will generate a steady beep
and lights will flash.
To Stop Beeping
• Hold both sides of the webbing.
•Pull on both EasyPull belts to place them under tension. Press & hold “A” release, and
then press & hold “B” on the remote control. At this time the unit will lock and reset itself
and the beep will stop.
• Make sure the magnets are at home position by pressing & holding “A” on the remote
control.
•To prevent warning beep, always leave webbing fully retracted into the EasyPull housing
system with both magnets at the home position (approximately 3 cm / 1 3/16” away from
the EasyPull housing unit)while not in use. This will also protect the webbing from dirt,
water or any damage, etc.
AMF-BRUNS OF AMERICA
www.amfbrunsamerica.com
877-506-3770
Part Number: TR700009 Rev: 01
Last Date Published 04/2020
