STATESMAN F1230APW User manual

Please read these instructions carefully before use and retain for future reference.
Before switching on your appliance – Always check for any damage that may have been caused in transit.
Instruction Manual
F1230APW

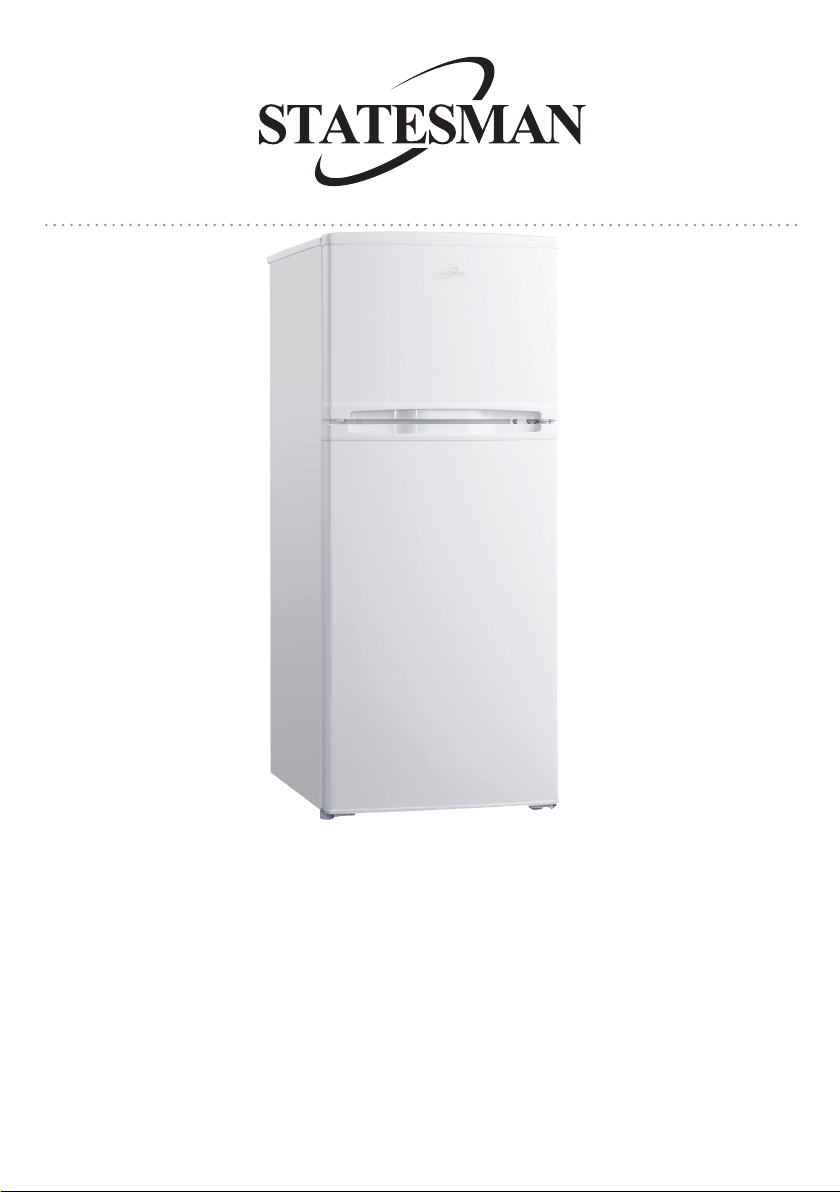

50CM 80/20 FRIDGE FREEZER WHITE

2
CONTENTS
Important Safety Instructions ....................................... 3-4
Technical Specications...................................................5
Appliance Overview..........................................................6
Installation .................................................................. 7-10
Operating Instructions.............................................. 11-12
Cleaning and Maintenance....................................... 12-15
Fuse Replacement .........................................................16
Disposal Information ......................................................16
Troubleshooting Guide ...................................................17

3
IMPORTANT SAFETY INSTRUCTIONS
Read and follow all of the instructions even if you feel you
are familiar with the product, and nd a place to keep this
manual handy for future reference.
Important: This product is intended for domestic use only, for
food refrigeration storage only. When using electrical appliances,
basic safety precautions should always be followed:
• Do not operate the appliance with a damaged cord or plug,
after it malfunctions or has been dropped or damaged in any
way. All electrical repairs must be carried out by a qualied
electrician. Inadequate repairs may result in a major source of
danger for the user and invalidate the warranty.
• Check the voltage of the appliance matches the household
voltage, which is located on the rating label.
• Use of an extension cord is not recommended with this
product.
• This appliance can be used by children aged from 8 years and
above if they have been given supervision or instruction
concerning the use of the appliance in a safe way and
understand the
hazards involved.
• Cleaning and user maintenance shall not be made by children
• Keep the appliance and its cord out of reach of children.
• Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand
the hazards involved.

4
• Always unplug the appliance before attempting to move.
When disconnecting from the electricity supply, pull the plug
and not the cord.
• This product is for indoor use only.
• Do not store explosive substances such as aerosol cans with
a ammable propellant in this appliance.
• Always keep the ventilation openings clear of obstruction.
Should they become blocked, clear them straight away.
• The refrigerant of this product is R600a which is ammable.
Ensure when moving the appliance or during installation that
the cooling system does not get damaged.
WARNING: The appliance is heavy and care is needed
when unpacking and moving it. Get extra help and only
hold the appliance by the casing – never hold by the door or the
trim.
WARNING: Risk of child entrapment.
Before disposal of the old appliance, make sure that any
locking mechanisms have been broken o, doors have been
removed but shelves have been left in so that children cannot
easily climb inside. Also remove the plug so the appliance is
unusable.

5
SPECIFICATION
Supplier Name / Trade Mark Statesman
Model Number F1230APW
Category Type Refrigerator with Freezer
Energy Eciency Class A+
EU Eco-Label Award N/A
Annual Energy Consumption 190kwh/year
Freezing Capacity (kg/24h) 2
Class Symbol Ambient average temperature °C
Extended temperature SN +10 to +32
Temperature N +16 to +32
Subtropical ST +16 to +38
Tropical T +16 to +43
Ambient Room Temperature Limits
Fridge Storage Volume (Litre) and Applicable Star
Rating Compartment 115
Freezer Storage Volume (Litre) 40
Applicable Star Rating Compartment 4 Star
Refrigeration System (Frost Free, Static, Totally
No Frost)
Static
Temperature Rise Time 1100 mins
Climate Class N
This appliance is intended to be used at an ambient temperature between “16”
(lowest temperature) °C and “32”(highest temperature) °C
Noise Emission (dB) 42dB
Built-in Appliance N/A
Wine Storage Appliance N/A
Voltage (V) 220V-240V~
Wattage Power (W) 85W
Frequency (Hz) 50Hz
Power Source AC

6
APPLIANCE OVERVIEW
1.
2.
3.
4.
5.
6.
1. Freezer Shelf
2. Thermostat and Light
3. Glass Shelves
4. Salad Crisper Cover
5. Salad Crisper Drawer
6. Balcony Shelves

7
INSTALLATION
Location and Air Circulation
• The appliance must stand vertically on a at, even surface, to level the
appliance use the adjustable feet by turning them until the appliance is as
level as possible.
• This appliance has been designed to operate in ambient temperatures
between 16°C and 32°C.
• It is not recommended to place this appliance in a room where the
temperature is likely to drop below 5°C for prolonged periods, as the
internal appliance temperature will not be maintained.
• The appliance should be at least 50cm away from sources of heat e.g.
radiators, direct sunlight, gas ovens, stoves and 5cm away from electric
cookers as extreme temperatures will aect the performance of your
appliance.
• Allow 5cm of clearance space at the sides of the appliance and 2cm above
the appliance.
• It is not recommended to place the appliance directly against the wall,
allow at least a 2cm clearance space on the rear of the appliance and the
rear wall.
• It is not recommended to place the appliance next to a deep freezer, there
should be at least 2cm between them to prevent humidity on the outer
surface.
• Do not expose the appliance to damp conditions, open air or rain.
• Do not lift the appliance by the pipes or the door when moving.
• It is not recommended to place the appliance in a wall recess, tted
cabinet or furniture as this will not allow adequate ventilation and cause a
potential re hazard.
Providing you follow the recommended ventilation requirements you will:
• Increase the life of the appliance.
• Minimise the risk of condensation on the outside of the appliance.
• Minimise operating noises caused by vibration.
Adjustable Shelves
The walls of the refrigerator are equipped with a series
of runners so that the shelves can be specically
positioned.

8
Leveling the Unit
If the unit is not level then the doors and the
magnetic seal may not align correctly and
so it may not shut. This can lead to a rise in
internal temperature and the food not being
refrigerated correctly.
Balcony Shelves
The position of the balcony shelves can also be
adjusted. Gradually pull the balcony in the direction of
the arrows until it comes free. Then reposition and insert.
Reversing the Doors
The appliance doors can be tted to open to either the left or the right
depending on its location. The appliance will have to be tilted and supported
in order to carry this out. It is advisable to get some help during this
procedure.
Important: Do not lay the appliance at as this may damage the coolant
system. Take care when tting and tightening screws.
To change the direction of the door, please follow these instructions
1. Ensure the appliance is unplugged and empty
2. Remove the top cover of the appliance by
unscrewing the four screws from the top
cover – this will allow you to gain access to
the hinges
2.

9
3.
4.
3. Unscrew the 3 screws from the top hinge and
then lift the hinge to remove. The top door can
now be removed and stored safely
4. Remove the pin from the hinge bracket with a
screwdriver, ip the bracket over 180° and then
ret the pin back into the hinge bracket.
Place the hinge bracket in a safe place
5. Unscrew the middle hinge and then lift, this door can now be removed
and stored safely
6. Move the hinge hole covers from left side to right side
7. Unscrew bottom hinge and then remove the adjustable feet from
both sides
5. 6. 7.

10
8. Unscrew and remove the bottom hinge pin, ip the bracket over 180° and
then ret the pin back into the hinge bracket
10. Re-install and secure the middle hinge on the opposite side
11. Replace the top door onto the middle hinge. Ensure the door is aligned
horizontally and vertically so that the seals are closed on all sides before
nally tightening the top hinge. Then ret the hinge bracket to the top of
the appliance
12. Re-install the top cover using the 4 screws
13. Re-adjust the levelling feet to minimise operation noises caused by
vibration
14. Allow 5 hours for the appliance to stand upright before turning on the
appliance to allow coolant gases time to settle after the appliance is
in place
9. Ret the hinge bracket to the bottom of the appliance on the opposite side.
Replace both adjustable feet. Replace the lower door onto the lower hinge
8. 9.
10. 11. 12.

11
OPERATING INSTRUCTIONS
Before using your Appliance
• Allow the appliance at least 24 hours before storing any food inside to
allow for sucient cooling temperature to be reached.
• The interior of the appliance needs to be cleaned prior to use by wiping
with a soft cloth and using warm water. Wipe the appliance completely dry
before replacing any shelves or drawers.
Using your Appliance
• Once dry, plug the appliance into the mains socket.
• Avoid opening the door for long periods or unnecessarily.
• To maintain adequate air circulation, do not over ll the appliance.
• Every drawer and cooling section is designed to take a maximum of 20kg.
• Allow hot or warm foods to cool to room temperature before storing in the
appliance.
• Keep the food packed, wrapped or covered.
• For hygiene reasons, always wrap food using a suitable packaging
material, before storing in your appliance to avoid contact with the surface
of the appliance.
• Do not place food directly against the rear wall of the fridge compartment.
• The temperature in the appliances compartments can be monitored by
using a fridge freezer thermometer. Do not use a Mercury lled
thermometer, as a breakage would cause a health hazard.
Adjusting the Temperature

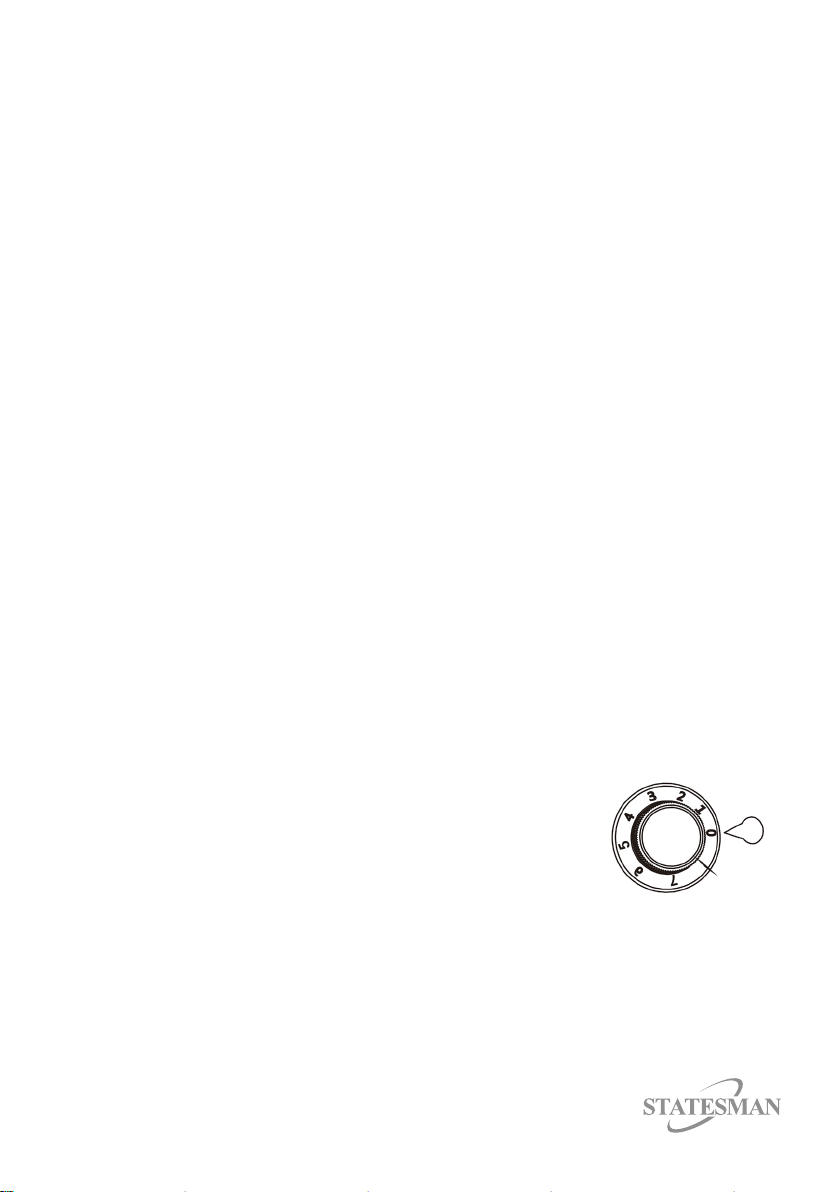

The internal temperature of the appliance is controlled by a thermostat; this
controls both the fridge and freezer compartments.
• Once the appliance is plugged in and turned on the
internal temperature can be set using the thermostat.
There are 8 settings; 1 is the warmest, 7 is the coldest
and 0 is o.
• Note that if the fridge freezer is placed in a warm
environment or the door is opened frequently then the
appliance will not work as well as intended.

12
CLEANING & MAINTENANCE
Switch o the electrical supply and remove the plug from the mains socket
before cleaning.
Interior
1. Remove all food from the appliance and cover to help keep cool.
2. Remove all the drawers carefully from the appliance and wash with warm
clean water and a soft cloth and dry thoroughly. Never replace the drawers
or shelves whilst still wet.
3. Wipe the interior of the appliance with a damp clean cloth.
4. Dry the interior thoroughly with a clean cloth and replace the shelves
and drawers.
5. Plug in and switch on and allow the temperature in the appliance to drop
back to an adequate
temperature.
6. Replace the food in the appliance.
Compartment Type of Food
Balcony Shelves Foods with natural preservatives such as jams,
juices, drinks and condiments.
No perishable foods.
Salad Crisper Drawer Fruits, herbs and vegetables.
No bananas, onions, potatoes or garlic.
Top Fridge Shelf Pre-cooked foods such as ready-to-eat meals,
deli meats and leftovers.
Middle Fridge Shelf Dairy products and eggs.
Bottom Fridge Shelf Raw meat, poultry and sh (only for a short-term).
Freezer Drawers Foods for long-term storage.
Top drawer - ice cream, frozen fruit and frozen
baked goods.
Middle drawer - frozen vegetables chips.
Bottom drawer - raw meat, poultry and sh.

13
Important: Avoid getting water into the electric components of the appliance
(i.e. the thermostat) as this may damage your appliance.
Defrosting the fridge
• Defrosting occurs automatically in fridge compartment during operation;
the defrosted water will be collected by the evaporating tray and
evaporates automatically.
• The drain hole in the rear of the fridge compartment should be kept clear
from food and debris to prevent water building up which could result in
excess ice formation.
Defrosting the freezer
After a period of time frost will build up in the compartments. Regular
defrosting will therefore be necessary to maintain the eciency of the
appliance. The best time to defrost your appliance is when the amount of
food stored is low.
To defrost the appliance, please follow the steps below:
1. Take out the frozen food and store in a spare freezer, appliance or wrap
well and store in a cool dry place.
2. Unplug the appliance from the mains supply, making sure not to pull the
cord.
3. Leave the door open, to speed up the defrosting process, bowls of warm
water can be placed inside the appliance to raise the temperature.
4. Place a shallow bowl or pan below the freezer compartment to catch
dripping water.
5. Remove the ice with a plastic ice scrapper. DO NOT use pointed or sharp
edged objects such as knives, forks or screw drivers to remove the ice.
6. When all traces of ice have been removed and defrosting is completed,
clean away any water and wipe your appliance dry.
7. Clean your appliance as described below, plug in and switch back on,
Setting 4 on your temperature control.
8. Allow at least 5 hours for the temperature to return to the adequate
temperature before putting the food back into the appliance.
Important: Do not use any mechanical devices or other means to accelerate
the defrosting process other than those recommended by the manufacturer.
Exterior
• Use a clean, damp soft cloth to wipe the exterior surface of the appliance
and dry thoroughly.
• Use a vacuum cleaner to remove dust from underneath the appliance and
from around the compressor which is situated at the back of the appliance.

14
Regularly do this to maintain adequate ventilation.
Caution! Take care not to damage the coolant system.
Important: Do not use abrasive cloths, powders, household cleaners,
bleach or wax polish to clean the appliance as these can leave a smell in the
appliance and can damage the exterior.
Door Seal
Use a clean, damp soft cloth to wipe the door seal and in between the
creases, avoid damaging the door seal as this will aect the performance of
your appliance.
Going away
If you are going away and do not wish to leave the appliance left on, switch it
o at the socket and remove the plug. Ensure not to remove it using the cord.
Remove any food and follow the cleaning instructions in the “Cleaning and
Maintenance” section.
Note: Leave the door ajar as this will prevent odours and mould accumulating
in the appliance and will allow the appliance to dry completely.
When returning after a prolonged period, run for at least 2 hours on the
highest setting before adding food.
Clearing the Drain
To avoid defrost water overowing into the
fridge, regularly clear the drain hole at the rear
of the fridge compartment. Carefully use a set of
tweezers and keep the plug in a safe place during
drainage.
Power Cut
In the event of a power cut keep the appliance door closed to maintain the
temperature inside.
Operating Sounds
The cooling gas which circulates in the cooling circuit may make a slight
noise (bubbling sound) even when the compressor is not running. Do not
worry this is quite normal.

15
If these sounds are dierent check that:
• The appliance is well levelled
• Nothing is touching the rear.
• The contents on the appliance are vibrating.
Important! In the event of accidental defrosting reference the “temperature
rise time” in the technical specications chart. Food must be consumed
within this time frame or cooked to then be frozen.
Thawing
Frozen food can be thawed in the refrigerator compartment but ensure that it
is fully defrosted before cooking.
Replacing the light bulb
The internal light is a LED lamp. To replace the lamp, please contact a
qualied service engineer

16
FUSE REPLACEMENT
DISPOSAL INFORMATION
The European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE), requires that old household
electrical appliances must not be disposed of in normal
unsorted municipal waste. Old appliances must be collected
separately in order to optimise the recovery and recycling of the materials
they contain and reduce the impact on human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your
obligation, that when you dispose of the appliance it must be separately
collected. Consumers should contact their local authority or retailer for
information concerning the correct disposal of their old appliance.
Fuse Cover
Fuse Replacement (Class I)
This appliance must be earthed. Remove the fuse cover
with a small at head screw driver. Take out the fuse and
replace with a new fuse of the same Amp. Replace the
fuse cover and push back into place.

17
TROUBLESHOOTING
If you are having problems with your appliance, please use our
troubleshooting guide below. If you are unable to resolve the issue using
this guide please ring our Customer Service Department on 0844 848 5861.
Please have the model code and purchase information available.
Appliance does
not work.
Temperature control dial is
set at number “0”.
Mains plug is not plugged in
or is loose.
Insert mains plug.
Fuse has blown or is defective Check fuse, replace if necessary.
Socket is defective Mains malfunctions are to be
corrected by an electrician.
Temperature is not properly
adjusted.
Door was open for an extended
period.
Open the door only as long as
necessary.
A large quantity of warm food
was placed in the appliance
within the last 24 hours.
Turn the temperature regulation
to a colder setting temporarily.
The appliance is near a heat
source.
Please look in the ‘Installation’
section.
Temperature is set too cold. Turn the temperature regulation knob
to a warmer setting temporarily.
Appliance is not level. Re-adjust the feet.
The appliance is touching the
wall or other objects.
Move the appliance slightly.
Water drain hole is blocked. See the ‘Cleaning and Maintenance’
section.
It’s normal. Heat exchange parts
are in the sides.
Use gloves to touch sides.
A component, e.g. a pipe, on the rear
of the appliance is touching another
part of the appliance or the wall.
If necessary, carefully bend the
component out of the way.
Set the dial to another number to
switch on the appliance.
Fault Possible cause Solution
The food is too
warm.
Please look in the initial
‘Temperature Setting’ section.
Appliance cools
too much.
Unusual noises.
Water on the oor.
Side panels are hot.

18

19

0844 848 5861
38 Bluestem Road,
Ransomes Europark
Ipswich, IP3 9RR
Disclaimer: Statesman operate a policy of continual improvement and development.
We therefore reserve the right to change/alter the specication and appearance of our appliances without prior notice.
All diagrams and images shown in this manual are for illustration purposes only.
