Cooline ASQ045B User manual

3
INDEX
CONTINUING RESEARCH RESULTS IN STEADY IMPROVEMENTS.
THEREFORE, THESE SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Contents Page
Model decoding ........................................................................................................................................ 4
Unit features, standard specifications & options.................................................................................... 5-8
Physical data ....................................................................................................................................... 9-12
Selection procedure .......................................................................................................................... 13-14
Performance data .............................................................................................................................. 15-20
Electrical data ......................................................................................................................................... 21
Water side pressure drop ....................................................................................................................... 22
Unit dimensions ................................................................................................................................ 23-28
Typical schematic wiring diagram...................................................................................................... 29-30
Microprocessor controller ....................................................................................................................... 31
Troubleshooting guide ....................................................................................................................... 32-33
Application guidelines ........................................................................................................................ 34-43
Rigging instructions ................................................................................................................................ 44
Installation clearance .............................................................................................................................. 45
Mounting location ................................................................................................................................... 46
Load distribution ................................................................................................................................ 47-48

4
ASQ
COOLINE
AIR COOLED
SCREW WATER
CHILLERS
MODEL DECODING
8
ELECTRICAL
SUPPLY
( V-Ph-Hz )
4, 5 & 6
UNIT SIZE
045 050 055 060 070 080 090 100
115
130 140 150 160 170 180 190 200 220 230 240 250 260 270 280 300 320 330 340 350 360 380 400 420 440
L: 380/415-3-50
(4 WIRE)
1, 2 & 3
BASIC
(SERIES)
B : R-134a
7
REFRIGER-
ANT
9
CONDENSER COIL
A :
ALUMINUM FIN
B :
PRE-COATED ALUMINUM FIN
C : COPPER FIN (SEE NOTE # 1
BELOW)
10
CIRCUIT BREAKER
OPTIONS
11
COOLER
OPTIONS
A: STANDARD WITH
VICTAULIC CONN.
B: FLANGE CONN.
(OPTIONAL)
C: ASME STAMPED
WITH VICTAULIC CONN. (OPTIONAL)
D: ASME STAMPED
WITH FLANGE CONN.(OPTIONAL)
A: STANDARD B:
COMPRESSOR
CIRCUIT
BREAKER
12
HGBP
OPTIONS
A: STANDARD UNIT
WITHOUT HGBP
B: HGBP (OPTIONAL)
13 & 14
OPTIONS
&
ACCESSORIES
SEE NOTE # 2 BELOW
NOTES: 1. FOR OTHER COATING, SPECIFY YOUR REQUIREMENTS IN WRITING. 2. COMPUTER SELECTED DIGITS (FROM 'AA' TO 'ZZ') DESCRIBING OTHER OPTIONS & ACCESSORIES OR COMBINATIONS THEREOF, SUCH AS: - CONDENSER COIL GUARD
- COOLER GUARD - UNIT DISCONNECT SWITCH - COMPRESSOR ENCLOSURE - WATER FLOW SWITCH - SPRING ISOLATOR etc...

5
FEATURES
These ASQ air cooled screw water chillers offer the ultimate combination of energy saving design, superior engineering
features and flexibility of application as required by today’s market.
*These chillers incorporate the newest advanced microprocessor controller. This controller monitors analog and digital
inputs to achieve precise control & protective functions of the air cooled water chiller units. This microprocessor
controller is complete with all the hardware and software necessary to control the chiller unit and insures its efficiency
and reliability.
*Designed to conform to ARI standard 550/590 water chilling packages using the vapor compression cycle.
*Designed to conform to ANSI/ASHRAE 15-1994 Safety code for Mechanical Refrigeration.
*Compact unit design and excellent serviceability.
*All packaged chillers incorporate compact water coolers with enhanced inner grooved copper tubes bundled into a
"U" shaped and expanded into a steel tubular sheet which offer efficient water flow as well as heat transfer design
resulting in optimal unit performance.
*High Energy Efficiency Ratio (EER) semi-hermetic compact twin screw compressors provided in these units.
*Single point power connection to minimize job site installation cost and time.
*Completely wired control panel with
the advanced microprocessor controller provides all the necessary operating and
safety controls.
*Compressors are with part winding start.
*Low noise condenser fans, direct drive at 860 RPM with rolled form venturi design to eliminate short circuiting of
airflow.
*
All fans are die cast aluminum propeller type with aerodynamic design, top discharge, provided with protective
grille mounted on top panel within the unit casing.
*All condenser fan motors are totally enclosed air over type (TEAO) with class ''F'' winding insulation and ball bearings.
Inherent thermal protection of the automatic reset type and specially designed for outdoor application.
CAPACITY CONTROL
A. Standard settings:
These chillers are equipped with stepless capacity control system as standard for very accurate response to load
requirements and best part load efficiency. Each compressor is equipped with a slider controller that enables to modulate
capacity between 25% to 100%, thus giving a broad range to control total chiller capacity between 10% to 100% on an
average. This system has following advantages:
1. Infinite capacity modulation allows the compressor capacity to exactly match the cooling load.
2. Reduce compressor cycling that leads to better operational reliability.
3. Reduce operating cost.
B. Optional settings:
The COOLINE packaged chillers incorporate stepped load shedding as required by some energy management systems.
Modulation of capacity in response to system load requirements is affected by a microprocessor controller which moni-
tors the leaving water temperature.
Capacity control is achieved by cycling compressor ON/OFF and slider capacity pre-set control valve. The use of slider
control valve provides excellent part load capacities.
On multiple compressor units, capacity is controlled by a combination of slider capacity control valve and compressor
staging. For such optional stepped load shading, please see the following table.
STANDARD SPECIFICATIONS

6
% FULL LOAD CAPACITY CONTROL
MODEL NUMBER
ASQ045B - ASQ070B
ASQ080B- ASQ150B
ASQ160B - ASQ200B
ASQ220B - ASQ280B
ASQ300B - ASQ440B
100-50-OFF
100-75-63-50-25-OFF
100-83-66-50-33-16-OFF
100-87-75-63-50-37-25-12-OFF
100-92-83-75-66-58-50-42-33-25-16-8-OFF
NOTES: 1. All models have slider capacity control valve on all compressors.
2. HGBP = Hot gas bypass available on lead compressor for all models (option).
3. HGBP modulates to approximately 50% of its compressor lowest unloaded capacity.
SEMI-HERMETIC COMPACT TWIN SCREW COMPRESSORS
All compressors are compact semi-hermetic twin screw of the high capacity and efficiency due to its perfect profile form
ratio 5:6. Simple and robust construction with slider control valve for capacity unloading, suction/discharge shut-off valves,
check valve in discharge gas outlet, oil sight glass, oil fill/drain service valve, directly flanged-on three stage oil separator
with long-life fine filter 10 microns mesh size, robust axial bearings in tandem configuration, suction gas filter, internal
pressure relief valve and manual lock-out electronic protection system for thermal motor winding temperature, phase
reversal, discharge gas temperature protection controls.
CONDENSER COILS
W-configuration condenser coils are corrugated fin and tube type, constructed of seamless 3/8" dia. & 0.014" (0.35 mm)
thick copper tubes, mechanically bonded to aluminum fins for maximum heat transfer efficiency. As an option, copper
fins or acrylic coated aluminum fins or other coated coils may be provided. The fins have full self spacing collars
which completely cover each tube. The staggered tube design improve the thermal efficiency. End plates support
sheets are 14 gauge galvanized steel, formed to provide structural strength. Each coil is pressure tested in the factory
at not less than 450 psi air pressure.
COMPACT DESIGN SHELL AND TUBE WATER COOLERS
The DX shell & tube cooler with removable ‘U’ shaped bundled tubes are made of internally grooved copper tubes
expanded into a heavy steel tubular sheets.
The chiller cooler & baffles are constructed of steel and brass respectively. The coolers are insulated with heavy closed
cellular foam insulation (3/4" thick). All chiller barrels are fitted with vent, drain connection and victaulic water pipe
connection as standard.
WATER SIDE REFRIGERANT SIDE
DESIGN PRESSURE,
(BAR/PSIG)
TEST PRESSURE,
(BAR/PSIG)
DESIGN PRESSURE,
(BAR/PSIG)
TEST PRESSURE,
(BAR/PSIG)
SHELL & TUBE
HEAT
EXCHANGER
(COOLER)
16/235 22.8/335 29/426 41.5/610STD
10/147 11.3/165 15.5/228 23.3/342ASME (option)
CABINET
All units are of heavy gauge (G-90) galvanized steel. Steel sheet panels are zinc coated and galvanized by hot dip
process of lock-forming quality conforming to ASTM A 653 commercial weight G-90 followed by air dry paint or backed on
electrostatic polyester dry powder coat.
CONTROL PANEL
The control panel design is equivalent to NEMA 4 (IP55) with hinged door for easy access ensuring dust and weather-
proof construction. Internal power and control wiring is neatly routed, adequately anchored and all wires identified with
cable markers as per NEC standards applicable to HVAC industry.
The electrical controls used in the control panel are UL approved which are reliable in operation at high ambient condi-
tions for a long period.
100-50-HGBP-OFF
100-75-63-50-25-HGBP-OFF
100-83-66-50-33-16-HGBP-OFF
100-87-75-63-50-37-25-12-HGBP-OFF
100-92-83-75-66-58-50-42-33-25-16-8-HGBP-OFF
OPTION-2OPTION-1

7
CONDENSER FANS
Condenser fans, the impeller and motors are so constructed to form an integral unit. All fan motors shall be three phase
with class ''F'' winding insulation and ball bearings for high ambient application. These fan motors are of totally enclosed
air over type (TEAO) with inherent thermal protection of automatic reset type.
MICROPROCESSOR CONTROLLER
The microprocessor controller works on the state of art microprocessor technology. This controller monitors analog and
digital inputs to achieve precise control & safety functions of the unit.
The Software works on the Proportional Integral Derivative (PID) algorithm for precise control logic.
The simple to use push button keyboard allows accessing to the operating conditions, control set points & alarm history
that are clearly displayed on a multi-line back illuminated LCD panel.
An easy to install serial port/modem option allows remote monitoring of the operating parameters. With corresponding
windows software, the system allows data to be viewed in tabular or graphic format as well as interact with system set up.
This chiller controller is compatible with the Building Management System (BMS) BACNET/MODBUS protocols through
corresponding optional gateway interfaces.
It is also compatible with GSM protocol through GSM optional gateway that sends up to 3 mobile phone SMS messages
whenever alarm take place, indicating the type of alarm, the corresponding compressor, the related chiller and which
location.
The microprocessor consists of the following hardware:
1. User Interface Board: Provided with simple to use push button keyboard and menu driven software to access operat-
ing conditions, control set points & alarm history that are clearly displayed on the LCD panel.
2. Main Board: This controls up to two (2) compressor system.
3. Auxiliary Boards: Required for controlling an additional two (2) or more compressors.
4. Remote Monitoring System [Optional]: The micro controller is complete with all hardware and software necessary to
remotely monitor and control the chiller unit.
Display Information:
In the normal operating mode the 20 x 4 characters LCD panel display the system status, the temperature of the water
inlet & outlet, the set point, run time of the compressor & the alarm history.
Easily accessible measurements for each circuit include the following:
·Suction and discharge temperatures
·Suction, discharge and oil pressures
·Water inlet/outlet temperatures
·Compressor status
·Fan status
·Liquid line solenoid status
·Unit/Compressor run time
The control temperature is continuously displayed on the 3 Digit 7 segments LED Display. The 3 LED lights indicate the
Power ON, Menu adjustment and Fault.
System Protection:
The following system protection is provided to ensure system reliability:
·compressor winding overheating
·Low suction pressure
·High discharge pressure
·Freeze protection
·Low oil pressure
·Sensor error
·Time delay – Anti recycle time for compressor
·Serial communication error

8
STANDARD CONTROL & SAFETY DEVICES
MICROPROCESSOR CONTROLLER: This controller monitors analog and digital inputs to achieve precise control &
safety functions of the unit.
COMPRESSOR IN-BUILT PROTECTION DEVICE: Protect the compressor by monitoring:
A) Motor winding temperature in case of overload.
B) Discharge gas temperature in case of overheating.
C) Phase reversal for direction of rotation.
STARTERS: The starter is operated by the control circuit and provides power to the compressor motors. These devices
are rated to handle safely both RLA and LRA of motors.
CRANKCASE HEATERS: Each compressor has immersion type crankcase heater. The compressor crankcase heater is always on when
the compressors are de-energized. This protect the system against refrigerant migration, oil dilution and potential compressor failure.
HIGH PRESSURE SWITCH: This switch provides an additional safety protection in the case of excessive discharge pressure.
STANDARD ACCESSORIES
UNIT ON-OFF SWITCH: ON-OFF switch is provided for manually switching the unit control circuit.
INDICATOR LIGHTS: LED lights indicates power ON to the units, MENU adjustment and FAULT indications due to trip on safety devices.
ELECTRONIC EXPANSION VALVE: Electronic expansion valve is used to regulate the refrigerant flow to the water
cooler and maintain a constant superheat and load optimization.
FILTER DRIER (REPLACEABLE CORE TYPE): Refrigerant circuits are kept free of harmful moisture, sludge, acids
and oil contaminating particles by the filter drier.
SIGHT GLASS: A moisture indicating sight glass installed in the liquid line. An easy-to-read color indicator shows
moisture contents and provides a mean for checking the system refrigerant charge.
LIQUID LINE SOLENOID VALVE: Closes when the compressor is off to prevent any liquid refrigerant from accumulating
in the water cooler during the off cycle.
UNDER VOLTAGE AND PHASE PROTECTION: Protects against low incoming voltage as well as single phasing, phase reversal
and phase imbalance by de-energizing the control circuit. It is an automatic reset device, but it can be set up for manual reset.
OPTIONS
(All options are at extra cost. Please check with your nearest dealer/sales office)
HOT GAS BYPASS SYSTEM: Hot gas bypass is provided on the lead circuit to permit operation of the system down to 50%
of its unloaded capacity. Under low ambient condition, it controls temperature by eliminating the need to cycle the compressor
on and off, ensuring narrow temperature swing and lengthen the life span of the compressor.
WATER FLOW SWITCH: Paddle type field adjustable flow switch for water cooler circuits. Interlock into unit safety
circuits so that the unit will remain off until water flow is determine.
UNIT MOUNT SPRING ISOLATORS: This housed spring assemblies have a neoprene friction pad on the bottom to
prevent vibration transmission.
COMPRESSOR CIRCUIT BREAKERS: Protects against compressor branch circuit fault. When tripped (manually or
automatically), the breaker opens the power supply to the compressor and control circuit through auxiliary contacts.
LIQUID COOLERS: ASME code stamped liquid cooler.
PRESSURE GAUGES: Suction & discharge pressures gauges.
NON-FUSED MAIN DISCONNECT SWITCHES: De-energize power supply during servicing/repair works as well as with door interlock.
CONDENSER COIL GUARD: Protect the condenser coil from physical damage.
COMPRESSOR/COOLER GUARD: Protect the compressor from vandalism.
COMPRESSOR ENCLOSURE BOX: Reduce compressor operating noise and keep the compressor clean.
FLANGED COOLER CONNECTION: Easy on-site piping connections.
COOLER HEATER WRAPPED: Prevent freezing up of water on low ambient temperature.
COPPER FINS/TUBES CONDENSER COILS: For seashore salty corrosive environments.
COATED COPPER/ALUMINUM FINS CONDENSER COILS: For seashore or acid corrosive environments.
BMS: BACNET, MODBUS, GSM and remote monitoring.

9
UNIT SIZE ASQ045B ASQ050B ASQ055B ASQ060B ASQ070B ASQ080B ASQ090B ASQ100B ASQ115B
COMPRESSOR
PART NUMBER 800-683-15 800-683-15 800-683-18 800-683-21 800-683-24 800-683-15 (2) 800-683-15 (2) 800-683-18 (2) 800-683-21 (2)
NUMBER OF COMPRESSORS 1 1 1 1 1 2 2 2 2
OIL CHARGE PER COMPRESSOR, Liters 15 15 22 22 22 15 15 22 22
CAPACITY CONTROL (STEPLESS) % 100-50 100-25
MOTOR OVERLOAD PROTECTION (INTERNAL) ELECTRONIC
OIL LUBRICATION INJECTION
TOTAL CRANKCASE HEATER WATTS 200 200 300 300 300 400 400 600 600
REFRIGERANT R-134a
EXPANSION VALVE DEVICE ELECTRONIC EXPANSION VALVE
CONTROL VOLTAGE 220V-1Ph-50Hz
CONDENSER
CONDENSER COIL Tube Dia.- Rows - Fins per inch 3/8–2–14 3/8–2–14 3/8–3–14 3/8–3–14 3/8–4–14 3/8–3–14 3/8–4–14 3/8–4–14 3/8–4–14
Total face area, Sq. ft. 87.5 87.5 87.5 87.5 87.5 100.1 100.1 100.1 140
AIRFLOW, CFM 38040 38040 36784 36784 41240 59400 55152 55152 75264
NUMBER OF FAN/FAN DIA., mm 4/762 4/762 4/762 4/762 4/800 6/800 6/800 6/800 8/800
FAN MOTOR RPM @ 380-3-50 915 915 915 915 860 860 860 860 860
COOLER
COOLER PART NUMBER 800-660-91 800-660-91 800-660-91 800-660-91 800-660-91 800-660-92 800-659-05 800-659-05 800-660-52
SHELL DIAMETER, mm 273 273 273 273 273 273 324 324 324
LENGTH, mm 1850 1850 1850 1850 1850 1850 2180 2180 2697
TOTAL WATER HOLDING VOLUME, Liters 53.2 53.2 53.2 53.2 53.2 53.2 99.8 99.8 113.5
WATER IN/OUT PIPE DIA. mm 100 100 100 100 100 100 150 150 150
ECONOMIZER
PART NUMBER N.A. 800-516-33 N.A. N.A. N.A. N.A. 800-516-33 (2) N.A. N.A.
EXPANSION DEVICE N.A. T.E.V. N.A. N.A. N.A. N.A. T.E.V. N.A. N.A.
GENERAL
NUMBER OF REFRIGERANT CIRCUITS 111112222
REFRIGERANT CHARGE PER COMP., kg (COMP. 1/2) 27 30 35 38 44 27 30 35 38
SOUND PRESSURE LEVEL, dBA (3m./5m./10m.)
72.2/68.7/63.4 72.2/68.7/63.4 72.3/68.8/63.5 75.4/71.9/66.6 75.6/72.1/66.8 74.5/71/65.7 74.5/71/65.7 74.6/71.1/65.8 78.4/74.9/69.6
OPERATING/SHIPPING WEIGHTS, kg 2038/1985 2048/1995 2442/2389 2456/2403 2575/2522 3104/3051 3335/3235 4026/3926 4640/4527
PHYSICAL DATA
NOTES: 1. All compressors with slider control valve unloading.
2. All compressors operate at 2900 RPM @ 50Hz.
3. Cooler vent and drain size are 1/2" MPT.
4. All coolers are single face refrigerant connection.
5. Sound pressure level : ±2dBA.

10
UNIT SIZE ASQ130B ASQ140B ASQ150B ASQ160B ASQ170B ASQ180B ASQ190B ASQ200B ASQ220B
COMPRESSOR
PART NUMBER 800-683-24 (2) 800-683-24 (2) 800-683-24 (2) 800-683-18 (3) 800-683-18 (3) 800-683-21 (3) 800-683-21 (3) 800-683-24 (3)
NUMBER OF COMPRESSORS 2 2 2 3 3 3 3 3 4
OIL CHARGE PER COMPRESSOR, Liters 22 22 22 22 22 22 22 22 22
CAPACITY CONTROL (STEPLESS) % 100-25 100-16.3 100-12.5
MOTOR OVERLOAD PROTECTION (INTERNAL) ELECTRONIC
OIL LUBRICATION INJECTION
TOTAL CRANKCASE HEATER WATTS 600 600 600 900 900 900 900 900 1200
REFRIGERANT R-134a
EXPANSION VALVE DEVICE ELECTRONIC EXPANSION VALVE
CONTROL VOLTAGE 220V-1Ph-50Hz
CONDENSER
CONDENSER COIL Tube Dia.- Rows - Fins per inch 3/8–4–14 3/8–3–14 3/8–4–14 3/8–3–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–3–14
Total face area, Sq. ft. 140 175 175 210 210 210 210 210 304
AIRFLOW, CFM 75264 100860 94080 121032 115488 112896 112896 112896 166240
NUMBER OF FAN/FAN DIA., mm 8/800 10/800 10/800 12/800 12/800 12/800 12/800 12/800 16/800
FAN MOTOR RPM @ 380-3-50 860 860 860 860 860 860 860 860 860
COOLER
COOLER PART NUMBER 800-660-52 800-660-55 800-660-55 800-660-59 800-660-59 800-660-59 800-660-62 800-660-62 800-660-52 (2)
SHELL DIAMETER, mm 324 406 406 406 406 406 406 406 324
LENGTH, mm 2697 2744 2744 2737 2737 2737 2737 2737 2697
TOTAL WATER HOLDING VOLUME, Liters 113.5 221.7 221.7 206.5 206.5 206.5 184.4 184.4 227
WATER IN/OUT PIPE DIA. mm 150 200 200 200 200 200 200 200 150
ECONOMIZER
PART NUMBER N.A. N.A. 800-516-33 (2) N.A. 800-516-33 (2) 800-516-33 (2) 800-516-33 (3) N.A. N.A.
EXPANSION DEVICE N.A. N.A. T.E.V. N.A. T.E.V. T.E.V. T.E.V. N.A. N.A.
GENERAL
NUMBER OF REFRIGERANT CIRCUITS 222333334
REFRIGERANT CHARGE PER COMP., kg (COMP. 1/2) 44 44 48 35 39/35 41/38 41/38 44 38/35
SOUND PRESSURE LEVEL, dBA (3m./5m./10m.)
78.6/75.1/69.8 78.9/75.4/70.1 78.9/75.4/70.1 77.1/73.6/68.3 77.1/73.6/68.3 80.2/76.7/71.4 80.2/76.7/71.4 80.4/76.9/71.6 80.1/76.6/71.4
OPERATING/SHIPPING WEIGHTS, kg 4675/4562 5277/5055 5423/5201 6797/6591 6920/6714 7007/6801 7041/6857 7051/6867 9130/8903
PHYSICAL DATA
NOTES: 1. All compressors with slider control valve unloading.
2. All compressors operate at 2900 RPM @ 50Hz.
3. Cooler vent and drain size are 1/2" MPT.
4. All coolers are single face refrigerant connection.
5. Sound pressure level : ±2dBA.
800-683-21 (2)
800-683-18 (2)
3/8–4–14
3/8–3–14

11
UNIT SIZE ASQ230B ASQ240B ASQ250B ASQ260B ASQ270B ASQ280B ASQ300B ASQ320B ASQ330B
COMPRESSOR
PART NUMBER 800-683-21 (4) 800-683-24 (4) 800-683-24 (4) 800-683-18 (6) 800-683-18 (6)
NUMBER OF COMPRESSORS 4 4 4 4 4 4 6 6 6
OIL CHARGE PER COMPRESSOR, Liters 22 22 22 22 22 22 22/15 22 22
CAPACITY CONTROL (STEPLESS) % 100-12.5 100-8.3
MOTOR OVERLOAD PROTECTION (INTERNAL) ELECTRONIC
OIL LUBRICATION INJECTION
TOTAL CRANKCASE HEATER WATTS 1200 1200 1200 1200 1200 1200 1600 1800 1800
REFRIGERANT R-134a
EXPANSION VALVE DEVICE ELECTRONIC EXPANSION VALVE
CONTROL VOLTAGE 220V-1Ph-50Hz
CONDENSER
CONDENSER COIL Tube Dia.- Rows - Fins per inch 3/8–3–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14
Total face area, Sq. ft. 304 304 304 304 304 304 430.7 430.7 430.7
AIRFLOW, CFM 166240 163616 156192 156192 156192 156192 194004 191160 191160
NUMBER OF FAN/FAN DIA., mm 16/800 16/800 16/800 16/800 16/800 16/800 18/800 18/800 18/800
FAN MOTOR RPM @ 380-3-50 860 860 860 860 860 860 860 860 860
COOLER
COOLER PART NUMBER 800-660-52 (2) 800-660-52 (2) 800-660-52 (2) 800-660-55 (2) 800-660-55 (2) 800-660-55 (2) 800-660-59 (2) 800-660-59 (2) 800-660-59 (2)
SHELL DIAMETER, mm 324 324 324 406 406 406 406 406 406
LENGTH, mm 2697 2697 2697 2744 2744 2744 2737 2737 2737
TOTAL WATER HOLDING VOLUME, Liters 227 227 227 443.4 443.4 443.4 413 413 413
WATER IN/OUT PIPE DIA. mm 150 150 150 200 200 200 200 200 200
ECONOMIZER
PART NUMBER N.A. N.A. N.A. N.A. N.A. N.A. 800-516-33 (2) 800-516-33 (2) 800-516-33 (3)
EXPANSION DEVICE N.A. N.A. N.A. N.A. N.A. N.A. T.E.V. T.E.V. T.E.V.
GENERAL
NUMBER OF REFRIGERANT CIRCUITS 444444666
REFRIGERANT CHARGE PER COMP., kg (COMP. 1/2) 38 44/38 44/38 44/38 44 48/44 35/30 39/35 39/35
SOUND PRESSURE LEVEL, dBA (3m./5m./10m.)
81.4/77.9/72.6 81.5/77.9/72.7 81.5/77.9/72.7 81.5/77.9/72.7 81.6/78.1/72.8 81.6/78.1/72.8 79.4/75.8/70.6 79.4/75.8/70.6 79.4/75.8/70.6
OPERATING/SHIPPING WEIGHTS, kg 9159/8932 9227/9000 9394/9167 9986/9543 10021/9578 10052/9609 13088/12675 13242/12829 13257/12844
PHYSICAL DATA
NOTES: 1. All compressors with slider control valve unloading.
2. All compressors operate at 2900 RPM @ 50Hz.
3. Cooler vent and drain size are 1/2" MPT.
4. All coolers are single face refrigerant connection.
5. Sound pressure level : ±2dBA.
800-683-24 (1)
800-683-21 (3)
800-683-24 (2)
800-683-21 (2)
800-683-24 (2)
800-683-21 (2)
3/8–4–14
3/8–3–14
800-683-18 (4)
800-683-15 (2)
3/8–4–14
3/8–3–14

12
UNIT SIZE ASQ340B ASQ350B ASQ360B ASQ380B ASQ400B ASQ420B ASQ440B
COMPRESSOR
PART NUMBER 800-683-21 (6) 800-683-21 (6) 800-683-21 (6) 800-683-24 (6) 800-683-24 (6) 800-683-24 (6)
NUMBER OF COMPRESSORS 6 6 6 6 6 6 6
OIL CHARGE PER COMPRESSOR, Liters 22 22 22 22 22 22 22
CAPACITY CONTROL (STEPLESS) % 100-8.3
MOTOR OVERLOAD PROTECTION (INTERNAL) ELECTRONIC
OIL LUBRICATION INJECTION
TOTAL CRANKCASE HEATER WATTS 1800 1800 1800 1800 1800 1800 1800
REFRIGERANT R-134a
EXPANSION VALVE DEVICE ELECTRONIC EXPANSION VALVE
CONTROL VOLTAGE 220V-1Ph-50Hz
CONDENSER
CONDENSER COIL Tube Dia.- Rows - Fins per inch 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14 3/8–4–14
Total face area, Sq. ft. 430.7 521.3 521.3 521.3 521.3 521.3 521.3
AIRFLOW, CFM 191160 232936 232936 232936 232936 232936 269038
NUMBER OF FAN/FAN DIA., mm 18/800 22/800 22/800 22/800 22/800 22/800 22/800
FAN MOTOR RPM @ 380-3-50 860 860 860 860 860 860 860
COOLER
COOLER PART NUMBER 800-660-59 (2) 800-660-59 (2) 800-660-59 (2) 800-660-62 (2) 800-660-62 (2) 800-660-68 (2) 800-660-68 (2)
SHELL DIAMETER, mm 406 406 406 406 406 457 457
LENGTH, mm 2737 2737 2737 2737 2737 2790 2790
TOTAL WATER HOLDING VOLUME, Liters 413 413 413 368.8 368.8 504 504
WATER IN/OUT PIPE DIA. mm 200 200 200 200 200 200 200
ECONOMIZER
PART NUMBER N.A. N.A. 800-516-33 (3) N.A. N.A. 800-516-33 (3) 800-516-33 (6)
EXPANSION DEVICE N.A. N.A. T.E.V. N.A. N.A. T.E.V. T.E.V.
GENERAL
NUMBER OF REFRIGERANT CIRCUITS 6666666
REFRIGERANT CHARGE PER COMP., kg (COMP. 1/2) 38 38 41/38 44/38 44 48/44 48
SOUND PRESSURE LEVEL, dBA (3m./5m./10m.)
82.9/79.3/74.1 83.1/79.5/74.3 83.1/79.5/74.3 83.2/79.7/74.4 83.3/79.8/74.5 83.3/79.8/74.5 83.3/79.8/74.5
OPERATING/SHIPPING WEIGHTS, kg 13297/12884 13859/13446 13902/13489 13971/13602 14006/13637 14597/14093 14643/14139
PHYSICAL DATA
NOTES: 1. All compressors with slider control valve unloading.
2. All compressors operate at 2900 RPM @ 50Hz.
3. Cooler vent and drain size are 1/2" MPT.
4. All coolers are single face refrigerant connection.
5. Sound pressure level : ±2dBA.
800-683-24 (4)
800-683-21 (2)

13
DESIGN REQUIREMENTS
The following design requirements must be known to select a package chiller.
1. Required cooling capacity in tons
2. Leaving chilled water temperature in 0F (LCWT)
3. Chilled water flow rate in GPM
4. Chilled water cooling range in 0F (water in temp. _water out temp.)
5. Design ambient temperature
6. Minimum ambient temperature
7. Altitude
8. Electrical power supply
SAMPLE SELECTION
Select an Air Cooled Packaged chiller for the following conditions:
Required system capacity is 110 tons at 54
0
F entering chilled water
and 44
0
F leaving water. Design ambient temperature is 95
0
F.
Altitude is 2000 feet above sea level.
Water cooler fouling factor is 0.00010. Power supply: 380/415V-3Ph-50Hz.
STEP-1: UNIT SELECTION
Entering the capacity performance data at given LCWT and ambient temperature.
ASQ115B chiller unit at sea level will produce 115.3 tons and 120.3 kW compressor
power input at 440F leaving chilled water temperature with 100F water temperature
difference and 950F ambient temperature.
For the conditions required, the unit actual cooling capacity when corrected for
altitude (0.99) and fouling factor (1.0).
Capacity = 115.3x0.99x1.0 = 114.1 Tons, which then exceeds the requirements.
So the selection is correct.
STEP-2: CHILLED WATER FLOW (GPM):
Water GPM = Required capacity (Tons) x 24 =110 x 24 = 264 GPM
Cooling Range, ∆T 100F

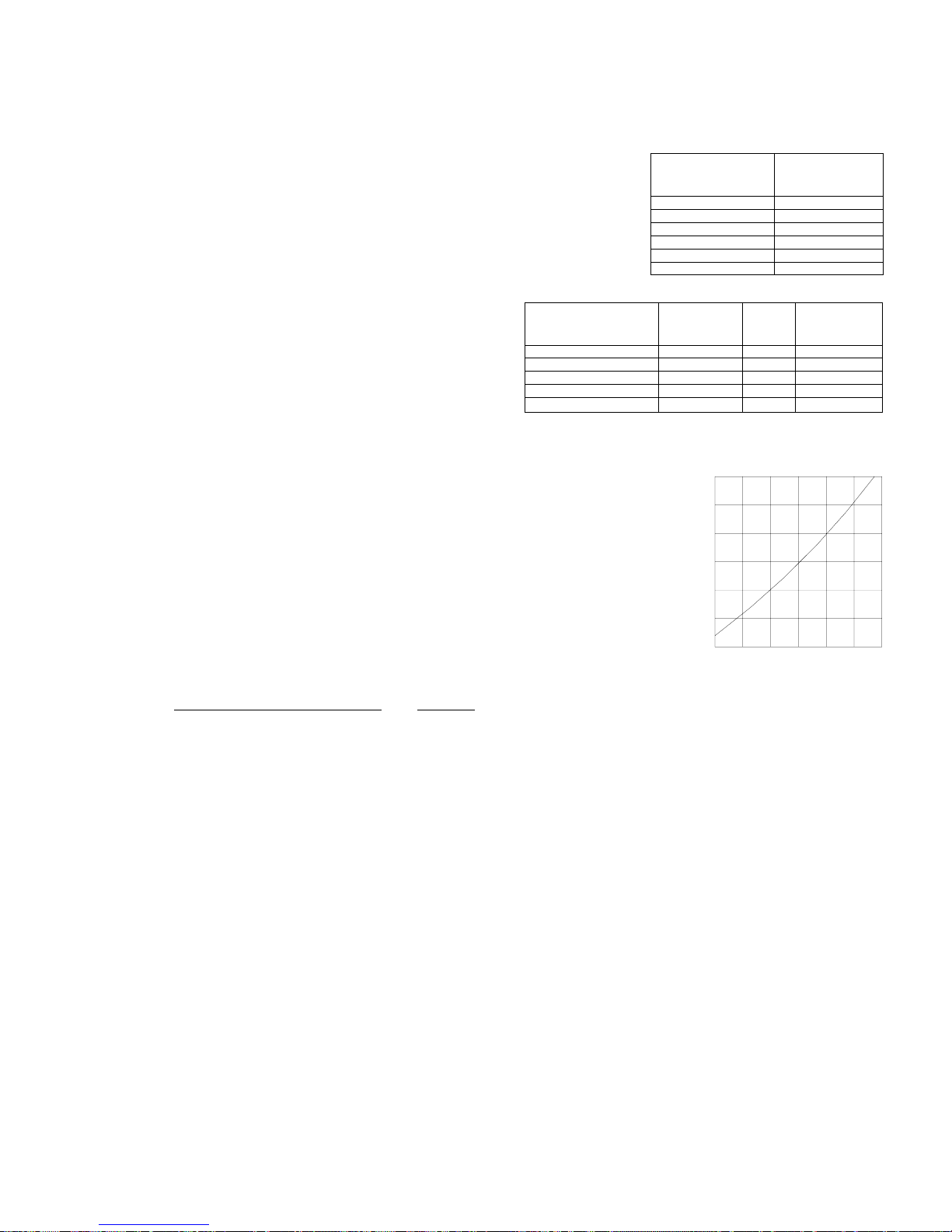

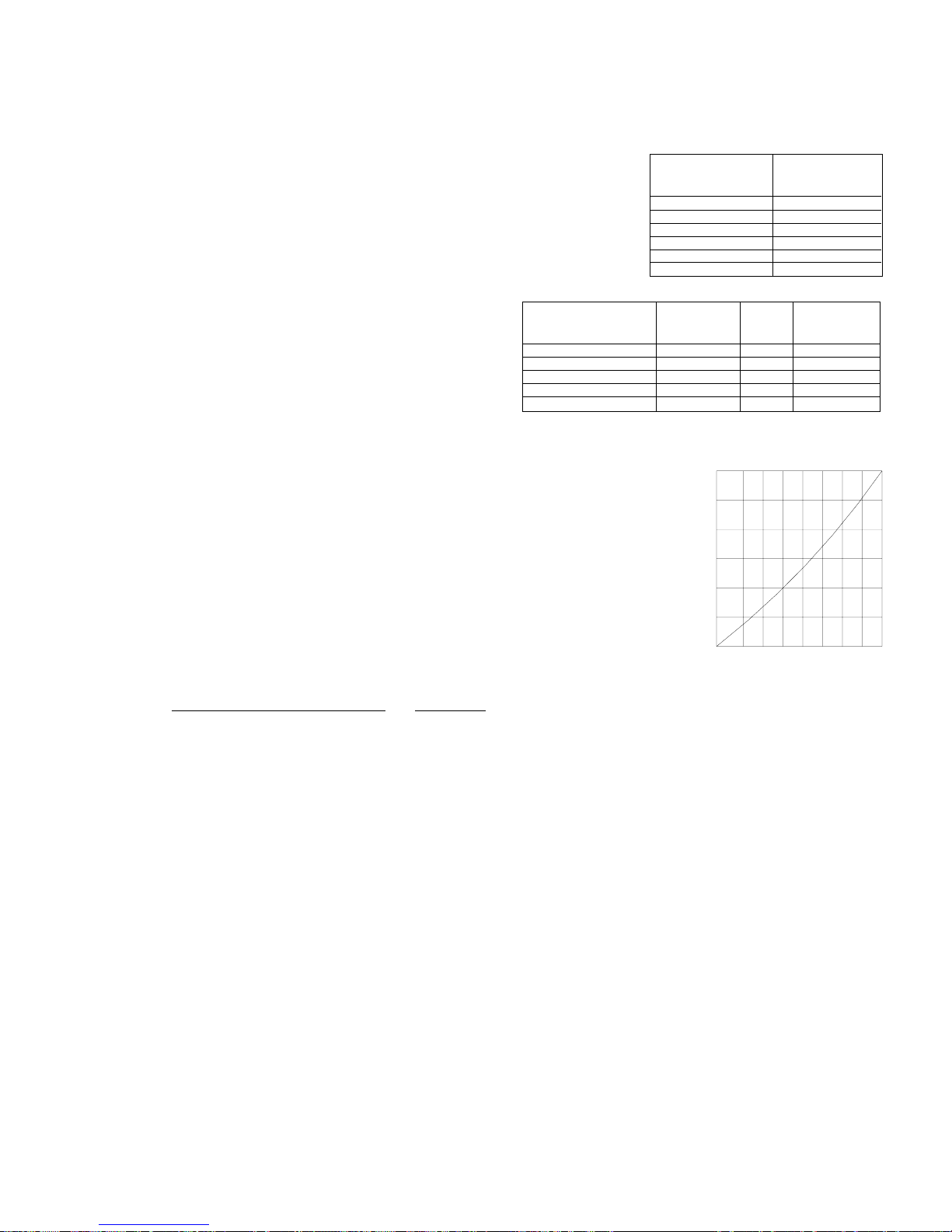

SELECTION PROCEDURE (English units)
ELEVATION ABOVE
SEA LEVEL (FT.)
CAPACITY
CORRECTION
FACTOR
0
2000
4000
6000
8000
10000
1.00
0.99
0.98
0.97
0.96
0.95
TABLE - 2
EVAPORATOR FOULING
FACTOR (HR-FT
2
-
0
F/BTU)
0.00010
0.00025
0.00050
0.00075
0.00100
CAPACITY
CORRECTION
FACTOR
1.000
0.992
0.978
0.965
0.951
POWER
INPUT
FACTOR
1.000
0.997
0.990
0.984
0.978
ARI
STANDARDS
ARI-550/590-98
ARI-590-86
ARI-590-81
Referring to pressure drop chart (page # 22), pressure drop at 264 GPM = 13.3 ft. of water for selected model.
NOTE: The total flow rate should be divided by 2 for models ASQ220B - ASQ440B to find out the total pressure drop.
STEP-3: ELECTRICAL
Refer to electrical data at
380/415V-3Ph-50Hz , the main power wire size for ASQ115B is to be sized for a minimum circuit
ampacity (MCA) of 292 Amps and maximum over current protection (MOCP) of 411 Amps.
STEP-4: CHILLED WATER PUMP SELECTION
For chilled water pump selection, add all pressure drop in the closed chilled water loop piping to the pressure drop
calculated in step 2.
STEP-5: LCWT CORRECTION
Refer to table-3: Add correction factor to design leaving chilled water temperature (LCWT) when chilled water tempera-
ture range is above 100F and subtract correction from design leaving chilled water temperature (LCWT) when water
temperature range is below 100F.
EXAMPLE:
If LCWT rise is 12.50F, enter correction curve at 12.50F and read the correction factor of 0.2. The corrected LCWT is
44+0.2 = 44.20F.
NOTE: 1.When the chilled water temperature rise is less than 50F, the high water flow rate will result to excessive
pressure drop. In such cases, contact factory for special selection of a cooler with wider baffle spacing.
2.Please refer to water pressure drop curves.
TABLE - 1
TABLE - 3
CHILLED WATER TEMPERATURE RISE (0F)
CORRECTION FACTOR (0F)
0
-0.2
-0.4 510
+0.4
+0.2
+0.6
15 20

14
DESIGN REQUIREMENTS
The following design requirements must be known to select a proper package chiller.
1. Required cooling capacity in kilowatt (kW)
2. Leaving chilled water temperature in 0C (LCWT)
3. Chilled water flow rate in LPS
4. Chilled water cooling range in 0C (water in temp. _water out temp.)
5. Design ambient temperature
6. Minimum ambient temperature
7. Altitude
8. Electrical power supply
SAMPLE SELECTION
Select an Air Cooled Packaged chiller for the following conditions:
Required system capacity is 395 kW at 12
0
C entering chilled water
and 60C leaving water. Design ambient temperature is 350C.
Altitude is 600 meter above sea level.
Water cooler fouling factor is 0.000018. Power supply:
380/415V-3Ph-50Hz.
STEP-1: UNIT SELECTION
Entering the capacity performance data at given LCWT and ambient temperature.
ASQ115B chiller unit at sea level will produce 403.6 kW and 120.1 kW compressor
power input at 60C leaving chilled water temperature with 60C water temperature
difference and 350C ambient temperature.
For the conditions required, the unit actual cooling capacity when corrected for
altitude (0.99) and fouling factor (1.0).
Capacity = 403.6x0.99X1.0 = 399.5 kW, which then exceeds the requirements.
So the selection is correct.
STEP-2: CHILLED WATER FLOW (LPS):
Water LPS = Required capacity (kW) x 0.239 =395 x 0.239 = 15.7 LPS
Cooling Range, ∆T 60C
SELECTION PROCEDURE (Metric units)
ELEVATION ABOVE
SEA LEVEL (Meter)
CAPACITY
CORRECTION
FACTOR
0
600
1200
1800
2400
3000
1.00
0.99
0.98
0.97
0.96
0.95
Referring to pressure drop chart (page # 22), pressure drop at 15.7 LPS = 36 kPa for selected model.
NOTE: The total flow rate should be divided by 2 for models ASQ220B - ASQ440B to find out the total pressure drop.
STEP-3: ELECTRICAL
Refer to electrical data at
380/415V-3Ph-50Hz , the main power wire size for ASQ115B is to be sized for a minimum circuit
ampacity (MCA) of 292 Amps and maximum over current protection (MOCP) of 411 Amps.
STEP-4: CHILLED WATER PUMP SELECTION
For chilled water pump selection, add all pressure drop in the closed chilled water loop piping to the pressure drop
calculated in step 2.
STEP-5: LCWT CORRECTION
Refer to table-3: Add correction factor to design leaving chilled water temperature (LCWT) when chilled water tempera-
ture range is above 60C and subtract correction from design leaving chilled water temperature (LCWT) when water
temperature range is below 60C.
EXAMPLE:
If LCWT rise is 7.40C, enter correction curve at 7.40C and read the correction factor of 0.11. The corrected LCWT is
60C+0.11 = 6.110C.
NOTE: 1.When the chilled water temperature rise is less than 30C, the high water flow rate will result to excessive
pressure drop. In such cases, contact factory for special selection of a cooler with wider baffle spacing.
2.Please refer to water pressure drop curves.
TABLE - 2
EVAPORATOR FOULING
FACTOR (M
2
-
0
C/W)
0.000018
0.000044
0.000088
0.000132
0.000176
CAPACITY
CORRECTION
FACTOR
1.000
0.992
0.978
0.965
0.951
POWER
INPUT
FACTOR
1.000
0.997
0.990
0.984
0.978
ARI
STANDARDS
ARI-550/590-98
ARI-590-86
ARI-590-81
TABLE - 1
TABLE - 3
CHILLED WATER TEMPERATURE RISE (0C)
CORRECTION FACTOR (0C)
+0.33
+0.22
+0.11
-0.11
-0.22 54 678
0
109

15
ASQ 045B 39.5 41.7 10.3 94.7 37.0 46.3 8.8 88.8 34.4 51.8 7.4 82.6 31.7 58.1 6.1 76.1 30.3 61.5 5.5 72.7 ASQ 050B 41.7 46.1 9.9 100.1 39.8 52.7 8.4 95.6 37.8 60.4 7.0 90.6 35.5 69.3 5.8 85.1 34.2 74.2 5.2 82.1 ASQ 055B 47.3 50.6 10.3 113.6 44.4 56.8 8.7 106.4 41.2 64.1 7.2 99.0 38.0 72.3 5.9 91.1 36.3 76.8 5.4 87.0 ASQ 060B 51.4 59.3 9.7 123.4 48.0 65.8 8.2 115.3 44.4 73.1 6.9 106.5 40.4 81.1 5.7 97.0 38.3 85.4 5.1 92.0 ASQ 070B 59.1 68.6 9.6 141.9 55.7 76.7 8.2 133.7 52.1 85.5 6.9 125.0 48.2 95.2 5.8 115.8 46.2 100.3 5.3 110.9 ASQ 080B 67.0 80.9 9.0 160.9 63.1 90.7 7.7 151.5 58.9 102.4 6.4 141.5 54.5 115.9 5.3 130.7 52.1 123.3 4.8 125.0 ASQ 090B 84.2 92.8 10.0 202.2 80.3 105.9 8.5 192.8 76.0 121.3 7.0 182.4 71.2 139.1 5.8 170.9 68.6 148.9 5.3 164.7 ASQ 100B 92.5 109.1 9.5 222.0 86.2 122.5 7.9 206.8 79.5 137.8 6.5 190.9 72.5 155.2 5.3 174.1 68.9 164.6 4.8 165.4 ASQ 115B 110.7 118.4 10.3 265.6 103.2 131.0 8.7 247.7 95.2 145.2 7.3 228.5 86.7 160.8 6.1 208.0 82.2 169.2 5.5 197.3 ASQ 130B 123.7 145.9 9.5 296.8 115.9 162.6 8.0 278.2 107.7 180.8 6.8 258.5 99.1 200.6 5.6 237.7 94.6 211.2 5.1 226.9 ASQ 140B 129.9 142.5 10.0 311.8 121.8 158.8 8.5 292.3 113.2 176.7 7.1 271.7 104.2 196.2 6.0 250.0 99.5 206.5 5.4 238.8 ASQ 150B 139.7 152.5 10.1 335.3 133.8 174.5 8.5 321.1 127.3 199.5 7.2 305.5 120.2 227.4 6.0 288.5 116.4 242.5 5.5 279.3 ASQ 160B 146.9 154.7 10.3 352.6 137.3 173.3 8.7 329.6 127.2 194.9 7.2 305.4 116.6 219.5 5.9 279.9 111.1 232.9 5.4 266.8 ASQ 170B 158.0 169.7 10.2 379.1 150.0 194.4 8.6 360.0 141.4 223.3 7.1 339.4 132.1 256.7 5.8 317.1 127.2 275.0 5.2 305.3 ASQ 180B 171.9 198.0 9.6 412.7 162.4 225.1 8.1 389.9 151.9 256.3 6.7 364.5 140.2 291.4 5.5 336.4 133.9 310.4 4.9 321.3 ASQ 190B 176.2 209.8 9.4 422.8 167.6 241.7 7.8 402.3 157.9 278.7 6.4 378.9 146.9 320.7 5.2 352.5 140.8 343.6 4.7 338.0 ASQ 200B 182.0 217.4 9.4 436.8 170.9 242.4 7.9 410.1 159.0 269.7 6.7 381.7 146.5 299.5 5.6 351.6 140.0 315.3 5.1 336.0 ASQ 220B 210.0 222.6 10.3 504.1 196.0 247.8 8.7 470.5 181.2 276.3 7.3 434.8 165.4 308.4 6.0 397.0 157.2 325.6 5.4 377.3 ASQ 230B 219.1 240.6 10.0 525.7 204.0 266.3 8.5 489.7 187.9 294.9 7.1 451.0 170.8 326.4 5.9 409.8 161.8 343.3 5.3 388.3 ASQ 240B 226.8 252.0 10.0 544.4 211.7 279.5 8.4 508.1 195.5 310.1 7.1 469.2 178.3 343.6 5.9 427.9 169.3 361.5 5.3 406.4 ASQ 250B 236.6 259.7 10.1 567.8 221.4 288.8 8.6 531.4 205.3 320.9 7.2 492.6 188.1 356.0 6.0 451.4 179.1 374.8 5.4 429.9 ASQ 260B 243.4 262.5 10.3 584.1 227.3 291.4 8.7 545.6 210.3 323.4 7.3 504.8 192.4 358.5 6.1 461.7 183.0 377.2 5.5 439.2 ASQ 270B 257.1 290.3 9.9 617.1 240.8 323.4 8.4 577.8 223.5 359.5 7.0 536.5 205.4 398.9 5.9 493.0 196.0 419.8 5.3 470.5 ASQ 280B 265.2 307.2 9.7 636.4 250.7 346.8 8.2 601.8 235.3 390.7 6.9 564.7 218.7 439.2 5.7 525.0 210.1 465.2 5.2 504.1 ASQ 300B 282.9 296.7 10.6 679.1 266.0 334.0 8.9 638.5 248.1 377.6 7.4 595.5 229.1 427.4 6.1 549.8 219.1 454.7 5.5 526.0 ASQ 320B 303.2 328.1 10.3 727.7 285.5 371.9 8.7 685.3 266.8 423.0 7.2 640.2 246.8 481.3 5.9 592.2 236.3 513.2 5.3 567.0 ASQ 330B 308.0 338.1 10.2 739.2 291.1 385.4 8.5 698.7 273.0 440.6 7.1 655.3 253.6 503.8 5.8 608.6 243.3 538.5 5.2 584.0 ASQ 340B 320.6 363.3 9.9 769.4 298.3 402.2 8.4 716.0 274.4 445.5 7.0 658.6 248.9 493.1 5.8 597.5 235.6 518.5 5.2 565.5 ASQ 350B 331.1 345.5 10.6 794.7 309.4 382.6 9.0 742.5 285.9 424.4 7.6 686.2 260.8 470.7 6.3 626.0 247.6 495.6 5.7 594.3 ASQ 360B 343.6 374.5 10.2 824.6 324.2 423.1 8.6 778.0 302.8 478.7 7.2 726.7 279.3 541.4 5.9 670.3 266.7 575.4 5.3 640.2 ASQ 380B 356.7 396.4 10.1 856.1 334.9 441.7 8.5 803.8 311.6 491.6 7.2 747.8 286.8 546.3 6.0 688.3 273.8 575.5 5.4 657.2 ASQ 400B 369.1 423.3 9.8 885.9 347.1 472.5 8.3 833.1 323.7 526.3 7.0 776.8 298.8 585.0 5.8 717.2 285.9 616.2 5.3 686.1 ASQ 420B 406.6 457.6 10.0 975.8 384.5 516.4 8.5 922.7 360.8 581.9 7.1 866.0 335.5 654.2 5.9 805.3 322.2 693.0 5.4 773.4 ASQ 440B 419.3 484.0 9.8 1006.4 400.4 553.6 8.2 961.0 379.7 632.2 6.9 911.2 356.9 719.9 5.7 856.6 344.7 767.3 5.2 827.3 ASQ 045B 42.0 42.8 10.7 100.7 39.3 47.4 9.1 94.4 36.5 52.9 7.7 87.7 33.6 59.0 6.4 80.7 32.1 62.3 5.8 77.1 ASQ 050B 44.2 47.1 10.3 106.0 42.1 53.7 8.7 101.1 39.9 61.4 7.3 95.7 37.4 70.3 6.0 89.8 36.1 75.2 5.4 86.6 ASQ 055B 50.6 51.9 10.8 121.5 47.4 58.1 9.1 113.9 44.1 65.3 7.6 105.8 40.6 73.5 6.3 97.3 38.7 78.0 5.6 92.9 ASQ 060B 55.1 61.0 10.1 132.2 51.4 67.5 8.6 123.3 47.4 74.8 7.2 113.8 43.2 82.8 6.0 103.7 41.0 87.1 5.4 98.5 ASQ 070B 63.6 70.3 10.1 152.6 59.9 78.5 8.6 143.7 55.9 87.5 7.2 134.2 51.8 97.3 6.1 124.2 49.6 102.5 5.5 119.0 ASQ 080B 72.5 83.5 9.5 174.0 68.2 93.4 8.1 163.6 63.6 105.0 6.8 152.6 58.7 118.2 5.6 140.8 56.1 125.4 5.0 134.7 ASQ 090B 86.3 93.7 10.2 207.2 82.3 106.8 8.6 197.6 77.9 122.3 7.2 186.9 73.0 140.1 5.9 175.2 70.4 149.8 5.4 168.9 ASQ 100B 95.0 110.3 9.6 228.0 88.6 123.7 8.1 212.6 81.8 139.1 6.7 196.3 74.7 156.4 5.5 179.2 71.0 165.8 4.9 170.3 ASQ 115B 113.2 119.4 10.4 271.7 105.7 132.2 8.9 253.6 97.6 146.4 7.5 234.2 89.0 162.1 6.2 213.5 84.5 170.5 5.6 202.7 ASQ 130B 126.3 147.1 9.6 303.2 118.5 163.9 8.1 284.4 110.2 182.3 6.9 264.5 101.5 202.3 5.7 243.6 97.0 213.0 5.2 232.7 ASQ 140B 133.5 143.8 10.2 320.4 125.2 160.3 8.7 300.6 116.5 178.4 7.3 279.7 107.4 198.1 6.1 257.7 102.7 208.6 5.6 246.4 ASQ 150B 143.2 153.6 10.3 343.7 137.2 175.8 8.7 329.3 130.6 200.9 7.3 313.4 123.3 229.1 6.1 295.9 119.4 244.4 5.6 286.5 ASQ 160B 151.0 156.2 10.5 362.3 141.2 174.9 8.9 338.9 131.0 196.6 7.4 314.4 120.2 221.2 6.1 288.5 114.6 234.6 5.5 275.0 ASQ 170B 162.0 171.2 10.4 388.8 154.0 196.0 8.7 369.5 145.2 225.1 7.2 348.6 135.8 258.4 5.9 325.8 130.7 276.7 5.4 313.7 ASQ 180B 176.2 199.8 9.8 422.9 166.6 227.1 8.2 399.7 155.8 258.5 6.8 373.9 143.9 293.8 5.6 345.3 137.5 312.9 5.0 329.9 ASQ 190B 182.6 212.5 9.6 438.2 173.7 244.8 8.0 416.8 163.5 282.1 6.6 392.4 152.0 324.3 5.4 364.8 145.7 347.3 4.8 349.6 ASQ 200B 189.0 220.4 9.6 453.6 177.5 245.7 8.1 425.9 165.3 273.4 6.9 396.6 152.4 303.6 5.7 365.7 145.7 319.7 5.2 349.6
ASQ 220B 214.9 224.6 10.5 515.9 200.8 249.9 8.9 481.9 185.8 278.6 7.4 445.8 169.9 310.7 6.1 407.7 161.6 328.0 5.6 387.7 ASQ 230B 224.0 242.8 10.2 537.7 208.8 268.6 8.6 501.2 192.6 297.4 7.2 462.2 175.3 329.1 6.0 420.7 166.3 346.0 5.4 399.1 ASQ 240B 231.9 254.2 10.1 556.6 216.6 281.9 8.6 519.9 200.3 312.6 7.2 480.7 183.0 346.4 6.0 439.1 173.9 364.4 5.4 417.4 ASQ 250B 241.8 261.8 10.2 580.3 226.5 291.1 8.7 543.6 210.2 323.4 7.3 504.4 192.9 358.8 6.1 463.0 183.9 377.8 5.5 441.3 ASQ 260B 250.2 265.2 10.5 600.5 233.9 294.4 8.9 561.4 216.6 326.7 7.5 519.9 198.4 362.1 6.2 476.2 189.0 381.0 5.6 453.6 ASQ 270B 264.2 293.2 10.1 634.0 247.6 326.6 8.5 594.1 230.1 363.1 7.2 552.1 211.7 403.0 6.0 508.1 202.2 424.3 5.4 485.3 ASQ 280B 272.1 310.0 9.9 653.0 257.4 349.9 8.3 617.8 241.7 394.3 7.0 580.0 224.8 443.4 5.8 539.6 216.0 469.7 5.3 518.3 ASQ 300B 290.5 299.7 10.8 697.3 273.4 337.1 9.1 656.1 255.1 380.7 7.6 612.3 235.8 430.5 6.2 565.8 225.6 457.7 5.6 541.4 ASQ 320B 311.3 331.3 10.5 747.0 293.3 375.3 8.8 704.0 274.2 426.5 7.3 658.2 253.8 484.8 6.0 609.2 243.1 516.7 5.4 583.5 ASQ 330B 316.0 341.3 10.4 758.5 298.9 388.8 8.7 717.4 280.5 444.2 7.2 673.2 260.7 507.5 5.9 625.6 250.2 542.1 5.3 600.5 ASQ 340B 329.0 367.2 10.1 789.6 306.4 406.3 8.5 735.3 282.2 449.8 7.1 677.2 256.4 497.7 5.9 615.4 243.0 523.3 5.3 583.2 ASQ 350B 340.0 348.9 10.8 816.0 317.9 386.3 9.2 762.9 294.1 428.2 7.7 705.8 268.7 474.7 6.4 644.8 255.4 499.7 5.8 612.9 ASQ 360B 352.3 377.8 10.4 845.6 332.6 426.7 8.8 798.3 310.8 482.7 7.3 746.0 287.0 545.7 6.0 688.8 274.2 579.8 5.4 658.2 ASQ 380B 370.7 401.8 10.3 889.6 348.0 447.5 8.8 835.3 323.9 497.8 7.4 777.5 298.4 553.1 6.1 716.1 285.1 582.6 5.6 684.2 ASQ 400B 383.6 429.0 10.0 920.5 360.7 478.7 8.5 865.7 336.5 533.1 7.2 807.5 310.9 592.6 6.0 746.1 297.6 624.3 5.5 714.1 ASQ 420B 414.9 460.7 10.2 995.7 392.5 520.0 8.6 942.0 368.5 586.1 7.2 884.5 342.9 659.1 6.0 823.0 329.4 698.3 5.4 790.6 ASQ 440B 427.5 487.1 9.9 1025.9 408.3 557.2 8.4 979.9 387.2 636.4 7.0 929.3 364.0 724.8 5.8 873.5 351.5 772.6 5.3 843.6
LEAVING
CHILLED
WATER TEMP.
(LCWT)
PERFORMANCE DATA (English units)
UNIT
SIZE
950F AMBIENT TEMPERATURE 1050F AMBIENT TEMPERATURE 1150F AMBIENT TEMPERATURE 1250F AMBIENT TEMPERATURE 1300F AMBIENT TEMPERATURE
CAP.
(Tons)
LEGEND: kW - Compressor power input GPM - Gallons Per Minute EER - Energy Efficiency Ratio
40 0F
42 0F
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW
WATER
FLOW
(GPM)
EER
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 100F water range in evaporator.
3. Ratings are based on 0.00010 (hr-ft2-0F/Btu) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. EER for entire unit. Refer to electrical data for fan kW.

16
ASQ 045B 43.9 43.6 11.0 105.3 41.0 48.3 9.4 98.5 38.1 53.6 7.9 91.3 34.9 59.6 6.6 83.9 33.4 62.9 6.0 80.0 ASQ 050B 46.0 47.9 10.6 110.5 43.8 54.5 8.9 105.2 41.4 62.2 7.5 99.5 38.8 71.0 6.2 93.1 37.4 75.9 5.6 89.7 ASQ 055B 53.4 52.9 11.2 128.1 49.9 59.2 9.4 119.8 46.3 66.3 7.9 111.1 42.5 74.4 6.5 102.0 40.5 78.9 5.8 97.2 ASQ 060B 58.2 62.4 10.5 139.6 54.2 68.9 8.9 130.0 49.9 76.2 7.4 119.8 45.4 84.1 6.2 109.0 43.1 88.4 5.6 103.4 ASQ 070B 67.6 71.8 10.5 162.3 63.5 80.0 8.9 152.5 59.2 89.1 7.5 142.2 54.7 99.0 6.3 131.3 52.4 104.4 5.7 125.7 ASQ 080B 77.7 86.0 9.9 186.4 72.9 95.9 8.4 174.8 67.8 107.3 7.1 162.6 62.4 120.2 5.8 149.7 59.6 127.2 5.3 143.0 ASQ 090B 88.3 94.5 10.3 212.0 84.3 107.7 8.7 202.3 79.8 123.2 7.3 191.6 74.9 141.0 6.0 179.8 72.3 150.8 5.5 173.5 ASQ 100B 97.3 111.4 9.8 233.5 90.9 125.0 8.2 218.1 84.1 140.4 6.8 201.8 76.9 157.8 5.6 184.6 73.1 167.2 5.0 175.6 ASQ 115B 115.3 120.3 10.6 276.7 107.9 133.2 9.0 258.9 99.9 147.6 7.6 239.8 91.4 163.5 6.3 219.5 87.0 172.0 5.7 208.9 ASQ 130B 128.1 147.9 9.7 307.5 120.5 164.9 8.2 289.1 112.4 183.6 6.9 269.7 103.8 204.0 5.8 249.1 99.4 214.9 5.3 238.5 ASQ 140B 136.9 145.1 10.4 328.6 128.7 161.8 8.8 308.8 119.9 180.1 7.4 287.8 110.8 200.2 6.2 265.9 106.0 210.9 5.7 254.5 ASQ 150B 146.4 154.5 10.5 351.5 140.4 176.9 8.9 337.0 133.8 202.3 7.4 321.0 126.4 230.9 6.2 303.3 122.4 246.3 5.7 293.8 ASQ 160B 154.8 157.7 10.7 371.5 145.1 176.6 9.0 348.2 134.8 198.3 7.5 323.6 124.0 223.0 6.2 297.5 118.3 236.4 5.6 284.0 ASQ 170B 165.7 172.5 10.5 397.6 157.6 197.5 8.9 378.3 148.9 226.7 7.4 357.4 139.4 260.2 6.1 334.6 134.3 278.5 5.5 322.4 ASQ 180B 179.8 201.3 9.9 431.6 170.2 228.9 8.3 408.4 159.4 260.5 6.9 382.6 147.5 296.1 5.7 354.0 141.0 315.4 5.1 338.4 ASQ 190B 188.8 215.2 9.8 453.1 179.6 247.7 8.2 431.0 169.0 285.3 6.7 405.6 157.0 327.8 5.5 376.9 150.5 351.0 4.9 361.2 ASQ 200B 195.8 223.4 9.8 469.8 183.9 248.9 8.3 441.3 171.4 277.0 7.0 411.3 158.2 307.7 5.9 379.6 151.3 324.1 5.3 363.2 ASQ 220B 219.3 226.4 10.6 526.3 205.3 251.9 9.0 492.8 190.5 280.9 7.6 457.2 174.8 313.3 6.3 419.5 166.6 330.7 5.7 399.8 ASQ 230B 228.2 244.7 10.3 547.7 213.2 270.8 8.8 511.8 197.2 299.9 7.4 473.4 180.2 332.0 6.1 432.6 171.4 349.2 5.6 411.3 ASQ 240B 235.9 256.0 10.2 566.3 220.9 284.0 8.7 530.2 204.9 315.1 7.3 491.7 187.8 349.3 6.1 450.8 179.0 367.6 5.5 429.5 ASQ 250B 245.7 263.4 10.4 589.6 230.7 292.9 8.8 553.6 214.7 325.7 7.4 515.2 197.7 361.7 6.2 474.5 188.9 380.9 5.6 453.3 ASQ 260B 257.0 267.9 10.7 616.8 240.6 297.4 9.1 577.5 223.3 330.1 7.6 535.9 205.1 366.0 6.4 492.2 195.6 385.2 5.8 469.5 ASQ 270B 271.0 296.0 10.2 650.3 254.3 329.8 8.7 610.3 236.8 366.9 7.3 568.3 218.4 407.5 6.1 524.2 208.9 429.1 5.6 501.4 ASQ 280B 278.7 312.7 10.0 668.8 263.9 353.0 8.5 633.5 248.1 398.0 7.1 595.5 231.2 447.8 5.9 554.8 222.2 474.5 5.4 533.3 ASQ 300B 297.9 302.5 10.9 714.9 280.7 340.2 9.2 673.7 262.4 384.0 7.7 629.8 242.9 433.9 6.4 583.0 232.7 461.2 5.8 558.4 ASQ 320B 318.7 334.3 10.7 764.9 300.8 378.6 9.0 722.0 281.7 430.0 7.4 676.1 261.2 488.6 6.1 626.9 250.4 520.5 5.5 600.9 ASQ 330B 323.4 344.2 10.5 776.1 306.3 392.1 8.8 735.1 287.9 447.8 7.3 690.9 267.9 511.3 6.0 643.0 257.4 545.9 5.4 617.6 ASQ 340B 336.5 370.7 10.2 807.6 313.9 410.2 8.7 753.4 289.8 454.2 7.3 695.6 264.2 502.5 6.0 634.1 250.9 528.4 5.5 602.1 ASQ 350B 347.7 351.8 10.9 834.4 325.6 389.6 9.3 781.5 301.9 431.9 7.9 724.6 276.7 478.8 6.5 664.0 263.5 503.9 5.9 632.3 ASQ 360B 359.7 380.6 10.5 863.3 340.0 429.9 8.9 816.1 318.3 486.3 7.4 764.0 294.5 549.8 6.1 706.7 281.7 584.2 5.5 676.2 ASQ 380B 384.1 407.0 10.6 921.9 360.8 453.1 9.0 866.0 336.1 504.0 7.6 806.7 310.0 559.9 6.3 744.0 296.4 589.7 5.7 711.4 ASQ 400B 397.4 434.4 10.3 953.7 373.9 484.6 8.7 897.3 349.0 539.7 7.4 837.6 322.8 600.1 6.2 774.8 309.2 632.4 5.6 742.1 ASQ 420B 422.2 463.6 10.3 1013.4 400.1 523.5 8.7 960.3 376.4 590.3 7.3 903.4 350.9 664.4 6.1 842.2 337.5 704.1 5.5 810.0 ASQ 440B 434.4 489.7 10.0 1042.6 415.4 560.4 8.5 997.1 394.5 640.4 7.1 946.7 371.2 729.8 5.9 890.9 358.7 778.1 5.3 860.9 ASQ 045B 45.1 44.2 11.1 108.3 42.1 48.8 9.5 101.1 39.0 54.1 8.0 93.7 35.8 60.0 6.7 86.0 34.1 63.2 6.1 82.0 ASQ 050B 47.2 48.4 10.7 113.4 45.0 55.0 9.1 107.9 42.5 62.7 7.6 101.9 39.7 71.5 6.3 95.3 38.2 76.3 5.7 91.8 ASQ 055B 55.2 53.7 11.4 132.5 51.6 59.9 9.6 123.8 47.8 67.0 8.0 114.6 43.8 75.1 6.6 105.0 41.7 79.5 6.0 100.0 ASQ 060B 60.3 63.3 10.7 144.6 56.0 69.9 9.1 134.4 51.5 77.1 7.6 123.7 46.8 85.0 6.3 112.4 44.4 89.3 5.7 106.6 ASQ 070B 70.4 72.8 10.8 168.9 66.0 81.1 9.2 158.4 61.5 90.2 7.7 147.5 56.7 100.2 6.4 136.1 54.2 105.6 5.9 130.2 ASQ 080B 81.2 87.8 10.2 194.9 76.0 97.6 8.6 182.5 70.6 108.8 7.2 169.4 64.9 121.5 6.0 155.7 61.9 128.4 5.4 148.6 ASQ 090B 90.9 95.6 10.5 218.1 86.8 108.9 8.9 208.4 82.3 124.5 7.5 197.6 77.4 142.3 6.2 185.7 74.7 152.0 5.6 179.3 ASQ 100B 100.1 112.9 9.9 240.3 93.7 126.5 8.4 225.0 87.0 142.1 7.0 208.7 79.8 159.6 5.7 191.4 76.0 169.0 5.2 182.3 ASQ 115B 118.1 121.5 10.7 283.5 111.0 134.6 9.2 266.3 103.3 149.3 7.7 247.9 95.1 165.5 6.5 228.2 90.8 174.2 5.9 218.0 ASQ 130B 130.4 148.9 9.8 313.0 123.1 166.2 8.3 295.4 115.3 185.3 7.1 276.8 107.1 206.3 5.9 257.0 102.8 217.6 5.4 246.7 ASQ 140B 141.1 146.7 10.6 338.7 132.9 163.7 9.0 318.9 124.2 182.3 7.6 298.0 115.1 202.8 6.4 276.2 110.3 213.8 5.8 264.8 ASQ 150B 150.3 155.7 10.7 360.8 144.3 178.3 9.0 346.4 137.7 204.0 7.6 330.4 130.2 232.9 6.3 312.5 126.2 248.6 5.8 302.8 ASQ 160B 159.6 159.7 10.9 383.1 150.0 178.7 9.2 359.9 139.7 200.7 7.7 335.4 128.9 225.5 6.4 309.3 123.2 238.9 5.8 295.7 ASQ 170B 170.2 174.2 10.7 408.5 162.3 199.4 9.0 389.5 153.6 228.9 7.5 368.6 144.0 262.5 6.2 345.7 138.9 280.9 5.6 333.4 ASQ 180B 184.2 203.1 10.1 442.2 174.7 231.1 8.5 419.2 164.0 263.0 7.1 393.5 152.1 299.0 5.8 365.0 145.7 318.5 5.2 349.6 ASQ 190B 194.9 217.8 10.0 467.8 185.4 250.7 8.3 444.9 174.5 288.5 6.9 418.8 162.1 331.3 5.6 389.1 155.4 354.6 5.0 372.9 ASQ 200B 202.4 226.3 10.0 485.7 190.3 252.2 8.5 456.6 177.5 280.7 7.2 425.9 164.1 311.9 6.0 393.7 157.1 328.6 5.5 377.0
ASQ 220B 225.4 228.9 10.8 540.9 211.9 254.9 9.2 508.5 197.5 284.3 7.8 473.9 182.1 317.2 6.5 437.1 174.1 334.9 5.9 417.9 ASQ 230B 233.9 247.2 10.4 561.4 219.5 273.9 8.9 526.7 204.0 303.6 7.5 489.6 187.5 336.4 6.3 450.1 178.9 353.9 5.7 429.5 ASQ 240B 241.4 258.4 10.4 579.4 226.9 286.9 8.8 544.6 211.4 318.7 7.5 507.4 195.0 353.7 6.2 467.9 186.4 372.4 5.7 447.3 ASQ 250B 250.8 265.4 10.5 601.9 236.4 295.5 9.0 567.3 221.0 328.9 7.6 530.4 204.6 365.7 6.3 491.1 196.1 385.5 5.8 470.7 ASQ 260B 265.4 271.3 10.9 636.9 249.0 301.2 9.3 597.6 231.7 334.4 7.8 556.2 213.6 371.0 6.5 512.5 204.1 390.6 5.9 489.9 ASQ 270B 279.3 299.4 10.4 670.2 262.7 333.8 8.9 630.4 245.2 371.6 7.5 588.5 226.9 413.1 6.3 544.6 217.4 435.3 5.7 521.8 ASQ 280B 286.6 316.0 10.2 688.0 272.0 356.9 8.6 652.7 256.1 402.6 7.3 614.7 239.1 453.3 6.0 573.8 230.1 480.5 5.5 552.2 ASQ 300B 307.2 306.2 11.2 737.4 290.1 344.2 9.5 696.3 271.9 388.4 7.9 652.4 252.3 438.5 6.5 605.4 242.0 465.8 5.9 580.7 ASQ 320B 328.1 338.0 10.9 787.3 310.3 382.8 9.2 744.8 291.3 434.7 7.6 699.0 270.7 493.5 6.3 649.7 259.8 525.6 5.7 623.6 ASQ 330B 332.6 348.0 10.7 798.2 315.6 396.4 9.0 757.5 297.2 452.5 7.5 713.4 277.3 516.3 6.2 665.4 266.6 551.1 5.6 639.9 ASQ 340B 345.8 375.1 10.4 829.9 323.4 415.2 8.8 776.2 299.6 459.7 7.4 719.0 274.3 508.8 6.2 658.2 261.0 535.1 5.6 626.5 ASQ 350B 357.1 355.4 11.1 857.1 335.3 393.7 9.5 804.7 311.9 436.5 8.0 748.5 286.9 484.0 6.7 688.6 273.9 509.5 6.1 657.3 ASQ 360B 368.7 384.0 10.7 884.9 349.2 433.8 9.0 838.1 327.7 490.8 7.6 786.5 304.0 555.0 6.2 729.7 291.4 589.9 5.6 699.3 ASQ 380B 397.4 412.1 10.8 953.7 373.6 458.7 9.2 896.6 348.4 510.1 7.7 836.1 321.8 566.8 6.5 772.3 308.0 597.1 5.9 739.2 ASQ 400B 410.9 439.7 10.5 986.2 386.9 490.5 8.9 928.5 361.5 546.4 7.5 867.7 334.9 607.8 6.3 803.7 321.1 640.6 5.8 770.6 ASQ 420B 433.0 467.7 10.5 1039.3 411.5 528.7 8.8 987.7 388.4 596.8 7.4 932.1 363.3 672.5 6.2 872.0 350.0 713.2 5.7 840.1 ASQ 440B 444.5 493.5 10.2 1066.7 426.0 565.2 8.6 1022.4 405.4 646.5 7.2 972.9 382.3 737.3 6.0 917.5 369.8 786.4 5.4 887.4
LEAVING
CHILLED
WATER TEMP.
(LCWT)
PERFORMANCE DATA (English units)
UNIT
SIZE
950F AMBIENT TEMPERATURE 1050F AMBIENT TEMPERATURE 1150F AMBIENT TEMPERATURE 1250F AMBIENT TEMPERATURE 1300F AMBIENT TEMPERATURE
CAP.
(Tons)
LEGEND: kW - Compressor power input GPM - Gallons Per Minute EER - Energy Efficiency Ratio
44 0F
46 0F
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW
WATER
FLOW
(GPM)
EER
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 100F water range in evaporator.
3. Ratings are based on 0.00010 (hr-ft2-0F/Btu) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. EER for entire unit. Refer to electrical data for fan kW.

17
ASQ 045B 46.2 44.7 11.3 110.9 43.2 49.3 9.7 103.6 40.0 54.5 8.1 95.9 36.7 60.4 6.8 88.0 35.0 63.6 6.2 83.9 ASQ 050B 48.3 48.9 10.9 115.9 46.0 55.5 9.2 110.3 43.4 63.1 7.7 104.1 40.5 71.9 6.4 97.3 39.0 76.7 5.8 93.7 ASQ 055B 56.7 54.3 11.6 136.1 53.0 60.5 9.8 127.1 49.0 67.6 8.2 117.7 44.9 75.7 6.7 107.8 42.8 80.0 6.1 102.6 ASQ 060B 61.9 64.1 10.8 148.5 57.5 70.6 9.2 138.1 52.9 77.9 7.7 127.0 48.1 85.8 6.4 115.5 45.6 90.1 5.8 109.5 ASQ 070B 72.4 73.5 11.0 173.8 67.9 81.9 9.3 163.0 63.2 91.1 7.9 151.7 58.3 101.2 6.6 140.0 55.8 106.6 6.0 133.9 ASQ 080B 83.7 89.1 10.3 201.0 78.4 98.8 8.8 188.1 72.7 110.0 7.4 174.5 66.8 122.5 6.1 160.3 63.7 129.3 5.6 152.9 ASQ 090B 94.1 96.9 10.8 225.9 90.0 110.3 9.1 216.0 85.4 125.9 7.7 205.0 80.4 143.8 6.4 192.9 77.6 153.5 5.8 186.3 ASQ 100B 103.9 114.7 10.2 249.3 97.4 128.6 8.6 233.8 90.5 144.3 7.1 217.3 83.2 161.8 5.9 199.7 79.4 171.2 5.3 190.6 ASQ 115B 122.6 123.4 11.0 294.3 115.6 136.8 9.4 277.5 108.1 151.8 8.0 259.5 100.1 168.4 6.7 240.3 95.9 177.3 6.1 230.2 ASQ 130B 134.6 150.7 10.0 322.9 127.4 168.4 8.5 305.9 119.9 188.0 7.2 287.7 111.9 209.7 6.1 268.5 107.7 221.4 5.6 258.4 ASQ 140B 146.3 148.7 10.8 351.1 138.0 165.9 9.2 331.2 129.3 185.0 7.8 310.3 120.1 205.9 6.6 288.3 115.4 217.2 6.0 276.9 ASQ 150B 155.2 157.2 10.9 372.6 149.2 180.1 9.3 358.1 142.4 206.1 7.8 341.9 134.8 235.4 6.5 323.6 130.7 251.2 5.9 313.6 ASQ 160B 165.8 162.2 11.2 398.0 156.1 181.4 9.5 374.7 145.8 203.6 8.0 350.0 134.8 228.5 6.6 323.6 129.1 242.1 6.0 309.8 ASQ 170B 176.3 176.5 11.0 423.0 168.3 202.0 9.3 403.9 159.5 231.6 7.7 382.8 149.8 265.5 6.4 359.6 144.7 283.9 5.8 347.2 ASQ 180B 190.3 205.7 10.3 456.8 180.7 234.0 8.7 433.6 169.9 266.3 7.2 407.8 157.9 302.7 5.9 379.0 151.5 322.5 5.4 363.5 ASQ 190B 200.9 220.3 10.2 482.2 191.1 253.5 8.5 458.7 179.9 291.7 7.0 431.8 167.2 334.8 5.7 401.4 160.3 358.2 5.1 384.8 ASQ 200B 208.9 229.1 10.2 501.3 196.5 255.4 8.7 471.7 183.6 284.3 7.3 440.5 169.9 316.1 6.1 407.8 162.9 333.1 5.6 390.9 ASQ 220B 234.5 232.7 11.1 562.9 221.3 259.2 9.5 531.1 207.2 289.2 8.0 497.2 192.1 322.7 6.7 461.0 184.2 340.8 6.1 442.0 ASQ 230B 242.9 251.2 10.7 582.9 228.7 278.4 9.2 549.0 213.6 308.8 7.8 512.7 197.5 342.4 6.5 474.1 189.1 360.5 5.9 453.9 ASQ 240B 250.2 262.2 10.6 600.5 236.1 291.4 9.1 566.5 221.0 323.9 7.7 530.3 204.9 359.8 6.5 491.7 196.5 379.1 5.9 471.5 ASQ 250B 259.4 268.9 10.7 622.6 245.4 299.6 9.2 589.0 230.4 333.8 7.8 553.0 214.5 371.6 6.6 514.8 206.1 391.9 6.0 494.8 ASQ 260B 275.6 275.4 11.1 661.3 259.1 305.8 9.5 621.9 241.8 339.7 8.0 580.3 223.5 377.0 6.7 536.4 214.0 396.9 6.1 513.5 ASQ 270B 289.5 303.7 10.7 694.8 272.8 338.7 9.1 654.8 255.3 377.3 7.7 612.8 236.9 419.8 6.4 568.6 227.3 442.6 5.9 545.6 ASQ 280B 296.6 320.0 10.4 711.8 281.8 361.6 8.8 676.3 265.8 408.2 7.4 638.0 248.5 459.8 6.2 596.4 239.3 487.5 5.6 574.4 ASQ 300B 319.2 310.9 11.4 766.0 301.9 349.4 9.7 724.6 283.4 393.8 8.1 680.2 263.6 444.1 6.8 632.6 253.1 471.4 6.1 607.4 ASQ 320B 340.3 343.0 11.1 816.6 322.4 388.3 9.4 773.8 303.2 440.6 7.8 727.6 282.4 499.8 6.5 677.7 271.3 531.9 5.9 651.2 ASQ 330B 344.7 353.0 11.0 827.2 327.6 401.9 9.2 786.3 309.1 458.5 7.7 741.7 288.8 522.6 6.3 693.1 278.0 557.5 5.7 667.2 ASQ 340B 358.2 380.9 10.6 859.6 335.8 421.6 9.0 805.9 311.9 466.8 7.6 748.7 286.6 516.7 6.4 687.9 273.4 543.4 5.8 656.2 ASQ 350B 369.9 360.3 11.4 887.8 348.0 399.1 9.7 835.3 324.6 442.5 8.3 779.1 299.7 490.7 6.9 719.4 286.7 516.5 6.3 688.1 ASQ 360B 381.1 388.7 10.9 914.7 361.6 439.1 9.3 867.7 339.9 496.8 7.8 815.8 316.2 561.7 6.4 758.8 303.4 596.9 5.8 728.3 ASQ 380B 410.4 417.2 11.0 985.0 386.2 464.2 9.4 926.8 360.6 516.3 7.9 865.4 333.6 573.7 6.6 800.7 319.6 604.5 6.1 767.1 ASQ 400B 424.2 444.9 10.7 1018.0 399.7 496.3 9.1 959.4 374.0 553.0 7.7 897.6 346.9 615.4 6.5 832.6 332.9 648.8 5.9 798.9 ASQ 420B 450.2 474.4 10.7 1080.5 429.1 536.7 9.1 1029.8 406.2 606.5 7.7 974.8 381.2 684.1 6.4 914.9 367.9 725.9 5.8 883.0 ASQ 440B 460.8 499.7 10.4 1106.0 442.6 572.8 8.8 1062.2 422.0 655.6 7.4 1012.8 398.7 748.2 6.2 956.9 385.9 798.2 5.6 926.3 ASQ 045B 47.8 45.4 11.5 114.8 44.7 50.0 9.9 107.3 41.5 55.2 8.3 99.5 38.1 61.1 7.0 91.3 36.3 64.2 6.3 87.1 ASQ 050B 49.8 49.5 11.1 119.5 47.4 56.1 9.4 113.8 44.8 63.8 7.9 107.4 41.8 72.5 6.5 100.4 40.3 77.3 5.9 96.7 ASQ 055B 58.6 55.1 11.8 140.7 54.8 61.3 10.0 131.5 50.8 68.5 8.4 121.9 46.6 76.5 6.9 111.8 44.4 80.9 6.3 106.6 ASQ 060B 63.9 65.0 11.0 153.3 59.5 71.6 9.4 142.7 54.8 78.9 7.9 131.5 49.9 87.0 6.6 119.8 47.4 91.3 6.0 113.7 ASQ 070B 74.6 74.4 11.2 179.1 70.1 82.8 9.5 168.1 65.3 92.2 8.0 156.7 60.3 102.4 6.7 144.8 57.8 107.9 6.1 138.7 ASQ 080B 86.1 90.3 10.5 206.8 80.7 100.1 9.0 193.7 75.0 111.2 7.5 180.0 69.0 123.6 6.3 165.5 65.8 130.3 5.7 158.0 ASQ 090B 97.2 98.2 11.0 233.2 92.9 111.6 9.3 222.9 88.1 127.2 7.8 211.4 82.8 145.0 6.5 198.8 80.0 154.6 5.9 191.9 ASQ 100B 107.6 116.7 10.4 258.3 100.9 130.5 8.7 242.1 93.8 146.3 7.3 225.0 86.2 163.8 6.0 206.8 82.2 173.2 5.4 197.3 ASQ 115B 127.3 125.3 11.2 305.4 119.9 138.7 9.6 287.7 112.0 153.8 8.2 268.9 103.7 170.4 6.9 248.8 99.3 179.3 6.3 238.3 ASQ 130B 139.8 153.0 10.2 335.6 132.3 170.9 8.7 317.6 124.4 190.7 7.4 298.5 116.0 212.6 6.2 278.3 111.6 224.4 5.7 267.7 ASQ 140B 151.1 150.6 11.1 362.7 142.6 168.0 9.4 342.2 133.6 187.2 8.0 320.7 124.2 208.5 6.7 298.1 119.3 219.8 6.1 286.3 ASQ 150B 160.1 158.7 11.2 384.2 153.8 181.8 9.5 369.2 146.8 208.0 8.0 352.3 138.9 237.5 6.6 333.2 134.5 253.4 6.1 322.8 ASQ 160B 171.8 164.6 11.4 412.3 161.7 184.0 9.7 388.1 151.0 206.1 8.2 362.4 139.6 231.1 6.8 335.0 133.7 244.5 6.2 320.8 ASQ 170B 182.4 178.9 11.2 437.8 174.1 204.5 9.5 417.9 165.0 234.2 7.9 395.9 154.9 268.1 6.5 371.7 149.5 286.5 5.9 358.8 ASQ 180B 197.0 208.5 10.5 472.9 187.0 237.0 8.9 448.7 175.7 269.5 7.4 421.7 163.3 306.1 6.1 391.8 156.6 325.9 5.5 375.8 ASQ 190B 206.6 222.7 10.4 495.7 196.6 256.2 8.7 471.7 185.1 294.7 7.2 444.3 172.2 338.1 5.8 413.2 165.1 361.6 5.2 396.3 ASQ 200B 215.0 231.9 10.4 515.9 202.5 258.4 8.9 486.0 189.3 287.8 7.5 454.4 175.5 320.1 6.3 421.3 168.4 337.4 5.7 404.0
ASQ 220B 243.2 236.3 11.3 583.6 229.3 262.9 9.7 550.2 214.4 292.9 8.2 514.6 198.6 326.4 6.9 476.7 190.3 344.4 6.2 456.8 ASQ 230B 251.9 255.2 10.9 604.6 237.1 282.6 9.4 569.0 221.3 313.0 7.9 531.0 204.4 346.7 6.7 490.6 195.6 364.8 6.1 469.4 ASQ 240B 259.7 266.3 10.8 623.2 244.8 295.7 9.3 587.5 229.0 328.3 7.9 549.5 212.1 364.4 6.6 509.1 203.3 383.7 6.0 488.0 ASQ 250B 269.5 273.0 11.0 646.9 254.7 303.8 9.4 611.3 239.0 338.2 8.0 573.6 222.3 376.2 6.7 533.5 213.5 396.6 6.1 512.5 ASQ 260B 284.6 279.1 11.4 683.1 267.7 309.8 9.7 642.6 249.9 343.9 8.2 599.8 231.1 381.6 6.9 554.7 221.3 401.7 6.3 531.1 ASQ 270B 299.0 307.7 10.9 717.5 281.8 343.0 9.3 676.4 263.8 382.1 7.8 633.1 244.8 425.1 6.6 587.6 235.0 448.1 6.0 563.9 ASQ 280B 306.0 323.9 10.6 734.3 290.7 366.0 9.0 697.6 274.1 413.0 7.6 657.9 256.2 465.0 6.3 614.9 246.7 493.0 5.8 592.0 ASQ 300B 330.2 315.4 11.7 792.5 312.3 353.9 9.9 749.4 293.0 398.4 8.3 703.3 272.4 448.6 6.9 653.8 261.6 475.8 6.3 627.8 ASQ 320B 352.3 348.0 11.4 845.4 333.7 393.5 9.6 800.9 313.7 445.9 8.0 752.8 292.0 505.1 6.6 700.9 280.6 537.1 6.0 673.4 ASQ 330B 356.7 358.0 11.2 856.1 339.0 407.2 9.4 813.5 319.6 463.9 7.9 767.0 298.5 528.0 6.5 716.5 287.3 562.9 5.9 689.6 ASQ 340B 371.0 386.9 10.8 890.5 347.8 427.9 9.2 834.7 323.2 473.3 7.8 775.6 297.0 523.4 6.5 712.8 283.4 550.3 5.9 680.1 ASQ 350B 383.6 365.6 11.7 920.8 360.9 404.5 10.0 866.2 336.7 448.2 8.5 808.0 310.9 496.5 7.1 746.3 297.5 522.5 6.5 714.0 ASQ 360B 394.9 393.9 11.2 947.7 374.5 444.6 9.5 898.7 352.0 502.6 7.9 844.7 327.3 567.8 6.6 785.5 314.1 603.2 6.0 753.8 ASQ 380B 422.7 422.0 11.2 1014.6 398.2 469.5 9.6 955.6 372.3 522.3 8.1 893.5 345.0 580.4 6.8 827.9 330.8 611.6 6.2 793.8 ASQ 400B 436.7 449.9 10.9 1048.0 411.9 501.9 9.3 988.5 385.8 559.4 7.9 926.0 358.4 622.7 6.6 860.2 344.2 656.7 6.0 826.0 ASQ 420B 465.8 480.6 11.0 1118.0 443.6 543.4 9.3 1064.6 419.5 613.7 7.8 1006.7 393.2 691.8 6.5 943.6 379.1 733.8 6.0 909.9 ASQ 440B 476.5 505.8 10.7 1143.5 457.2 579.5 9.0 1097.2 435.3 662.9 7.5 1044.7 410.5 755.9 6.3 985.3 396.9 806.0 5.7 952.7
LEAVING
CHILLED
WATER TEMP.
(LCWT)
PERFORMANCE DATA (English units)
UNIT
SIZE
950F AMBIENT TEMPERATURE 1050F AMBIENT TEMPERATURE 1150F AMBIENT TEMPERATURE 1250F AMBIENT TEMPERATURE 1300F AMBIENT TEMPERATURE
CAP.
(Tons)
LEGEND: kW - Compressor power input GPM - Gallons Per Minute EER - Energy Efficiency Ratio
48 0F
50 0F
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW EER WATER
FLOW
(GPM)
CAP.
(Tons)
COMP.
kW
WATER
FLOW
(GPM)
EER
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 100F water range in evaporator.
3. Ratings are based on 0.00010 (hr-ft2-0F/Btu) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. EER for entire unit. Refer to electrical data for fan kW.

18
ASQ 045B 136.9 41.4 3.0 5.5 129.2 45.6 2.6 5.2 119.4 51.4 2.1 4.8 109.0 58.2 1.7 4.3 103.6 61.9 1.6 4.1 ASQ 050B 144.9 45.9 2.9 5.8 139.1 51.8 2.5 5.5 131.2 60.0 2.0 5.2 122.5 69.6 1.7 4.9 117.7 75.0 1.5 4.7 ASQ 055B 164.4 50.4 3.0 6.6 155.0 55.9 2.6 6.2 143.2 63.7 2.1 5.7 130.7 72.6 1.7 5.2 124.2 77.5 1.5 5.0 ASQ 060B 178.9 59.0 2.8 7.1 168.2 64.8 2.4 6.7 154.3 72.6 2.0 6.2 139.2 81.2 1.6 5.5 131.2 85.9 1.5 5.2 ASQ 070B 206.1 68.4 2.8 8.2 195.3 75.6 2.4 7.8 181.5 85.1 2.0 7.2 166.7 95.4 1.7 6.6 159.0 100.9 1.5 6.3 ASQ 080B 234.3 80.7 2.6 9.3 221.8 89.4 2.3 8.8 205.7 101.9 1.9 8.2 188.5 116.4 1.5 7.5 179.5 124.5 1.4 7.2 ASQ 090B 293.9 92.5 2.9 11.7 281.7 104.2 2.5 11.2 265.4 120.7 2.1 10.6 247.3 140.0 1.7 9.9 237.6 150.6 1.5 9.5 ASQ 100B 322.5 108.7 2.8 12.9 302.6 120.7 2.4 12.1 277.6 137.1 1.9 11.1 251.2 155.9 1.5 10.0 237.4 166.2 1.4 9.5 ASQ 115B 386.2 118.0 3.0 15.4 362.9 129.3 2.6 14.5 332.7 144.5 2.1 13.3 300.4 161.4 1.7 12.0 283.4 170.5 1.6 11.3 ASQ 130B 431.6 145.5 2.8 17.2 407.3 160.4 2.4 16.2 376.4 179.9 2.0 15.0 343.7 201.3 1.6 13.7 326.6 212.7 1.5 13.0 ASQ 140B 453.0 142.1 2.9 18.1 427.5 156.7 2.5 17.0 395.1 175.8 2.1 15.8 361.0 196.8 1.7 14.4 343.2 208.0 1.6 13.7 ASQ 150B 487.5 152.2 2.9 19.4 468.9 171.8 2.5 18.7 444.6 198.5 2.1 17.7 417.8 228.7 1.7 16.7 403.3 245.1 1.6 16.1 ASQ 160B 512.3 154.2 3.0 20.4 482.1 170.8 2.6 19.2 444.1 193.9 2.1 17.7 404.1 220.6 1.7 16.1 383.3 235.2 1.5 15.3 ASQ 170B 551.0 169.3 3.0 22.0 526.1 191.2 2.5 21.0 493.8 222.2 2.1 19.7 458.7 258.3 1.7 18.3 440.0 278.3 1.5 17.5 ASQ 180B 599.9 197.4 2.8 23.9 570.2 221.6 2.4 22.7 530.5 255.0 2.0 21.2 486.3 292.9 1.6 19.4 462.4 313.6 1.4 18.4 ASQ 190B 614.3 209.2 2.7 24.5 587.6 237.6 2.3 23.4 551.2 277.1 1.9 22.0 509.3 322.5 1.5 20.3 486.6 347.4 1.3 19.4 ASQ 200B 634.3 216.7 2.7 25.3 599.4 239.0 2.4 23.9 554.9 268.3 2.0 22.1 507.5 300.3 1.6 20.2 482.7 317.5 1.5 19.2 ASQ 220B 732.9 222.0 3.0 29.2 689.0 244.4 2.6 27.5 633.1 275.1 2.1 25.2 573.6 309.7 1.7 22.9 542.4 328.5 1.6 21.6 ASQ 230B 764.4 239.9 2.9 30.5 717.4 262.8 2.5 28.6 656.8 293.5 2.1 26.2 591.9 327.6 1.7 23.6 557.8 345.9 1.5 22.2 ASQ 240B 791.6 251.3 2.9 31.6 744.2 275.9 2.5 29.7 683.3 308.6 2.1 27.2 618.2 344.8 1.7 24.7 584.2 364.3 1.5 23.3 ASQ 250B 825.5 259.0 2.9 32.9 778.1 285.0 2.5 31.0 717.3 319.4 2.1 28.6 652.3 357.4 1.7 26.0 618.4 377.8 1.6 24.7 ASQ 260B 848.5 261.6 3.0 33.8 798.2 287.5 2.6 31.8 734.1 321.8 2.1 29.3 666.0 359.7 1.8 26.6 630.5 379.9 1.6 25.1 ASQ 270B 896.5 289.5 2.9 35.7 845.2 319.0 2.5 33.7 780.2 357.7 2.1 31.1 711.7 400.1 1.7 28.4 676.0 422.7 1.5 27.0 ASQ 280B 925.0 306.4 2.8 36.9 879.7 341.7 2.4 35.1 821.6 388.7 2.0 32.8 759.1 440.9 1.6 30.3 726.1 469.1 1.5 29.0 ASQ 300B 986.7 295.9 3.1 39.3 933.7 329.1 2.6 37.2 866.2 375.7 2.2 34.5 794.3 429.7 1.8 31.7 756.6 459.4 1.6 30.2 ASQ 320B 1057.5 327.2 3.0 42.2 1002.0 366.2 2.6 40.0 931.3 420.8 2.1 37.1 855.8 484.0 1.7 34.1 815.9 518.8 1.5 32.5 ASQ 330B 1074.3 337.1 3.0 42.8 1021.3 379.3 2.5 40.7 953.3 438.3 2.1 38.0 879.9 506.8 1.7 35.1 840.9 544.5 1.5 33.5 ASQ 340B 1117.6 362.0 2.9 44.6 1048.3 396.8 2.5 41.8 958.3 443.2 2.1 38.2 861.8 494.7 1.7 34.4 811.2 522.3 1.5 32.3 ASQ 350B 1154.8 344.4 3.1 46.0 1086.6 377.6 2.7 43.3 998.3 422.4 2.2 39.8 903.2 472.4 1.8 36.0 853.1 499.4 1.6 34.0 ASQ 360B 1198.5 373.5 3.0 47.8 1137.9 416.8 2.6 45.4 1057.5 476.3 2.1 42.2 968.6 544.1 1.7 38.6 920.8 581.1 1.5 36.7 ASQ 380B 1243.0 395.2 2.9 49.6 1174.6 435.7 2.5 46.8 1086.9 489.1 2.1 43.3 993.0 548.1 1.7 39.6 943.8 579.7 1.6 37.6 ASQ 400B 1286.5 422.1 2.9 51.3 1217.4 466.0 2.5 48.5 1129.2 523.6 2.0 45.0 1035.2 586.8 1.7 41.3 986.0 620.6 1.5 39.3 ASQ 420B 1419.3 456.5 2.9 56.6 1350.2 509.0 2.5 53.8 1261.4 579.1 2.1 50.3 1165.9 657.2 1.7 46.5 1115.5 699.3 1.5 44.5 ASQ 440B 1464.3 482.9 2.9 58.4 1405.2 545.0 2.4 56.0 1327.5 629.1 2.0 52.9 1241.7 723.8 1.7 49.5 1195.6 775.3 1.5 47.7 ASQ 045B 144.1 42.3 3.1 5.7 136.0 46.5 2.7 5.4 125.8 52.3 2.2 5.0 115.0 59.0 1.8 4.6 109.4 62.7 1.6 4.4 ASQ 050B 151.8 46.7 3.0 6.1 145.6 52.6 2.6 5.8 137.4 60.9 2.1 5.5 128.3 70.5 1.7 5.1 123.4 75.8 1.5 4.9 ASQ 055B 173.3 51.4 3.1 6.9 163.5 56.9 2.7 6.5 151.3 64.7 2.2 6.0 138.2 73.6 1.8 5.5 131.4 78.4 1.6 5.2 ASQ 060B 188.3 60.3 2.9 7.5 177.2 66.1 2.5 7.1 162.7 73.9 2.1 6.5 147.1 82.6 1.7 5.9 138.9 87.3 1.5 5.5 ASQ 070B 217.1 69.6 2.9 8.7 205.8 76.9 2.5 8.2 191.4 86.5 2.1 7.6 176.1 97.0 1.7 7.0 168.0 102.7 1.6 6.7 ASQ 080B 246.9 82.4 2.7 9.8 233.8 91.2 2.4 9.3 217.1 103.7 1.9 8.7 199.2 118.1 1.6 7.9 189.8 126.1 1.4 7.6 ASQ 090B 301.5 93.4 3.0 12.0 288.9 105.1 2.6 11.5 272.2 121.7 2.1 10.9 253.6 140.9 1.7 10.1 243.6 151.6 1.5 9.7 ASQ 100B 331.9 110.0 2.8 13.2 311.5 122.0 2.4 12.4 285.8 138.4 2.0 11.4 258.7 157.1 1.6 10.3 244.5 167.3 1.4 9.7 ASQ 115B 396.6 119.3 3.1 15.8 372.5 130.6 2.6 14.9 341.7 145.8 2.2 13.6 308.7 162.7 1.8 12.3 291.4 171.8 1.6 11.6 ASQ 130B 443.1 147.0 2.8 17.7 418.2 162.0 2.4 16.7 386.5 181.6 2.0 15.4 353.0 203.2 1.7 14.1 335.6 214.8 1.5 13.4 ASQ 140B 466.0 143.5 3.0 18.6 439.8 158.2 2.6 17.5 406.7 177.5 2.1 16.2 371.9 198.7 1.8 14.8 353.8 210.1 1.6 14.1 ASQ 150B 500.5 153.3 3.0 20.0 481.5 173.1 2.6 19.2 456.4 200.0 2.1 18.2 428.7 230.4 1.8 17.1 413.8 247.0 1.6 16.5 ASQ 160B 527.2 155.8 3.1 21.0 496.3 172.5 2.6 19.8 457.4 195.6 2.2 18.2 416.3 222.2 1.8 16.6 394.9 236.8 1.6 15.7 ASQ 170B 566.4 170.9 3.0 22.6 540.9 192.9 2.6 21.6 507.8 224.0 2.1 20.2 471.6 260.1 1.7 18.8 452.3 280.0 1.5 18.0 ASQ 180B 616.7 199.4 2.9 24.6 586.0 223.8 2.4 23.4 545.2 257.3 2.0 21.7 499.7 295.4 1.6 19.9 475.2 316.2 1.4 18.9 ASQ 190B 635.2 211.7 2.8 25.3 607.4 240.4 2.4 24.2 569.4 280.2 1.9 22.7 525.9 325.8 1.5 21.0 502.0 350.8 1.4 20.0 ASQ 200B 657.3 219.5 2.8 26.2 621.1 242.1 2.4 24.8 575.0 271.6 2.0 22.9 526.1 304.1 1.6 21.0 500.7 321.5 1.5 20.0
ASQ 220B 752.4 224.2 3.1 30.0 707.3 246.7 2.6 28.2 650.1 277.4 2.2 25.9 589.2 312.0 1.8 23.5 557.4 330.8 1.6 22.2 ASQ 230B 784.7 242.4 3.0 31.3 736.3 265.4 2.6 29.4 674.3 296.2 2.1 26.9 608.1 330.3 1.7 24.2 573.5 348.7 1.6 22.9 ASQ 240B 812.6 253.9 3.0 32.4 763.9 278.6 2.5 30.5 701.6 311.4 2.1 28.0 635.2 347.7 1.7 25.3 600.5 367.2 1.5 23.9 ASQ 250B 847.7 261.5 3.0 33.8 798.9 287.6 2.6 31.9 736.6 322.2 2.1 29.4 670.3 360.4 1.8 26.7 635.7 380.9 1.6 25.3 ASQ 260B 872.8 264.4 3.1 34.8 821.2 290.4 2.6 32.7 755.7 324.9 2.2 30.1 686.3 363.1 1.8 27.4 650.2 383.5 1.6 25.9 ASQ 270B 922.1 292.4 2.9 36.8 869.4 322.2 2.5 34.7 803.0 361.3 2.1 32.0 733.0 404.1 1.7 29.2 696.8 427.1 1.6 27.8 ASQ 280B 950.3 309.3 2.9 37.9 903.9 344.9 2.5 36.0 844.2 392.3 2.0 33.7 780.1 445.1 1.7 31.1 746.2 473.6 1.5 29.8 ASQ 300B 1014.5 298.9 3.1 40.5 960.1 332.2 2.7 38.3 890.9 378.8 2.2 35.5 817.1 432.7 1.8 32.6 778.4 462.3 1.6 31.0 ASQ 320B 1087.5 330.5 3.1 43.4 1030.7 369.7 2.6 41.1 958.2 424.4 2.1 38.2 880.5 487.5 1.7 35.1 839.5 522.2 1.5 33.5 ASQ 330B 1104.5 340.5 3.0 44.0 1050.2 382.8 2.6 41.9 980.3 442.0 2.1 39.1 904.8 510.5 1.7 36.1 864.7 548.1 1.5 34.5 ASQ 340B 1150.2 366.4 2.9 45.9 1078.5 401.2 2.5 43.0 986.4 447.7 2.1 39.3 888.1 499.3 1.7 35.4 836.6 527.0 1.5 33.4 ASQ 350B 1188.9 348.2 3.2 47.4 1118.8 381.5 2.7 44.6 1028.3 426.4 2.3 41.0 931.2 476.5 1.8 37.1 880.2 503.5 1.7 35.1 ASQ 360B 1232.7 377.2 3.0 49.2 1170.3 420.7 2.6 46.7 1087.7 480.5 2.1 43.4 996.5 548.5 1.7 39.7 947.5 585.6 1.5 37.8 ASQ 380B 1288.6 400.2 3.0 51.4 1217.6 440.9 2.6 48.6 1126.8 494.8 2.2 44.9 1030.1 554.3 1.8 41.1 979.5 586.2 1.6 39.1 ASQ 400B 1333.7 427.3 2.9 53.2 1262.0 471.7 2.5 50.3 1170.6 529.9 2.1 46.7 1073.7 593.8 1.7 42.8 1023.1 628.1 1.6 40.8 ASQ 420B 1452.7 460.1 3.0 57.9 1381.7 513.0 2.6 55.1 1290.6 583.6 2.1 51.5 1192.7 662.3 1.7 47.6 1141.1 704.7 1.6 45.5 ASQ 440B 1497.5 486.5 2.9 59.7 1436.8 549.0 2.5 57.3 1356.7 633.7 2.0 54.1 1268.1 729.1 1.7 50.6 1220.4 780.9 1.5 48.7
PERFORMANCE DATA (Metric units)
UNIT
SIZE
LEGEND: kW - Compressor power input LPS - Liters Per Second COP - Coefficient of Performance
4 0C
5 0C
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 60C water range in evaporator.
3. Ratings are based on 0.000018 (m2 -0C/W) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. COP for entire unit. Refer to electrical data for fan kW.
LEAVING
CHILLED
WATER TEMP.
(LCWT)
350C AMBIENT TEMPERATURE 400C AMBIENT TEMPERATURE 460C AMBIENT TEMPERATURE 520C AMBIENT TEMPERATURE 550C AMBIENT TEMPERATURE
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW
WATER
FLOW
(LPS)
COP

19
ASQ 045B 151.4 43.3 3.2 6.0 142.7 47.4 2.8 5.7 131.8 53.2 2.3 5.3 120.3 59.7 1.9 4.8 114.3 63.3 1.7 4.6 ASQ 050B 159.0 47.6 3.1 6.3 152.3 53.5 2.6 6.1 143.5 61.7 2.2 5.7 133.8 71.3 1.8 5.3 128.5 76.6 1.6 5.1 ASQ 055B 183.5 52.5 3.2 7.3 172.9 58.0 2.8 6.9 159.7 65.7 2.3 6.4 145.6 74.6 1.8 5.8 138.3 79.4 1.7 5.5 ASQ 060B 199.8 61.8 3.0 8.0 187.6 67.6 2.6 7.5 172.0 75.4 2.2 6.9 155.4 84.0 1.8 6.2 146.7 88.7 1.6 5.8 ASQ 070B 231.5 71.1 3.0 9.2 219.2 78.5 2.6 8.7 203.5 88.2 2.2 8.1 186.9 98.9 1.8 7.5 178.3 104.6 1.6 7.1 ASQ 080B 265.0 84.9 2.9 10.6 250.5 93.7 2.5 10.0 232.1 106.0 2.0 9.3 212.5 120.2 1.7 8.5 202.2 127.9 1.5 8.1 ASQ 090B 307.8 94.2 3.0 12.3 295.1 105.9 2.6 11.8 278.1 122.5 2.1 11.1 259.3 141.7 1.7 10.3 249.2 152.4 1.6 9.9 ASQ 100B 339.3 111.1 2.9 13.5 318.8 123.1 2.4 12.7 292.8 139.6 2.0 11.7 265.4 158.3 1.6 10.6 251.0 168.5 1.4 10.0 ASQ 115B 403.6 120.1 3.1 16.1 379.6 131.5 2.7 15.1 348.9 146.8 2.2 13.9 316.0 163.9 1.8 12.6 298.8 173.0 1.6 11.9 ASQ 130B 450.0 147.8 2.8 17.9 425.1 162.9 2.5 17.0 393.6 182.8 2.0 15.7 360.3 204.7 1.7 14.4 343.0 216.4 1.5 13.7 ASQ 140B 476.9 144.6 3.0 19.0 450.5 159.5 2.6 18.0 417.2 179.0 2.2 16.6 382.1 200.5 1.8 15.2 363.9 212.0 1.6 14.5 ASQ 150B 510.9 154.2 3.1 20.4 491.8 174.1 2.6 19.6 466.4 201.3 2.2 18.6 438.2 232.0 1.8 17.5 423.0 248.7 1.6 16.9 ASQ 160B 539.3 157.2 3.1 21.5 508.3 173.9 2.7 20.3 469.0 197.1 2.2 18.7 427.5 223.7 1.8 17.0 405.8 238.3 1.6 16.2 ASQ 170B 578.2 172.1 3.1 23.1 552.6 194.3 2.6 22.0 519.3 225.5 2.2 20.7 482.8 261.6 1.7 19.3 463.2 281.6 1.6 18.5 ASQ 180B 628.8 200.9 2.9 25.1 598.0 225.4 2.5 23.8 556.8 259.1 2.0 22.2 511.0 297.5 1.6 20.4 486.2 318.3 1.5 19.4 ASQ 190B 655.2 214.1 2.8 26.1 626.4 243.1 2.4 25.0 587.0 283.2 2.0 23.4 541.9 329.0 1.6 21.6 517.0 354.1 1.4 20.6 ASQ 200B 679.0 222.2 2.9 27.1 641.7 245.0 2.5 25.6 594.5 274.9 2.0 23.7 544.5 307.9 1.7 21.7 518.5 325.5 1.5 20.7 ASQ 220B 766.5 225.9 3.1 30.6 721.5 248.5 2.7 28.8 664.3 279.4 2.2 26.5 603.4 314.1 1.8 24.1 571.6 333.0 1.6 22.8 ASQ 230B 798.6 244.2 3.0 31.8 750.4 267.4 2.6 29.9 688.5 298.3 2.2 27.5 622.5 332.7 1.8 24.8 588.0 351.2 1.6 23.4 ASQ 240B 826.6 255.6 3.0 33.0 778.0 280.5 2.6 31.0 715.8 313.6 2.1 28.5 649.7 350.3 1.8 25.9 615.1 369.9 1.6 24.5 ASQ 250B 861.7 263.1 3.0 34.4 813.1 289.4 2.6 32.4 751.0 324.3 2.2 29.9 685.0 362.8 1.8 27.3 650.6 383.6 1.6 25.9 ASQ 260B 893.9 266.8 3.1 35.6 841.8 293.1 2.7 33.6 775.8 327.9 2.2 30.9 705.6 366.3 1.8 28.1 669.6 387.0 1.6 26.7 ASQ 270B 943.5 294.9 3.0 37.6 890.4 325.0 2.6 35.5 823.5 364.5 2.1 32.8 753.1 408.0 1.8 30.0 716.6 431.2 1.6 28.6 ASQ 280B 971.2 311.7 2.9 38.7 924.3 347.6 2.5 36.9 864.1 395.5 2.1 34.5 799.2 449.0 1.7 31.9 764.9 477.8 1.5 30.5 ASQ 300B 1037.5 301.4 3.2 41.4 982.7 334.9 2.7 39.2 912.9 381.7 2.3 36.4 838.3 435.5 1.8 33.4 799.0 465.2 1.6 31.9 ASQ 320B 1111.4 333.2 3.1 44.3 1054.3 372.6 2.7 42.0 981.2 427.5 2.2 39.1 902.6 490.7 1.8 36.0 861.1 525.4 1.6 34.3 ASQ 330B 1128.2 343.2 3.1 45.0 1073.6 385.8 2.6 42.8 1003.2 445.2 2.1 40.0 926.8 513.7 1.7 37.0 886.1 551.4 1.5 35.3 ASQ 340B 1174.7 369.6 3.0 46.8 1102.6 404.7 2.6 44.0 1010.1 451.5 2.1 40.3 911.5 503.5 1.7 36.3 860.0 531.3 1.6 34.3 ASQ 350B 1214.4 350.9 3.2 48.4 1143.8 384.5 2.8 45.6 1052.9 429.6 2.3 42.0 955.6 480.0 1.9 38.1 904.5 507.2 1.7 36.1 ASQ 360B 1257.6 379.8 3.1 50.1 1194.7 423.7 2.6 47.6 1111.6 483.8 2.2 44.3 1019.8 552.2 1.8 40.7 970.6 589.5 1.6 38.7 ASQ 380B 1331.9 404.9 3.1 53.1 1258.8 446.0 2.7 50.2 1165.6 500.3 2.2 46.5 1066.7 560.4 1.8 42.5 1015.1 592.7 1.6 40.5 ASQ 400B 1378.4 432.3 3.0 55.0 1304.5 477.0 2.6 52.0 1210.7 535.9 2.1 48.3 1111.5 600.7 1.8 44.3 1059.8 635.5 1.6 42.3 ASQ 420B 1476.5 462.7 3.0 58.9 1405.5 516.0 2.6 56.0 1314.2 587.2 2.1 52.4 1215.9 666.7 1.8 48.5 1164.0 709.6 1.6 46.4 ASQ 440B 1520.3 488.9 2.9 60.6 1459.6 551.9 2.5 58.2 1379.1 637.3 2.1 55.0 1289.6 733.4 1.7 51.4 1241.3 785.6 1.5 49.5 ASQ 045B 156.3 43.9 3.2 6.2 147.2 48.0 2.8 5.9 135.7 53.7 2.3 5.4 123.6 60.2 1.9 4.9 117.4 63.7 1.7 4.7 ASQ 050B 163.9 48.2 3.1 6.5 156.9 54.0 2.7 6.3 147.6 62.3 2.2 5.9 137.3 71.8 1.8 5.5 131.8 77.0 1.6 5.3 ASQ 055B 190.8 53.3 3.3 7.6 179.6 58.8 2.8 7.2 165.5 66.5 2.3 6.6 150.7 75.3 1.9 6.0 142.9 80.1 1.7 5.7 ASQ 060B 208.1 62.9 3.1 8.3 195.1 68.7 2.7 7.8 178.6 76.4 2.2 7.1 161.1 85.0 1.8 6.4 152.0 89.7 1.6 6.1 ASQ 070B 242.5 72.3 3.1 9.7 229.2 79.7 2.7 9.1 212.4 89.5 2.2 8.5 194.8 100.2 1.8 7.8 185.7 106.0 1.7 7.4 ASQ 080B 279.3 86.9 2.9 11.1 263.5 95.7 2.5 10.5 243.5 107.8 2.1 9.7 222.4 121.7 1.7 8.9 211.4 129.2 1.5 8.4 ASQ 090B 314.8 95.0 3.1 12.6 302.0 106.8 2.6 12.0 284.9 123.4 2.2 11.4 266.0 142.7 1.8 10.6 255.8 153.3 1.6 10.2 ASQ 100B 347.2 112.2 2.9 13.8 326.7 124.3 2.5 13.0 300.7 140.9 2.0 12.0 273.1 159.6 1.6 10.9 258.6 169.8 1.5 10.3 ASQ 115B 411.1 121.0 3.1 16.4 387.6 132.6 2.7 15.5 357.5 148.1 2.3 14.3 325.2 165.3 1.9 13.0 308.4 174.6 1.7 12.3 ASQ 130B 456.3 148.6 2.9 18.2 432.1 163.9 2.5 17.2 401.4 184.1 2.1 16.0 368.8 206.4 1.7 14.7 351.8 218.4 1.5 14.0 ASQ 140B 488.7 145.9 3.1 19.5 462.3 160.9 2.7 18.4 429.0 180.7 2.2 17.1 393.9 202.6 1.8 15.7 375.8 214.3 1.7 15.0 ASQ 150B 522.0 155.2 3.1 20.8 502.9 175.2 2.7 20.1 477.4 202.6 2.2 19.0 448.9 233.6 1.8 17.9 433.4 250.5 1.6 17.3 ASQ 160B 552.6 158.7 3.2 22.0 521.7 175.6 2.7 20.8 482.5 198.9 2.2 19.2 440.9 225.6 1.8 17.6 419.0 240.2 1.6 16.7 ASQ 170B 590.9 173.4 3.1 23.6 565.4 195.8 2.7 22.5 532.1 227.1 2.2 21.2 495.4 263.4 1.8 19.8 475.8 283.4 1.6 19.0 ASQ 180B 641.2 202.3 2.9 25.6 610.4 227.1 2.5 24.3 569.4 261.1 2.1 22.7 523.6 299.8 1.7 20.9 498.8 320.8 1.5 19.9 ASQ 190B 674.8 216.5 2.9 26.9 645.1 245.7 2.5 25.7 604.4 286.1 2.0 24.1 557.9 332.2 1.6 22.2 532.3 357.4 1.4 21.2 ASQ 200B 700.4 224.9 2.9 27.9 662.2 247.9 2.5 26.4 614.0 278.2 2.1 24.5 563.1 311.6 1.7 22.5 536.6 329.6 1.6 21.4
ASQ 220B 782.3 227.7 3.1 31.2 738.2 250.6 2.7 29.4 681.9 281.8 2.3 27.2 621.9 317.0 1.8 24.8 590.4 336.0 1.7 23.5 ASQ 230B 813.7 246.1 3.0 32.4 766.3 269.6 2.6 30.6 705.7 301.0 2.2 28.1 641.0 335.9 1.8 25.6 607.1 354.6 1.6 24.2 ASQ 240B 841.0 257.4 3.0 33.5 793.5 282.6 2.6 31.6 732.7 316.2 2.2 29.2 667.8 353.4 1.8 26.6 634.0 373.4 1.6 25.3 ASQ 250B 875.5 264.7 3.1 34.9 828.0 291.3 2.7 33.0 767.4 326.6 2.2 30.6 702.8 365.8 1.8 28.0 669.1 386.9 1.6 26.7 ASQ 260B 917.3 269.5 3.2 36.6 865.1 296.0 2.7 34.5 799.1 331.3 2.3 31.9 729.2 370.3 1.9 29.1 692.9 391.3 1.7 27.6 ASQ 270B 966.9 297.7 3.0 38.6 913.8 328.1 2.6 36.4 846.9 368.2 2.2 33.8 776.6 412.4 1.8 31.0 740.1 436.2 1.6 29.5 ASQ 280B 993.7 314.3 3.0 39.6 946.9 350.6 2.5 37.8 886.4 399.2 2.1 35.3 821.2 453.4 1.7 32.7 786.6 482.6 1.6 31.4 ASQ 300B 1063.1 304.3 3.2 42.4 1008.5 338.0 2.8 40.2 938.6 385.0 2.3 37.4 863.6 439.0 1.9 34.4 824.0 468.7 1.7 32.9 ASQ 320B 1137.2 336.2 3.2 45.3 1080.4 375.9 2.7 43.1 1007.3 431.1 2.2 40.2 928.5 494.5 1.8 37.0 886.7 529.2 1.6 35.4 ASQ 330B 1153.6 346.2 3.1 46.0 1099.3 389.0 2.7 43.8 1028.9 448.8 2.2 41.0 952.2 517.6 1.8 38.0 911.3 555.3 1.6 36.3 ASQ 340B 1200.5 373.1 3.0 47.9 1128.7 408.5 2.6 45.0 1036.9 455.9 2.2 41.3 938.9 508.3 1.8 37.4 887.7 536.5 1.6 35.4 ASQ 350B 1240.8 353.8 3.2 49.5 1170.6 387.7 2.8 46.7 1080.3 433.2 2.3 43.1 983.6 484.1 1.9 39.2 933.0 511.6 1.7 37.2 ASQ 360B 1282.8 382.5 3.1 51.2 1220.3 426.8 2.7 48.7 1137.5 487.4 2.2 45.4 1046.0 556.3 1.8 41.7 996.9 593.9 1.6 39.8 ASQ 380B 1374.6 409.6 3.1 54.8 1299.7 451.0 2.7 51.8 1204.6 505.9 2.3 48.0 1103.8 566.6 1.9 44.0 1051.3 599.3 1.7 41.9 ASQ 400B 1422.1 437.2 3.1 56.7 1346.5 482.3 2.6 53.7 1250.7 541.9 2.2 49.9 1149.6 607.6 1.8 45.8 1097.0 642.9 1.6 43.7 ASQ 420B 1503.7 465.7 3.0 60.0 1433.7 519.6 2.6 57.2 1343.6 591.7 2.2 53.6 1246.1 672.4 1.8 49.7 1194.5 716.0 1.6 47.6 ASQ 440B 1545.9 491.7 3.0 61.6 1485.9 555.3 2.5 59.3 1406.1 641.5 2.1 56.1 1316.8 738.8 1.7 52.5 1268.2 791.6 1.5 50.6
PERFORMANCE DATA (Metric units)
UNIT
SIZE
LEGEND: kW - Compressor power input LPS - Liters Per Second COP - Coefficient of Performance
6 0C
7 0C
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 60C water range in evaporator.
3. Ratings are based on 0.000018 (m2 -0C/W) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. COP for entire unit. Refer to electrical data for fan kW.
LEAVING
CHILLED
WATER TEMP.
(LCWT)
350C AMBIENT TEMPERATURE 400C AMBIENT TEMPERATURE 460C AMBIENT TEMPERATURE 520C AMBIENT TEMPERATURE 550C AMBIENT TEMPERATURE
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW
WATER
FLOW
(LPS)
COP

20
ASQ 045B 159.9 44.4 3.3 6.4 150.4 48.5 2.8 6.0 138.6 54.1 2.4 5.5 126.1 60.5 1.9 5.0 119.7 64.0 1.8 4.8 ASQ 050B 167.4 48.6 3.2 6.7 160.1 54.4 2.7 6.4 150.5 62.7 2.2 6.0 139.9 72.2 1.8 5.6 134.2 77.4 1.6 5.4 ASQ 055B 196.0 53.9 3.4 7.8 184.4 59.4 2.9 7.4 169.7 67.1 2.4 6.8 154.3 75.8 1.9 6.2 146.3 80.5 1.7 5.8 ASQ 060B 214.0 63.6 3.2 8.5 200.4 69.5 2.7 8.0 183.3 77.2 2.3 7.3 165.2 85.8 1.8 6.6 155.8 90.4 1.6 6.2 ASQ 070B 250.2 73.1 3.2 10.0 236.3 80.5 2.8 9.4 218.8 90.4 2.3 8.7 200.4 101.2 1.9 8.0 190.9 107.0 1.7 7.6 ASQ 080B 289.2 88.3 3.0 11.5 272.5 97.0 2.6 10.9 251.6 109.1 2.2 10.0 229.4 122.7 1.8 9.1 217.9 130.1 1.6 8.7 ASQ 090B 323.8 96.1 3.1 12.9 310.8 108.0 2.7 12.4 293.6 124.6 2.2 11.7 274.5 143.9 1.8 10.9 264.1 154.5 1.6 10.5 ASQ 100B 357.2 113.6 2.9 14.2 336.8 125.8 2.5 13.4 310.8 142.5 2.1 12.4 283.0 161.4 1.7 11.3 268.4 171.7 1.5 10.7 ASQ 115B 422.0 122.3 3.2 16.8 399.3 134.1 2.8 15.9 370.0 149.9 2.3 14.8 338.7 167.5 1.9 13.5 322.3 177.0 1.7 12.9 ASQ 130B 465.5 149.7 2.9 18.6 442.2 165.4 2.5 17.6 412.6 186.0 2.1 16.5 381.2 208.9 1.7 15.2 364.7 221.3 1.6 14.5 ASQ 140B 503.3 147.5 3.1 20.1 476.9 162.7 2.7 19.0 443.7 182.9 2.3 17.7 408.7 205.2 1.9 16.3 390.5 217.2 1.7 15.6 ASQ 150B 535.6 156.3 3.2 21.4 516.5 176.6 2.7 20.6 491.0 204.3 2.3 19.6 462.1 235.7 1.9 18.4 446.4 252.8 1.7 17.8 ASQ 160B 569.7 160.6 3.2 22.7 538.9 177.7 2.8 21.5 499.7 201.2 2.3 19.9 457.9 228.1 1.9 18.3 436.0 242.7 1.7 17.4 ASQ 170B 607.1 175.1 3.2 24.2 581.8 197.7 2.7 23.2 548.5 229.3 2.2 21.9 511.7 265.7 1.8 20.4 491.9 285.8 1.6 19.6 ASQ 180B 657.0 204.2 3.0 26.2 626.4 229.3 2.6 25.0 585.5 263.6 2.1 23.3 539.7 302.7 1.7 21.5 514.9 324.0 1.5 20.5 ASQ 190B 694.3 218.8 3.0 27.7 663.8 248.3 2.5 26.5 622.0 289.0 2.0 24.8 574.1 335.4 1.6 22.9 547.8 360.8 1.5 21.8 ASQ 200B 721.5 227.5 3.0 28.8 682.6 250.8 2.6 27.2 633.6 281.5 2.1 25.3 581.9 315.5 1.8 23.2 555.0 333.7 1.6 22.1 ASQ 220B 805.3 230.4 3.2 32.1 762.4 253.7 2.8 30.4 707.6 285.4 2.3 28.2 648.9 321.1 1.9 25.9 618.0 340.5 1.7 24.6 ASQ 230B 835.6 248.9 3.1 33.3 789.7 272.8 2.7 31.5 730.8 304.9 2.2 29.1 667.9 340.5 1.8 26.6 635.0 359.7 1.7 25.3 ASQ 240B 862.2 260.0 3.1 34.4 816.1 285.7 2.7 32.5 757.2 320.0 2.2 30.2 694.3 358.1 1.8 27.7 661.4 378.6 1.7 26.4 ASQ 250B 895.6 267.0 3.1 35.7 849.8 294.1 2.7 33.9 791.2 330.1 2.3 31.5 728.7 370.2 1.9 29.1 696.0 391.8 1.7 27.8 ASQ 260B 946.4 272.8 3.2 37.7 894.3 299.7 2.8 35.7 828.2 335.5 2.3 33.0 758.4 375.3 1.9 30.2 722.1 396.7 1.7 28.8 ASQ 270B 995.9 301.1 3.1 39.7 942.9 332.0 2.7 37.6 876.1 372.8 2.2 34.9 805.8 418.0 1.8 32.1 769.3 442.3 1.7 30.7 ASQ 280B 1021.7 317.6 3.0 40.7 974.8 354.4 2.6 38.9 914.2 403.7 2.2 36.5 848.5 458.8 1.8 33.8 813.5 488.5 1.6 32.4 ASQ 300B 1096.1 308.0 3.3 43.7 1041.5 342.0 2.8 41.5 971.5 389.3 2.4 38.7 896.0 443.6 1.9 35.7 856.2 473.2 1.7 34.1 ASQ 320B 1170.4 340.0 3.2 46.7 1113.8 380.1 2.8 44.4 1040.8 435.7 2.3 41.5 961.6 499.4 1.8 38.3 919.5 534.3 1.7 36.7 ASQ 330B 1186.3 350.0 3.2 47.3 1132.2 393.3 2.7 45.1 1061.8 453.5 2.2 42.3 984.8 522.6 1.8 39.3 943.6 560.4 1.6 37.6 ASQ 340B 1233.6 377.5 3.1 49.2 1162.3 413.4 2.7 46.3 1071.2 461.4 2.2 42.7 974.0 514.7 1.8 38.8 923.2 543.3 1.6 36.8 ASQ 350B 1274.5 357.5 3.3 50.8 1204.9 391.8 2.9 48.0 1115.4 437.9 2.4 44.5 1019.7 489.4 2.0 40.7 969.5 517.2 1.8 38.7 ASQ 360B 1315.2 386.0 3.2 52.4 1253.0 430.7 2.7 50.0 1170.7 492.0 2.2 46.7 1079.6 561.6 1.8 43.1 1030.7 599.6 1.6 41.1 ASQ 380B 1417.0 414.3 3.2 56.5 1340.6 456.1 2.8 53.5 1243.9 511.5 2.3 49.6 1141.5 573.0 1.9 45.5 1088.2 606.1 1.7 43.4 ASQ 400B 1465.3 442.0 3.1 58.4 1388.3 487.6 2.7 55.4 1290.9 547.9 2.2 51.5 1188.2 614.6 1.8 47.4 1134.8 650.5 1.7 45.2 ASQ 420B 1545.2 470.3 3.1 61.6 1477.0 525.1 2.7 58.9 1388.6 598.7 2.2 55.4 1292.4 681.1 1.8 51.5 1241.1 725.7 1.6 49.5 ASQ 440B 1584.9 495.9 3.0 63.2 1526.3 560.4 2.6 60.9 1447.5 648.0 2.1 57.7 1358.4 746.8 1.8 54.2 1309.5 800.5 1.6 52.2 ASQ 045B 168.7 45.5 3.4 6.7 158.8 49.6 2.9 6.3 146.4 55.2 2.5 5.8 133.4 61.5 2.0 5.3 126.7 64.9 1.8 5.1 ASQ 050B 175.7 49.6 3.3 7.0 168.1 55.5 2.8 6.7 158.0 63.7 2.3 6.3 146.9 73.1 1.9 5.9 140.9 78.3 1.7 5.6 ASQ 055B 207.0 55.2 3.5 8.3 194.9 60.7 3.0 7.8 179.6 68.4 2.5 7.2 163.5 77.1 2.0 6.5 155.2 81.9 1.8 6.2 ASQ 060B 225.6 65.2 3.2 9.0 211.6 71.1 2.8 8.4 193.8 78.9 2.3 7.7 175.2 87.6 1.9 7.0 165.5 92.3 1.7 6.6 ASQ 070B 263.7 74.5 3.3 10.5 249.2 82.1 2.9 9.9 231.0 92.1 2.4 9.2 212.0 103.2 2.0 8.5 202.2 109.2 1.8 8.1 ASQ 080B 304.7 90.6 3.1 12.1 287.3 99.3 2.7 11.5 265.5 111.2 2.2 10.6 242.4 124.6 1.8 9.7 230.4 131.9 1.7 9.2 ASQ 090B 343.8 98.5 3.2 13.7 330.1 110.4 2.8 13.2 312.0 127.1 2.3 12.4 291.6 146.3 1.9 11.6 280.6 156.8 1.7 11.2 ASQ 100B 381.3 117.1 3.1 15.2 359.8 129.5 2.6 14.3 332.5 146.3 2.2 13.3 303.3 165.3 1.8 12.1 288.1 175.5 1.6 11.5 ASQ 115B 451.9 125.8 3.3 18.0 428.3 137.9 2.9 17.1 398.2 154.0 2.4 15.9 365.9 172.0 2.0 14.6 349.0 181.7 1.8 13.9 ASQ 130B 496.9 153.7 3.0 19.8 472.8 169.7 2.6 18.9 442.2 191.1 2.2 17.6 409.7 214.8 1.8 16.3 392.6 227.6 1.7 15.7 ASQ 140B 535.5 151.1 3.3 21.4 508.2 166.6 2.8 20.3 473.9 187.3 2.4 18.9 437.6 210.3 2.0 17.5 418.7 222.7 1.8 16.7 ASQ 150B 567.2 159.1 3.3 22.6 547.3 179.8 2.8 21.8 520.3 207.9 2.4 20.7 489.6 239.8 1.9 19.5 472.8 257.2 1.8 18.9 ASQ 160B 608.9 165.2 3.4 24.3 576.6 182.5 2.9 23.0 535.6 206.2 2.4 21.4 491.8 233.2 2.0 19.6 468.9 247.8 1.8 18.7 ASQ 170B 646.5 179.4 3.3 25.8 620.0 202.3 2.8 24.7 585.0 234.2 2.3 23.3 546.2 270.8 1.9 21.8 525.3 290.9 1.7 20.9 ASQ 180B 698.6 209.2 3.1 27.9 666.5 234.7 2.7 26.6 623.5 269.6 2.2 24.9 575.5 309.2 1.8 22.9 549.6 330.8 1.6 21.9 ASQ 190B 731.5 223.3 3.1 29.2 699.6 253.3 2.6 27.9 656.0 294.5 2.1 26.2 606.2 341.5 1.7 24.2 578.9 367.2 1.5 23.1 ASQ 200B 761.8 232.6 3.1 30.4 721.9 256.5 2.7 28.8 671.6 288.0 2.2 26.8 618.4 323.0 1.8 24.7 590.7 341.8 1.7 23.6
ASQ 220B 863.3 237.3 3.3 34.4 818.7 261.1 2.9 32.6 761.8 293.3 2.4 30.4 700.9 329.5 2.0 27.9 668.9 349.1 1.8 26.7 ASQ 230B 894.5 256.4 3.2 35.7 846.9 280.8 2.8 33.8 786.3 313.5 2.4 31.4 721.4 350.0 1.9 28.8 687.2 369.6 1.8 27.4 ASQ 240B 922.2 267.5 3.2 36.8 874.5 293.7 2.8 34.9 813.8 328.8 2.3 32.4 748.9 367.9 1.9 29.9 714.7 388.9 1.7 28.5 ASQ 250B 957.5 274.1 3.2 38.2 910.1 301.8 2.8 36.3 849.6 338.7 2.4 33.9 785.2 379.9 2.0 31.3 751.3 402.1 1.8 30.0 ASQ 260B 1008.3 280.0 3.3 40.2 954.3 307.5 2.9 38.1 886.1 344.1 2.4 35.3 813.8 384.9 2.0 32.5 775.9 406.8 1.8 30.9 ASQ 270B 1059.3 308.7 3.2 42.2 1004.5 340.3 2.8 40.1 935.5 382.4 2.3 37.3 862.5 429.0 1.9 34.4 824.4 454.0 1.7 32.9 ASQ 280B 1083.9 324.9 3.1 43.2 1035.1 362.6 2.7 41.3 971.8 413.1 2.2 38.8 902.7 469.5 1.8 36.0 865.8 499.9 1.7 34.5 ASQ 300B 1169.7 316.4 3.4 46.6 1112.4 350.8 3.0 44.4 1038.8 398.4 2.5 41.4 959.6 452.7 2.0 38.3 917.8 482.2 1.8 36.6 ASQ 320B 1248.4 349.2 3.3 49.8 1189.1 389.9 2.9 47.4 1112.4 446.0 2.4 44.4 1029.1 509.9 1.9 41.0 985.0 544.8 1.7 39.3 ASQ 330B 1264.2 359.2 3.3 50.4 1207.5 403.2 2.8 48.1 1133.4 463.9 2.3 45.2 1052.2 533.3 1.9 42.0 1008.9 571.2 1.7 40.2 ASQ 340B 1315.5 388.4 3.2 52.5 1241.3 425.0 2.8 49.5 1146.9 473.9 2.3 45.7 1046.4 528.1 1.9 41.7 993.7 557.2 1.7 39.6 ASQ 350B 1360.8 366.9 3.4 54.3 1288.1 401.8 3.0 51.4 1195.3 448.6 2.5 47.7 1096.3 500.9 2.1 43.7 1044.3 529.1 1.9 41.6 ASQ 360B 1400.5 395.2 3.3 55.8 1335.2 440.6 2.8 53.2 1249.1 502.7 2.4 49.8 1154.0 573.4 1.9 46.0 1103.0 611.8 1.7 44.0 ASQ 380B 1498.2 423.3 3.3 59.7 1419.7 465.9 2.9 56.6 1320.5 522.6 2.4 52.7 1215.5 585.6 2.0 48.5 1160.6 619.5 1.8 46.3 ASQ 400B 1547.8 451.3 3.2 61.7 1468.6 497.9 2.8 58.6 1368.7 559.7 2.3 54.6 1263.3 628.4 1.9 50.4 1208.3 665.3 1.7 48.2 ASQ 420B 1652.0 482.2 3.2 65.9 1580.9 538.5 2.8 63.0 1488.3 614.1 2.3 59.3 1386.8 698.7 1.9 55.3 1332.3 744.4 1.7 53.1 ASQ 440B 1689.5 507.4 3.2 67.4 1627.8 573.5 2.7 64.9 1543.9 663.0 2.2 61.6 1448.0 763.6 1.8 57.7 1395.1 818.1 1.7 55.6
PERFORMANCE DATA (Metric units)
UNIT
SIZE
LEGEND: kW - Compressor power input LPS - Liters Per Second COP - Coefficient of Performance
8 0C
10 0C
NOTES: 1. Packaged chillers are rated with ARI standard 550/590-98. 2. Performance data are based on 60C water range in evaporator.
3. Ratings are based on 0.000018 (m2 -0C/W) fouling factor for evaporator.
4. Direct interpolation is permissible. Do not extrapolate. 5. kW power input is for compressor only. 6. COP for entire unit. Refer to electrical data for fan kW.
LEAVING
CHILLED
WATER TEMP.
(LCWT)
350C AMBIENT TEMPERATURE 400C AMBIENT TEMPERATURE 460C AMBIENT TEMPERATURE 520C AMBIENT TEMPERATURE 550C AMBIENT TEMPERATURE
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW COP WATER
FLOW
(LPS)
CAP. (kW)
COMP.
kW
WATER
FLOW
(LPS)
COP
