Cooper & Hunter CH-IF035NK User manual

Air Conditioners
Owner's Manual
DC Inverter Series Floor Ceiling
Type Unit
Thank you for choosing our product.
For proper operation, please read and keep this manual carefully.
If you have lost the Owner’s Manual, please contact the local
agent or visit www.cooperandhunter.com or sent email to i[email protected] or
electronic version. C&H reserves the right to interpret this manual which will be subject
to any change due to product improvement without further notice.
Models:
Indoor Unit Outdoor Unit
CH-IF035NKCH-IU035NK
CH-IF050NKCH-IU050NK
CH-IF071NKCH-IU071NK
CH-IF100NKCH-IU100NK
CH-IF125NKCH-IU125NK
CH-IU125NM
CH-IF140NKCH-IU140NK
CH-IU140NM
CH-IF160NKCH-IU160NK
CH-IU160NM

To Users
Thank you for selecting Cooper&Hunter’s product. Please read this instruction
manual carefully before installing and using the product, so as to master and
correctly use the product. In order to guide you to correctly install and use our
product and achieve expected operating effect, we hereby instruct as below:
(1) This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
(2) In order to ensure reliability of product, the product may consume some
power under stand-by status for maintaining normal communication of
system and preheating refrigerant and lubricant. If the product is not to be
used for long, cut off the power supply; please energize and preheat the
unit in advance before reusing it.
(3) Please properly select the model according to actual using environment,
otherwise it may impact the using convenience.
(4) This product has gone through strict inspection and operational test
before leaving the factory. In order to avoid damage due to improper
disassembly and inspection, which may impact the normal operation of
unit, please do not disassemble the unit by yourself. You can contact with
the special maintenance center of our company if necessary.
(5) When the product is faulted and cannot be operated, please contact with
our maintenance center as soon as possible by providing the following
information.
1) Contents of nameplate of product (model, cooling/heating capacity,
product No, ex-factory date).
2) Malfunction status (specify the situations before and after the error
occurs).
(6) All the illustrations and information in the instruction manual are only for
reference. In order to make the product better, we will continuously
conduct improvement and innovation. We have the right to make

necessary revision to the product from time to time due to the reason of
sales or production, and reserve the right to revise the contents without
further notice.
(7) Indoor unit must not be installed in a laundry.
(8) If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
(9) Cooper&Hunter Inc.assumes no responsibility for personal injury,
property loss or equipment damage caused by improper installation and
commissioning, unnecessary maintenance, or not following relevant
national rules and regulations, industrial standards and requirements in
this instruction manual.
(10) The final right to interpret for this instruction manual belongs to
Cooper&Hunter Inc.
Exception Clauses
Manufacturer will bear no responsibilities when personal injury or property loss
is caused by the following reasons:
(1) Damage the product due to improper use or misuse of the product;
(2) Alter, change, maintain or use the product with other equipment without
abiding by the instruction manual of manufacturer;
(3) After verification, the defect of product is directly caused by corrosive gas;
(4) After verification, defects are due to improper operation during
transportation of product;
(5) Operate, repair, maintain the unit without abiding by instruction manual or
related regulations;
(6) After verification, the problem or dispute is caused by the quality
specification or performance of parts and components that produced by
other manufacturers;
(7) The damage is caused by natural calamities, bad using environment or
force majeure.

Contents
1 Safety Notices (Please be sure to abide).........................1
2 Product Introduction .........................................................5
2.1 Overall Layout........................................................................5
2.2 Product Operating Range ......................................................6
2.3 Standard Accessories ............................................................6
3 Installation..........................................................................7
3.1 Installation Preparation ..........................................................7
3.2 Unit Installation ....................................................................16
3.3 Electrical Installation ............................................................31
3.4 Check after Installation.........................................................42
3.5 Test Running........................................................................43
4 Installation of Controller .................................................44
5 Maintenance.....................................................................44
5.1 Failures Not Caused by Faults of the AC..............................44
5.2 Error Code...........................................................................45
5.3 Unit Maintenance.................................................................47
5.4 After-Sales Services.............................................................49
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To
return your used device, please use the return and collection systems or contact the
retailer where the product was purchased. They can take this product for
environmental safe recycling.

DC Inverter Floor Ceiling Type Unit
1
1 Safety Notices (Please be sure to abide)
SPECIAL WARNING:
(1) Do not pierce or burn.
(2) Do not use means to accelerate the defrosting process or to clean, other
than those recommended by the manufacturer.
(3) Be aware that refrigerants may not contain an odor.
(4) The appliance shall be stored in a room without continuously operating
ignition sources (for example: open flames, an operating gas appliance or
an operating electric heater).
PROHIBITED: This sign indicates that the operation must be prohibited.
Improper operation may cause severe damage or death to people.
WARNING: If not abide strictly, it may cause severe damage to the unit or
the people.
NOTICE: If not abide strictly, it may cause slight or medium damage to the
unit or the people.
OBSERVED: This sign indicates that the items must be observed.
Improper operation may cause damage to people or property.
WARNING！
This product can’t be installed at corrosive, inflammable or explosive
environment or the place with special requirements, such as kitchen.
Otherwise, it will affect the normal operation or shorten the service life of
the unit, or even cause fire hazard or serious injury. As for above special
places, please adopt special air conditioner with anti-corrosive or
anti-explosion function.
Please read this operating manual carefully before operating the unit.
Before using the air conditioner, please read the instruction manual.
Before installing the air conditioner, please read the instruction manual.
Before repairing the air conditioner, please read the instruction manual.
The figures in this manual may be different with the material objects,
please refer to the material objects for reference.

DC Inverter Floor Ceiling Type Unit
2
PROHIBITED
(1) The air conditioner should be grounded to avoid electric shock. Do not connect
the ground wire to gas pipe, water pipe, lightning arrester or telephone wire.
(2) The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
(3) The appliance shall be stored in a room without continuously operating open
flames (for example an operating gas appliance) and ignition sources (for
example an operating electric heater).
(4) According to federal/state/local laws and regulations, all packages and
transportation materials, including nails, metal or wooden parts, and plastic
packing material, must be treated in a safe way.
WARNING
(1) Please install according to this instruction manual. Installation must be
performed in accordance with the requirement of NEC and CEC by authorized
personnel only.
(2) Any person who is involved with working on or breaking into a refrigerant
circuit should hold a current valid certificate from an industry-accredited
assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognised assessment
specification.
(3) Servicing shall only be performed as recommended by the equipment
manufacturer.
(4) The appliance shall be installed in accordance with national wiring regulations.
(5) The fixed wires connecting to the appliance must be configured with all-pole
disconnection device under voltage grade III according to wiring rules.
(6) Air conditioner should be stored with protective measures against mechanical
damage caused by accident.
(7) If the installation space for air conditioner pipe is too small, adopt a protective
measure to prevent the pipe from physical damage.
(8) During installation, use the specialized accessories and components,
otherwise water leakage, electric shock or fire hazard may occur.
(9) Please install the air conditioner in a secure place that can withstand the
weight of air conditioner. Insecure installation may cause the air conditioner
falling down and lead to injury.
(10) Be sure to adopt independent power circuit. If the power cord is damaged, it
must be repaired by the manufacturer, service agent or other professional
agents.

DC Inverter Floor Ceiling Type Unit
3
WARNING
(11) The air conditioner can be cleaned only after it is turned off and
power-disconnected, otherwise electric shock may occur.
(12) The air conditioner is not intended to be cleaned or maintained by children
without supervision.
(13) Do not alter the setting of pressure sensor or other protective devices. If the
protective devices are short-circuited or changed against rules, fire hazard or
even explosion may occur.
(14) Do not operate the air conditioner with wet hands. Do not wash or sprinkle
water on the air conditioner, otherwise malfunction or electric shock will occur.
(15) Do not dry the filter with naked flame or an air blower; otherwise the filter will
be out of shape.
(16) If the unit is to be installed in a small space, please adopt protective measures
to prevent the concentration of refrigerant from exceeding the allowable safety
limit; excessive refrigerant leakage may lead to explosion.
(17) When installing or re-installing the air conditioner, please keep the refrigerant
circuit away from substances other than the specified refrigerant, such as air.
Any presence of foreign substances will cause abnormal pressure change or
even explosion, resulting in injury.
(18) Only professionals are allowed to carry on daily maintenance.
(19) Before contacting any wire, make sure power is cut off.
(20) Do not let any inflammable objects near the unit.
(21) Do not use organic solvent to clean the air conditioner.
(22) If you need to replace a component, please ask a professional to repair with a
component supplied by the original manufacturer so as to ensure the unit’s
quality.
(23) Improper operation may get the unit broken, hit by electric shock or cause fire.
(24) Do not make the air conditioner wet or electric shock may be lead; Ensure that
the air conditioner will not be cleaned by water rinsing under any
circumstance.
NOTICE
(1) Do not put a finger or other objects into the air inlet or air return grill.
(2) Please adopt safety protection measures before touching the refrigerant pipe,
otherwise your hands may be hurt.
(3) Please arrange the drain pipe according to the instruction manual.
(4) Never stop the air conditioner by directly cutting off the power.

DC Inverter Floor Ceiling Type Unit
4
NOTICE
(5) Please select the proper copper pipe according to the requirement for pipe
thickness.
(6) Indoor unit can only be installed indoors while outdoor unit can be installed
either indoors or outdoors. Never install the air conditioner in the following
places:
1) Places with oil smoke or volatile liquid: plastic parts may deteriorate and
fall off or even cause water leakage.
2) Places with corrosive gas: copper pipe or the welding parts may be
corroded and cause refrigerant leakage.
(7) Adopt proper measures to protect the outdoor unit from small animals because
they may damage the electric components and cause malfunction of the air
conditioner.
(8) Before cleaning, please make sure the unit is stopped. Cut the circuit breaker
and remove the power socket, otherwise, electric shock may occur.
(9) Do not wash the air conditioner with water, otherwise fire hazard or electric
shock may occur.
(10) When cleaning the filter, please be careful of your steps. If you need to work
high above the ground, please be extremely careful.
OBSERVED
(1) If wired control is to be used, it should be connected first before powering up
the unit, otherwise the wired control may not be able to use.
(2) When installing the indoor unit, keep it away from television, wireless waves,
and fluorescent.
(3) Only use soft dry cloth or slightly wet cloth with neutral detergent to clean the
casing of the air conditioner.
(4) Before operating the unit under low temperature, connect it to power for 8
hours. If it is stopped for a short time, for example, one night, do not cut off the
power (This is to protect the compressor).

DC Inverter Floor Ceiling Type Unit
5
2 Product Introduction
2.1 Overall Layout
NOTICE:
The connection pipe, drain pipe, power cord, and duct for this unit should be
prepared by the user.

DC Inverter Floor Ceiling Type Unit
6

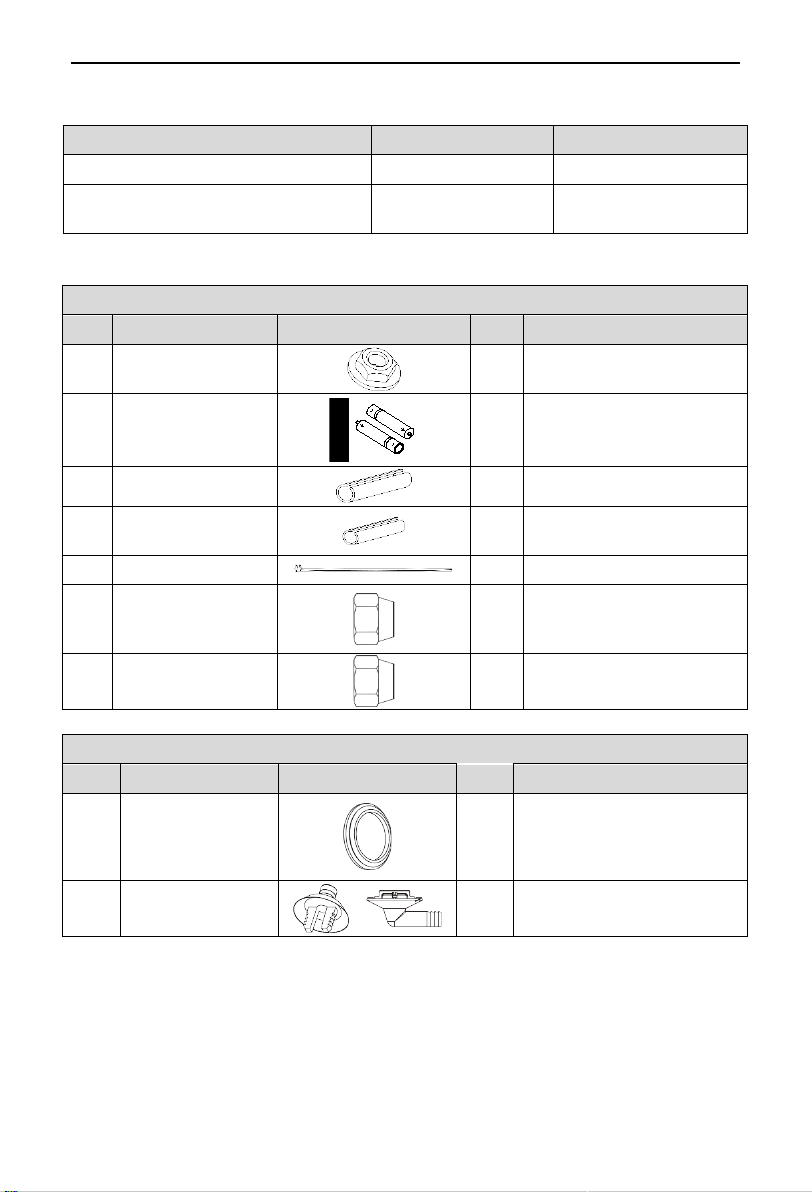

2.2 Product Operating Range
Cooling
Heating
Outdoor temperature DB(°C)
-15~48
-15~24
Indoor temperature DB/WB(°C)
(Maximum)
32/23 27/-
2.3 Standard Accessories
Indoor Unit Accessories
No.
Name
Appearance
Q'ty
Usage
1 Nut with Washer 8 To fix the hook on the
cabinet of the unit.
2 Wireless
Controller +
Battery
1+2 To control the indoor unit.
3 Insulation 1 To insulate the gas pipe.
4 Insulation 1 To insulate the liquid
pipe.
5
Fastener
4
To fasten the sponge.
6 Screw Nut 1 To connect gas pipe.
7 Screw Nut 1 To connect liquid pipe.
Outdoor Unit Accessories
No.
Name
Appearance
Q'ty
Usage
1 Drain Plug 1or
3 To plug the unused drain hole.
2 Drainage
Connector or 1 To connect with the hard PVC drain pipe.

DC Inverter U-match Ceiling Type Unit
7
3 Installation
3.1 Installation Preparation
3.1.1 Selection of Installation Location
WARNING
(1) If the outdoor unit will be exposed in strong wind, it must be securely located,
otherwise it may fall down.
(2) Install the air conditioner at a place where the inclination is less than 5°.
(3) Do not install the unit at a place with direct sunlight.
(4) Do not install the unit at a place with leakage of inflammable gas.
Selection of Installation Location for Indoor Unit (Select a location
pursuant to the following condition).
(1) Air inlet and outlet of the indoor unit should be away from obstacles to
make sure the unit’s air flow can reach the entire room. Do not install the
unit in a kitchen or a laundry.
(2) Select a location that can withstand 4 times the unit weight without
increasing operating noise and vibration.
(3) The installation location must be level.
(4) The indoor piping length and wiring length should be within the allowable
range.
(5) Select a place that can easily drain condensate and connect to the drain
system of the air conditioner.
(6) If hoisting screw bolts are to be used, check whether the installation
location is safe enough. If not safe, reinforce the location before
installation.
(7) Indoor unit, power cord, connecting wires and communication cords
should be at least 1m from television and radio. This is to prevent image
interference or noise (Even at a distance of 1m, a very strong electric
wave may still generate noise).

DC Inverter Floor Ceiling Type Unit
8
Selection of Installation Location for Outdoor Unit (Select a location
pursuant to the following condition).
(1) Noise and air flow produced by the outdoor unit will not disturb the
neighbors.
(2) Select a location that is safe and away from animals and plants. If not,
please add safety fences to protect the unit.
(3) Install at a place with good ventilation. Make sure the outdoor unit stays at
a well-ventilated place with no obstacles nearby that may obstruct the air
inlet and outlet.
(4) The installation location should be able to withstand the weight and
vibration of outdoor unit and allow the installation to be carried out safely.
(5) Avoid installing at a place with leakage of inflammable gas, oil smoke or
corrosive gas.
(6) Keep it away from strong wind because strong wind will affect the outdoor
fan and lead to insufficient air flow volume and thus affecting the unit’s
performance.
(7) Install the outdoor unit at a place that is convenient for it to be connected
to the indoor unit.
(8) Away from any object that may get the air conditioner generating noise.
(9) Install the outdoor unit at a place where condensate can be easily
drained.
3.1.2 Unit Dimension
WARNING
(1) Install the indoor unit in a location which can withstand a load of at least five
times the weight of the main unit and which will not amplify sound or vibration.
(2) If the installation location is not strong enough, the indoor unit may fall and
cause injuries.
(3) If the job is done with the panel frame only, there is a risk that the unit will
come loose. Please take care.

DC Inverter Floor Ceiling Type Unit
9
(1) Indoor Unit
NOTICE
Drilling of ceiling opening and installation of air conditioner must be performed by
professionals!
Unit:mm
Dimensions
Model
A B C D H
CH-IF035NK
870
235
812
318
665
CH-IF050NK
870
235
812
318
665
CH-IF071NK1200 235 1142 318 665
CH-IF100NK
1200
235
1142
318
665
CH-IF125NK
1200
235
1142
318
665
CH-IF140NK
1570
235
1512
318
665
CH-IF160NK
1570
235
1512
318
665
A
B
H
C
D

DC Inverter Floor Ceiling Type Unit
10
(2) Outdoor Unit
CH-IU035NK, CH-IU050NK, CH-IU071NK, CH-IU100NK.
A
F
D
E
G
C
B

DC Inverter Floor Ceiling Type Unit
11
CH-IU125NK, CH-IU140NK, CH-IU160NK, CH-IU125NM,
CH-IU140NM, CH-IU160NM.
Unit: mm
Dimensions
Model
A B C D E F G
CH-IU035NK
818
378
596
550
348
887
302
CH-IU050NK
818
378
596
550
348
887
302
CH-IU071NK892 396 698 560 364 952 340
CH-IU100NK
920
427
790
610
395
1002
370
CH-IU125NK
940
530
820
610
486
/
460
CH-IU125NM 940 530 820 610 486 / 460
CH-IU140NK
940
530
820
610
486
/
460
CH-IU140NM
940
530
820
610
486
/
460
CH-IU160NK
940
530
820
610
486
/
460
CH-IU160NM
940
530
820
610
486
/
460
A
B
C
D
E
G

DC Inverter Floor Ceiling Type Unit
12
3.1.3 Diagram of Unit Installation Space and Location
(1) Diagram of installation space and location for outdoor unit (Notice: for
best performance of the outdoor unit, make sure its installation space
conforms to the following installation dimensions).
1) When one outdoor unit is to be installed.
A~E Hb Hd H
(mm)
a
b
c
d
e
B
—
≥100
A,B,C,
—
≥300
≥100
≥100
B,E
—
≥100
≥1000
A,B,C,E
—
≥300
≥150
≥150
≥1000
D
—
≥1000
D,E
—
≥1000
≥1000
B,D
Hb＜Hd
Hd＞H
≥100
≥1000
Hb＞Hd
Hd＜H
≥100
≥1000
B,D,E
Hb＜Hd
Hb≤1/2 H
≥250
≥2000
≥1000
1/2 H＜Hb≤H
≥250
≥2000
≥1000
Hb＞H
Prohibited
Hb＞Hd
Hd≤1/2 H
≥100
≥2000
≥1000
1/2 H＜Hd≤H
≥200
≥2000
≥1000
Hd＞1/2 H
Prohibited

DC InverterFloor Ceiling Type Unit
13

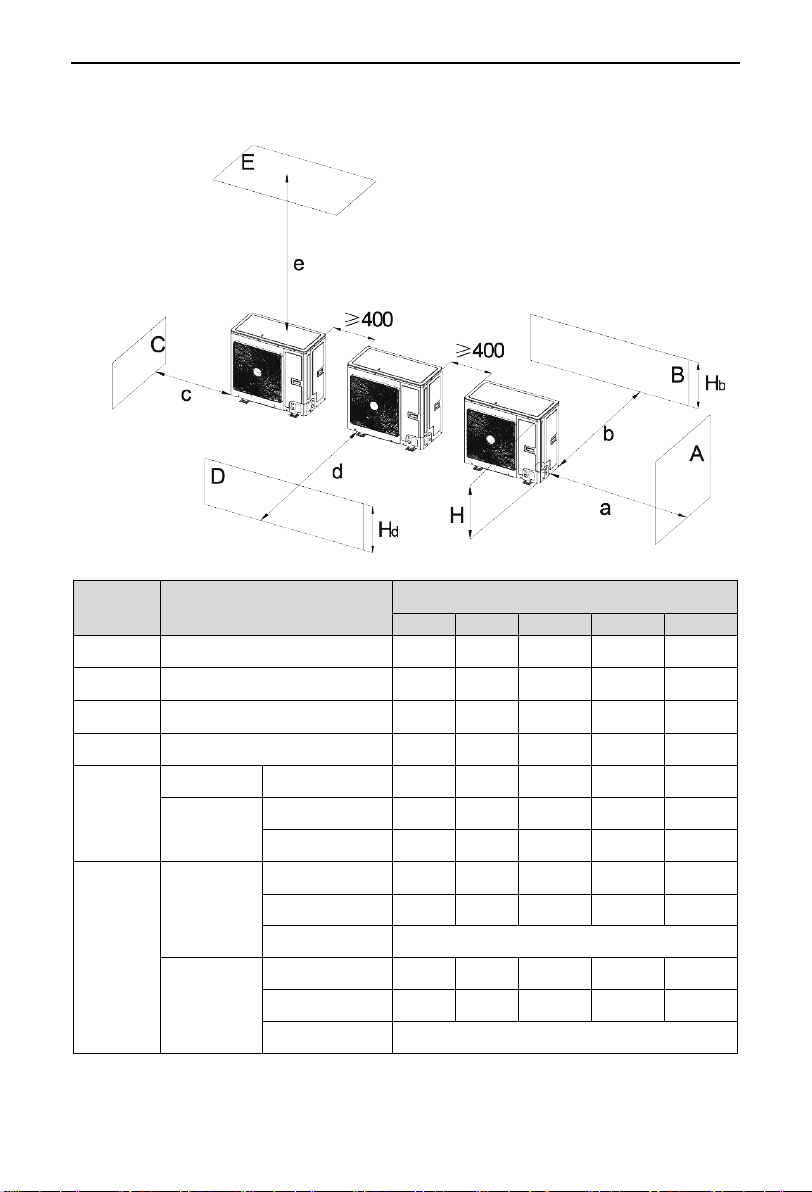

2) When two or more outdoor units are to be installed side by side.
A~E HbH
dH (mm)
a
b
c
d
e
A,B,C — ≥300 ≥300 ≥1000
A,B,C,E — ≥300 ≥300 ≥1000 ≥1000
D — ≥2000
D,E — ≥2000 ≥1000
B,D
Hb＜HdHd＞H≥300 ≥2000
Hb＞HdHd≤1/2 H ≥250 ≥2000
1/2 H＜Hd≤H≥300 ≥2500
B,D,E
Hb＜Hd
Hb≤1/2 H ≥300 ≥2000 ≥1000
1/2 H＜Hb≤H ≥300 ≥2500 ≥1000
Hb＞H Prohibited
Hb＞Hd
Hd≤1/2 H ≥250 ≥2500 ≥1000
1/2 H＜Hd≤H ≥300 ≥2500 ≥1000
Hd＞1/2 H Prohibited

DC Inverter Floor Ceiling T ype Unit
14

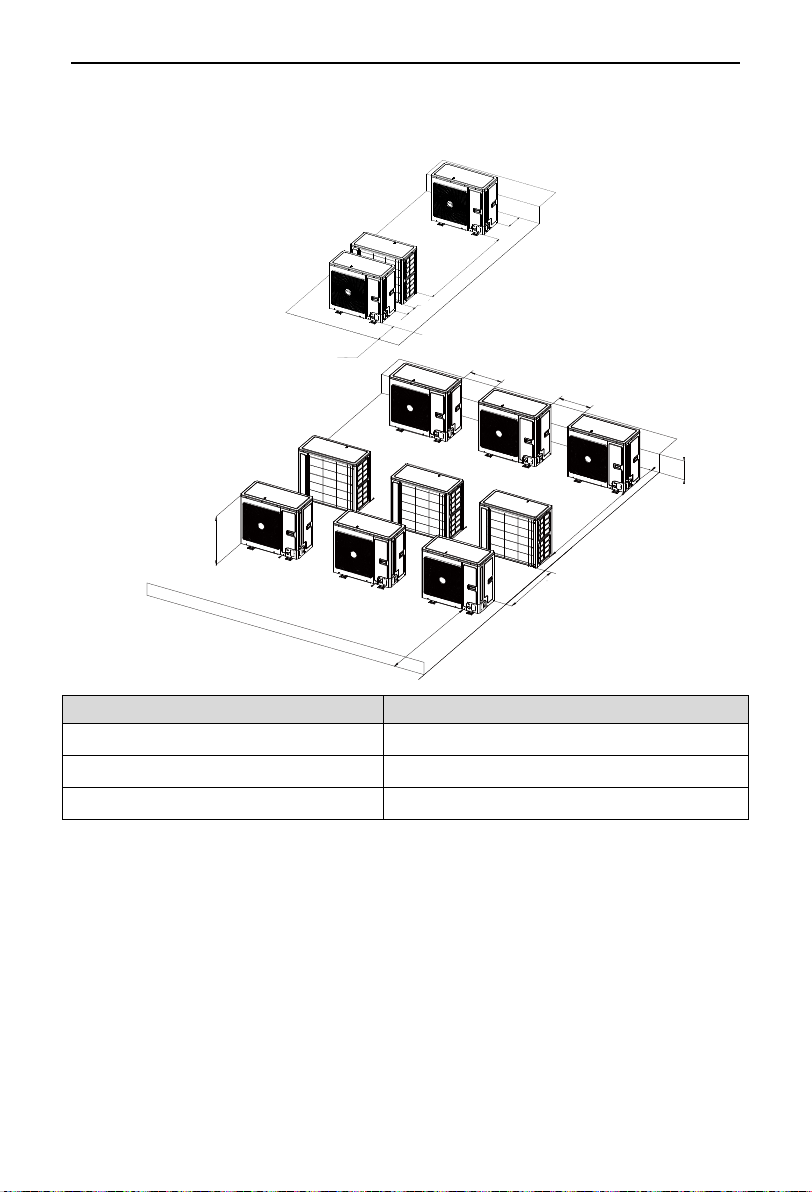

3) When outdoor units are installed in rows.
≥200
≥4000
≥200
≥2000
Hb H
(mm)
Hb≤1/2 H
b≥250
1/2 H＜Hb≤H
b≥300
Hb＞H
Prohibited
≥400
≥400
≥4500
≥
2000
≥
600
Hb
H
b

DC Inverter Floor Ceiling T ype Unit
15
4) When outdoor units are installed one above another.
Unit: mm
400
500
2000
400
500
300
(2) Diagram of installation location and space for indoor unit (Notice: for the
best performance of indoor unit, make sure its installation space conforms
to the following installation dimensions).
1) Install the unit at a place where is strong enough to withstand the
weight of the unit.
2) The air inlet and outlet of the unit should never be clogged so that the
airflow can reach every corner of the room.
3) Leave service space around the unit.

DC Inverter Floor Ceiling Type Unit
16
Floortype Unit: mm
Ceiling type
4) Install the unit where the drain pipe can be easily installed.
5) The space from the unit to the ceiling should be kept as much as possible
so as for more convenient service.
3.2 Unit Installation
3.2.1 Indoor Unit Installation
3.2.1.1 Preparation for Installing the Indoor Unit
(1) Dismantle the clasp in the left and right grille and take down the screws.
(2) Take down the fixed screws in the left and right side plate.
(3) Turn on the left and right side plate in arrow direction.
