Toyotomi HTN/HTG-09IV User manual

User’s Manual
Οδηγίες Χρήσης
ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΟΙΧΟΥ ΤΥΠΟΥ INVERTER
WALL MOUNTED AIR CONDITIONER INVERTER TYPE
MODELS/ΜΟΝΤΕΛΑ
HTN/HTG-09IV
HTN/HTG-12IV
Thank you for purchasing our product.
tBefore using this product, be sure to read this Instruction Manual to ensure proper usage. Please
keep this manual for later reference.
tImproper use of this product may result in a malfunction, failure, unexpected accident, or create
a potential hazard.
Ευχαριστούμε για την επιλογής σας στο κλιματιστικό TOYOTOMI.
Για τη σωστή του χρήση παρακαλούμε διαβάστε το εγχειρίδιο χρήσης προσεκτικά, πριν θέσετε
τη μονάδα σε λειτουργία και κρατήστε το σε καλή κατάσταση για μελλοντική αναφορά.

2GB
2087.5

3
B
GB
Precautions
Do not connect air conditioner to multi-purpose socket.
This appliance can be used by children aged from 8
Operation and Maintenance
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not spray water on indoor unit. It may cause electric
shock or malfunction.
Otherwise, it may cause fire hazard.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
years and above and persons with reduced physical,
sensory ormental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Do not wash the air conditioner with water to avoid
electric shock.
After removing the filter, do not touch fins to avoid injury.
Do not use fire or hair dryer to dry the filter to avoid
deformation or fire hazard.
Do disconnect power supply when cleaning air
conditioner. Otherwise, it may cause electric shock.
.
WARNING

4GB
Do not block air outlet or air inlet. It may cause
malfunction.
remote controller may be broken.
ƔPower cord is overheating or damaged.
ƔThere’s abnormal sound during operation.
ƔCircuit break trips off frequently.
ƔAir conditioner gives off burning smell.
ƔIndoor unit is leaking.
contact the dealer or qualified professionals for service.

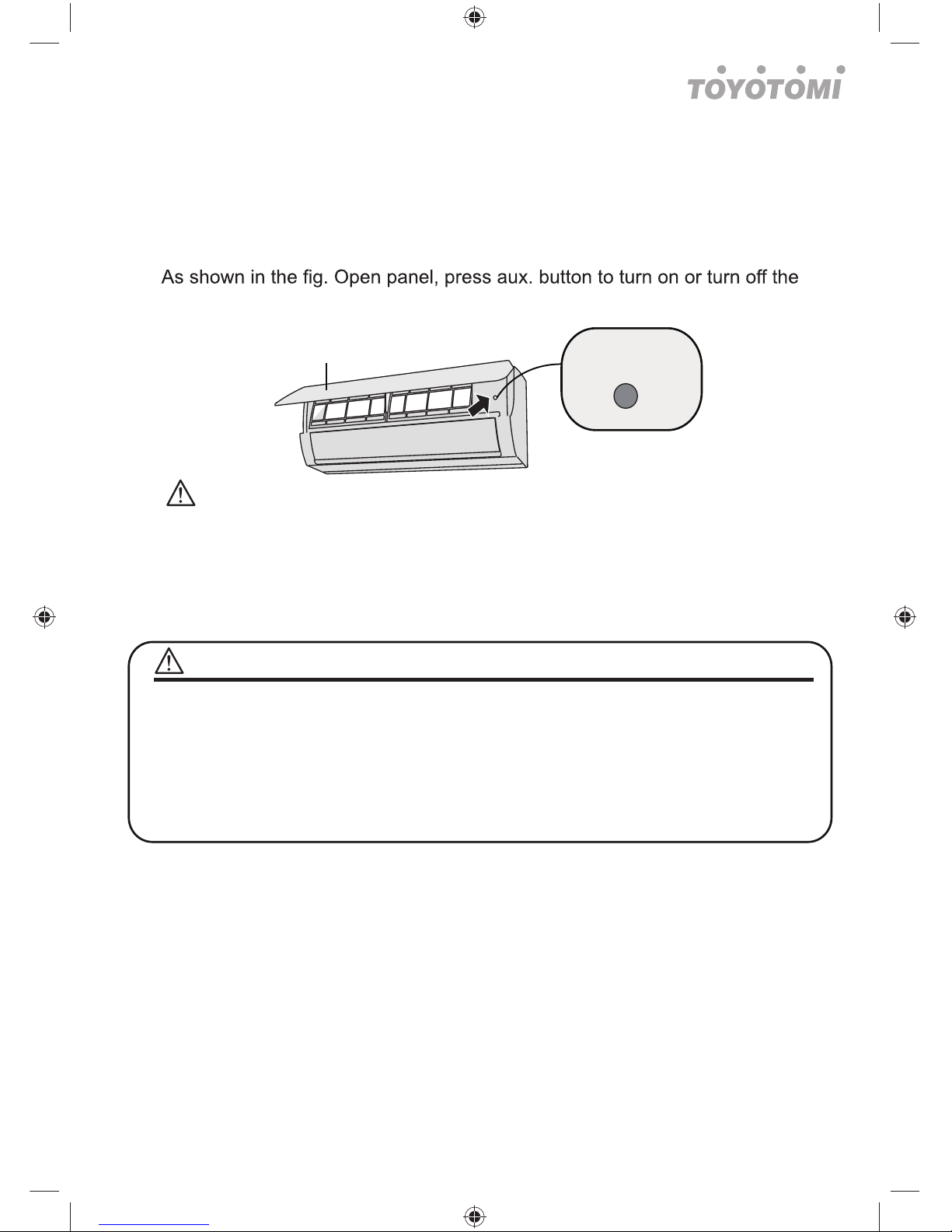

When turning on or turning off the unit by emergency
operation switch, please press this switch with an insulating
object other than metal.
outlet. It may cause personal injury or damage.
Precautions
conditioner and disconnect power immediately，and then
If the air conditioner operates under abnormal conditions,
it may cause malfunction，electric shock or fire hazard.
Do not spill water on the remote controller, otherwise the
electric shock or damage. Please contact dealer when
you need to repair air conditioner.
Do not repair air conditioner by yourself. It may cause
objects. It may cause damage or personal injury.
Do not step on top panel of outdoor unit, or put heavy
When below phenomenon occurs, please turn off air
Do not extend fingers or objects into air inlet or air
Maintenance must be performed by qualified
professionals. Otherwise, it may cause personal injury
or damage.
WARNING

5
B
GB
Do install the circuit break. If not, it may cause malfunction.
of at least 3mm in all poles should be connected in fixed
wiring.
magnet buckle and heating buckle function, it can protect
the circuit-short and overload.
power supply circuit and circuit break.
Precautions
note the following table.Air switch should be included
Make sure the power supply matches with the
requirement of air conditioner.Unstable power supply or
incorrect wiring or malfunction. Please install proper power
supply cables before using the air conditioner.
An all-pole disconnection switch having a contact separation
Must follow the electric safety regulations when installing
the unit.
grounding wire of power socket.
Properly connect the live wire, neutral wire and
any work related to electricity and safety.
Be sure to cut off the power supply before proceeding
Including an circuit break with suitable capacity, please
Air Conditioner should be properly grounded. Incorrect
Don't use unqualified power cord.
grounding may cause electric shock.
According to the local safety regulations, use qualified
Installation must be performed by qualified professionals.
Otherwise, it may cause personal injury or damage.
Attachment
WARNING

6GB
Installation must be performed in accordance with the
persons in order to avoid a hazard.
must be properly grounding with specialized grounding
device by a professional. Please make sure it is always
grounded effectively, otherwise it may cause electric shock.
The appliance must be positioned so that the plug is
accessible.
If the length of power connection wire is insufficient，please
contact the supplier for a new one. Avoid extending the
wire by yourself.
All wires of indoor unit and outdoor unit should be
connected by a professional.
national wiring regulations.
requirement of NEC and CEC by authorized personnel
only
Precautions
wire, which can't be used for other purposes.
The grounding resistance should comply with national
electric safety regulations.
The air conditioner is the first class electric appliance. It
keep the interconnection cable away from the copper
tube.
The temperature of refrigerant circuit will be high, please
the manufacturer, its service agent or similarly qualified
If the supply cord is damaged, it must be replaced by
The yellow-green wire in air conditioner is grounding
The appliance shall be installed in accordance with
Do not put through the power before finishing installation.
WARNING

7
B
GB
The indoor unit should be installed close to the wall
reachable after finishing installation
far away from animals or plants.If it is unavoidable,
please add the fence for safety purpose.
Precautions
If you need to relocate the air conditioner to another
place, only the qualified person can perform the work.
Otherwise, it may cause personal injury or damage.
must be installed in the line.
For the air conditioner without plug, an circuit break
Select a location which is out of reach for children and
For the air conditioner with plug ，the plug should be
Working temperature range
Indoor side DB/WB(°C) Outdoor side DB/WB(°C)
62/3432/23gniloocmumixaM
81/42-/72gnitaehmumixaM
NOTICE:
WARNING
The operating temperature range (outdoor temperature) for cooling is
-15°C~43°C;
Heating temperature range for the model without electric heating belt
for chassis is -15°C~24 Heating temperature range for the model with
electric heating belt for chassis is -20°C~24°C .

8GB
BLOW
BLOW

9
B
GB

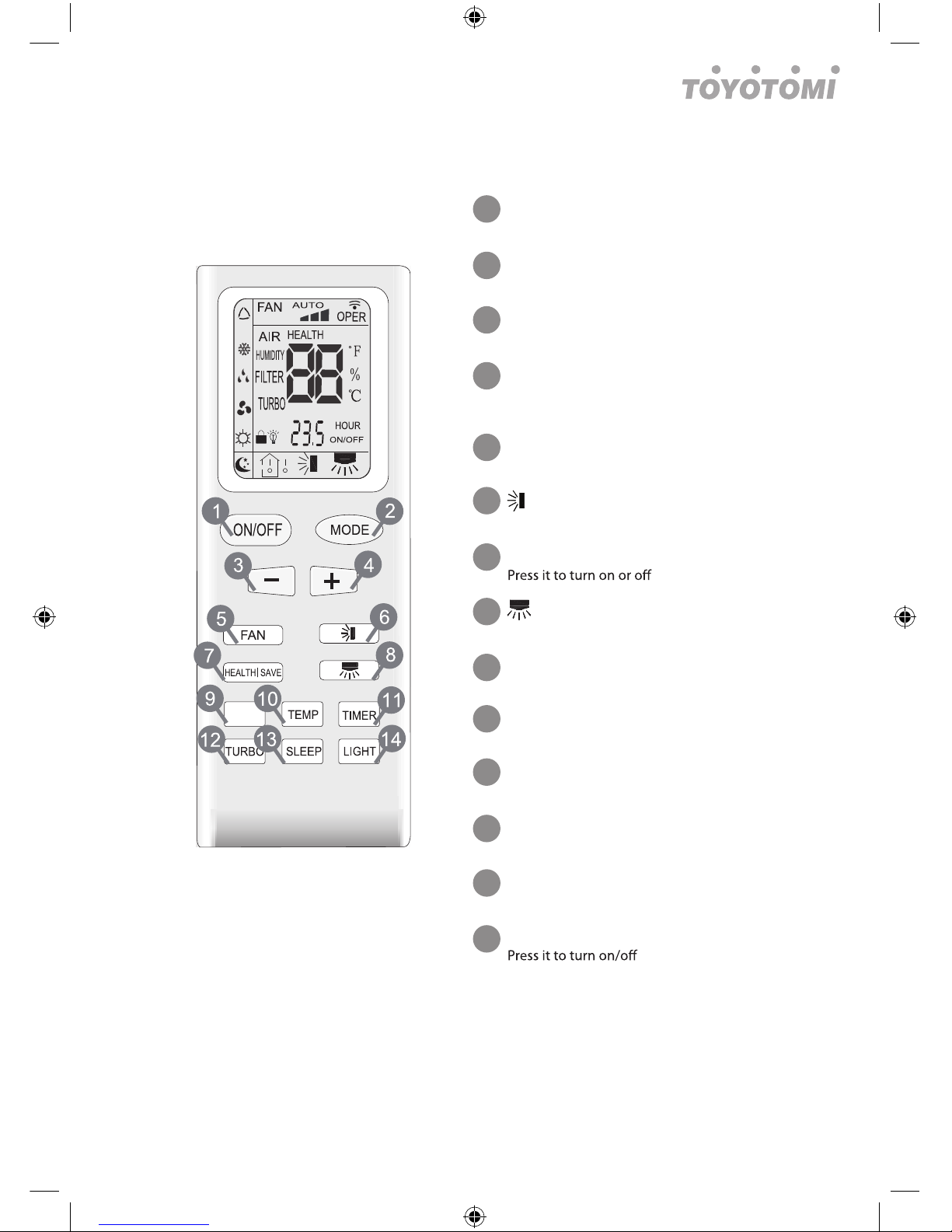

Buttons on remote controller
ON/OFF
Press it to start or stop operation.
Press it to set up & down swing angle.
TIMER
Press it to set timer ON/ timer OFF.
-
Press it to decrease temperature setting.
HEALTH SAVE (page 9)
health function.
TURBO
+
Press it to increase temperature setting.
Press it to set left & right swing angle.
(not available)
SLEEP
MODE
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT).
BLOW
FAN
Press it to set fan speed.
TEMP
LIGHT
the light.
1
6
11
2
7
12
3
8
13
4
9
14
5
10
BLOW
BLOW

10 GB

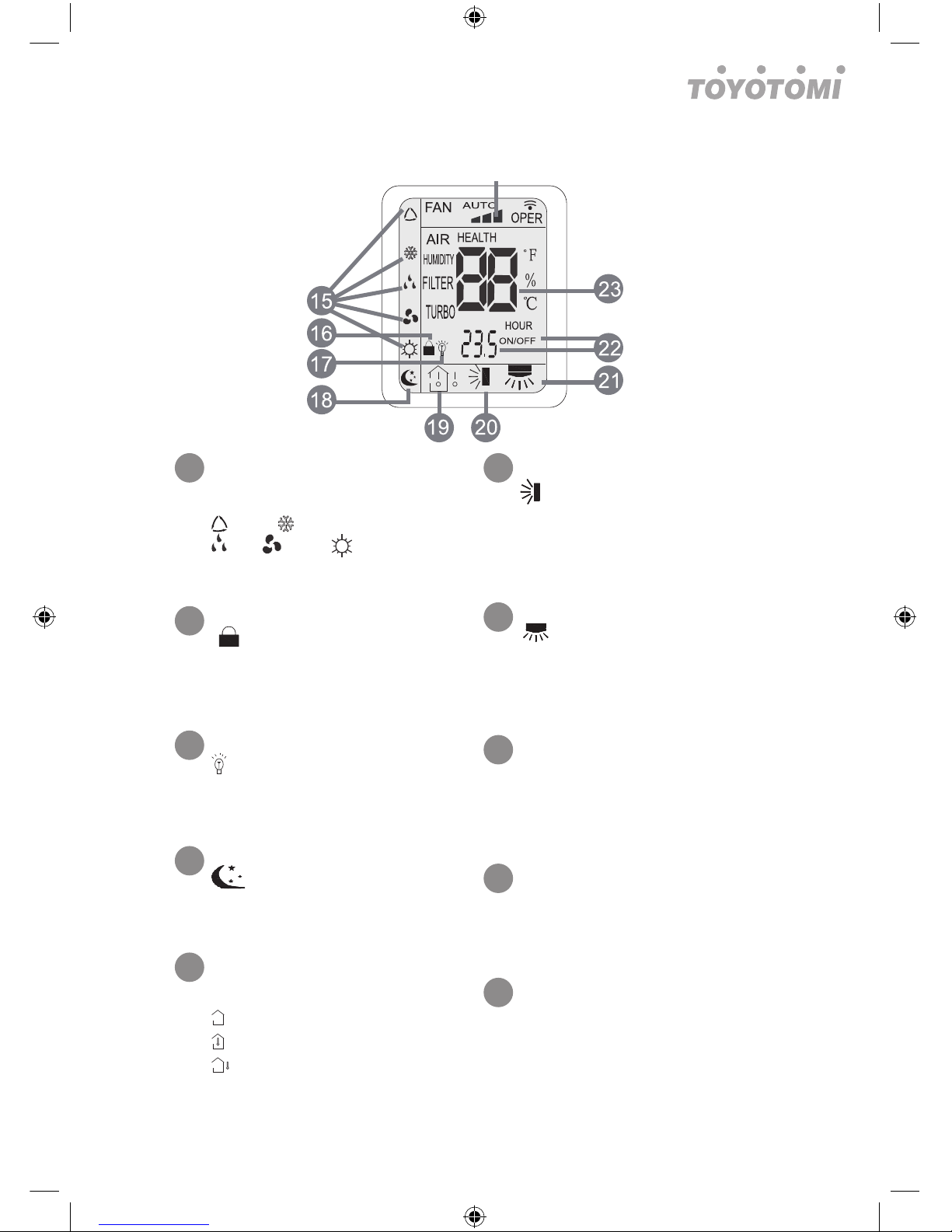

Introduction for buttons on remote controller
MODE icon
If MODE button is pressed,
current operation mode icon
AUTO, COOL,
DRY, FAN or HEAT
only for heat pumpmodels) will show.
Up & down swing icon
is displayed when pressing
the up & down swing down button.
Press this button again to clear the
display.
LOCK icon
is displayed by pressing “+”
and “-” buttons simultaneously. Press
them again to clear the display.
SET TIME display
After pressing TIMER button,ON or
OFF will blink.This area will show
the set time.
Left & right swing icon
is displayed when pressing the
left & right swing button.Press this
button again to clear the display.
DIGITAL display
This area will show the set temperature.
In SAVE mode,”SE” will be displayed.
FAN SPEED display
Press FAN button to select the
desired fan speed setting(AUTOLow-
Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
LIGHT icon
is displayed by pressing the
LIGHT button. Press LIGHT button
again to clear the display.
TEMP icon:
Pressing TEMP button,
(set temperature),
(indoor ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
This is not available in this model.
SLEEP icon
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
15 20
21
22
23
24
17
18
19
16
BLOW

11
B
GB
Introduction for buttons on remote controller
Remote Controller Description
ON/OFF:
the unit.
MODE
Each time you press this button, a mode is selected in a sequence that goes from AUTO, COOL,
DRY, FAN, and HEAT *, as the following:
*Note: Only for models with heating function.
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.
Press this button to decrease set temperature. Hold it down for above 2 seconds to
rapidly decrease set temperature. In AUTO mode, set temperature is not adjustable.
+
Press this button to increase set temperature. Hold it down for above 2 seconds to
rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.
FAN
This button is used for setting Fan Speed in the sequence that goes from AUTO,
, to then back to Auto.
Auto
Low speed Medium speed High speed
tPress button to start or stop up & down swing function.The remote controller defaults to
simple swing condition.
tPress + button and button at the same time at unit OFF to switch between
simple swing and static swing; blinks for 2 seconds.
tIn static swing condition, pressing button, the swing angle of up & down louver
changes as below:
1
2
3
4
5
6

12 GB
Introduction for buttons on remote controller

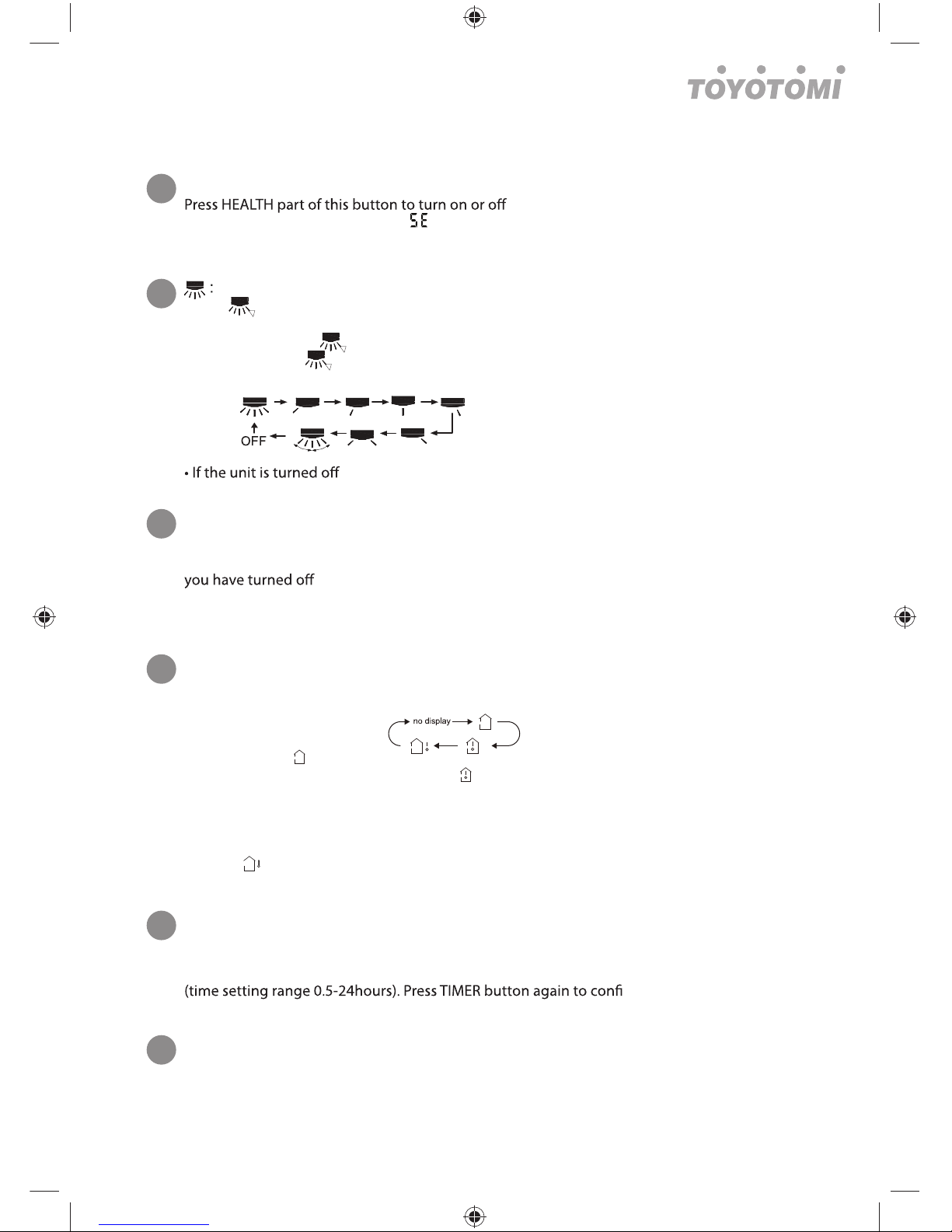

HEALTH SAVE:
HEALTH function.
Pressing SAVE part of this button,
is displayed and the unit goes into SAVE operation
mode. Press SAVE part of the button again to cancel SAVE function. During SAVE
operation, the temperature and fan speed is not adjustable.
tPress button to start or stop left & right swing function.The remote controller defaults to
simple swing condition.
dnanottub+sserPtbutton at the same time at unit OFF to switch between simple swing
and static swing; blinks for 2 seconds.
sasegnahcrevuolthgir&tfelfoelgnagniwseht,nottubgnisserp,noitidnocgniwscitatsnIt
below:
during swing operation,the louver will stop at present position.
(Optional for some models)
BLOW:
Pressing BLOW button in COOL or DRY mode,the icon “BLOW”is displayed and the
indoor fan will continue operation for 2 minutes in order to dry the indoor unit even though
the unit.
After energization, BLOW OFF is defaulted. BLOW is not available in AUTO, FAN and
HEAT mode.
TEMP:
Press this button, you can see indoor set temperature, indoor ambient temperature
on indoor unit’s display. The setting on remote controller is selected circularly as below:
When selecting “ “ with remote controller or no display, temperature indicator on indoor unit
displays set temperature; When selecting with remote controller, temperature indicator on
indoor unit displays indoor ambient temperature; 3s later or within 3s it
receives other remote control signal that will return to display the setting temperature.
Caution:
This model hasn’t outdoor ambient temperature display function. While remote controller can
operate “ “and indoor unit displays set temperature.
It’s defaulted to display set temperature when turning on the unit.
t0OMZfor the models with temperature indicator on indoor unit.
TIMER:
Press TIMER button at unit ON to set TIMER OFF; HOUR OFF blinks. Press TIMER
button at unit OFF to set TIMER ON; HOUR ON blinks. In this case, pressing + or -
button changes time setting. Holding downeither button rapidly changes time setting
rm setting; HOUR
ON/OFF stops blinking. If there is not any operation of button within 5 seconds during
HOUR ON/OFF blinking,TIMER setting will be cancelled.
TURBO:
Press this button to activate / deactivate the Turbo function which enables the unit to
reach the preset temperature in shortest time. In COOL mode, the unit will blow strong
cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air
at super high fan speed. (This function is not applicable for some models).
7
8
9
10
11
12

13
B
GB
Introduction for buttons on remote controller
SLEEP :
Press this button to go into the SLEEP operation mode. Press it again to cancel this
function. This function is available in COOL, HEAT (Only for models with heating
function) mode to maintain the most comfortable temperature for you.
LIGHT:
the display’s light. If the light is turned on , ,
disappears.
Combination of “+”and“-”buttons: About lock
Press “+” and “-” buttons simultaneously to lock or unlock the keypad. If the remote
controller is locked, is displayed. In this case, pressing any button, blinks
three times.
Combination of “MODE “ and “-” buttons:About switch between Fahrenheit and Centigrade.
unit OFF, press “+” MODE and “-” buttons simultaneously to switch between ʝand ʞ
Replacement of Batteries
1. Remove the battery cover plate from the rear of the remote controller.
gure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
Notes:
cause malfunction.
tIf the remote controller will not be used for a long time, please remove batteries to prevent
batteries from leaking.
tThe operation should be performed in its receiving range.
dnuosoeretsrotesVTehtmorfyawam1tpekebdluohstIt
sets.
tIf the remote controller does not operate normally, please
take the batteries out and reinsert them after 30 seconds.If it
still can’t operate properly, replace the batteries.
13
14
15
16
Sketch map for
replacing batteries

14 GB
Emergency operation
Clean and maintenance
air conditioner. When the air conditioner is turned on, it will operate under
auto mode.
aux. button
panel
WARNING:
Use insulated object to press the auto button
If remote controller is lost or damaged, please use auxiliary button to turn
on or turn off the air conditioner. The operation in details are as below:
WARNING
NOTICE:
ŶTurn off the air conditioner and disconnect the power before cleaning the air
conditioner to avoid electric shock.
Ŷ'RQRWZDVKWKHDLUFRQGLWLRQHUZLWKZDWHUWRDYRLGHOHFWULFVKRFN
Ŷ'RQRWXVHYRODWLOHOLTXLGWRFOHDQWKHDLUFRQGLWLRQHr.
Clean surface of indoor unit
When the surface of indoor unit is dirty, it is recommended to use a soft dry cloth
or wet cloth to wipe it.
Ɣ'RQRWUHPRYHWKHSDQHOZKHQFOHDQLQJLW

15
B
GB
Clean and Maintenance
1
2
3
4
Open panel
Pull out the panel to a certain
angle as shown in the g.
Remove the lter as in-
dicated in the g.
ƔUse dust catcher or water to
clean the lter.
ƔWhen the lter is very dirty, use
the water (below 45 ) to clean
it, and then put it in a shady
and cool place to dry.
Install the lter and then close the
panel cover tightly.
ŶThe lter should be cleaned every three months. If there is much dust in the
operation environment, clean frequency can be increased.
ŶAfter removing the lter, do not touch ns to avoid injury.
ŶDo not use re or hair dryer to dry the lter to avoid deformation or re hazard.

16 GB
Clean and Maintenance
1. Check whether air inlets and air outlets are blocked.
2. Check whether air switch, plug and socket are in good condition.
3. Check whether lter is clean.
4. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
5. Check whether drainage pipe is damaged.
1. Disconnect power supply.
2. Clean lter and indoor unit’s panel.
3. Check whether mounting bracket for outdoor unit is damaged or corroded.
If yes, please contact dealer.
Notice for recovery
1. Many packing materials are recyclable materials.
Please dispose them in appropriate recycling unit.
2. If you want to dispose the air conditioner, please contact local dealer or
consultant service center for the correct disposal method.

17
B
GB
Malfunction analysis
General phenomenon analysis
Please check below items before asking for maintenance. If the malfunction still
can’t be eliminated, please contact local dealer or qualified professionals.
noituloSsmetikcehCnonemonehP
Indoor unit
can’t receive
remote
controller’s
signal or
remote
controller
has no
action.
ƔWhether it's interfered severely
(such as static electricity,stable
voltage)?
ƔWhether remote controller is
within the signal receiving
range?
ƔWhether there are obstacles?
ƔWhether remote controller is
pointing at the receiving
window?
ƔIs sensitivity of remote contro-
ller low; fuzzy display and no
display?
ƔNo display when operating
remote controller?
ƔFluorescent lamp in room?
ƔPull out the plug. Reinsert
the plug after about 3min, and
then turn on the unit again.
ƔSignal receiving range is 8m.
ƔRemove obstacles.
Ɣ
Select proper angle and point
the remote controller at the re-
ceiving window on indoor unit.
ƔCheck the batteries. If the
power of batteries is too low,
please replace them.
ƔTake the remote controller
close to indoor unit.
ƔTurn off the fluoresent lamp
and then try it again.
ƔCheck whether remote cont-
roller appears to be damaged.
If yes, replace it.
No air
emitted
from
indoor
unit
ƔAir inlet or air outlet of indoor
unit is blocked?
ƔEliminate obstacles.
ƔUnder heating mode, indoor
temperature is reached to set
temperature?
ƔAfter reaching to set temper-
ature, indoor unit will stop bl-
owing out air.
ƔHeating mode is turned on just
now?
ƔIn order to prevent blowing
out cold air, indoor unit will be
started after delaying for sev-
eral minutes, which is a nor-
mal phenomenon.

18 GB
Malfunction analysis
ƔPower failure?
ƔIs plug loose?
ƔAir switch trips off or fuse is
burnt out?
ƔWiring has malfunction?
ƔUnit has restarted immediately
after stopping operation?
ƔWhether the function setting
for remote controller is
correct?
ƔReset the function.
ƔWait for 3min, and then turn
on the unit again.
ƔAsk professional to replace it.
ƔAsk professional to replace
air switch or fuse.
ƔReinsert the plug.
ƔWait until power recovery.
Air condit-
ioner can’t
operate
Mist is em-
itted from
indoor unit’s
air outlet
ƔIndoor temperature and hum-
idity is high?
ƔBecause indoor air is cooled
rapidly. After a while, indoor
temperature and humidity will
be decrease and mist will
disappear.
noituloSsmetikcehCnonemonehP
Set temper-
ature can’t
be adjusted
ƔUnit is operating under auto
mode?
ƔTemperature can’t be adju-
sted under auto mode.
Please switch the operation
mode if you need to adjust
temperature.
ƔYour required temperature
exceeds the set temperature
range?
ƔSet temperature range:
16 ~30 .
Cooling
(heating)
effect is
not good.
ƔVoltage is too low? ƔWait until the voltage
resumes normal.
ƔFilter is dirty? ƔClean the filter.
ƔSet temperature is in proper
range?
ƔAdjust temperature to proper
range.
ƔDoor and window are open? ƔClose door and window.

19
B
GB
noituloSsmetikcehCnonemonehP
Odours are
emitted
ƔWhether there’s odour source,
such as furniture and cigarette,
etc.
ƔEliminate the odour source.
ƔClean the filter.
ƔWhether there’s interference,
such as thunder, wireless
devices, etc.
ƔDisconnect power, put back
power, and then turn on the
unit again.
Outdoor
unit has
vapor
ƔHeating mode is turned on?
ƔDuring defrosting under he-
ating mode, it may generate
vapor, which is a normal
phenomenon.
“Water
flowing”
noise
ƔAir conditioner is turned on or
turned off just now?
ƔThe noise is the sound of
refrigerant flowing inside
the unit, which is a normal
phenomenon.
Cracking
noise
ƔAir conditioner is turned on or
turned off just now?
ƔThis is the sound of friction
caused by expansion and/or
contraction of panel or other
parts due to the change of
temperature.
Malfunction analysis
Air conditioner
operates nor-
mally suddenly

20 GB
Error code
E5
E8
U8
H6
C5
F1
F2
Troubleshooting
It can be eliminated after restarting the unit. If not , please
It can be eliminated after restarting the unit. If not,please
It can be eliminated after restarting the unit. If not,please
It can be eliminated after restarting the unit. If not,please
ŶWhen below phenomenon occurs, please turn off air conditioner and discon-
for service.
ƔPower cord is overheating or damaged.
ƔThere’s abnormal sound during operation.
ƔAir switch trips off frequently.
ƔAir conditioner gives off burning smell.
ƔIndoor unit is leaking.
ŶIf the air conditioner operates under abnormal conditions, it may cause
Malfunction analysis
Error Code
ƔWhen air conditioner status is abnormal, temperature indicator on indoor unit will
blink to display corresponding error code. Please refer to below list for identification
of error code.
Note: If there're other error codes, please contact qualified professionals for
service.
