COMBOLIGHT
Combo Classic
Suspended Series

COMBOLIGHT®Combo Classic™Suspended
Incandescent / Halogen
/ Metal Halide Lamps
Fluorescent Lamps
Diffusers / Louvers for
Fluorescent Lamps
Aircraft Cable
Suspension

• Combolight Suspendeded
fixtures with the ability to mix
various types of halogen, incan-
descent and metal halide lamps
with a variety of fluorescent
lamps
• Suitable for all types of
horizontal surface mounting
• Available standard architectural
finishes including black, white,
industrial silver and polished
chrome
• Available in many standard
configurations for easy ordering.
Custom configurations are avail-
able - contact the RSA factory
for details
• Available lamps include:
MR16 BIAX™
AR70 PLT
AR111 T5
PAR20 T5HO
PAR20MH
PAR30
PAR30MH
PAR38
PAR38MH
T4 G8.5MH
• Available with integral power
supplies (low voltage electronic
transformers or Aromat metal
halide ballasts)
• Standard double gimbal lamp
holders adjust 90º x 90º
• Fixture is all aluminum construction
with a durable powder coat finish
inside and out
Incandescent, Metal Halide &
Fluorescent Mixed Lamps
Suspended
Toys R Us Flagship Store
New York, NY

152

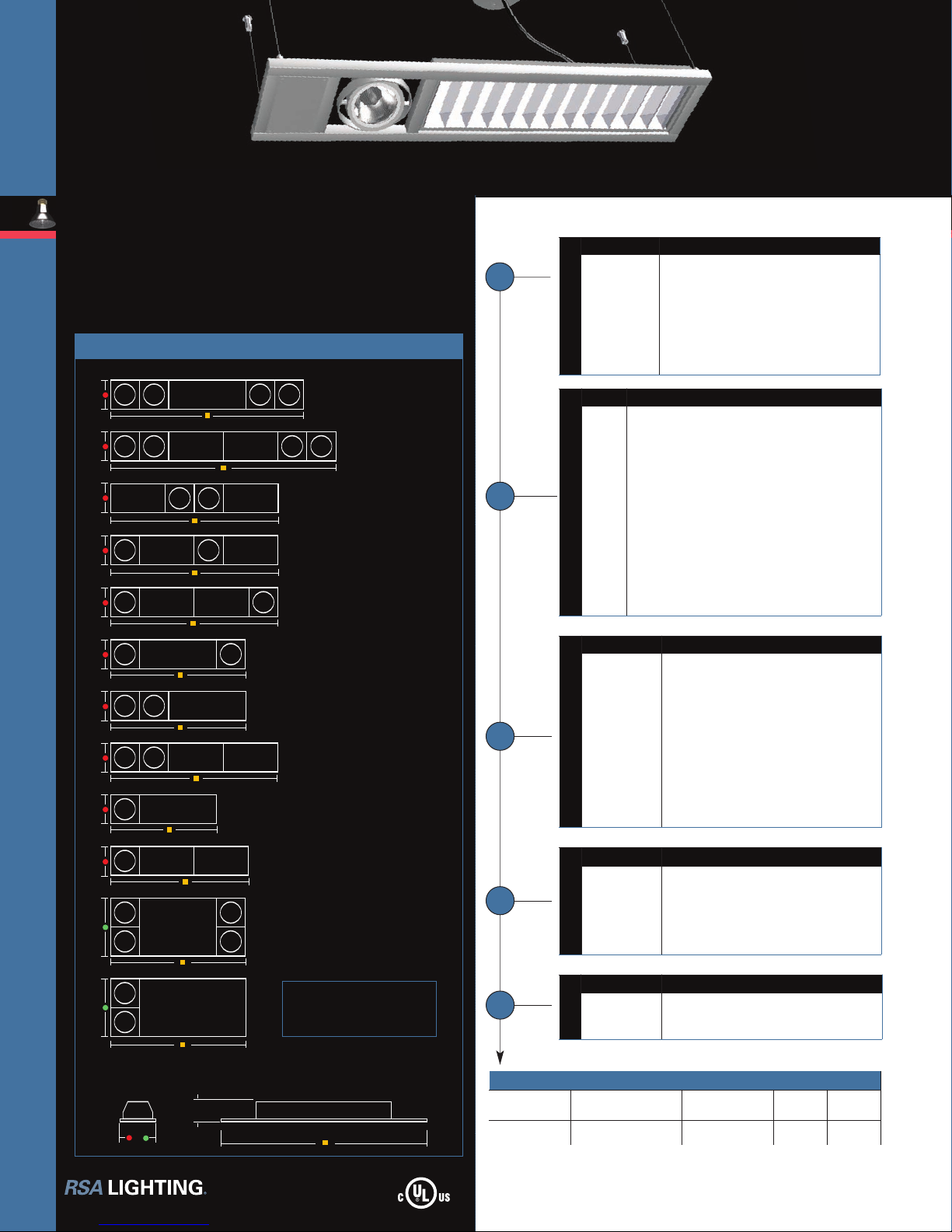

COMBO CLASSIC
SUSPENDED
COMBOLIGHT®SUSPENDED FLUORESCENT / MR16 MIX
FIXTURE
Item # Description
CS11650
CS11675
Combo Classic Suspended
MR16 12 volt 50 watts
Combo Classic Suspended
MR16 12 volt 75 watts
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light MR16 with 1 Center Fluor. Cell
4 Light MR16 with 2 Center Fluor. Cells
2 Light MR16 with 2 Outer Fluor. Cells
2 Light MR16 with 2 Alternate Fluor. Cells
2 Light MR16 with 2 Center Fluor. Cells
2 Light MR16 with 1 Center Fluor. Cell
2 Light MR16 with 1 Fluor. Cell
2 Light MR16 with 2 Fluor. Cells
1 Light MR16 with 1 Fluor. Cell
1 Light MR16 with 2 Fluor. Cells
4 Light MR16 Double Wide with 2 Fluor. Cells
2 Light MR16 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
ORDERING
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE

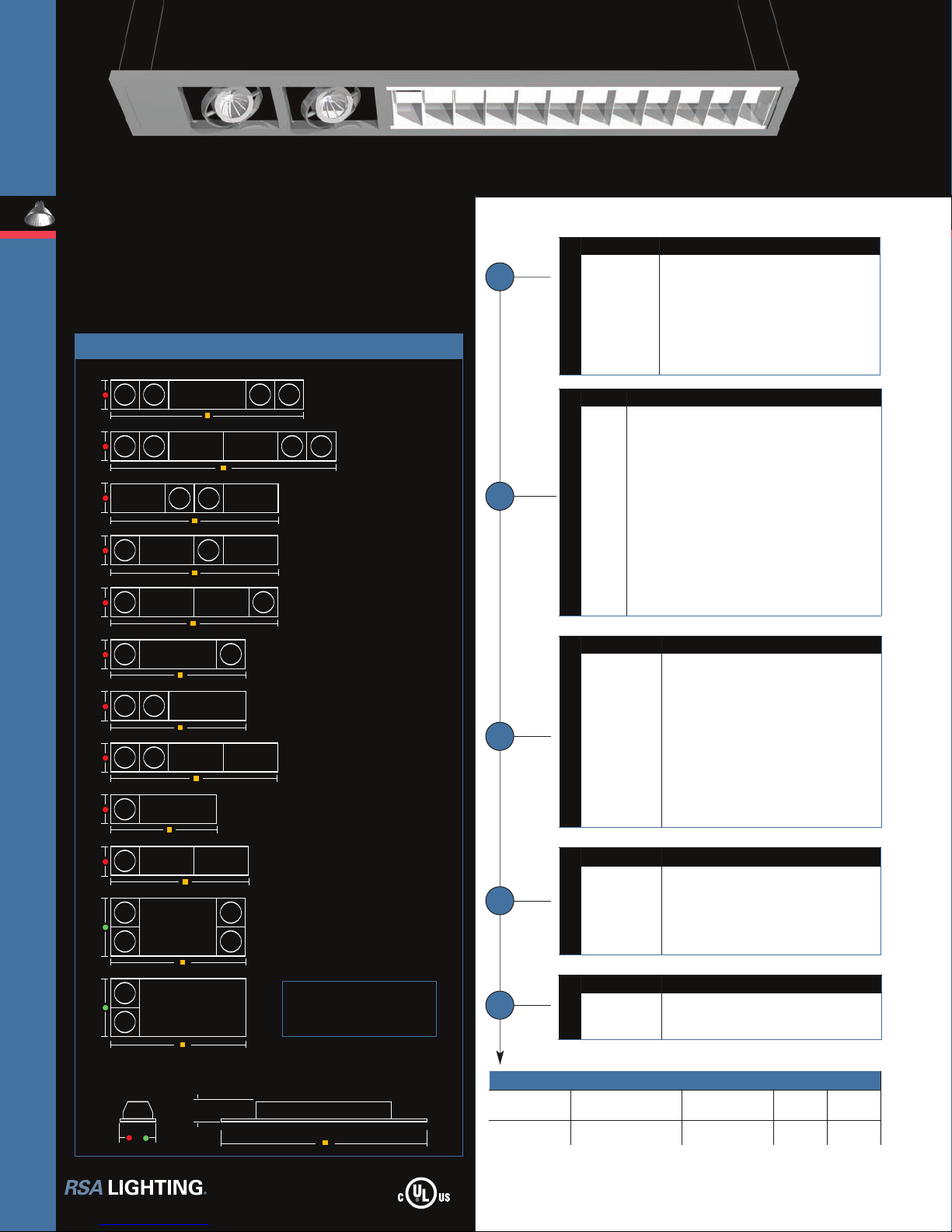

COMBO CLASSIC SUSPENDED
LOW VOLTAGE MR16
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Low Voltage MR16 lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS11675 G BX40 S 120 (Shown with Parabolic Louver)
See next page for
dimensions
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION
FLUORESCENT
CELL FINISH VOLTAGE
CS11675 G BX40 S 120
Combo Classic Suspended, Two light 75 Watt MR16 with One 40 Watt BIAX® Cell,
Industrial Silver Finish, 120 volts

MR16
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4 Light MR16 with
1Center Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n47.60” 47.60” 47.60” 30.10” 30.60” 31.60” 71.10” 83.10” 59.10” 71.10”
B
4 Light MR16 with
2Center Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n73.85” 73.85” 79.85” 38.85” 39.85” 41.85” 120.85” 144.85” 96.85” 120.85”
C
2 Light MR16 with
2Outer Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
D
2Light MR16 with
2 Alternate Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
E
2 Light MR16 with
2 Center Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
F
2 Light MR16 with
1 Center Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
G
2 Light MR16 with
1 Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
H
2 Light MR16 with
2 Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
I
1 Light MR16 with 1 Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n32.15” 32.15” 32.15” 14.65” 15.15” 16.15” 55.65” 67.65” 43.65” 55.65”
J
1 Light MR16 with
2 Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n58.40” 58.40” 58.40” 23.40” 24.40” 26.40” 105.40” 129.40” 81.40” 105.40”
K
4 Light MR16 Double Wide with
2 Fluor. Cells
l11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
L
2 Light MR16 Double Wide with
2 Fluor. Cells
l11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05”
n32.15” 32.15” 32.15” 14.65” 15.15” 16.15” 55.65” 67.65” 43.65” 55.65”

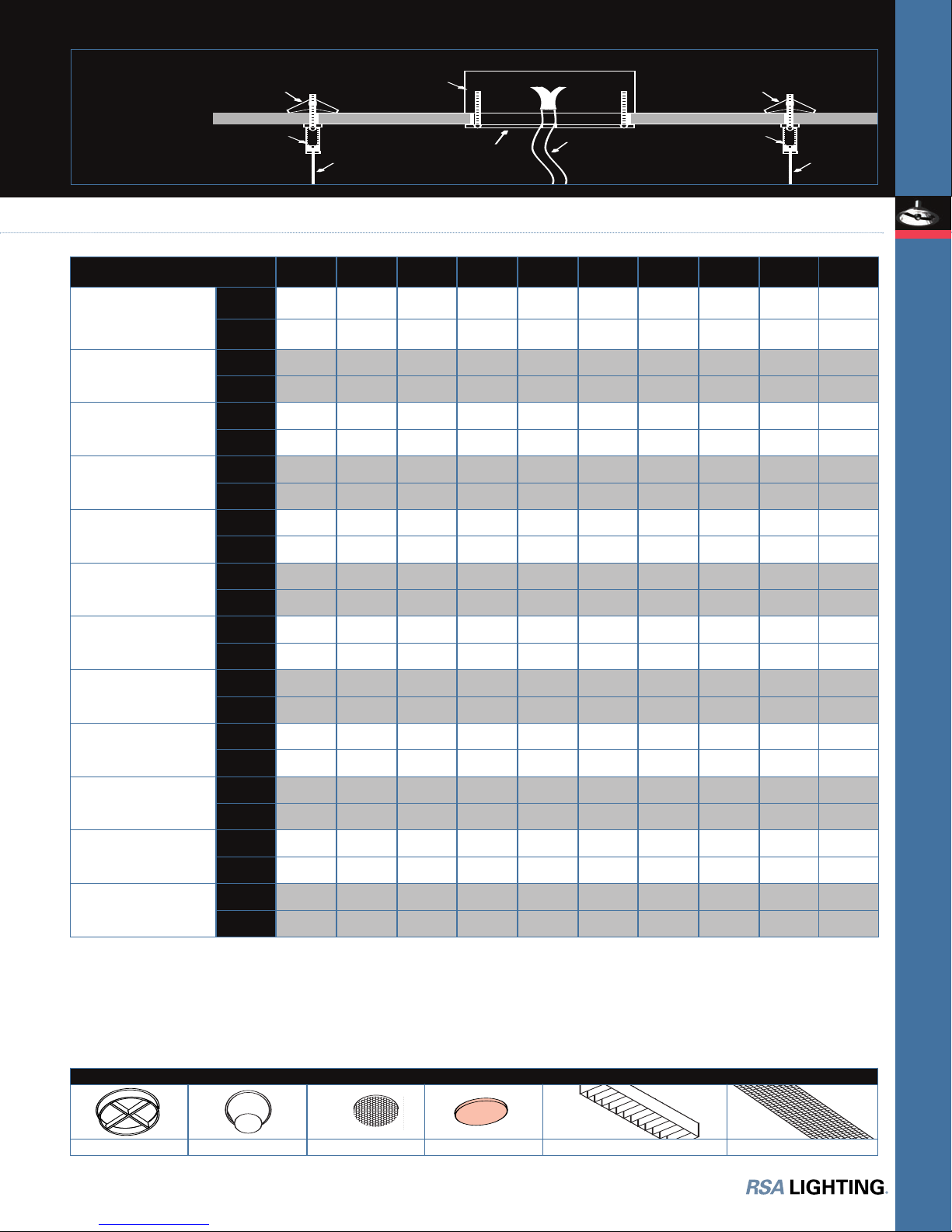

COMBO CLASSIC MR16 SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
153
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Integral low voltage electronic transformer with fuse and short
circuit protection
• Fluorescent cells available with a wide array of accessories such as
high transmission overlays and parabolic louvers (see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / MR16 MIX
COMBO CLASSIC
SUSPENDED

154

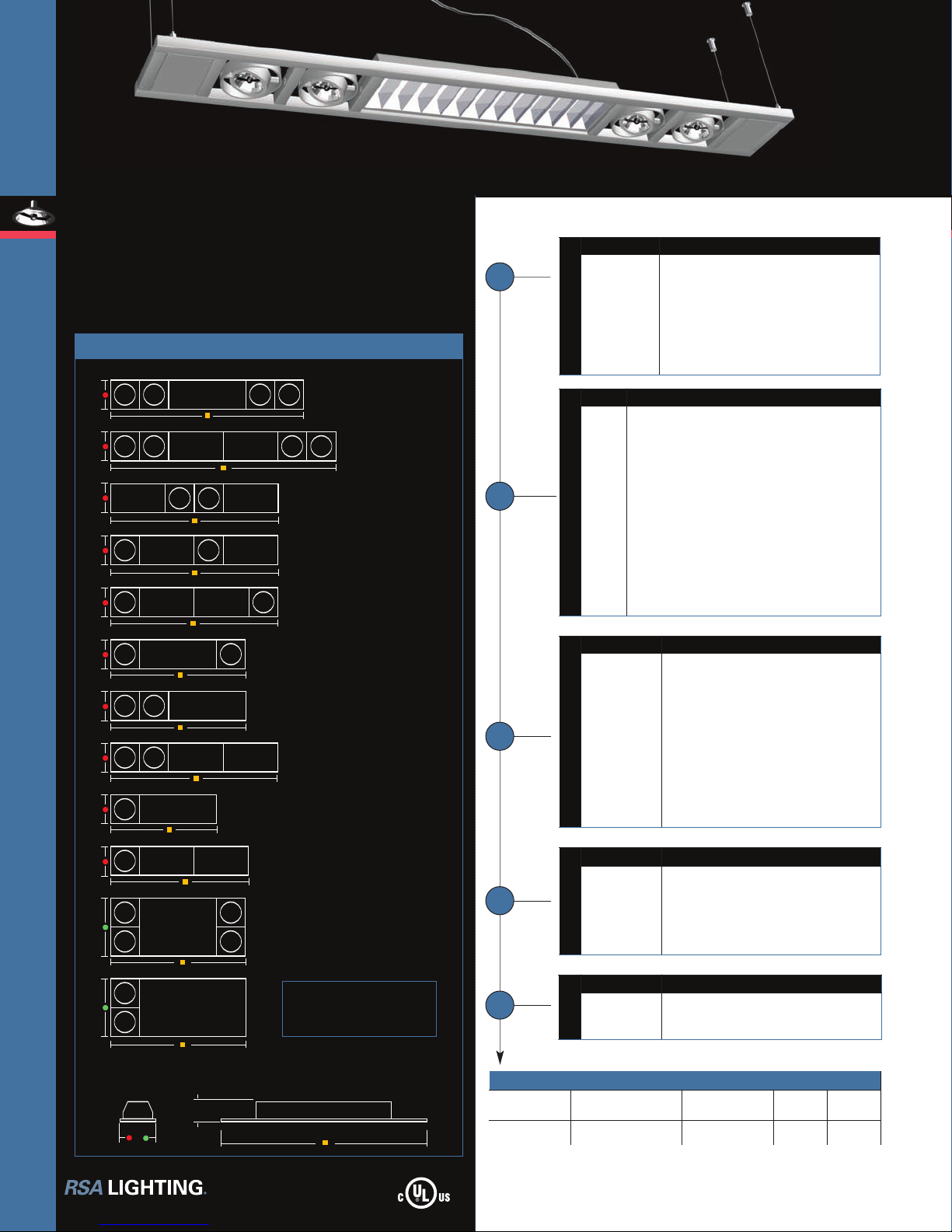

COMBOLIGHT®SUSPENDED FLUORESCENT / AR70 MIX
FIXTURE
Item # Description
CS17020
CS17050
Combo Classic Suspended
AR70 12 volt 20 watts
Combo Classic Suspended
AR70 12 volt 50 watts
ORDERING
1
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
LOW VOLTAGE AR70
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Low Voltage AR70 lamps with a choice of flu-
orescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS17020 A BX40 S 120 (Shown with parabolic louver)
See next page for
dimensions
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light AR70 with 1 Center Fluor. Cell
4 Light AR70 with 2 Center Fluor. Cells
2 Light AR70 with 2 Outer Fluor. Cells
2 Light AR70 with 2 Alternate Fluor. Cells
2 Light AR70 with 2 Center Fluor. Cells
2 Light AR70 with 1 Center Fluor. Cell
2 Light AR70 with 1 Fluor. Cell
2 Light AR70 with 2 Fluor. Cells
1 Light AR70 with 1 Fluor. Cell
1 Light AR70 with 2 Fluor. Cells
4 Light AR70 Double Wide with 2 Fluor. Cells
2 Light AR70 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
2
3
4
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION
FLUORESCENT
CELL FINISH VOLTAGE
CS17020 A BX40 S 120
Combo Classic Suspended, Four light 20 Watt AR70 with One 50 Watt BIAX® Cell,
Industrial Silver Finish, 120 volts
COMBO CLASSIC
SUSPENDED

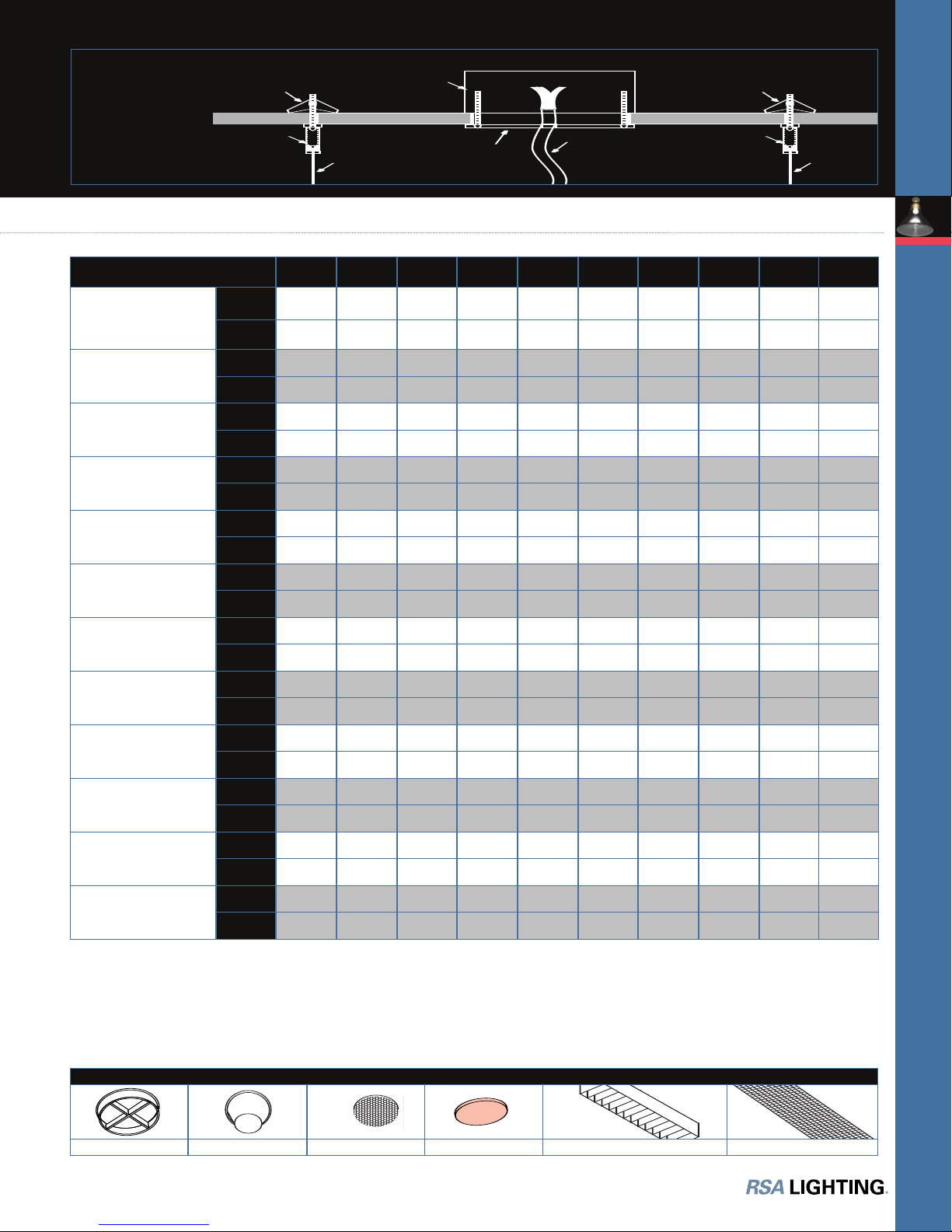

COMBO CLASSIC AR70 SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
155
AR70
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light AR70 with
1 Center Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n47.60” 47.60” 47.60” 30.10” 30.60” 31.60” 71.10” 83.10” 59.10” 71.10”
B
4Light AR70 with
2 Center Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n73.85” 73.85” 79.85” 38.85” 39.85” 41.85” 120.85” 144.85” 96.85” 120.85”
C
2Light AR70 with
2Outer Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
D
2Light AR70 with
2Alternate Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
E
2 Light AR70 with
2 Center Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
F
2 Light AR70 with
1 Center Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
G
2 Light AR70 with
1 Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
H
2 Light AR70 with
2 Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n63.55” 63.55” 63.55” 28.55” 29.55” 31.55” 110.55” 134.55” 86.55” 110.55”
I
1 Light AR70
with 1 Fluor. Cell
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n32.15” 32.15” 32.15” 14.65” 15.15” 16.15” 55.65” 67.65” 43.65” 55.65”
J
1 Light AR70 with
2 Fluor. Cells
l5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90” 5.90”
n58.40” 58.40” 58.40” 23.40” 24.40” 26.40” 105.40” 129.40” 81.40” 105.40”
K
4 Light AR70 Double Wide with
2 Fluor. Cells
l11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05”
n37.30” 37.30” 37.30” 19.80” 20.30” 21.30” 60.80” 72.80” 48.80” 60.80”
L
2 Light AR70 Double Wide with
2 Fluor. Cells
l11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05” 11.05”
n32.15” 32.15” 32.15” 14.65” 15.15” 16.15” 55.65” 67.65” 43.65” 55.65”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Integral low voltage electronic transformer with fuse and short
circuit protection
• Fluorescent cells available with a wide array of accessories such as
high transmission overlays and parabolic louvers (see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / AR70 MIX
COMBO CLASSIC
SUSPENDED

156
COMBOLIGHT®SUSPENDED FLUORESCENT / AR111 MIX
FIXTURE
Item # Description
CS211135
CS211150
CS211175
CS2111100
Combo Classic Suspended
AR111 12 volt 35 watts
Combo Classic Suspended
AR111 12 volt 50 watts
Combo Classic Suspended
AR111 12 volt 75 watts
Combo Classic Suspended
AR111 12 volt 100 watts
ORDERING
1
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION
FLUORESCENT
CELL FINISH VOLTAGE
CS211175 A BX50 S 120
Combo Classic Suspended, Four light 75 Watt AR111 with One 50 Watt BIAX® Cell,
Industrial Silver Finish, 120 volts
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE

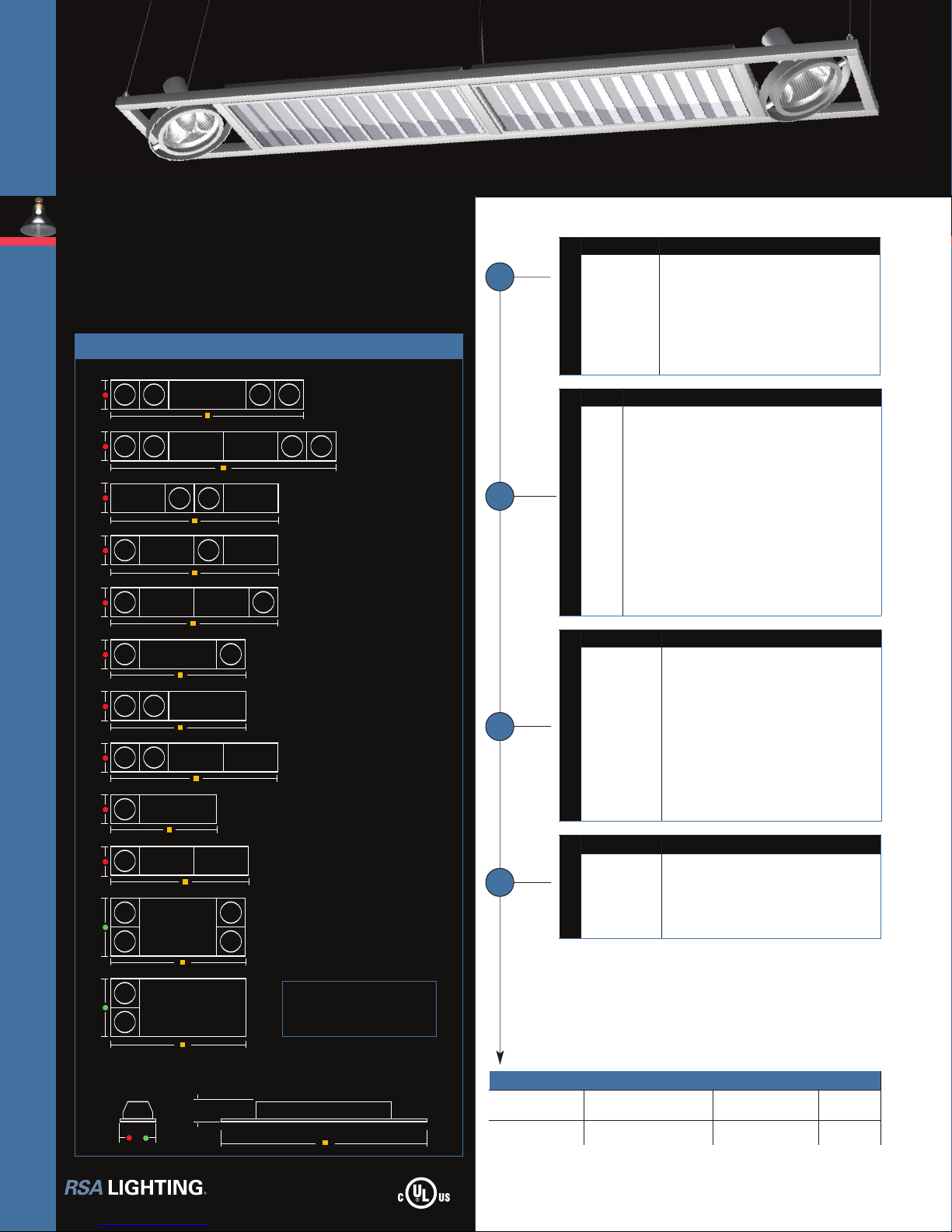

COMBO CLASSIC SUSPENDED
LOW VOLTAGE AR111
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Low Voltage AR111 lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS211175 A BX50 S 120 (Shown with parabolic louver)
See next page for
dimensions
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light AR111 with 1 Center Fluor. Cell
4 Light AR111 with 2 Center Fluor. Cells
2 Light AR111 with 2 Outer Fluor. Cells
2 Light AR111 with 2 Alternate Fluor. Cells
2 Light AR111 with 2 Center Fluor. Cells
2 Light AR111 with 1 Center Fluor. Cell
2 Light AR111 with 1 Fluor. Cell
2 Light AR111 with 2 Fluor. Cells
1 Light AR111 with 1 Fluor. Cell
1 Light AR111 with 2 Fluor. Cells
4 Light AR111 Double Wide with 2 Fluor. Cells
2 Light AR111 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
2
3
4
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC AR111 SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
157
AR111
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light AR111 with
1Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n53.60” 53.60” 53.60” 36.10” 36.60” 37.60” 77.10” 89.10” 65.10” 77.10”
B
4 Light AR111 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n79.85” 79.85” 79.85” 44.85” 45.85” 47.85” 126.85” 150.85” 102.85” 126.85”
C
2Light AR111 with
2 Outer Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
D
2Light AR111 with
2 Alternate Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
E
2 Light AR111 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
F
2 Light AR111 with
1 Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
G
2 Light AR111 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
H
2 Light AR111 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
I
1 Light AR111 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
J
1 Light AR111 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n59.90” 59.90” 59.90” 24.90” 25.90” 27.90” 106.90” 130.90” 82.90” 106.90”
K
4 Light AR111 Double Wide with
2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
L
2 Light AR111 Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Integral low voltage electronic transformer with fuse and short
circuit protection
• Fluorescent cells available with a wide array of accessories such as
high transmission overlays and parabolic louvers (see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / AR111 MIX
COMBO CLASSIC
SUSPENDED

158
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR20 MIX
FIXTURE
Item # Description
CS220 Combo Classic Suspended
PAR20 120 volts
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR20 with 1 Center Fluor. Cell
4 Light PAR20 with 2 Center Fluor. Cells
2 Light PAR20 with 2 Outer Fluor. Cells
2 Light PAR20 with 2 Alternate Fluor. Cells
2 Light PAR20 with 2 Center Fluor. Cells
2 Light PAR20 with 1 Center Fluor. Cell
2 Light PAR20 with 1 Fluor. Cell
2 Light PAR20 with 2 Fluor. Cells
1 Light PAR20 with 1 Fluor. Cell
1 Light PAR20 with 2 Fluor. Cells
4 Light PAR20 Double Wide with 2 Fluor. Cells
2 Light PAR20 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
ORDERING
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE

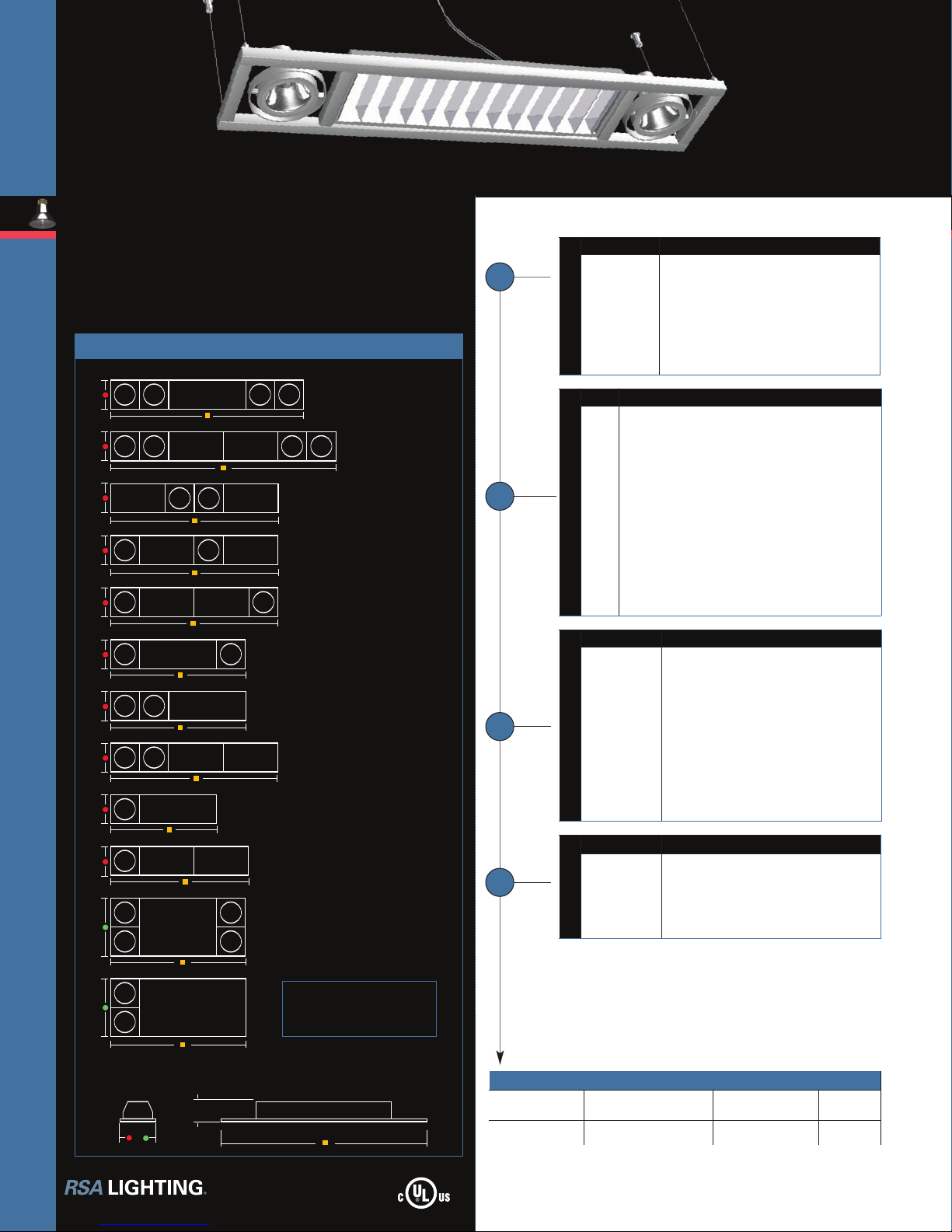

COMBO CLASSIC SUSPENDED
LINE VOLTAGE PAR20
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Line Voltage PAR20 lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS220 F BX50 S (Shown with parabolic louver)
See next page for
dimensions
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION FLUORESCENT CELL FINISH
CS220 F BX50 S
Combo Classic Suspended, Two light 120 volt PAR20 with One 50 Watt BIAX® Cell,
Industrial Silver Finish
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC PAR20 SUSPENDED FIXTURE CONFIGURATION DIMEN-
159
PAR20
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light PAR20 with
1Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n53.60” 53.60” 53.60” 36.10” 36.60” 37.60” 77.10” 89.10” 65.10” 77.10”
B
4 Light PAR20 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n79.85” 79.85” 79.85” 44.85” 45.85” 47.85” 126.85” 150.85” 102.85” 126.85”
C
2Light PAR20 with
2 Outer Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
D
2Light PAR20 with
2 Alternate Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
E
2 Light PAR20 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
F
2 Light PAR20 with
1 Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
G
2 Light PAR20 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
H
2 Light PAR20 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
I
1 Light PAR20 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
J
1 Light PAR20 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n59.90” 59.90” 59.90” 24.90” 25.90” 27.90” 106.90” 130.90” 82.90” 106.90”
K
4 Light PAR20 Double Wide with
2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
L
2 Light PAR20 Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Fluorescent cells available with a wide array of accessories such
as high transmission overlays and parabolic louvers
(see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR20 MIX
COMBO CLASSIC
SUSPENDED

160
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR30 MIX
FIXTURE
Item # Description
CS330 Combo Classic Suspended
PAR30 120 volts
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR30 with 1 Center Fluor. Cell
4 Light PAR30 with 2 Center Fluor. Cells
2 Light PAR30 with 2 Outer Fluor. Cells
2 Light PAR30 with 2 Alternate Fluor. Cells
2 Light PAR30 with 2 Center Fluor. Cells
2 Light PAR30 with 1 Center Fluor. Cell
2 Light PAR30 with 1 Fluor. Cell
2 Light PAR30 with 2 Fluor. Cells
1 Light PAR30 with 1 Fluor. Cell
1 Light PAR30 with 2 Fluor. Cells
4 Light PAR30 Double Wide with 2 Fluor. Cells
2 Light PAR30 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
ORDERING
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
LINE VOLTAGE PAR30
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Line Voltage PAR30 lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS330 J BX50 S (Shown with parabolic louver)
See next page for
dimensions
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION FLUORESCENT CELL FINISH
CS330 J BX50 S
Combo Classic Suspended, One light 120 volt PAR30 with Two 50 Watt BIAX® Cells,
Industrial Silver Finish
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC PAR30 SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
161
PAR30
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light PAR30 with
1Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n53.60” 53.60” 53.60” 36.10” 36.60” 37.60” 77.10” 89.10” 65.10” 77.10”
B
4 Light PAR30 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n79.85” 79.85” 79.85” 44.85” 45.85” 47.85” 126.85” 150.85” 102.85” 126.85”
C
2Light PAR30 with
2 Outer Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
D
2Light PAR30 with
2 Alternate Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
E
2 Light PAR30 with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
F
2 Light PAR30 with
1 Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
G
2 Light PAR30 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
H
2 Light PAR30 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
I
1 Light PAR30 with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
J
1 Light PAR30 with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n59.90” 59.90” 59.90” 24.90” 25.90” 27.90” 106.90” 130.90” 82.90” 106.90”
K
4 Light PAR30 Double Wide with
2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
L
2 Light PAR30 Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Fluorescent cells available with a wide array of accessories such
as high transmission overlays and parabolic louvers
(see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR30 MIX
COMBO CLASSIC
SUSPENDED

162
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR38 MIX
FIXTURE
Item # Description
CS338 Combo Classic Suspended
PAR38 120 volts
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR38 with 1 Center Fluor. Cell
4 Light PAR38 with 2 Center Fluor. Cells
2 Light PAR38 with 2 Outer Fluor. Cells
2 Light PAR38 with 2 Alternate Fluor. Cells
2 Light PAR38 with 2 Center Fluor. Cells
2 Light PAR38 with 1 Center Fluor. Cell
2 Light PAR38 with 1 Fluor. Cell
2 Light PAR38 with 2 Fluor. Cells
1 Light PAR38 with 1 Fluor. Cell
1 Light PAR38 with 2 Fluor. Cells
4 Light PAR38 Double Wide with 2 Fluor. Cells
2 Light PAR38 Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
ORDERING
1
2
3
4
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
LINE VOLTAGE PAR38
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of Line Voltage PAR38 lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS338 E BX40 S (Shown with parabolic louver)
See next page for
dimensions
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION FLUORESCENT CELL FINISH
CS338 E BX40 S
Combo Classic Suspended, Two light 120 volt PAR38 with Two 40 Watt BIAX® Cells,
Industrial Silver Finish
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC PAR38 SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
163
PAR38
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light PAR38 with
1Center Fluor. Cell
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n56.40” 56.40” 56.40” 38.90” 39.40” 40.40” 79.90” 91.90” 67.90” 79.90”
B
4 Light PAR38 with
2 Center Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n82.65” 82.65” 82.65” 47.65” 48.65” 50.65” 129.65” 153.65” 105.65” 129.65”
C
2Light PAR38 with
2 Outer Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n67.95” 67.95” 67.95” 32.95” 33.95” 35.95” 114.95” 138.95” 90.95” 114.95”
D
2Light PAR38 with
2 Alternate Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n67.95” 67.95” 67.95” 32.95” 33.95” 35.95” 114.95” 138.95” 90.95” 114.95”
E
2 Light PAR38 with
2 Center Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n67.95” 67.95” 67.95” 32.95” 33.95” 35.95” 114.95” 138.95” 90.95” 114.95”
F
2 Light PAR38 with
1 Center Fluor. Cell
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n41.70” 41.70” 41.70” 24.20” 24.70” 25.70” 65.20” 77.20” 53.20” 65.20”
G
2 Light PAR38 with
1 Fluor. Cell
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n41.70” 41.70” 41.70” 24.20” 24.70” 25.70” 65.20” 77.20” 53.20” 65.20”
H
2 Light PAR38 with
2 Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n67.95” 67.95” 67.95” 32.95” 33.95” 35.95” 114.95” 138.95” 90.95” 114.95”
I
1 Light PAR38 with
1 Fluor. Cell
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n34.35” 34.35” 34.35” 16.85” 17.35” 18.35” 57.85” 69.85” 45.85” 57.85”
J
1 Light PAR38 with
2 Fluor. Cells
l8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10” 8.10”
n60.60” 60.60” 60.60” 25.60” 26.60” 28.60” 107.60” 131.60” 83.60” 107.60”
K
4 Light PAR38 Double Wide with
2 Fluor. Cells
l15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45”
n41.70” 41.70” 41.70” 24.20” 24.70” 25.70” 65.20” 77.20” 53.20” 65.20”
L
2 Light PAR38 Double Wide
with 2 Fluor. Cells
l15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45” 15.45”
n34.35” 34.35” 34.35” 16.85” 17.35” 18.35” 57.85” 69.85” 45.85” 57.85”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Fluorescent cells available with a wide array of accessories such
as high transmission overlays and parabolic louvers
(see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR38 MIX
COMBO CLASSIC
SUSPENDED

164
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR20MH MIX
FIXTURE
Item # Description
CS220M39 Combo Classic Suspended
PAR20MH 39 watts
ORDERING
1
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
PAR20MH METAL HALIDE
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of PAR20 Metal Halide lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS220M39 I BX40 S 120 (Shown with parabolic louver)
See next page for
dimensions
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR20MH with 1 Center Fluor. Cell
4 Light PAR20MH with 2 Center Fluor. Cells
2 Light PAR20MH with 2 Outer Fluor. Cells
2 Light PAR20MH with 2 Alternate Fluor. Cells
2 Light PAR20MH with 2 Center Fluor. Cells
2 Light PAR20MH with 1 Center Fluor. Cell
2 Light PAR20MH with 1 Fluor. Cell
2 Light PAR20MH with 2 Fluor. Cells
1 Light PAR20MH with 1 Fluor. Cell
1 Light PAR20MH with 2 Fluor. Cells
4 Lt. PAR20MH Double Wide with 2 Fluor. Cells
2 Lt. PAR20MH Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
2
3
4
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
Ordering Example
FIXTURE TYPE FIXTURE
CONFIGURATION
FLUORESCENT
CELL FINISH VOLTAGE
CS220M39 I BX40 S 120
Combo Classic Suspended, One light 39 Watt PAR20MH with One 40 Watt BIAX® Cell,
Industrial Silver Finish, 120 volts
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC PAR20MH SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
165
PAR20MH
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light PAR20MH with
1Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n53.60” 53.60” 53.60” 36.10” 36.60” 37.60” 77.10” 89.10” 65.10” 77.10”
B
4 Light PAR20MH with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n79.85” 79.85” 79.85” 44.85” 45.85” 47.85” 126.85” 150.85” 102.85” 126.85”
C
2Light PAR20MH with
2 Outer Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
D
2Light PAR20MH with
2 Alternate Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
E
2 Light PAR20MH with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
F
2 Light PAR20MH with
1 Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
G
2 Light PAR20MH with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
H
2 Light PAR20MH with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
I
1 Light PAR20MH with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
J
1 Light PAR20MH with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n59.90” 59.90” 59.90” 24.90” 25.90” 27.90” 106.90” 130.90” 82.90” 106.90”
K
4 Light PAR20MH Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
L
2 Light PAR20MH Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Integral Aromat® metal halide ballast
• Fluorescent cells available with a wide array of accessories such as
high transmission overlays and parabolic louvers (see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR20MH MIX
COMBO CLASSIC
SUSPENDED

166
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR30MH MIX
FIXTURE
Item # Description
CS230M39
CS230M70
Combo Classic Suspended
PAR30MH 39 watts
Combo Classic Suspended
PAR30MH 70 watts
ORDERING
1
Combo Classic Suspended, Two light 70 Watt PAR30MH with Two 40 Watt BIAX Double
Wide Cell, Industrial Silver finish, 120 volts
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
PAR30MH METAL HALIDE
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of PAR30 Metal Halide lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS230M70 D BX40 S 120 (Shown with parabolic louver)
See next page for
dimensions
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR30MH with 1 Center Fluor. Cell
4 Light PAR30MH with 2 Center Fluor. Cells
2 Light PAR30MH with 2 Outer Fluor. Cells
2 Light PAR30MH with 2 Alternate Fluor. Cells
2 Light PAR30MH with 2 Center Fluor. Cells
2 Light PAR30MH with 1 Center Fluor. Cell
2 Light PAR30MH with 1 Fluor. Cell
2 Light PAR30MH with 2 Fluor. Cells
1 Light PAR30MH with 1 Fluor. Cell
1 Light PAR30MH with 2 Fluor. Cells
4 Lt. PAR30MH Double Wide with 2 Fluor. Cells
2 Lt. PAR30MH Double Wide with 2 Fluor. Cells
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
2
3
4
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
Ordering Example
FIXTURE TYPE CONFIGURATION FLUORESCENT
CELL FINISH VOLTS
CS230M70 D BX40 S 120
COMBO CLASSIC
SUSPENDED

COMBO CLASSIC PAR30MH SUSPENDED FIXTURE CONFIGURATION DIMENSIONS
167
PAR30MH
Fixture Configuration BX40 BX50 PLL80 PLT26 PLT32 PLT42 T528 T535 T5HO39 T5HO54
A
4Light PAR30MH with
1Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n53.60” 53.60” 53.60” 36.10” 36.60” 37.60” 77.10” 89.10” 65.10” 77.10”
B
4 Light PAR30MH with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n79.85” 79.85” 79.85” 44.85” 45.85” 47.85” 126.85” 150.85” 102.85” 126.85”
C
2Light PAR30MH with
2 Outer Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
D
2Light PAR30MH with
2 Alternate Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
E
2 Light PAR30MH with
2 Center Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
F
2 Light PAR30MH with
1 Center Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
G
2 Light PAR30MH with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
H
2 Light PAR30MH with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n66.55” 66.55” 66.55” 31.55” 32.55” 34.55” 113.55” 137.55” 89.55” 113.55”
I
1 Light PAR30MH with
1 Fluor. Cell
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
J
1 Light PAR30MH with
2 Fluor. Cells
l7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40” 7.40”
n59.90” 59.90” 59.90” 24.90” 25.90” 27.90” 106.90” 130.90” 82.90” 106.90”
K
4 Light PAR30MH Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n40.30” 40.30” 40.30” 22.80” 23.30” 24.30” 63.80” 75.80” 51.80” 63.80”
L
2 Light PAR30MH Double Wide
with 2 Fluor. Cells
l14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05” 14.05”
n33.65” 33.65” 33.65” 16.15” 16.65” 17.65” 57.15” 69.15” 45.15” 57.15”
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Toggle Bolt
Aircraft 
Suspension 
Cable
Cable 
Locking 
Device
Ceiling
Primary Leads in 
Mesh Cable Shield
4.63" Round Coverplate
Junction Box 120 Volt Primary Leads
Combo Classic
Suspension Mounting
Detail for
Suspendeded Fixtures
• Solid aluminum construction.
• Double gimbal lamp holders provide 90º x 90º adjustability.
• Integral Aromat® metal halide ballast
• Fluorescent cells available with a wide array of accessories such as
high transmission overlays and parabolic louvers (see page 172)
• Custom configurations are available (Consult RSA Customer Service)
• Also available in Recessed Configurations (see page 128- 149)
Optional Accessories - See page 216 for details. For fluorescent accessories see page 172.
Baffle Snoots Louvers Lenses Parabolic Louvers Diffusers
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR30MH MIX
COMBO CLASSIC
SUSPENDED

168
COMBOLIGHT®SUSPENDED FLUORESCENT / PAR38MH MIX
FIXTURE
Item # Description
CS338M70
CS338M100
Combo Classic Suspended
PAR38MH 70 watts
Combo Classic Suspended
PAR38MH 100 watts
ORDERING
1
Combo Classic Suspended, Four light 100 Watt PAR38MH with Two 40 Watt BIAX Double
Wide Cell, Industrial Silver finish, 120 volts
A
B
C
D
E
F
G
H
I
J
K
L
END 3.70"
or
SIDE
COMBO CLASSIC SUSPENDED
PAR38MH METAL HALIDE
• A grid style adjustable fixture that is horizontally suspended.
• Combines the use of PAR38 Metal Halide lamps with a choice of
fluorescent lamp sources in many fixture configuration styles.
FIXTURE CONFIGURATIONS
CS338M100 K BX40 S 120 (Shown with parabolic louver)
See next page for
dimensions
FIXTURE CONFIGURATION
Item # Description
A
B
C
D
E
F
G
H
I
J
K
L
4 Light PAR38MH with 1 Center Fluor. Cell
4 Light PAR38MH with 2 Center Fluor. Cells
2 Light PAR38MH with 2 Outer Fluor. Cells
2 Light PAR38MH with 2 Alternate Fluor. Cells
2 Light PAR38MH with 2 Center Fluor. Cells
2 Light PAR38MH with 1 Center Fluor. Cell
2 Light PAR38MH with 1 Fluor. Cell
2 Light PAR38MH with 2 Fluor. Cells
1 Light PAR38MH with 1 Fluor. Cell
1 Light PAR38MH with 2 Fluor. Cells
4 Lt. PAR38MH Double Wide with 2 Fluor. Cells
2 Lt. PAR38MH Double Wide with 2 Fluor. Cells
2
FLUORESCENT CELL
Item # Description
BX40
BX50
PLL80
PLT26
PLT32
PLT42
T528
T535
T5HO39
T5HO54
40 watt BIAX®
50 watt BIAX®
80 watt PL-L
26 watt PL-T
32 watt PL-T
42 watt PL-T
28 watt T5
35 watt T5
39 watt T5HO
54 watt T5HO
FINISH
Item # Description
BK
WH
S
PC
PT
Black
White
Industrial Silver
Polished Chrome
Custom (Specify)
3
4
VOLTAGE
Item # Description
120
277
120 Volts
277 Volts
5
Ordering Example
FIXTURE TYPE CONFIGURATION FLUORESCENT
CELL FINISH VOLTS
CS338M100 K BX40 S 120
COMBO CLASSIC
SUSPENDED
