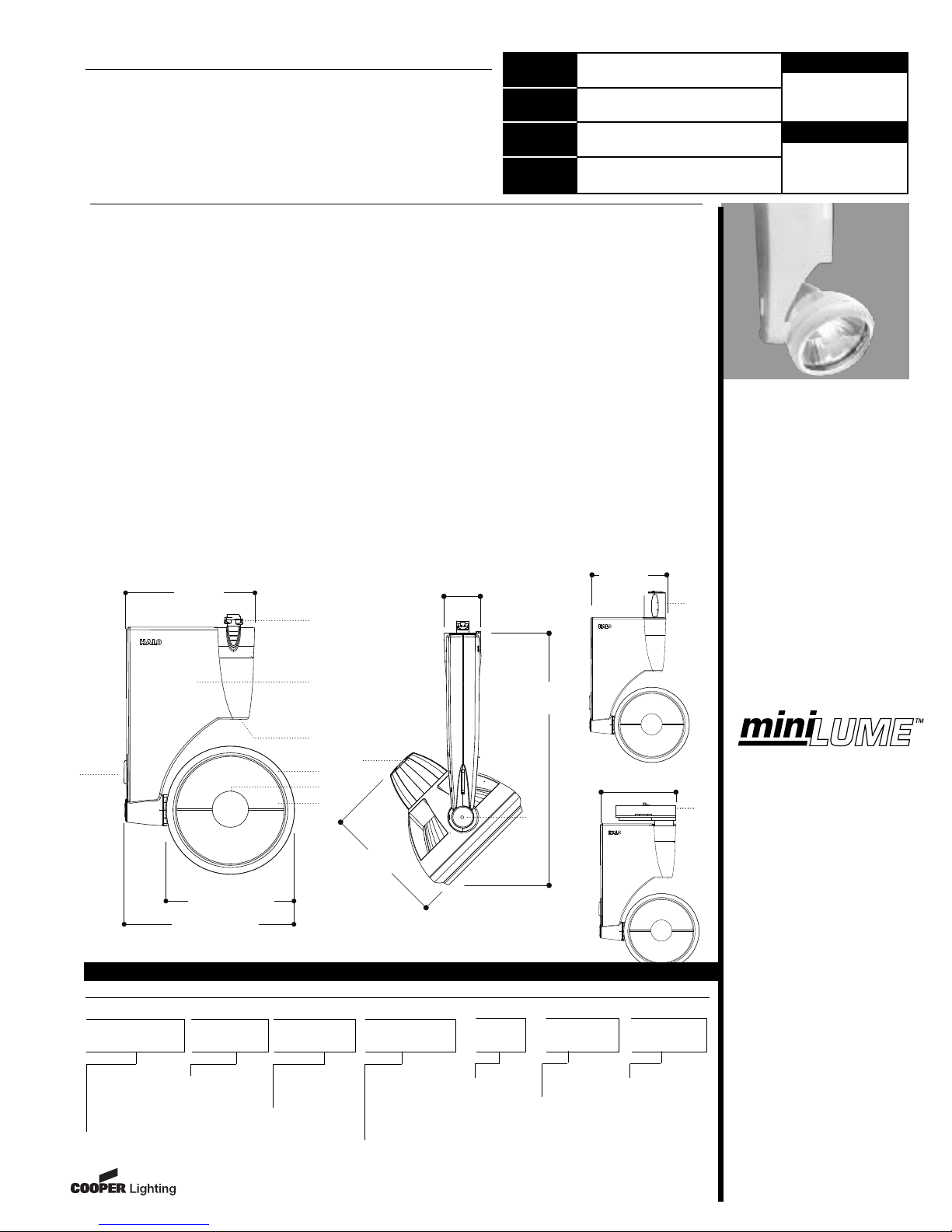

Cooper Lighting Halo L5300 User manual

L5300
LA5300
LF5300
70W Accent
MiniLUME
Adjustable
Ce amic
Metal Halide
HALO®
SPECIFICATION FEATU ES
DESC IPTION
A low wattage metal halide track fixture utilizing 70 watt T4.5
ceramic metal halide capsules providing compact size and
adjustable optics. Ideal for accent and display lighting applications.
This fixture provides an adjustable beam of light with high efficiency,
good color rendering and long life.
A...El ect r ica l Q u ick L o c k
Adapter - Power-Trac
Polycarbonate housing. Attaches
electrically and mechanically
anywhere along track.
A 1 ...Ele c tri c a l Qui c k L ock
Adap t er - Fl e x ibl e T r ack
Die cast housing. Attaches
electrically and mechanically
anywhere along track.
A 2 ...E lec t ric a l Q uic k L o ck
Adap t er - Ar c h ite c t ura l T rac k
Polycarbonate housing with
integral fuse and On-Off switch.
Attaches electrically and
mechanically anywhere along
track.
B...B a l l a s t H o u s i n g
Injection molded housing
incorporates the lamp control
circuit.
C...Switch
On-off switch allows power to
be turned off during lamp
replacement on individual
lampholders.
D...La m p H o u s i n g
Injection molded lamp housing
has an integral segmented
reflector and adjustable light
center optics allowing the light
beam to be adjusted from spot
to flood. Lamp housing adjusts
±90° providing full aiming
adjustment and eliminates the
"dead zone" found with other
fixture designs.
E...T i l t a n d o t a t i o n L o c k s
Tilt and rotation locking are
easily accomplished by using a
9/64" Allen wrench (supplied by
others). The locking
mechanisms firmly hold fixture
aim even during relamping.
F...Beam Focus Knob
Knob rotates 90° providing
infinite beam adjustment from
spot to flood. Detents align with
beam angle icons to allow
repeatability at spot, narrow
flood and flood positions.
G...L e n s
Removable front bezel with
glass lens provides lamp
containment. Front bezel accepts
L200 media including color
filters and beam modifying lens.
Replace glass lens with one filter
or lens. Remove glare shield to
accept second filter or lens.
H... G l a r e S h i e l d
Glare shield provides additional
cutoff. Removes easily for lamp
replacement.
La b e l s
UL/cUL listed for use with alo
Track systems.
EMI/RFI complies with FCC 18C,
non-consumer limits.
O D E I N G I N F O M A T I O N : S A M P L E N U M B E : L 5 3 0 0 7 0 E S C P L
L5300= For alo
Power Trac and
Lazer Track
LA5300= For alo
Architectural Track
LF5300= For alo
Flexible Track
70E =70 Watt
Electronic
Ballast
7 0 E
B a l l a s t
SC = Specular
Clear Reflector
Finish
CG= Commercial
Gold Reflector
Finish
e f l e c t o r
P=White
MB=Black
SL=Silver
M B/GY=Black w
Gray Knob & Trim
Ring
P/GY=White w Gray
Knob & Trim Ring
F i n i s h
L=Lamp
Included
L
L a m p
(Blank)=Open
Back
CB=Closed
Back
S t y l e
L200 Series=
Color
Filters or
Beam
Modifying
Lenses
Accessories
Lampholder
Energy Data
7 0 W E l e c t r o n i c B a l l a s t
Input Power: 77W
Power Factor: >0.95
Input Current: 0.64A max.
armonic Distortion: <10%
NOTES:
Accessories should be ordered
separately.
Catalog # Type
Date
Project
Comments
Prepared by
ADV072006
C
A
B
E
D
H
G
F
E
A1
A2
5-1/4” [133mm]
6-3/4” [171mm]
5-1/4”
[133mm]
1-5/8”
[41mm]
10-3/4”
[273mm]
5-1/4”
[133mm]
5-1/4” [133mm]
5-1/8”
[130mm]

PHOTOMET ICS
L5 3 0 0
Notes and Definitions:
Beam spread is to 50% center beam candlepower (CBCP.)
D=Distance in feet to floor or wall.
FC=Footcandles on floor or wall at center beam aiming location.
L =Effective Visual Beam length in feet (50% of maximum footcandle level.)
W=Effective Visual Beam width in feet (50% of maximum footcandle level.)
CB=Distance in feet across or down to center beam location.
0° Aiming Angle 30° Aiming Angle 30° Aiming Angle 60° Aiming Angle
Lamp Horizontal Footcandles Horizontal Footcandles Vertical Footcandles Vertical Footcandlesi
CMH70/TC/U/830G8.5
Lumens: 6200 Lumens
Setting: Spot
Report No.: BAL12125
DFC LW
5.0' 1781 1.3 1.3
7.5' 791 2.0 2.0
10.0' 445 2.7 2.7
12.5' 285 3.4 3.4
DFC LWCB
5.0' 1157 1.7 1.5 2.9
7.5' 514 2.5 2.2 4.3
10.0' 289 3.4 3.0 5.8
12.5' 185 4.2 3.7 7.2
DFC LWCB
3.0' 685 2.6 1.5 5.2
4.0' 385 3.5 2.0 6.9
5.0' 247 4.3 2.5 8.7
6.0' 171 5.2 3.0 10.4
DFC LWCB
3.0' 3213 1.0 0.9 1.7
4.0' 1807 1.3 1.2 2.3
5.0' 1157 1.7 1.5 2.9
6.0' 803 2.0 1.8 3.5
CMH70/TC/U/830G8.5
Lumens: 6200 Lumens
Setting: Medium Flood
Report No.: BAL12126
D FC LW
5.0' 653 2.1 2.1
7.5' 290 3.2 3.2
10.0' 163 4.3 4.3
12.5' 104 5.3 5.3
D FC LWCB
5.0' 452 2.6 2.3 2.9
7.5' 201 3.9 3.5 4.3
10.0' 113 5.2 4.7 5.8
12.5' 72 6.5 5.9 7.2
D FC LWCB
3.0' 326 3.3 2.1 5.2
4.0' 183 4.3 2.8 6.9
5.0' 117 5.4 3.5 8.7
6.0' 82 6.5 4.2 10.4
D FC LWCB
3.0' 1255 1.6 1.4 1.7
4.0' 706 2.1 1.9 2.3
5.0' 452 2.6 2.3 2.9
6.0' 314 3.1 2.8 3.5
D FC LW
5.0' 260 3.4 3.4
7.5' 116 5,1 5.1
10.0' 65 6.8 6.8
12.5' 42 8.5 8.5
D FC LWCB
5.0' 188 3.8 3.6 2.9
7.5' 84 5.7 5.5 4.3
10.0' 47 7.5 7.3 5.8
12.5' 30 9.4 9.1 7.2
D FC LWCB
3.0' 193 3.2 2.7 5.2
4.0' 108 4.3 3.6 6.9
5.0' 69 5.3 4.5 8.7
6.0' 48 6.4 5.4 10.4
D FC LWCB
3.0' 523 2.3 2.2 1.7
4.0' 294 3.0 2.9 2.3
5.0' 188 3.8 3.6 2.9
6.0' 131 4.5 4.4 3.5
CMH70/TC/U/830G8.5
Lumens: 6200 Lumens
Setting: Flood
Report No.: BAL12127
Note: Specifications and Dimensions subject to change without notice.
Visit our web site at www.cooperlighting.com
Customer First Center 1121 ighway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADV040833
Cooper Lighting 5925 McLaughlin Rd. Mississauga, Ontario, Canada L5R 1B8 905.507.4000 FAX [phone]
Candelas at Nadir
Deg Candela
0 44514
532693
15 3657
25 829
35 346
45 102
55 14
65 8
75 2
85 0
90 0
L530070E at Spot Position
eport No. 12125.0
Candelas at Nadir
Deg Candela
0 16318
515252
15 5382
25 1425
35 362
45 59
55 14
65 9
75 0
85 0
90 0
L530070E at Medium Flood Socket Position
eport No. 12126.0
Candelas at Nadir
Deg Candela
0 6500
56399
15 5058
25 2088
35 390
45 47
55 21
65 17
75 0
85 0
90 0
L5300 at Flood Socket Position
eport No. 12127
2200
4400
6600
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
5500
11000
16500
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
15000
30000
45000
0˚ 15˚ 30˚
45˚
60˚
75˚
90˚
