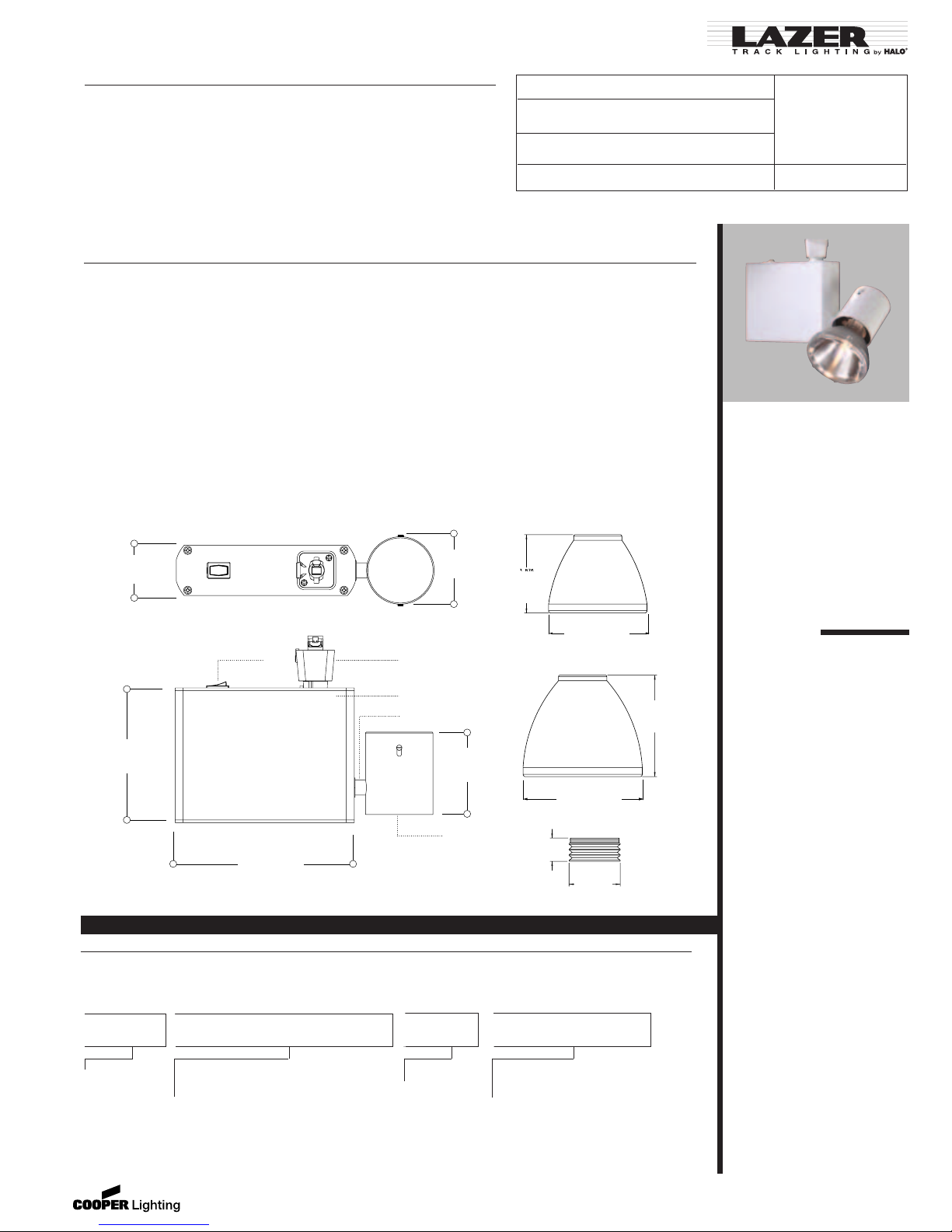

Cooper Lighting Halo LZR510 User manual

LZR510
FOR USE WITH:
39W, 70W PAR30
70W, 100W PAR38
NOT FOR USE WITH
4 CIRCUIT TRACK
NOT FOR USE WITH
WALL MOUNTED TRACK
Lazer by Halo
SPECIFICATION FEATURES
A. . .Track Adapter
Track plug attaches electrically and
mechanically anywhere along Halo
Power-Trac. Two position conductor
allows use in single circuit track
and either circuit of two circuit
track. The track adapter allows 335°
horizontal rotation.
B . . .Pivot
Pre-tensioned adjustment mecha-
nism allows lampholder to pivot
vertically from 0° to 90° in either
direction.
C . . .Housing
Solid aluminum extrusion housing
with metal endplates.
D…Socket
Reinforced 4KV pulse rated porce-
lain socket.
I…Ballast
Thermally protected, 120V
electronic ballast provides full light
output and rated lamp life. Provides
noise free operation and starting.
Ballast complies with FCC 18C, non
consumer limits.
F….Switch
Convenient integral on/off switch
provides individual control.
Shade
Optional decorative painted alu-
minum shade provides lamp
shielding. Accessory media holder
allows the use of lenses and
louvers.
Labels
UL and cUL listed for use with Halo
and Lazer-by-Halo track and track
systems.
DESCRIPTION
A track fixture designed for PAR30L and PAR38 metal halide lamps to create
eye-catching displays. Fixture design adds sophistication to any space. For use
with Halo and Lazer-by-Halo track systems.
PAR metal halide lamps are available with beam angles from 10° to 65°, making
them suitable for highlighting displays in a variety of applications such as
stores, showrooms, lobbies, and other public spaces. PAR metal halide lamps
provide a brilliant white light with a Color Rendering Index (CRI) greater than 80
and color Temperature of 3000°K with excellent color stability. The extended life
of these (>9,000 hours) significantly reduces the frequency of relamping com-
pared to incandescent lamps
39E=39W Electronic Ballast (PAR30L)
70E=70W Electronic Ballast (PAR30L or PAR38)
100E = 100W Electronic Ballast (PAR38)
ORDERING INFORMATION SAMPLE NUMBER: LZR51070EP LSP30P
The correct wattage ballast must be specified for the intended lamp wattage. Complete unit consists of housing, ballast and finish.
LZR510
LZR510 =
Universal
Lampholder
Ballast Finish Accessories Lampholder
ENERGY DATA
39W Electronic Ballast
Power Factor: .95
Total Input Watts: 44
Max Amps: .39
THD:<15%
70W Electronic Ballast
Power Factor: 0.95
Total Input Watts: 79
Max Amps: 0.67
THD:<15%
100W Electronic Ballast
Power Factor: 0.95
Total Input Watts: 110
Max Amps: 0.90
THD:<15%
Catalog #
Project
Comments
Type
Prepared by Date
P=White
MB=Black
LSP30 (P or MB)=PAR30L Shade
LSP38 (P or MB)=PAR38 Shade
BEL1MB=Flat Black Silicone Bellows




4.9”
[125mm] 3.01”
[76.5mm]
6.53”
[166mm]
1.8”
[47mm]
2.4”
[62mm]
PAR30 SHADE
PAR38 SHADE
5.0”
[127mm]
3.876”
[98mm]
ADV050657
2.520”
[64mm]
1.148”
[29.1mm]
4 15/16”
[125mm]
5 15/16”
[151mm]

Note: Specifications and Dimensions subject to change without notice.
Visit our web site at www.cooperlighting.com
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADV050657
Cooper Lighting 5925 McLaughlin Rd. Mississauga, Ontario, Canada L5R 1B8 905.507.4000 FAX [phone]
LSP30
Shade designed for PAR30 Lamps. Installs
with two keyhole slots and screws.
LSP30 = White
LSP30MB = Black
LSP38
Shade designed for use with PAR38
Lamps. Installs with two keyhole slots and
screws.
LSP38 = White
LSP38MB = Black
ACCESSORIES
LZR510
LSP30 PAR30
Shade
LSP38 PAR38
Shade
LZR209
Canopy Adapter Allows use of lamphold-
ers with integral ballast in canopy mount
installations.
Mounts permanently to junction box.
LZR209 Adapter
BEL1MB
Black Bellows for a finished appearance
with lamp.
BEL1MB
3.876”
[98.4mm]
4 15/16”
[125mm]
5 15/16”
[151mm]
5.0”
[127mm]
2.520”
[64mm]
1.148”
[29.1mm]

Note: Specifications and Dimensions subject to change without notice.
Visit our web site at www.cooperlighting.com
Customer First Center 1121 Highway 74 South Peachtree City, GA 30269 770.486.4800 FAX [phone] ADV050657
Cooper Lighting 5925 McLaughlin Rd. Mississauga, Ontario, Canada L5R 1B8 905.507.4000 FAX [phone]
L252MB Accessory Holder
For use with LZR510 with Accessory Shade
LSP30 to hold L400 Series color filters and
L274 louver (accommodates 2 media).
L400 Series Color Filters
Glass Filters 3 3/4" (96mm) diam-
eter. For use with LZR510 with
LSP30 Accessory Shade and
L252MB Media Holder.
L411=Medium Pink Color Filter
L412=Warm Red Color Filter
L414=Ultraviolet Filter
L420=Daylight Blue Color Filter
L421=Medium Blue Color Filter
L431=Medium Amber Color Filter
L441=Medium Green Color Filter
ACCESSORIES
LZR510
L252 Accessory
Holder
4” Color Filters
L352MB Accessory Holder
For use with LZR510 with Accessory Shade LSP38
to hold L200 Series color filters and L275 louver
(accommodates 2 media).
L352 Accessory
Holder
Color Filters
L200 Series Color Filters
Glass Filters 4 11/16” (119mm)
diameter. For use with LZR510 with
LSP38 Accessory Shade and
L352MB Media Holder.
L211=Medium Pink Color Filter
L212=Warm Red Color Filter
L214=UV Filter
L220=Daylight Blue Color Filter
L221=Medium Blue Color Filter
L231=Medium Amber Color Filter
L241=Medium Green Color Filter
4 11/16"
[19mm]
1/4"
[6mm]
3/8"
[10mm]
4 3/4"
[121mm]
1/2"
[12mm]
6 1/4"
[159mm]
7/16"
[11mm]
1/2"
[12mm]
7"
[178mm]
5 1/2"
[140mm]
4 1/2"
[114mm] 1 1/2"
[38mm]
4 1/4" [108mm]
3 1/2"
[89mm] 1 1/2"
[38mm]
3 3/4"
[96mm]
1/4"
[6mm]
Cube Cell Louver
L274
For use with PAR30L and LZR510 with Accessory
Shade LSP30 and media holder L252MB
L275
For use with PAR38 and LZR510 with Accessory
Shade LSP38 and media holder L352MB
