Coopers of Stortford 9242 User manual
L af Blow r Vac 9242 Instructions
WARNING SYMBOLS
Som of th following symbols may b us d on your
L af Blow r Vac. Pl as look at th m and und rstand
th ir m aning. Corr ct int rpr tation of th s symbols
will allow you to op rat th tool saf ly.
Symbo Exp anation
WARNING!
This warning symbol is displayed on the leaf
blower vac to remind you of the safety
precautions you should take when operating it.
WARNING!
This leaf blower vac should only be used by
those persons who have read and understood
all the safety and operating instruction
contained in the instruction manual. Be aware
of the safety of all persons in the work area at
all times.
WARNING!
Switch the leaf blower vac OFF and disconnect
from the mains supply before making
adjustments, cleaning blockages, or starting
any cleaning and maintenance procedures.
WARNING!
Keep other people out of the work area!
WARNING!
Do not use this leaf blower vac in the rain.
Avoid using it in damp conditions.
WARNING!
When using this leaf blower vac, always wear
protective glasses and ear protectors.
WARNING!
Read these safety and operating instructions in
this booklet and keep them in a safe place for
future reference.
WARNING!
Dangerous vacuum openings. Keep hands and
feet out of the openings while the machine is
running.
WARNING!
Rotating Fans. Keep hands and feet out of the
openings while the machine is running.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
local authority or retailer for recycling advice.
Please read carefully before use and retain for future reference.
3 Shoulder harness 6 Trigger switch4 Front handle
14 Power cord & plug
13 Hook for
collection bag
12 Label location
11 Blower/vacuum
selector lever
15 Collection bag
7 Wheels
10 Collection bag connector
1 Upper tube 2 Screw cover
8 Lower tube
5 Latch
9 Collection bag strap
ASSEMBLY
1. nsert the lower tube into the
upper tube. Align the screw hole in
the upper tube with the screw hole in
the lower tube whilst ensuring the convex
plate aligns with the slot on upper tube correctly.
2. Locate the long screw 50mm in screw hole on upper tube and tighten the screw securely.
3. Push the wheel bracket onto the end lower tube until it rests against the rib on the lower tube.
4. Locate the shorter screw 15mm in the screw hole on wheel bracket and tighten the screw securely.
5. Connect the strap (9) onto the hook (13) on the housing.
6. Attach the push-on collection bag connector (10) to the outlet tube of the housing. Push the
collection bag clip onto the outlet so that it clicks into position.
7. Repeat step 6 to connect the strap to the hook on the underside of the housing. To remove the
collection bag, reverse the procedures shown in 5, 6 & 7. When removing the fitting from the outlet,
press the two buttons on either side of the plastic connector in, and pull to release.
8. Connect the latch (5) on the shoulder harness (3) to the strap hanger in main housing. Adjust the
shoulder harness to a comfortable position.
Lower
Tube
Wheel
bracket
Rib Screw
Lower tube Screw
hole
Screw
hole
Convex
plate
Slot
Upper
tube
Ass mbly dir ction
1
5 6 7
2
34
BEFORE USE
• Ensure you are wearing suitable clothing, footwear and safety equipment, e.g.
safety glasses, ear protection and face mask if necessary.
• Ensure the attachments to the leaf blower vac are correctly fitted and adjusted.
• Be aware of people and animals in the area where you are to be operating the
leaf blower vac.
• Check the item for damage before use. Do NOT use if any part is damaged.
• Periodically check all fixings are secure and tighten if necessary.
OPERATION
• Plug the power cord into an RCD unit (not supplied) and switch on.
• To start the leaf blower vac, ensure the leaf blower vac nozzle is pointed in a
safe direction, select the desired operation (E) by moving the blower/vacuum
selector lever (11) to either blower or vacuum position and depress the trigger
switch (F).
• Do NOT start the tool when it is upside down or when it is not in the
operating position.
• To turn the leaf blower vac off, simply release the trigger switch.
• After releasing the trigger switch to turn the leaf blower off, switch off at the
mains and remove plug from RCD socket.
• When the blower operation is selected, air is drawn up through the large tube
and then expelled at a much higher velocity in the lower cavity below the tube.
Ensure when the blower operation is selected the leaf blower vac is directed
and used in a safe manner.
• When the vacuum operation is selected, air and debris are drawn up through
the large vac tube, and forced through the mulching impellor. The debris is
shredded and then passed into the collection bag.
• To empty the collection bag, simply open the zip and empty the contents.
Ensure the zip is closed prior to operating the leaf blower vac.
• For better performance and comfort, it is recommended the collection bag is
emptied when approximately half full. This reduces the weight and also allows
the leaf blower vac operation to perform at its highest level.
• Always vacuum dry leaves, cuttings or general garden debris. Wet materials are
difficult to mulch and also can cause the leaf blower vac to clog.
• f the leaves, etc. are damp, then use the leaf blower vac to blow the leaves
etc. into one area, and vacuum the leaves when they are dry.
Blower/vacuum selector lever
E
F
WARNING
Failur to follow all instructions list d b low may r sult in l ctric shock, fir
and/or s rious injury.
• Always ensure the collection bag is correctly attached.
• This product is only designed for garden debris like leaves, twigs and garden
cuttings.
• Ensure any foreign objects are removed from the work area before use.
• Keep children and pets and any other obstruction away from the work area.
Maintain a safe distance of at least 5m from other people, pets or obstructions
when using the leaf blower vac.
• Only use in a well-lit, well ventilated area.
• Do NOT use in wet weather, in damp conditions or with wet hands.
• Do NOT use around flammable liquids, gases or in dusty areas.
• Do NOT use with adaptor sockets.
• Do NOT force the vacuum/blower selector lever. The lever should move with
very little resistance. f the lever is difficult to move, disconnect the power
supply, remove the collection bag and ensure any debris, dirt or mud has been
removed from around the lever.
• When selecting either functions, ensure the selector lever is correctly located in
one position or the other.
• Do NOT use the leaf blower vac on areas where there are stones, or other
hard objects, which will cause damage to the leaf blower vac. t is also
advisable not to allow the leaf blower vac to pick up soil which when
combined with other garden debris can clog the leaf blower vac.
• Do NOT use the leaf blower vac on loose, gravel surfaces.
• Do NOT allow the leaf blower vac to pick up any burning or smouldering
materials such as hot ashes, cigarette butts, etc.
• The leaf blower vac is not a rubbish disposal unit. Do NOT attempt to shred
any material other than general garden waste.
• Do NOT carry or unplug by pulling on the power cord. Always grip the plug
when unplugging.
• Keep the power cord away from heat, oil, sharp edges and moving parts.
• f an extension cord is required, use a suitable extension cord rated for outdoor
use and that is fitted securely and cannot disconnect during use.
• Do NOT direct the air flow or debris from this leaf blower vac directly or
indirectly towards another person or pet.
• Do NOT use while you are tired or under the influence of drugs, alcohol, or
medication.
• Always wear eye protection, a dust mask/faceguard, long trousers, work
gloves, suitable non-slip footwear, head and ear protection.
• Ensure the switch is in the off position before plugging in.
• Ensure a firm footing and good balance at all times during use.
• Do NOT wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts.
• Always disconnect from the power supply after use and before cleaning.
• Store in a cool, dry place.
• Keep out of the reach of children.
• Do NOT use for any purpose other than those specified in this instruction
manual.

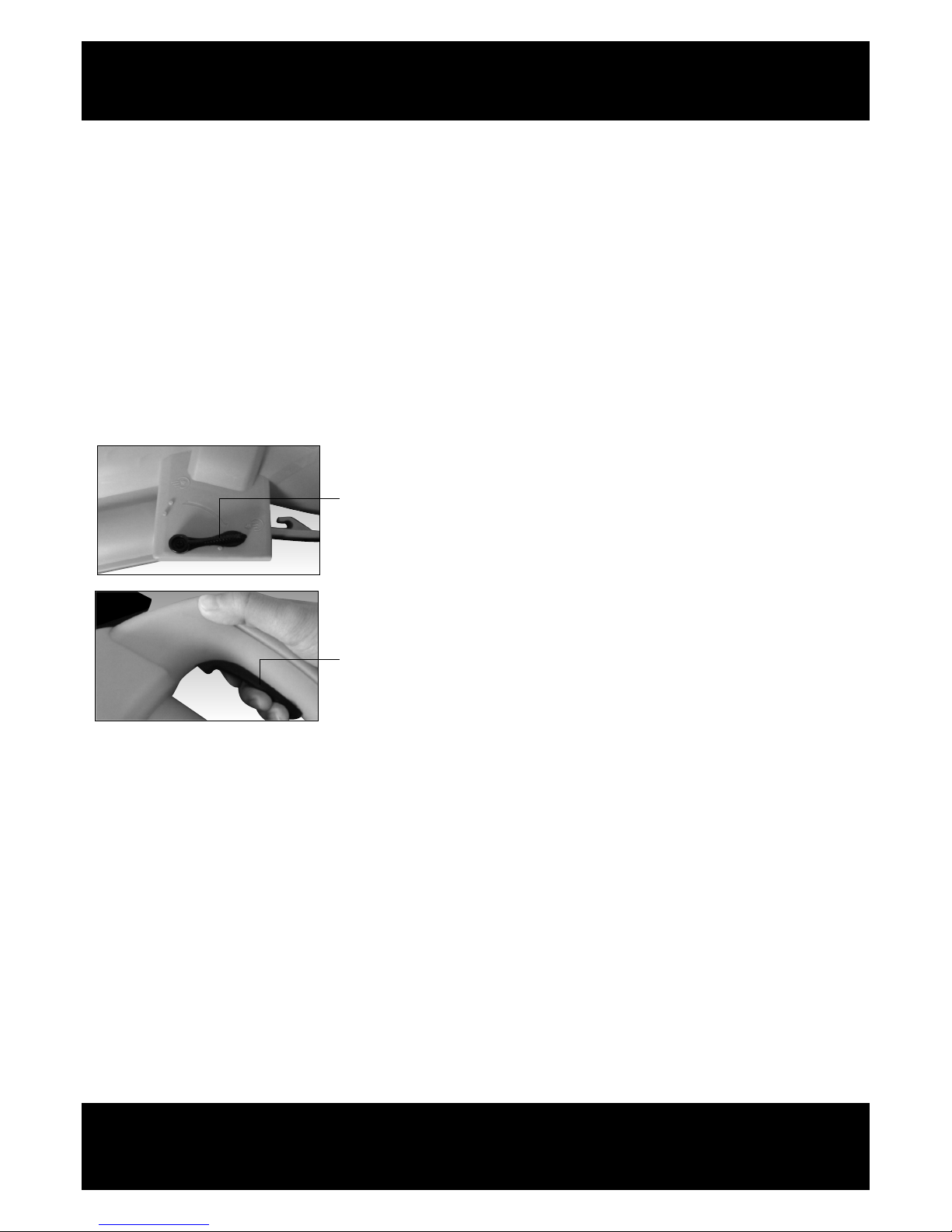

Trigger switch
• Keep all the air intakes and the blower tube free of dust, lint, hair and other
material that may cause a reduction in air flow.
• Do NOT use in vacuum operation without the collection bag fitted.
• Do NOT try to repair the leaf blower vac, the power cord or access internal
parts. Contact authorised service centres only.
• The appliance is not intended to be operated by means of an external timer or
separate remote-control system.
• This appliance can only be used, cleaned or maintained by persons with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, if they have been given supervision or instruction concerning use
of the appliance.
PACKAGING
• Dispose of packaging at your local recycling centre.
• Dispose of paper and carton separately from plastic bags at your local
recycling centre.
• Dispose of item at the end of its lifespan at your local authorised household
waste recycling centre.
CLEANING
• Wipe clean only.
• Do NOT use solvents.
• Do NOT hose clean or submerge any parts in water.
TROUBLESHOOTING
Probl m Pot ntial caus Solution
Motor failing to start No mains power Check socket is switched to on position.
Check Fuse (13A)
Connection failure To solve the problem, contact the
manufacturer or an authorised company
Motor or switch defect To solve the problem, contact the
manufacturer or an authorised company
Reduced vacuuming power Machine is clogged or blocked Clear blockage
Bag is full Empty bag
TECHNICAL SPECIFICATION
Type BVT2000
Voltage 230-240V~
Frequency 50 Hz
nput Power 2000W
nsulation Class
Maximum Air speed 270 km/h
dle Speed 14000/min
Net weight 3.8Kg
Shredding Ratio 10:1
Sound pressure level; LPA: 86.5 dB(A)
KPA 3.0 dB(A)
K 1.5 m/s2
Sound power level; LWA: 103dB(A)
Vibration 2.76 m/s2
EC- Dec aration of Conformity
The Enterprise Department Limited. T/A Coopers of Stortford.
Head Office, 11 Bridge Street, Bishop’s Stortford, Hertfordshire CM23 2JU
Tel: 0844 482 4400 Fax: 01279 756595
We hereby declare,
That the following Appliance complies with the appropriate basic safety and
health requirements of the EC Directives (see item 4 below) based on its design
and type, as brought into circulation by us.
This declaration relates exclusively to the machinery in the state in which it was
placed on the market, and excludes components which are added and/or
operations carried out subsequently by the final user.
1) D signation function:
The leaf blower vac is for picking up debris into the debris collector or blow debris
2) Typ : 9242
3) Batch numb r: 16705
4) Applicabl EC Dir ctiv s:
- EC- Machinery Directive 2006/42/EC
Additional us d EC Dir ctiv s:
- EMC Directive 2004/108/EC
- Noise directive: 2000/14/EC
5) Us d Standards:
Parts of EC 60335-2-100:2002;
Part of EN 15503:2009;
EN 62233: 2008; EK9 2007-07
EN61000-3-3:2008;
EN61000-3-2:2006;
EN55014-1:2006; EN55014-2:1997+A1:2001+A2: 2008
EN SO 3744:1994, SO 11904:1991
6) R sponsibl for docum ntation:
Name and address of the person authorised to compile the technical file, must be
established in the EU
Measured sound power level 101.3 dB(A)
Guaranteed sound power level 103 dB(A)
Conformity assessment method to Annex V/ Directive 2000/14/EC
Retainer of technical documentation:
The Enterprise Department Limited. T/A Coopers of Stortford.
Name: Mr. Stuart Fowler
Position/Title: mports Director
27th June 2012
Other Coopers of Stortford Blower manuals
