Coopers of Stortford 9070 User manual

Hedge Trimmer 9070 Instructions

Do not expose to rain
Denotes risk of personal injury, loss of life, or damage to the
tool in case of non-observance
Read the user manual
Use ear protection
Use eye protection
Use protective gloves
Wear sturdy, non-slip footwear
Disconnect from mains power immediately if the power cord
becomes damaged
Do not operate near electric lines
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice
IMPORTANT:
Read and understand this manual before assembling or operating this Trimmer.
Improper use can cause severe injury. Keep this manual for future reference.
Content:
I - Parts List
II - Technical Data
III - Safety Instructions
IV - Getting Started
V - Operation
VI - Cleaning, Maintenance, Storage and Guarantee.
I PARTS LIST

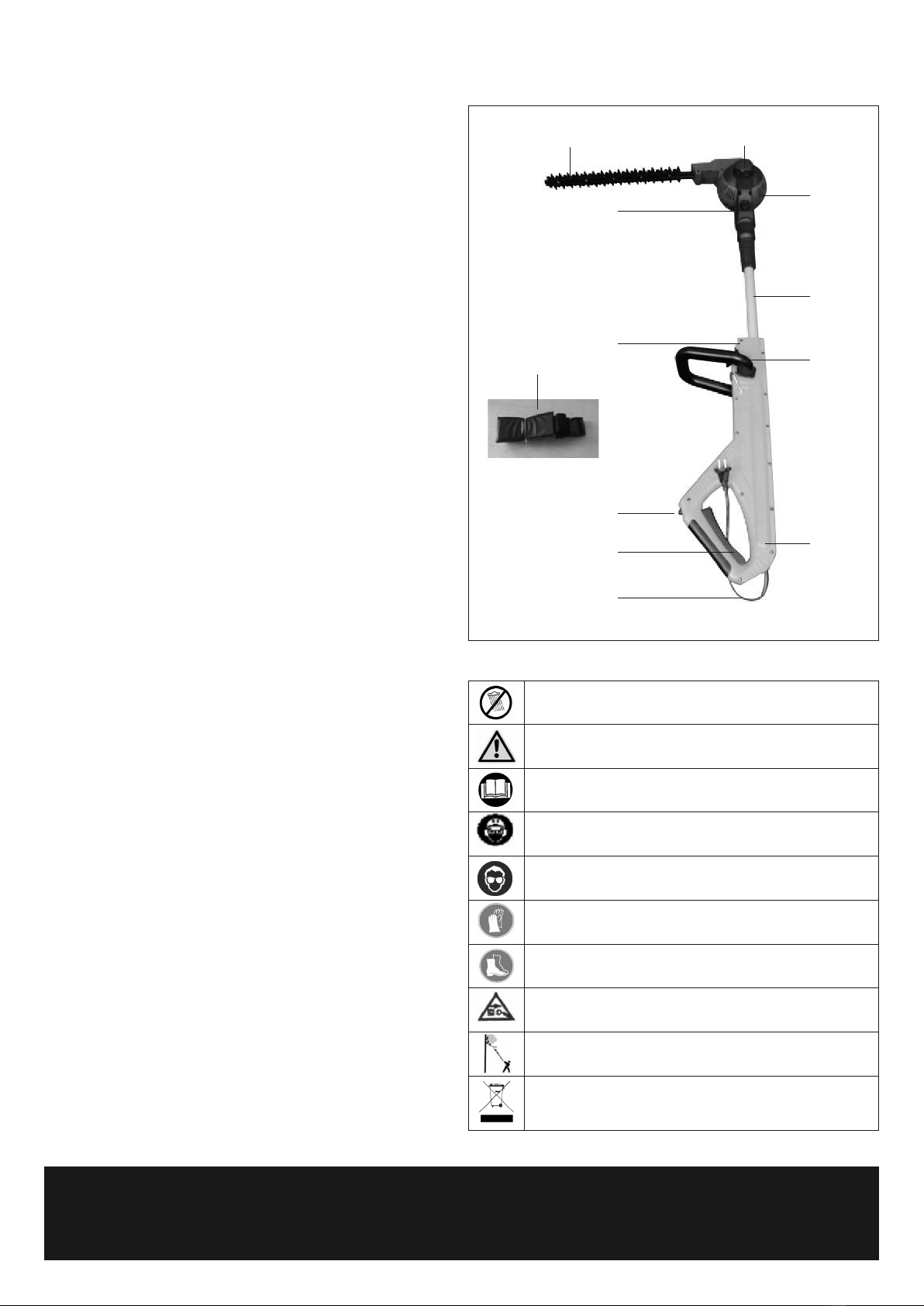

1. 450mm Long Reciprocating Heat-Treated Dual Cutter Blade
2. Pivoting Power Head
3. Hand Adjustment Knob For Cutting Head
4. Hand Adjustment Knob For Shaft
5. Telescopic Shaft
6. Telescopic Shaft Lock
7. Auxiliary Handle
8. Trigger Switch Lock Out
9. Handle
10. Trigger Switch
The ON/OFF Trigger Switch Can Only Be Depressed And Operate When
Squeezed At The Bottom Third Of The Switch
11. Shoulder Strap
12. Power Cord
II. TECHNICAL DATA
Rated Voltage: 230V- 240V~50Hz
Input Power: 450w
Idling Speed: 1500rpm
Cutting Capacity 14mm diameter
Weight: 4.5 kg
NOISE AND VIBRATION DATA
Weighted sound pressure level: 79dB
Weighted sound power level: 96dB
Vibration: 3.5M2/S
Overall length 1.60m / Overall length fully extended 1.93m
Symbols
2
5
7
9
12
10
8
6
4
11
13

II. SAFETY INSTRUCTIONS
WARNING: When using electric Trimmers, basic safety precautions should
always be followed to reduce the risk of personal injury.
Read all instructions carefully prior to operating this trimmer.
1. Stay Alert - Watch what you are doing. Use common sense when
operating Trimmer.
2. Avoid Dangerous Environments
Do not operate Trimmer:
• In rain or in damp or wet locations.
• While under the influence of alcohol, medications, or drugs.
• Where highly-flammable liquids or gases are present.
• While standing on a ladder or in a tree.
• If it is damaged or not securely and fully assembled.
3. Keep Children Away - Keep all visitors a safe distance from
work area.
4. Do not use Trimmer for any job except that for which it is intended.
5. Only well instructed adults should operate Trimmer. Never allow children
to operate Trimmer.
6. Dress Properly When Operating Trimmer
• Do not wear loose clothing or jewellery that can get caught in the
moving blades or parts of the Trimmer.
• Always wear protective gloves and substantial foot wear when
working outside.
• Always wear protective hair covering to contain long hair.
• Always wear a face or dust mask if operation is dusty.
7. Always wear eye & ear protection.
8. Use only electrical voltage noted on model nameplate on Trimmer.
9. Extension Cord - Make sure your extension cord is in good condition.
When using an extension cord (<6amp), be sure to use one heavy
enough to carry the current your Trimmer will draw. An undersized
extension cord will cause a drop in line voltage resulting in loss of
power, overheating and damage to the motor. (min. 2.5mm cord
recommended).
10. Do not operate Trimmer near electric power lines, telephone, or
cable lines. Keep Trimmer at least 10 feet away from any power lines
or cables.
11. Hold the power tool by insulated gripping surface only, because the saw
chain may contact hidden wiring or its own cord. Saw chains contacting
a “live” wire may make exposed metal parts of the power tool ”live”
and could give the operator an electric shock.
12. Always use a RCD plug.
While operating Trimmer
1. Stay Alert - Watch what you are doing. Use common sense.
2. Be aware of extension cord while operating Trimmer. Be careful not to trip
over extension cord. Keep extension cord away from cutter blades at
all times.
3. Avoid Unintentional Starting - Do not carry plugged-in Trimmer with
finger on switch. Be sure switch is OFF when plugging in Trimmer.
4. Do Not Over-reach - Keep proper footing and balance at all times.
DANGER - RISK OF INJURY
Keep hands away from blades at all times. Keep both hands on handle
areas when Trimmer is on. Do not attempt to remove cut material or
hold material to be cut when blades are moving. Do not grasp the
exposed cutting blades or cutting edges when picking up or holding
the Trimmer.
CAUTION - Blades coast to a stop after switching off.
5. Disconnect Trimmer - Disconnect the Trimmer from the power supply:
• When not in use
• Before servicing
• When changing accessories such as blades
• When clearing jammed material from blades
• When moving from one worksite to another
Do Not Force Trimmer - It will do the job better and with less likelihood of
a risk of injury.
6. Do Not Abuse Power Cable - Never carry Trimmer by power cable or yank
it to disconnect from the mains power supply . Keep power cable away from
heat, oil, and sharp edges.
7. Before starting Trimmer, make sure blades are not touching anything.

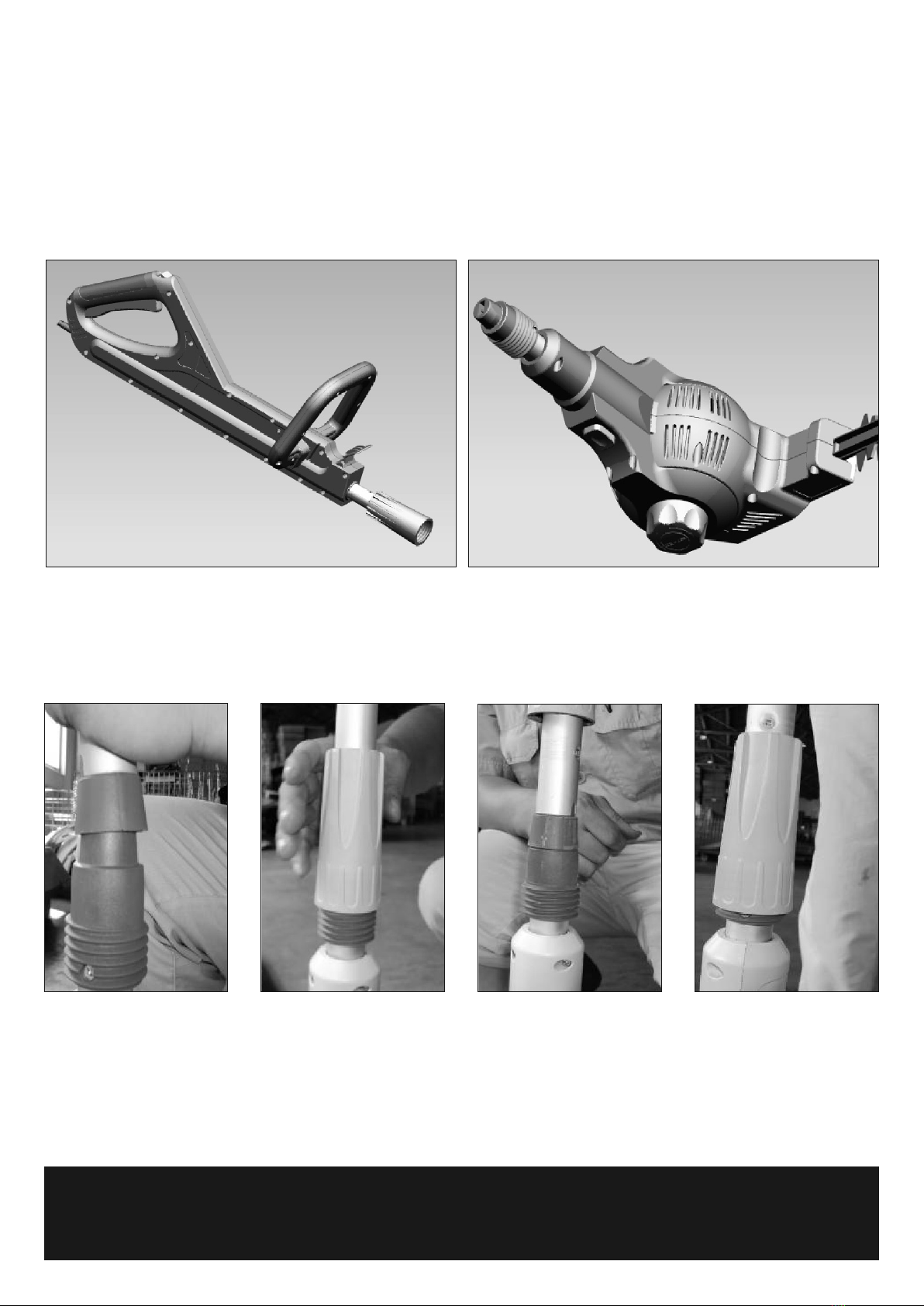

Re-fixing the Joint sleeve with Pic. A and Pic. B（see Pic.1-Pic. 4)
Pic. 1 Pic. 2 Pic. 3 Pic. 4
IV. GETTING STARTED
Unpacking
1. Remove Trimmer and all other items from box.
Pic. A Pic. B

V. OPERATION
OPERATING YOUR TELESCOPIC TRIMMER
ADJUSTMENT OF THE TELESCOPIC SHAFT
The Trimmer is packed with the telescopic shaft adjusted to it
shortest position.

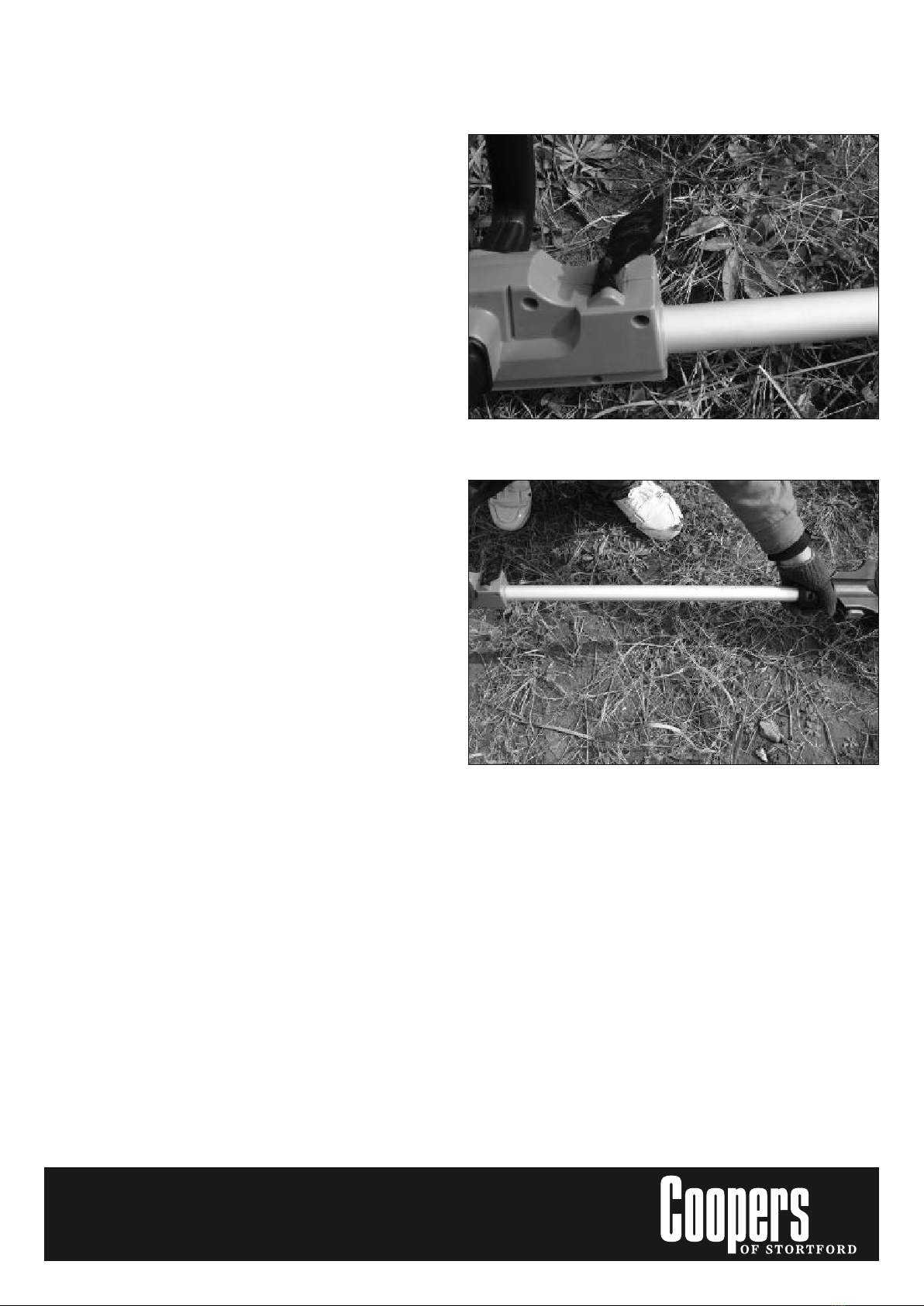

To begin with, release the shaft lock (please see page 2. Parts List - Part 6).
Adjust the shaft to desired position and then re-lock. See.Pic.1&2)
Pivoting the power head
The Trimmer is equipped with a power head that pivots. The power head is
able to pivot 90 Degrees. The power head has a pivoting knob which allows
the head to rotate and lock into your desired position. To pivot the power
head, follow the instructions below :
1. Push in the spring-loaded pivoting knob for cutting head.
(See page 2. Parts List - part 3).
2. Turn the knob to the desired cutting position and release. The position
is locked when the knob springs back out and makes a click noise.
The trimmer’s working range is 90 degrees.
Rotating the shaft
The Trimmer is equipped with a shaft that pivots.
To rotate the shaft, press the Pivoting Knob For Shaft (please see page 2.
Parts List – part 4) and then turn the shaft to desired position.
Pic. 1
Pic. 2

HOW TO OPERATE:
1. There is a large red trigger and a red safety button both located on the grey
handle (Parts list on Page 2 Parts 8 & 10). Both must be depressed for the
hedge trimmer to operate.
2. The large red trigger switch needs to be squeezed at the BOTTOM for the
trigger to work”.
Starting the Trimmer
Please note - when switching the trimmer on and off you may see electric sparks
inside the trimmer head where the motor is located. This is perfectly normal and in
no way represents a safety hazard. Unlike some trimmers that incorporate a
mechanical brake, this trimmer uses an extremely sensitive Electronic Brake which
naturally produces some sparks. It is a safety feature of this trimmer.
Pic. 3 Pic. 4
Pic. 5 Pic. 6

Using the Trimmer
The Trimmer is a dual-purpose tool. It is designed to trim and shape
tall, hard-to-reach hedges and bushes with its extended reach and
pivoting head. You can also adjust the Trimmer to trim and shape
smaller hedges and shrubs near the ground without having a bend
or stoop.
Operating positions
To use the Trimmer for trimming low-lying foliage or ground cover,
hold the Trimmer at the position shown in Pic. 6.
To use the Trimmer for trimming tall, hard-to-reach hedges or shrubs
and in particular, the tops of hedges, hold the trimmer at the position
shown in Pic. 7. Pivot the power head to several different positions to
shape or sculpt shrubs
or hedges.
To use the Trimmer for trimming smaller hedges or shrubs, hold the
Trimmer at the positions shown in Pic. 8.
To use the Trimmer for trimming the bottoms and sides of hedges and
shrubs, hold the Trimmer at the position shown in Pic. 9.
Pic. 7
Pic. 9
Pic. 8

VI. CLEANING, MAINTENANCE AND STORAGE
WARNING: Disconnect Trimmer from power supply before cleaning or
servicing. Severe injury or death could occur from fire, electrical shock, or
body contact with moving cutter blades.
Should the power lead of this appliance become damaged in any way and
need replacing, it should ONLY be replaced by a qualified electrician.
WARNING: When cleaning Trimmer
Do not submerse Trimmer in any liquids.
Do not use products that contain Ammonia, Chlorine, or abrasive.
Do not use chlorinated cleaning solvents, Carbon Tetrachoride,
Kerosene, or Gasoline.
Use a soft cloth dampened with a mild soap and water mixture to wipe
Trimmer pole, housing, and cutter blades clean. Do not spray or pour water
directly onto Trimmer.
Once the Trimmer is cleaned, apply a high coat of oil to the cutter blades to
prevent rust and provide lubrication.
MAINTENANCE AND STORAGE OF TRIMMER
1. Maintain Trimmer With Care
• Keep cutting edge sharp and clean for best performance and to
reduce the risk of injury.
• Periodically apply a light coat of oil to the cutter blades for
lubrication.
• Inspect Trimmer cord periodically, and if damaged, have it repaired by
an authorized service facility.
• Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean, and free from oil and grease.
1. Check Damaged Parts
• If a part is damaged, carefully check the damaged part before using
the Trimmer. Make sure the part will operate properly and perform its
intended function. If necessary, please contact the place of purchase
to request a replacement part. There may be a charge.
• Check for alignment of moving parts, binding of moving parts,
breakage of parts, mounting, and any other condition that may affect
its operation.
2. When not in use, store your trimmer :
In a dry location;
• Out of the reach of children.
• Away from chemicals and petrol.
GUARANTEE:
This product is designed for domestic use only and guaranteed as
such against faulty workmanship for a period of 12 months from date
of purchase.
Your statutory rights remain unaffected.
PACKAGING DISPOSAL:
• Dispose of the packaging at your local recycling centre.
• Dispose of paper and carton separately from plastic bags at your local
recycling centre.
• Dispose of the item at the end of its lifespan at your local authorised
household waste recycling centre.
