Coopers of Stortford 9081 User manual

2-in-1 Extendable Reac Petrol C ainsaw
and Hedge Trimmer 9081 Instructions
WARNING Before using our product please
read carefully to understand the proper use of your unit.

2
Contents
Parts location 3
Specifications 4
Exploded diagrams 5 - 8
Warning labels on the machine 9
Symbols on the machine 9
Warnings for safe operation 10 - 14

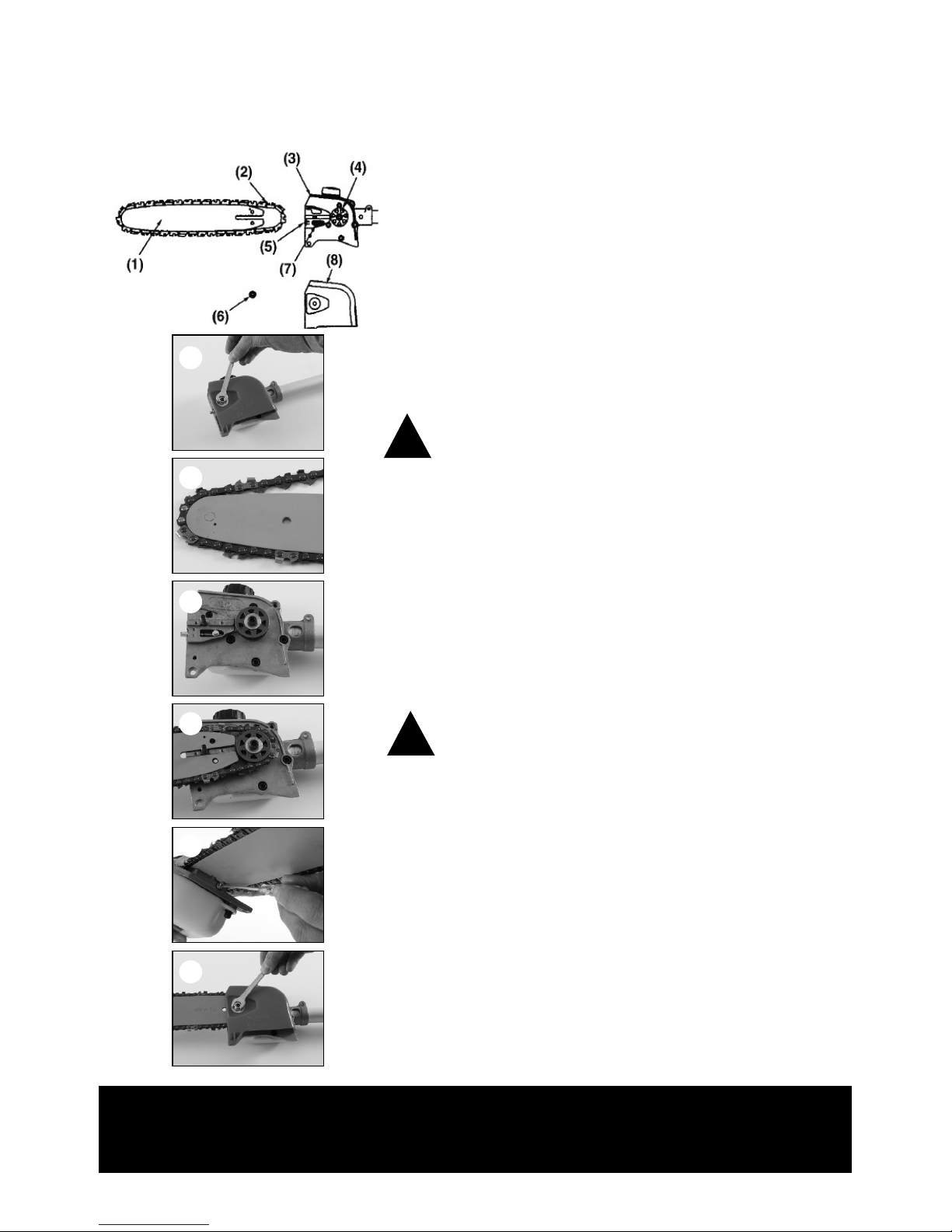

Assembling hedge trimmer and chainsaw 15 - 16
Fuel 17
Operation 18 - 25
Maintenance 26 - 32
Storage and transportation 32
Cleaning and maitenance before storage 33
Troubleshooting guide 34
Packaging Disposal 35
EC Declaration of Conformity 35
Warning
This mark indicates instructions which must be
followed in order to prevent accidents which could lead
to serious bodily injury or death.
Important
This mark indicates instructions which must be
followed, in order to prevent mechanical failure,
breakdown, or damage.
Note
This mark indicates hints or directions useful in
the use of the product.
!
!
SAFETY
FIRST
warnings contained wit in
t ese instructions marked
wit a symbol concern
critical points w ic must
be taken into consideration
to prevent possible serious
bodily injury, and for t is
reason you are requested
to read all suc
instructions carefully and
follow t em wit out fail.
!
!
WARNING SYMBOLS

3
Parts ocation
1. Fuel cap
2. Recoil starter
3. Primer bulb
4. Air filter cover
5. Control handle
6. Ignition switch
7. Throttle trigger
8. Fuel tank
9. Spark plug cover
10. Choke lever
11. Ignition cable
12. Throttle cable
13. Engine
14. Muffler/Exhaust
15. Shoulder strap
16. Safety lever
17. Drive shaft housing
18. Quick fit connector
19. Hedge trimmer blade
20. Hedge trimmer gear case
21. Chainsaw cover
22. Chainsaw guide bar
23. Chainsaw chain
24. Chainsaw chain/guide bar safety cover
25. Fuel mixing bottle
26. Spark plug socket spanner
27. Chainsaw file
28. Spanner (8mm/10mm)
29. 4mm Allen key
30. 5mm Allen key
31. Cable tie
32. Control handle bolts
33. Screwdriver
34. Optional extension pole
35. Chainsaw oil tank
36. Chainsaw drive shaft
37. Hedge trimmer drive shaft
38. Air Cooling vent
18175 6 1613149
2
38
18
1
2
3
4
10
11
12
8
20
21
35
22
23
30
32
24
7
37
36
25 15 26
33 29
27 28 31
19
34

4
Engine type Air Cooled 2-stroke petrol
Displacement 32.5cc
Max. output 1.27Hp (0.95kW) at 7000/min-1 (rpm)
Idle speed 3000+-200/min-1 (rpm)
Fuel Mixture (Petrol 25: Oil 1)
Carburetor Diaphragm type
Spark plug L7T
Fuel tank capacity 0.85L
Sound pressure level 108dB(A)
Sound power level 114dB(A)
Vibration tool value 10.1m/s2
Hedge Trimmer attachment on y
Overall size (LxWxH) 1345mm x110mm x90mm
Dry weight with engine 8.5kg
Transmission Centrifugal clutch, star driveshaft
Reduction ratio 4.0
Cutting head:
Type Reciprocating double blade
Tooth 26 teeth
Pitch 30
Effective cut width 16in (40cm)
Angle adjust range 135º
Max. branch size 10mm
Oil to lubricate blades Any oil
Chainsaw attachment on y
Overall size (LxWxH) 1150 x70 x115mm
Dry weight with engine 7.9kg
Transmission Centrifugal clutch, star driveshaft
Reduction ratio 0.94
Cutting head/Guide bar:
Type Yy12
Size and usable
cutting length 30cm (12in)
Saw chain:
Type Oregon 91V 044X
Pitch x guage 9.53 x1.07mm (3/8 x0.042in)
Sprocket 7T
Oil pump Plunger type
Max. branch size 30cm
max. chain speed 24.4m/s2
Oil to lubricate chain Saw chain oil - any brand
Specifications
Specifications are subject to change without notice.

1. Coupling Assy. 2. Clutch drum 3. Inner jump ring,Φ35 4. Bearing,6202RS 5. Clutch drum housing 6. Outer jump ring,Φ16 7. Anti-vibration rubber 8. Inner jump ring,Φ45 9. Connecting part 10. Bolt,M5 x 12(hex) 11. Bolt,M6 x 25(hex) 12. Tapping screw,ST4.2x8 13. Fish pattern switch
14. Sponge protector
15. Sleeve bearing（Φ8xΦ23.5x20）
16. Driving shaft（9 teeth Φ8*762）
17. Bolt,M5 x 30(hex)
18. Handle-B type
19. Fixing plate, handle 20. Nut, M5 21. Split connector Assy.
22. Outer jump ring,Φ12
23. Bearing,6000RS 24. Drive sleeve 25. Connector housing
26. Bolt,M5 x 20(hex)
27. Bolt,M5 x 20(hex)
28. Locking screw, M6
29. Plain cushion,M6X18
30. Spacer, Φ6X1X21
31. Spring 32. Torsion-spring
33. Nut,M6 34. Push-button
35. Pressing plate
36. Bolt,M5 x 12(hex)
37. Aluminium tube（Φ26x1.5x750）
5
Exp oded diagrams
IGNITION

1. Aluminium tube,Φ26x1.5x750 2. 9 teeth shaft,Φ8*762 3. Sleeve bearing（Φ8xΦ23.5x20） A Up-cover gear box assy 4. Inner jump ring,Φ26 5. Outer jump ring,Φ10 6. Bearing,6000-2RS 7. Taper gear 8. Bolt,M5x25(hex) 9. rease fitting,M6 10. Oil tank cap 11. Oil tank 12. The semicircle head bolts combination,M5x12
13. Out-cover gear box
14. Bearing,6000ZZ 15. Oil pipe 16. Fuel pump 17. Spring washer,M4
18. Bolt,M4x10(hex) 19. Copy slip nut,M6
20. Protective cover B Down-cover gear box assy
21. Bolt,M6x16(hex) 22. Flat gasket,Φ6xΦ18x11 23. Chain wheel 24. asket, chain wheel
25. 10inch blade (Chinese brand)
26. 10inch Chain (Chinese brand)
27. Bolt,M5x12(hex) 28. Down-cover gear box assy
29. Tight melt 30. Outer jump ring
31. Tension adjustment screws
32. Flat gasket,Φ6xΦ18x11
33. Spring washer,M4
34. Bolt,M6x30hex) 35. Bearing,6000ZZ 36. Nylon wheel 37. ear shaft）

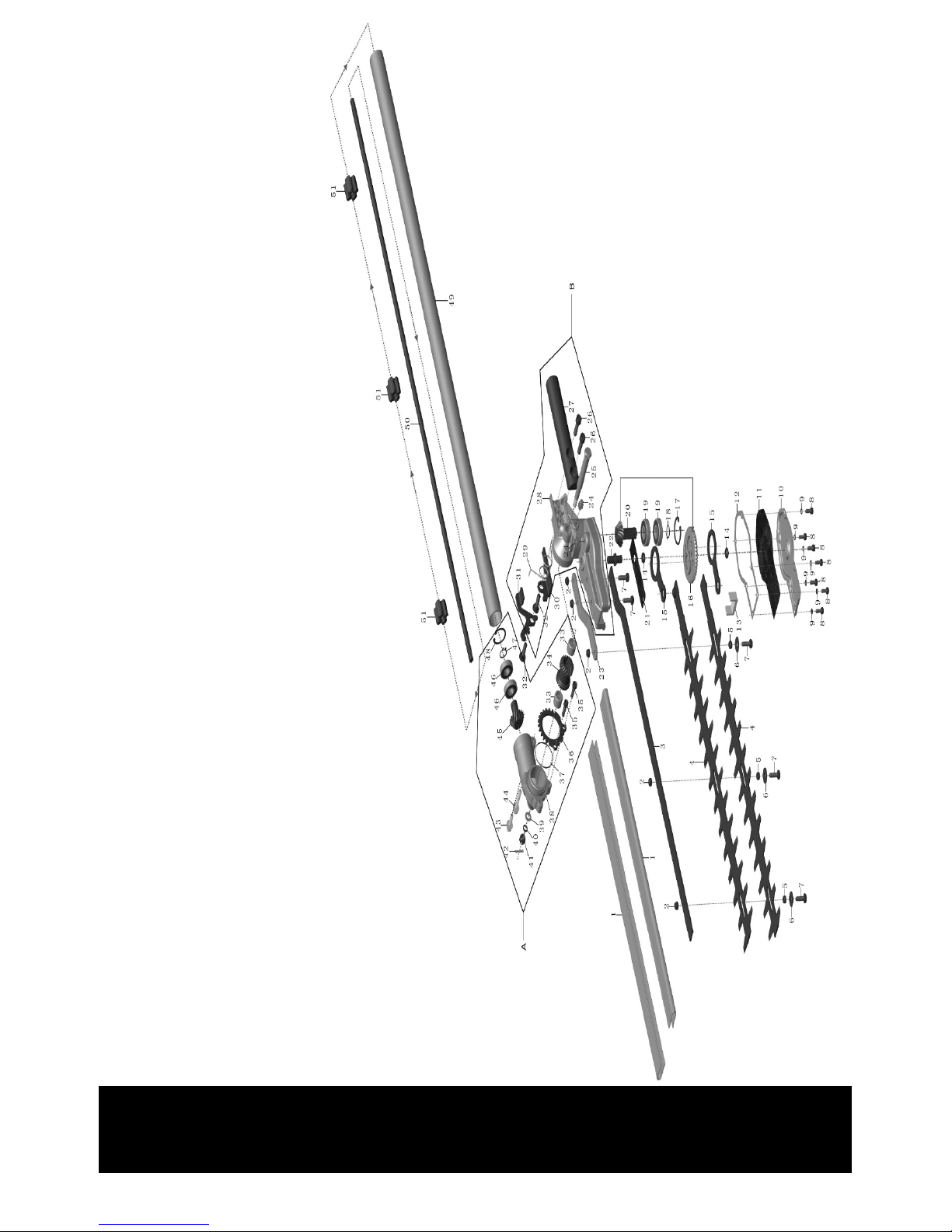

6
Exp oded diagrams
CHAINSAW

1. Blade protecting bush 2. locknut,M5 3. Blades fixed board 4. Blade 5. Spacer bush,Φ6.5xΦ8x21 6. Spring,Φ0.5xΦ6x13 7. Outer Bolt,M5x16(hex) 8. Bolt,M5x10(hex) 9. Spring washer,M4 10. ear box aluminum cover 11. rinding slice,(Big)
12. ear box washer
13. Wool felt 14. Spacer bush,Φ8xΦ44x4 15. Connecting rod
16. ear 17. Inner jump ring,Φ26
18. Outer jump ring,Φ10
19. Bearing,6001-2RS 20. Taper gear shaft
21. rinding slice,（Small） 22. ear shaft
23. Blade connection board
B Right gear box assy
24. rease fitting,M6 25. Outer Bolt,M6x80(hex) 26. Bolt,M6x18(hex) 27. Plastic handle
28. Right ear box aluminum cover
29. Torsional spring
30. Down adjust tab
31. Up adjust tab
32. Bolt,M6x16(hex)
A Left gear box assy 33. Needle roller
bearing,Φ10xΦ12x12
34. ear box 35. Bolt,M5x14(hex) 36. Adjusting gear
37. Seal ring,Φ32 38. Left ear box aluminum cover
39. Spring washer,Φ6
40. Flat gasket,Φ6xΦ12x1 41. Locknut screw, M6
42. Pin 43. Bolt,M5x16(hex) 44. Bolt,M5x16(hex) 45. Taper gear shaft 46. Bearing,6000-2RS
47. Outer jump ring,Φ10
48. Inner jump ring,Φ26 49. Aluminium tube,Φ26x1.5x750
50. 9 teeth shaft,Φ8*762 51. Oil bearing,Φ8xΦ23.5x20
7
Exp oded diagrams
HEDGE TRIMMER

1. Bolt, M5 x 25(hex) 2. Bracket, fuel tank 3. Pull start 4. asket, pull start 5. Center Plate(2 claw) 6. Nut, M8 7. Oil seal,Φ12xΦ22x7
8. Crank case,rear 9. Bolt,M5 x 25(hex)
10. Fuel tank 11. Cap,fuel tank 12. Bearing, P6/6201 13. asket,crank case
14. Crankshaft 15. Semi key, 3 x 13 16. Crank case,front
17. Ignition coil 18. Bolt,M5 x 20(hex)
19. Bolt,M5 x 30(hex)
20. Fly wheel 21. Flange nut, M8 22. Plain cushion,M8 x 16
23. Clutch 24. Wave pattern gasket,M10 x
16 25. Bolt, M8 x 24, clutch 26. Protection,fuel tank
27. Bolt,M5 x 25(cross)
28. Cover, fly wheel
29. Bolt,M5 x 20(cross)
30. Needle bearing,Φ9x12x12
31. Clip,piston pin 32. Piston 33. Piston pin
34. Piston ring
35. asket, cylinder
36. Bolt, M5 x 12(hex) 37. asket,muffler 38. Muffler
39. Plain cushion,Φ6
40. Spring lock cushion,Φ6 41. Bolt,M6 x 55(hex) 42. Bolt,M5 x 16(cross) 43. Plastic cover,muffler
44. Bolt,M5 x 20(cross)
45. Cylinder 46. Spark plug （BM6A)
47. Bolt,M5 x 20(hex)
48. Plastic cover, cylinder 49. Top,plastic cover 50. Bolt,M5 x 20(hex)
51. asket, intake manifold 52. Intake manifold 53. Bolt,M5 x 25(hex)
54. asket, carburetor 55. Carburetor 56. Bolt,M5 x 55(hex)
57. Air filter assy.
8
Exp oded diagrams
ENGINE

9
Warning abe s on the machine
Symbo s on the machine
For safe operation and maintenance, symbols are carved in relief on t e mac ine.
According to t ese indications, please be careful not to make any mistake.
Warning
!
Important
!
1) Read instructions before operating this
machine.
(2) Wear head, eye and ear protection.
(3) Warning/Attention
(4) Keep all children, bystanders and helpers
15 metres away from the machine.
If the warning label peels off or becomes soiled and
impossible to read, you should contact the dealer
from which you purchased the product to order new
labels and affix them in the required location(s).
The port to refuel the “petrol/oil mix”.
Position: Air cleaner cover
Turn the rod with a screwdriver in the direction of the arrow to the “MAX” position, the chain
oil flow will increase and decrease if you turn to the “min” position.
Position: situated beneath the chainsaw cover and next to chainsaw oil tank.
Never modify your machine.

10
• Chainsaws and hedge trimmers are potentially
dangerous tools. Professional training is
recommended before first use.
• If you are not familiar with chainsaws and their
use, it is recommended that you obtain further
more detailed instructions and information
regarding chain-sawing in addition to reading
these instructions fully. We also recommend that
inexperienced chainsaw users practice cutting
logs on a saw-horse or log cradle before
attempting to prune a tree.
• Keep work area clean.
• Do OT start cutting until you have a clear work
area, secure footing and a planned, clear escape
path from the falling tree or limb.
• Use extreme caution when cutting small size
brush and saplings because the slender material
may catch the saw chain and be whipped toward
you or pull you off balance.
• Do OT operate a chainsaw at height in a tree
or on a ladder unless specifically trained to do so.
• When cutting a limb that is under tension, be
alert for spring back so that you will not be
struck when the tension in the wood fibres is
released.
• Do OT expose the unit to rain.
• Do OT use the unit in damp or wet conditions.
• Do OT use the unit in presence of flammable
liquids or gases.
• Keep children, bystanders and pets away from
the work area.
• When not in use, item should be stored in a dry,
secure location – well out of the reach of
children.
• Always fit the chain guard when not in use.
• Never force the chainsaw or hedge trimmer - it will do
the job better and safer when used correctly.
• Do OT use for cutting plastic, masonry, non-wood
building materials.
• Do OT use the unit for any use other than those
described in these instructions.
• Make sure you are suitably dressed with correct
standard Personal Protective Equipment.
• Do OT wear loose clothing or jewellery that can get
caught in moving parts. Heavy duty gloves and sturdy
non-slip work boots are recommended when working
outdoors.
• Wear a hairnet to contain long hair which can get
caught in moving parts.
• Always wear suitable head, ear and eye protection.
• Carry with the engine stopped, your finger off the
trigger and the guide bar and saw chain or hedge
trimmer to your rear.
• Periodically inspect chainsaw for damage. Do OT use
if damaged in any way.
• Always clean after use and replace worn parts when
performance becomes reduced.
• Do OT smoke while handling fuel or while operating
the item.
• Follow instructions for lubricating and changing
accessories.
• Keep handles dry, clean and free from oil and grease.
• Turn off the unit when not in use, before servicing or
cleaning, and when changing accessories and
attachments.
• Stay alert, watch what you are doing. Always use
common sense.
Warnings for safe operation
!

11
• Do OT operate when you are tired, ill or under
the influence of alcohol or drugs.
• Using this unit can be strenuous. Remember to take
regular breaks. Tiredness may result in loss of
control.
• Keep all parts of the body away from the chain or
hedge trimmer blades when switched on.
• Before you start the saw, make sure the saw chain
is not in contact with anything.
• Always check for damaged parts before first and
every use or if the unit is dropped. Do OT use if
any part is damaged in any way. Check for
alignment of moving parts, binding of moving
parts, breakage of parts, mounting and any other
conditions that may affect operation. Any part that
is damaged should be properly repaired or replaced
by an authorised service centre unless otherwise
indicated elsewhere in these instructions.
• Regularly check that all the fixings are secure as
vibrations in use may cause them to loosen over
time.
• When servicing, use only identical replacement
parts.
• Do OT use the unit if the switch does not turn it
on and off.
• Do OT operate a chainsaw that is damaged,
improperly adjusted, or is not completely and
securely assembled. Be sure that the saw chain
stops moving when the trigger is released before
using to cut wood.
• uard against kickback.
• Only use replacement parts specified by the
manufacturer or the equivalent.
• For outdoor domestic use only.
Warnings for safe operation
!
RESIDUAL RISKS
Despite the above warnings and due to the nature of
the product, there remains a residual risk, which
cannot be prevented when using this unit. The
following potential hazards might apply:
• Contact with exposed saw teeth of the saw chain or
hedge trimmer blades (cutting hazards).
• Access to the rotating saw chain or hedge trimmer
blades (cutting hazards).
• Unforeseen, abrupt movement of the guide bar or
hedge trimmer blades (cutting hazards.)
• Parts flung out from the saw chain or hedge trimmer
blades (cutting/injection hazards).
• Wood splinter ejection.
• Inhalation of wood particles and dust - there may
be health risks caused by breathing in dust,
especially dust generated from sawing oak, beech
and MDF.
• Skin contact with the lubricating oil.
• Loss of hearing, if ear protection is not worn.
I TE DED/U I TE DED USE
When using the unit, the user must arrange to use
personal protective equipment according to the
instructions. Parts of the intended use are detailed in
the instructions safety warnings and references for use
by those who work with the chain saw or maintain it,
therefore the user must be familiar with the
instructions. Only use original or approved spare parts
(e.g. guide bar; saw chain).

12
Warnings for safe operation
!
Vibration Warning!
Prolonged use of chainsaws or hedge trimmers or any
other machine that vibrates in use, may produce a
medical condition called “white finger disease”,
“Raynaud’s phenomenon”, or “carpal tunnel
syndrome”. These conditions can cause numbness,
burning sensations and circulation damage, and may
reduce the hand’s ability to feel and regulate
temperature.
The factors that contribute to these conditions are
not fully known, but high vibrations may be a cause.
Users should take precautions to minimise the risks
which include:
• Wear gloves
• Keep hands warm
• Take breaks from prolonged use
• Keep the chain saw sharp so that it operates as
smoothly as possible
• Maintain a firm grip but do not squeeze too tight
and for too long at any one time. Continual and
regular users should monitor their hands and
fingers and if any symptoms occur, or if you are
worried at any time, cease use and consult your
medical practitioner for further advice.
Warning! Restriction of use.
Please check with your local authority before using a
chainsaw as there may be regulations in force that
restrict their use e.g. in times of drought.
Warning! Hearing protection.
It is recommended that safety ear/hearing protection
is worn at all times when operating this unit. Engine
noise may damage your hearing. Regular users should
have frequent hearing tests with their medical
practitioner. The hearing protection should be suitable
for defending hearing for the following levels:
Sound pressure level according to ISO22868
LPA:108dB(A).
Sound power level according to ISO22868 LWA:
<114dB
Inhalation Warning!
Using the unit may generate dust, mist and fumes
containing chemicals that could be harmful to the
user. Dust alone may also be harmful and should not
be inhaled. Never use the unit to cut anything that is
known to contain a harmful substance such as
asbestos. Always operate the unit in a well-ventilated
location, preferably outdoors. Remember that the fuel
and oil used to power and lubricate this machine will
give off harmful fumes in use, and when filling –
always ensure there is sufficient ventilation as soon as
you start the engine. A dust mask or breathing
apparatus is recommended safety equipment, and
anyone with a respiratory or other breathing medical
condition is advised to consult their medical
practitioner before using the chainsaw.

13
!Warnings for safe operation
BEFORE STARTI G THE E GI E
1. The area within a perimeter of 50ft (15m) of the person using the
product should be considered a hazardous area into which no one
should enter. If necessary yellow warning rope or warning signs
should be placed around the perimeter of the area. When work is
to be performed simultaneously by two or more persons, care
should also be taken to constantly look around or otherwise check
for the presence and locations of other people working so as to
maintain a distance between each person sufficient to ensure
safety.
2. Check the condition of working area to avoid any accident by
hitting hidden obstacles such as stumps, stones, cans, or broken
glass. Remove any obstacle before beginning work.
IMPORTA T
Remove obstacles before starting work.
3. Inspect the entire unit for loose fasteners and fuel leakage. Make
sure that the cutting attachment is properly installed and securely
fastened.
4. Always use the shoulder strap. Adjust the strap for comfort before
starting the engine. The strap should be adjusted so the left hand
can comfortably hold the handlebar grip approximately waist
high.
STARTI G THE E GI E
1. Keep bystanders and animals at least 50ft (15m) away from the
operating point. If you are approached, immediately stop the
engine.
!

14
!Warnings for safe operation
USI G THE PRODUCT
IMPORTA T
Cut only materials recommended by the
manufacture, and use only for tasks explained in the
manual.
1. rip the handles firmly with both hands using your
whole hand. Place your feet slightly apart (slightly
further apart than the width of your shoulders) so that
your weight is distributed evenly across both legs, and
always be sure to maintain a steady, even posture
while working.
2. Maintain the speed of the engine at the level required
to perform cutting work, and never raise the speed of
the engine above the level necessary.
3. If the unit starts to shake or vibrate, turn off the
engine and check the whole unit. Do not use it until
the trouble has been properly corrected.
4. Keep all parts of your body away from rotating cutting
attachment and hot surfaces.
5. Never touch the muffler, spark plug, or other metallic
parts of the engine while the engine is in operation or
immediately after shutting down the engine. Doing so
could result in serious burns or electrical shock.
!

15
Assemb ing the hedge trimmer and chainsaw
OPTIO AL EXTE SIO POLE/CHAI SAW HEDGE TRIMMER ATTACHME TS
1. Insert the optional extension pole, chainsaw or hedge trimmer attachment into
to the main drive shaft and tighten the quick fit connector securely.
(a) Quick fit connector
(b) Positioning hole
(c) Split connector
IMPORTA T
Align the positioning hole into split connector by locking it. When difficult to
engage, twist the shaft housing slightly.
CO TROL HA DLE
1. Place the lower and upper parts of the handle around the rubber sleeve on the
drive shaft.
2. Using the 4 control handle bolts supplied (32) secure in place and tighten using
the 4mm Allen key.
(a)
(b) (c)

Assemb ing the hedge trimmer and chainsaw
16
WAR I G
The chain has very sharp edges. Use protective gloves
for safety.
1. Remove the nut using the 10mm spanner on the chain
cover (A).
2. Place the chain around the guide bar (B) and mount
guide bar on the mounting plate (C) whilst feeding the
chain around the sprocket (D).
3. Pay attention to the direction of the chain as shown on
the chain cover (E).
4. Turn the tension screw clockwise to tighten the tension in
the chain.
5. Replace the chain cover and tighten the nut (F).
WAR I G
It is very important to maintain the proper chain
tension. Rapid wear of the guide bar or the chain coming off
easily can be caused by improper tension. Especially when
using a new chain, take care as it will expand when first
used. Check and adjust the tension frequently.
!
!
CHAI SAW PARTS LOCATIO
(1) uide bar
(2) Saw chain
(3) ear case
(4) Sprocket
(5) Chain tension adjust screw
(6) Nut
(7) Chain tensioner nut
(8) Chain cover
Install the guide bar and the saw chain on the gear case as follows.
A
B
C
D
E
F

17
Fue
FUEL
• Petrol is flammable.
• Always turn off the engine and
allow to cool fully before
refuelling.
• Mix regular unleaded petrol and a
quality 2-stroke motor oil for air-
cooled engines at a ratio of 25:1.
• Do not use 4-stroke oil.
• Do not mix fuel and oil in the
petrol tank of the unit. Always use
the mixing bottle supplied, secure
the lid and shake to mix.
• Keep naked flames away from
where petrol is stored or handled.
• Do not use petrol/oil mix more
than 1 month old.
• Always use caution when handling
fuel. Wipe up all spills and then
move the unit at least 3m from
the fueling point before starting
the engine.
• Eliminate all sources of sparks or
flame (i.e. smoking, open flames,
or work that can cause sparks) in
the areas where fuel is mixed,
poured or stored.
ote
Do not use old or regenerated oil
that can cause damage to the oil
pump.
Use caution
w en andling
fuel
Keep your
distance from
fuel point w en
using c ainsaw
Keep fuel away
from naked
flame
HOW TO MIX FUEL
1. Measure out the quantities of petrol
and oil to be mixed.
2. Put some of the petrol into the clean,
approved fuel container supplied.
3. Pour in the oil and agitate well.
4. Be careful that, if the agitation is
insufficient, there is an increased
danger of early piston seizing due to
abnormally lean mixture.
FUELI G THE U IT
1. Untwist and remove the fuel cap. Rest
the cap on a dustless place.
2. Pour fuel into the fuel tank to 80% of
the full capacity.
3. Fasten the fuel cap securely and wipe
up any fuel spillage around the unit.
WAR I G
1. Select bare ground for fueling.
2. Move at least 10ft (3m) away from the
fueling point before starting the
engine.
3. Stop the engine before refueling the
unit. At that time, be sure to sufficiently
agitate the mixed petrol in the
container.
4. In the case of storing the product for a
long period of time, clean the fuel tank
after rendering it empty. Next, activate
the engine and empty the carburetor of
the composite fuel.
!

18
Operation
1. Rest the unit on a flat, firm surface (A) - keep the
cutting head off the ground and clear of any
surrounding objects. Stand clear of the cutting
head.
2. Pour the mixed fuel into the fuel tank (as per fuel
mixing instructions) and tighten fuel cap securely.
Push the primer valve 8 to 10 times until the
petrol/oil mixture flows in and out of the discharge
hose located above the fuel tank (B & C).
A
B
C

Operation
19
3. Move the choke lever to the ‘START’ position (D)
(cold start) please note, if the engine is already
warm this is not required.
4. Press the ignition switch to the ‘ON’ position (E).
5. Hold down the throttle trigger with one hand and
with the other hand firmly pull the recoil starter to
start the engine. Please note, it may be required to
pull the recoil starter 3 to 4 times to successfully
start the engine. Any more attempts may flood the
engine (F).
6. Allow the engine to run idle for up to a minute to
let it warm up before use.
7. To engage the chainsaw/hedge trimmer
attachment squeeze the safety lever and press the
throttle trigger.
D
E
O OFF
F

20
OTE
1. When restarting the engine immediately after stopping it, leave the
choke open.
2. Overchoking can make the engine hard to start due to excess fuel. If
the engine fails to start after several attempts, open the choke and
repeat pulling the recoil starter cable, or remove the spark plug and
dry it.
STOPPI G THE E GI E
1. Press the ignition switch to the OFF position.
ADJUSTI G IDLI G SPEED
1. When the engine tends to stop frequently at idling mode or the
engine works but the blades or saw fail to work, turn the adjusting
screw clockwise a quarter turn and repeat if necessary. Do this on a
warm engine.
2. When the cutting head keeps rotating after releasing the trigger, turn
the adjusting screw anti-clockwise.
(A) Idle adjusting screw
OTE
Warm up the engine before adjusting the idling speed.
TROUBLESHOOTI G - starting the engine
If the choke is left in the ‘START’ position continuously it will prevent
the engine from starting because there is too much fuel for the air
being provided (the choke control reduces the air provided being burnt
with the fuel).
On warm days, a 2-stroke engine does not need to be choked very
much. The cooler it is, the longer you will need to leave the choke on.
Pull the recoil starter cable 3 to 4 times to start the engine, this should
provide a sufficient fuel/air mixture to the cylinder head. When the
engine starts, put the choke lever back to the ‘RUN’ position after a
minute, and let the engine warm up. If it starts to splutter, put the
choke back to the ‘START’ position for a minute or two. If it doesn’t
start, put the choke lever back to the ‘RUN’ position (yes, even if the
engine does not start). Continue to pull the recoil starter cable 3 to 4
more times. Then apply the choke and try to start. If it still does not
start remove the spark plug clean/dry, replace and start again.
Operation
A
