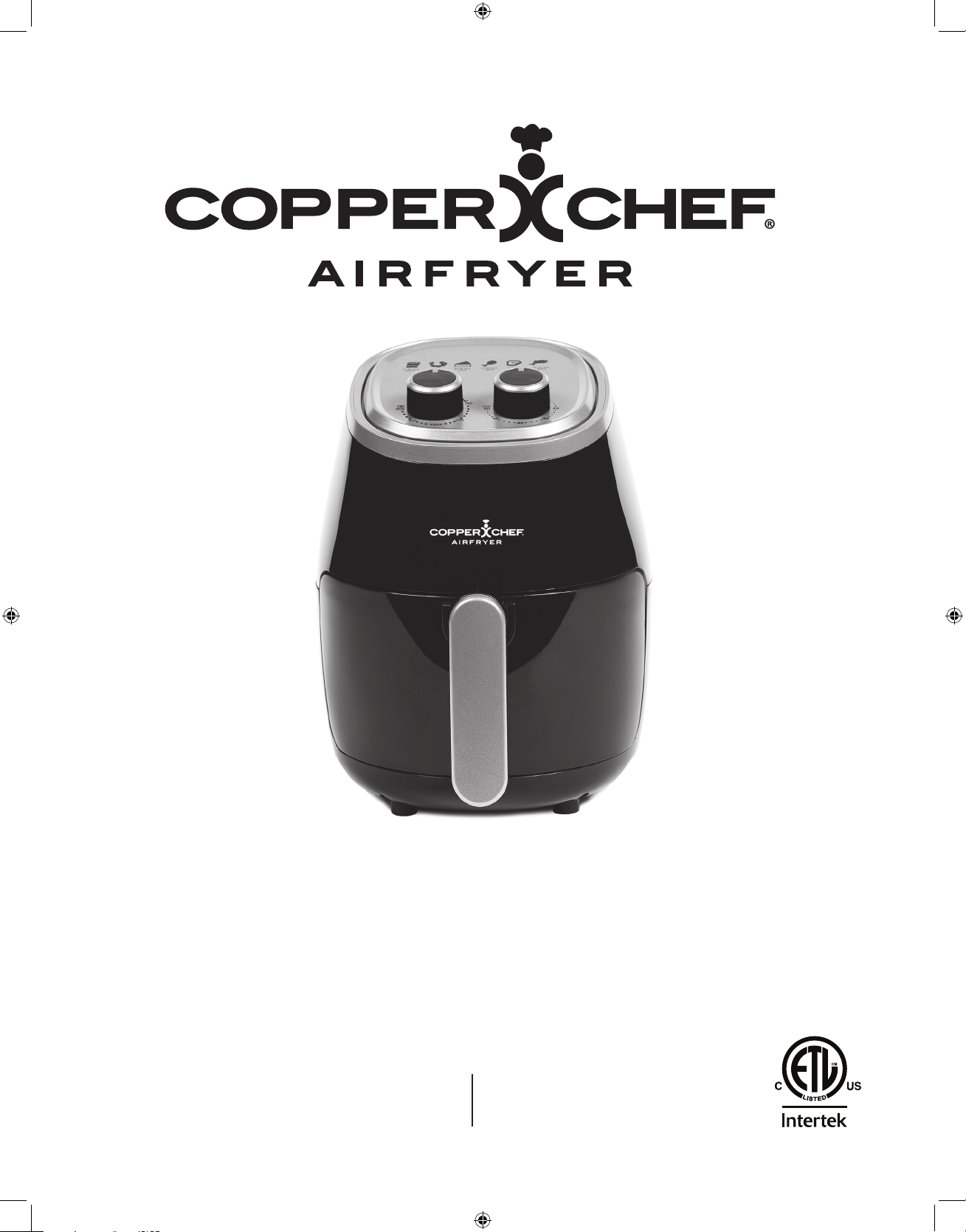

Copper Chef AF9103 User manual

Save These Instructions – For Household Use Only
Owner’s Manual
MODEL: AF9103 POWER: 120V, 60Hz WATTAGE: 1,000W
When using electrical appliances, basic safety precautions
should always be followed. Do not use the Copper Chef
AirFryer until you have read this manual thoroughly.
Visit TristarCares.com for tutorial
videos, product details, and more.
Guarantee Information Inside

2Copper Chef AirFryer | Model: AF9103
BEFORE YOU BEGIN
The Copper Chef AirFryer will provide you many
years of delicious family meals and memories
around the dinner table. But before you begin,
it's very important that you read this entire manual,
making certain that you are totally familiar
with this appliance's operation and precautions.
Copper Chef AirFryer

Copper Chef AirFryer | Model: AF9103 3
Important Safeguards 4
Parts & Accessories 6
Using the Control Panel 8
Instructions for Use 10
Cooking Chart 12
Troubleshooting 13
Frequently Asked Questions 14
60-Day Money-Back Guarantee 15
Table of Contents

4Copper Chef AirFryer | Model: AF9103
1. READ AND FOLLOW all instructions carefully.
2. NEVER immerse the Main Unit Housing, which
contains electrical components and heating
elements, in water. Do not rinse under the tap.
3. THIS APPLIANCE IS NOT INTENDED FOR
use by persons with reduced physical, sensory,
or mental capabilities or lack of experience and
knowledge unless they are under the supervision
of a responsible person or have been given proper
instruction in using the appliance. This appliance is
not intended for use by children.
4. TO AVOID ELECTRICAL SHOCK, do not put liquid
of any kind into the Main Unit Housing containing the
electrical components.
5. THIS APPLIANCE HAS A POLARIZED PLUG (one
blade is wider than the other). To reduce the risk
of electric shock, this plug is intended to t into a
polarized outlet only one way. If the plug does not t
fully into the outlet, reverse the plug. If it still does not
t, contact a qualied electrician. Do not attempt to
modify the plug in any way.
6. MAKE SURE the appliance is plugged into
a wall socket. Always make sure that the plug
is inserted into the wall socket properly.
7. DO NOT place the Unit on the stove top. Place on a
at, horizontal surface with adequate space for air ow.
Do not place walls, cabinets, other appliances, or any
other objects within 5 in. of the Unit.
8. PLEASE DO NOT place your Copper Chef AirFryer
on a hot cooktop because it could cause a re or
damage the Copper Chef AirFryer, your cooktop, and
your home.
9. Before using your new Copper Chef AirFryer on any
IMPORTANT SAFEGUARDS
countertop surface, check with your countertop
manufacturer or installer for recommendations
about using appliances on your surfaces. Some
manufacturers and installers may recommend
protecting your surface by placing a hot pad or trivet
under the Copper Chef AirFryer for heat protection.
Your manufacturer or installer may recommend that
hot pans, pots, or electrical appliances should not
be used directly on top of the countertop. If you are
unsure, place a trivet or hot pad under the Copper
Chef AirFryer before using it.
10. TO PREVENT food contact with the heating
elements, do not overll.
11. DO NOT cover the Air Intake Vent or Hot Air Outlet Vent
while the Copper Chef AirFryer is operating. Doing so
will prevent even cooking and may damage the Unit or
cause it to overheat.
12. NEVER pour oil into the Outer Basket. Fire and
personal injury could result.
13. WHILE COOKING, the internal temperature of the
Unit reaches several hundred degrees F. To avoid
personal injury, never place hands inside the Unit
unless it is thoroughly cooled down.
14. DO NOT use this Unit if the plug,
the power cord, or the appliance itself
is damaged in any way.
15. IF THE POWER CORD IS DAMAGED, you must
have it replaced by Tristar, its service agent, or a
similarly qualied person in order to avoid hazard.
16. KEEP the appliance and its power cord out of the
reach of children when it is in operation or in the
cooling down process.
17. KEEP the power cord away from hot surfaces. Do
not plug in the power cord or operate
the Unit controls with wet hands.
18. NEVER connect this appliance to an external timer
switch or separate remote-control system.
19. NEVER use this appliance with an extension cord of
any kind. A short power-supply cord (or detachable
power-supply cord) is provided to reduce the risk of
becoming entangled in or tripping over a longer cord.
WARNING
When using electrical appliances, always follow
these basic safety precautions.
PREVENT INJURIES! CAREFULLY READ
ALL INSTRUCTIONS BEFORE USE!

Copper Chef AirFryer | Model: AF9103 5
IMPORTANT SAFEGUARDS
20. DO NOT operate the appliance on or near
combustible materials, such as tablecloths, paper
towels, or curtains.
21. WHEN COOKING, do not place the appliance
against walls, cabinets, other appliances, or any other
objects. Leave at least 5 in. free space on the back
and sides and above the appliance. Do not place
anything on top of the appliance.
22. DO NOT USE the Copper Chef AirFryer for any
purpose other than described in this manual.
23. NEVER operate the appliance unattended.
24. WHEN IN OPERATION, hot steam is released
through the Hot Air Outlet Vent. Keep your hands and
face at a safe distance from the Hot Air Outlet Vent.
Also avoid the hot steam and air while removing the
Outer Basket and Fry Tray from the appliance.
25. THE UNIT’S OUTER SURFACES may become hot
during use.The Outer Basket and Fry Tray will be hot.
Wear oven mitts when handling hot components or
touching hot surfaces.
26. SHOULD THE UNIT EMIT BLACK SMOKE, unplug
immediately and wait for smoking to stop. Allow the
Unit to cool and wipe out excess oil and grease from
the Unit.
• Always operate the appliance on a horizontal surface
that is level, stable, and noncombustible.
• This appliance is intended for normal household
use only. It is not intended for use in commercial
or retail environments.
• If the Copper Chef AirFryer is used improperly or
for professional or semi-professional purposes or if it
is not used according to the instructions in the user
manual, the guarantee becomes invalid and Tristar
will not be held liable for damages.
• Always unplug the appliance after use.
• When the cooking time has completed, cooking will
stop and the fan will continue running for 10 secs. to
cool down the Unit.
• Let the appliance cool down for approximately
30 mins. before handling, cleaning, or storing.
• The Copper Chef AirFryer is equipped with an
internal microswitch that automatically shuts down
the fan and heating element when the Outer Basket
is removed.
CAUTION
Electric Power
The unit should be operated on a dedicated electrical
outlet. If the electrical outlet is being used by other
appliances, your new Unit may not operate properly.
Electromagnetic Fields
This appliance complies with all standards regarding
electromagnetic elds. If handled properly and
according to the instructions in this user manual, the
appliance is safe to use based on scientic evidence
available today.
Overheating Protection
Should the inner temperature control system fail,
the overheating protection system will be activated
and the Unit will not function. Should this happen,
unplug the Unit. Allow time for the Unit to cool
completely before restarting or storing.
Automatic Shutoff
The Unit has a built-in shutoff device that
will automatically shut off the Unit when the cooking
time has completed. You can manually switch off the
Unit by turning the Time Control Knob to 0. The fan
will continue running for 10secs. to cool down
the Unit.
SAVE THESE INSTRUCTIONS – FOR HOUSEHOLD USE ONLY
This product can expose you to Bisphenol A, which is known
to the State of California to cause birth defects or other
reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
For California Residents
WARNING:

6Copper Chef AirFryer | Model: AF9103
Parts & Accessories
1. FRY TRAY
2. OUTER BASKET
3. EASY-GRIP HANDLE
4. MAIN UNIT HOUSING
5. AIR INLET VENT
6. CONTROL PANEL
7. HOT AIR OUTLET VENT
8. POWER CABLE
6
4
5
7
8
NOTE: Unpack all listed contents
from the packaging. Contents vary
by model. Please remove any
clear or blue protective lm on
the components before use.
CAUTION: Unit may be hot. Be careful
not to touch the Unit while in use. Keep
the Unit away from other objects.
1
3
2

Copper Chef AirFryer | Model: AF9103 7
Parts & Accessories
TOP VIEW FRONT VIEW BACK VIEW
IMPORTANT: Please make sure that your Copper Chef AirFryer has been shipped with the components
that you ordered (some accessories may be sold separately). Check everything carefully before use.
If any part is missing or damaged, do not use this product. Contact Tristar using the customer service
number located on the back of this manual.

8Copper Chef AirFryer | Model: AF9103
Using The Control Panel
3
1
4
2

Copper Chef AirFryer | Model: AF9103 9
Using the Control Panel
1. Power Indicator Light
The red Power Indicator Light turns on once
the Unit is plugged in and stays on until you
unplug the Unit.
2. Operating Light
The green Operating Light turns on once you
turn the dial and turns off once the cooking
cycle is complete.
3. Time Control Knob
Use the Time Control Knob to set the
cooking time (0–60 min.). Setting the
cooking time will begin the cooking process.
4. Temperature Control Knob
Use the Temperature Control Knob to set the
cooking temperature (180° F–400° F).
Food Cook Times Temperature Time
French Fries 400° F (204° C) 15–20 mins.
Shrimp 330° F (166° C) 8–12 mins.
Cake 310° F (154° C) 20–30 mins.
Chicken 360° F (182° C) 20 –25 mins.
Steak 400° F (204° C) 8–12 mins.
Fish 350° F (177° C) 10–15 mins.
Cooking Chart
Once you are familiar
with the Unit, you may
want to experiment
with your own recipes.
Simply choose the time
and temperature that suits
your personal taste.

10 Copper Chef AirFryer | Model: AF9103
Instructions for Use
• Remove all the packaging material.
• Remove any stickers or labels from the Unit.
• Before initial use, wipe the inside and
outside of the Unit with a warm, moist cloth
and mild detergent. Handwash all cooking
accessories.
• Before cooking food, preheat the Copper
Chef AirFryer for a few minutes to allow the
Unit to burn off the protective coating of oil.
Wipe the Unit with warm, soapy water and a
washcloth after this burn-in cycle.
• Place the Unit on a stable, horizontal,
and level surface. Do not place the Unit
on a surface that is not heat resistant.
Ensure that the Unit is used in an area
with good air circulation and away from
hot surfaces and any combustible materials.
Do not place on the stove top.
• Place the Fry Tray in the Outer Basket. Slide
the Outer Basket into the Unit. If the Basket
is placed properly, it will click into place.
• The Copper Chef AirFryer cooks using hot
air. Do not fill the Outer Basket with oil or
frying fat.
• Do not put anything on top of the Unit.
This disrupts the airflow and affects the
cooking results.
1. Plug the Unit into a grounded wall socket.
The Red light will turn on.
2. Place the Fry Tray in the Outer Basket and
push down until the Fry Tray clicks into
place. Never use the Outer Basket without
the Fry Tray in place.
3. Place the ingredients in the basket. Never
ll the basket above the maximum ll line as
this could affect the quality of the end result
or interfere with the electric heating coils.
4. Insert the Outer Basket into the Unit. When
the Outer Basket and food is securely in
place, use the Temperature Control Knob to
set the cooking temperature.
5. Use the Time Control Knob to set the
cooking time.
6. The Operating Light will turn green and the
cooking process will automatically begin.
When the cooking process is complete, the
Unit will automatically shut off.
7. If the food is fully cooked, use tongs to
remove the food. If the food is not fully
cooked, simply slide the Outer Basket back
into the Unit and add a few minutes to the
cooking time.
CAUTION: When removing food,
DO NOT turn the Outer Basket upside
down because any excess oil that has
collected on the bottom of the basket will
leak onto the ingredients.
8. The Unit is instantly ready for preparing
more food.
Using the Copper Chef AirFryer
Before First Use

Copper Chef AirFryer | Model: AF9103 11
Instructions for Use
To ensure even cooking, some foods require
shaking during the cooking process.
CAUTION: The Outer Basket will be hot.
Wear an oven mitt during this procedure.
1. Remove the Outer Basket from the Unit.
2. Shake the ingredients in the Outer Basket.
3. Insert the Outer Basket into the Unit.
4. If the Outer Basket was removed from the
Unit for more than a few seconds, use the
Time Control Knob to add more time to the
cooking process (the cooking time continues
to count down while the Outer Basket is
removed from the Unit).
Shaking
Tips
• Foods that are smaller in size usually require a
slightly shorter cooking time than larger foods.
• Large quantities of food only require a longer
cooking time than smaller quantities.
• Shaking smaller-sized foods halfway through
the cooking process ensures that all the pieces
are fried evenly.
• Adding a bit of vegetable oil to fresh potatoes
is suggested for a crispier result. When adding
oil, do so just before cooking and add only a
small amount onto the potato.
• Snacks normally cooked in an oven can also
be cooked in the Copper Chef AirFryer.
• Use premade dough to prepare filled
snacks quickly and easily. Premade dough
also requires a shorter cooking time than
homemade dough.
• You can use the Copper Chef AirFryer to
reheat foods. Simply set the temperature and
time to however warm you want
your food.

12 Copper Chef AirFryer | Model: AF9103
Cooking Chart
FOOD ITEM QUANTITY SHAKE TEMP (°F) COOK TIME
Adjustable Range (Increments)
COMMENTS
Copper Chef AirFryer
THIN FROZEN FRIES 1¼ cups YES 400° 15–16 mins. (1 min.) -
THICK FROZEN FRIES 1¼ cups YES 400° 15–20 mins. (1 min.) -
HOMEMADE FRIES 1¼ cups YES 400° 10–16 mins. (1 min.) Add ½ tbsp. oil
HOMEMADE POTATO WEDGES 1¼ cups YES 360° 18–22 mins. (1 min.) Add ½ tbsp. oil
HASH BROWNS 1 cup YES 360° 15–18 mins. (1 min.) -
STEAK ¼–1.1 lb 360° 8–12 mins. (1 min.) -
PORK CHOPS ¼–1.1 lb 360° 10–14 mins. (1 min.) -
HAMBURGER ¼–1.1 lb 360° 7–14 mins. (1 min.) -
SAUSAGE ROLL ¼–1.1 lb 400° 13–15 mins. (1 min.) -
CHICKEN DRUMSTICK ¼–1.1 lb 360° 18–22 mins. (1 min.) -
CHICKEN BREAST ¼–1.1 lb 360° 10–15 mins. (1 min.) -
SPRING ROLLS ¼–¾ lb YES 400° 15–20 mins. (1 min.) Use oven-ready
FROZEN CHICKEN NUGGETS ¼–1.1 lb YES 400° 10–15 mins. (1 min.) Use oven-ready
FROZEN FISH STICKS ¼–1.1 lb 400° 6–10 mins. (1 min.) Use oven-ready
MOZZARELLA STICKS ¼–1.1 lb 360° 8–10 mins. (1 min.) Use oven-ready
CAKE 1 ¼ cups 320° 20–25 mins. (1 min.) Use baking tin
QUICHE 1 ½ cups 360° 20–22 mins. (1 min.) Use baking tin/oven dish
MUFFINS 1 ¼ cups 400° 15–18 mins. (1 min.) Use baking tin
SWEET SNACKS 1 ½ cups 320° 20 mins. (1 min.) Use baking tin/oven dish
Keep in mind that these settings are guidelines. Since ingredients differ in origin, size,
shape, and brand, we cannot guarantee the best settings for your ingredients.
NOTE

Copper Chef AirFryer | Model: AF9103 13
Troubleshooting
Symptom Possible Cause Solution
The Copper Chef AirFryer
does not work
The appliance is not plugged in. Plug the Power Cable into a wall socket.
The unit may not be turned on. Check to see that you
have set both the preparation time and temperature.
Set the cooking time and temperature.
The cooking process will begin once the
cooking time has been set.
You have probably turned off the Unit. If the Outer
Basket is removed during the cooking process, the
Auto-Shutoff mode will trigger.
Set the cooking time and temperature
and ensure that the Outer Basket is fully
inserted into the Unit.
Food is not cooked
The Outer Basket is overloaded. Use smaller batches for more even frying.
The temperature is set too low. Raise the temperature and continue
cooking.
Food is not fried evenly Some foods need to be shaken during
the cooking process. See Shaking in Instructions for Use, p. 11.
Outer Basket will not slide into Unit properly
The Outer Basket is overloaded. Do not ll the basket above the
Maximum line.
The Fry Tray is not placed in the
Outer Basket correctly.
Gently push the Fry Tray into the
Outer Basket until it clicks.
White smoke coming from Unit
Too much oil is being used. Wipe down to remove any excess oil.
The Outer Basket has grease residue from a
previous operation. Clean the Outer Basket after each use.
French fries are not fried evenly
Potato not prepped properly. Consult recipe for potato type &
preparation instructions
Fries are not cut evenly. Cut the fries thinner or reshape them.
Fries are too crowded. Spread fries out or cook smaller batch.
Potatoes not rinsed properly during preparation. Pat dry to remove excess starch.
Fries are not crispy Raw fries have too much water.
Dry potato sticks properly
before misting them with oil.
Cut sticks smaller.
Add a bit more oil.
Error
E1 - Broken circuit of the thermal sensor Call Customer Service at
1-973-287-5129
E2 - Short circuit of the thermal sensor

14 Copper Chef AirFryer | Model: AF9103
Frequently Asked Questions
1. Can I prepare foods other than fried dishes with my
Copper Chef AirFryer?
You can prepare a variety of dishes, including steaks,
chops, burgers, and baked goods. See the Copper Chef
AirFryer Recipe Guide.
2. Is the Copper Chef AirFryer good for making or
reheating soups and sauces?
Never cook or reheat liquids in the Copper Chef AirFryer.
3. Is it possible to shut off the Unit at any time?
Turn the Time Control Knob to 0 to shut off the Unit.
4. What do I do if the Unit shuts off while cooking?
As a safety feature, the Copper Chef AirFryer has
an Auto-Shutoff device that prevents damage from
overheating. Remove the Outer Basket and set it on a heat-
resistant surface. Allow the Unit to cool down. Remove the
Power Cable from the outlet. Once cool, plug the Power
Cable back into the socket. Restart by inserting the Outer
Basket into the Unit and setting the cooking time.
5. Does the Unit need time to heat up?
If you are cooking from a cold start, add 3 mins. to
the cooking time to compensate.
6. Can I check the food during the cooking process?
You can remove the Outer Basket at any time while
cooking is in progress. During this time, you can shake
the contents in the Outer Basket if needed to ensure
even cooking.
7. Is the Copper Chef AirFryer dishwasher safe?
Only the Fry Tray is dishwasher safe. The Unit itself, which
contains the heating coil and electronics, should never be
submerged in liquid of any kind or cleaned with anything
more than a warm, moist cloth or nonabrasive sponge with
a small amount of mild detergent.
8. What happens if the Unit still does not work after I have
tried all the troubleshooting suggestions?
Never attempt a home repair. Contact Tristar and follow
the procedures set forth by the guarantee. Failure to do so
could render your guarantee null and void.
Clean the Copper Chef AirFryer after each use. The Outer
Basket and the Fry Tray are coated with a special nonstick
surface. Never use abrasive cleaning materials or utensils on
these surfaces.
1. Remove the Power Cable from the wall socket
and be certain the appliance is thoroughly cooled before
cleaning.
2. Wipe the outside of the appliance with a warm, moist cloth
and mild detergent.
3. Clean the Outer Basket and the Fry Tray with hot water, a
mild detergent, and a nonabrasive sponge.
NOTE: The Fry Tray is dishwasher safe.
TIP: Should the Fry Tray contain difcult-to-remove food
particles, soak in hot, soapy water for 10 mins.
4. Clean the inside of the appliance with hot water, a mild
detergent, and a nonabrasive sponge.
5. If necessary, remove unwanted food residue from
the heating element with a soft cleaning brush.
1. Unplug the appliance and let it cool down thoroughly.
2. Make sure all components are clean and dry.
3. Place the appliance in a clean, dry place.
Cleaning
Storage

Copper Chef AirFryer | Model: AF9103 15
60-Day Money-Back Guarantee
If you decide that you don’t love this product, your order is covered by our 60-Day Money-
Back Guarantee. You have 60 days from the day you receive your product to request a
replacement product or refund of the purchase price minus processing and handling fees.
To receive a refund or replacement, you must return the product to us at your expense.
To return the product, call customer service at 1-973-287-5129 and request a return
merchandise authorization number. Pack the product carefully and include in the package a
note with (1) your name, (2) mailing address, (3) phone number, (4) email address, (5) reason
for return, and (6) proof of purchase or order number, and (7) specify on the note whether
you are requesting a refund or replacement. Write the return merchandise authorization
number on the outside of the package.
Send the product to the following return address:
Copper Chef AirFryer
Tristar Products
500 Returns Road
Wallingford, CT 06495

We are very proud of the design and quality of our
Copper Chef AirFryer.
This product has been manufactured to the highest standards.
Should you have any questions, our friendly customer service staff
is here to help you.
Call us at 1-973-287-5129 or visit us
at www.TristarCares.com
Distributed by:
Tristar Products, Inc.
Faireld, NJ 07004
© 2019 Tristar Products, Inc.
Made in China
CCAF_AF9103_2QT_IB_TP_ENG_V1_190325
